MaXpeedingrods Street Coilovers 24 Step Damper compatible for Lexus SC430 UZZ40R 2001-2010

Application

Compatible for Lexus SC430 UZZ40R 2001-2010

Specification

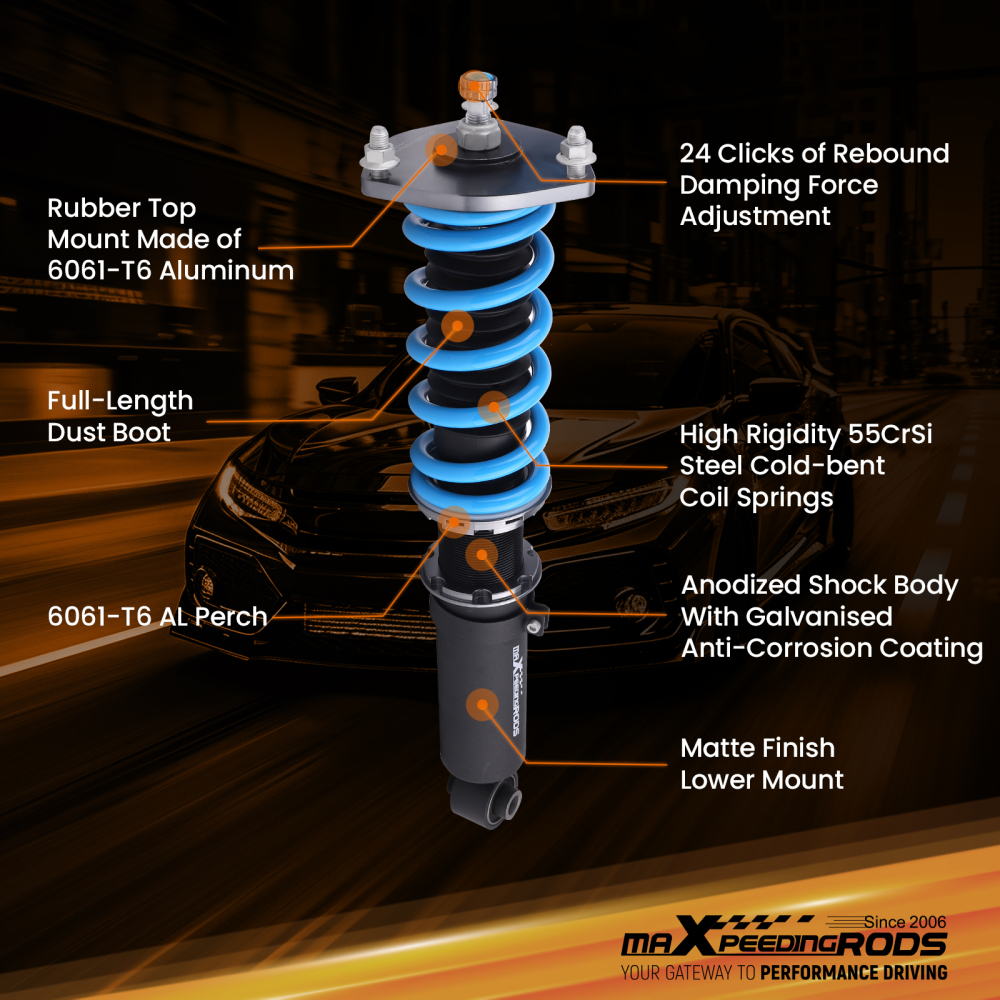

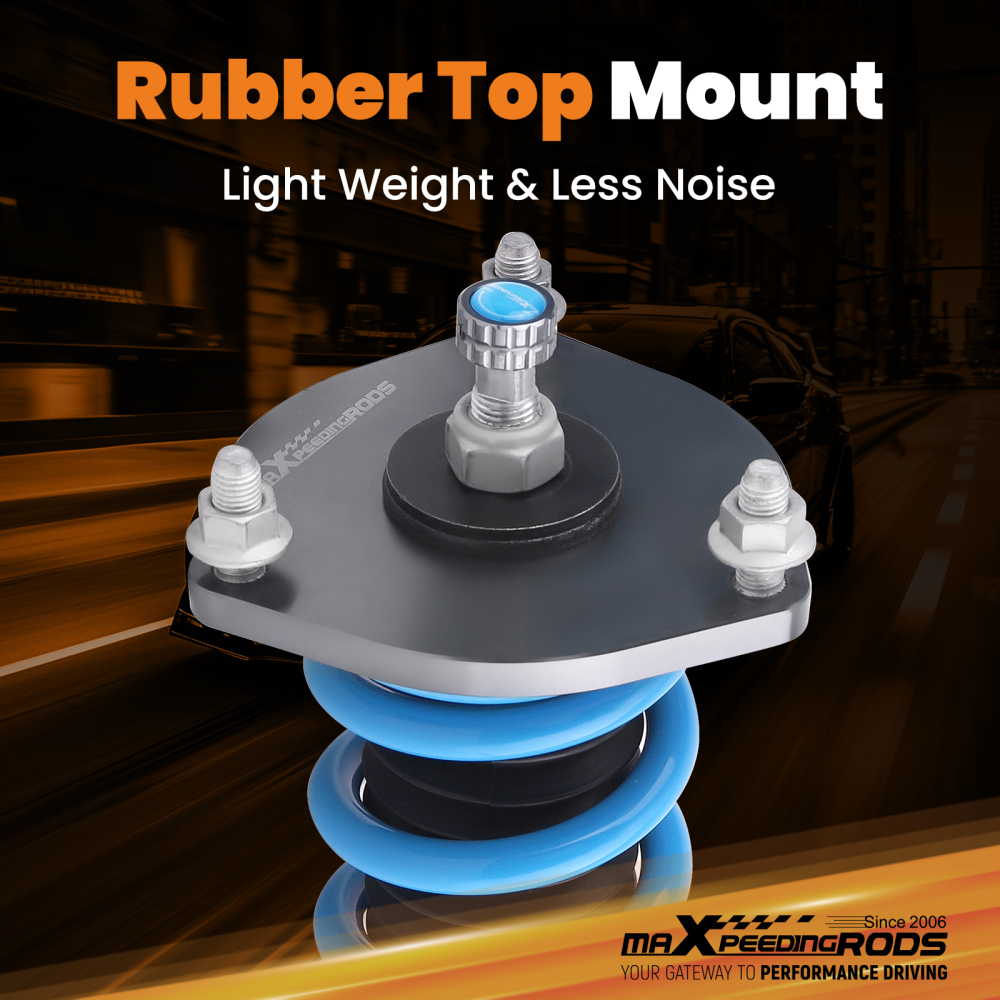

Front top mount structure: Standard rubber
Rear top mount structure: Standard rubber

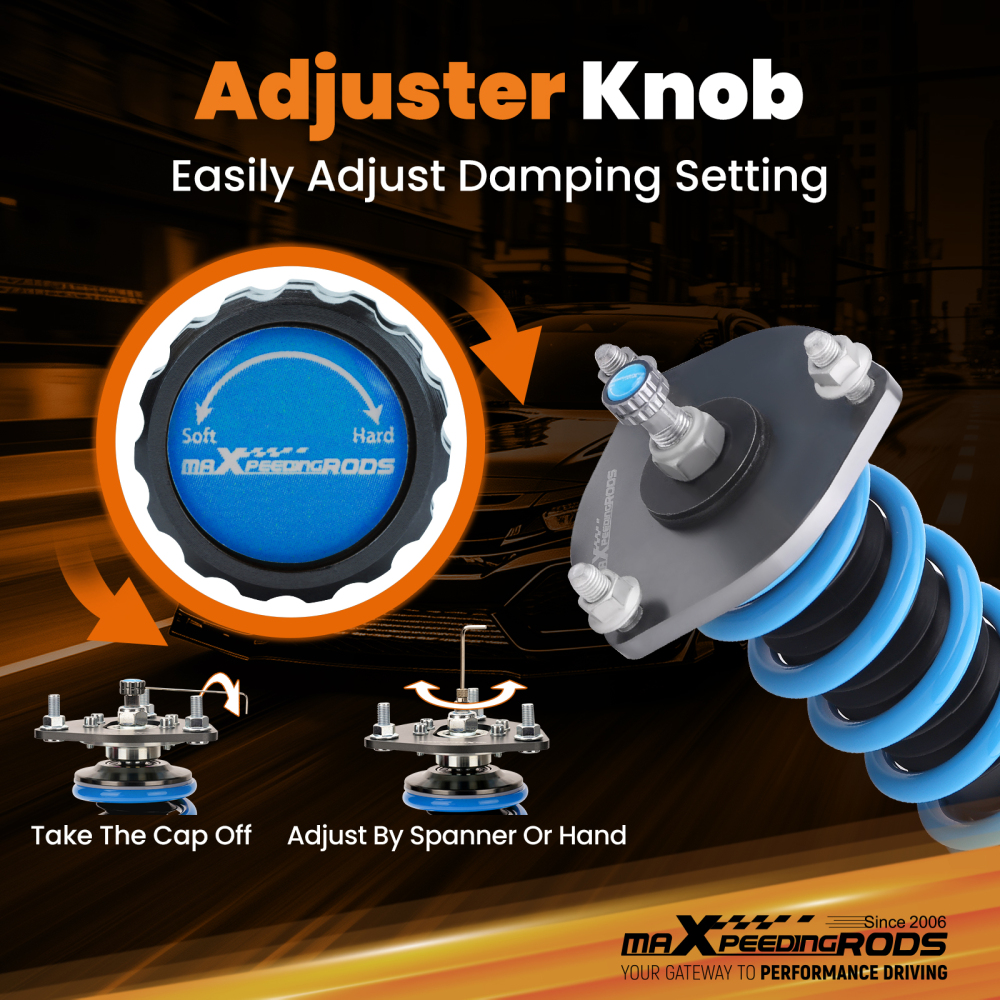

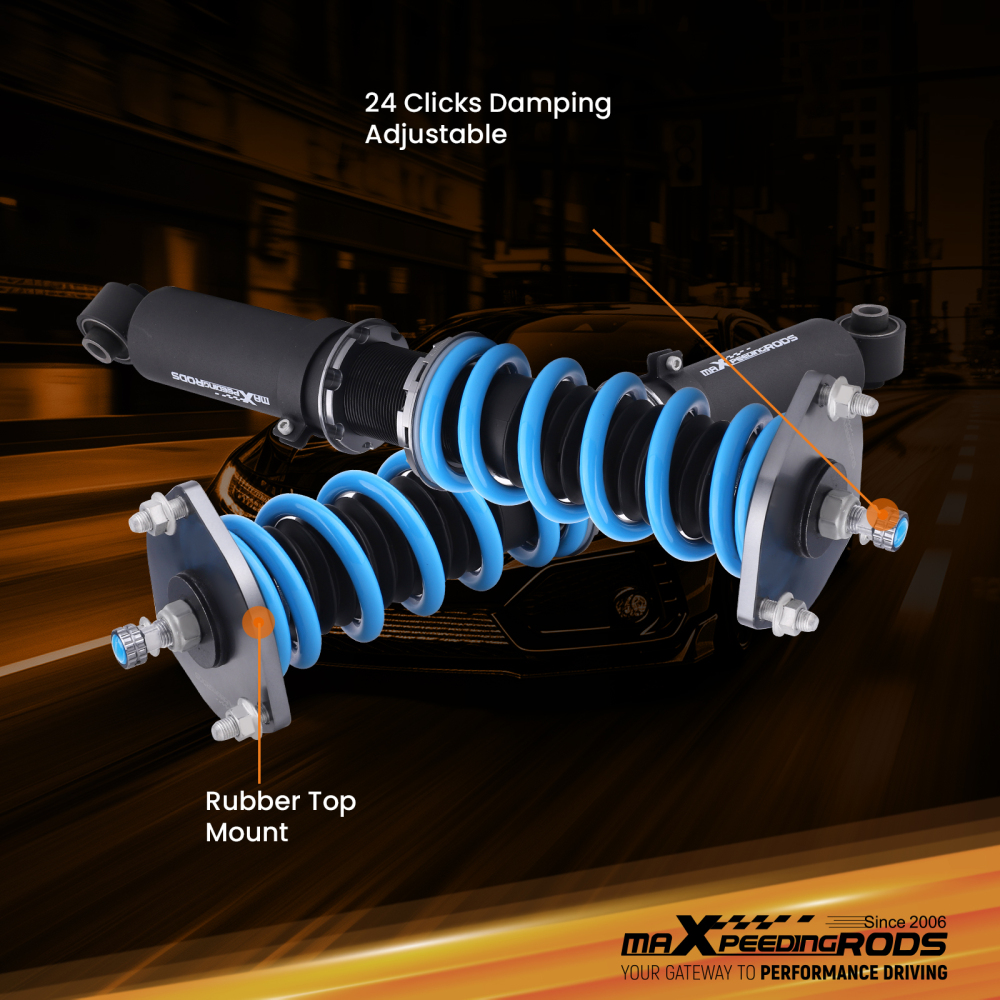

Damping adjustable: Available, 24 levels of rebound damping force

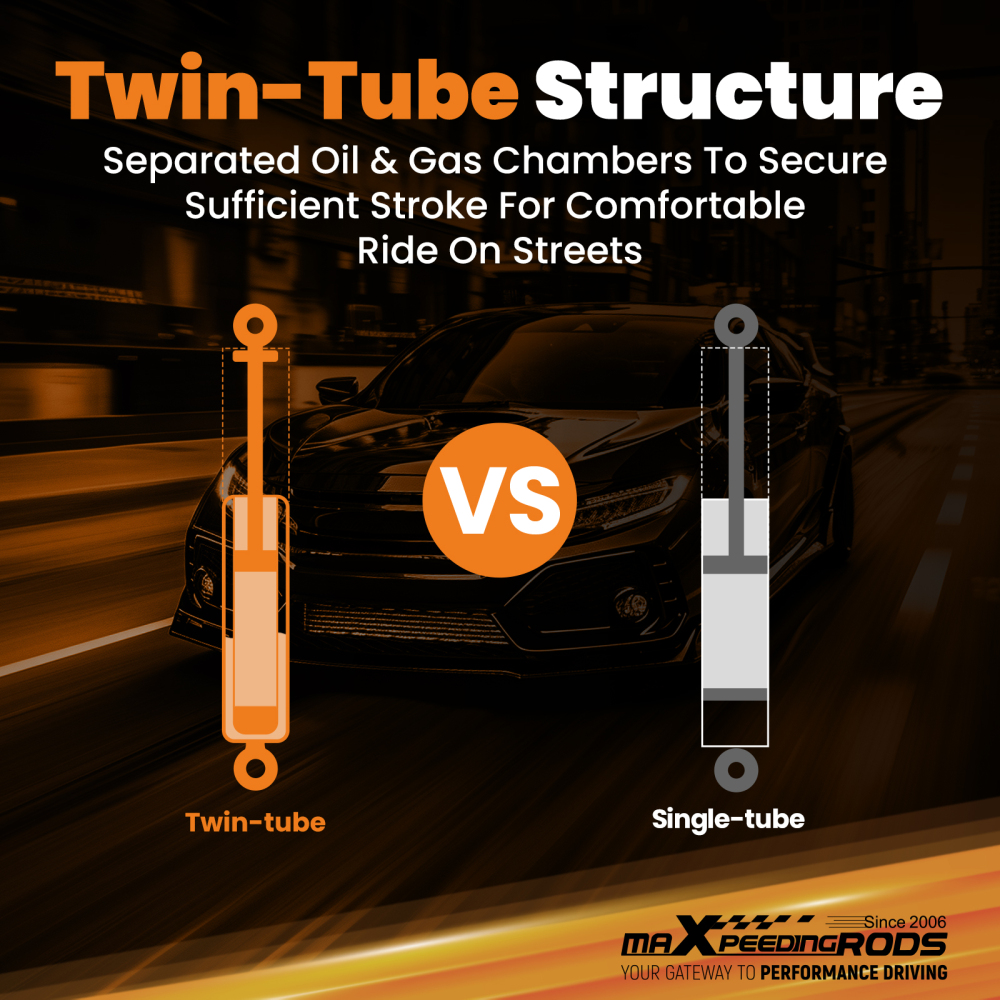

Shock structure type: twin -tube
Camber adjustable: Available

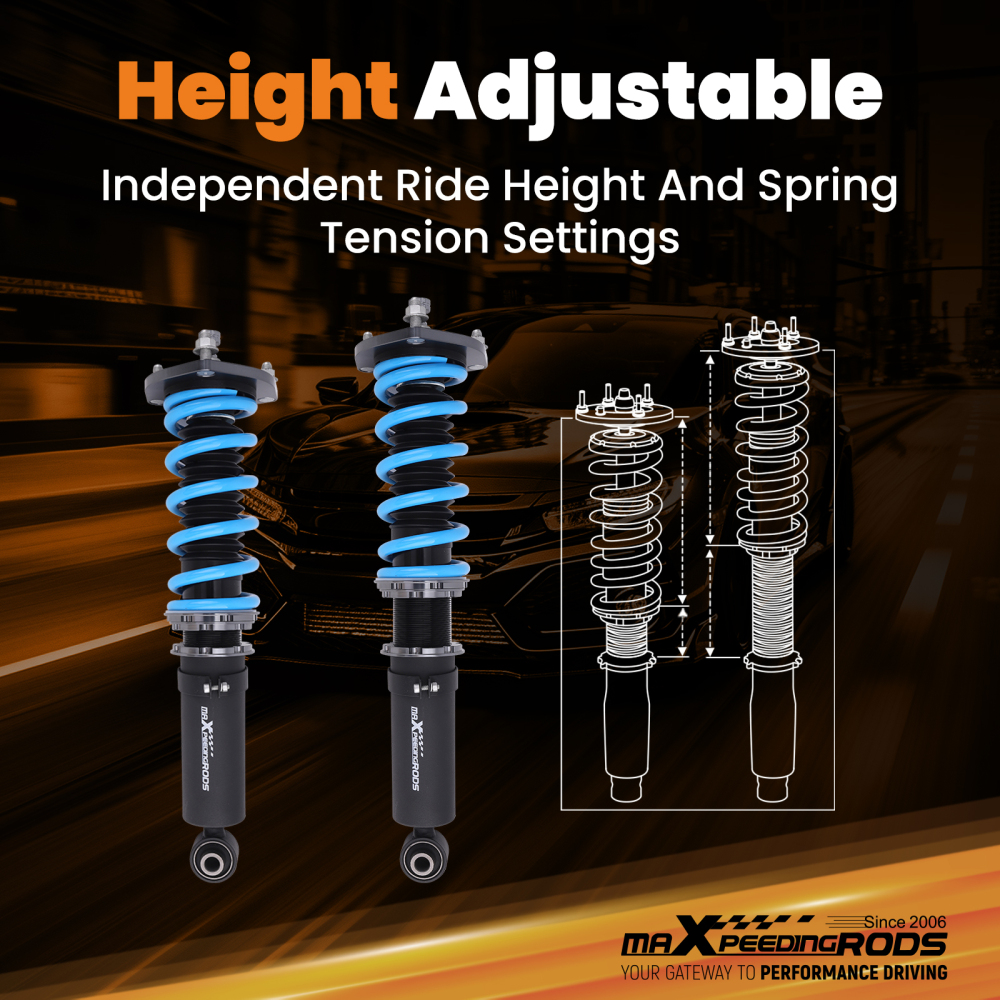

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

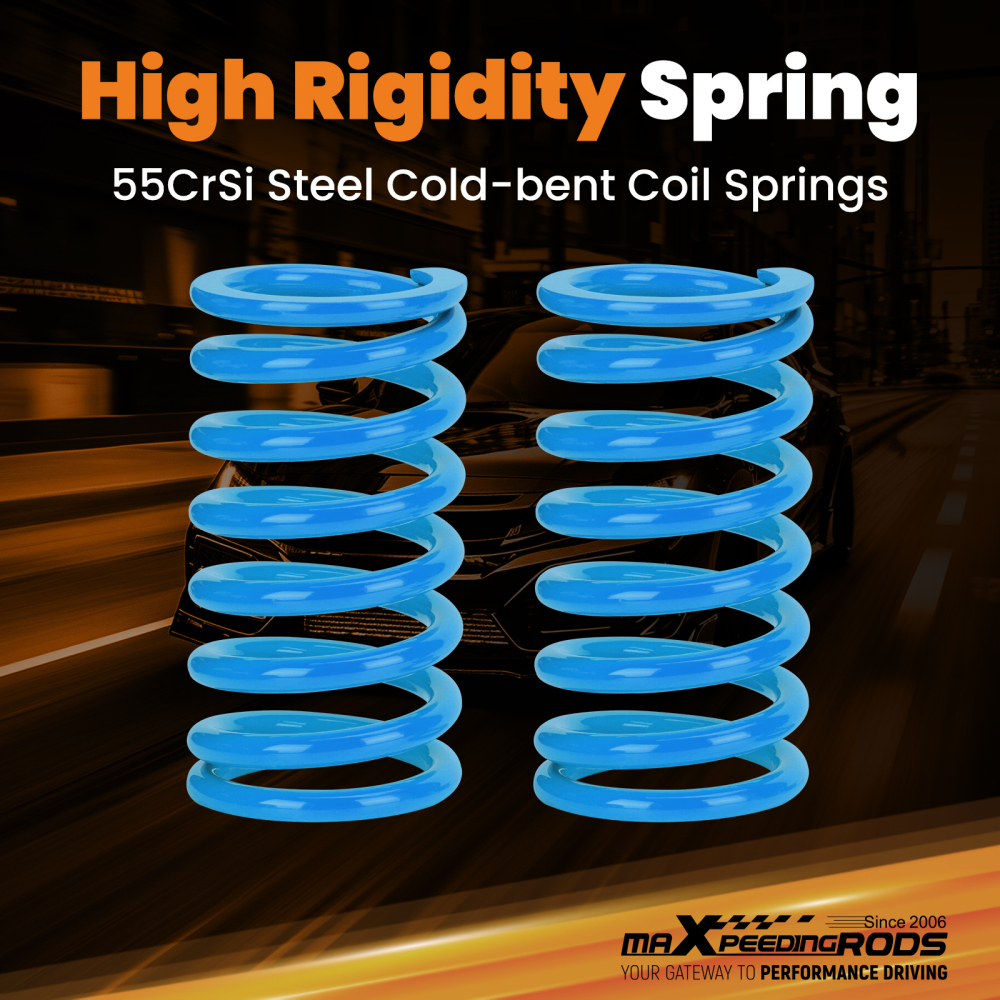

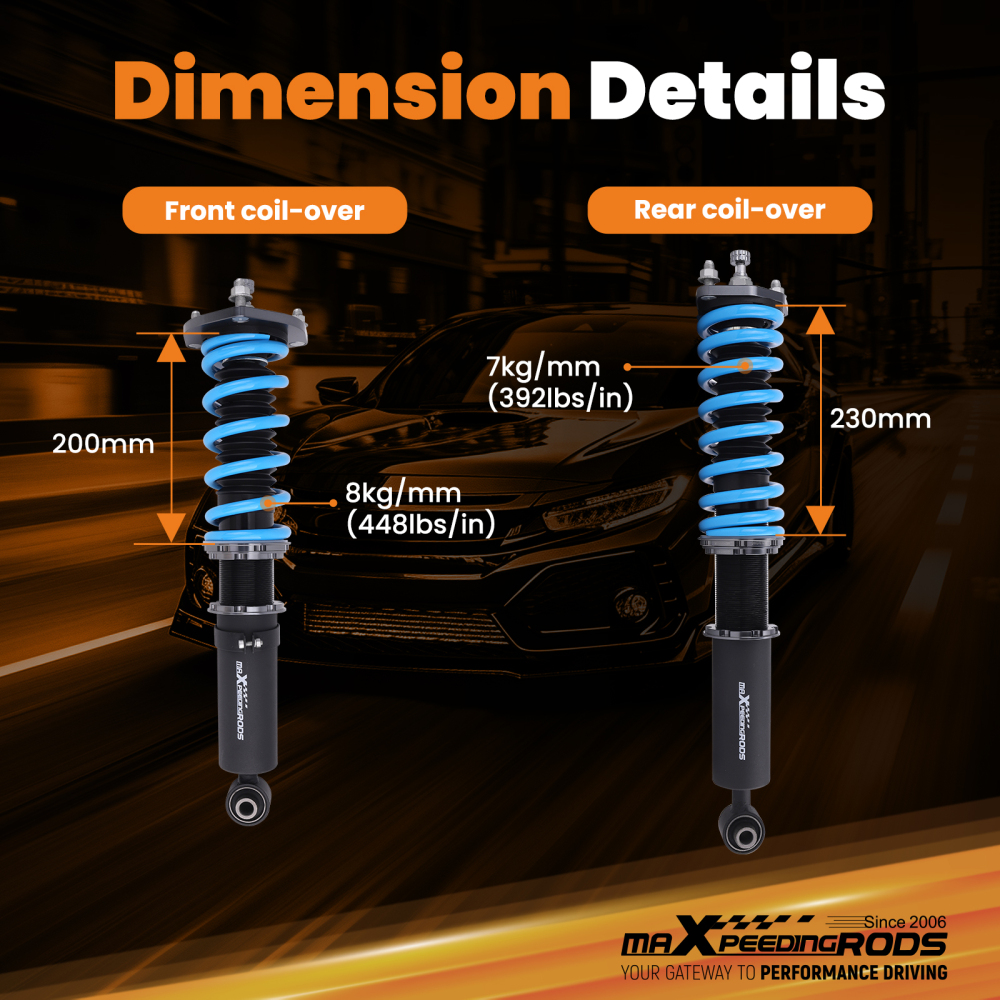

Spring Rate Front: 8 kg/mm (448 lbs/in)
Spring Rate Rear: 7 kg/mm (392 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 62 mm
Spring length Front: 200 mm
Spring length Rear: 230 mm
Spring Preload advised: 7-10 mm
Color: Black body with blue spring

Package included

Package included：

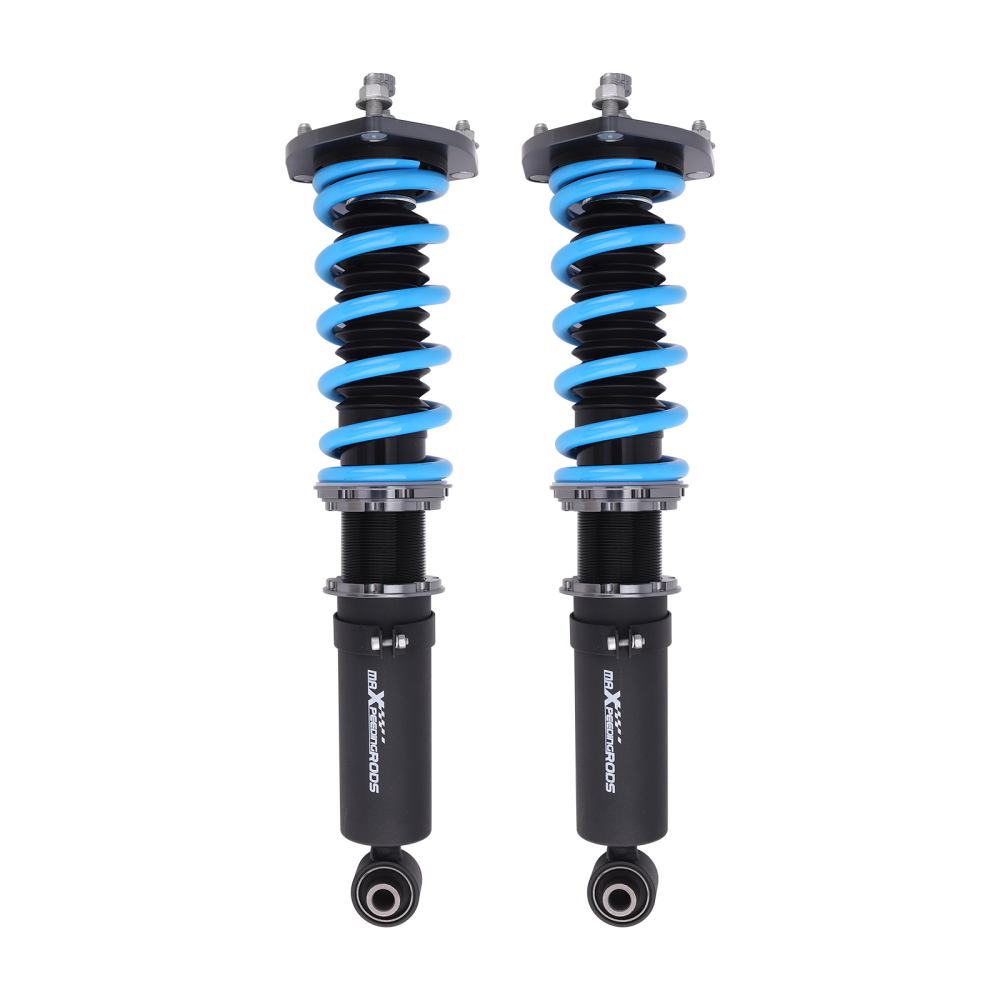

2x Front coil-overs
2x Rear coil-overs
2x C spanners
2x Allen wrench
1x Sticker

Dimension

Package Size: 70*50*20 cm
Weight: 26600 g

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
