MaXpeedingrods Coilovers Lowering Kit For MK1 compatible for Audi TT Quattro 2000-2006

Introduction

maXpeedingrods' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Application

Compatible for Audi TT Mk1 (8N) Coupe Roadster Quattro 4WD 1998-2006
compatible for Volkswagen Golf R32 2004

Specification

Damping adjustable: Not available
Camber adjustable: Not available

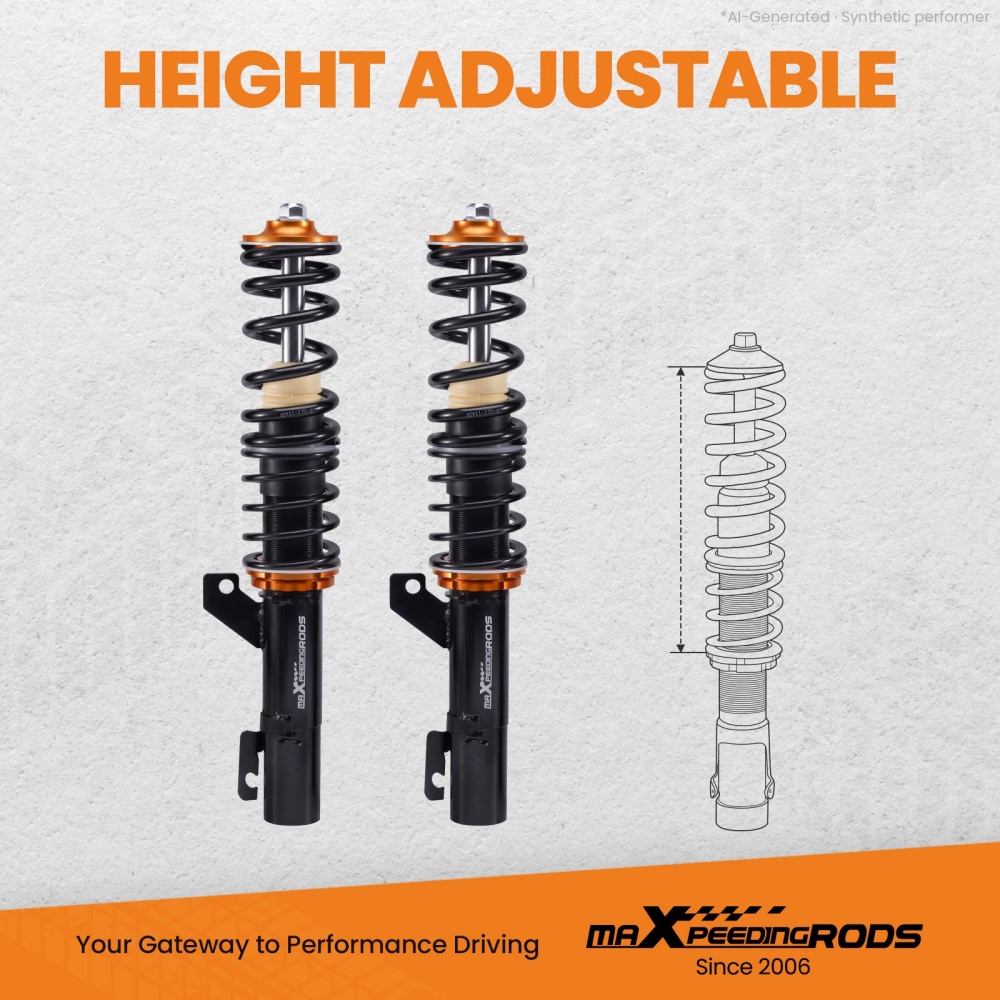

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
Spring Rate Front: 8 kg/mm (448 lbs/in)
Spring Rate Rear: 9 kg/mm(504 lbs/in)
Spring length Front: 170 mm
Spring length Rear: 130 mm
Spring Preload advised: 7-10 mm
Color: Black body with Black spring

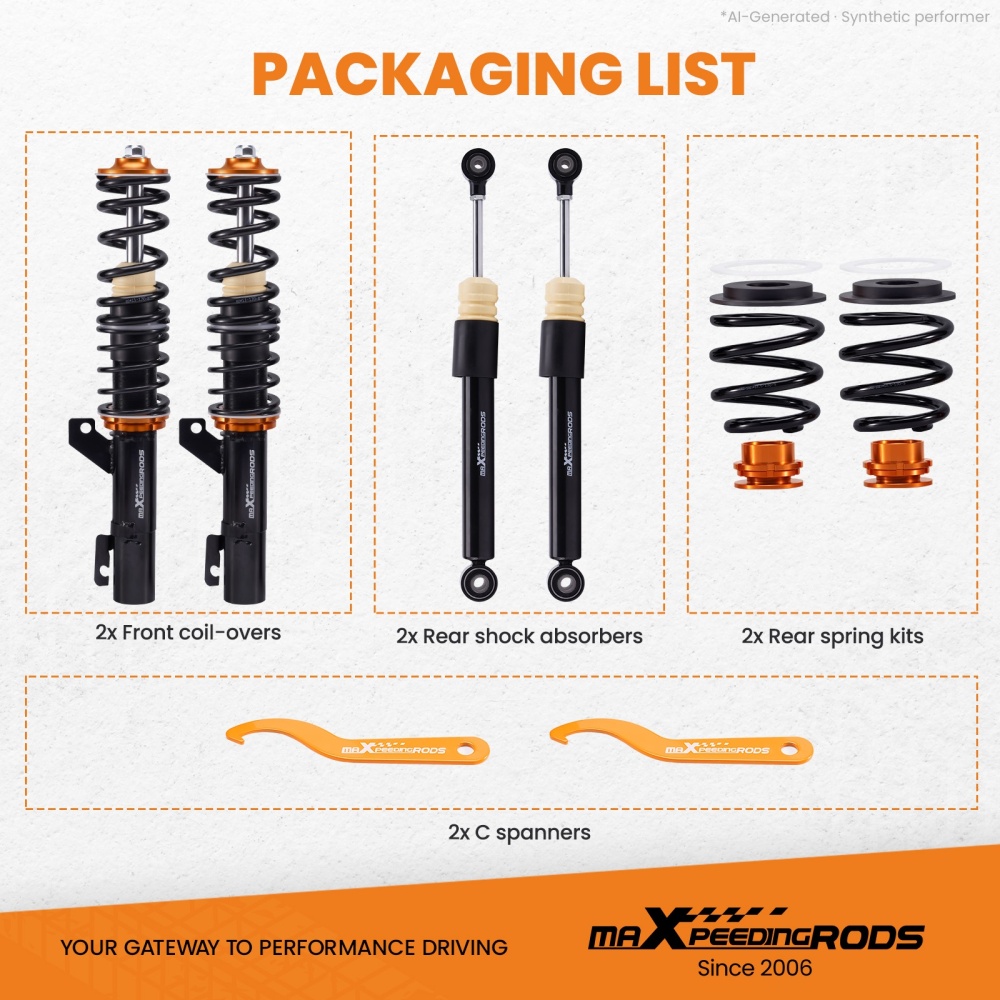

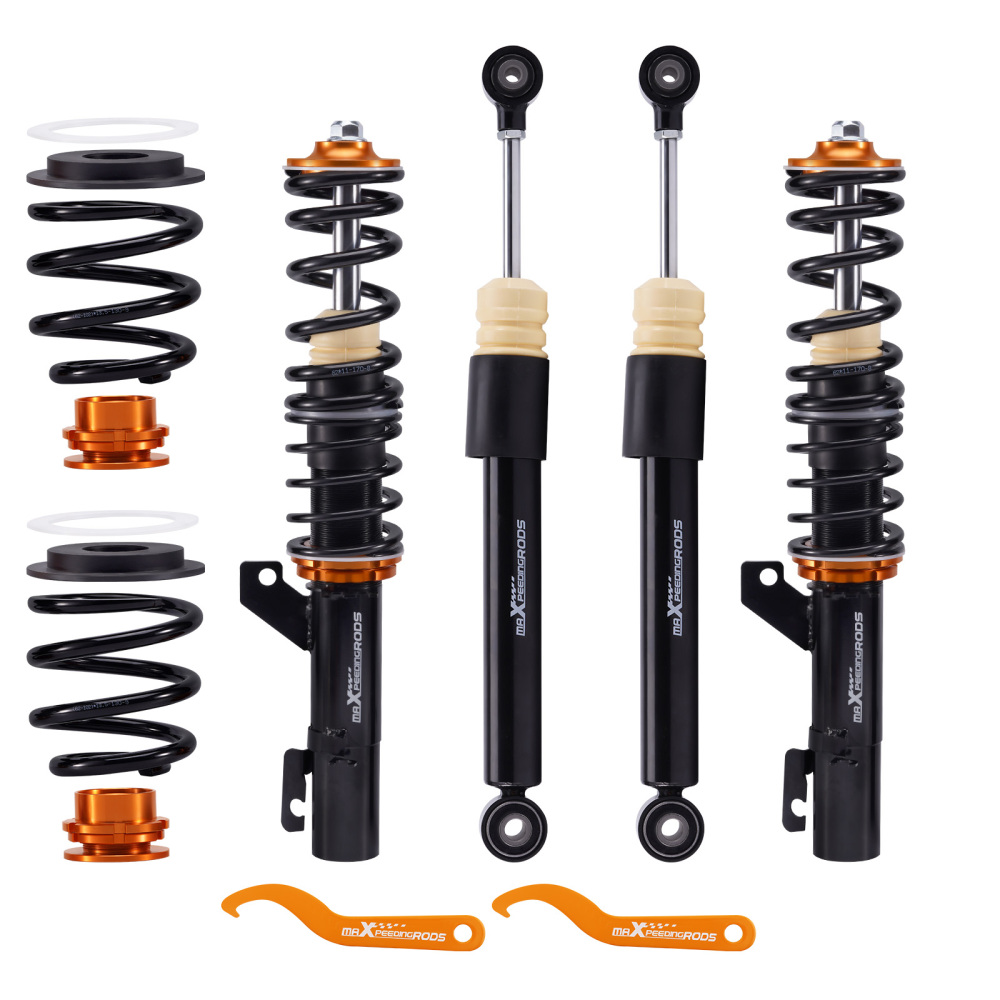

Package included

Package included：

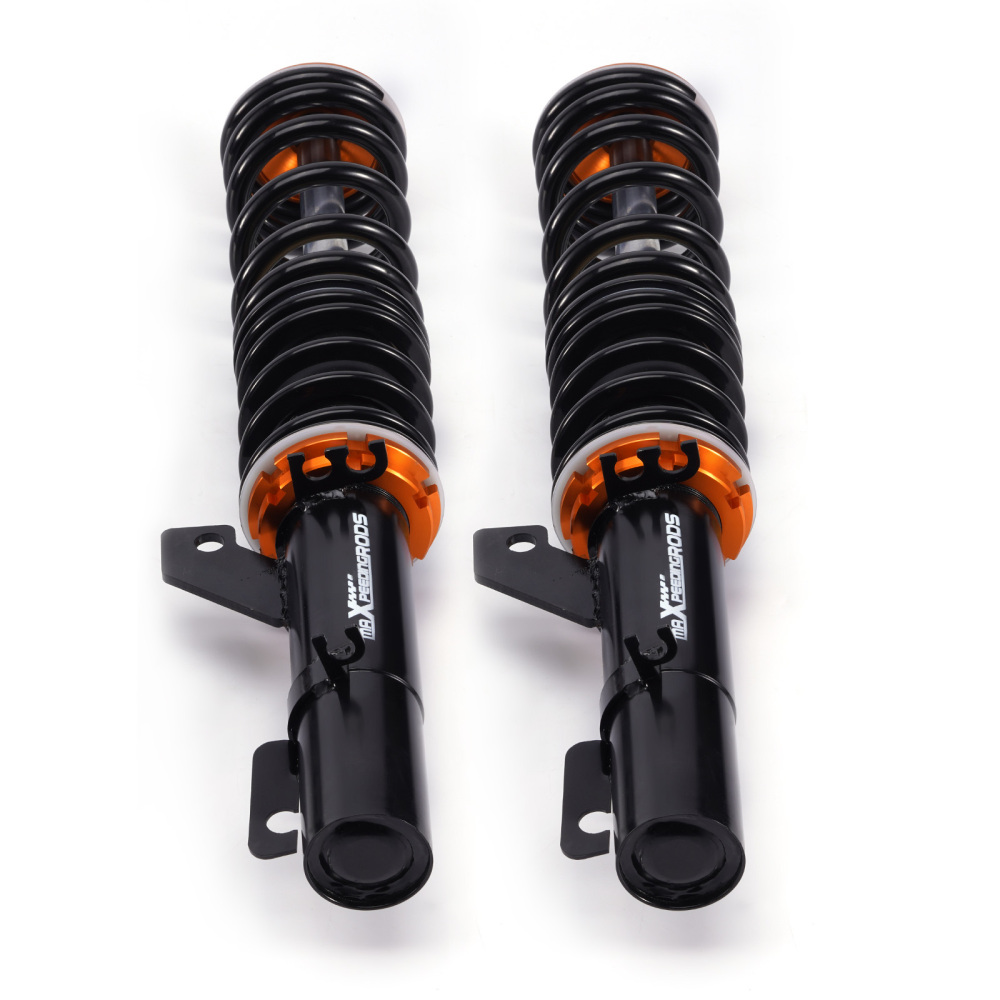

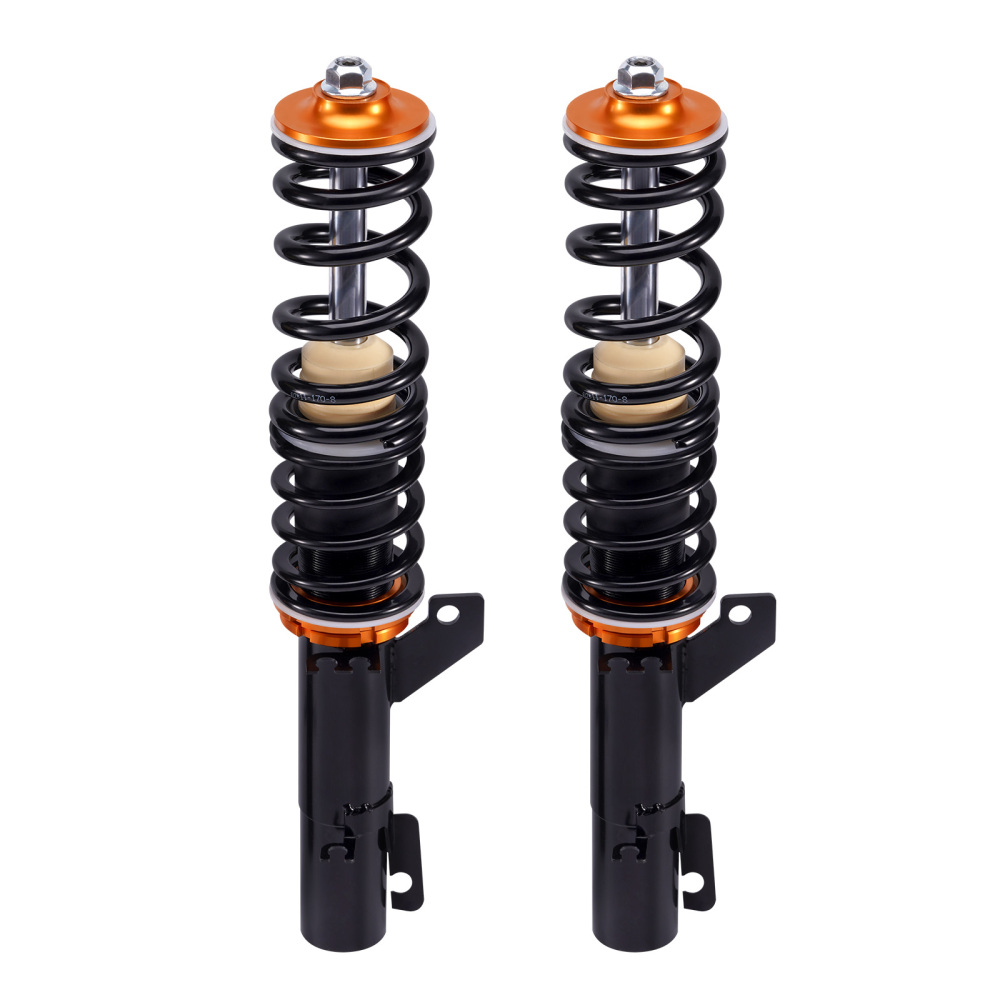

2x Front coil-overs

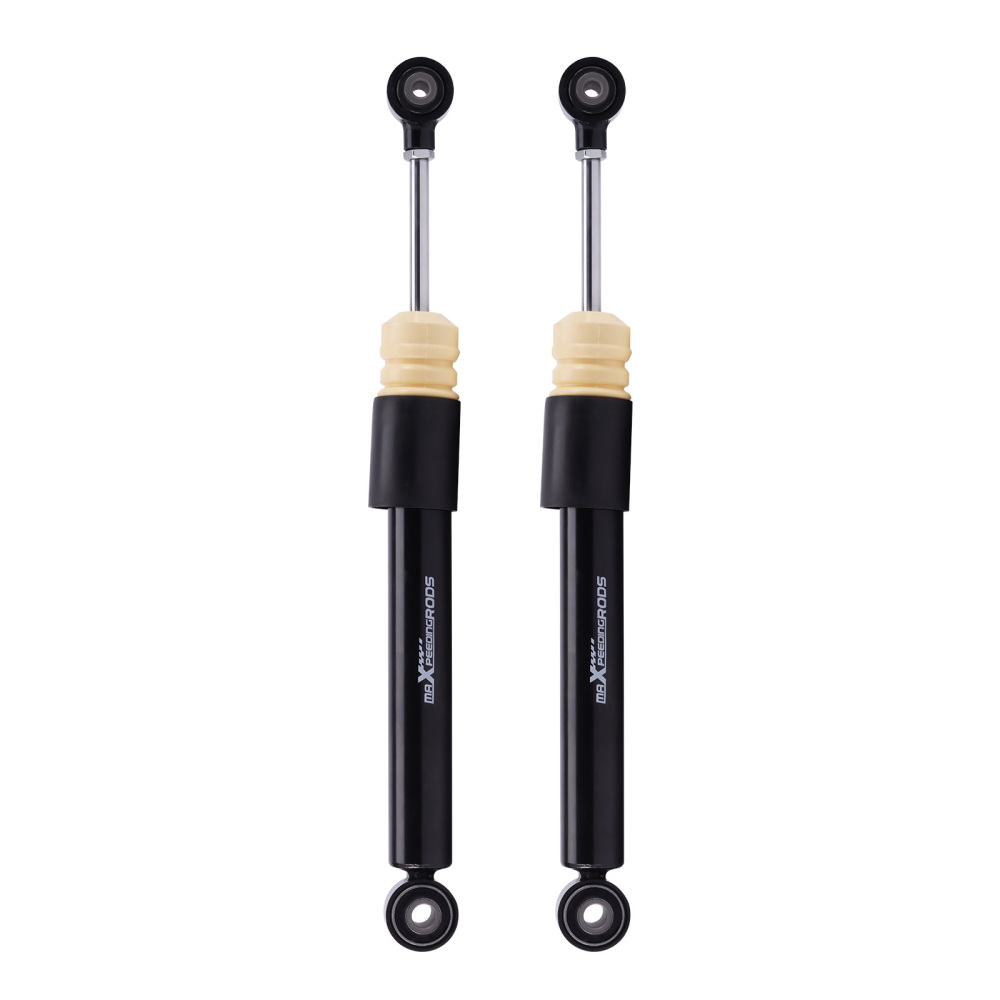

2x Rear coil-overs
2x C spanners

Dimension

Package size : 61*51*20 cm
Weight: 20000 g

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable

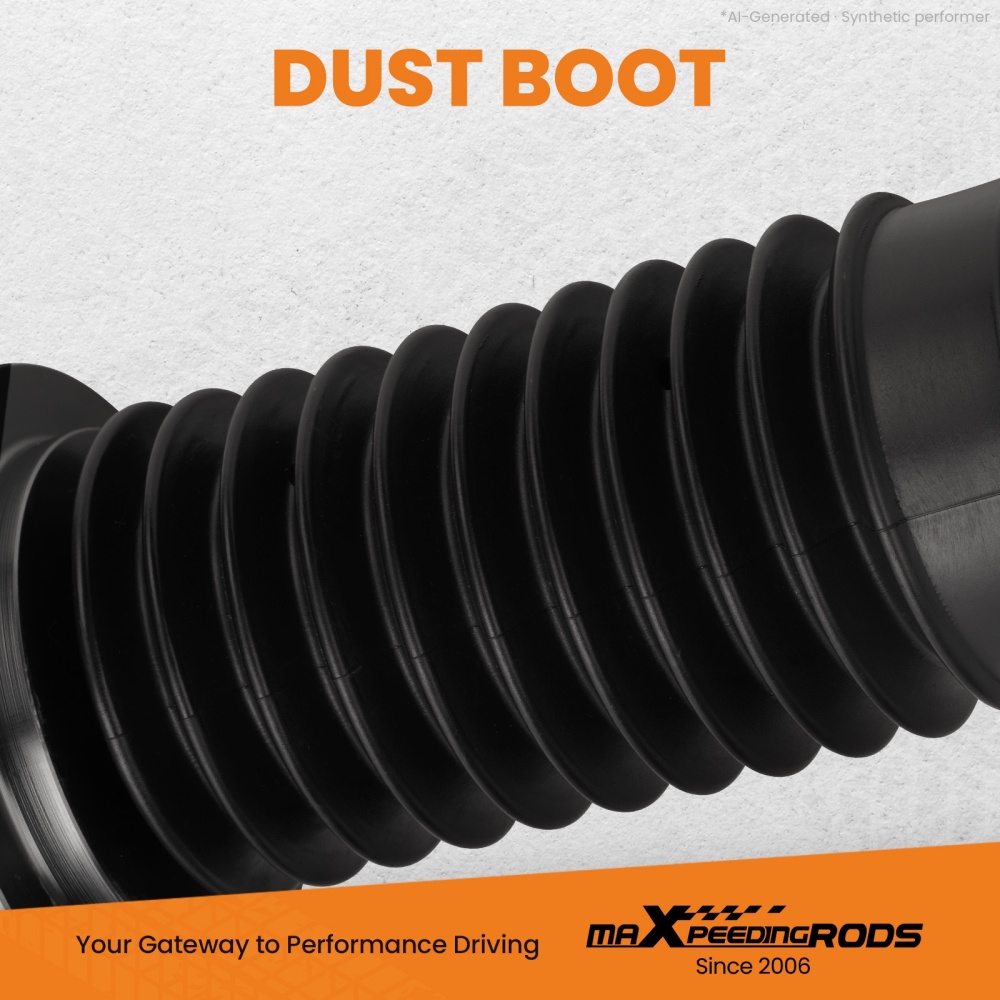

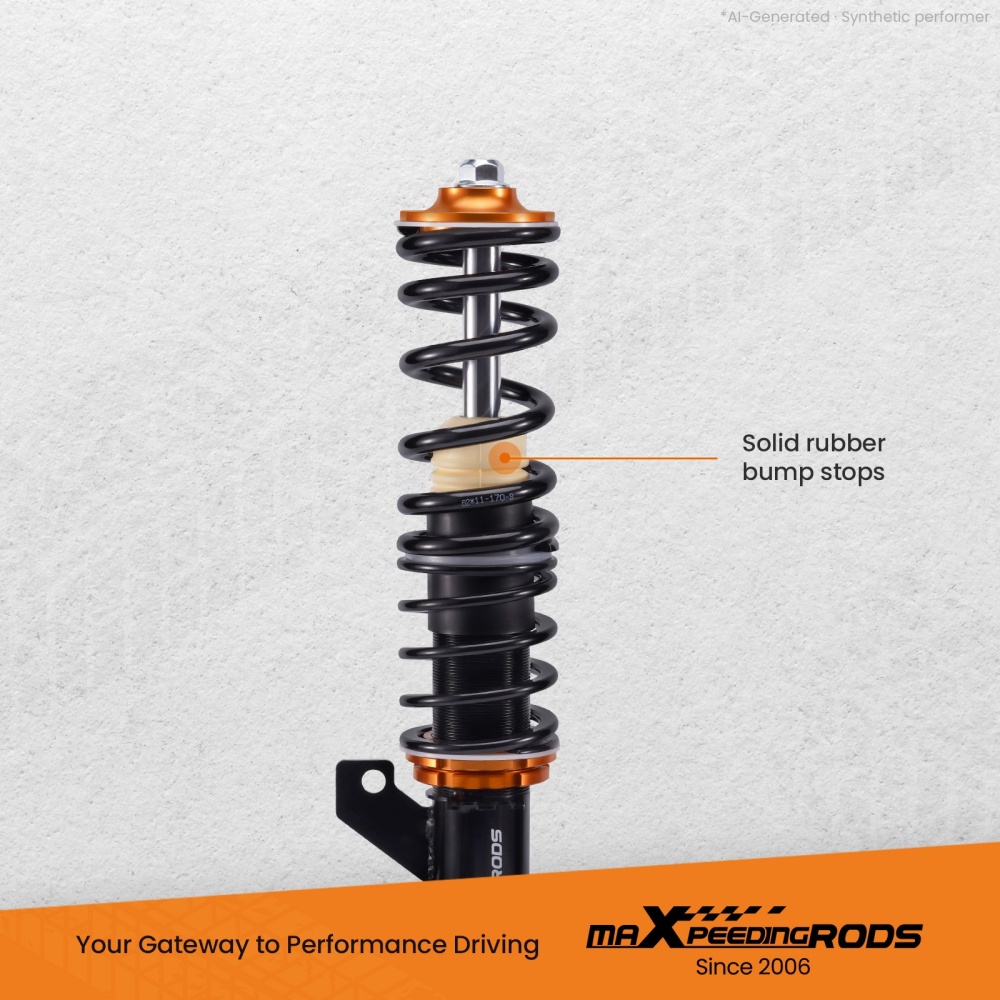

2. Dust boot, solid rubber bump stops

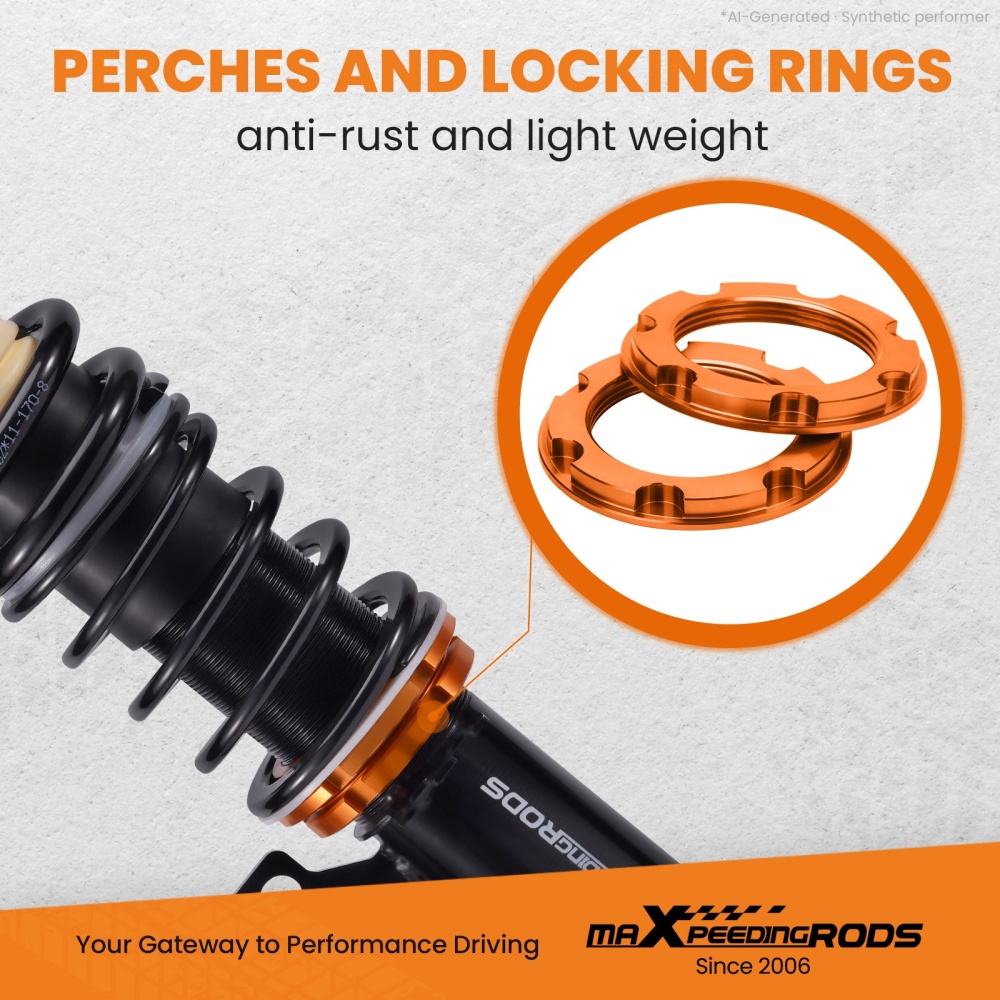

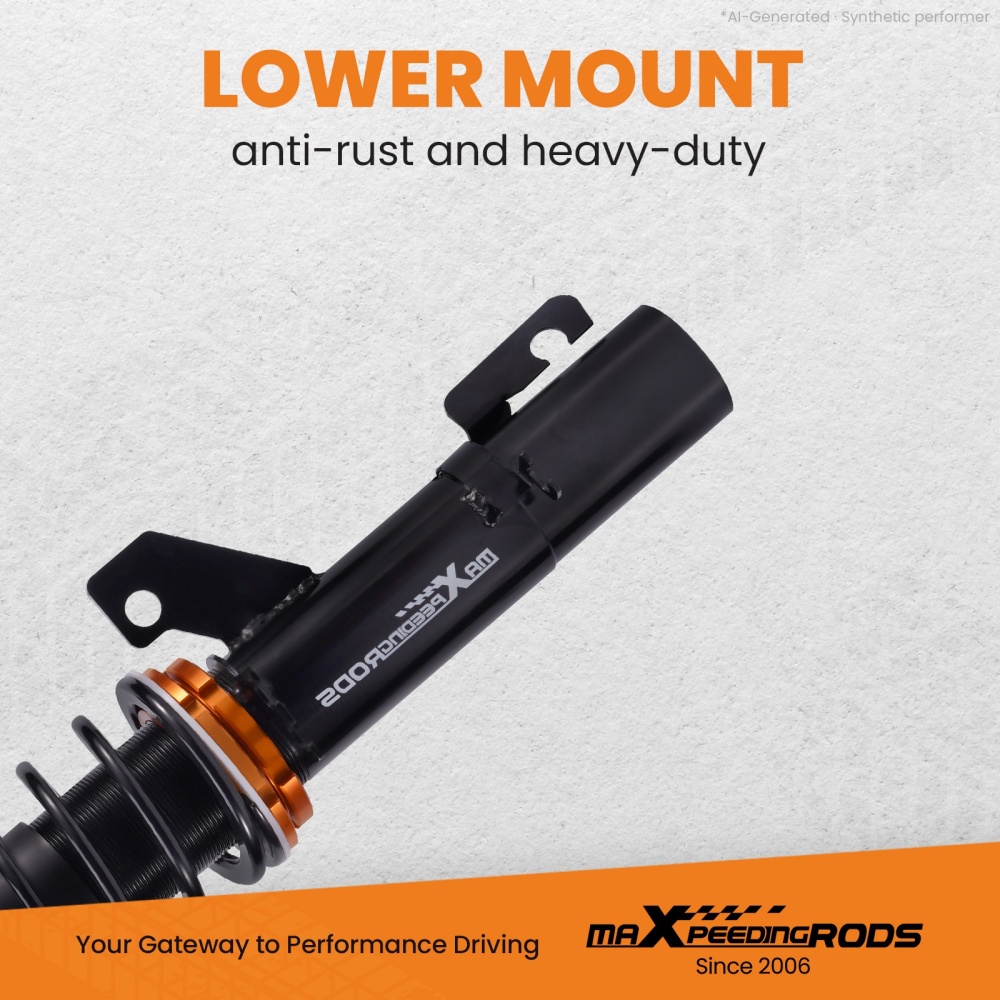

3. Aluminum components and steel lower mount brackets designed to balance weight and structural requirements.

4. Simple install, Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. Regular maintenance is recommended for the coil-over. Applying WD-40 or a suitable protective spray every 3–4 months can help keep the components clean and moving smoothly.
