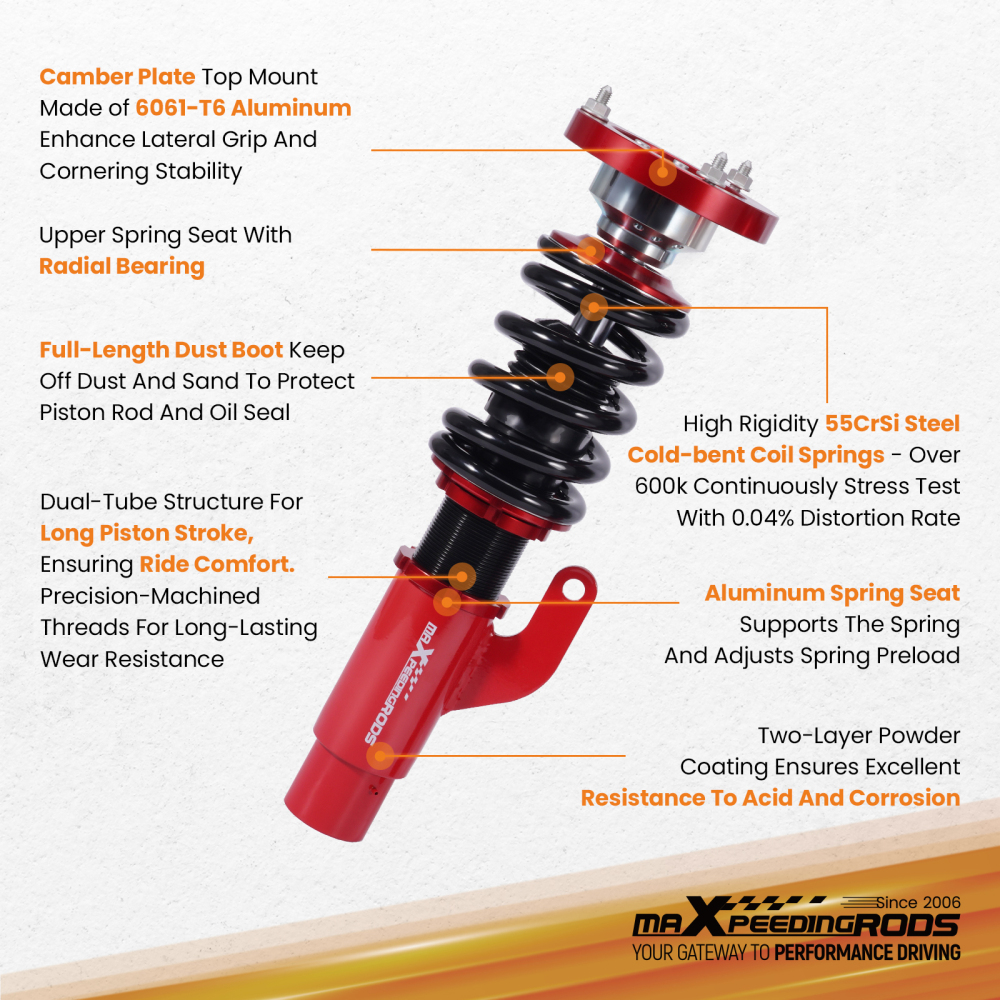

Features

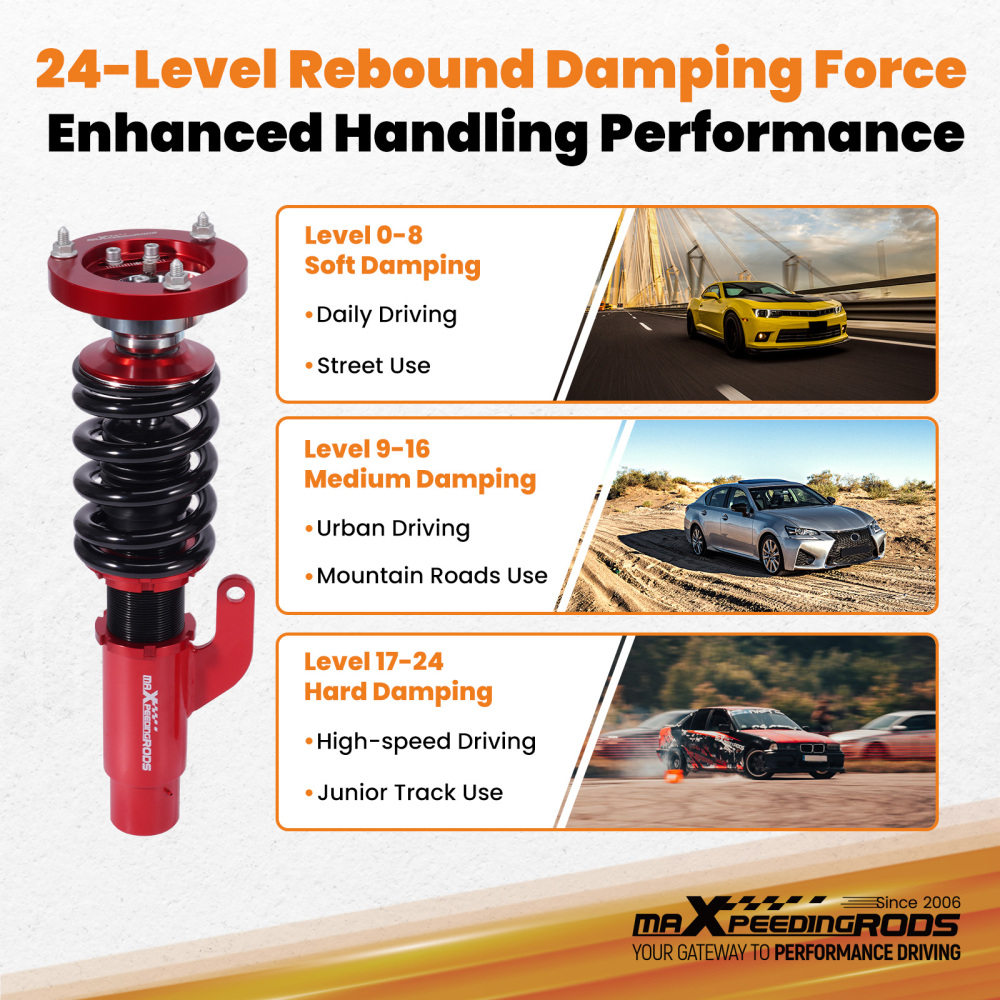

- 24 levels of dampening adjustability.
- Fully height adjustable via the lower mount with no need to change preload and sacrifice shock stroke.

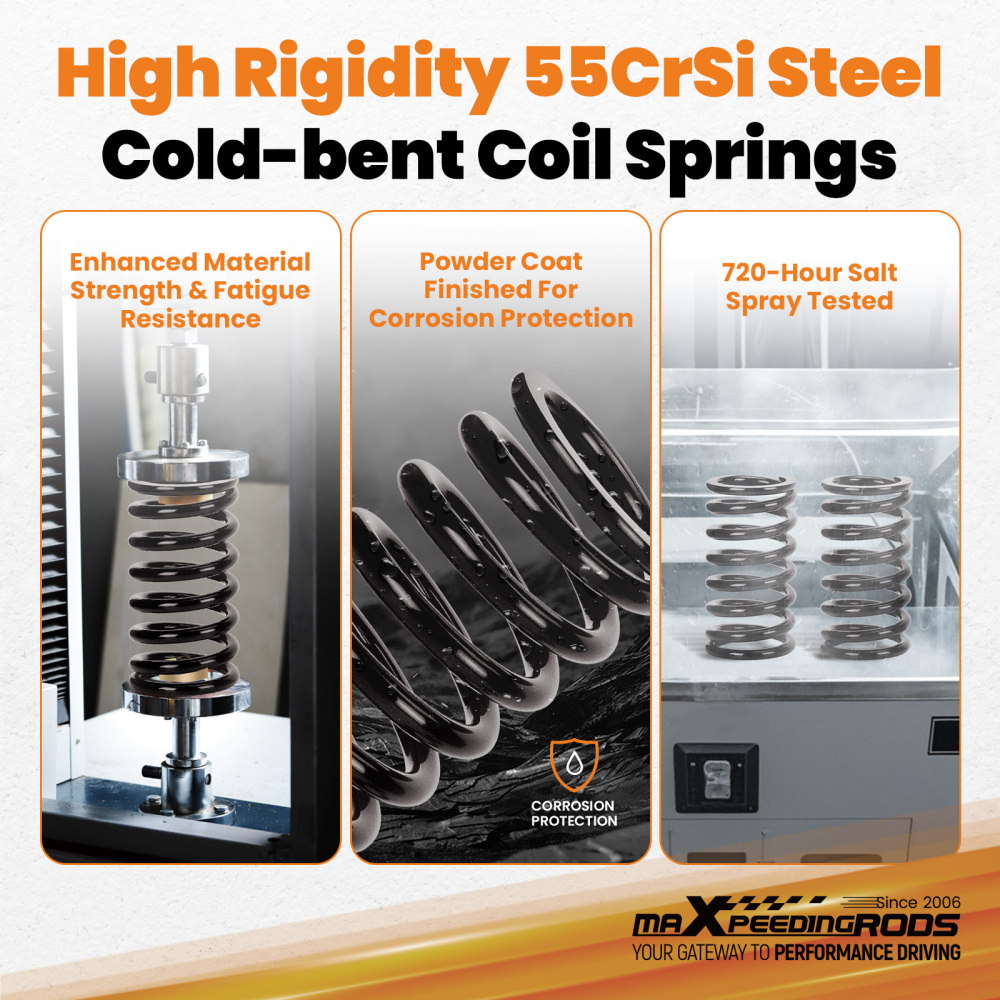

- Cold-bent springs made from high strength 55CrSi steel.

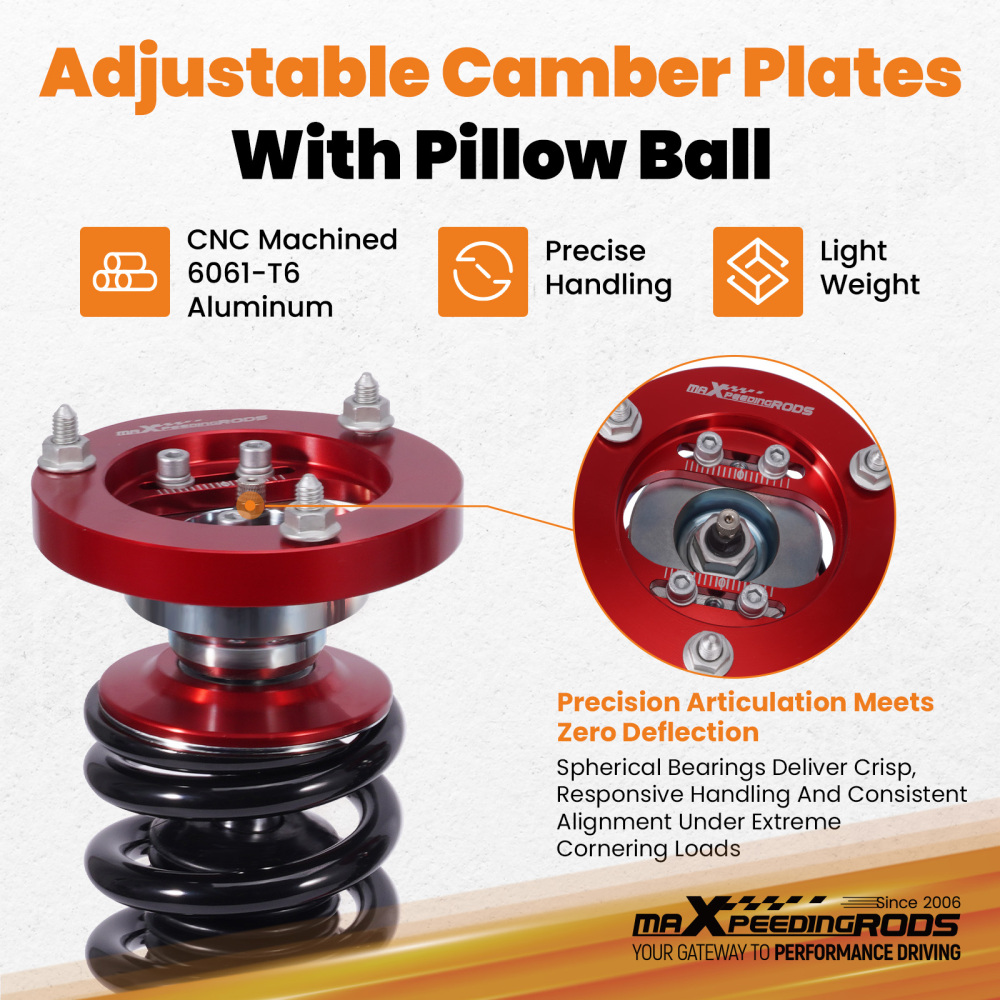

- Adjustable camber plates are designed to offer up to 3 degree's of camber adjustment at any ride height to dial in your aligment.

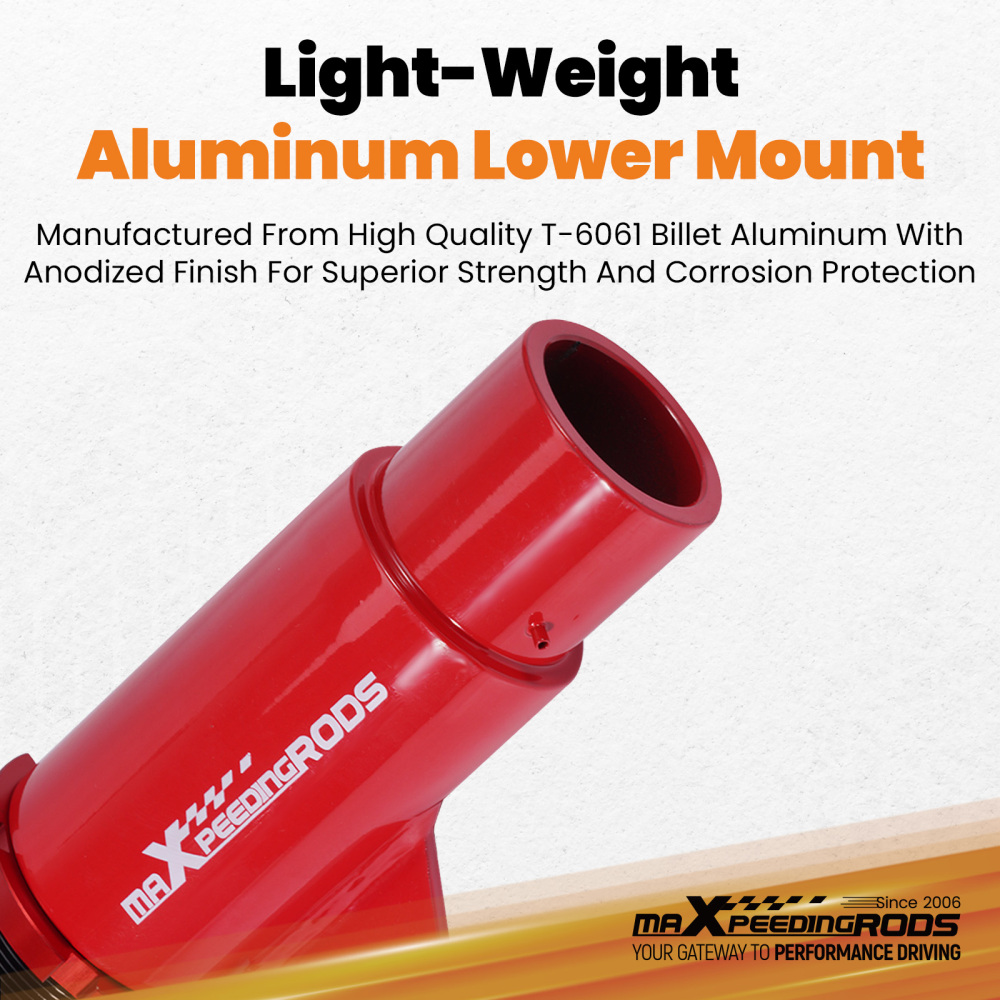

- Manufactured from high quality T-6061 billet aluminum with an anodized finish for superior strength and corrosion protection.
- Lower bracket height adjustability prevent the need to adjust the spring perch, offering the maximum shock-absorbing travel.
- Powder painted steel lower bracket can match all design of brake line and ABS line holder, easy for intalling.
- Quality Assured - Full Year Limited Warranty From Date of Purchase.
- Fully Rebuildable With All Parts Available.

Fitment

For 2006-2011 compatible for BMW 3 Series E90/E92 325xi 328xi 330xi 335xi X-Drive (AWD)

Specifications

- Front  top mount structure: Pillow ball with camber plate

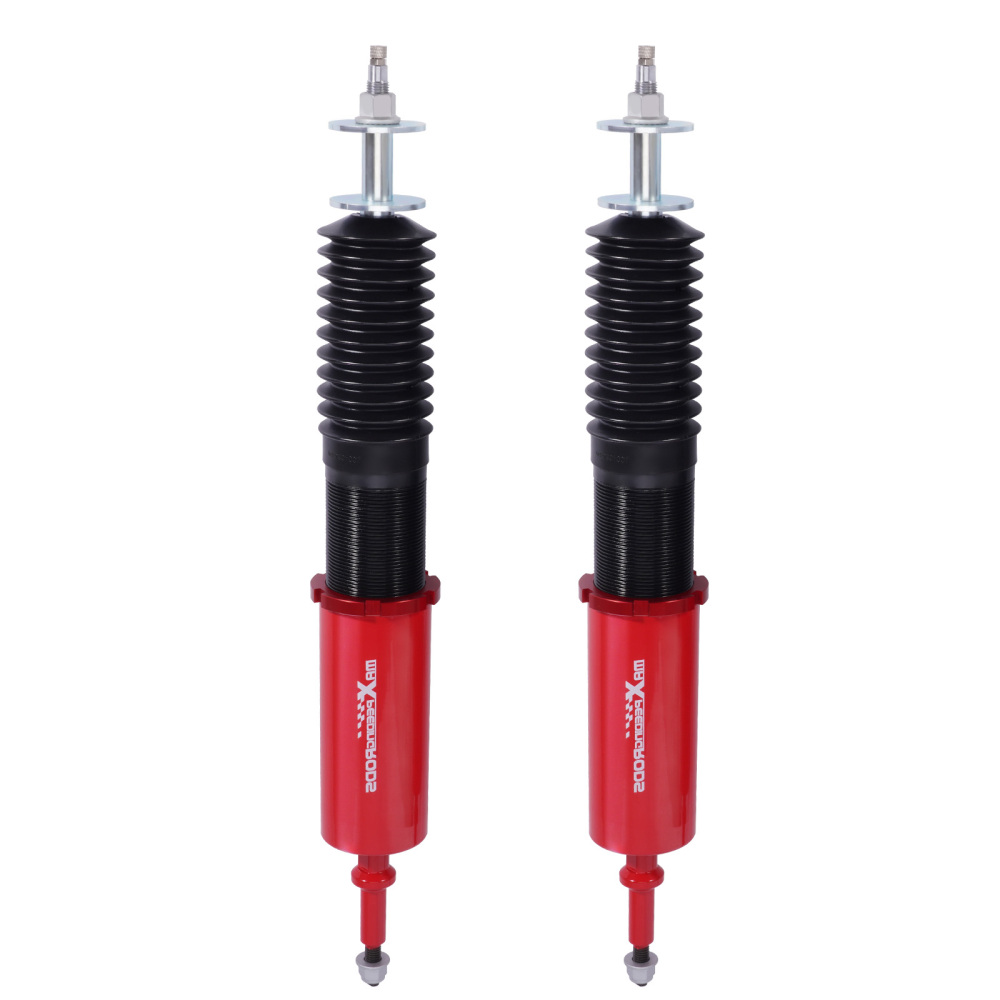

- Rear top mount structure: OE top mount required
- Camber adjustable: Available
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 13.5 kg/mm (756 lbs/in)
- Spring Rate Rear: 9 kg/mm (504 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 145 mm
- Spring length Rear: 245 mm
- Spring Preload advised: 7-10 mm

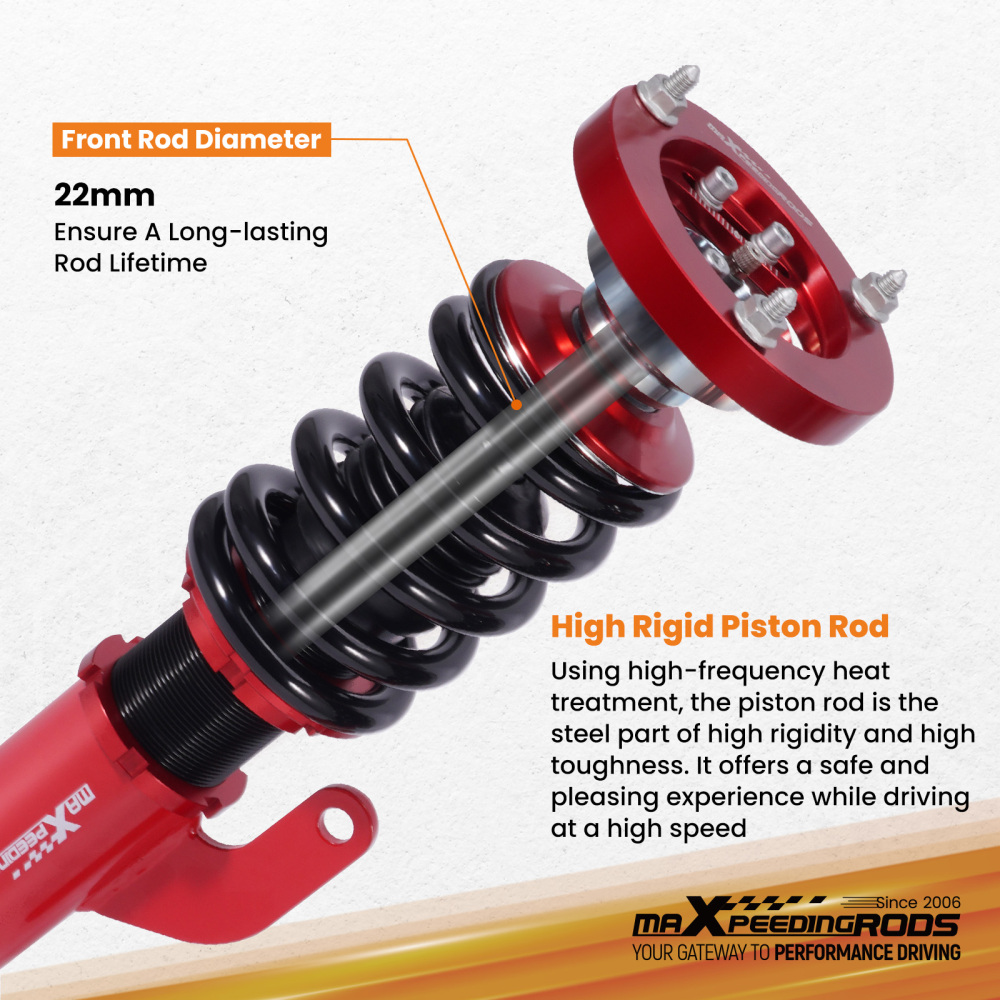

- Damping rod diameter Front: Φ22 mm
- Damping rod diameter Rear: Φ12.5 mm
- Damping  thread Front: M55×2 mm
- Damping  thread Rear: M55×2 mm

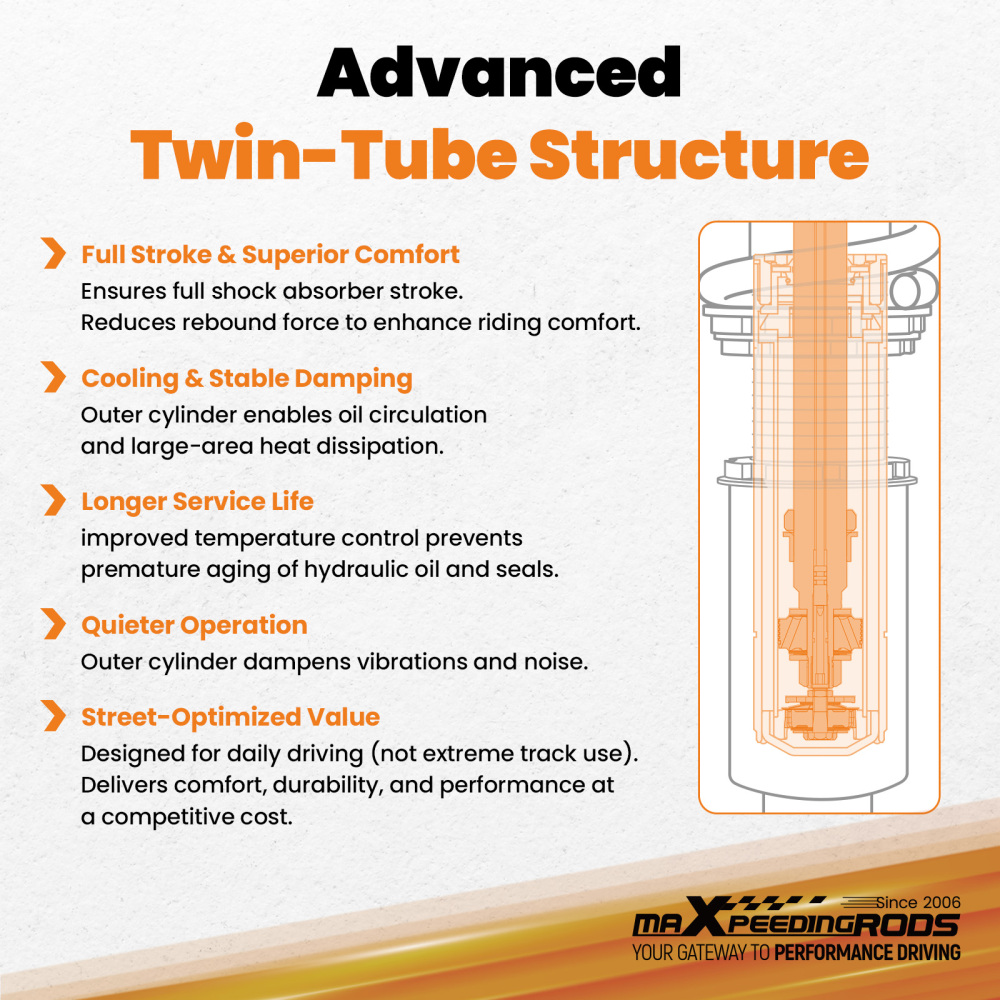

- Twin -tube Diameter Front: 55 mm
- Twin -tube Diameter Rear: 55 mm
- Rod End Thread Front: M14×1.5 mm
- Rod End Thread Rear: M12×1.25 mm

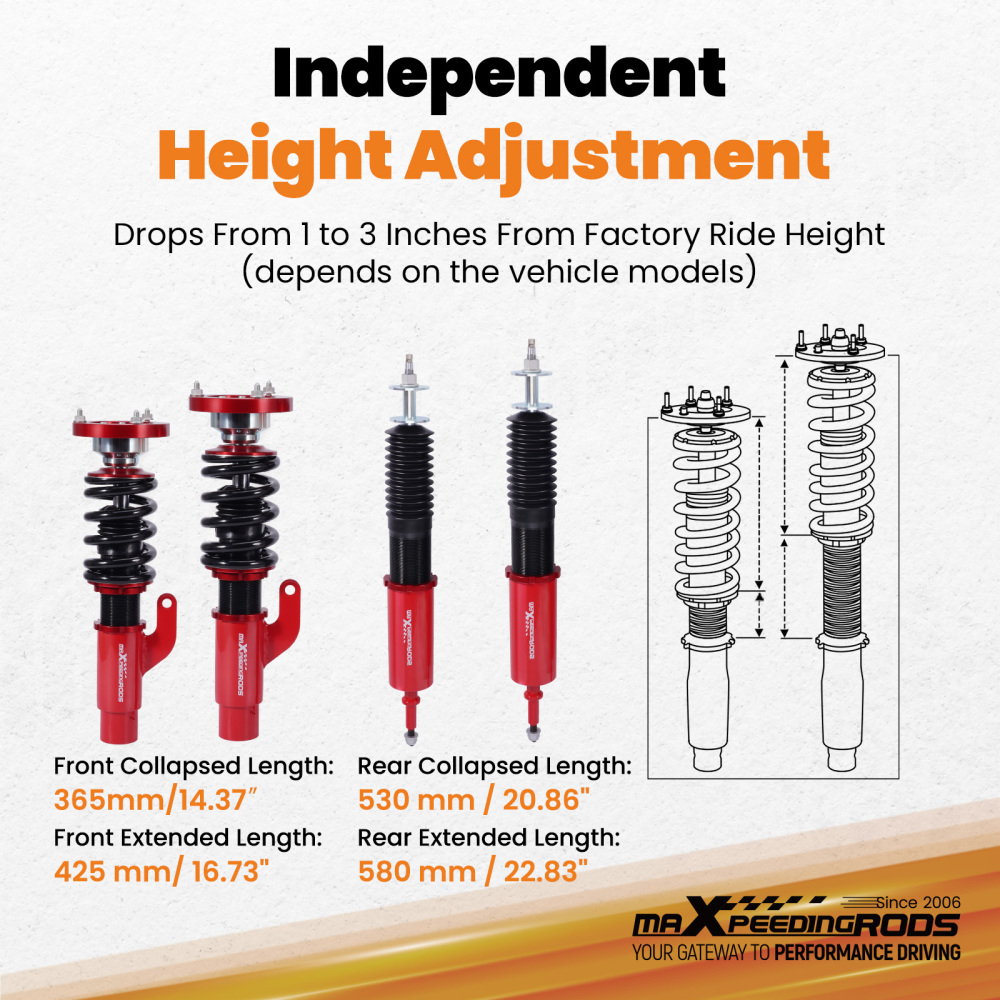

- Coil-overs overall length Front: 365 mm - 425 mm / 14.37"-16.73"
- Coil-overs  overall length Rear: 530 mm - 580 mm / 20.86"-22.83"
- Color: Red body with black spring

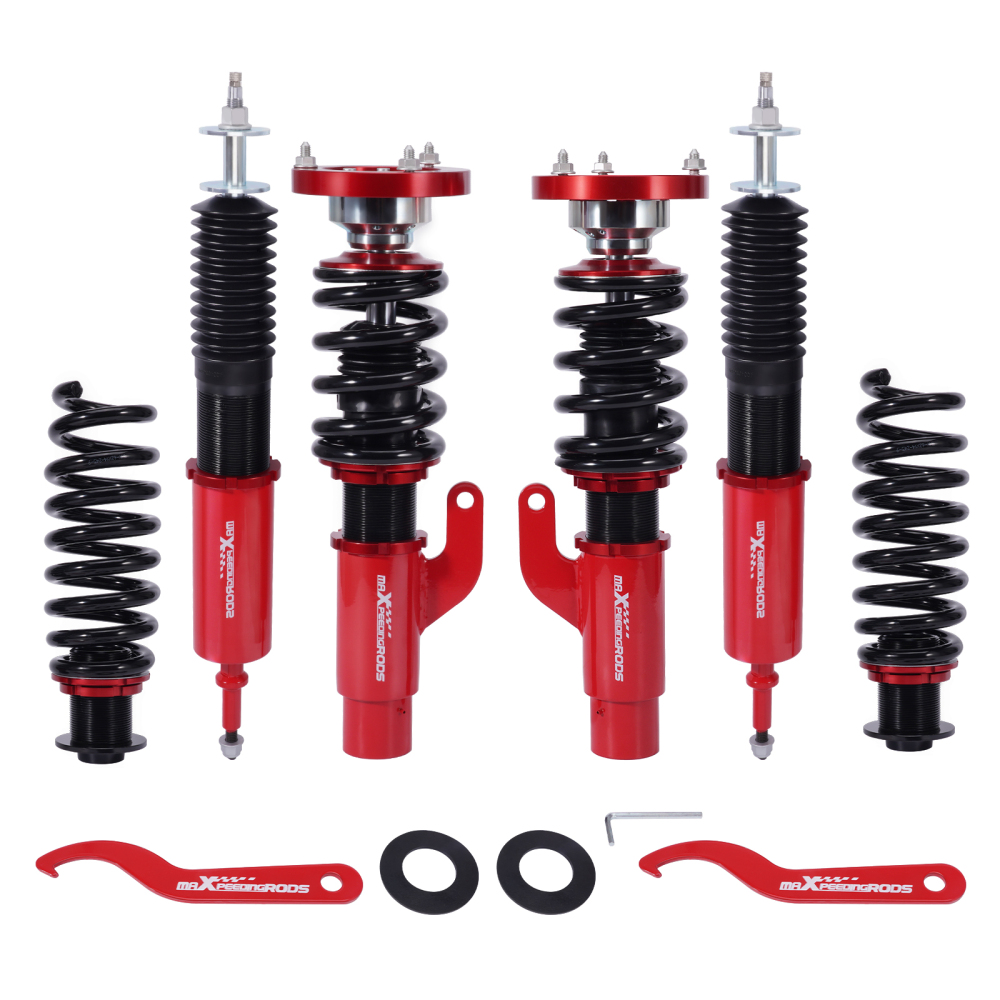

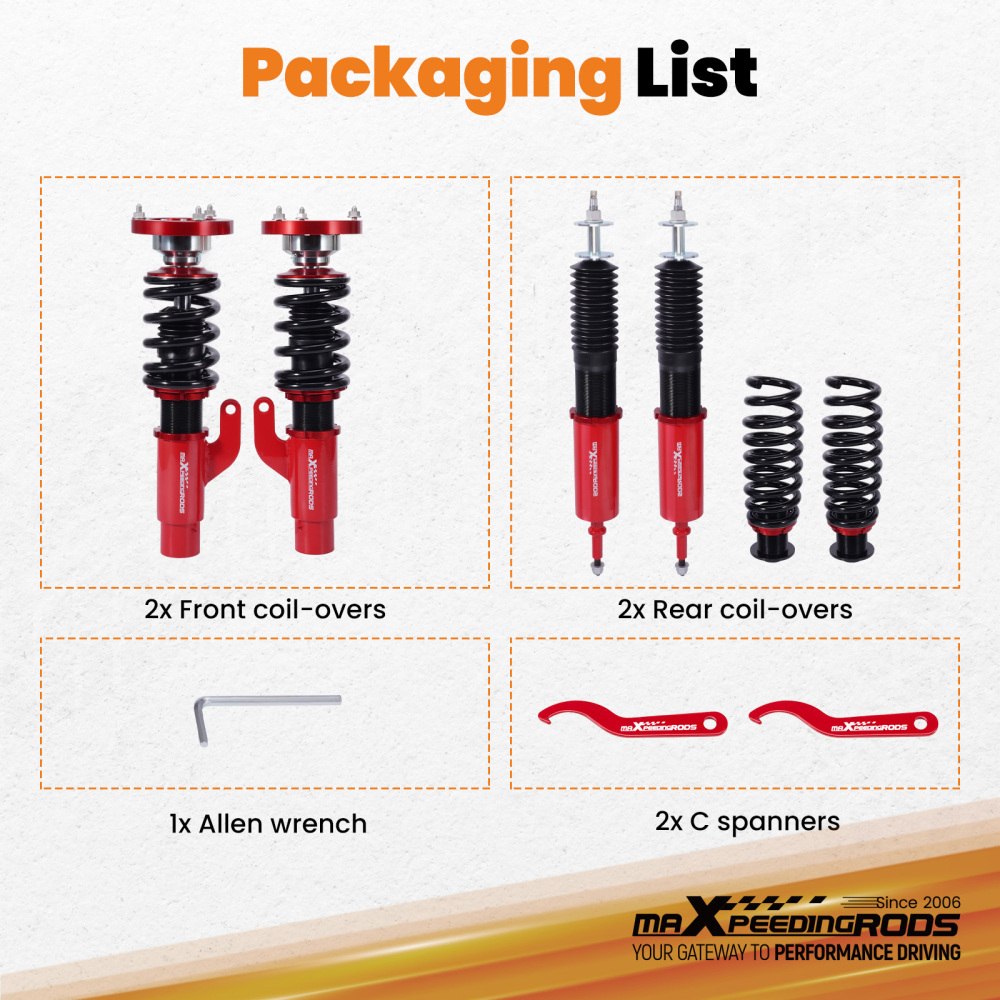

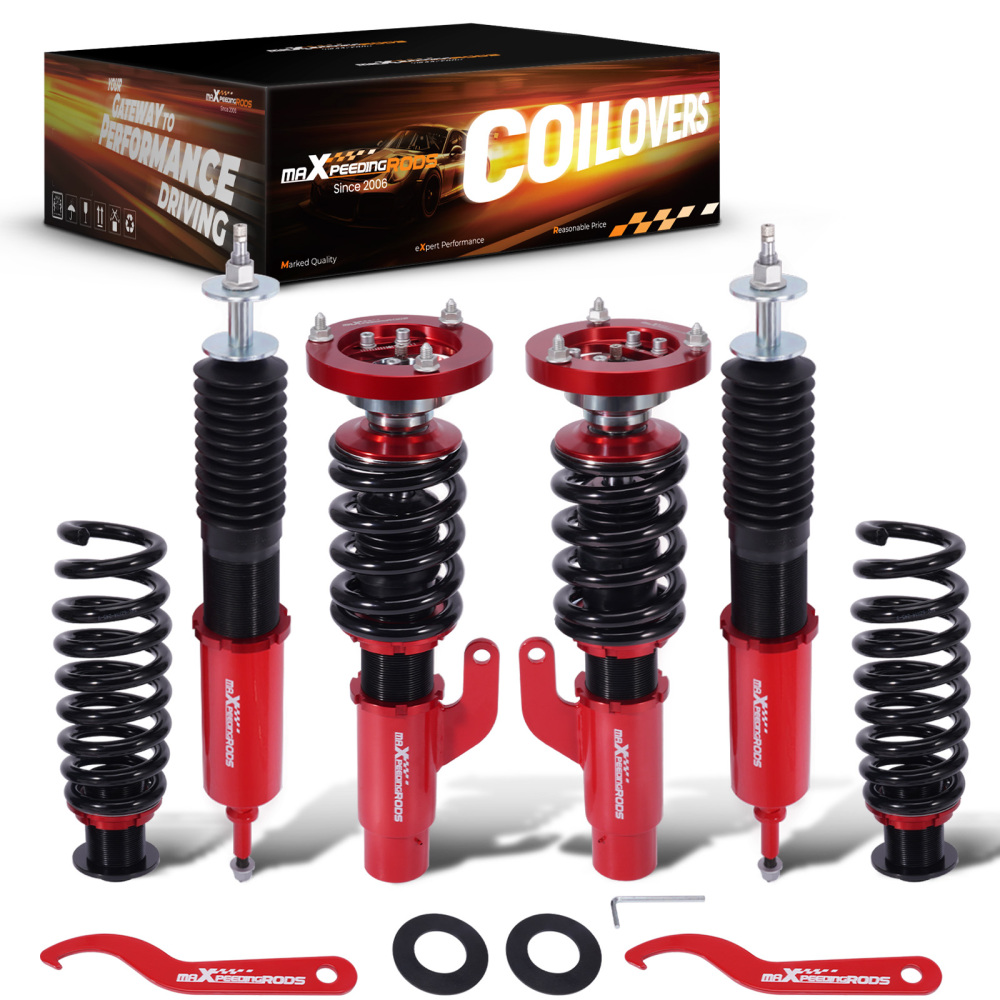

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench
