maXpeedingrods 3.25 Lift Kit compatible for Jeep Wrangler/Rubicon/Unlimited 4WD 2003-2006

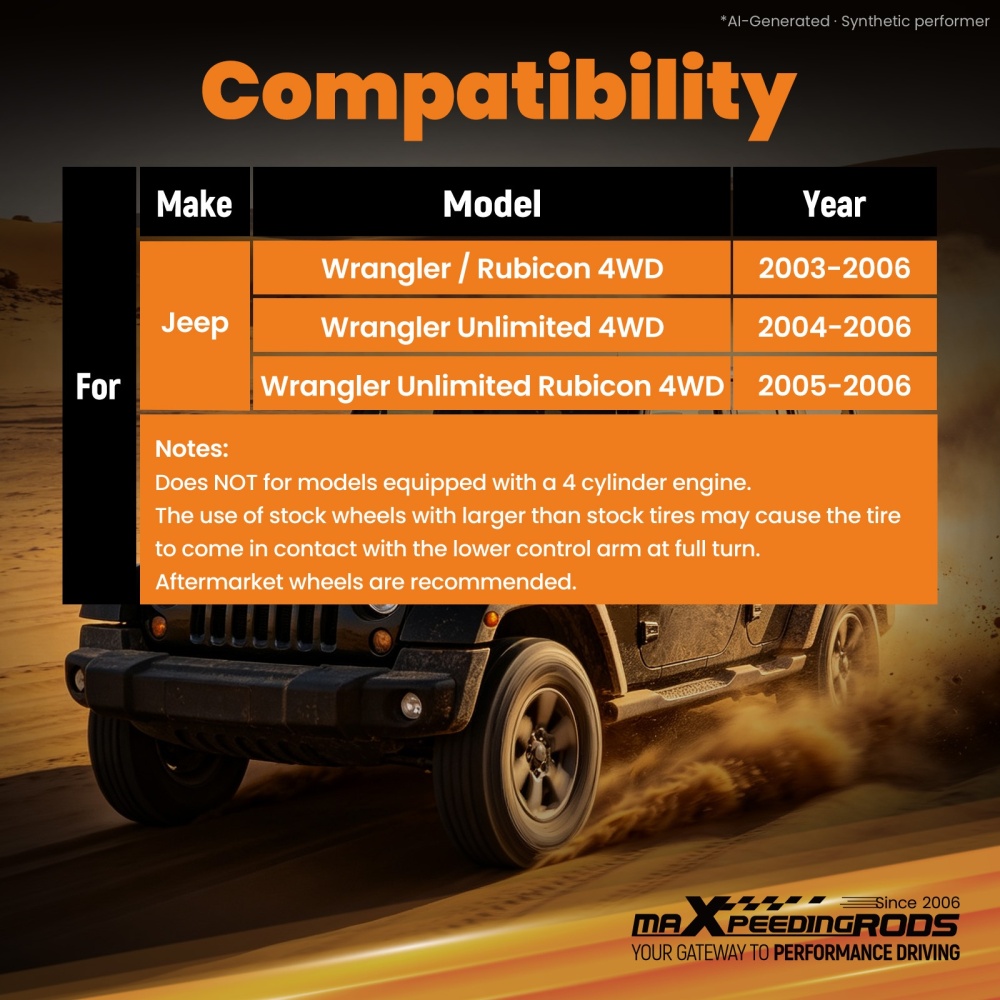

Application

For 2003 - 2006 compatible for Jeep Wrangler / Rubicon 4WD
For 2004 - 2006 compatible for Jeep Wrangler Unlimited 4WD
For 2005 - 2006 compatible for Jeep Wrangler Unlimited Rubicon 4WD
Notes
Does NOT fit models equipped with a 4 cylinder engine.
The use of stock wheels with larger than stock tires may cause the tire to come in contact with the lower control arm at full turn.
Aftermarket wheels are recommended.

Specification

Product Type: Suspension Lift Kit
Lift Height：F&R: 3.25"
Material: High Tensile Strength Carbon Steel
Finish: Powder Coated
Bushing Material: Rubber
Diameter of piston rod: F&R: 18mm/0.70"
Piston diameter：F&R: 35mm/1.37"
Outer cylinder diameter: F&R: 54mm/2.13"

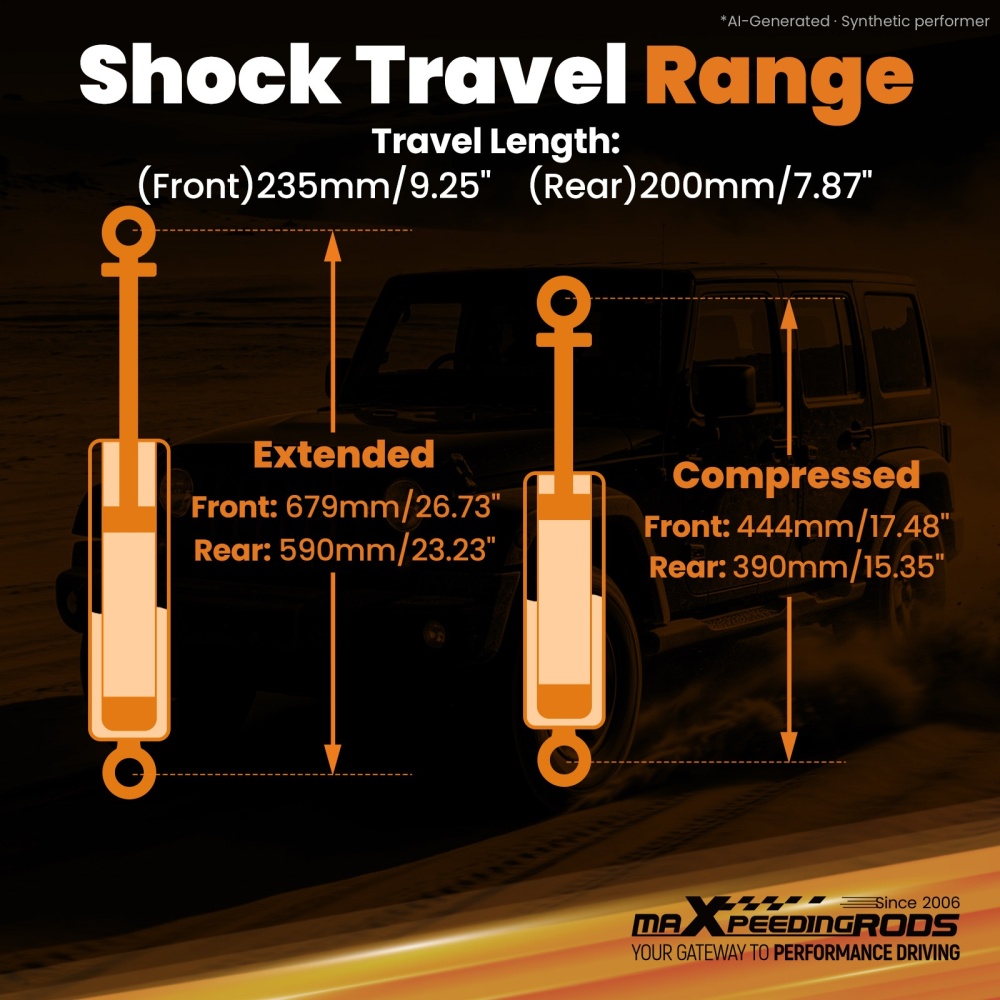

Travel: F:235mm/9.25" R:200mm/7.87"
Extended Length: F:679mm/26.73" R: 590mm/23.23"
Collapsed Length: F:444mm/17.48" R: 390mm/15.35"
Nitrogen Charged：Yes
Dust Cover Equipped: Yes
Spring Material: 55CrSi Steel
Spring Rate: F: 151.2 lb/in = 2.7 kg/mm R: 168 lb/in = 3 kg/mm
Spring Length: F: 520mm/20.47" R: 385mm/15.16"
Spring Tensile Strength：1500-1700MPA

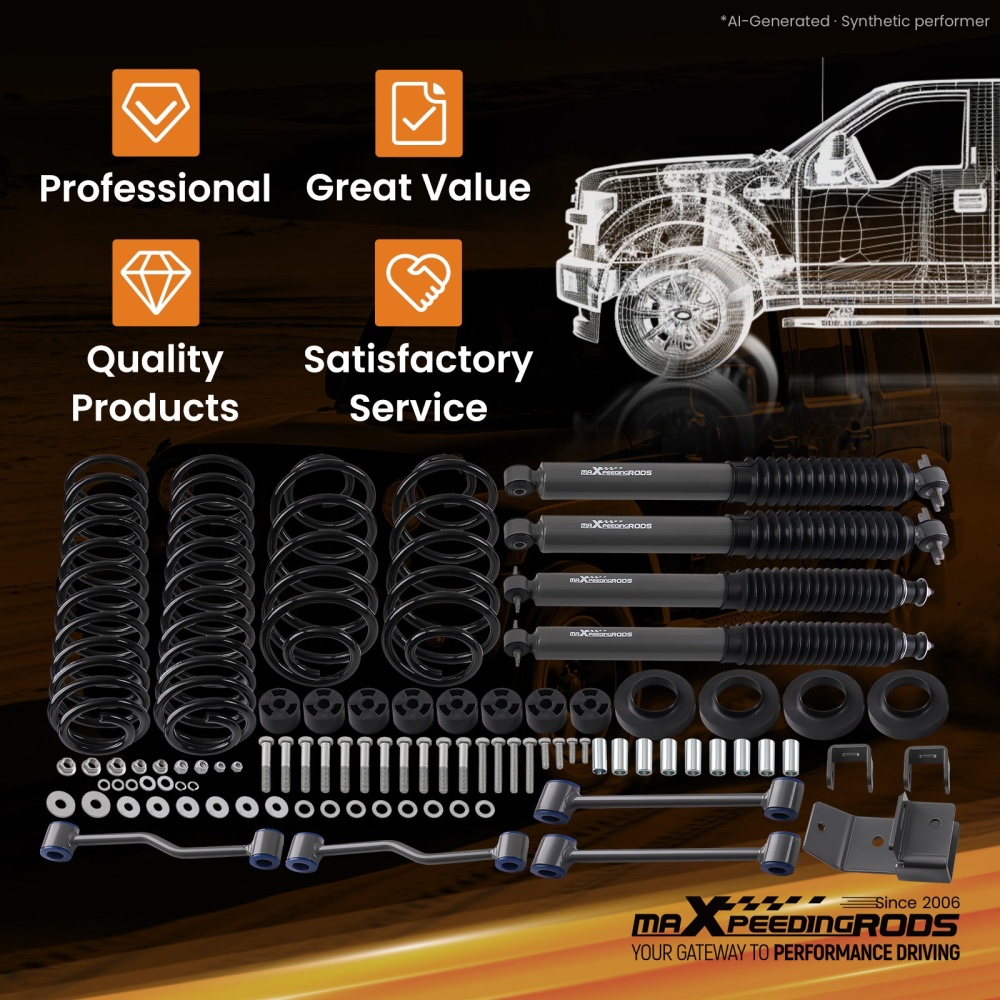

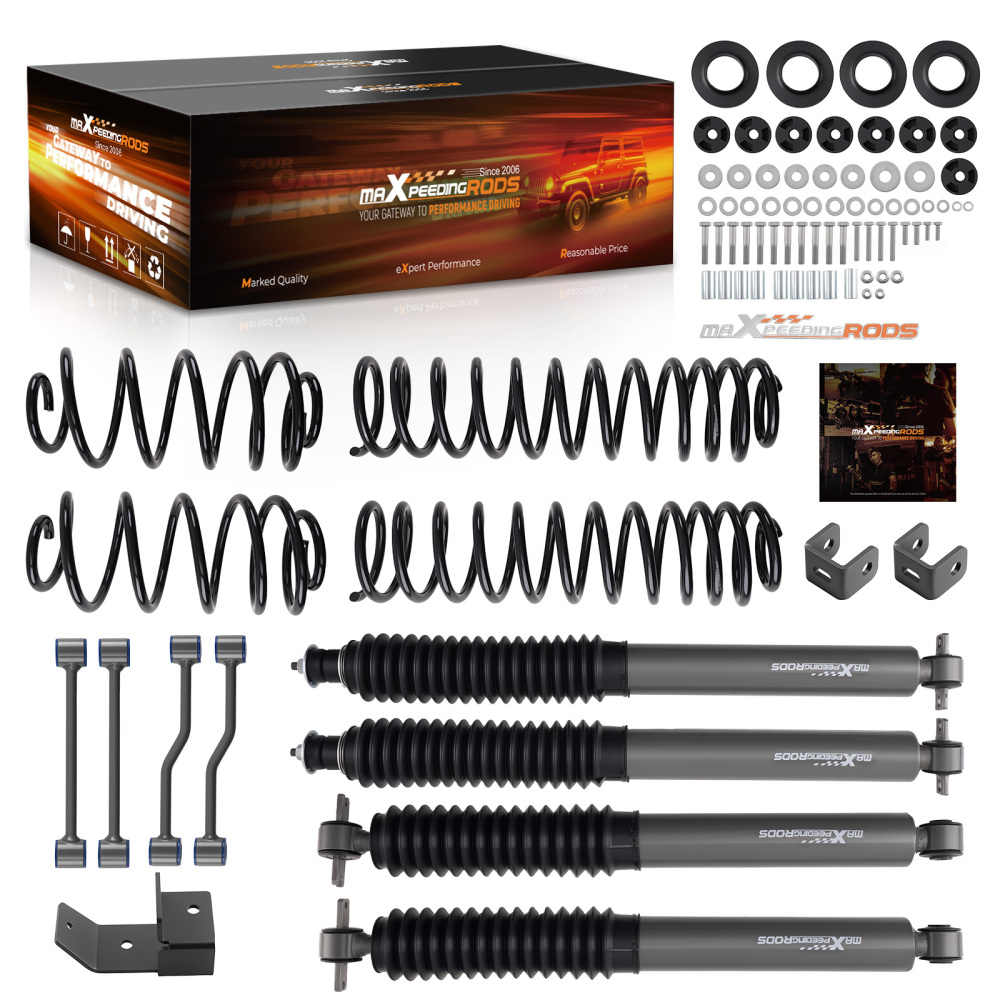

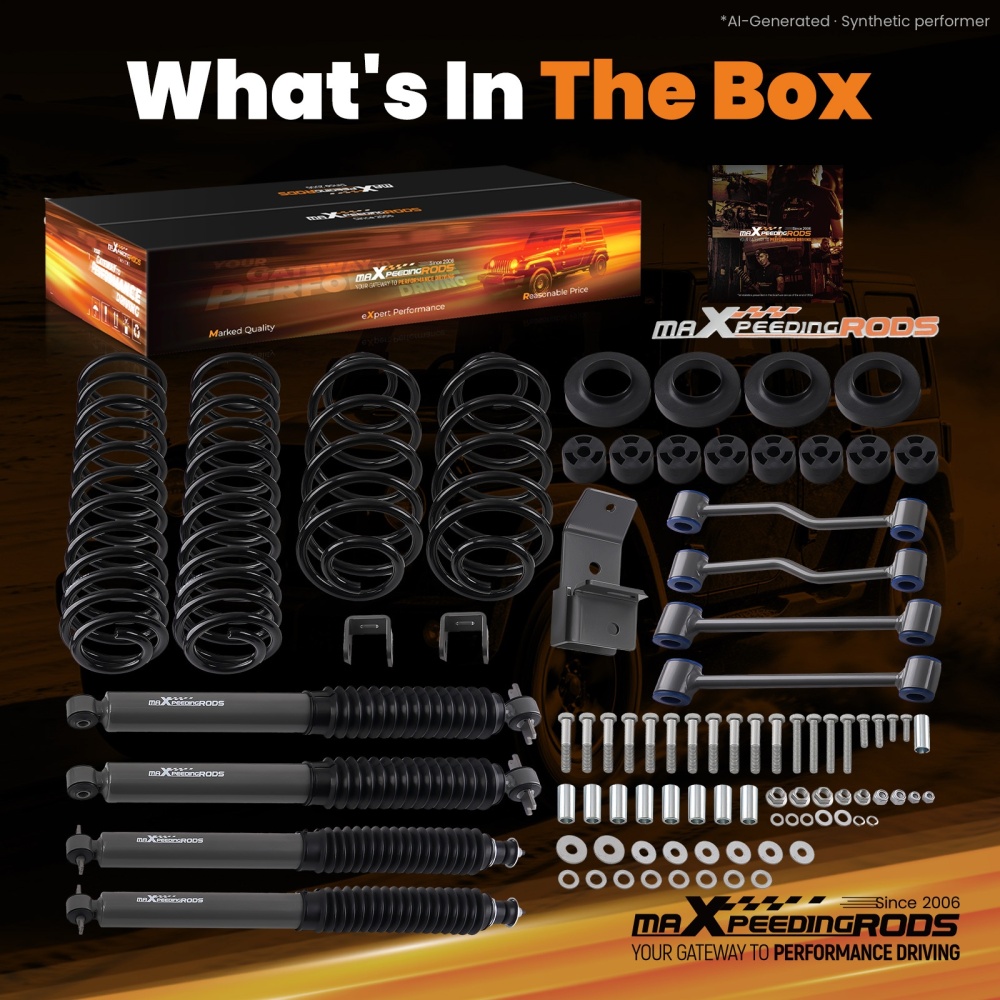

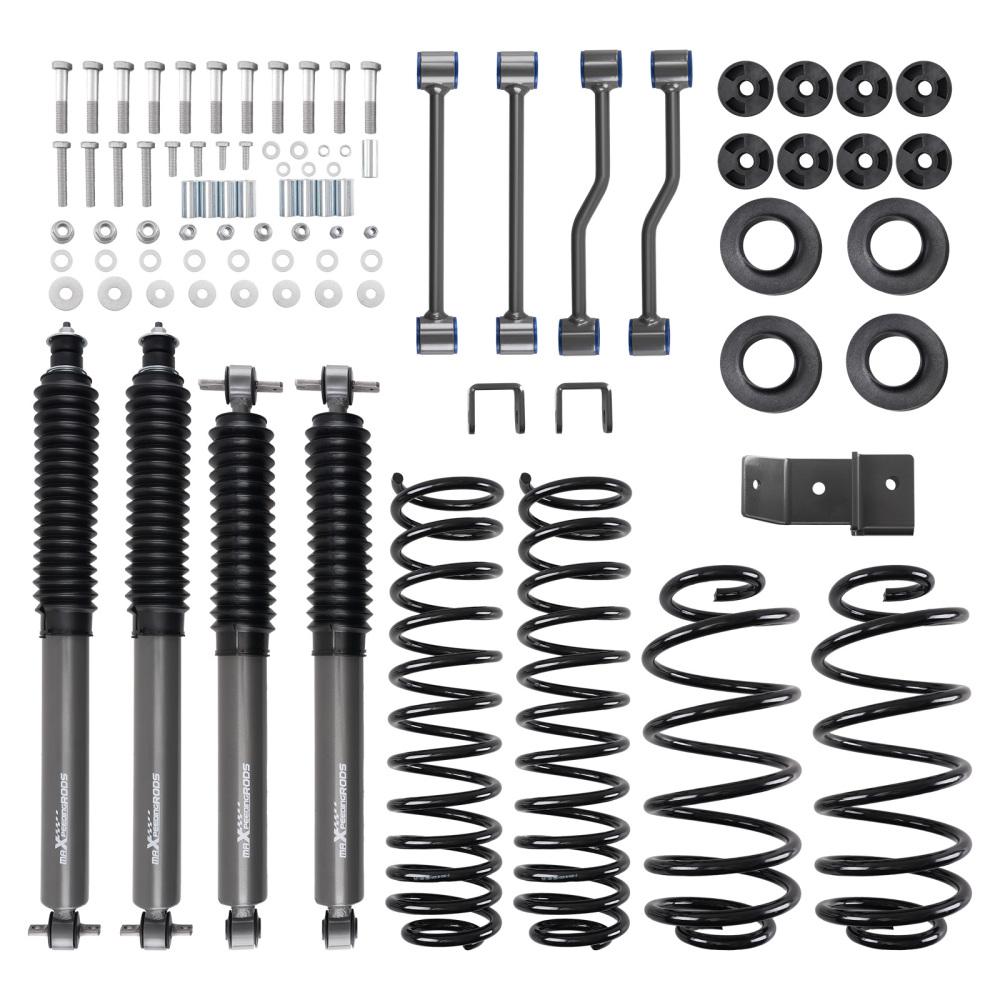

Package included

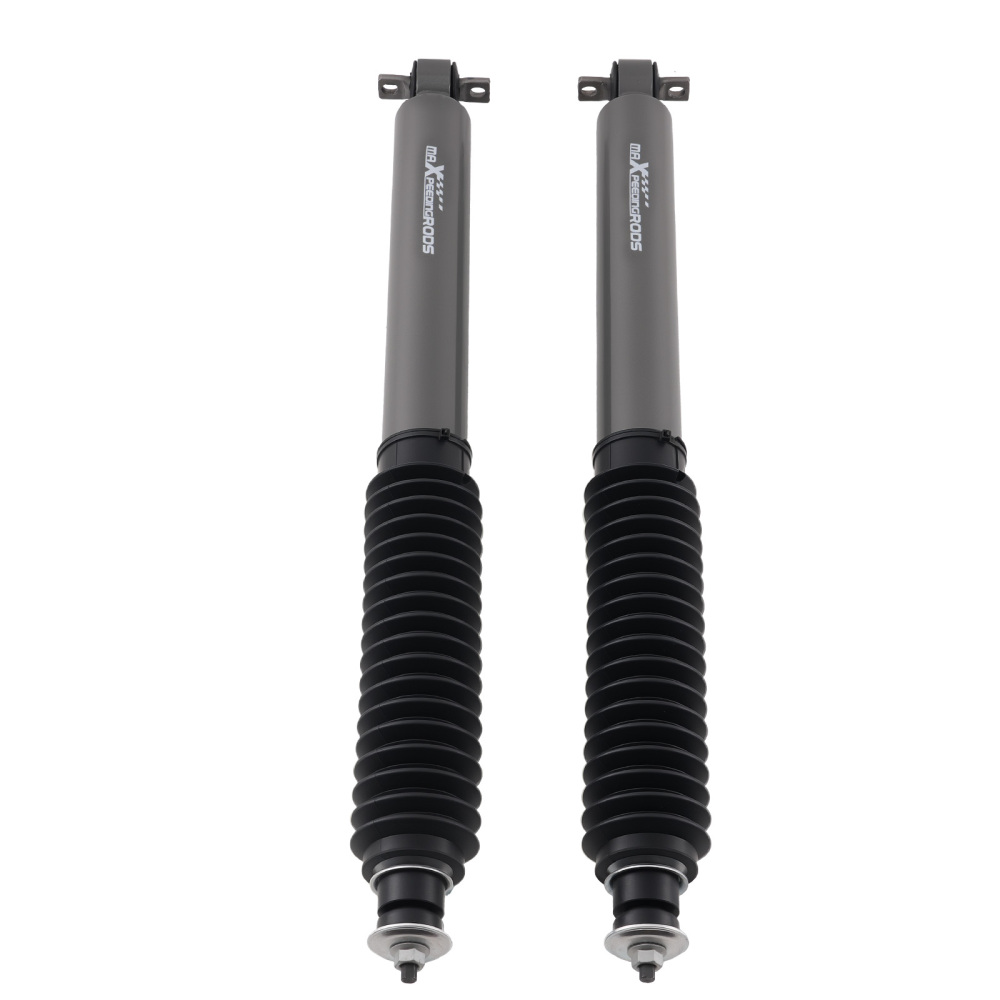

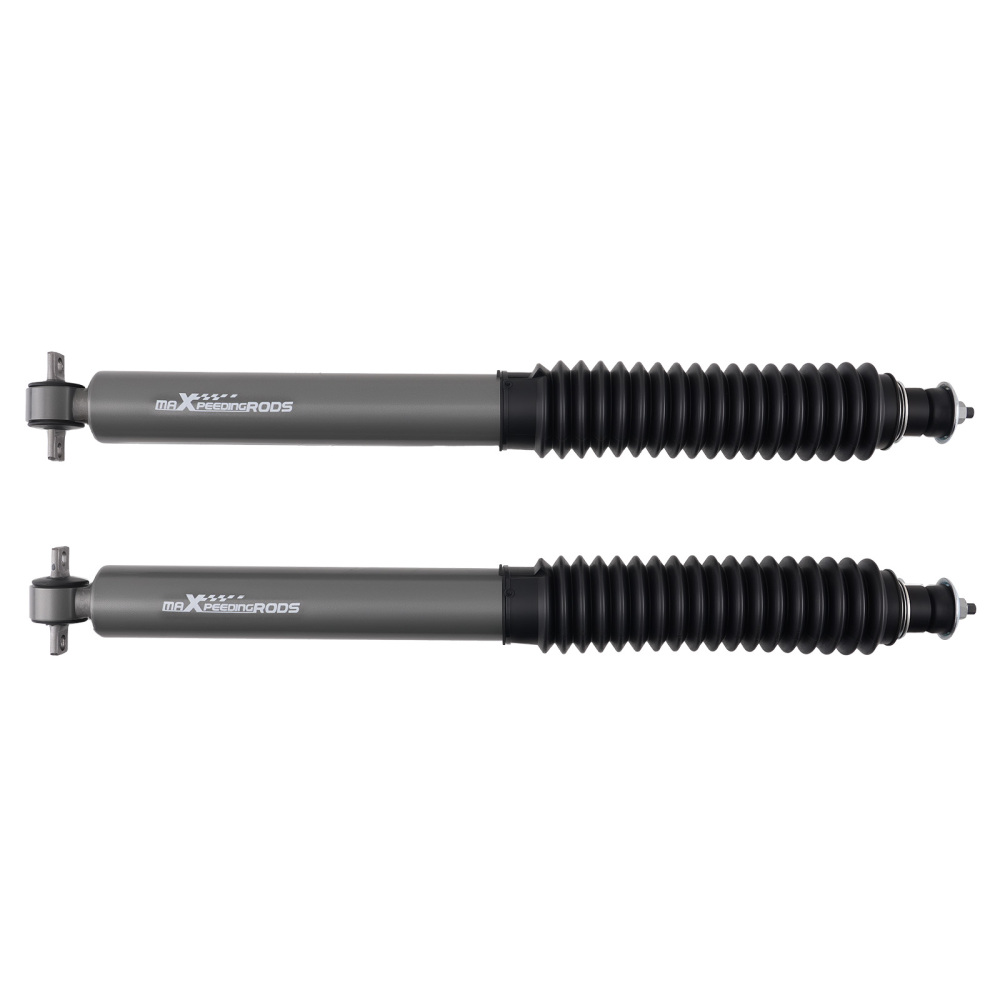

2x Front Shocks

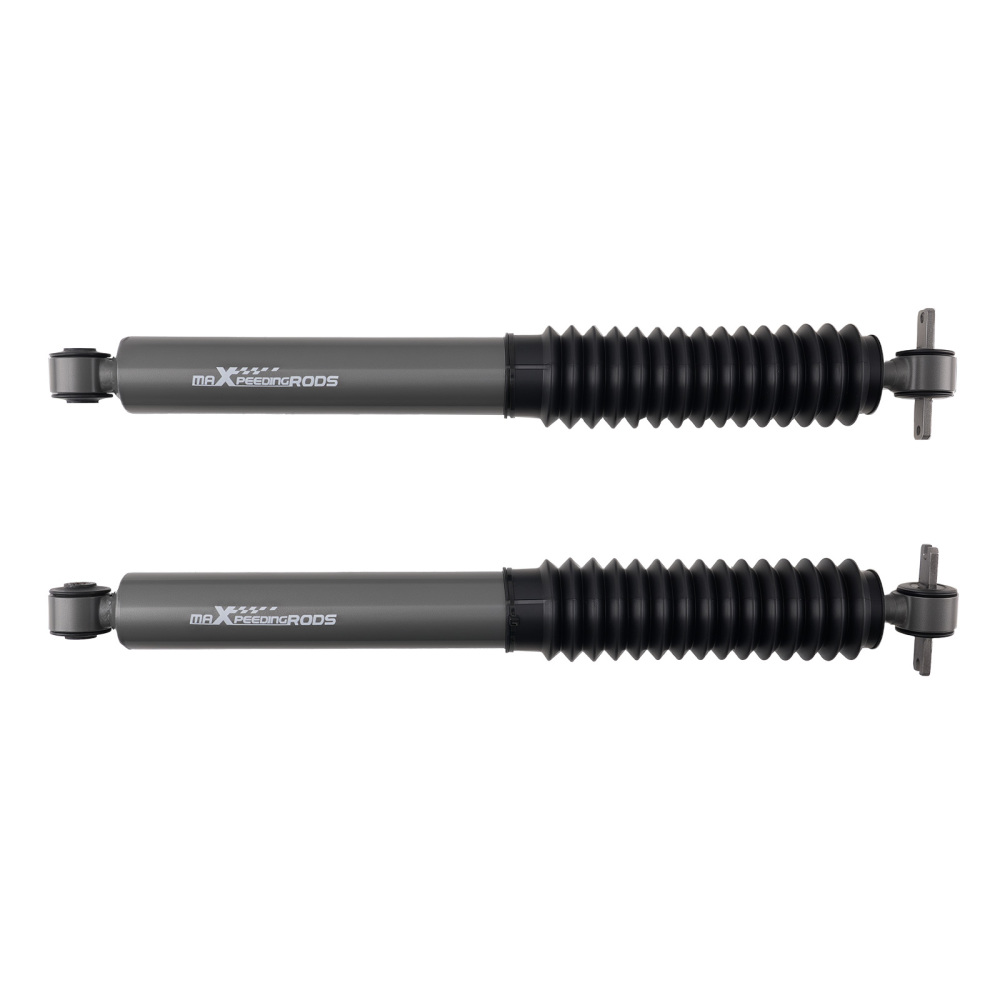

2x Rear Shocks
2x Front Coil Springs
2x Rear Coil Springs
2x Front Coil Spring Spacers
2x Rear Coil Spring Spacers

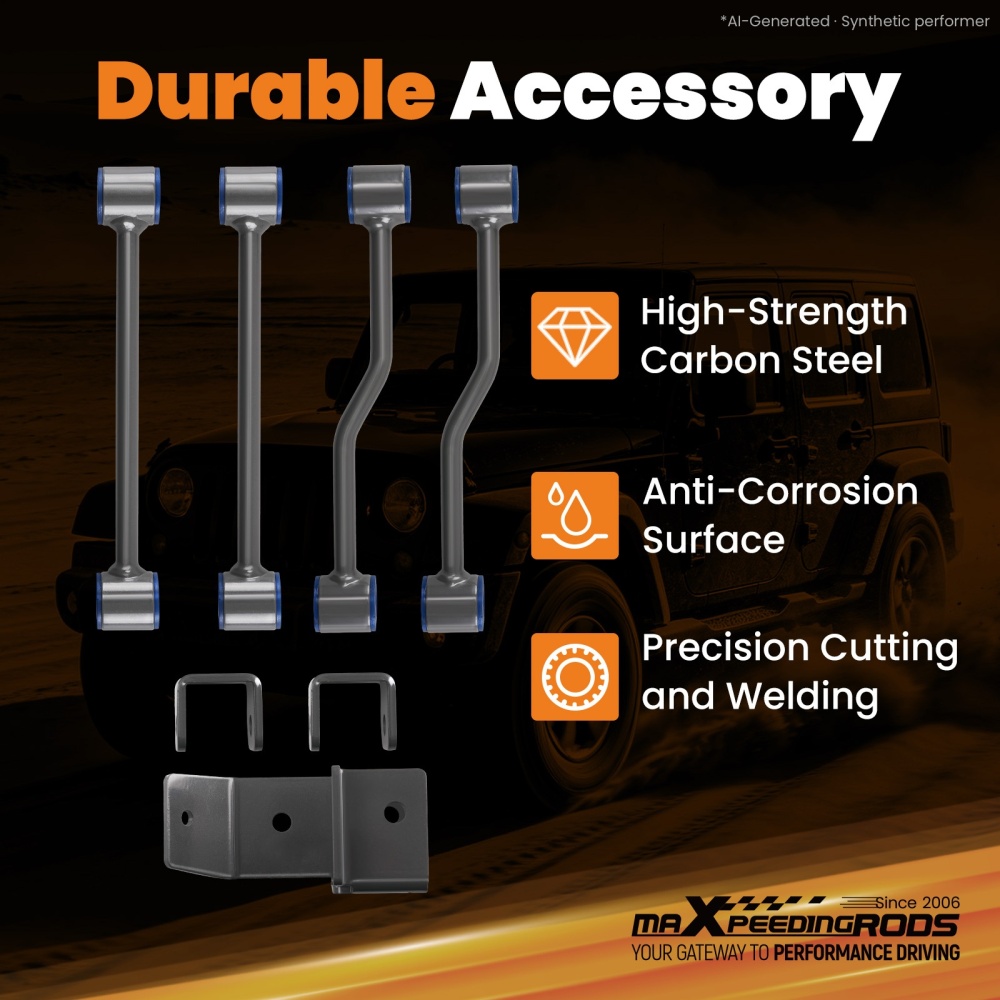

2x Front Extended Sway-Bar Links And Sway Bar Brackets
2x Rear Extended Sway-Bar Links
1x Transfer compatible for Case Drop Kit
1x Track Bar Drop Bracket
Necessary Hardware

Feature

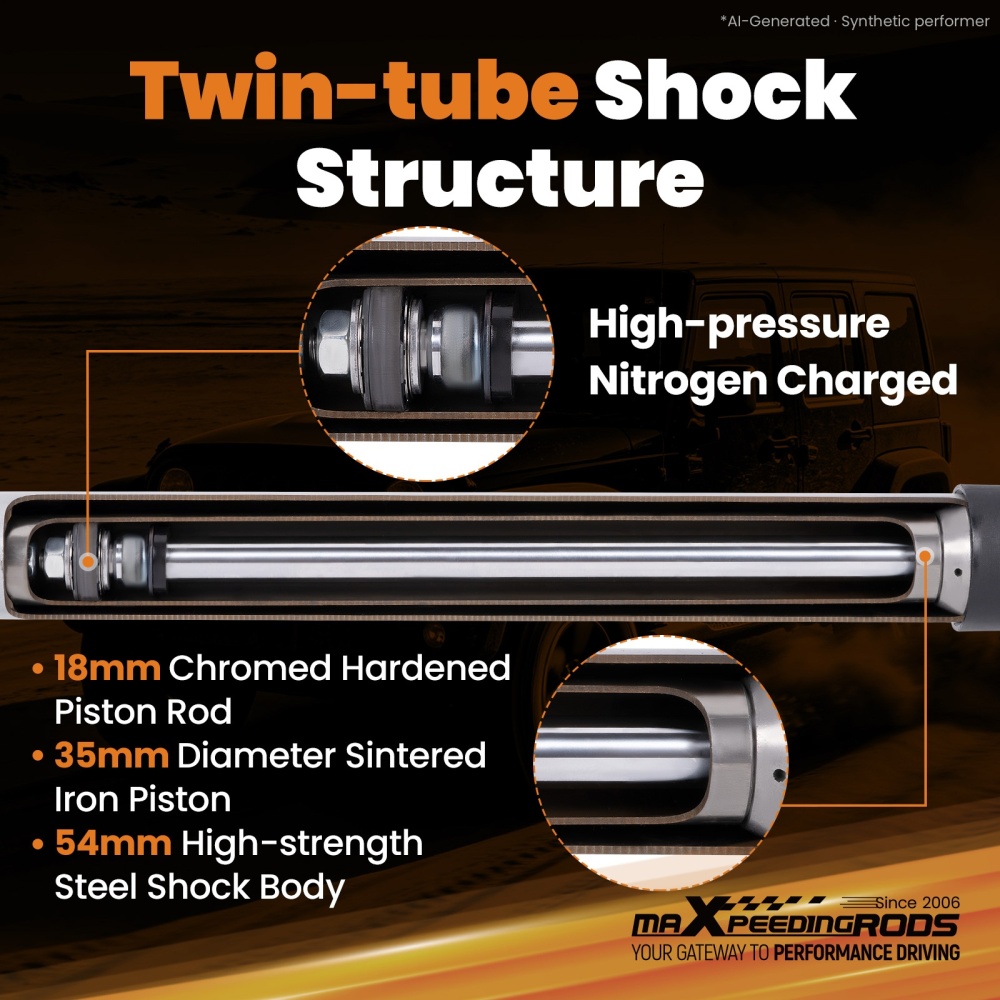

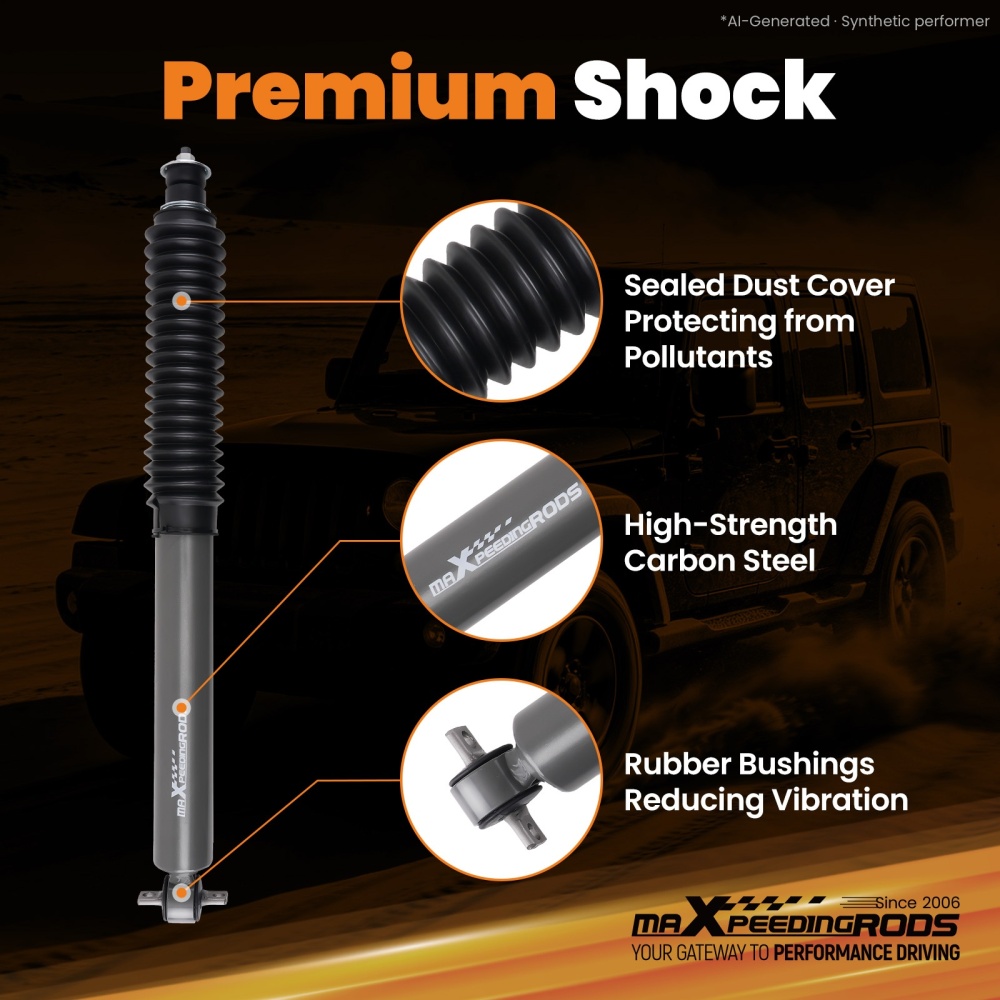

-High-pressure nitrogen charged twin-tube shock absorber with high durability.
-Rubber bushings for better absorption.
-18mm Chromed Hardened Piston Rod.
-35mm Diameter Sintered Iron Piston.
-54mm body diameter for better heat dissipation.
-36KN Tensile Strength.
-Precision Welding.
-Improve your off-road ride.
-Easy bolt-on installation.
-Power coated surface：provides superior corrosion resistance.
-High Tensile Strength Carbon Steel for optimal durability and fitment.
-Dust cover included prevent the shaft rod and -oil seal from damaging.

Note

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
