Hydraulic Outboard Steering System Kit compatible for Evinrude E40-E50-E55-E60 compatible for Mercury

Application

Compatible for Yamaha 60-70 2 Stroke 1984-2008
compatible for Yamaha 75C-90 2 Stroke 1998-2008
compatible for Yamaha F40G-F70 4 Stroke 2010-today
compatible for Yamaha F30-F40-F60-F75-F80-F90 EFFI 4 Stroke 1999-2007
compatible for Yamaha F80 4 Stroke 2000-today
compatible for Yamaha F40D-F50F-F60C EFI 4 Stroke 2004-today
compatible for Honda BF40-50-60-75-90 4 Stroke 1995-today
compatible for Honda BF90 V-TEC 4 Stroke 2008-today
compatible for Suzuki DF40-50-60-70-80-90 4 Stroke 1998-today
compatible for Tohatsu Nissan 40-50-60-70-90 2 Stroke 2004-today
compatible for Tohatsu Nissan 75-90 2 Stroke 2004-today
compatible for Tohatsu Nissan 40-50TLDI 4 Stroke 2004-today
compatible for Tohatsu Nissan 70-90 TLDI 4 Stroke 2004-today
compatible for Mercury Mariner 50-75-90 2 Stroke 1990-2008
compatible for Mercury Mariner 75-90-115 Optimax 2 Stroke 2004-today
compatible for Mercury Mariner 40-50-60-EFI 4 Stroke 2004-today
compatible for Mercury Mariner 75-80-90 EFI 4 Stroke 2000-today
compatible for Evinrude E40-E50-E55-E60 2 Stroke 2004-today
compatible for Evinrude E75-E90 2 Stroke 2004-today
For Selva 40XS-50 Madeira 2 Stroke 1995-today
For Selva 40XS-50 Bull shark 2 Stroke 1995-today
For Selva 40XS-60 Grey shark 2 Stroke 1995-today
For Selva 40XS-70 Mako shark 2 Stroke 1995-today
For Selva 40XS-60 St.Tropez 2 Stroke 1995-today
For Selva 80 Portofino/Tigershark 2 Stroke 1995-today
For Selva 25 Kingfish 4 Stroke 1995-today
For Selva 40 Aruana 4 Stroke 1995-today
For Selva 40XS-40XSR-50-60 Dorado EFI 4 Stroke 1995-today
For Selva 40XSR EFI Murena 4 Stroke 1995-today
compatible for Johnson BJ60-70 4 Stroke 2001-2007
compatible for Johnson BJ90 4 Stroke 2001-2007
compatible for Johnson J90 V4 2 Stroke 1995-2007

OE/Part number

90HP,20FT

Specification

Type:Hydraulic Outboard Steering Kit
Applicable Engine Horsepower:≤90HP
Maximum Pressure:2.5Mpa/363psi
Tube I.D:Φ1 in/25 mm
Rod ID: Ф0.6 in/14mm
Stroke: 7.9 in/200 mm
Quick-fit Fittings:5/16"
Output Force: 232 KGF
Capacity: 73CC
Material: Aluminum Alloy +Stainless Steel

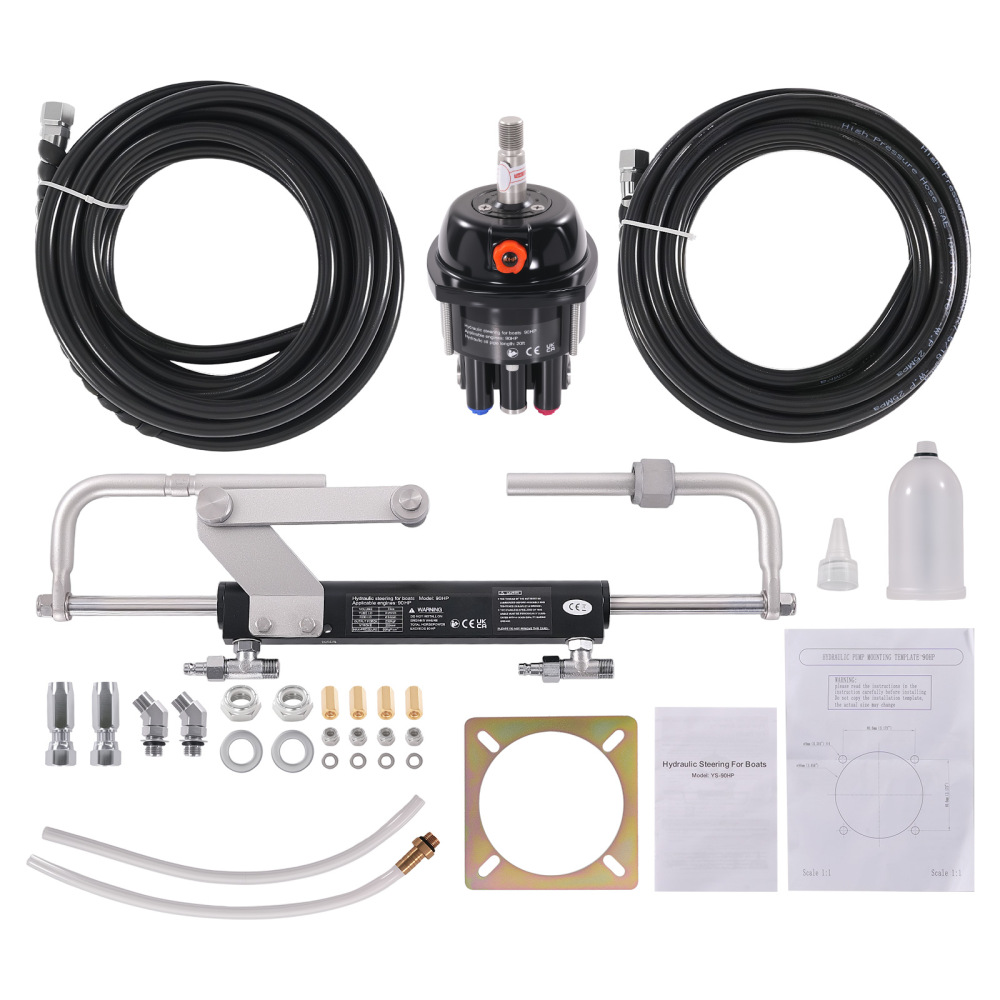

Package included

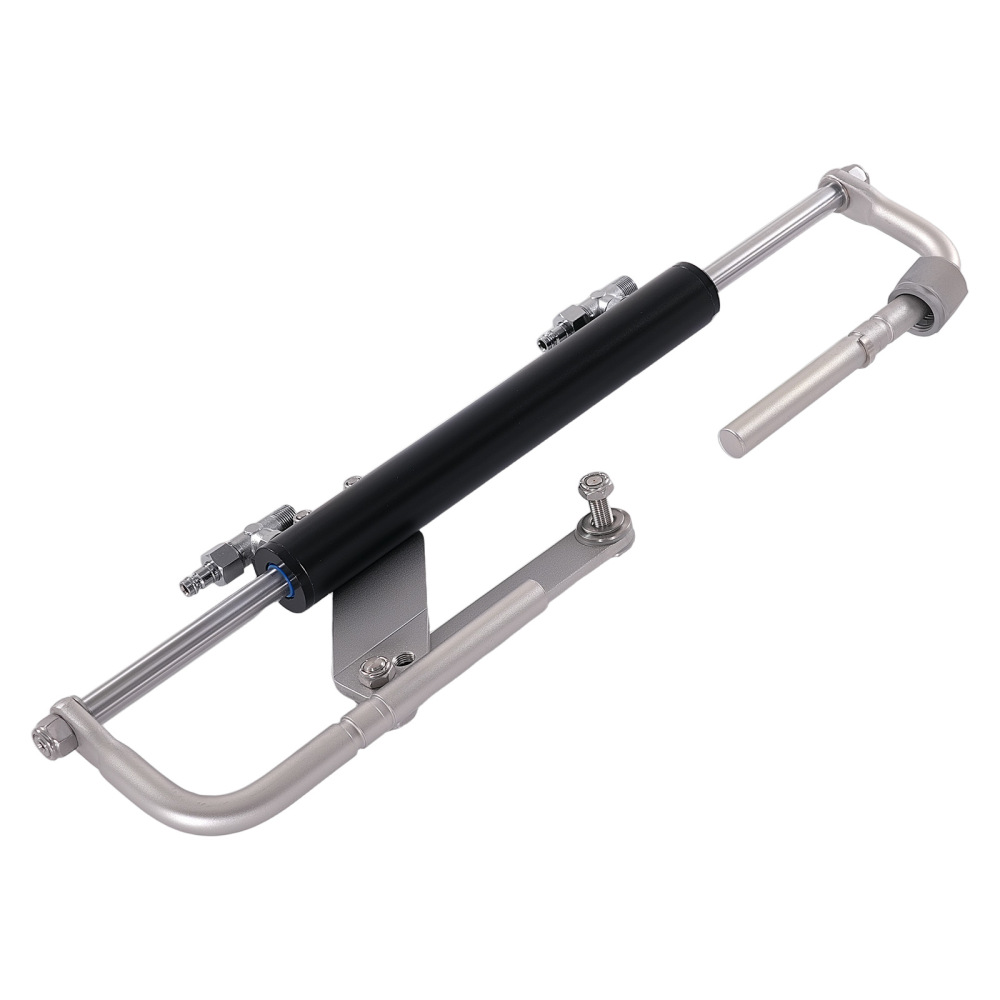

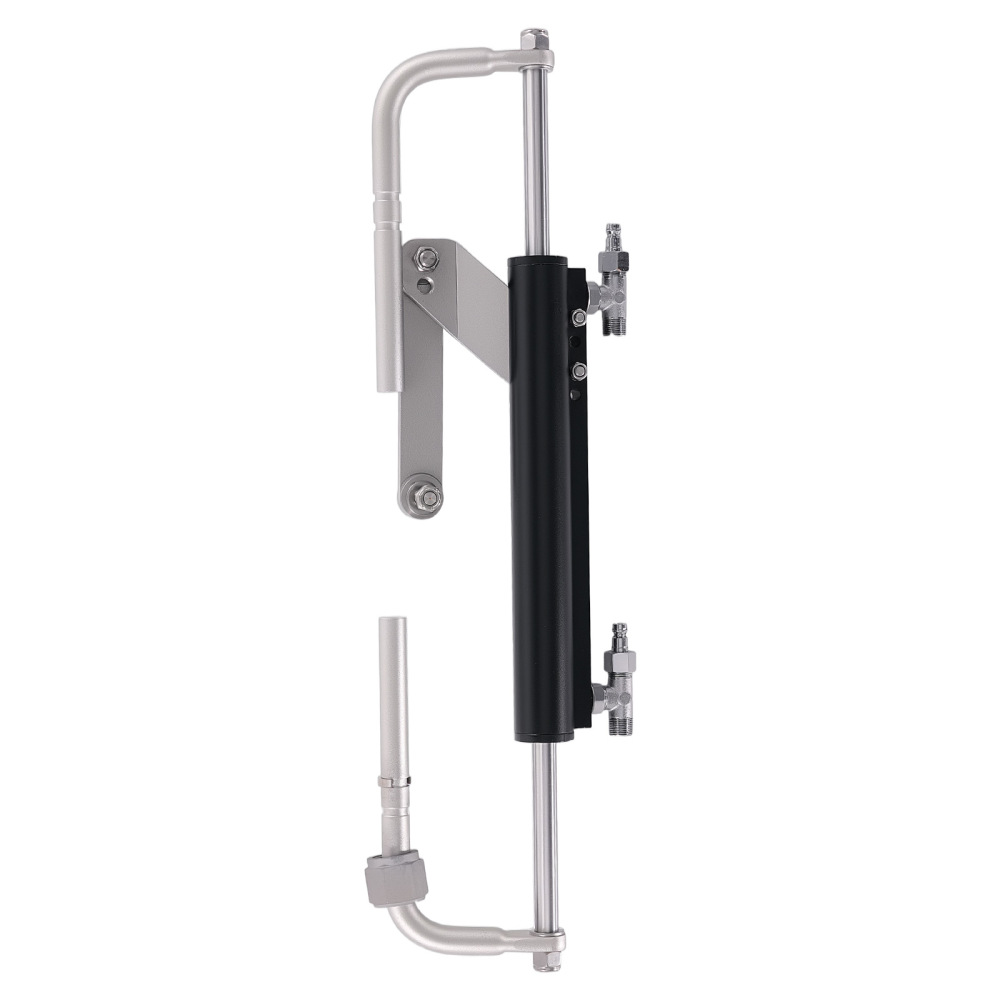

1x Hydraulic steering cylinder

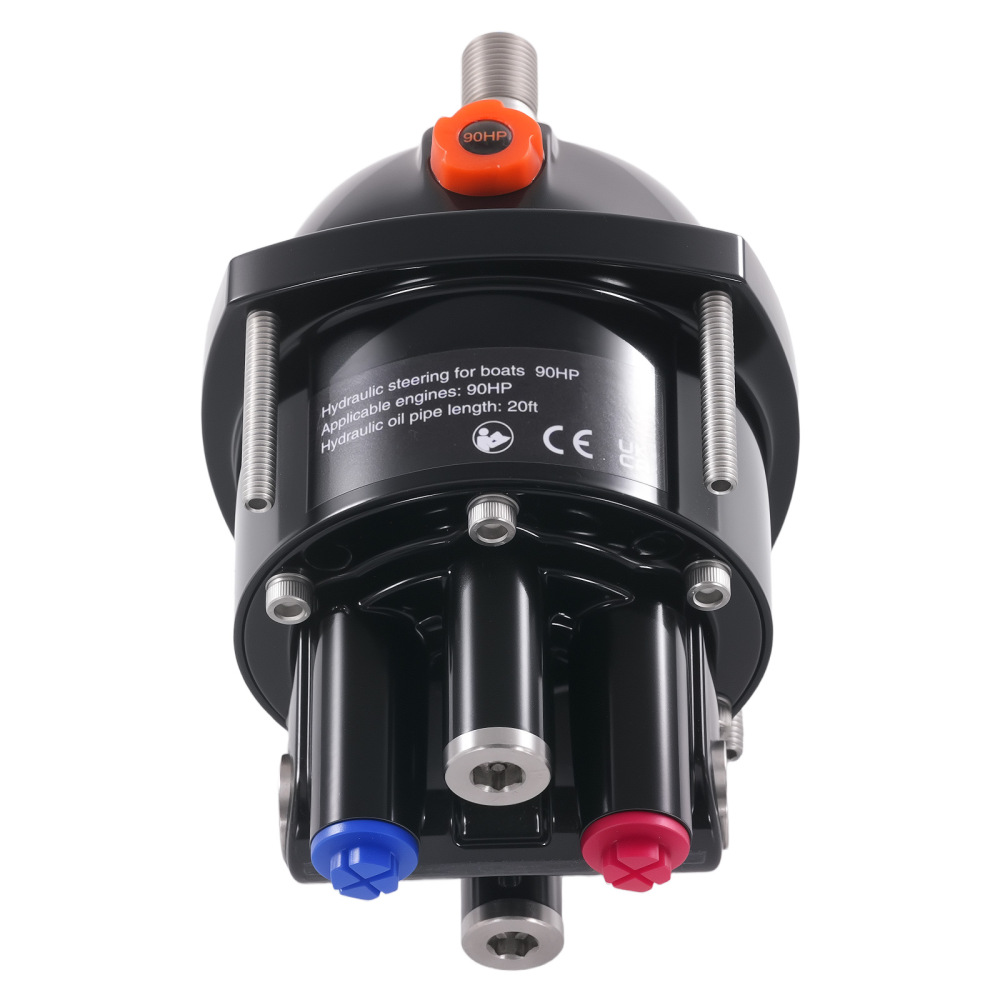

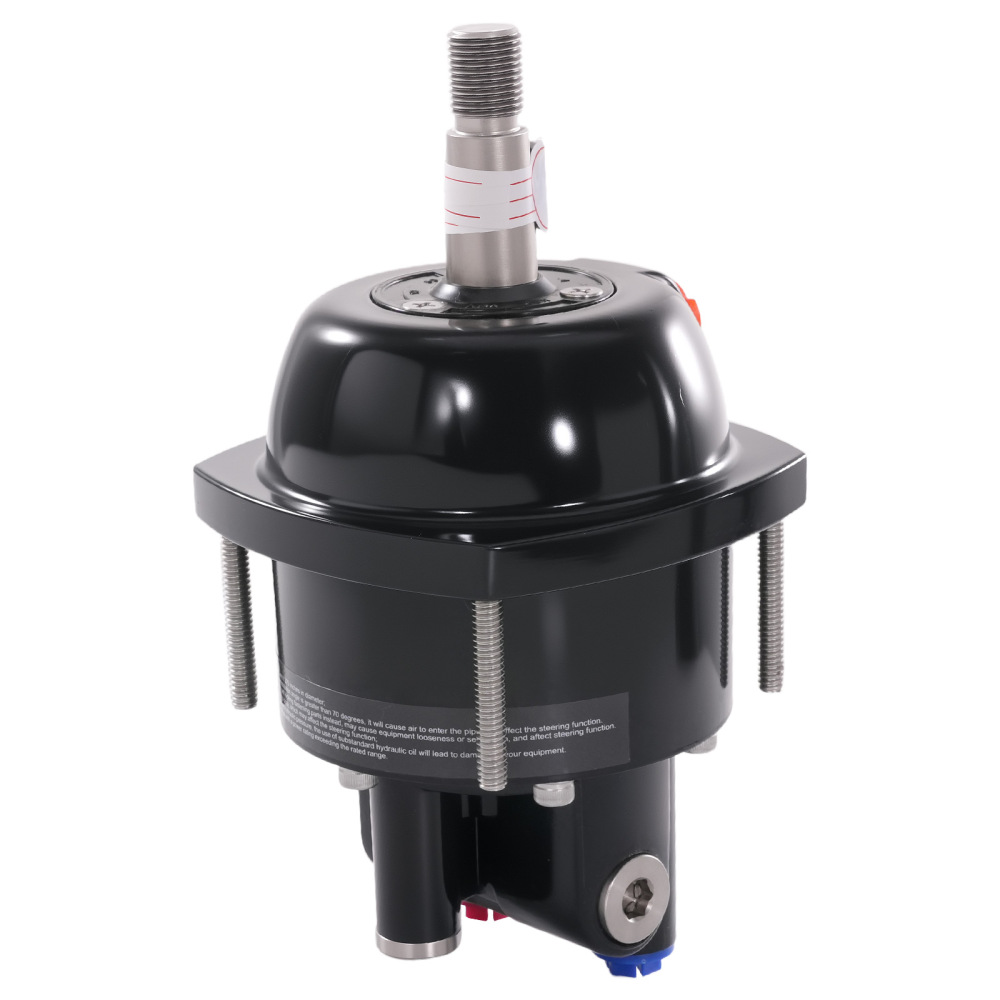

1xHydraulic pump

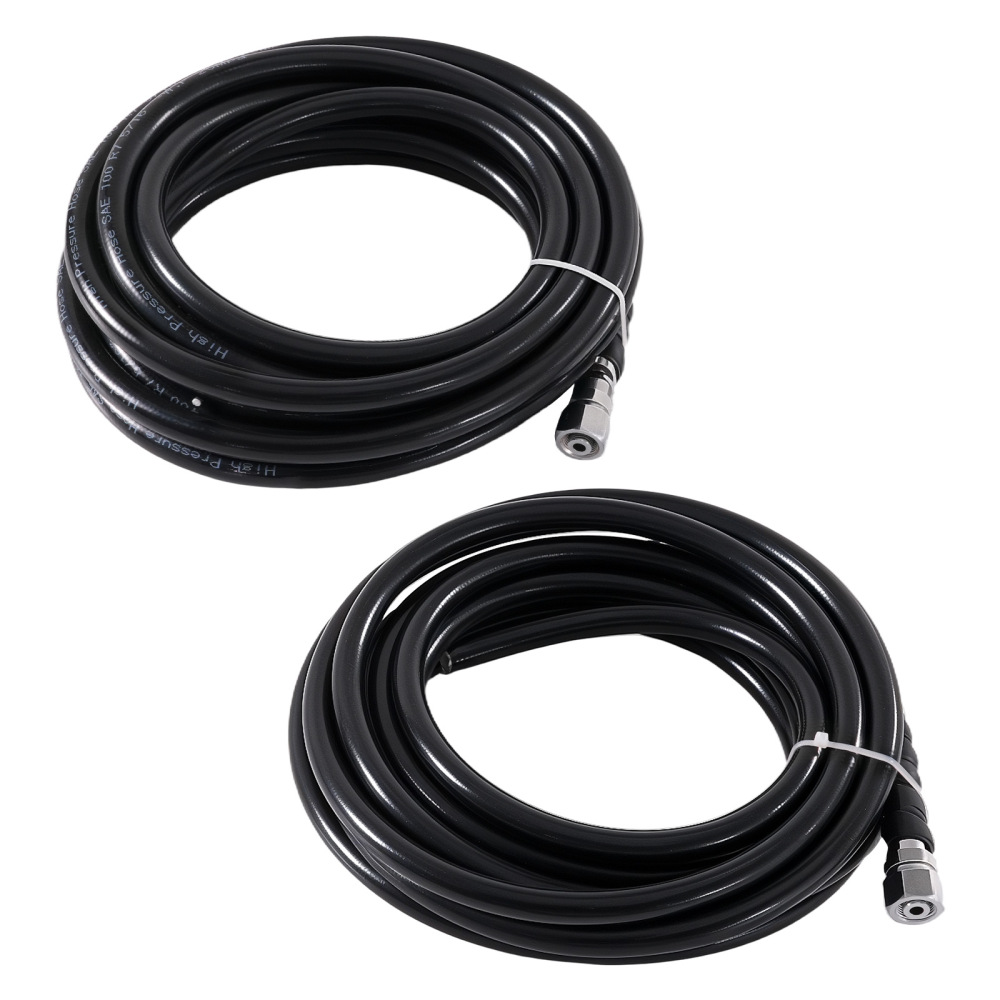

2x20FT hydraulic hoses
1 xComprehensive accessory kit
Showing as the picture

Feature

1.Two-way locking valve for enhanced reliability and security
2.Detachable oil seal design for simplified inspection and maintenance
3.High-pressure hydraulic hoses with quick-fit 5/16" fittings for effortless installation
4.High-performance steering cylinder with 232kgf output force optimized for splash wells
5.Low-friction hydraulic pump with replaceable shaft seals, relief valve, and air pocket

Note

1.Before use, the system must be filled with hydraulic oil and purged of air
2.If performance decreases or response delays occur, check hydraulic fluid level and purge air
3.Always consult and follow the user manual for proper operation and maintenance
4.Hoses can be cut to custom lengths to meet specific vessel requirements
