Hydraulic Outboard Steering Kit Boat Marine System compatible for Yamaha Honda BF130A new

Application

Compatible for Yamaha 75C-90 2 Stroke 1998-2008
compatible for Yamaha 115C-130B 2 Stroke 1990-2008
compatible for Yamaha 150F-200F 2 Stroke 1996-2007
compatible for Yamaha 150 HPDI VMAX 2 Stroke 2000-2008
compatible for Yamaha 175-200 HPDI VMAX 2 Stroke 2000-2008
compatible for Yamaha F70 4 Stroke 2010-DATE
compatible for Yamaha F90-F100-F115-F150 EF1 4 Stroke 1999-2007
compatible for Yamaha F200 4 Stroke 2002-DATE
compatible for Yamaha F115-F150 2004-DATE
compatible for Honda BF75-90 4 Stroke 1995-DATE
compatible for Honda BF115D 1998-2009
compatible for Honda BF115A 2009-DATE
compatible for Honda BF130A 1998-2005
compatible for Honda BF135-150 4 Stroke 2005-DATE
compatible for Honda BF90-BF150 V-TEC 4 Stroke 2008-DATE
compatible for Honda BF175-200 4 Stroke 2001-DATE
compatible for Suzuki DF70-80-90 4 Stroke 1998-DATE
compatible for Suzuki DF100-115-140 4 Stroke * 1998-2008
compatible for Suzuki DF100-115-140 4 Stroke new model 2008-DATE
compatible for Suzuki DF150-175 4 Stroke 2006-DATE
compatible for Suzuki DF200 2000-DATE
compatible for Mercury Mariner 75-90-115-125 Optimax 2 Stroke 2004-DATE
compatible for Mercury Mariner 135-150-175 200 Optimax 2 Stroke 1999-DATE
compatible for Mercury Mariner 100-115 EF1 4 Stroke 2007-DATE
compatible for Mercury Mariner 115-125-150 EF1 2 Stroke 1990-2007
compatible for Mercury Mariner 135 Verado L4 4 Stroke 2004-2006
compatible for Mercury Mariner 150-175-200 Verado L4 4 Stroke 2004-DATE
compatible for Tohatsu Nissan 115-120-140 2 Stroke 2004-DATE
compatible for Tohatsu Nissan 70-90-115 TLD1 4 Stroke 2004-2011
compatible for Evinrude E75-E90 2 Stroke 2004-DATE
compatible for Evinrude E115-E130-E135 2 Stroke V4 1995-DATE
compatible for Evinrude E150-E175-E200 2 Stroke V6 1995-DATE
compatible for Evinrude E200 HO 2 Stroke V6 1995-DATE
For Selva 80 Portofino/Tigershark 2 Stroke 1995-DATE
For Selva 150 compatible for White Shark 2 Stroke 2001-2007
For Selva 100EFIMarlin 2000-DATE
For Selva 115 EFINarwhal 2000-DATE
For Selva 150EFI 2000-DATE
compatible for Johnson BJ90-115-140 4 Stroke 2001-2007
compatible for Johnson J90-115 V4 2 Stroke 1995-2007
compatible for Johnson J150-175 V6 2 Stroke 1995-2007
compatible for Johnson J200 V6 4 Stroke 2004-2007

OE/Part number

200HP,26FT

Specification

Applicable Engine Horsepower:≤200HP
helm Maximum Pressure:6.9 Mpa/1000psi
Tube I.D:32mm
Rod ID:16mm
Stroke:202mm
Quick-fit Fittings:5/16"
Output Force: 409.7KGF
Material: Aluminum Alloy +Stainless Steel

Package included

1x Hydraulic helm

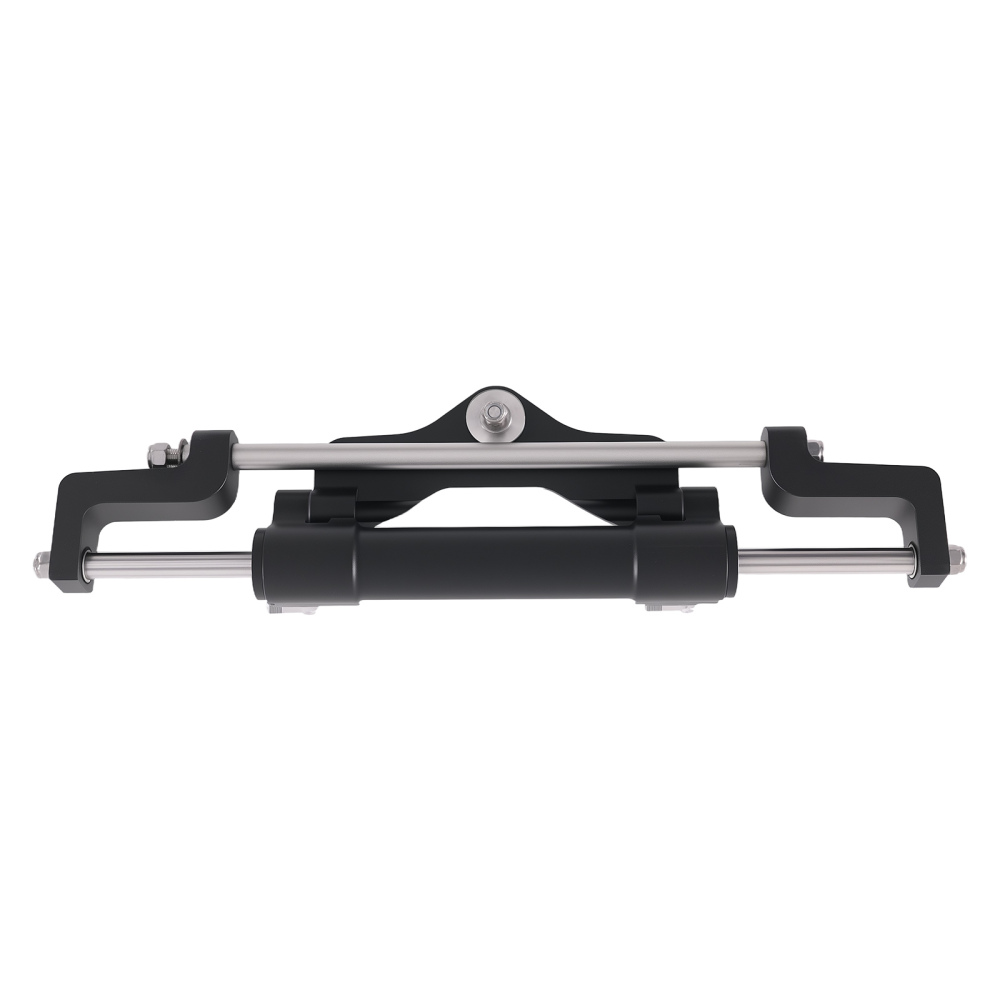

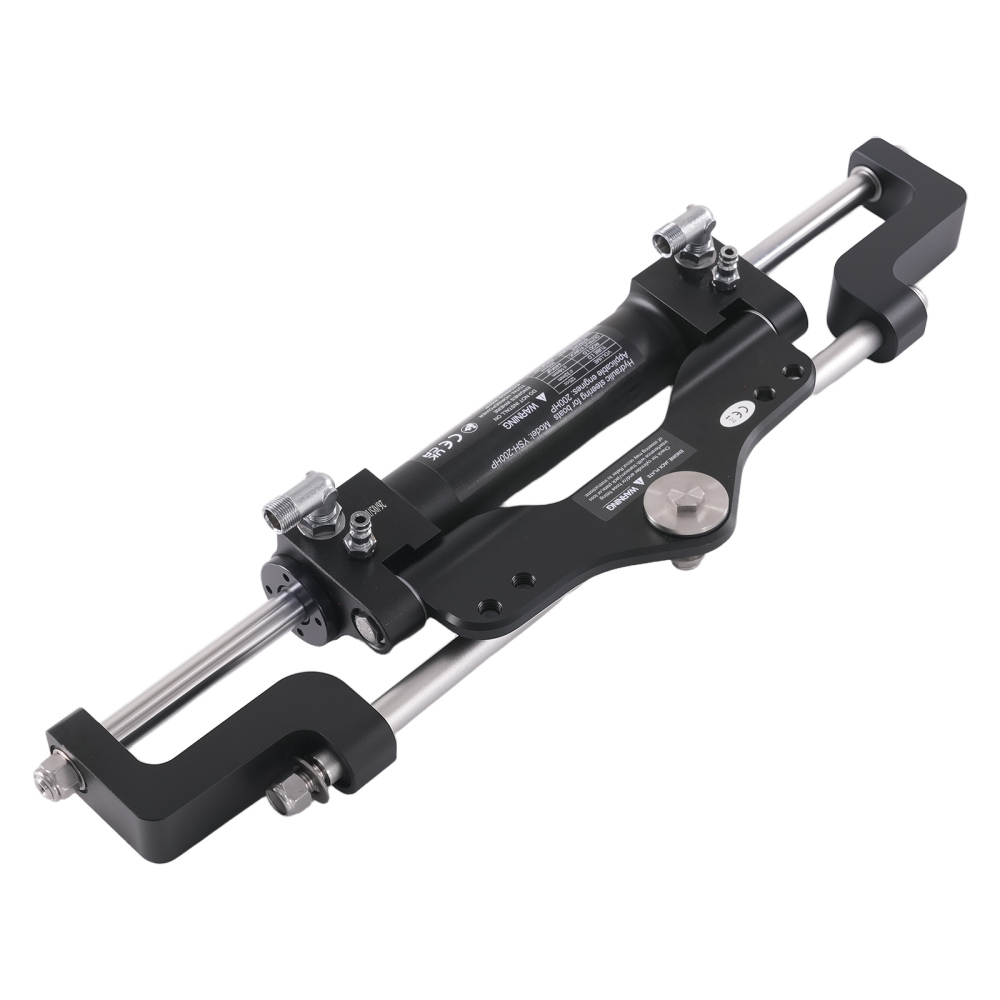

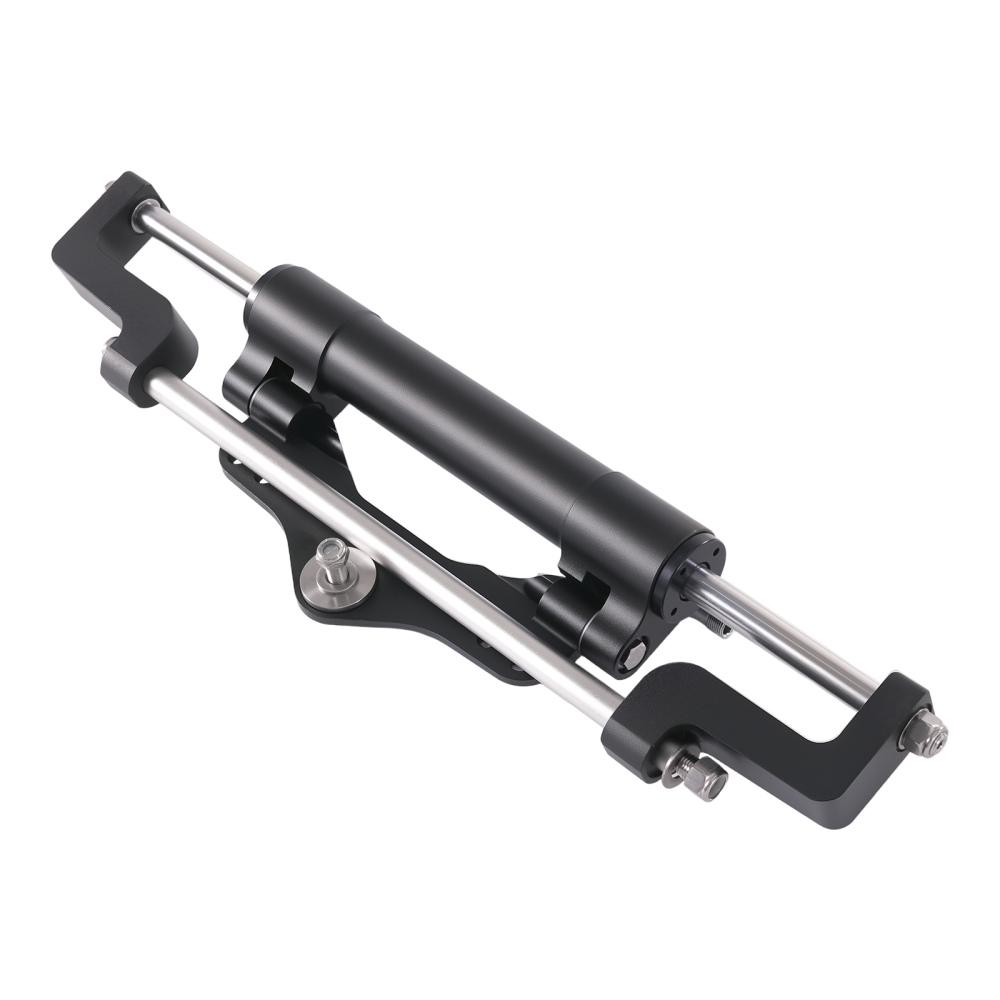

1x Hydraulic steering cylinder

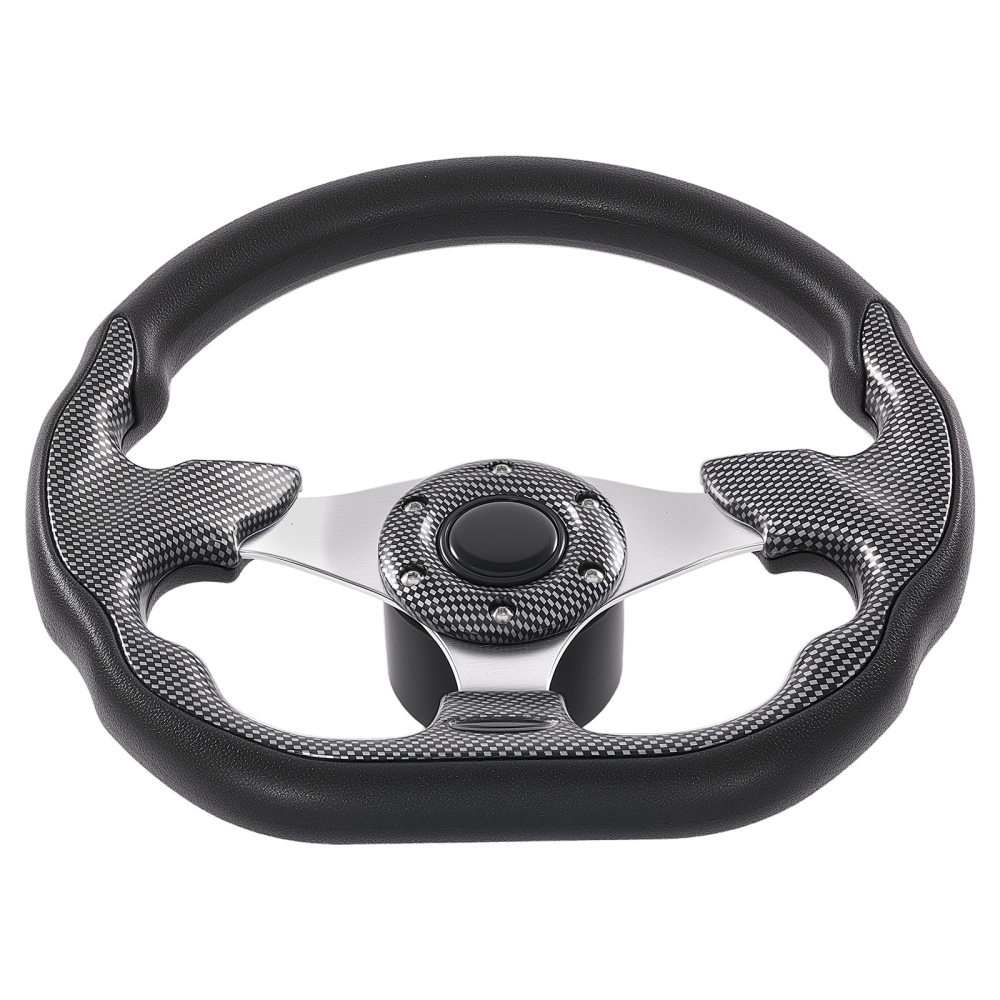

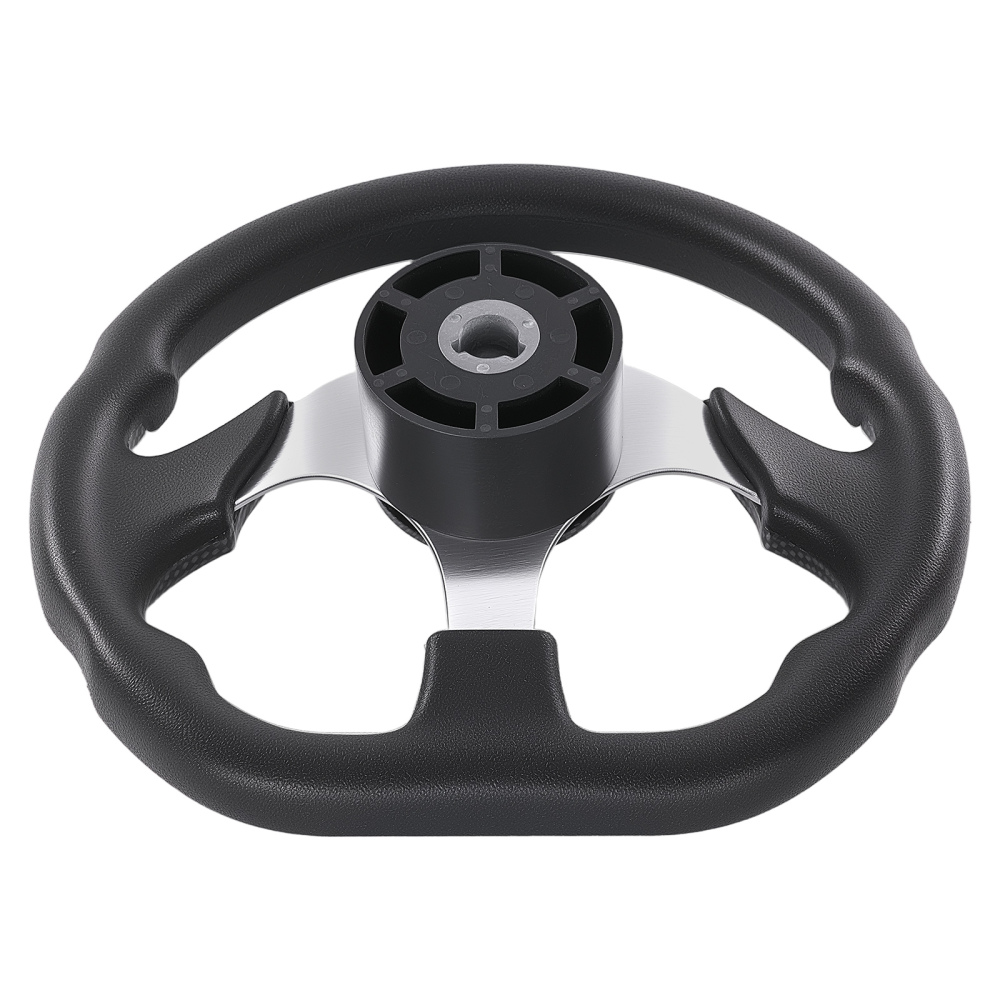

1x13.5" steering wheel

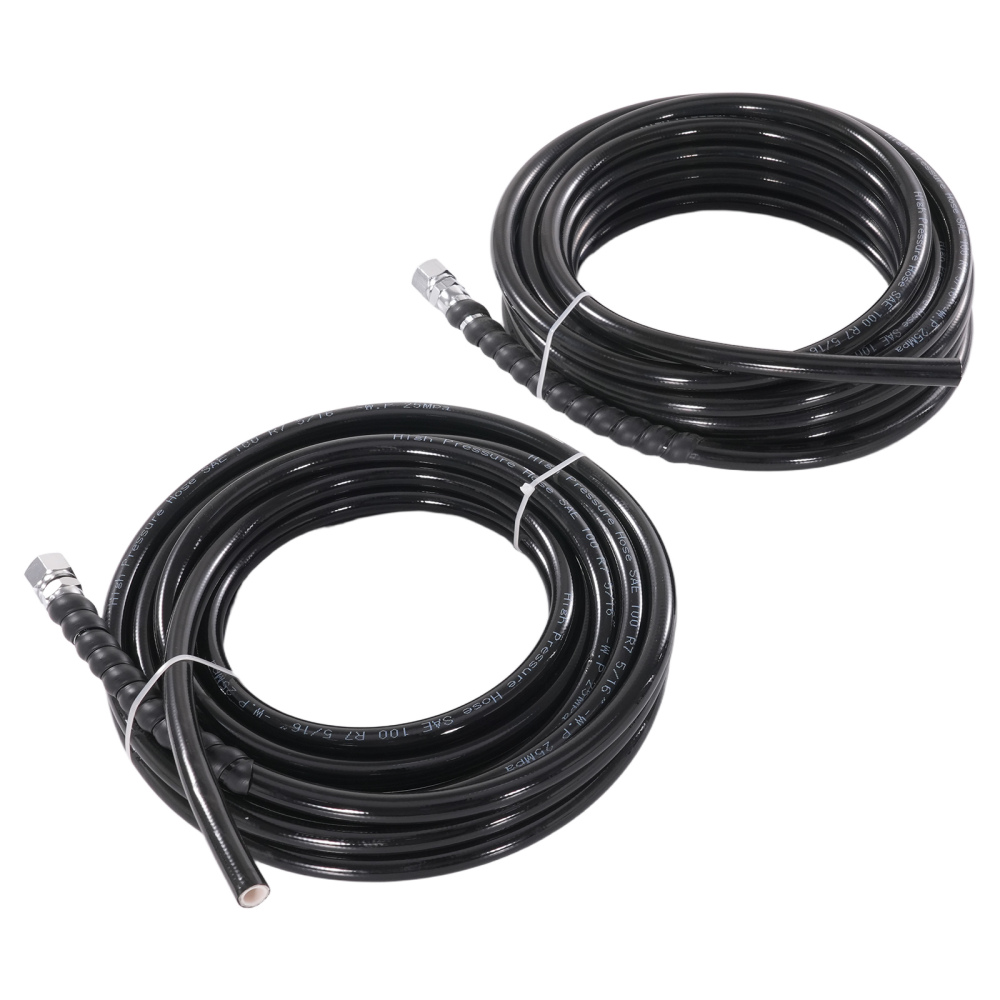

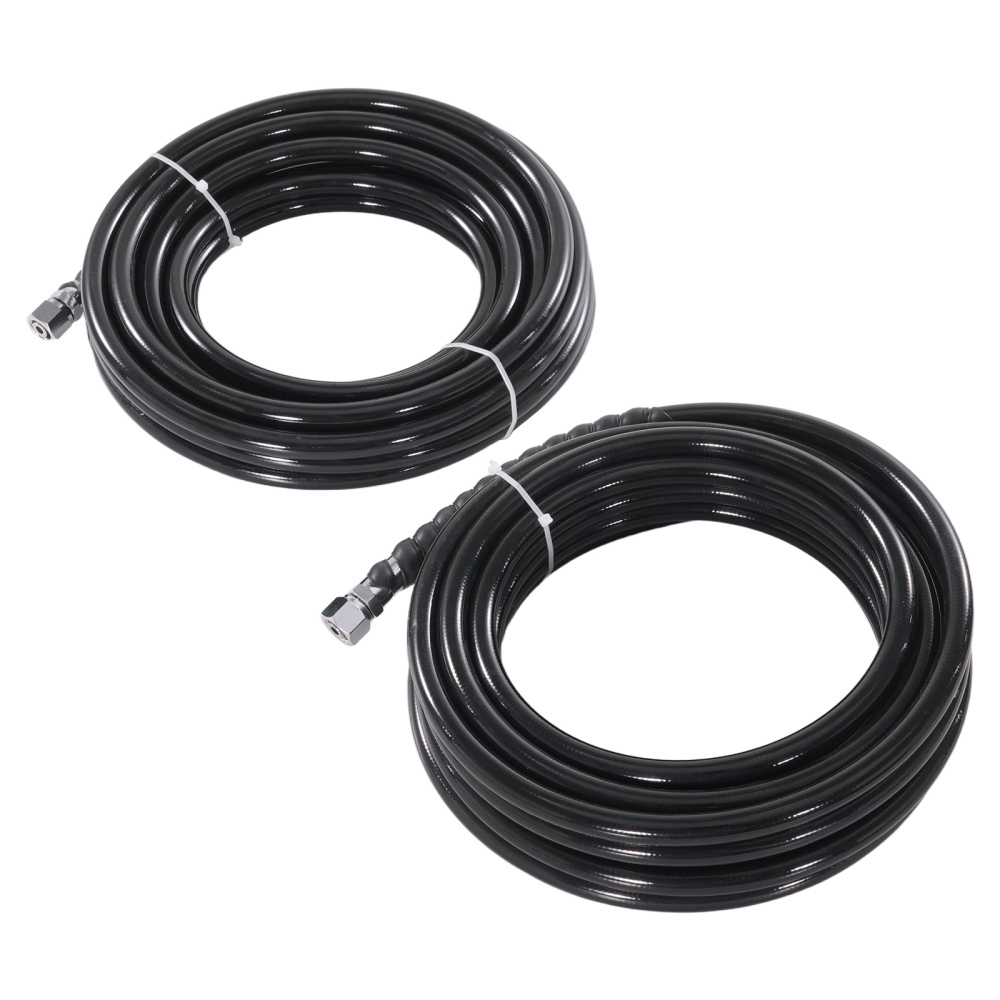

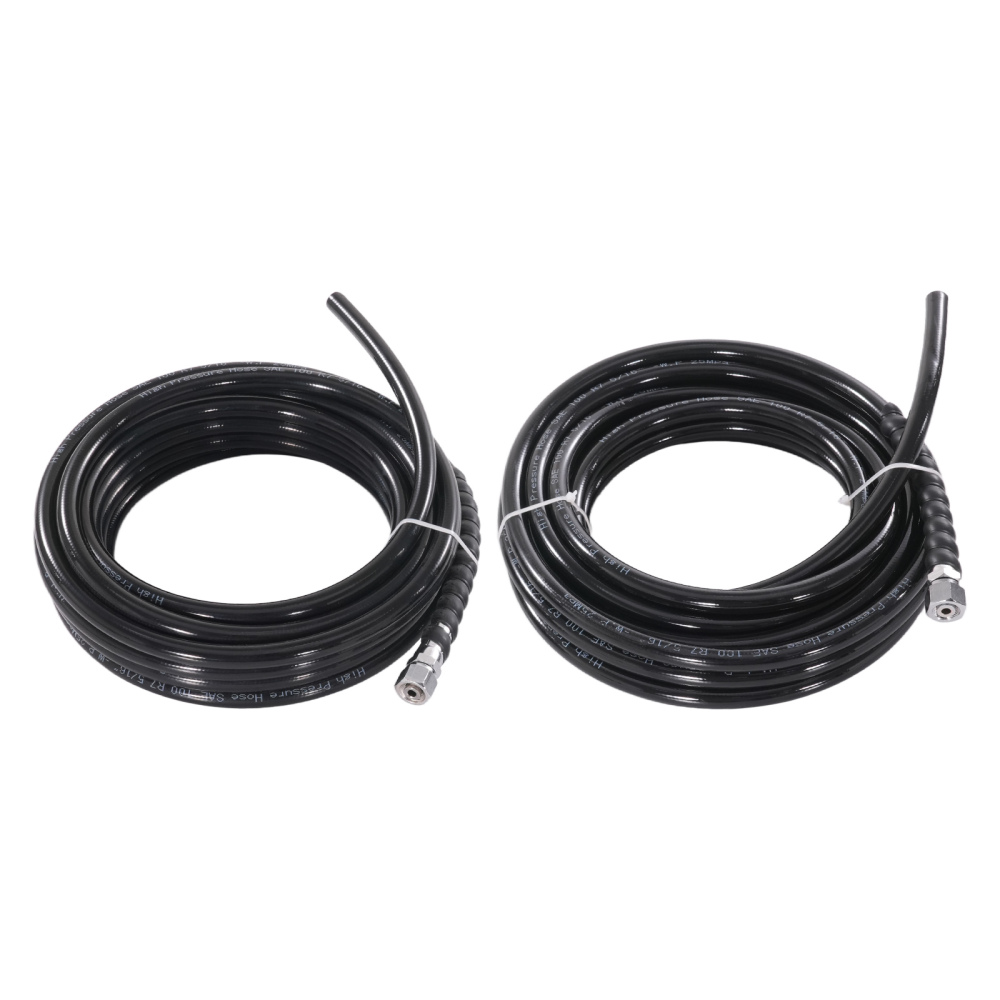

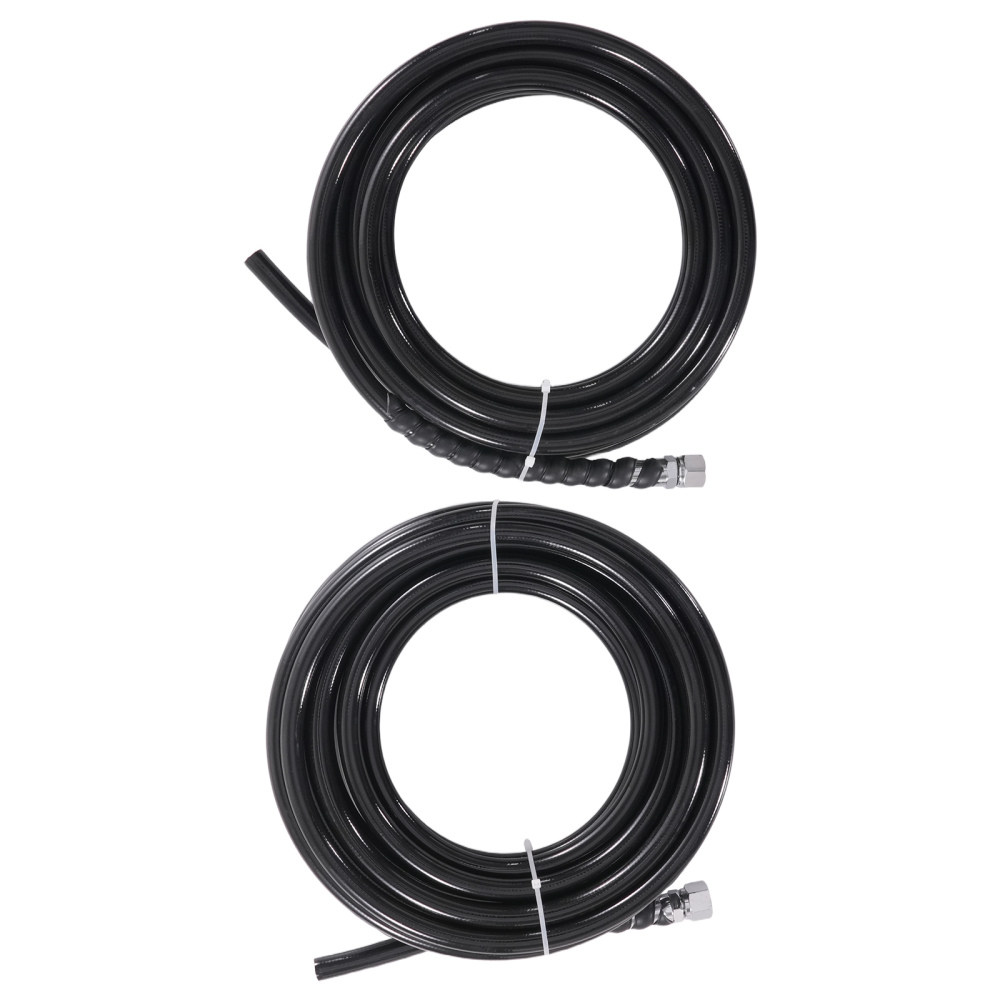

2x26 ft hydraulic hoses
1xFull set of accessories
Showing as the picture

Feature

1.This hydraulic steering kit delivers steady, efficient steering performance for outboards up to 200 HP, providing a 6 turns lock-to-lock for precise and responsive handling on every trip
2.Durable & Reliable Helm Pump: Built to handle 6.9 MPa/1000 psi, this marine hydraulic steering kit features a check valve, fill port, stainless steel ORB fittings, and a replaceable shaft seal. The aluminum alloy housing ensures long-term use
3.Compact Hydraulic Cylinder: The boat hydraulic steering system includes a space-saving cylinder that fits a variety of boat types. Its reinforced sealing structure ensures smooth steering performance and durability even in rough marine conditions
4.2 x 26FT High-Strength Hoses: With a max working pressure of 25MPa, these premium hoses resist bursting, kinking, and leaking under heavy load. Equipped with a quick-fit 5/16-inch fitting, allowing for flexible, fast installation across various boats
5.Wide Boat Compatibility: This hydraulic steering helm pump kit works with cruisers, center consoles, speedboats, and offshore fishing boats, making it a versatile choice for a wide range of outboard setups

Note

1.Before use, the system must be filled with hydraulic oil and air purged
2.If performance decreases or response delays occur, check hydraulic fluid level and purge air
3.Always consult and follow the user manual for proper installation and operation
4.Oil drain valve and oil pipe fitting enable smooth oil flow and easy maintenance
5.System is designed for outboard motors up to 200 HP
