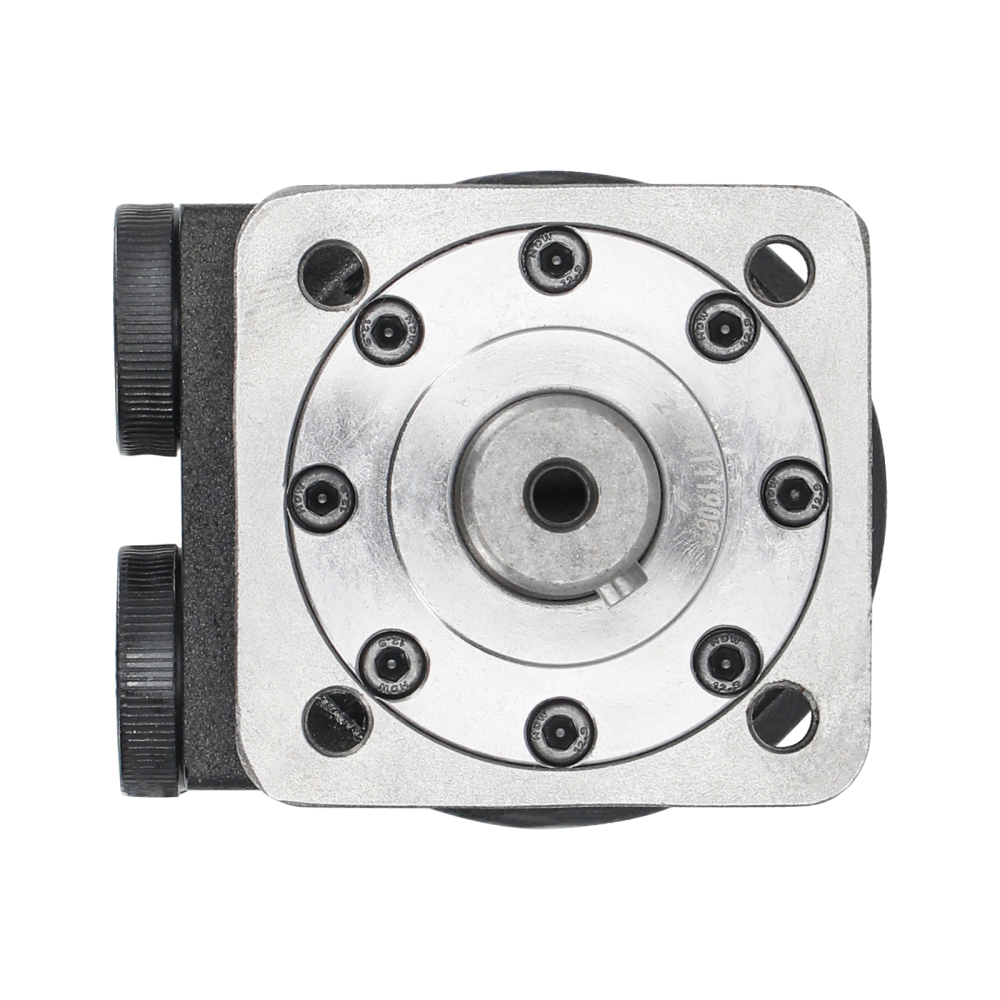

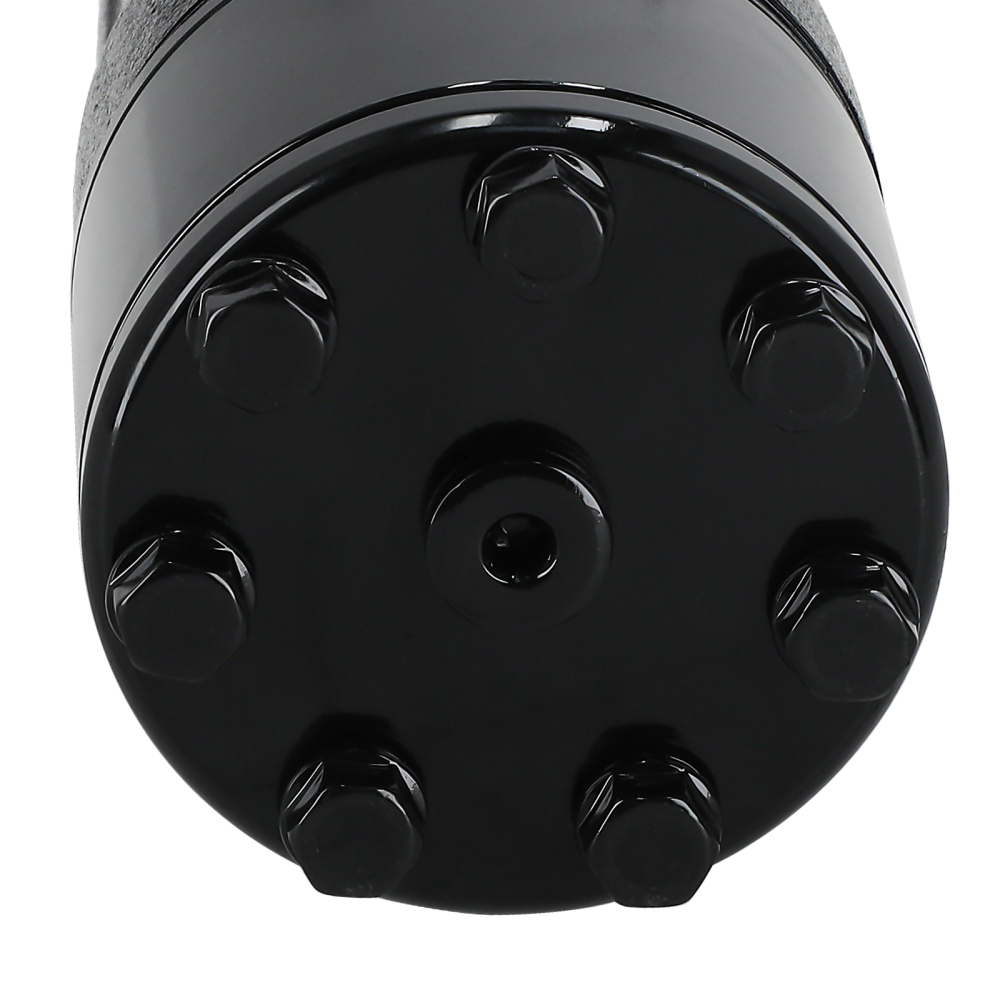

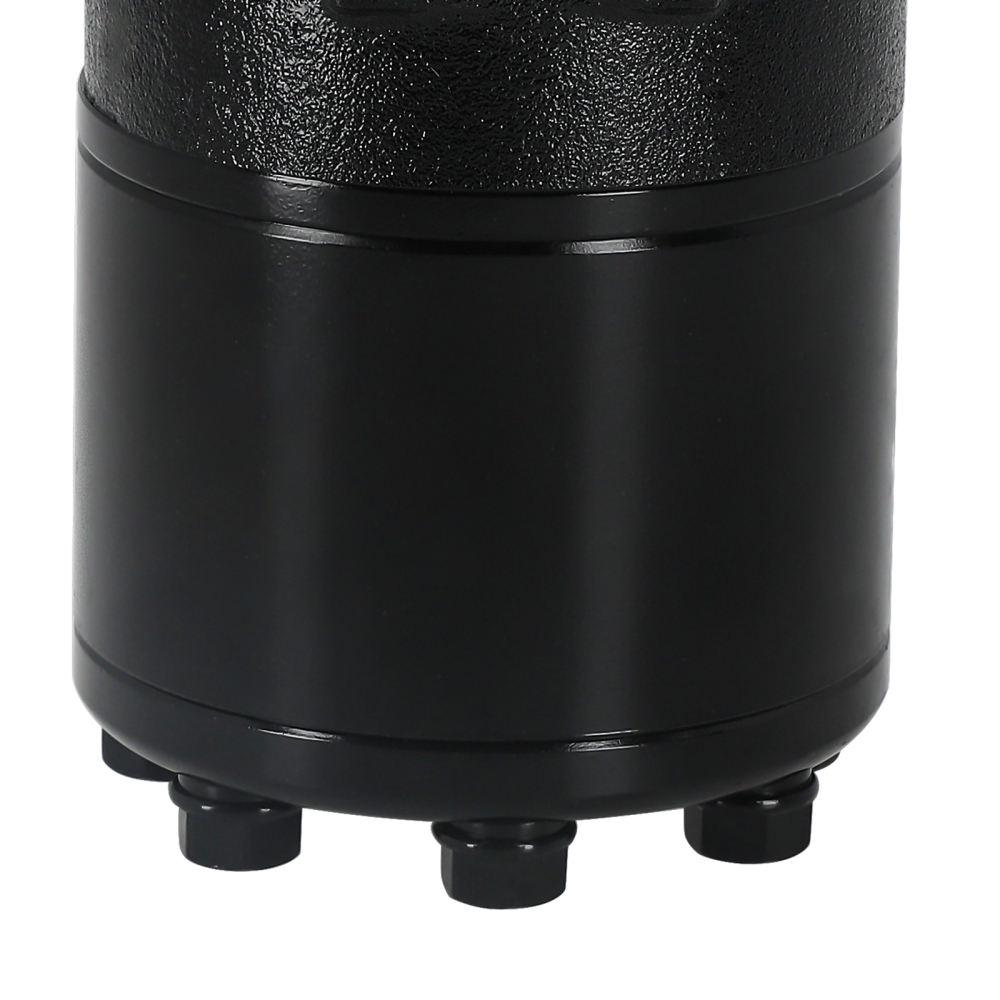

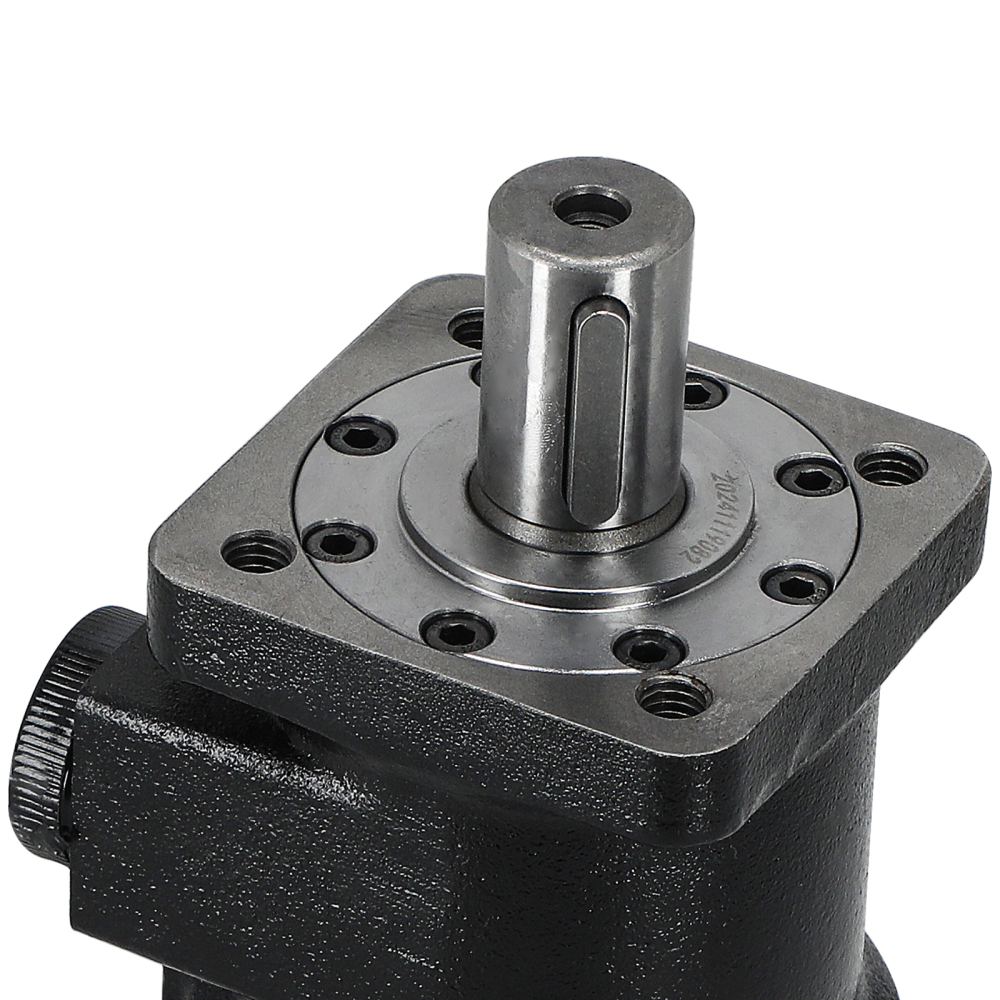

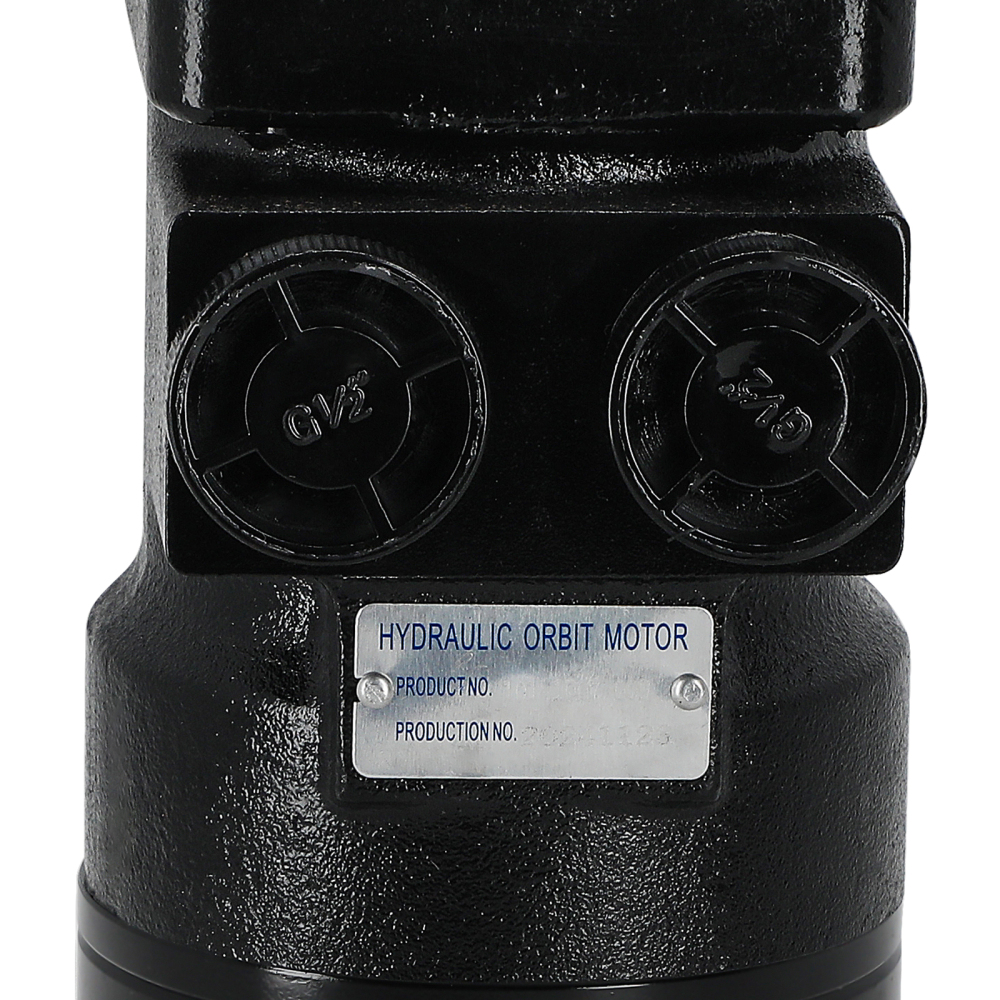

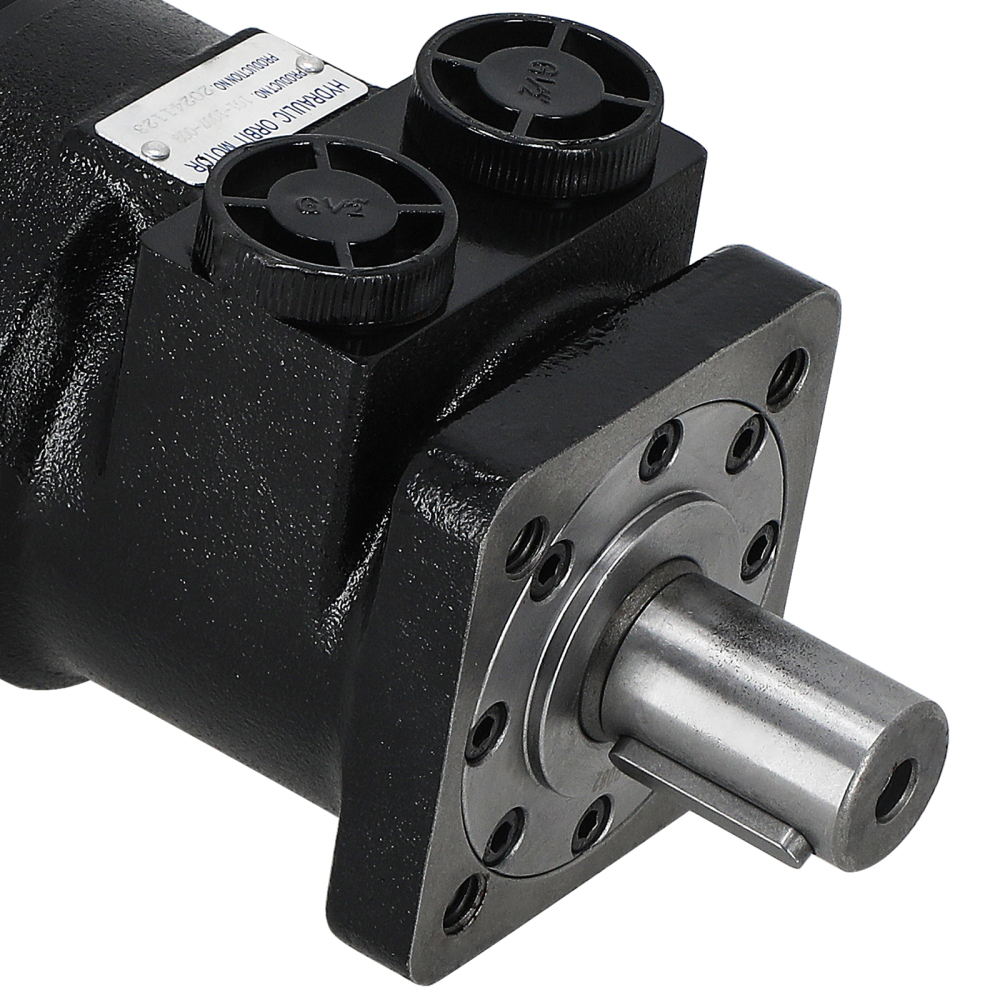

Hydraulic Motor Black 101-1007-009 101-1007 for Eaton Char-Lynn H Series NEW

Application

Fit for Eaton Char-Lynn H Series

OE/Part number

101-1007-009,1011007009，101-1007,1011007，101-1555, 1011555

Specification

Material: Iron
Type: Hydraulic Motor
Fitment Type: Direct Replacement
Installation Method: 4 Flange Holes
Viscosity: 37-73cSt
Filtering Accuracy: ISO18/13
Max. Speed: 200RPM
Max. Torque: 400N. m
Max. Flow Rate: 57L/Min/15Gal/Min
Max. Pressure: 9Mpa
Displacement: 300CC
Recommended Anti-Wear Hydraulic Shaft: No. 68
Working Temperature: Within 80℃/176℉
Max. Back Pressure: 5 MPa

Package included

1*Hydraulic Motor
（Showing as the picture）

Feature

1.Build to Last: Cast iron makes the whole product have high resistance to corrosion, wear, and heat, and not easy to rust so that it can remain beautiful and practical for a long time.
2.Good Sealing: The high-pressure sealing ring can effectively prevent oil leakage, not only ensuring a smooth use process but also saving you costs.
3.Careful Design: The high-quality ball bearings make the product have a strong radial force and high-pressure resistance, so you can use it safely.
4.Simple to Use: The one-piece structure allows you to use the product directly without an additional assembly.
5.Effortless Cleaning: The smooth surface and simple structure allow you to remove dust and residues with a towel easily.

Note

1. Professional installation of the product is highly recommended.
2. Please double confirm the compatibility as well as the OEM number before purchasing.
