Hydraulic Boat Steering Kit compatible for Yamaha/Mercury 60-150HP 1990-2008 for HC4645H

Application

Compatible for Yamaha 60-70 2 Stroke 1984-2008
compatible for Yamaha 75C-90 2 Stroke 1998-2008
compatible for Yamaha 115C-130B 2 Stroke 1990-2008
compatible for Yamaha 150F 1996-2007
compatible for Yamaha 150 HPDI VMAX 2 Stroke 2000-2008
compatible for Yamaha F60-F75-F80 EFI 4 Stroke 1999-2007
compatible for Yamaha F90-F100-F115-F150 EFI 4 Stroke 1999-2007
compatible for Yamaha F80-F100 4 Stroke 2000-today
compatible for Yamaha F115-F150 4 Stroke 2004-today
compatible for Honda BF75-BF90 4 Stroke 1995-today
compatible for Honda BF115D 1998-2009
compatible for Honda BF115A 2009-today
compatible for Honda BF130A 1998-2005
compatible for Honda BF135-BF150 4 Stroke 2005-today
compatible for Honda BF90-BF150 V-TEC 4 Stroke 2008-today
compatible for Suzuki DF70-80-90 4 Stroke 1998-today
compatible for Suzuki DF100-115-140 4 Stroke 1998-2008
compatible for Suzuki DF100-115-140 4 Stroke new model 2008-today
compatible for Suzuki DF 150 4 Stroke 2006-today
compatible for Tohatsu Nissan 50-60-70-90 2 Stroke 2004-today
compatible for Tohatsu Nissan 115-120-140 2 Stroke 2004-today
compatible for Tohatsu Nissan 40-50TLDI 4 Stroke 2004-2011
compatible for Tohatsu Nissan 90-90-115 TLDI 4 Stroke 2004-2011
compatible for Mercury Mariner 50-75-90 2 Stroke 1990-2008
compatible for Mercury Mariner 115-125-150 EFI 2 Stroke 1990-2007
compatible for Mercury Mariner 75-90-115-125 Optimax 2 Stroke 2004-today
compatible for Mercury Mariner 135-150 Optimax 2 Stroke 1999-today
compatible for Mercury Mariner 40-50-60-EFI 4 Stroke 2004-today
compatible for Mercury Mariner 75-80-90-EFI 4 Stroke 2000-today
compatible for Mercury Mariner 100-115 EFI 4 Stroke 2007-today
compatible for Mercury Mariner 150 Fourstroke 4 Stroke 2011-today
compatible for Evinrude E40-E50-E55-E60 2 Stroke 2004-today
compatible for Evinrude E75-E90 2 Stroke 2004-today
compatible for Evinrude E115-E130-E135 2 Stroke V4 1995-today
compatible for Evinrude E150 2 Stroke V6 1995-today
For Selva 50-Madeira/Bull shark-60 Grey shark/ST.teopez-70 Mako shark 2 Stroke 1995-2008
For Selva 80 Portofomo/Tigershark 2 Stroke 1995-2008
For Selva 150 compatible for White shark 2 Stroke 2001-2007
For Selva 50-60 Dorado EFI 4 Stroke 2001-2007
For Selva 100 EFI Marlin-115 EFI Narwhal-150 EFI Killer whale 4 Stroke 2000-today
compatible for Johnson BJ60-70 4 Stroke 2001-2007
compatible for Johnson BJ90-115-140 4 Stroke 2001-2007
compatible for Johnson J90-115 V4 2 Stroke 1995-2007

OE/Part number

HC4645H,150HP,26FT

Specification

Type:Hydraulic Outboard Steering Kit
Applicable Engine Horsepower:≤150HP
Maximum Pressure:2.5Mpa/363psi
Tube I.D:Φ1.2 in/30 mm
Rod ID: Ф0.6 in/16mm
Stroke: 7.7 in/195 mm
Quick-fit Fittings:5/16"
Output Force: 400 KGF
Capacity: 117CC
Material: Aluminum Alloy +Stainless Steel

Package included

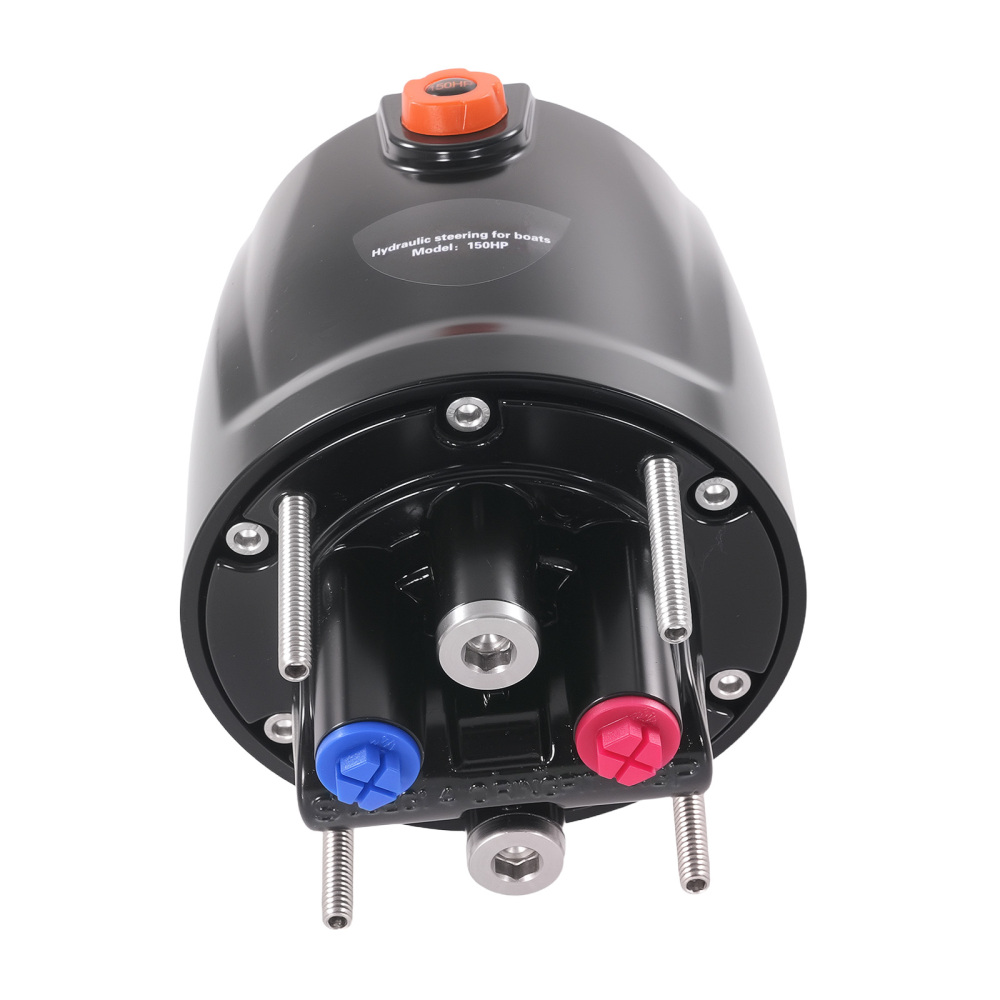

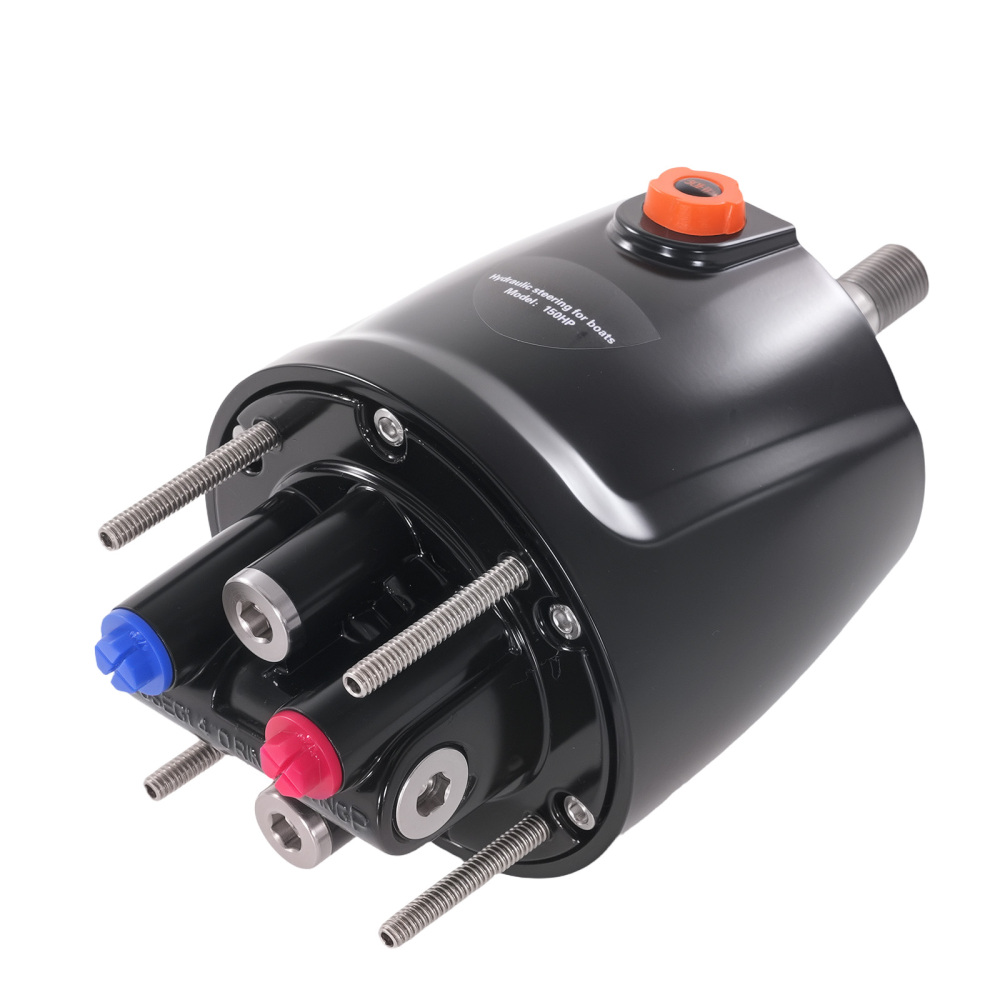

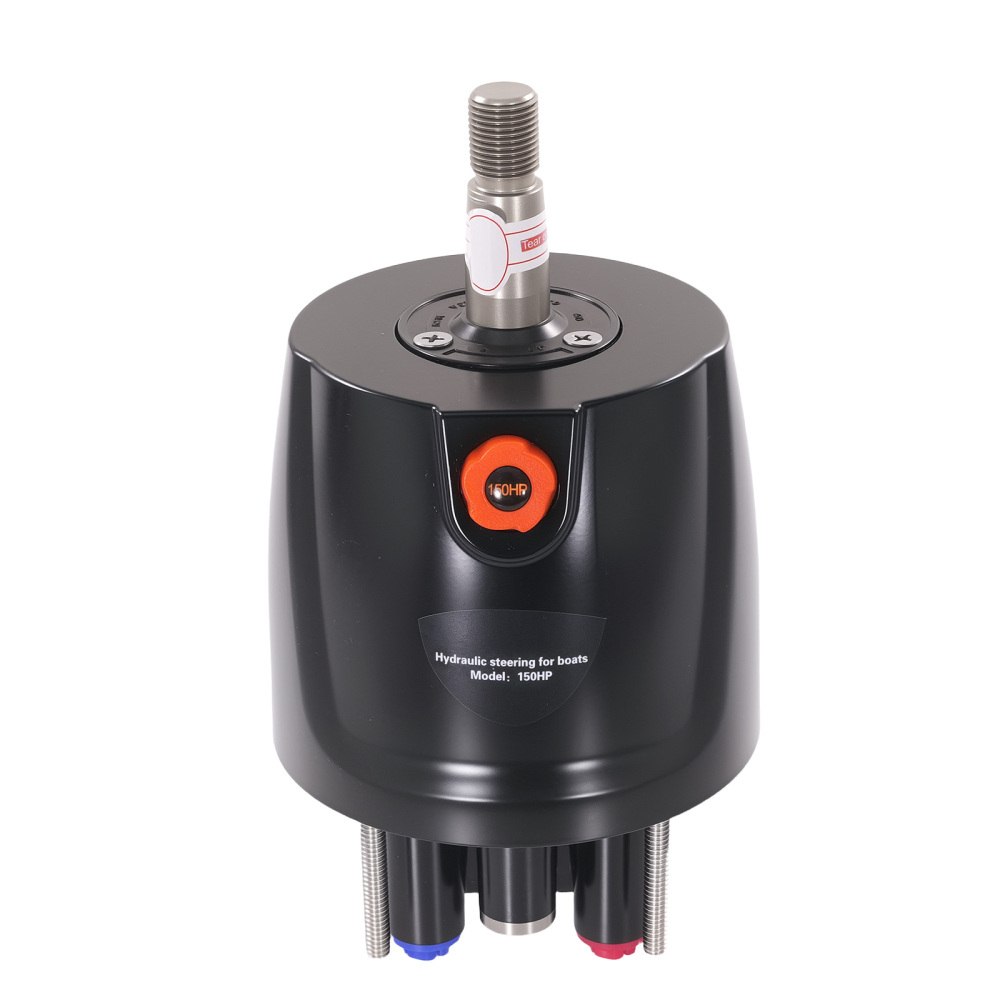

1x Hydraulic Steering Pump

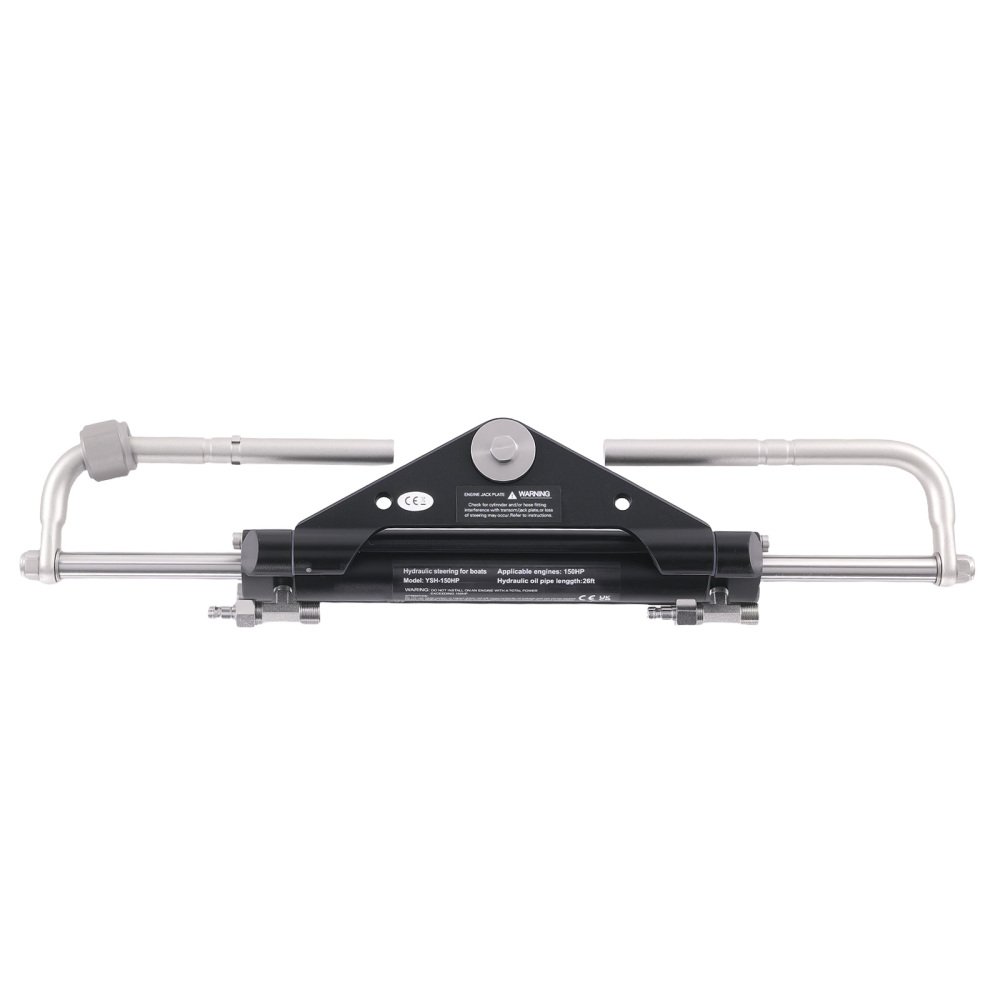

1x Hydraulic Steering Cylinder
2 x 26 FT High-Pressure Oil Hoses

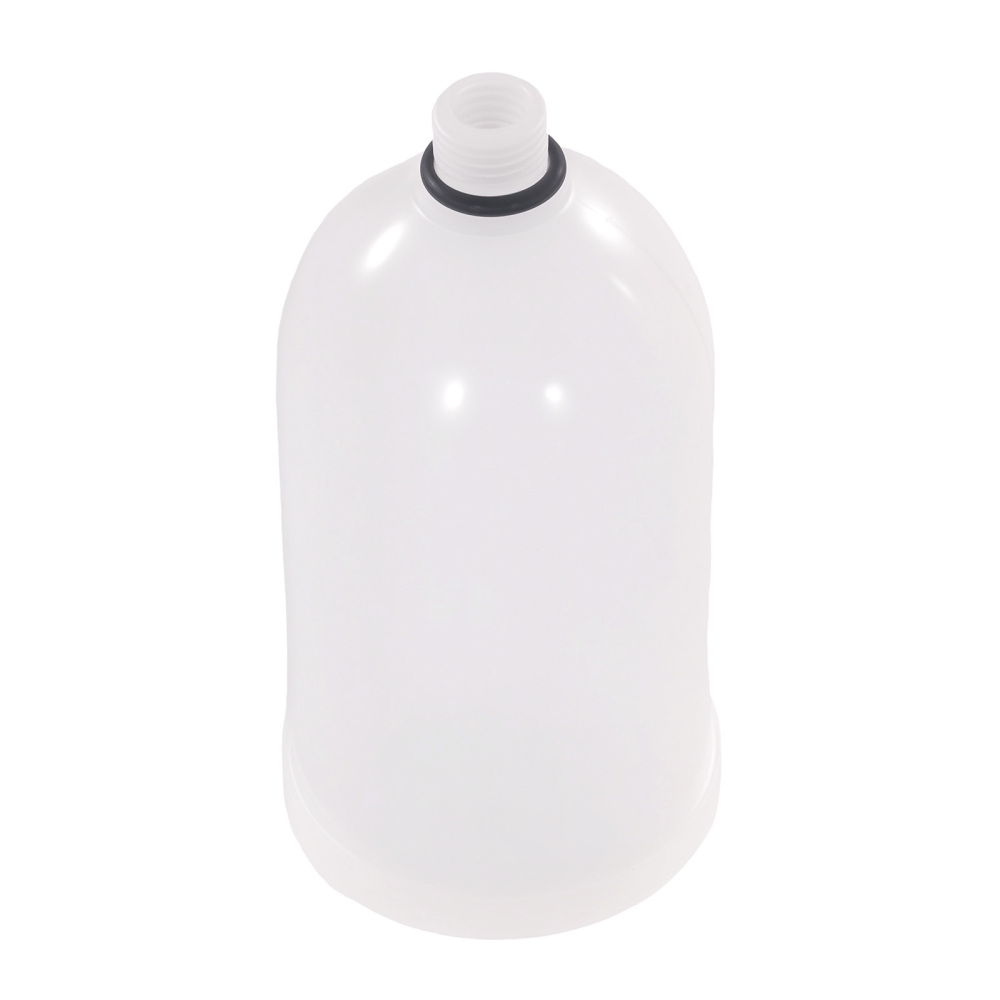

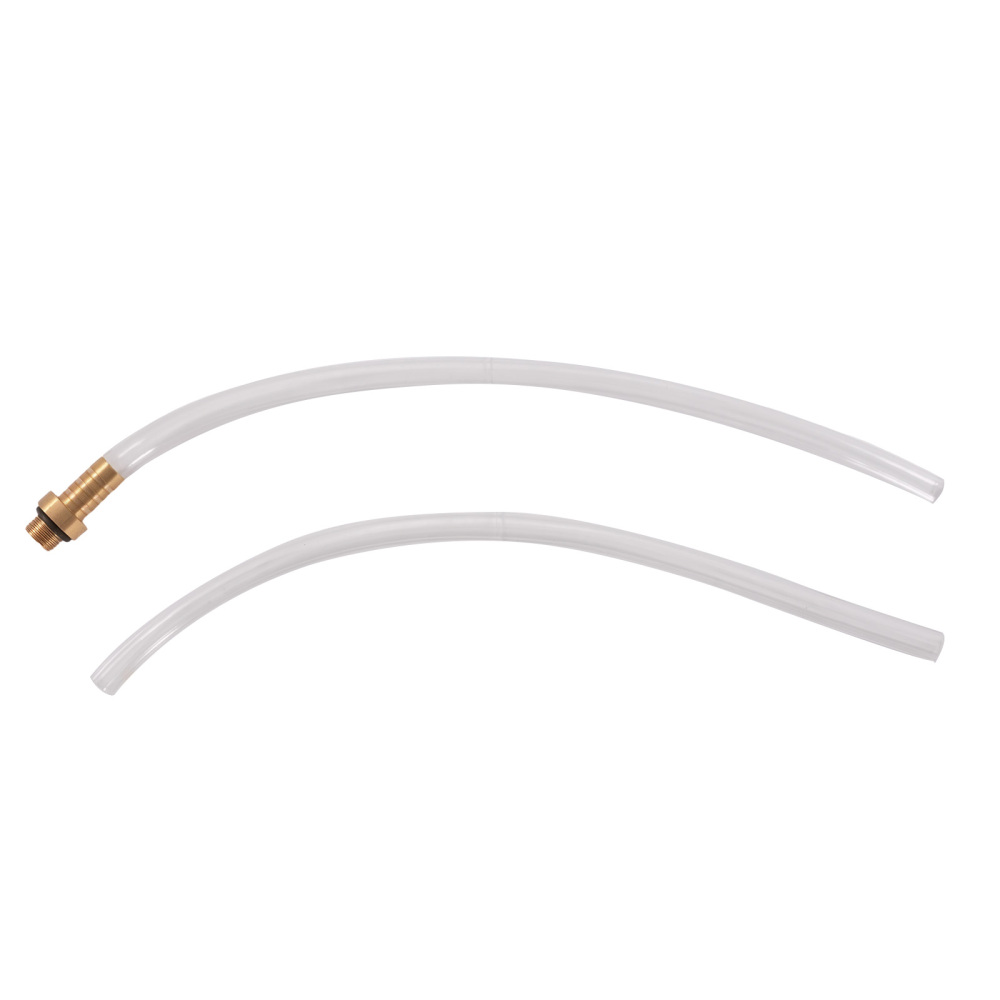

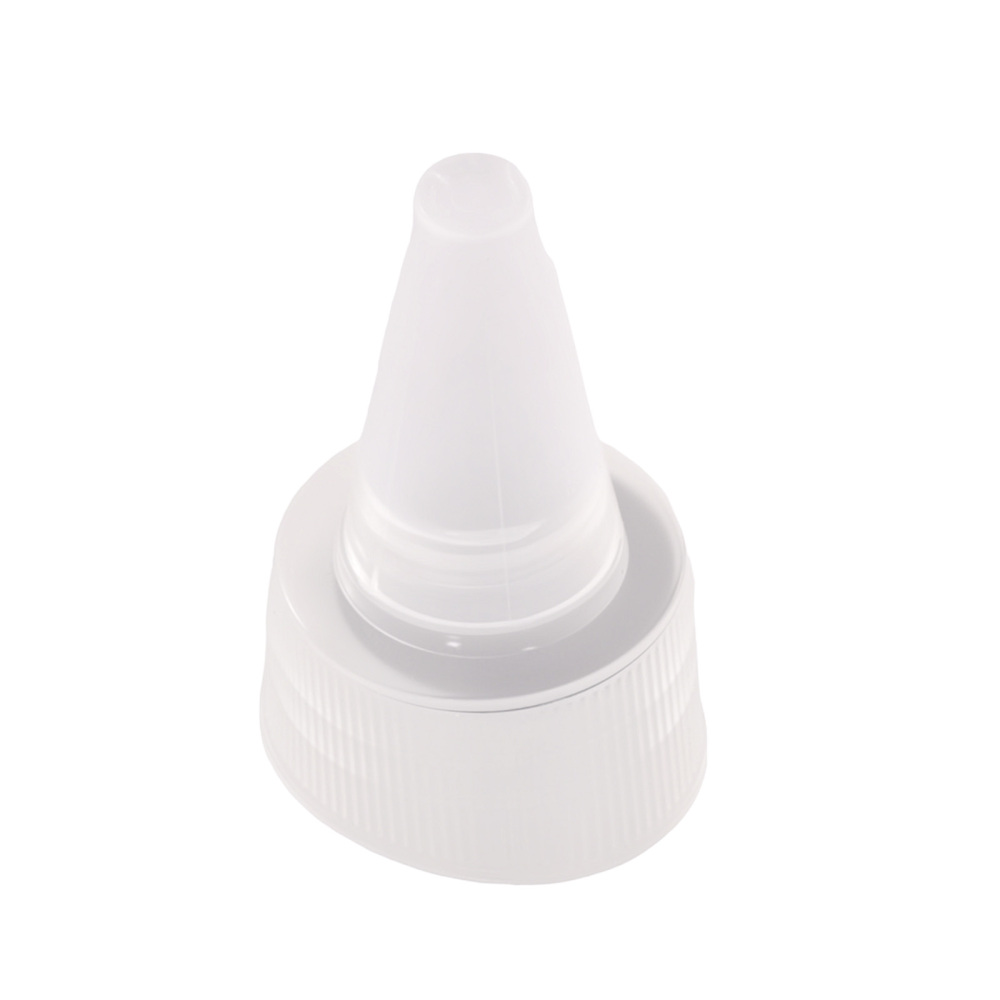

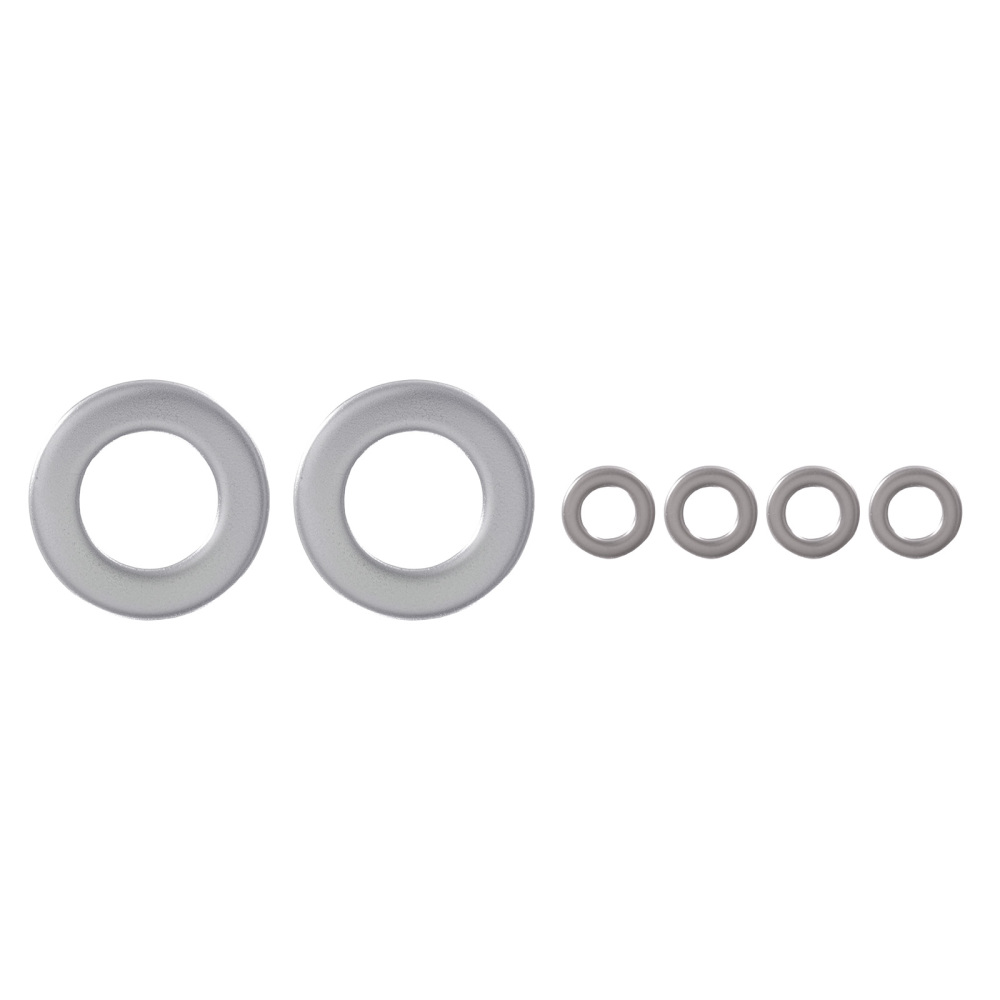

1 x Installation Accessories Kit

Feature

1.Two-way locking valve for enhanced reliability and security
2.Detachable oil seal design for simplified inspection and maintenance
3.Reinforced nylon tubing hoses rated for 200 bar to prevent rupture or leakage

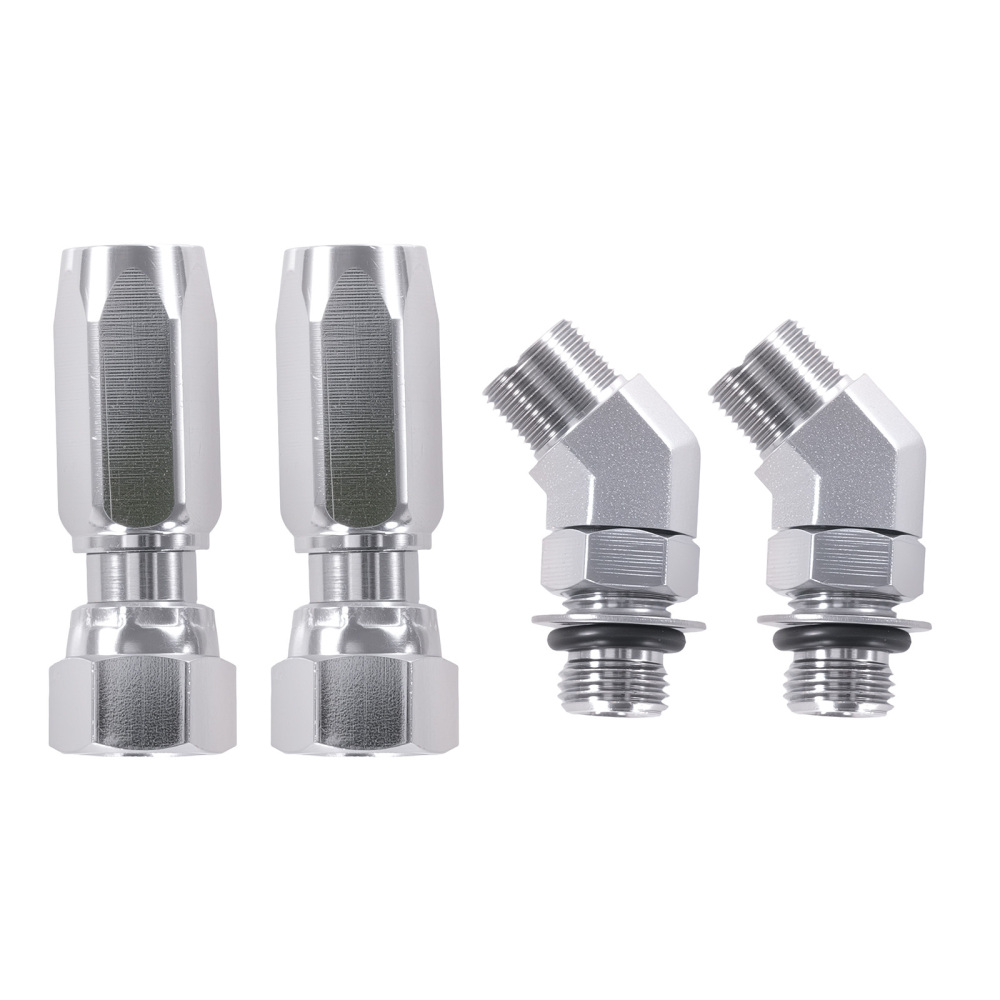

4.Quick-fit 5/16" fittings enabling fast, effortless, and repeatable installation
5.Compatibility with outboard motors up to 150HP across major brands (Compatible for Yamaha, Suzuki, Honda, Mercury, Nissan, Tohatsu)

Note

1.Before use, the system must be filled with hydraulic oil and all air purged
2.If performance decreases or response delays occur, check hydraulic fluid level and purge air
3.Always consult and follow the user manual for proper operation and maintenance
4.Hoses can be cut to custom lengths to meet specific vessel requirements
5.System is engineered for harsh marine environments but requires periodic inspection of seals and fluid
