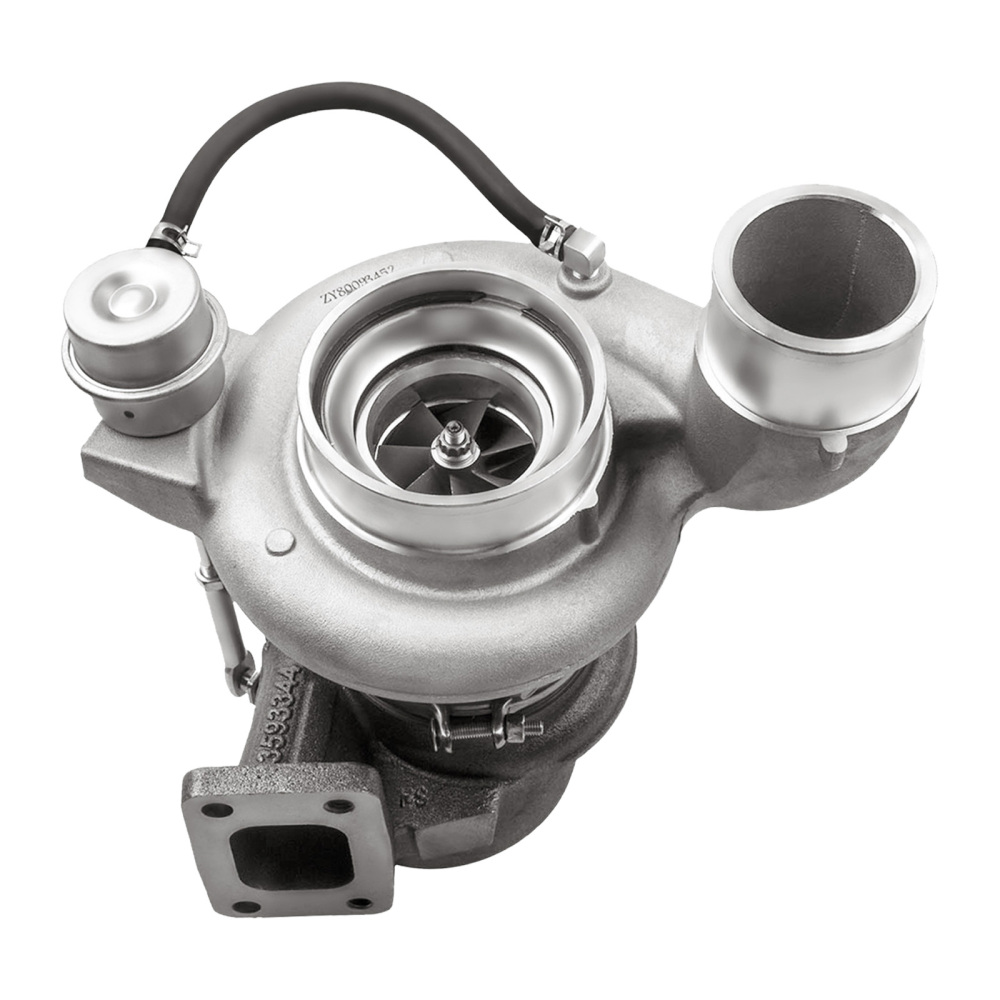

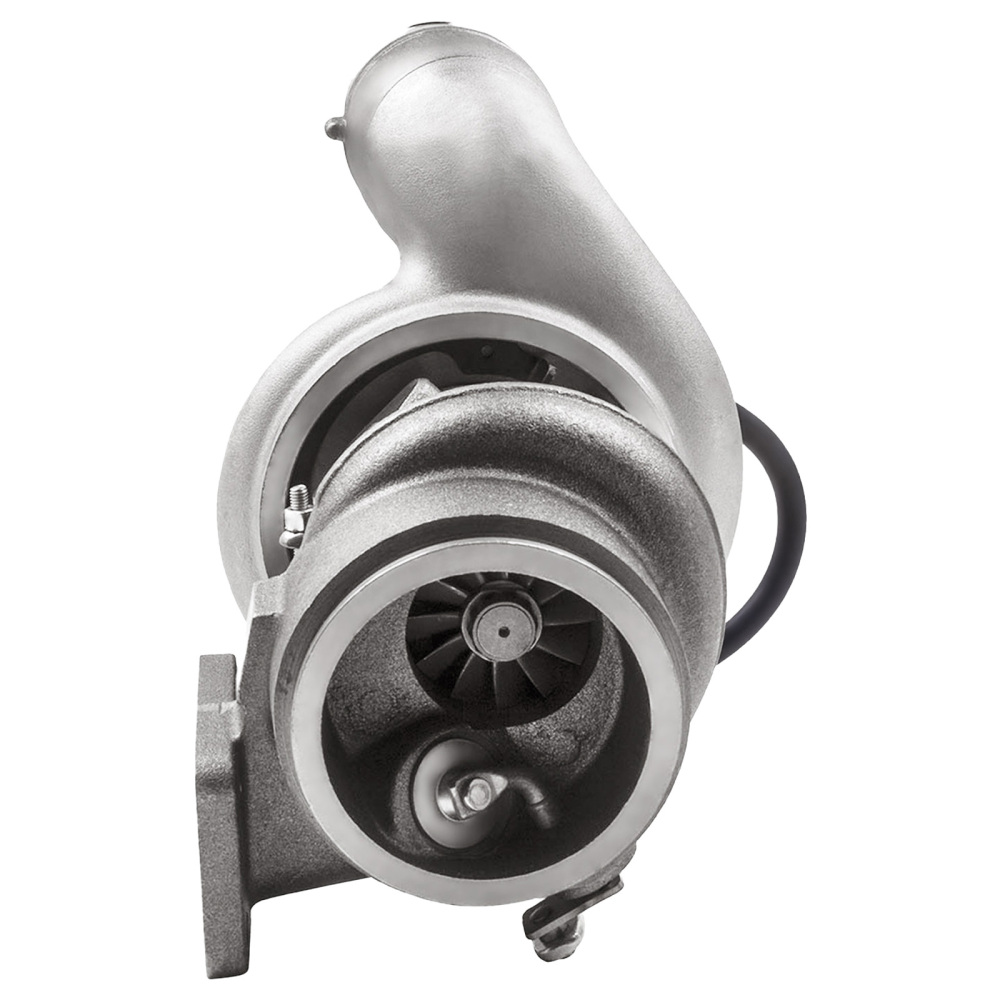

HY35W T3 Turbo Charger compatible for Dodge Ram 6BT 5.9/ 5.9L 2500 3500 compatible for Cummins 2003-2007

HY35W Turbo Turbocharger compatible for Dodge RAM 2500/3500 T3 flange compatible for Cummins

Applications:

Compatible for Cummins Truck DP,  Leyland with 6BTA Engine 2000-2005

Compatible for Dodge RAM 2500/3500 with ISB Engine 5.9L 2003-2004

Reference Part Number:

3599810, 3599811, 4089392, 4035044, 4955452
3593075, 4033667,  4035044, 4089141, 4089392NX
408939200, 3599867, 4033667, 4033667H
4089392RX, 5086863, 5086863AA, 5086863AB

Specific:
Turbo Model:  HY35W, HY35W-E7755AQ/B10JX35
Engine Type:  ISB, HY35W
Engine  Code:  6BTA
Condition:  100% Brand New
Warranty: one year
Hose power:   Capable of Boosting Horse Power up to 400+ BHP
Exhaust (Turbo Manifold) Flange:  Standard T3
Exhaust  Flange:  Standard HY compatible for Dodge Cummins 4.375" Diameter V-Band
Bearing Type:  Journal Bearing

Compressor:
Trim:69
Inducer Diamter:68.7
Exducer Diamter:97.8
A/R: 0.66

Turbine :
Trim: 92
Inducer Diamter: 87.4
Exducer Diamter: 77.8
A/R: 0.96

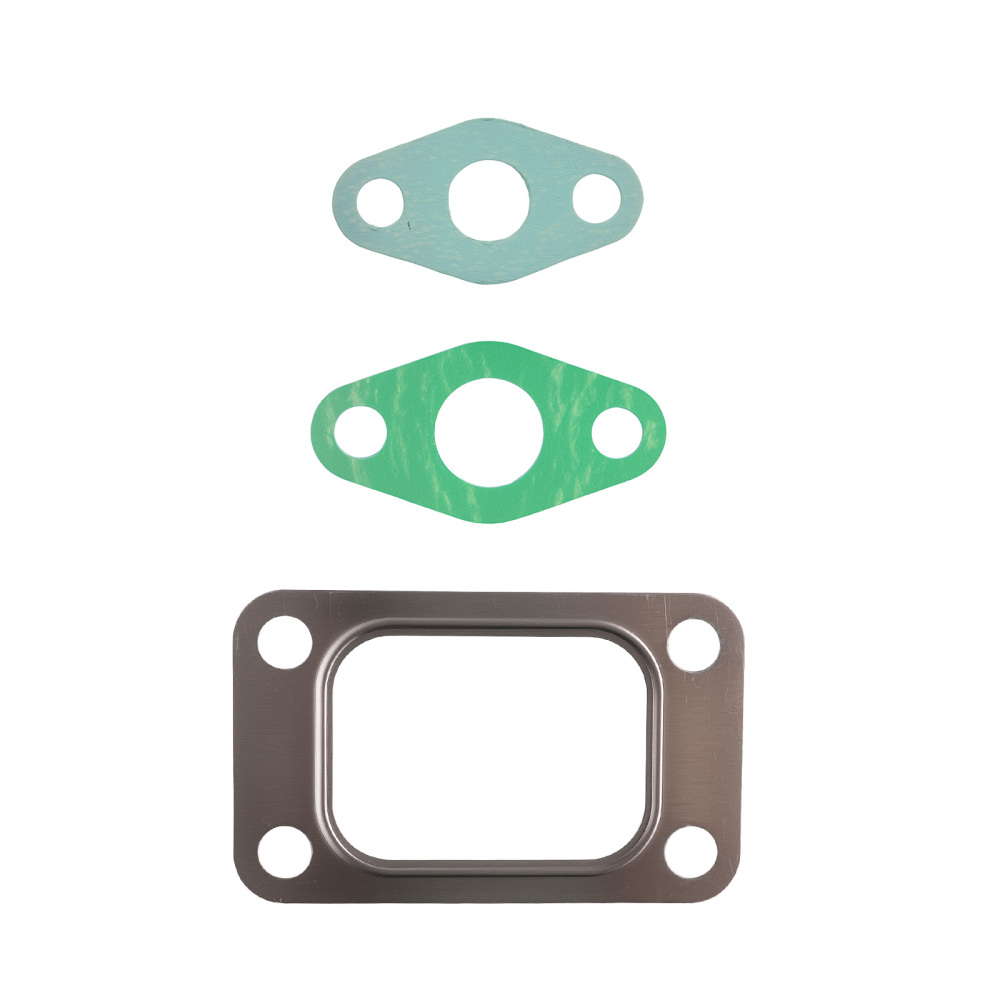

Accessories:
You will get exactly as shown in the picture above

NOTE:

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Importance Notice:

* Exhaust elbow is not Included.

 * This item doesn't fit for HE351CW engine and not has sensor hole,  please double check your old part before purchase
