- * Fitment: Perfect for all 4/ 6 cyl 2.5L-3.0L engines
- * Horse Power: Capable of boosting horse power up to 500BHP. This is a cost-effective turbocharger that will increase the users car's power output by 20-40%.
- * Turbine Housing Material: Ductile Iron QT450-10; temperature resistant up to 700℃
- * Turbine Impeller Material: K418 Alloy; high oxidation resistance & stability (resistance up to 900℃)
- * Cast Aluminium Blades: Great airtight seal, airflow, light weight, and corrosion resistant
- * Excellent Design: Durable floating bearing structure & high-precision blade dynamic balance
- * 100% Balancing Test: This turbocharger you will receive has been balanced using the VSR machine technology
Perfect for all 4/ 6 cyl 2.5L-3.0L engines
Universal Fitment: Yes

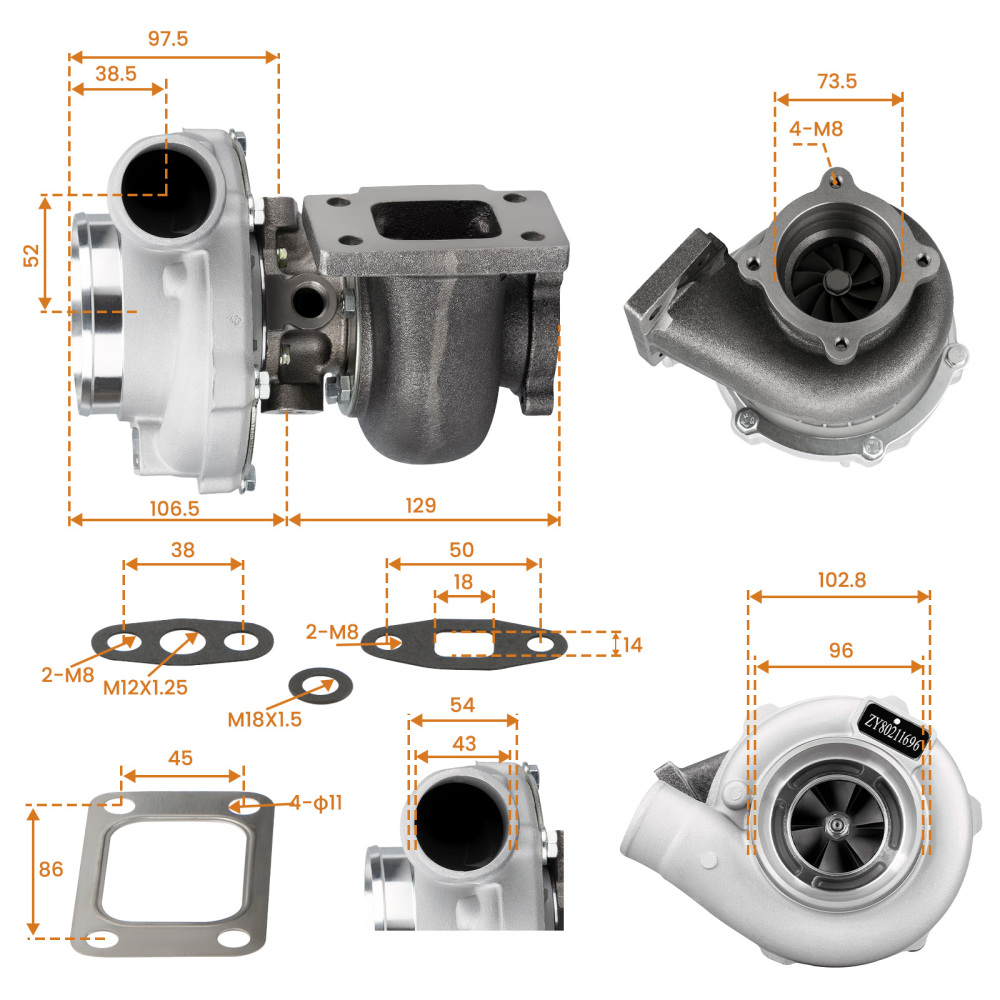

Exhaust Inlet Flange: Standard T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 74.2
Turbine Inducer Diameter:64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76mm
Horse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil Cooled
Bearing: Journal Bearing
Wastegate: External Wastegate
Thrust bearing: 270 Degrees
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Size:30 x 28 x 24cm
Package Weight: 8750g
4xOil/water port gaskets
1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
