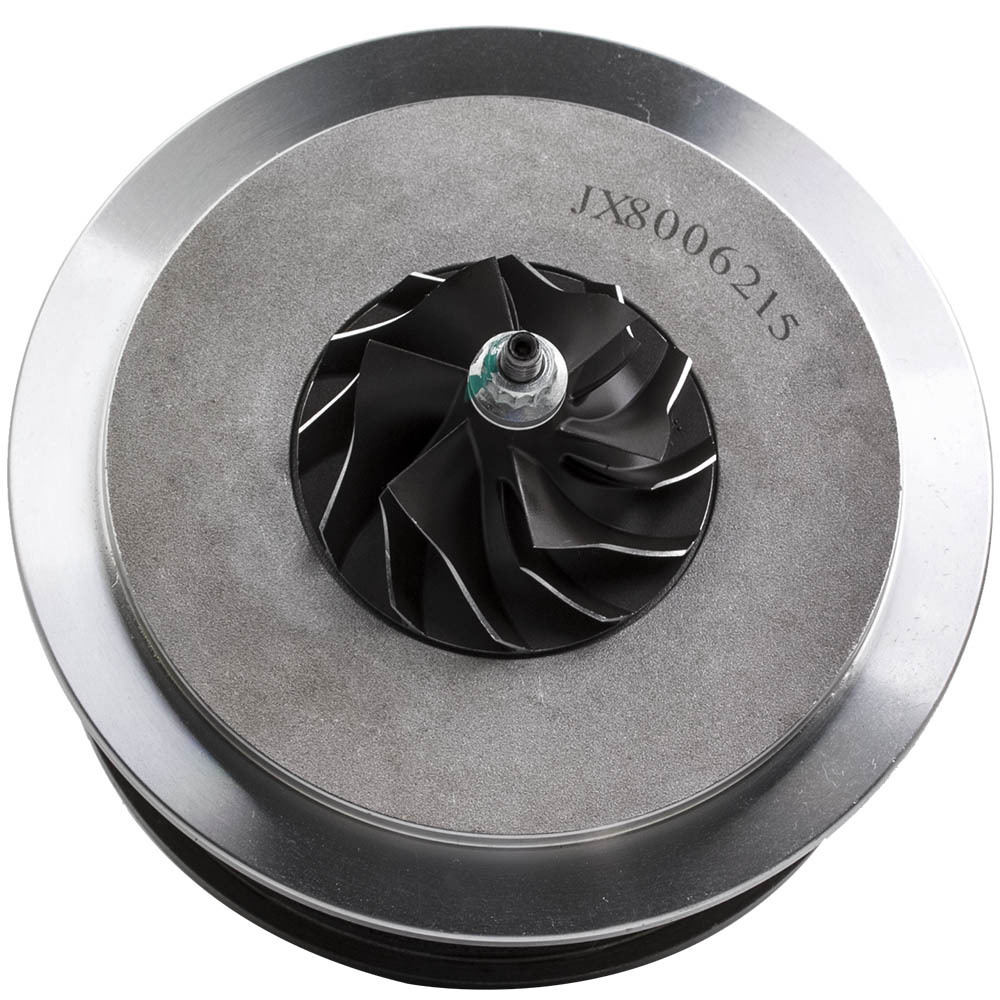

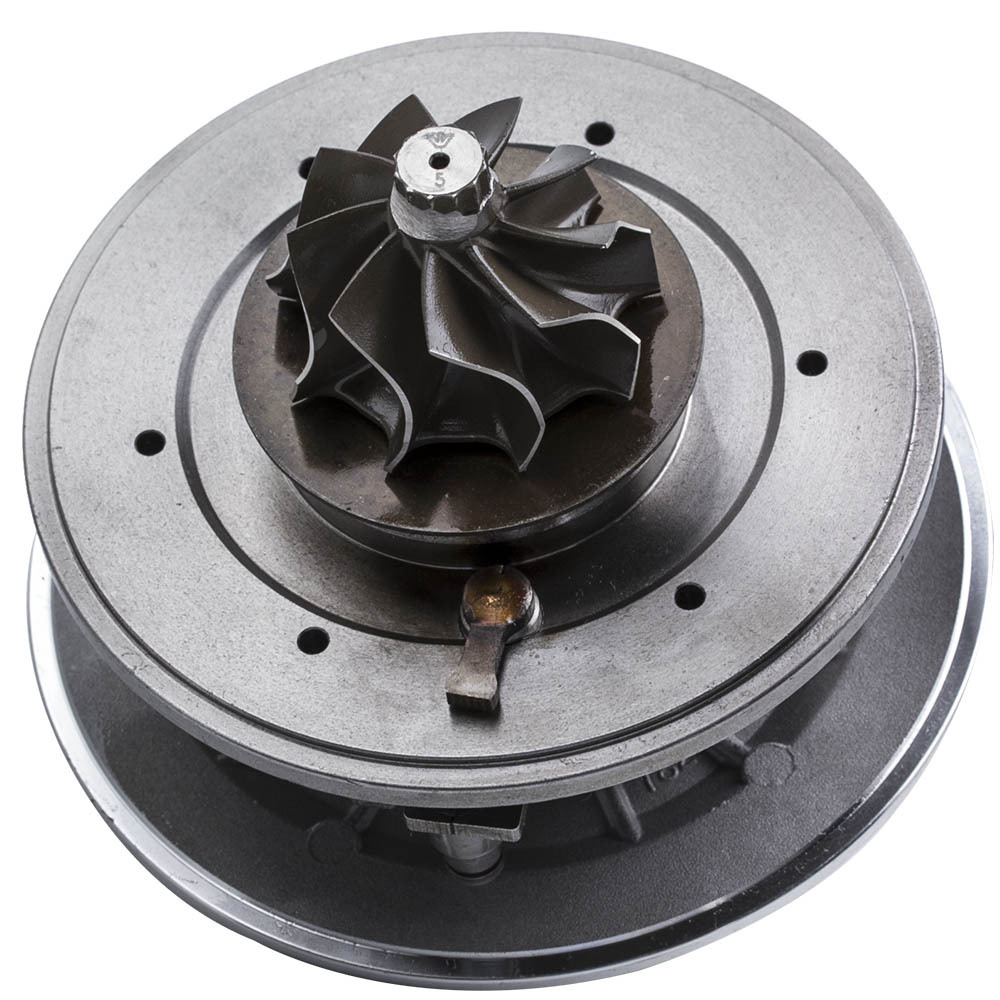

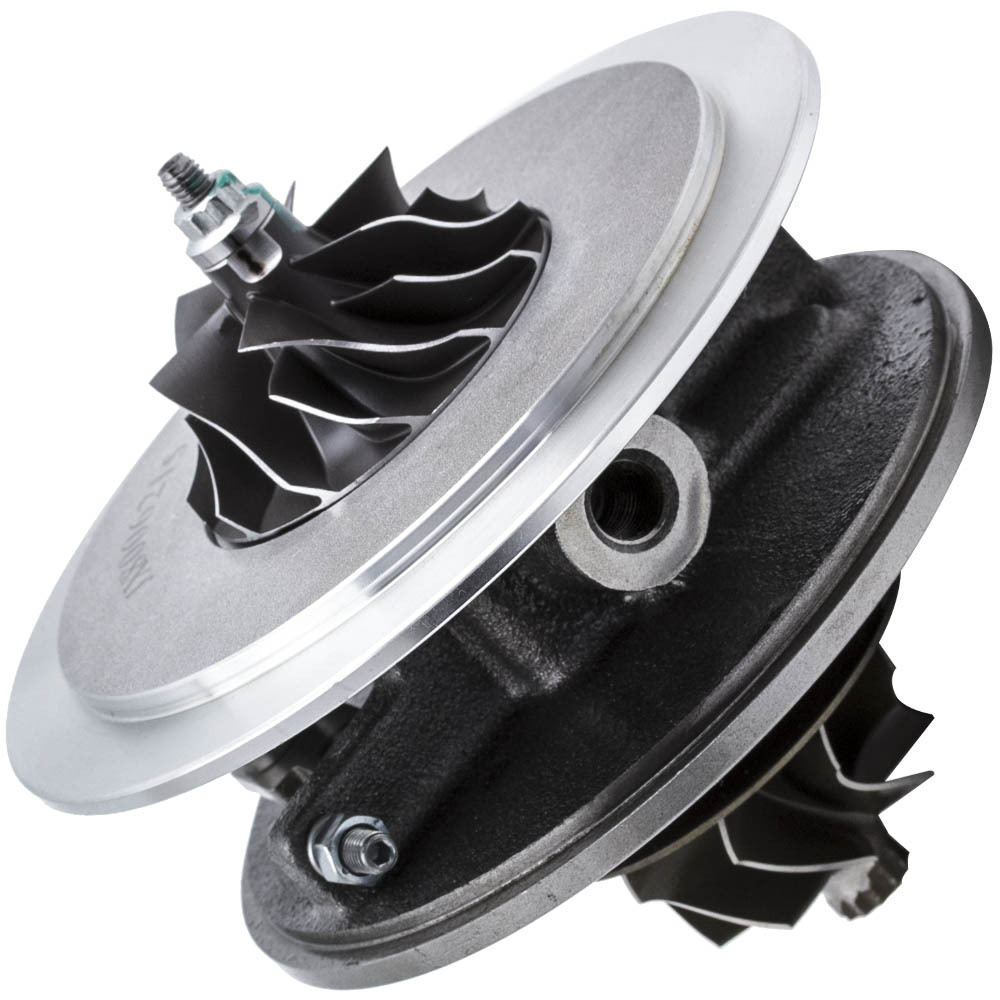

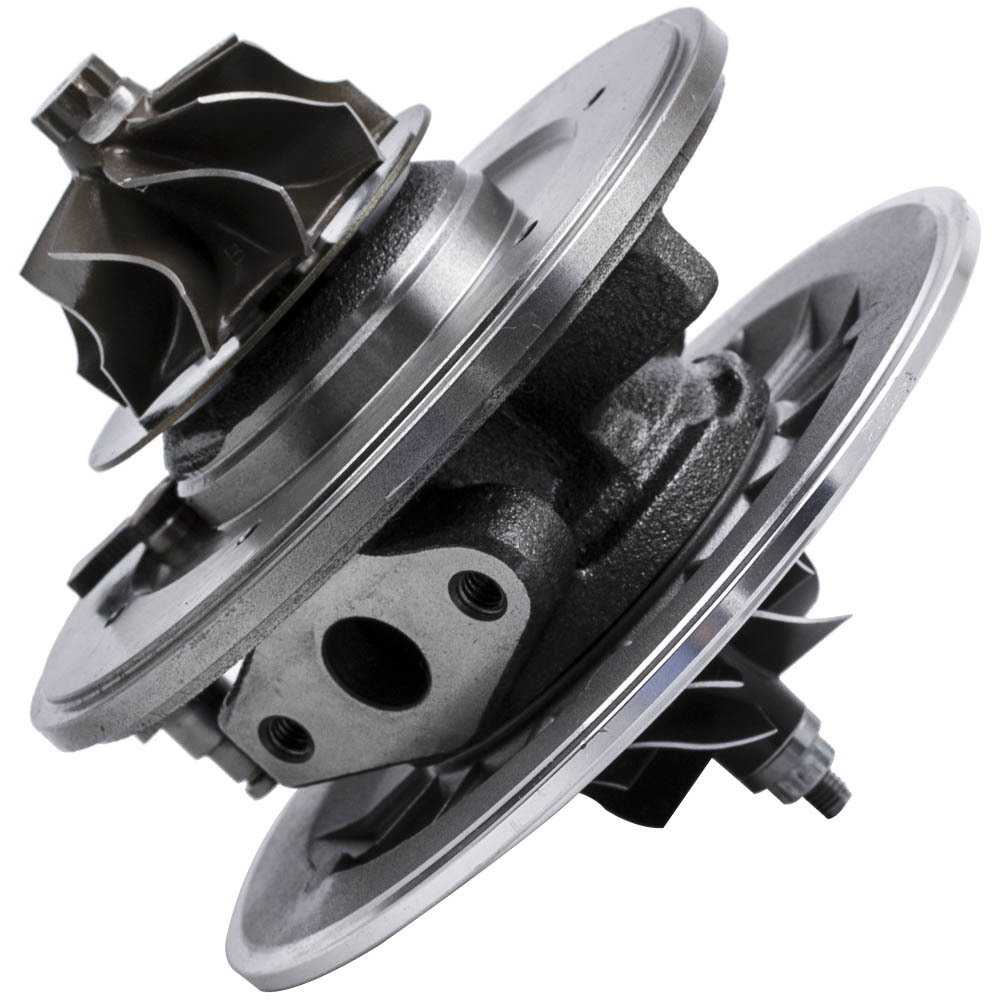

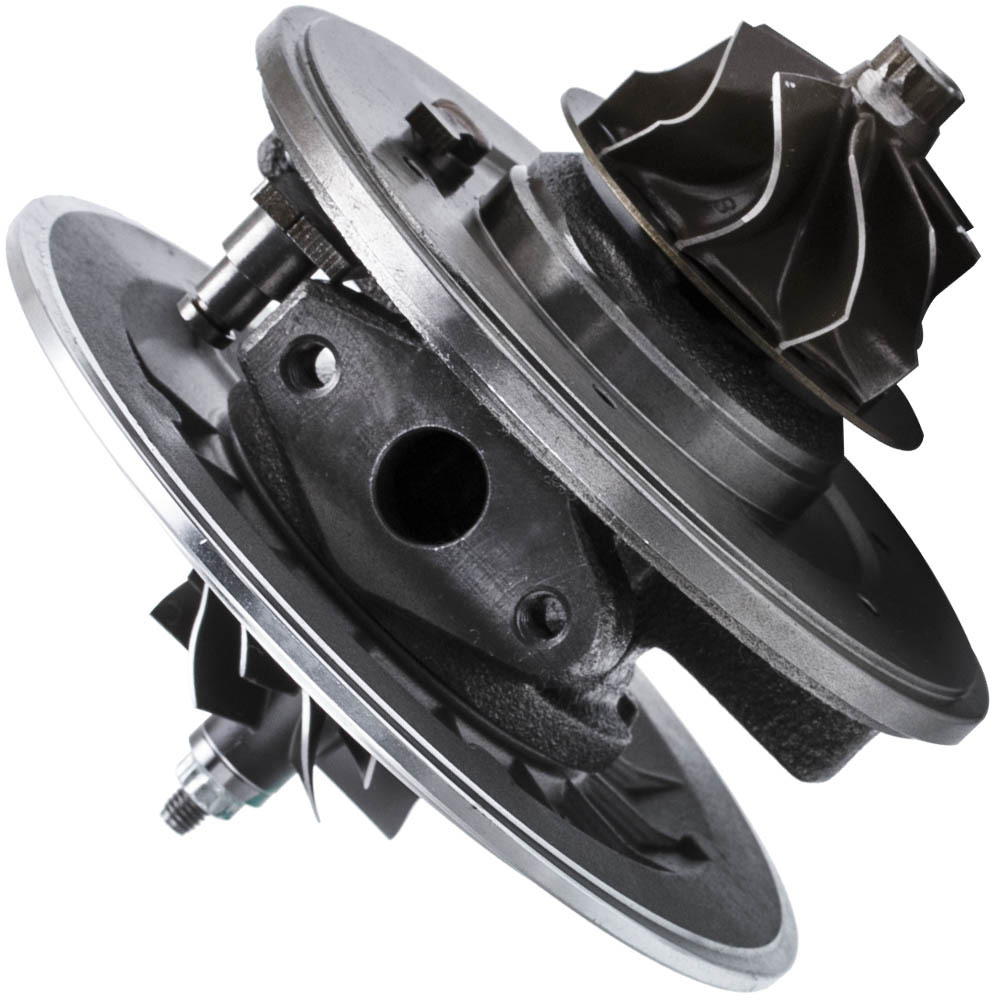

For GT2052V Turbocharger Chra compatible for Audi b6 BFC BCZ BDG TDI Engine 2.5L 2002-2005

Application

Compatible for AUDI A4 2.5 TDI (B5) Engine Code: AFB/AKN; 2.5L 2496 compatible for ccm; 150HP 110 Kw 1997-1999,
compatible for AUDI A6 2.5 TDI (C5) Engine Code: AFB/AKN; 2.5L 2496 compatible for ccm; 150HP 110 Kw 1997-2001,
compatible for AUDI A8 2.5 TDI (D2) Engine Code: AFB/AKN; 2.5L 2496 compatible for ccm; 150HP 110 Kw 1997-2002,
compatible for Skoda Superb I 2.5 TDI Engine Code: AFB/AKN; 2.5L 2496 compatible for ccm; 150HP 110 Kw 2001-2004,
compatible for VW for Passat B5 2.5 TDI Engine Code: AFB/AKN; 2.5L 2496 compatible for ccm;150HP 110 Kw 1998-2000,
compatible for VW for Passat B5 2.5 TDI Engine Code: AKN; 2.5L 2496 compatible for ccm; 150HP 110 Kw 2000-2003,

OE/Part number

454135-1, 454135-0001, 4541350001, 454135-5001S, 4541355001S,
454135-2, 454135-0002, 4541350002, 454135-5002S, 4541355002S,
454135-4, 454135-0004, 4541350004, 454135-5004S, 4541355004S,
454135-6, 454135-0006, 4541350006, 454135-5006S, 4541355006S,
454135-9, 454135-0009, 4541350009, 454135-5009S, 4541355009S,
059145701G, 059145701GX, 059145701GV,
059145701C, 059145701CX, 059145701CV,
059145702D, 059145701ED, 059145701R,

Specification

Turbo Model: GT2052V
Engine Code: AFB/AKN
Color: Silver
Cooling Type: Oil Cooling
Features：Variable Geometry
Bearing Type: Journal Bearing/Floating Bearing
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly

Feature

* Product
1. OEM-quality and size
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Please double-check the OE number before purchase to ensure fitment.
* You may provide last 8 digits of your VIN to a local authorized dealer on your own to help confirm OE reference number, if available.
* Professional installation is highly recommended.
