Fuel Pump Assembly compatible for Suzuki VS700 VS750 VS1400 Intruder 1985-2009 GL GLE

Application

Compatible for Suzuki VS700 GL/GLE Intruder 700 1986-1987
compatible for Suzuki VS750 Intruder 750 1985-1991 Model f/g
compatible for Suzuki VS1400 GLP Intruder 1400 1987-2004
compatible for Suzuki VS1400 Boulevard S83 2005-2009

OE/Part number

15100-38A00,15100-38A01

Specification

Condition: New
Type: Fuel Pump
Drive Type: Electrical
Fuel Type: Petrol
Voltage(V): 12
Flow Rate(Gallons/Hour): 13.2 G/H
Pressure: 10-34 kPa
Weight(kg): 0.422
Inlet Type: Iron joint
Inlet Quantity: 1
Inlet Size：8mm
Outlet Type: Iron joint
Outlet Quantity: 1
Outlet Size：8mm
Material: iron
Housing Material: iron
Internal Or External Strainer: External

Package included

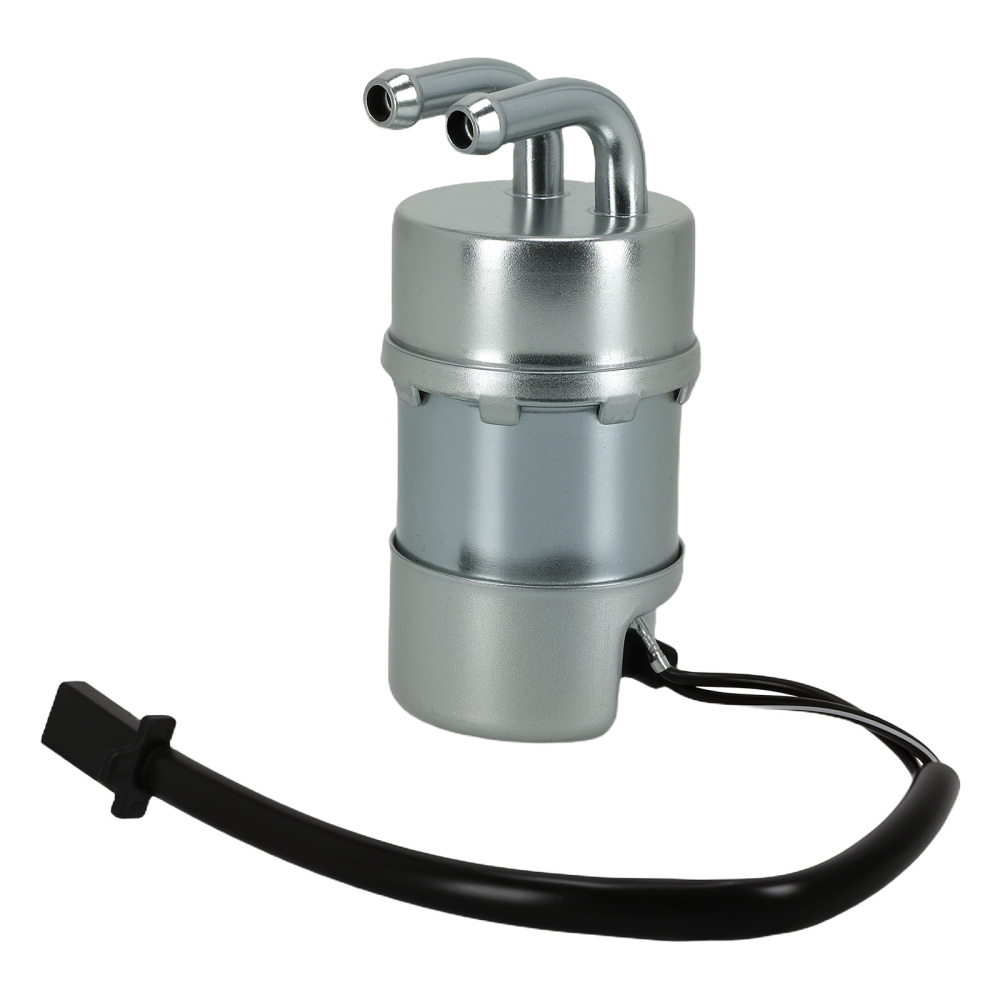

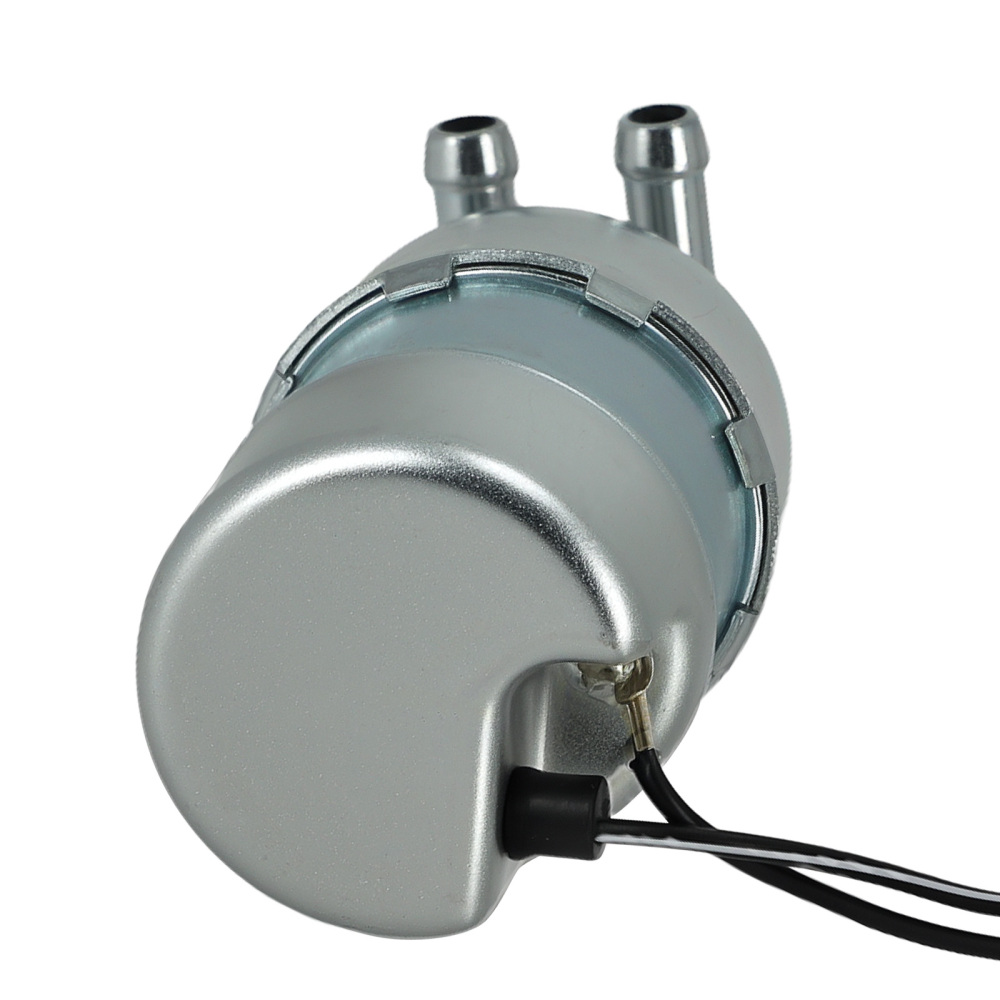

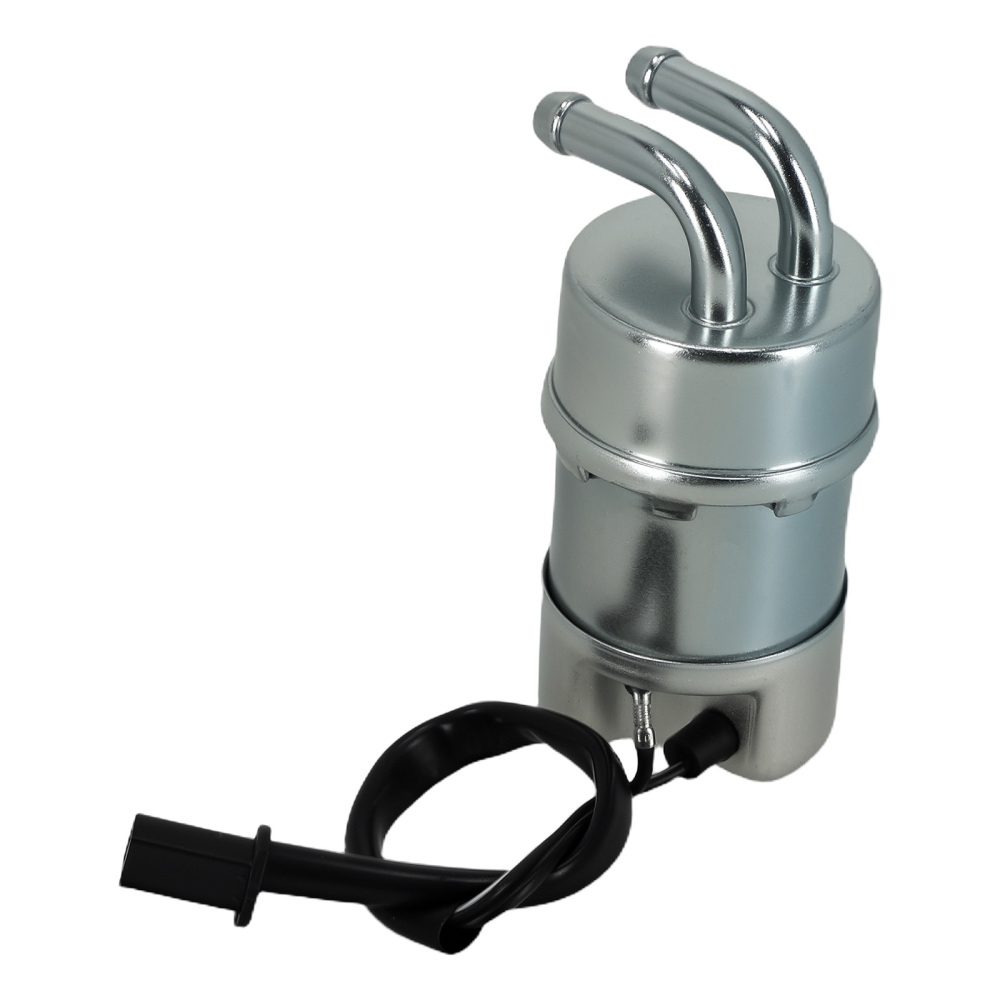

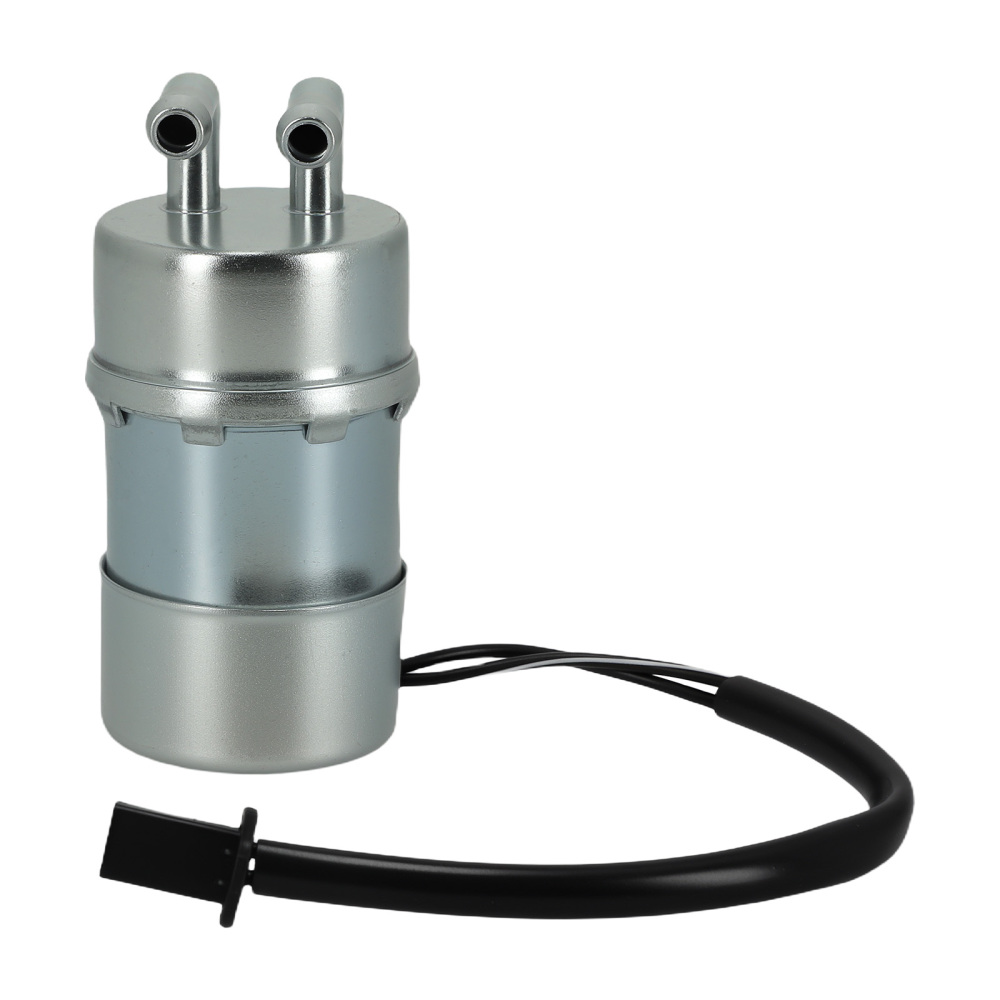

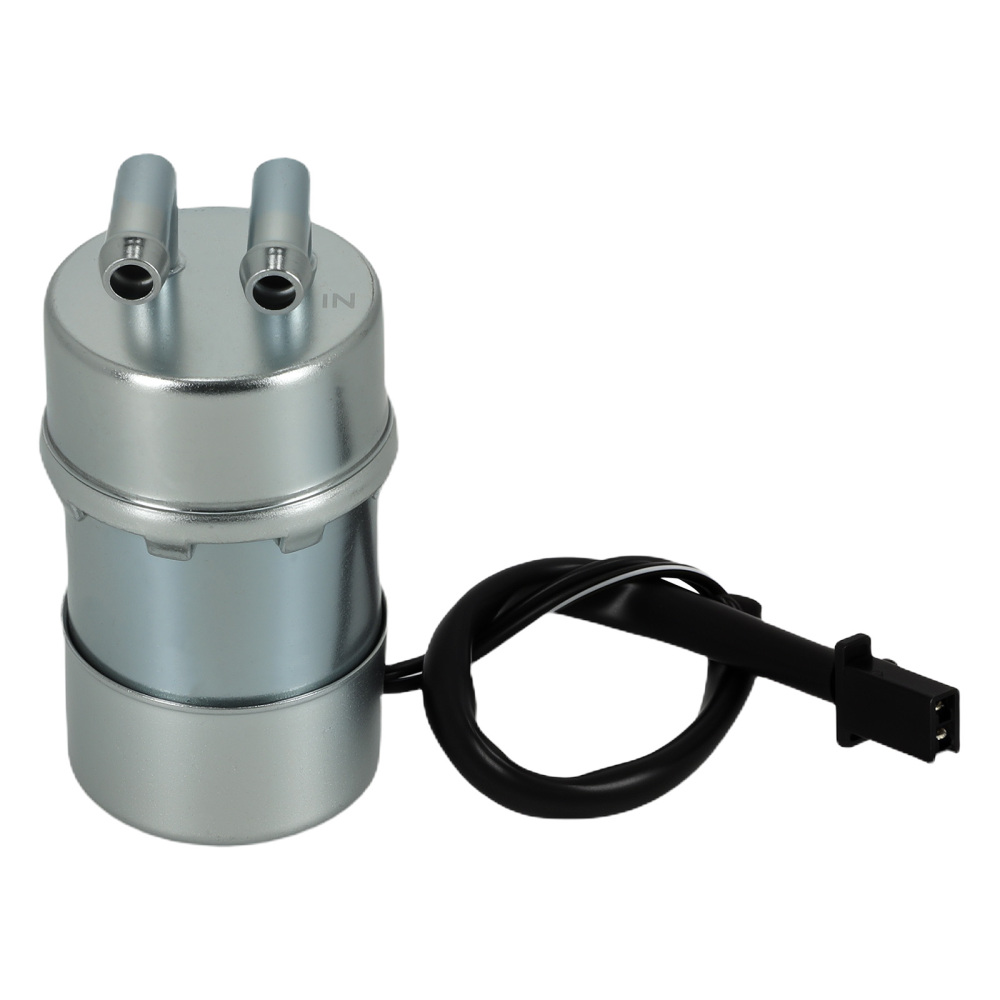

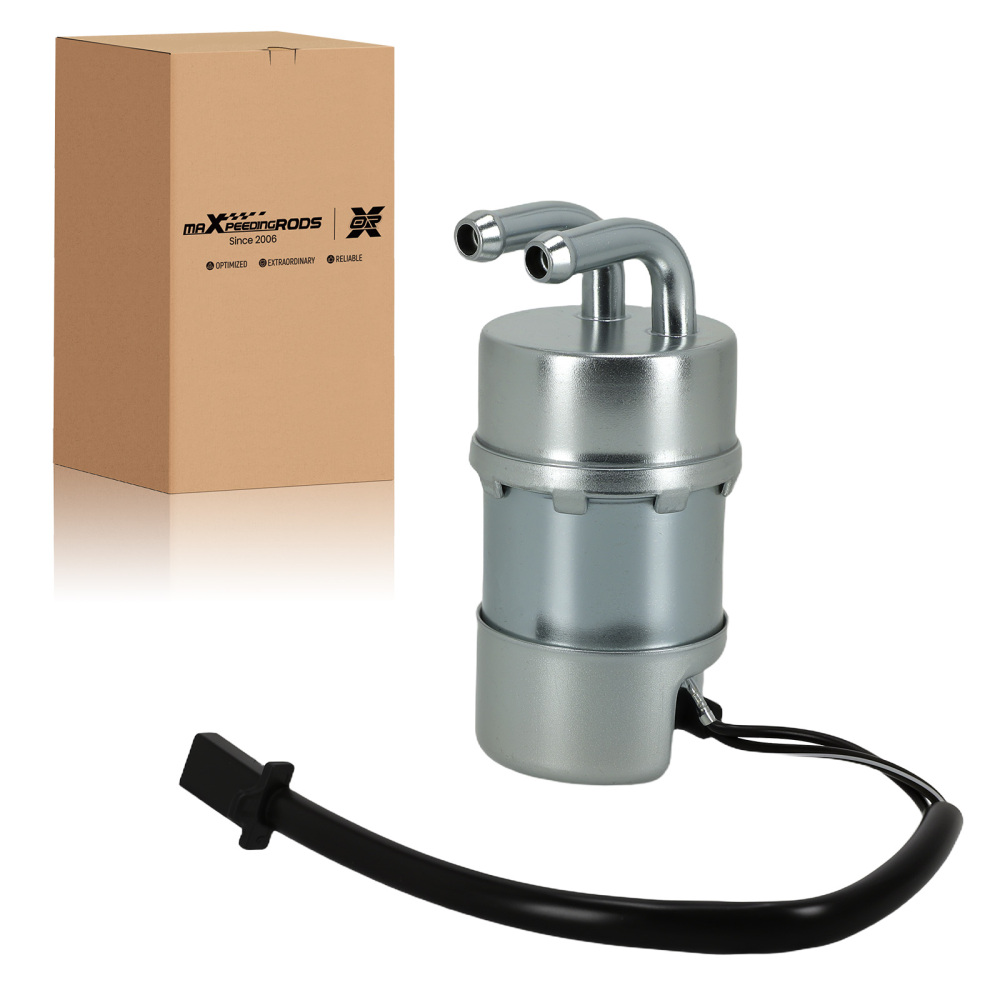

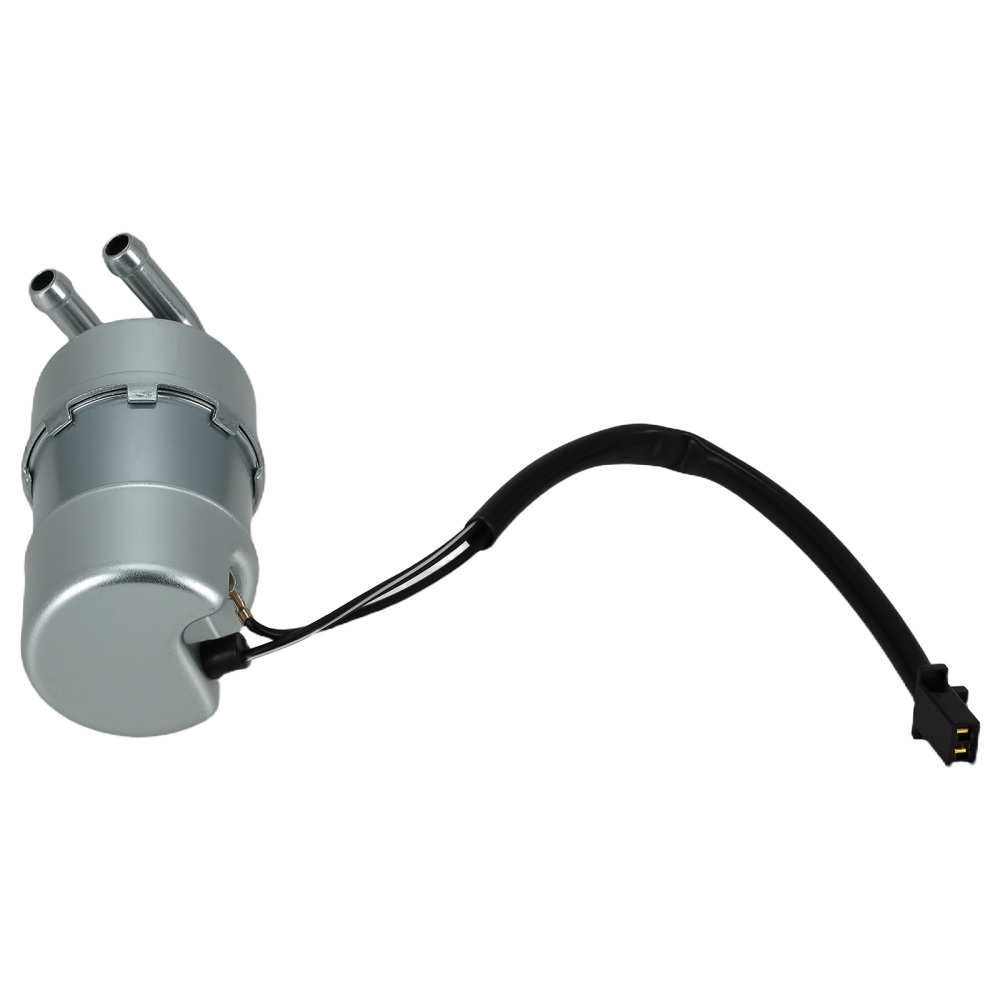

1X Fuel Pump (as shown in the pictures)

Feature

Armature：
1. Commutator adopts imported carbon sheet, high-temperature welding, more dense, less
spark, more wear-resistant, strong oxidation resistance, compatible with a variety of
fuels, work efficiency increased by 10%, life expectancy increased by 50%.
2. Core use cold rolled non-oriented DW470 silicon steel sheet, high permeability, low coercivity, low
hysteresis loss.
3. Insulation paper potect armature under more than 1000V breakdown voltage.
4. Temperature resistance of enameled wire: 220℃.
5. Over-molded armature, low fluid resistance. full-automatic production to ensure consistency.

Pump Housing：
1. The selection of high-quality carbon seamless steel pipe, effectively
Eliminate electromagnetic eddy current, reduce magnetic loss.
2. Bilateral chamfering, one-time full section of the inner hole processing, concenTricity 0.02mm, to ensure that the armature and tile air gap, reduce pump core
Vibration, reduce operating noise, increase product life.
3. Environmental plating, strong corrosion resistance.

Turbine Impeller：
1. Scoop type blade, smooth fluid running track, high oil suction efficiency, low noise,
effective suppression of vibration.
2. Imported double-sided grinder grinding, high-energy wave cleaning, smoother operation.
3. Balance hole design, reduce the friction with the pump body, increase the life of the pump.

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
3.Due to the different display and different light, the picture may not reflect the actual color of the item.
