Fuel Pump Assembly compatible for Dodge Ram 1500 2500 3500 04-09 Truck 3.7 4.7L 5.7L E7182M

Application

Compatible for Dodge Ram 1500 V6 3.7L 2004-2007
compatible for Dodge Ram 1500 V8 4.7L 2004-2007
compatible for Dodge Ram 1500 V8 5.7L 2004-2008
compatible for Dodge Ram 2500 V8 5.7L 2005-2009
compatible for Dodge Ram 3500 V8 5.7L 2005-2008

OE/Part number

E7182M, E7165M,E7180M, E7186M,TU177,TU178,P76259M,P76277M,
5104694AA, 5104694AB, 5104694AC, 5104696AA, 5104696AB, 5104698AB, 5134554AC, 5134554AE, 5134554AF, 68001958AB, 68003351AB, 68004489AA, 68004518AA, 68011609AA, 68027922AA, 68027922AB, 68027922AC, 68027922AD, RL001958AB, RL004489AA, RL004518AA, RL011609AA, RL027922AC, RL104694AC, RL134554AF, RL27922AC,SP7022M, SP7023M, SP7025M, SP7165M, SP7237M, TU177, TU178, P828M, 67777, 69345, P76260M, P76841M, P76842M, P76846M, FG0473, FG0474, FG0817, FG1442, FG2110, 9533070, USEP7165M, USEP7180M, USEP7182M, 358300281, F3191A, F3193A, F3197A, 150111A, 150116A, 150077A, 150195A, 402P7165M, 402P7180M, 402P7182M, PN3093, 1010376, 1010576

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥38.28
Pressure(MPa): 0.3
Weight(kg): 1.3698
Inlet Type: /
Inlet Quantity: 0
Outlet Type: Quick Connect
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear (Fuel Tank)

Package included

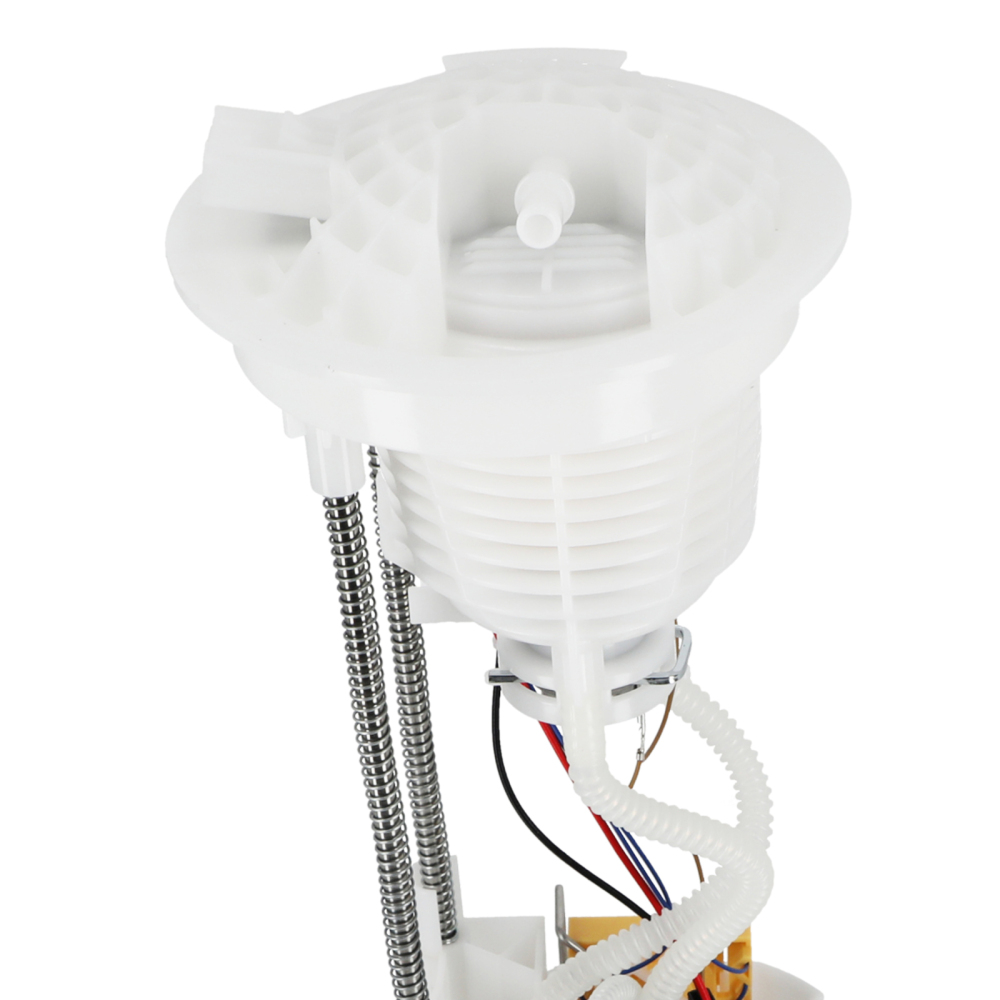

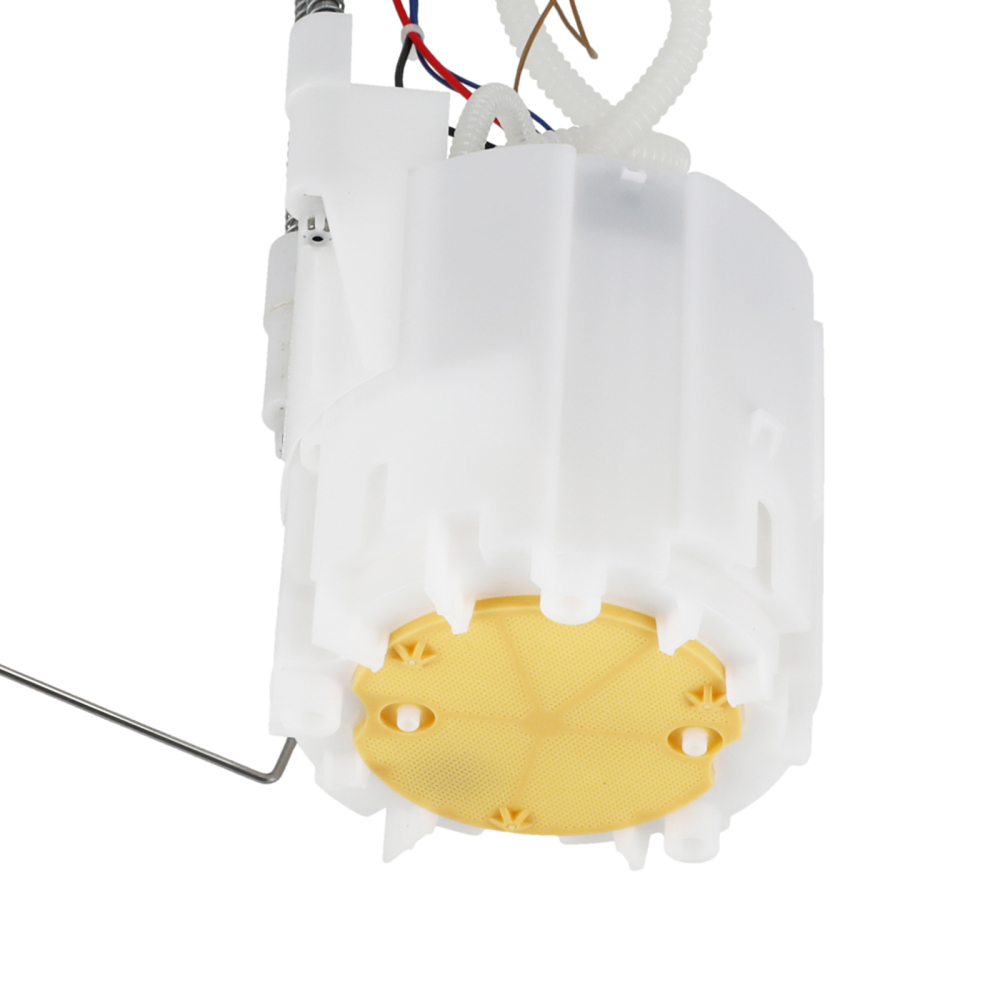

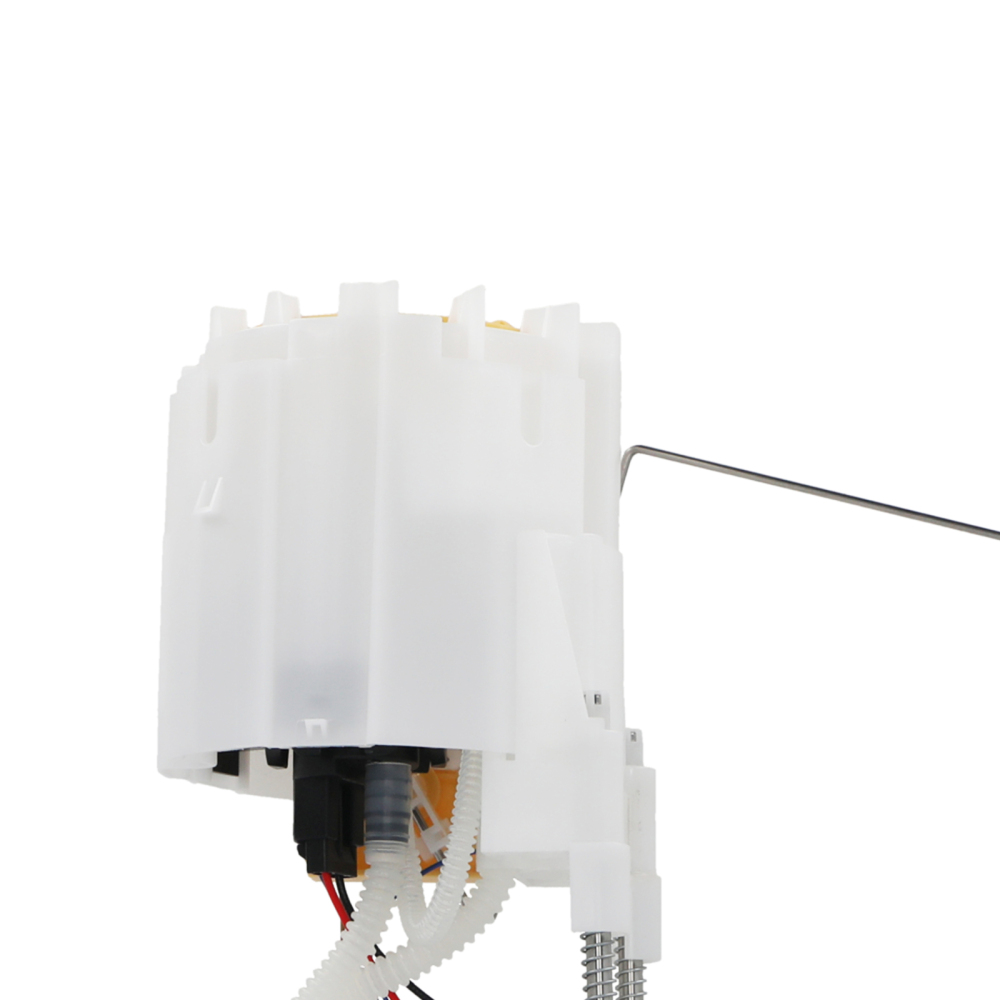

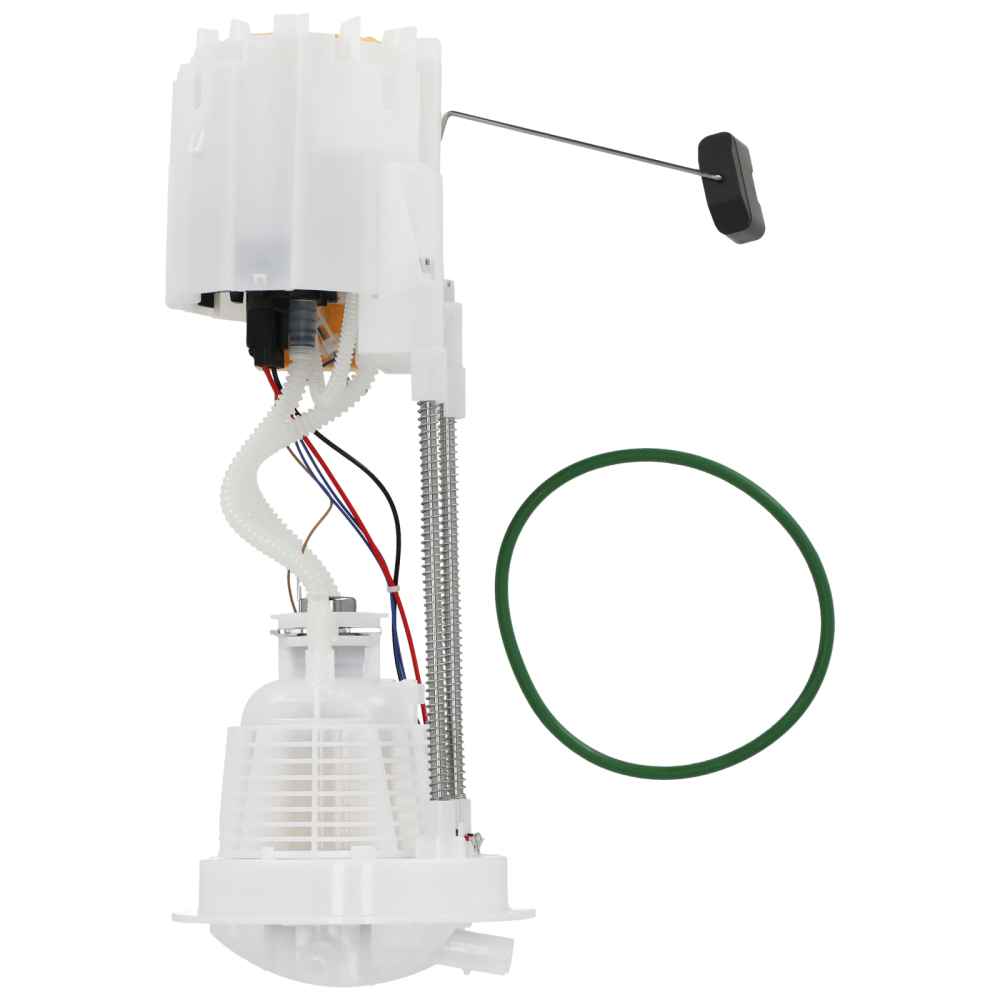

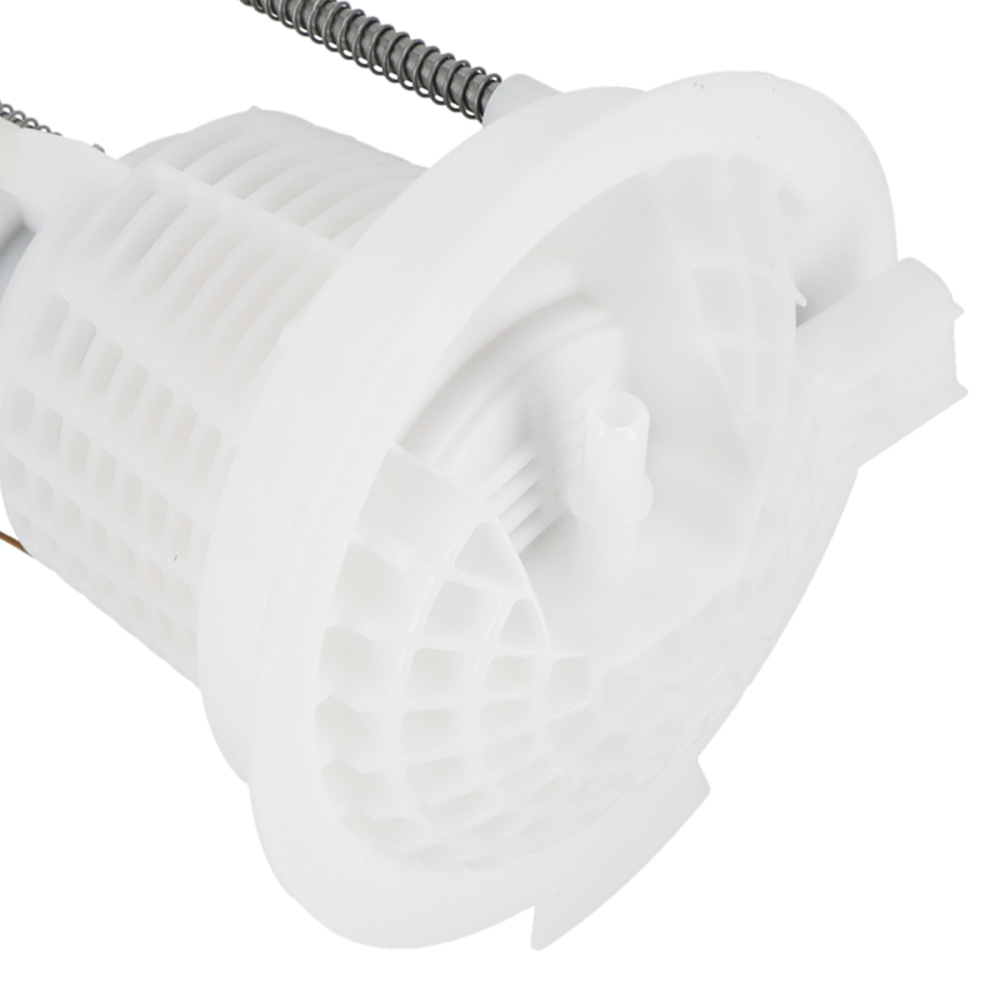

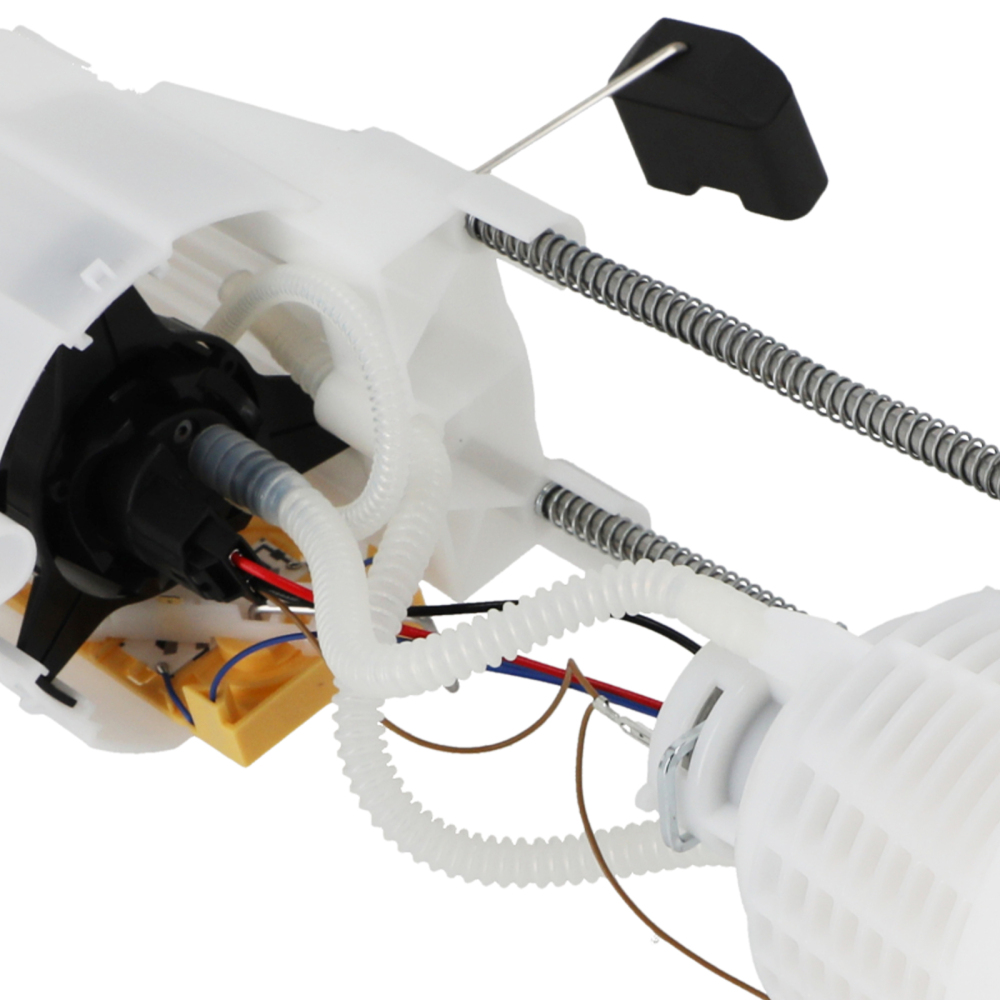

1X Fuel Pump Module Assembly (as shown in the picture)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
