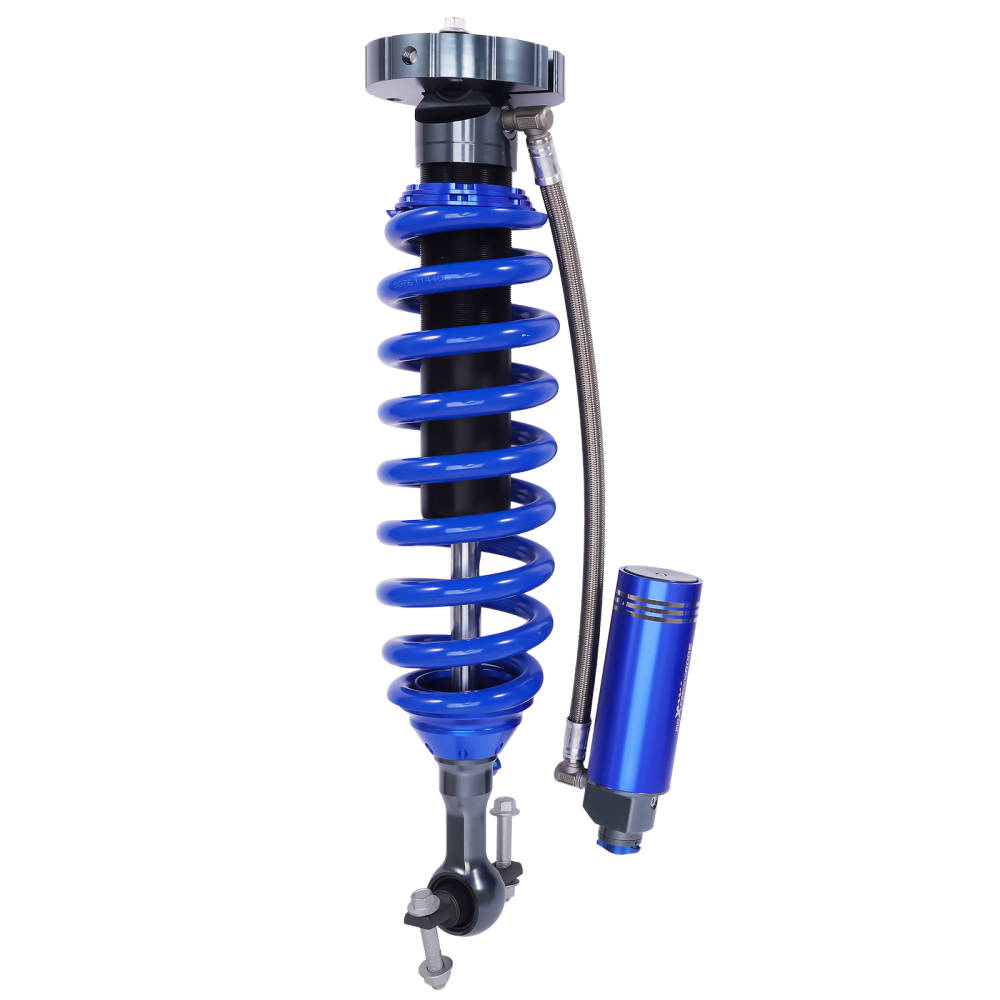

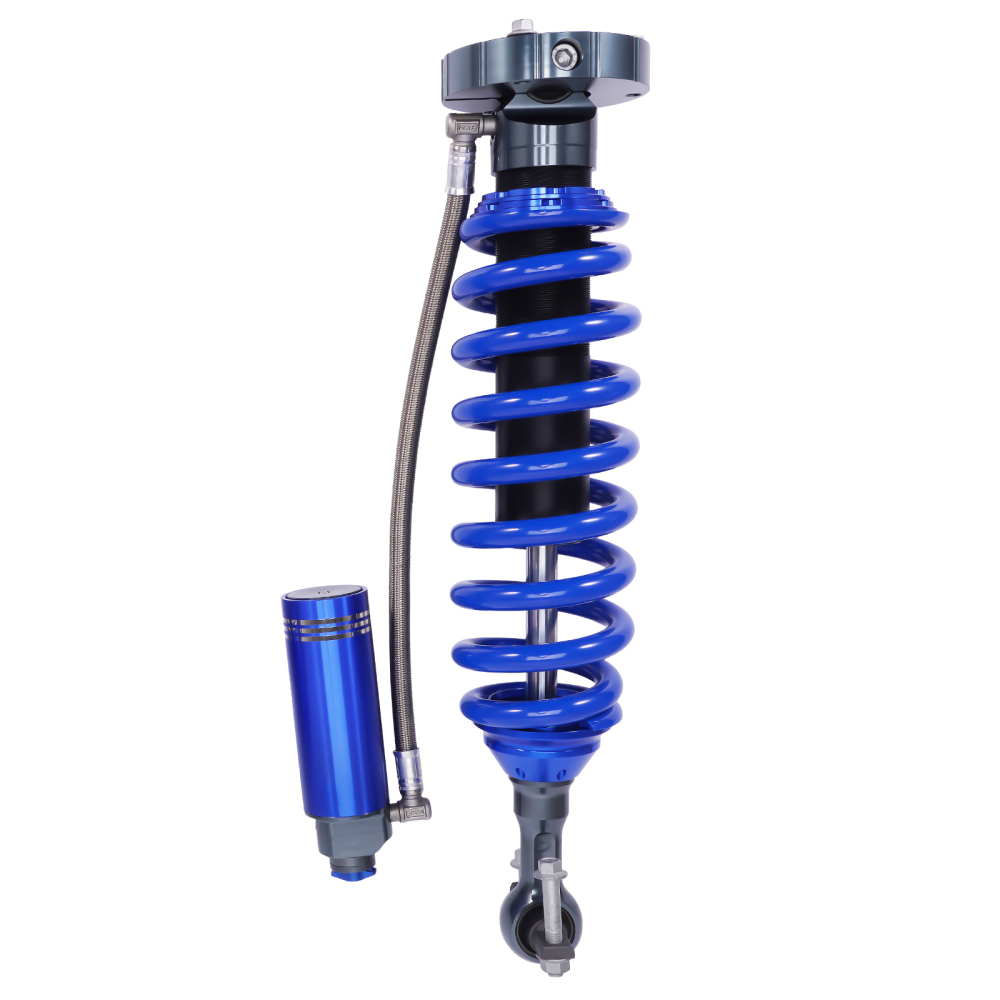

Front Shocks W/ Damper Adjustable Reservoir For 19-24 compatible for Chevy Silverado 1500

MaXpeedingrods X3 Series Remote-Reservoir Shocks

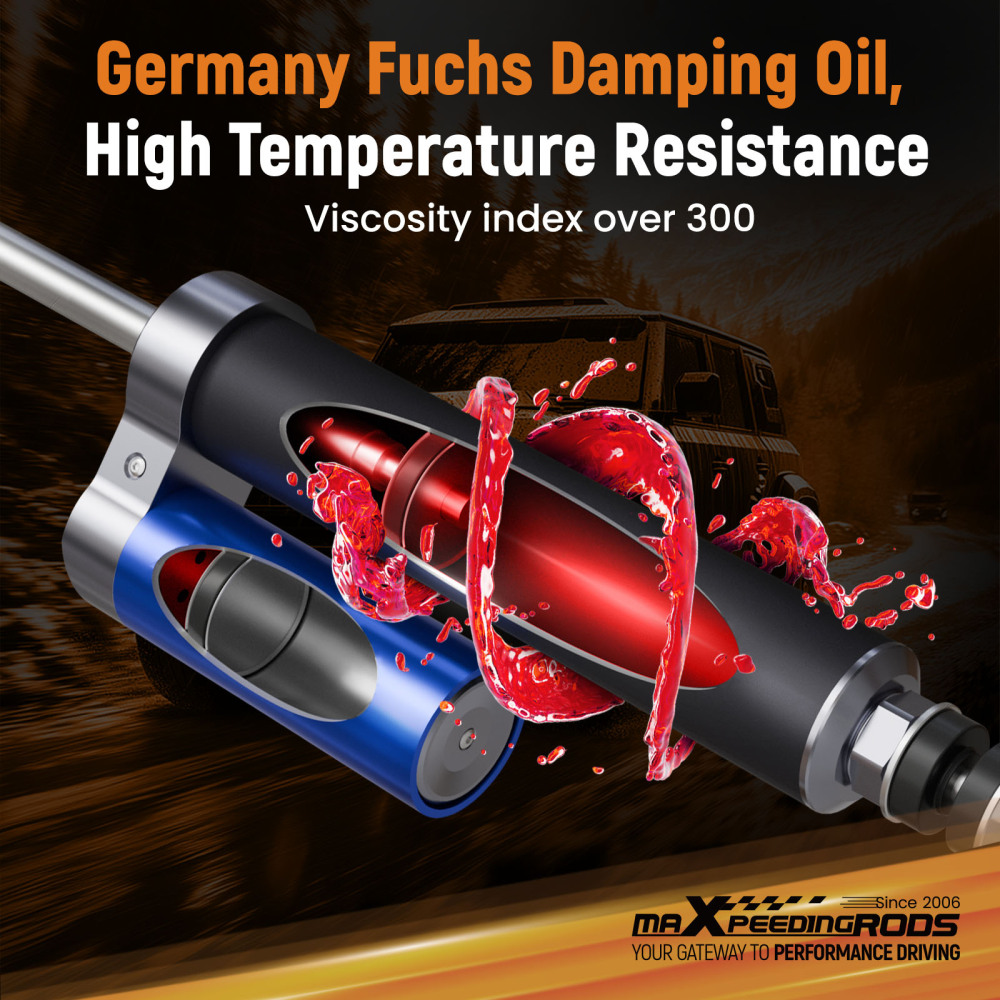

The upgraded system enhances the off-road capabilities of SUVs and pickup trucks through an innovative external nitrogen reservoir with oil-gas separation technology. The optimized design includes an expanded gas compression chamber for improved shock stroke efficiency, as well as an enlarged oil chamber that increases fluid capacity while enhancing heat dissipation and fade resistance. With precisely engineered dual compression/rebound damping adjustability, the system maintains vehicle stability across diverse terrains by dynamically adapting to both high-frequency vibrations and sustained impacts through advanced thermodynamic management.

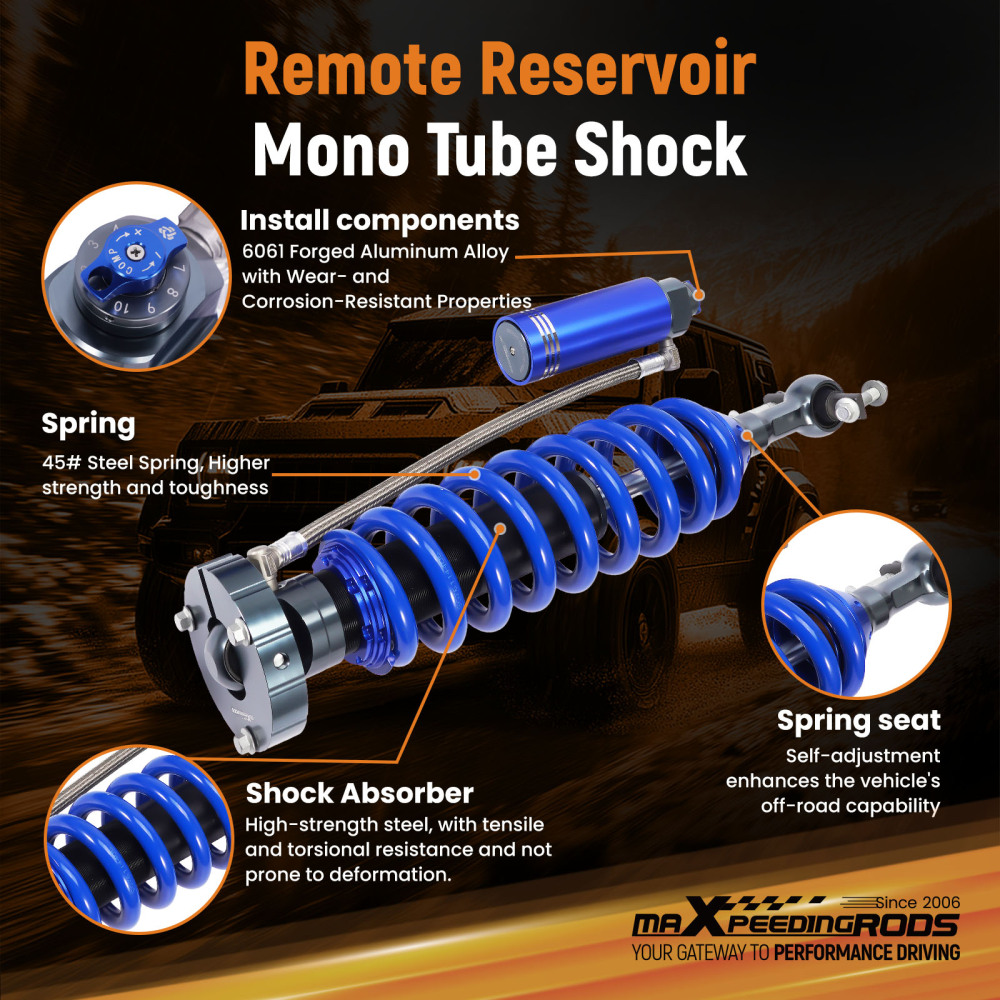

Features

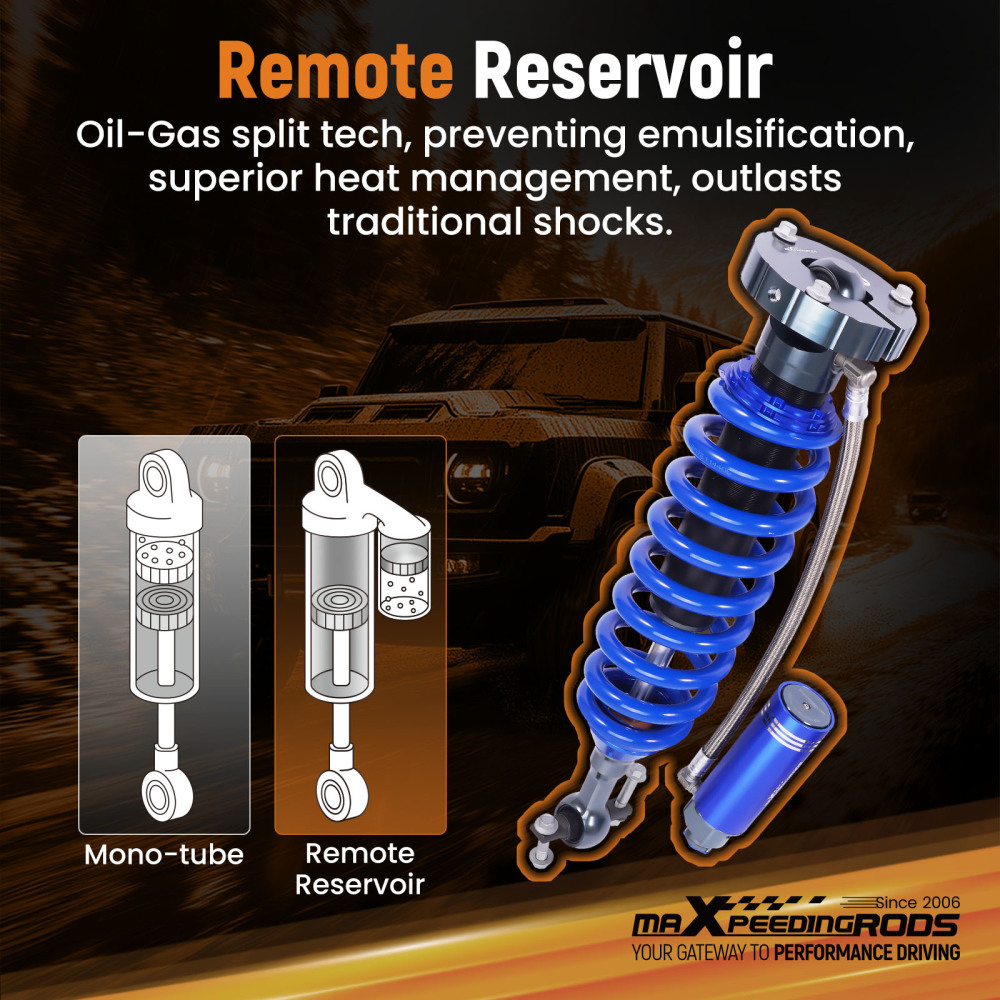

1. Enhanced Nitrogen Reservoir Design
 The expanded inner diameter of the nitrogen cylinder optimizes gas chamber volume and thermal dissipation surface area, ensuring stable damping performance under prolonged high-intensity operation.

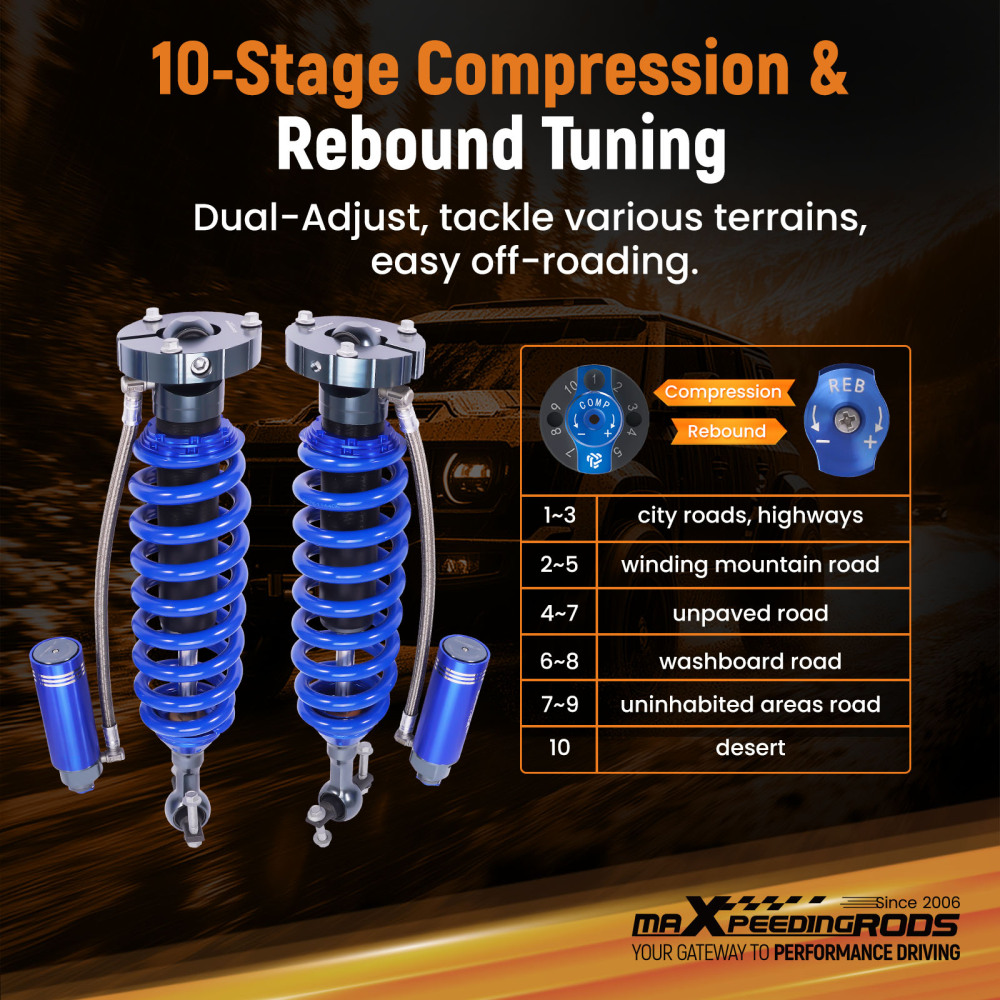

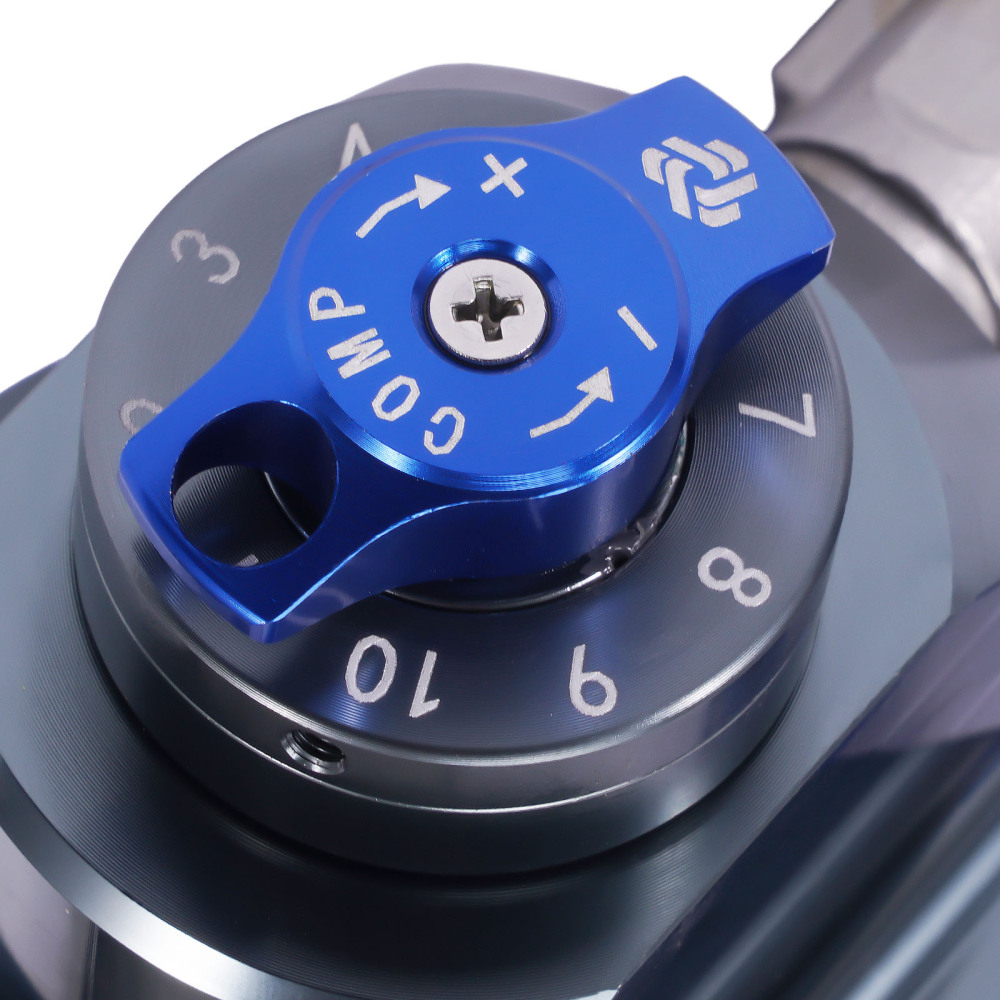

2. Rebound and Compression Damping Adjustment
 A precision-engineered 10-stage rebound and compression damping adjustment mechanism provides extended parameter adaptability, balancing terrain-specific stiffness control with ride comfort optimization.

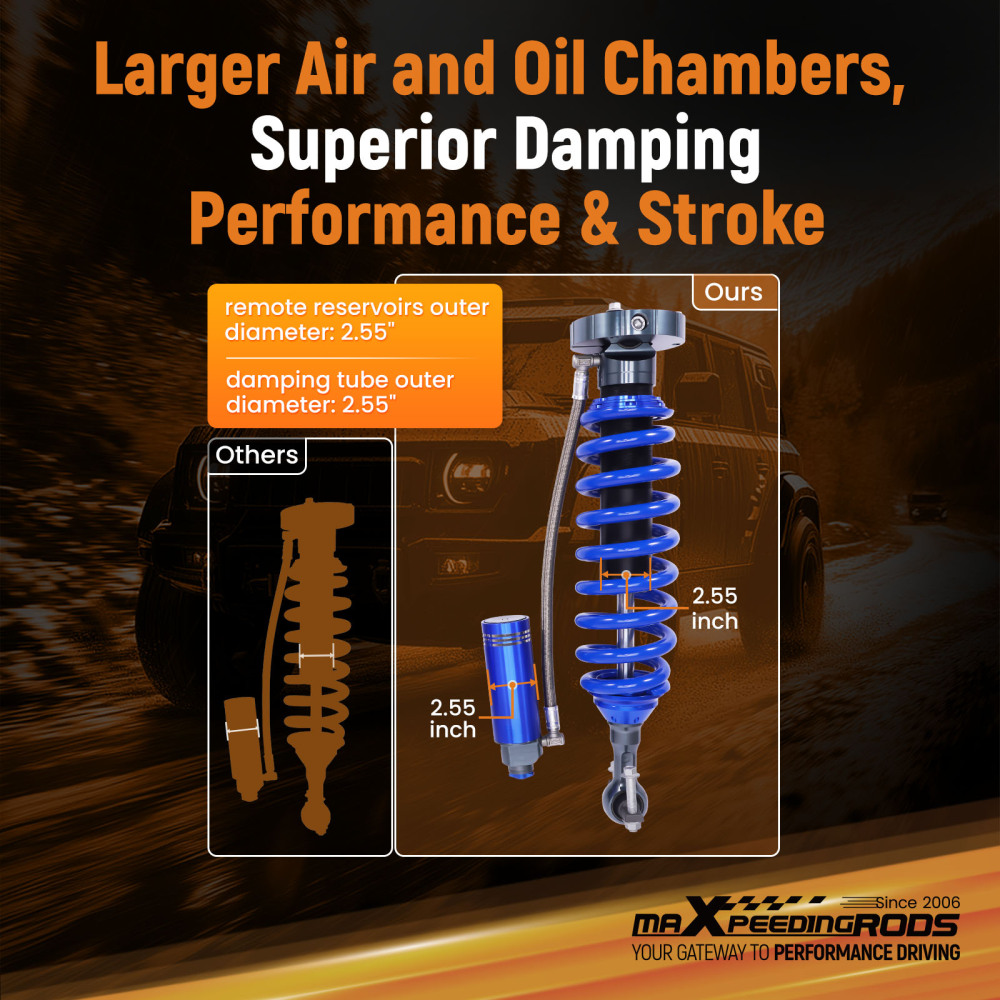

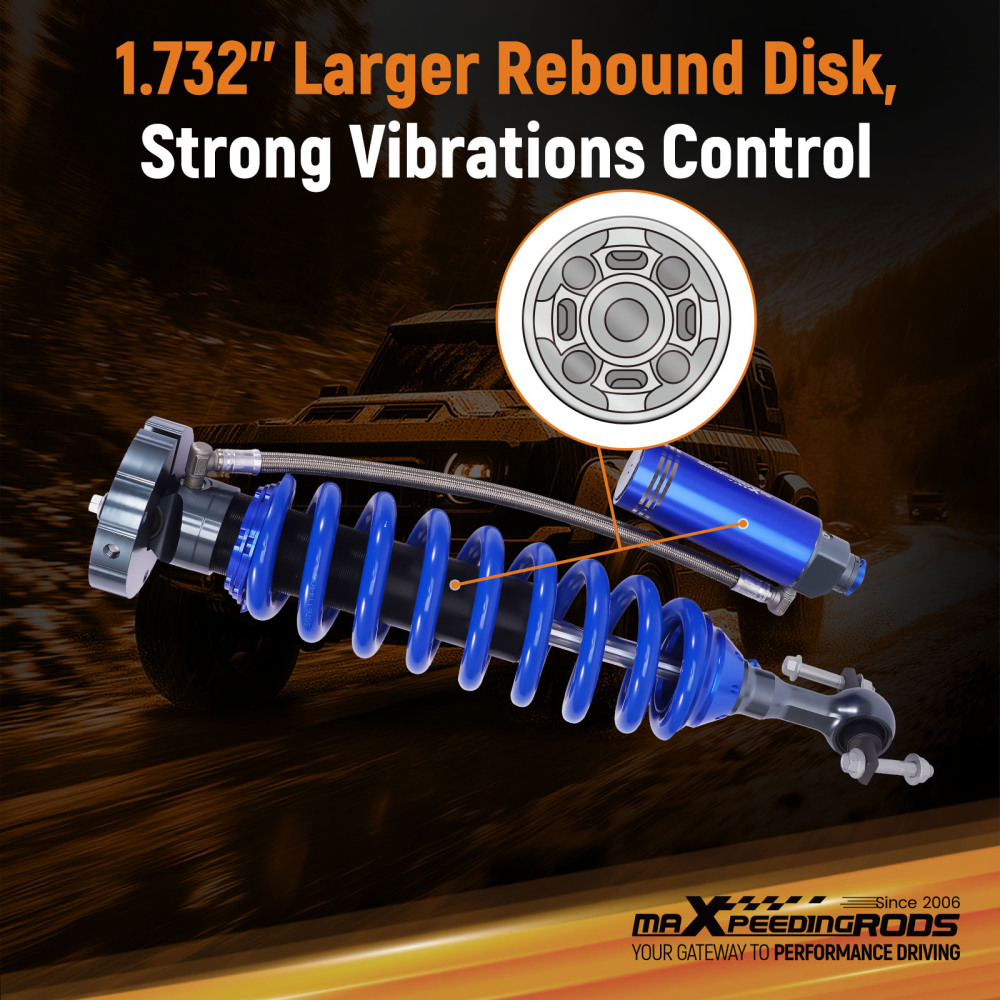

3. Oversized Damping Architecture
 The enlarged inner diameter of the damping tube enhances fluid dynamics efficiency, while the reinforced rebound disc configuration improves vibration absorption capacity for superior impact management.

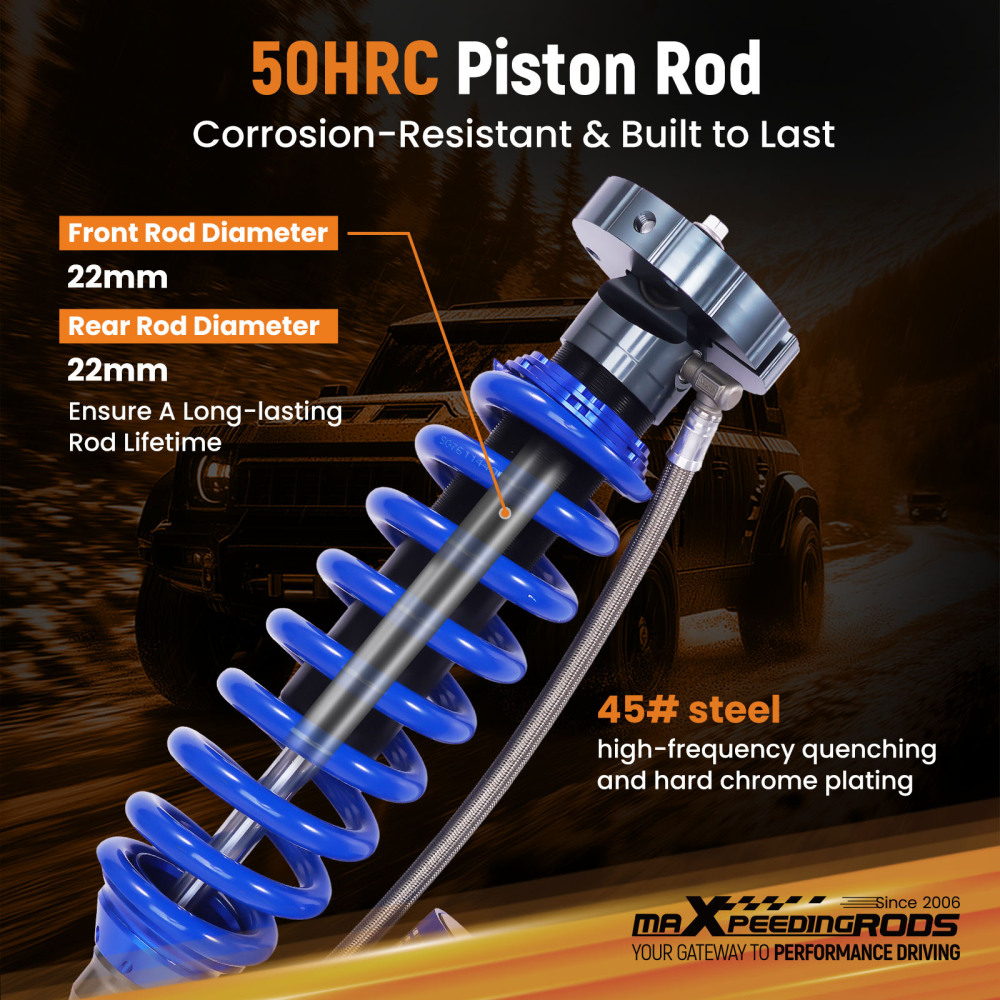

4. Advanced Surface Engineering

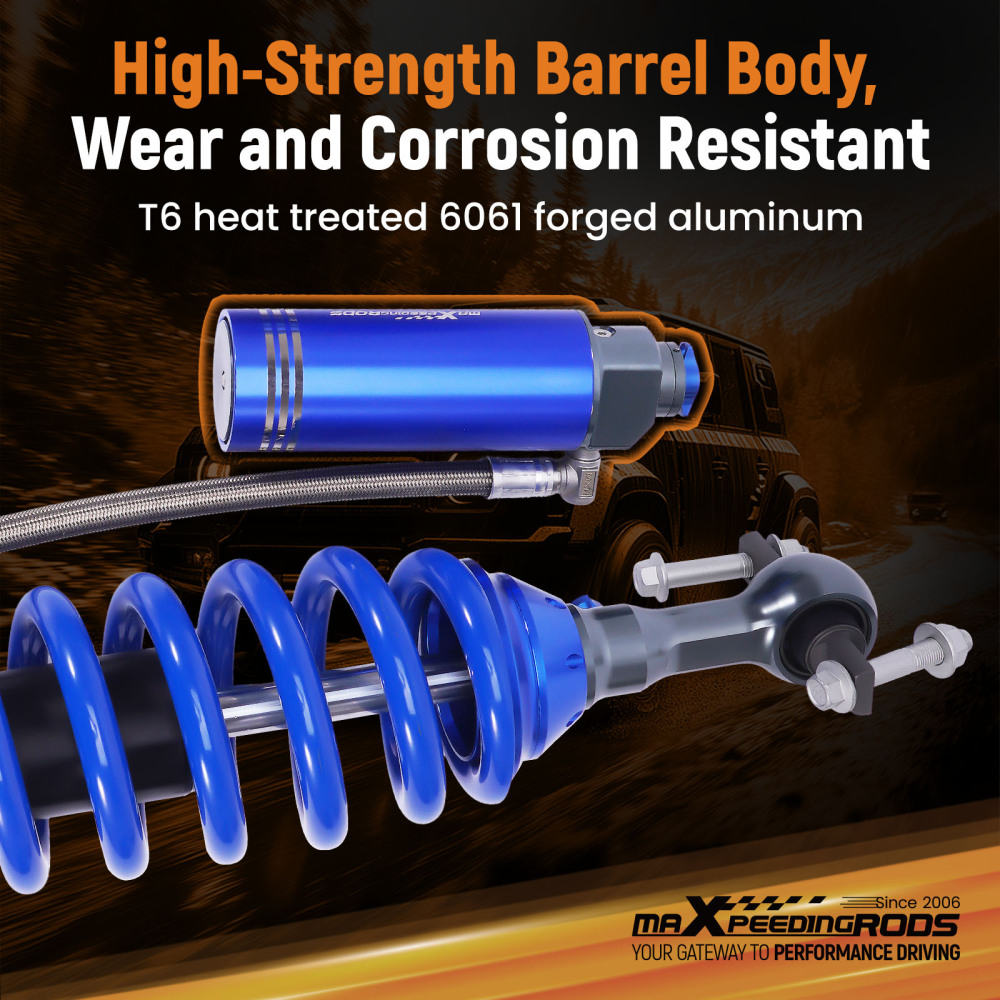

 High-frequency quenching and hard chrome plating processes on the piston rod surface deliver enhanced wear resistance. T6 heat-treated 6063 forged aluminum maintains structural integrity while achieving weight reduction.

Application

Compatible for Chevrolet Silverado 1500 2019-2025 (Lift 3.5", Trail Boss Models Fit 1.5" Lift Only; 2022-2025 Excludes ZR2 Models)
Compatible for Chevrolet Silverado 1500 LD 2022 (Lift 3.5", Trail Boss Models Fit 1.5" Lift Only)
Compatible for GMC Sierra 1500 2019-2025 (Lift 3.5", compatible for AT4 Model Fits 1.5" Lift Only; 2022-2025 Excludes AT4X Models)
Compatible for GMC Sierra 1500 Limited 2022 (Lift 3.5", compatible for AT4 Model Fits 1.5" Lift Only)

Specification

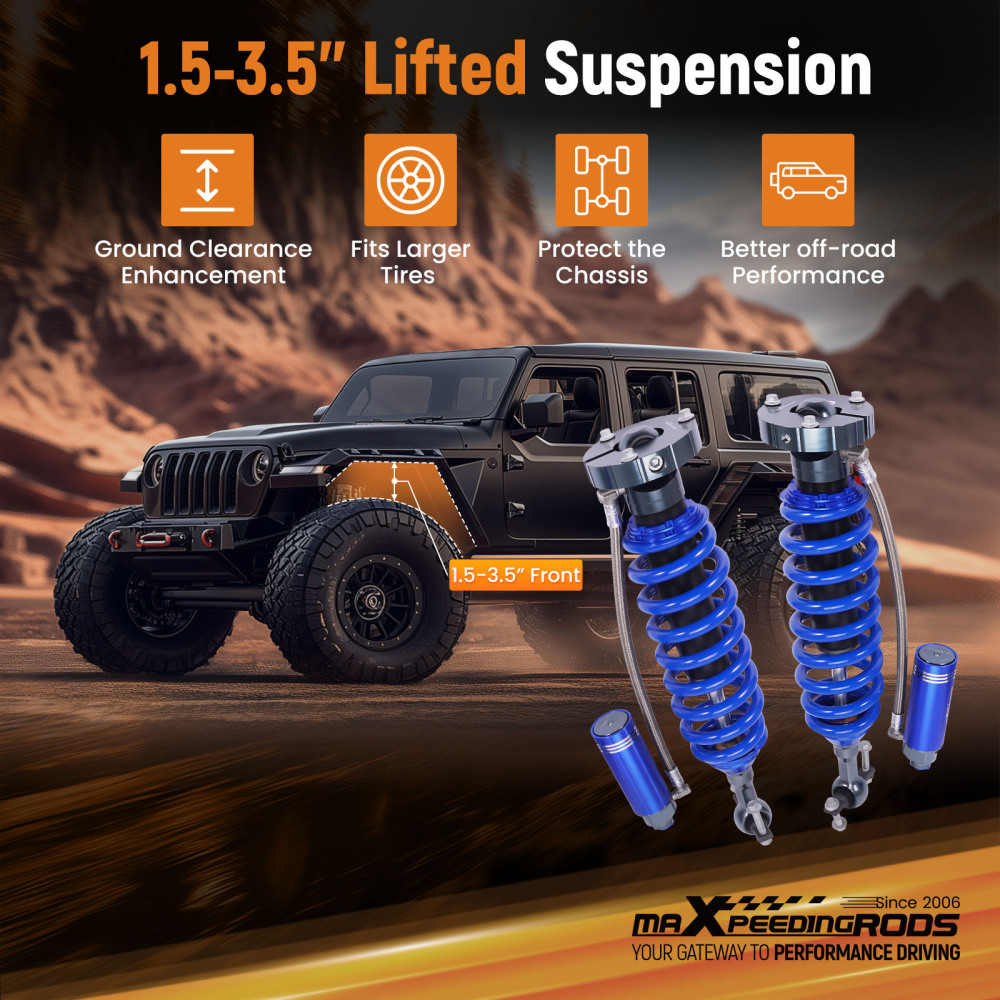

Height adjustable: lift 1.5-3.5 inches

Rebound and Compression Damping Force Adjustable: Yes
Body Outer Diameter (mm)：65*268
Body Inner Diameter (mm):57*268
Body Material:45# steel

Outer Diameter of Springs(mm):108-110
Top Mount:STEM MOUNT
Bottom Mount:BAR PIN
Compressed Length (mm):155
Extended Length (mm):155
Reservoir Outer Dimensions:Φ65×160
Reservoir Inner Dimensions:Φ57×160
Reservoir Type:remote
Shaft Size (mm):306
Travel (mm): 155

Type: shock

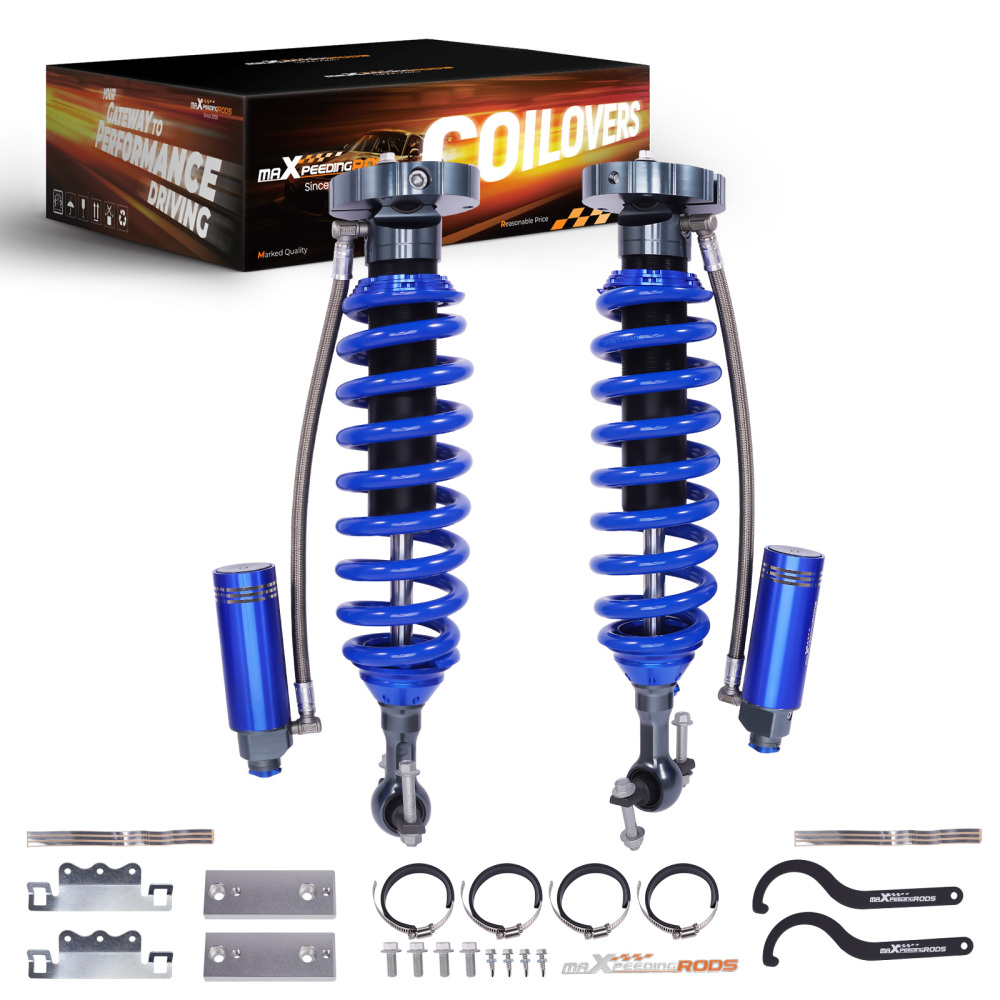

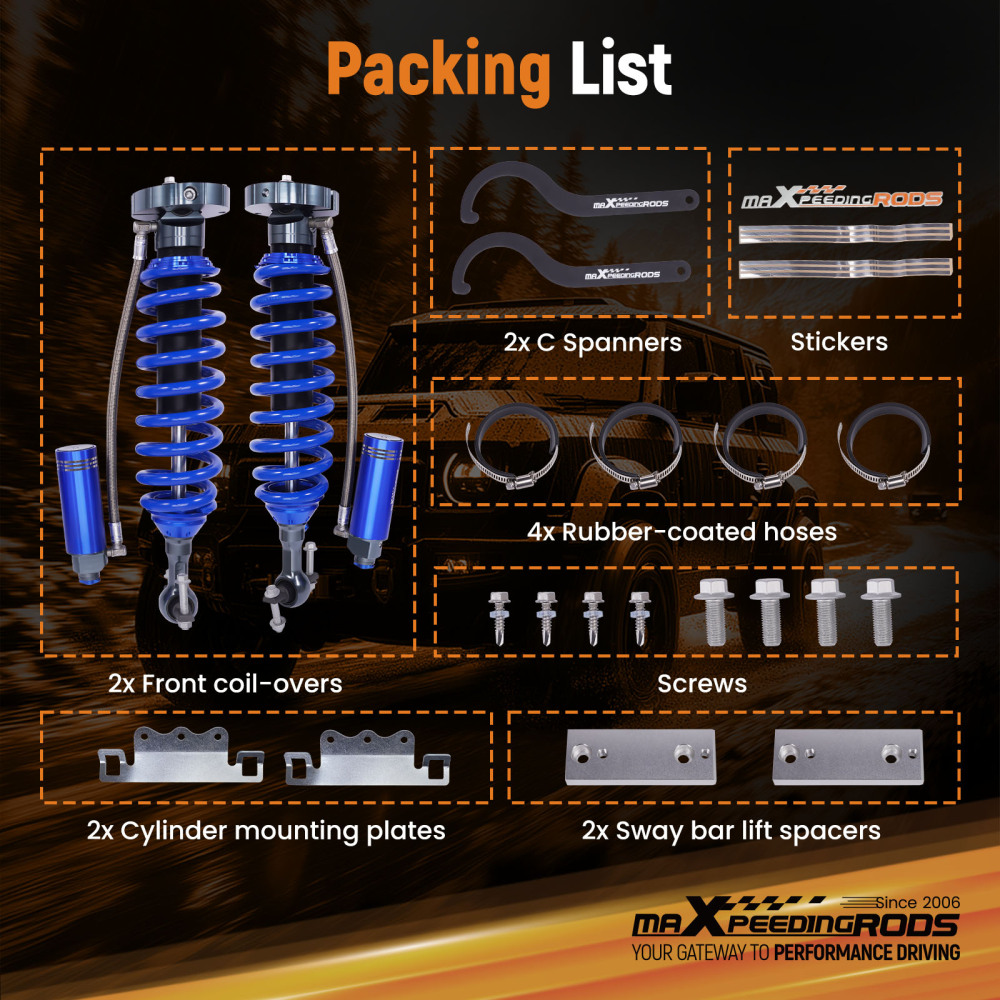

Package included

Front shocks*2
Instructions*1
