Front Leveling Strut 2.5-3.5 Lift Kit compatible for Nissan Frontier 4WD 2005-2026

Application

Compatible for Nissan Frontier 2005-2026 4WD & RWD

Specification

type：lift shock kit
Compatible Height：Lift F 2.5-3.5" R 0-3.5"
Material: High Tensile Strength Carbon Steel
Finish: Oven-baked paint
Bushing material: Rubber
Adjustable: 12 level rebound adjustable
1(Softest)-6(OE)-12(Hardest)
Levels 1-4 are suggested for daily street driving
Levels 5-8 are suggested for daily mixed driving conditions
Levels 9-12 are suggested for off-road driving
Diameter of piston rod: F&R 18mm/0.70"
Piston diameter：F&R 35mm/1.37"
Outer cylinder diameter: F&R 58mm/2.28"
Travel: F:125mm/4.92" R: 205mm/8.07"
extended length: F:460mm/18.11" R: 585mm/23.03"
collapsed length:F: 335mm/13.19" R: 380mm/14.96"

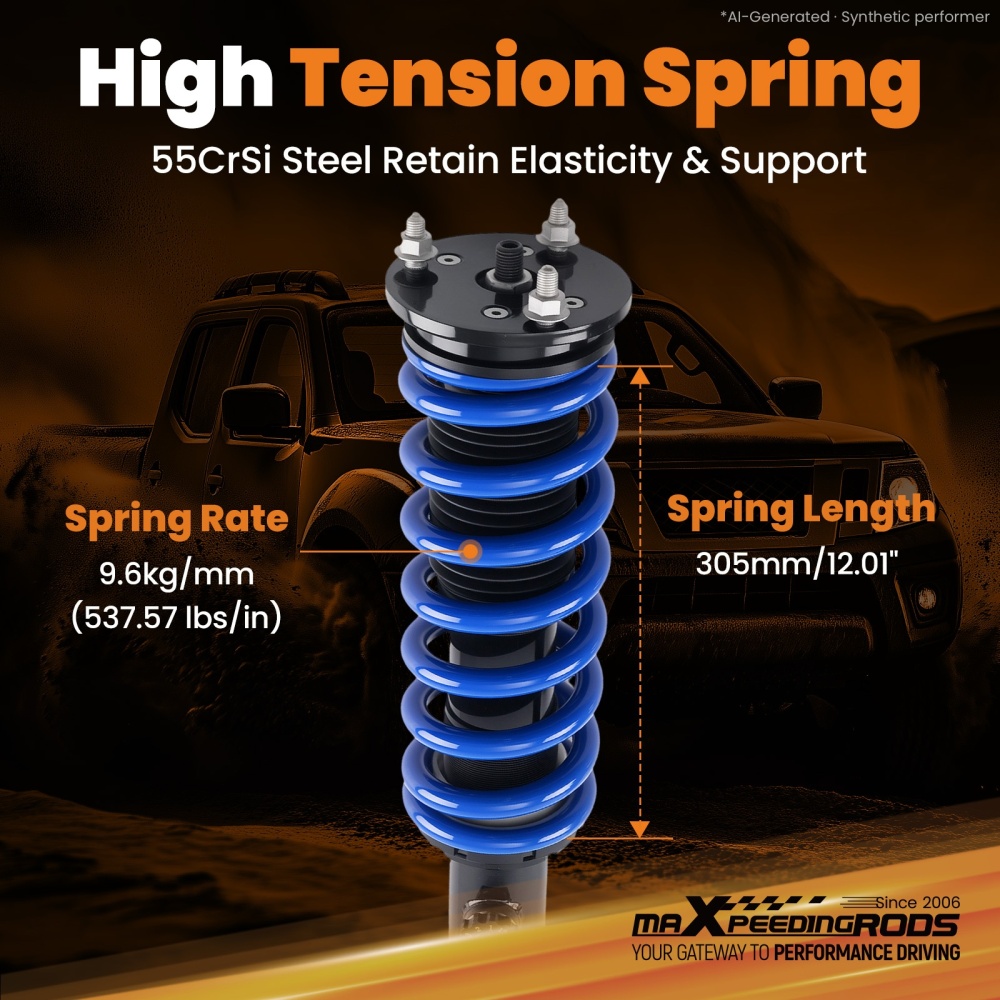

spring rate: F:9.6kg/mm (537.57 lbs/in)
spring length: F: 305mm/12.01"
Nitrogen charged：yes
dust cover equipped: R yes
Upright Type：Rod (Upper), Tube (Lower)
Mount Type:
F Upper：M14*1.5 (Stud) Lower：14*42 (Eyelet)
R Upper：16*36 (Eyelet) Lower：14*42 (Eyelet)
Damping Tuning: Rebound-Optimized

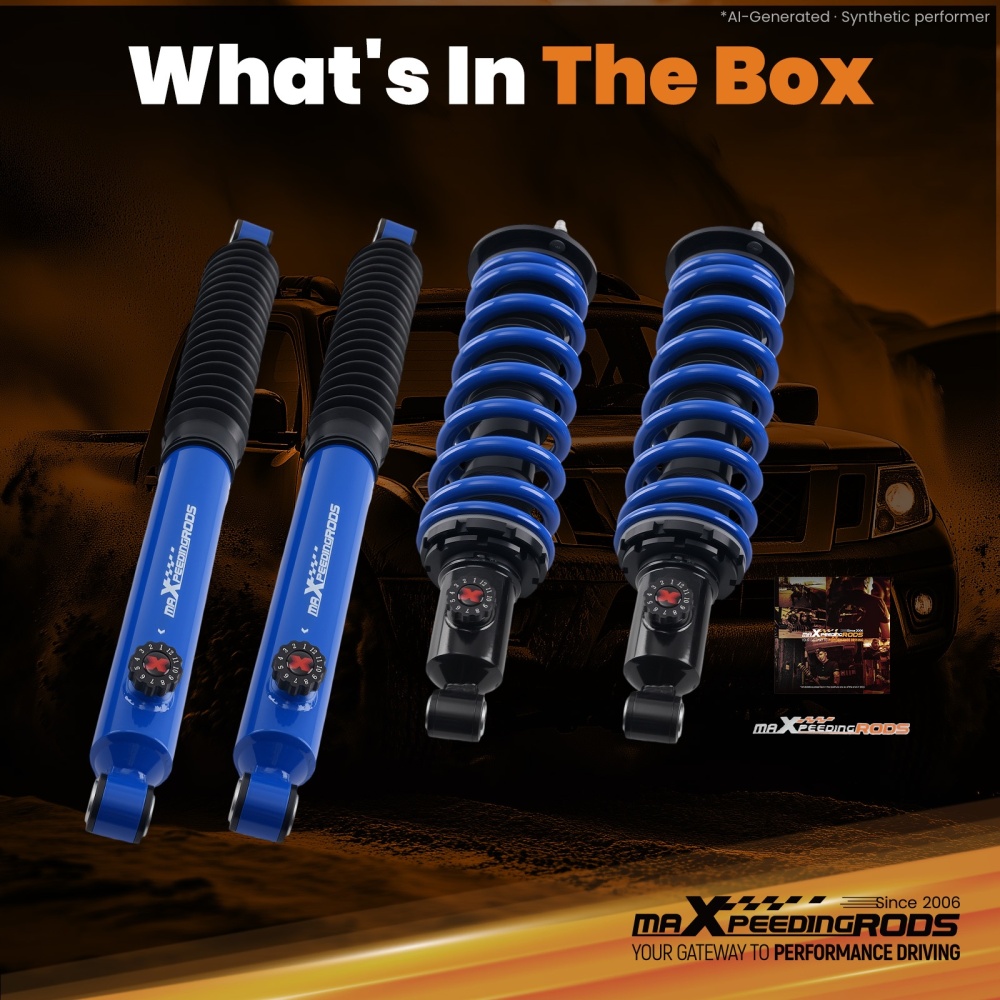

Package included

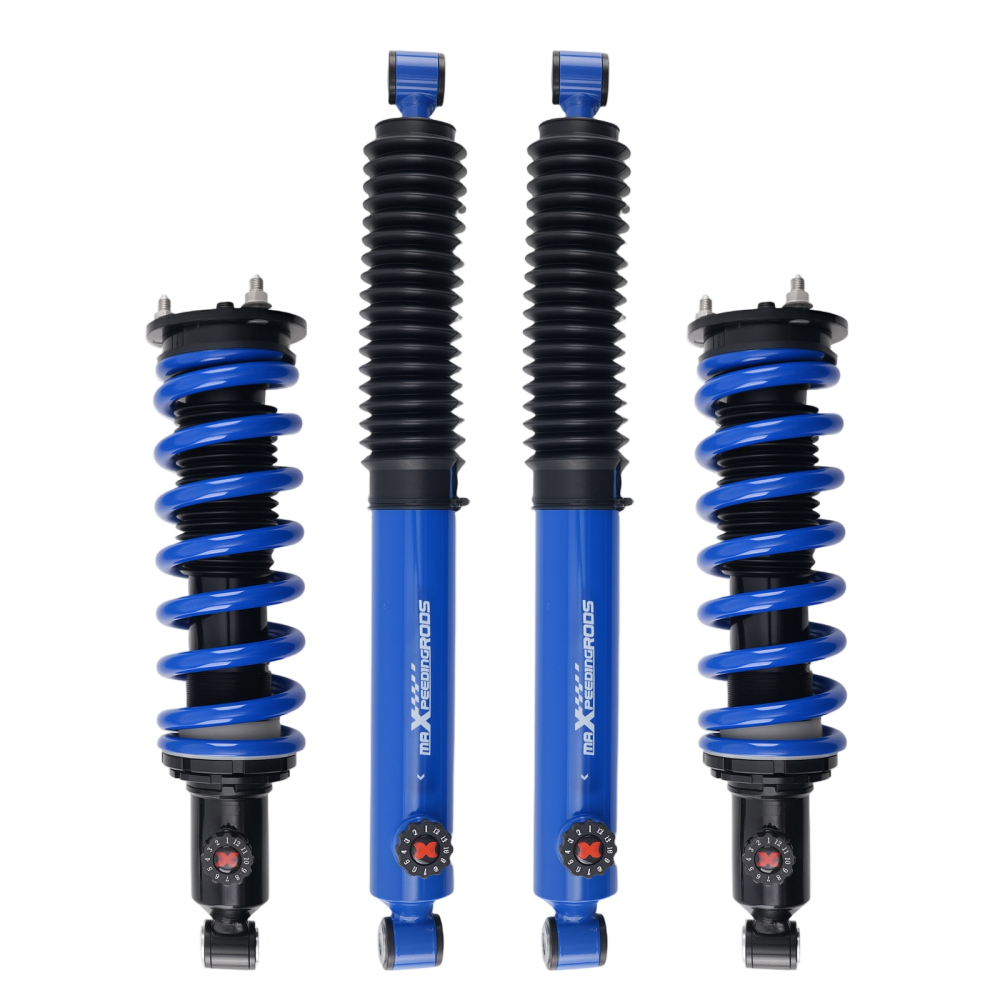

2X Front Struts
2X Rear Shocks

Feature

12-way rebound control for precise tuning on street, trail, or heavy loads.
2.28" twin-tube design with 15-20% more oil capacity for fade-free off-road performance

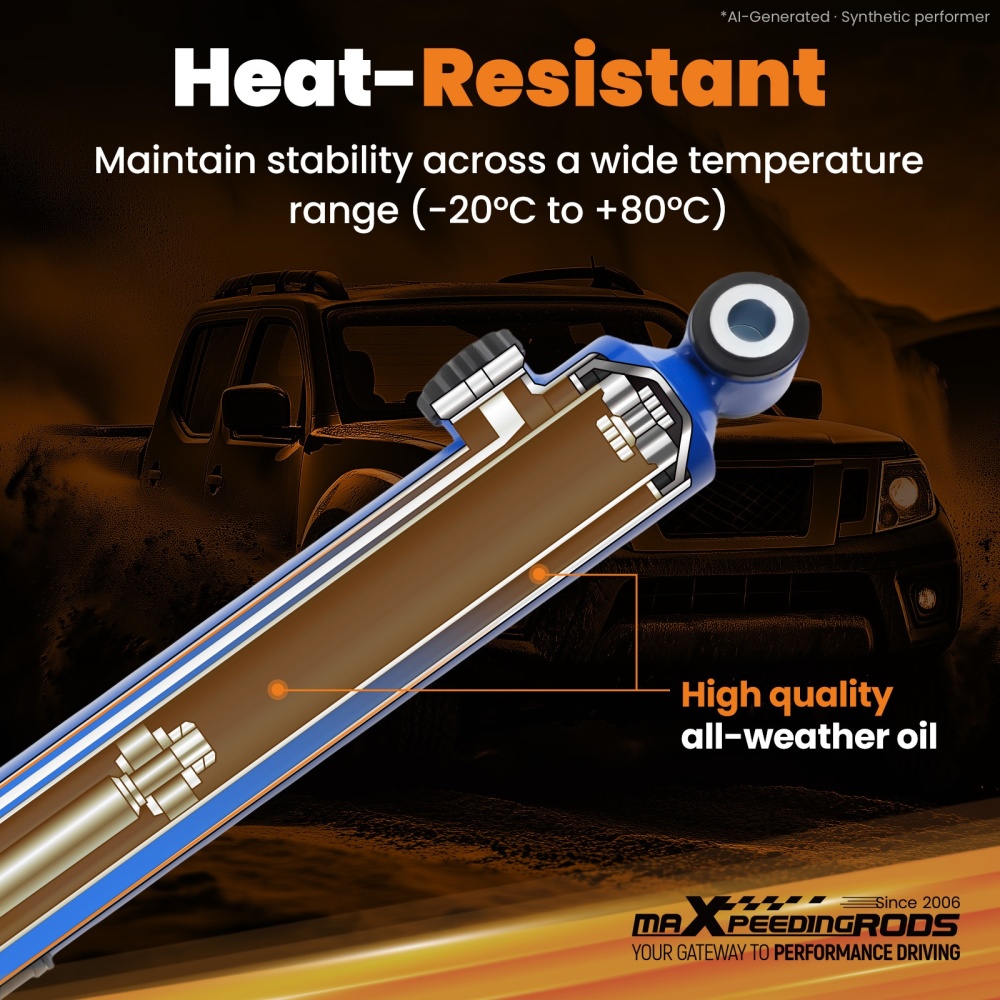

High quality all-weather oil come with stable viscosity from -20°C to +80°C for consistent performance.
1.37" oversized piston delivers 30% stronger damping force than standard shocks
0.70" chromoly steel piston rod is hardened and chrome-plated for rock-proof durability.
Chromium-silicon cold-wound structure spring with high tensile strength and resilience
The plate-type multi-lip seal provides dual professional protection with excellent effectiveness

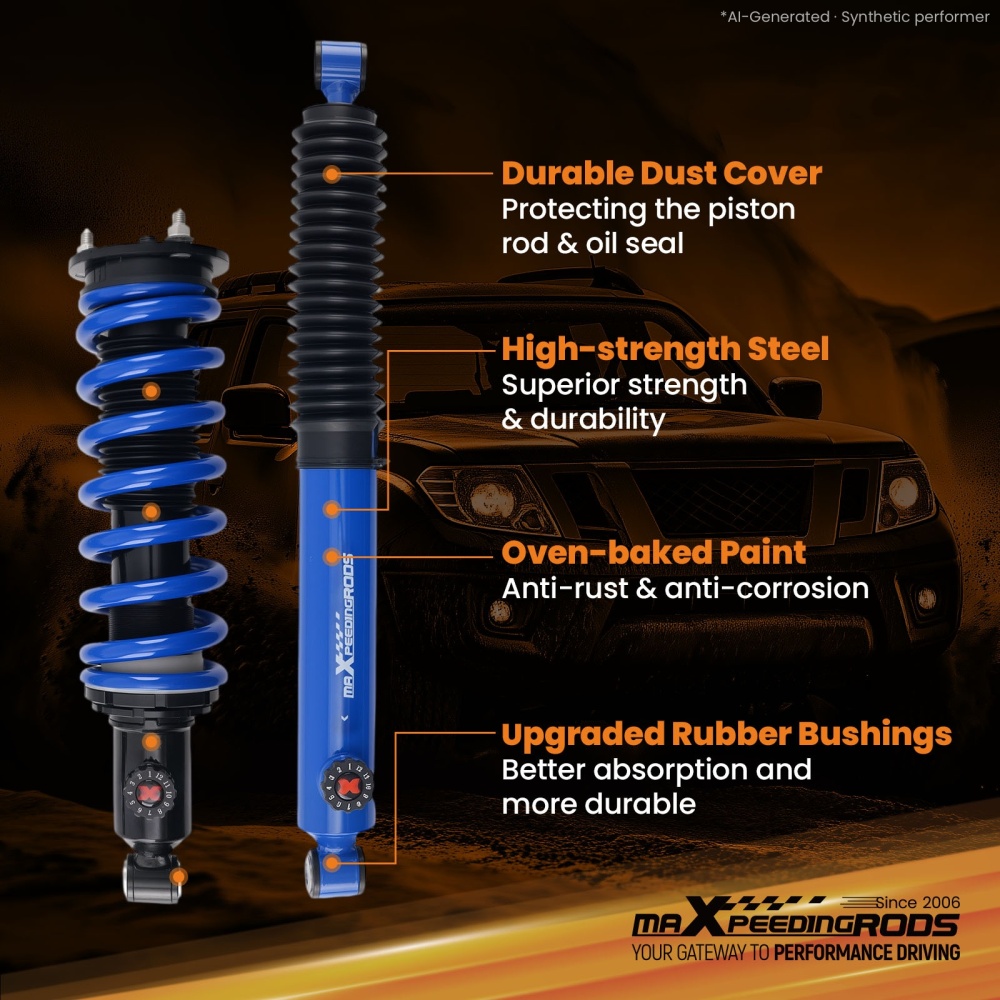

Upgraded rubber bushings for better absorption and more durable.
High Tensile Strength Steel for optimal durability and fitment.
Dust cover included prevent the shaft rod and oil seal from damaging.
Baked Paint Finish provides superior corrosion resistance.

Note

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
