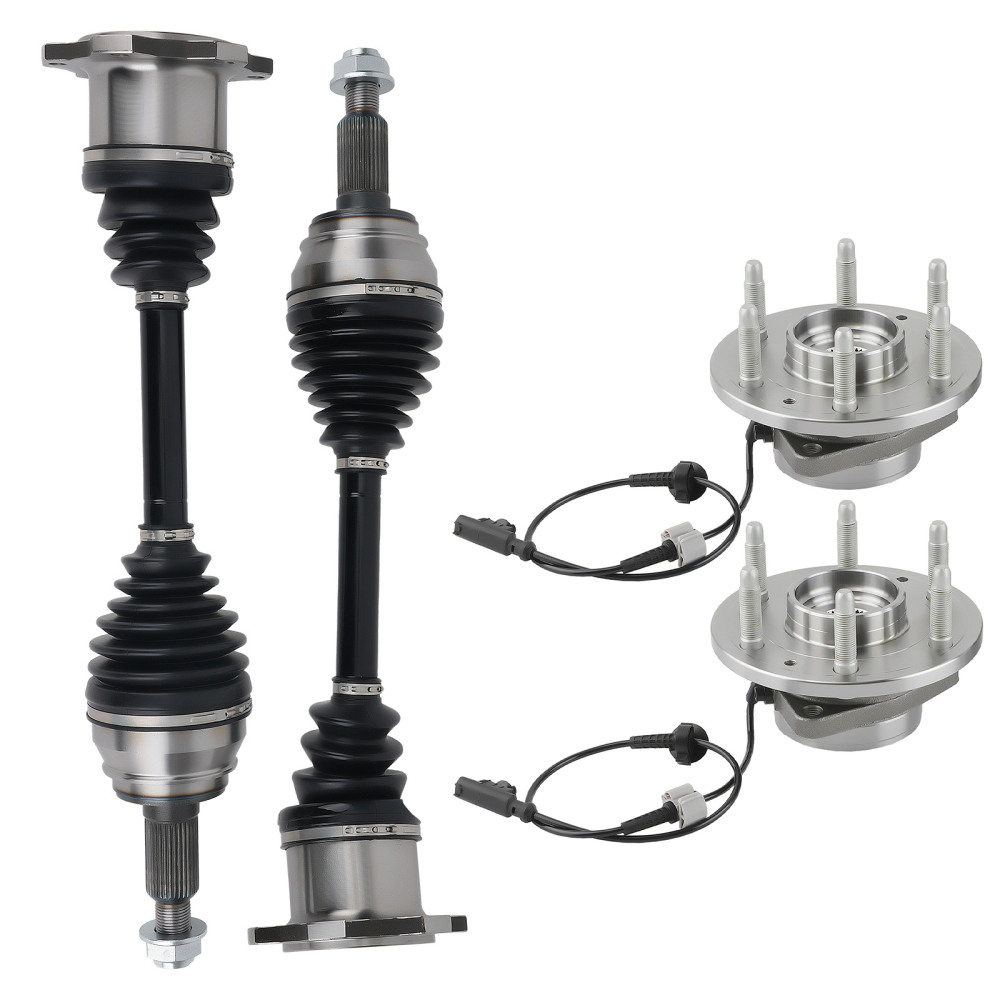

Front CV AxleWheel Hub Bearing Driver+Passenger compatible for Silverado Sierra Escalade

Application

Compatible for Cadillac Escalade(Front;AWD) 2007-2014

Compatible for Cadillac Escalade ESV(Front;AWD) 2007-2014

Compatible for Cadillac Escalade EXT(Front;4WD) 2007-2013

Compatible for Chevrolet Avalanche(Front;4WD) 2007-2013

Compatible for Chevrolet Silverado 1500(Front;4WD;EXCLUDES CLASSIC MODELS) 2007-2013

Compatible for Chevrolet Suburban 1500(Front;4WD) 2007-2014

Compatible for Chevrolet Tahoe(Front;4WD) 2007-2014

Compatible for Chevrolet Tahoe(Front;RWD) 2014

Compatible for GMC Sierra 1500(Front;4WD;EXCLUDES CLASSIC MODELS) 2007-2013

Compatible for GMC Yukon(Front;4WD) 2007-2014

Compatible for GMC Yukon XL 1500(Front;4WD) 2007-2014

Compatible for GMC Yukon XL 1500(Front;AWD) 2007-2013

OE/Part number

66-1430,60-1430,66-1430HD,60-1430HD,GM8228,GM8355

GM9506,15868123,20909191,22791460,15868123,20909191

22791460,15868123,20909191, 22791460,661430,601430

515096,WE60747,BR930661,25918329, 720-0024, SP500301

Specification

Condition:New
Type:CV Axle&Wheel Hub Bearing Assembly
Color：Black
Placement on Vehicle：Front Left + Right

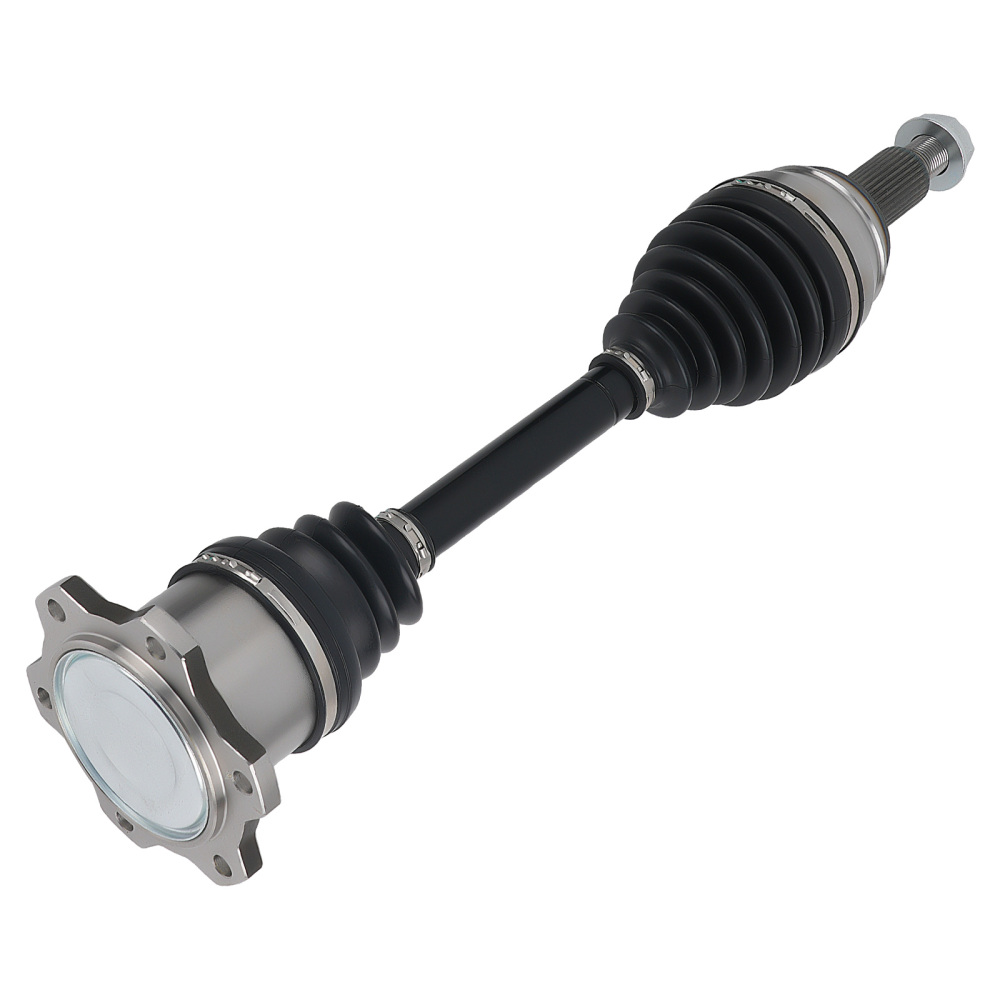

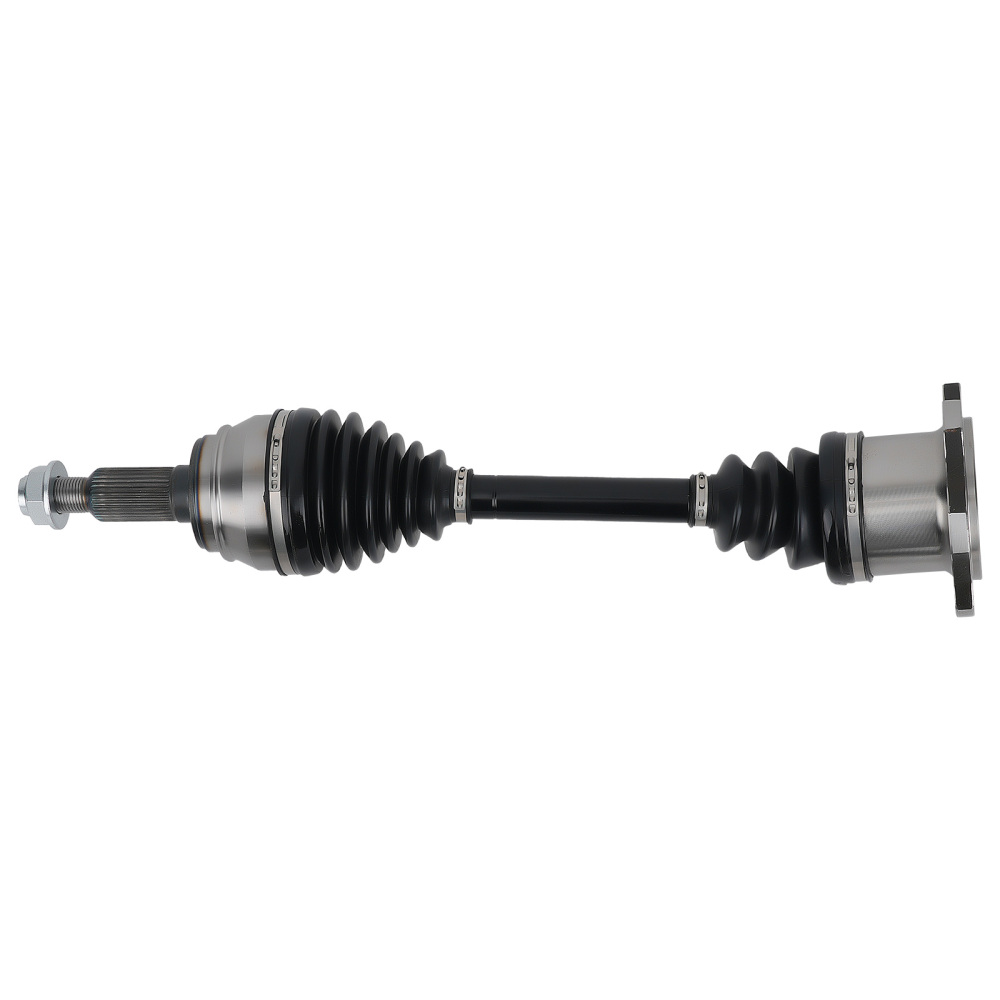

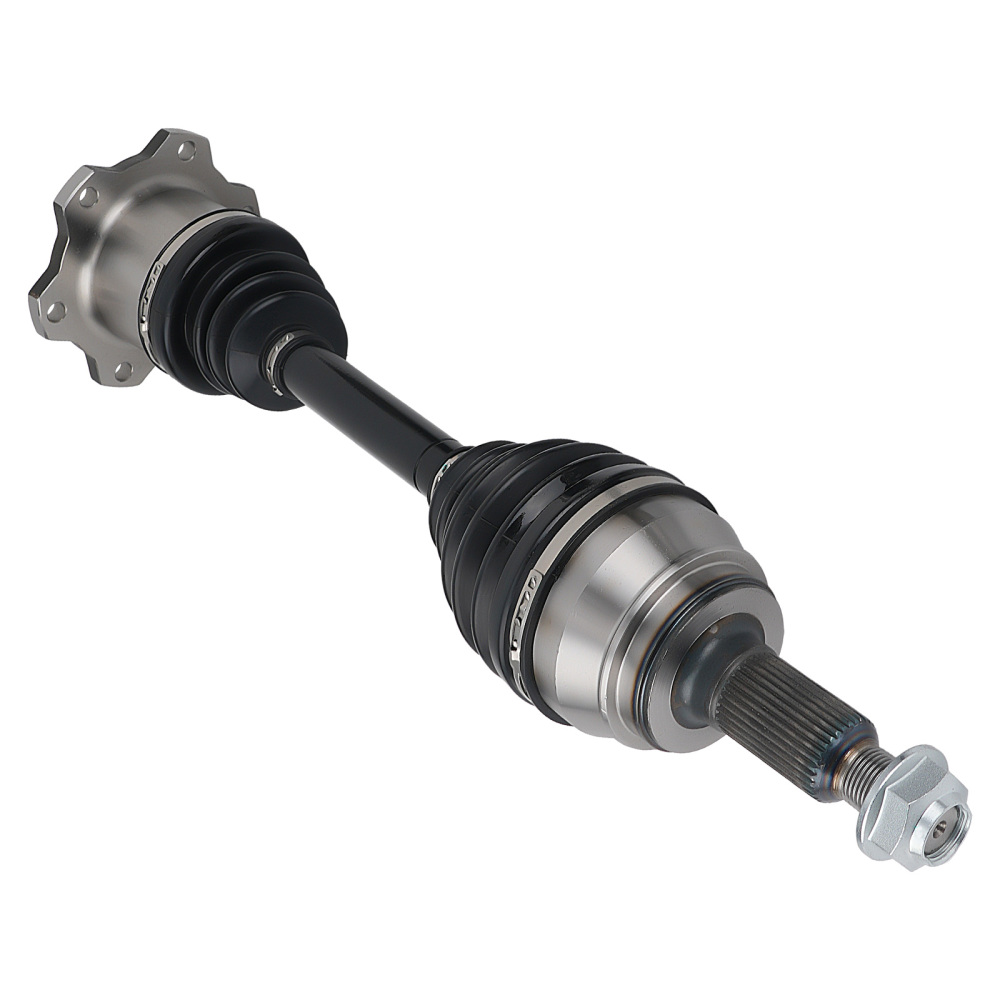

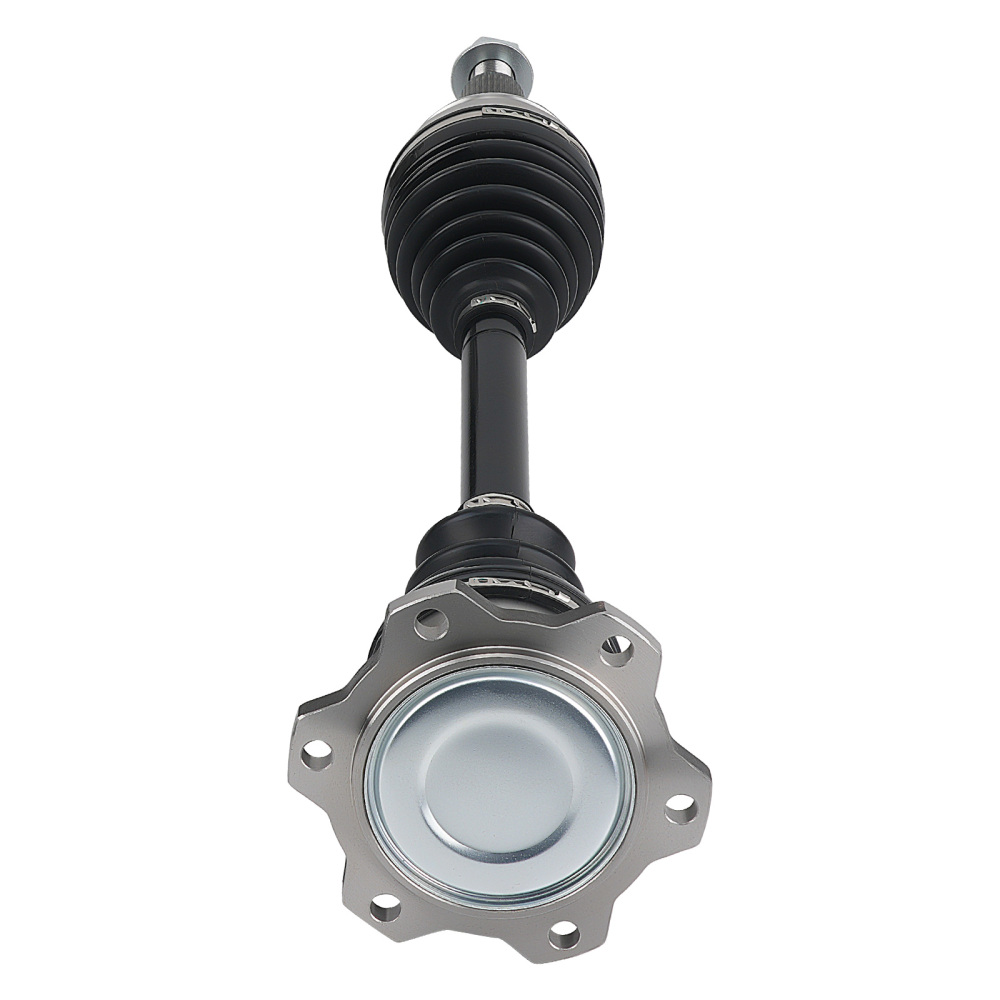

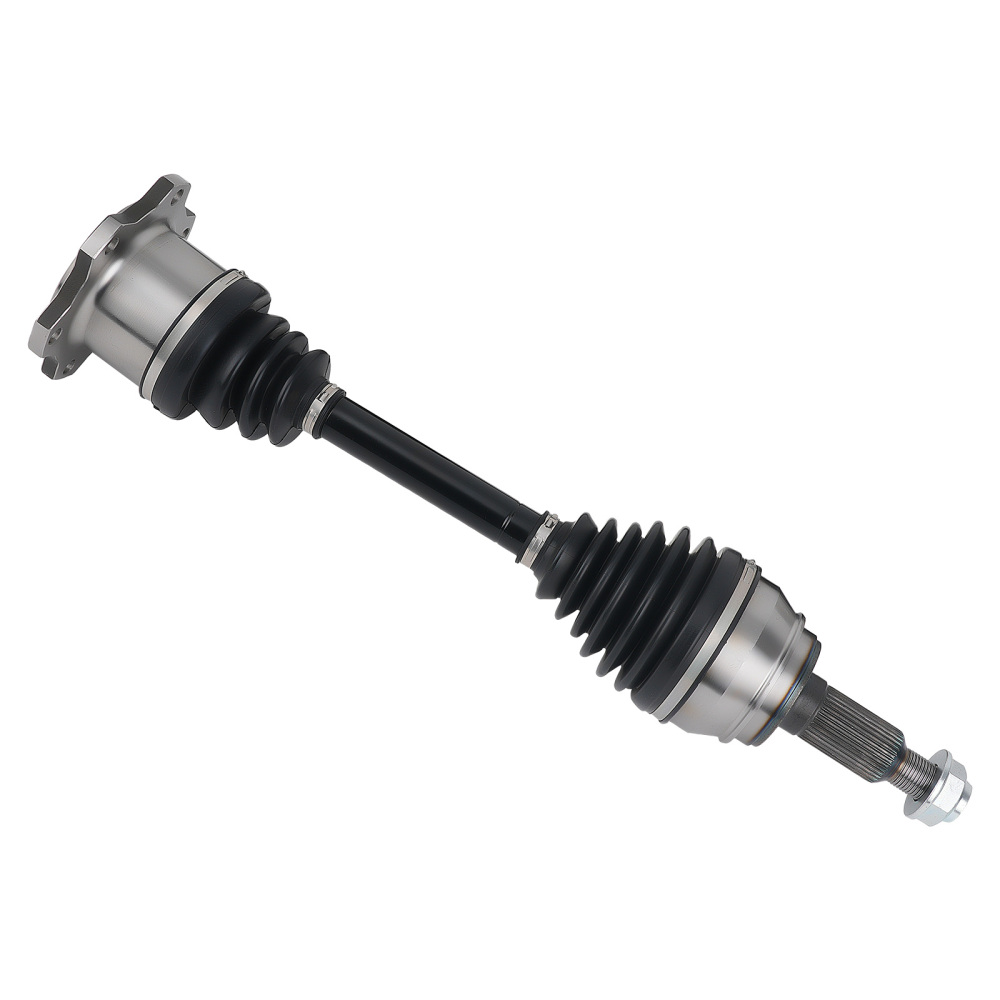

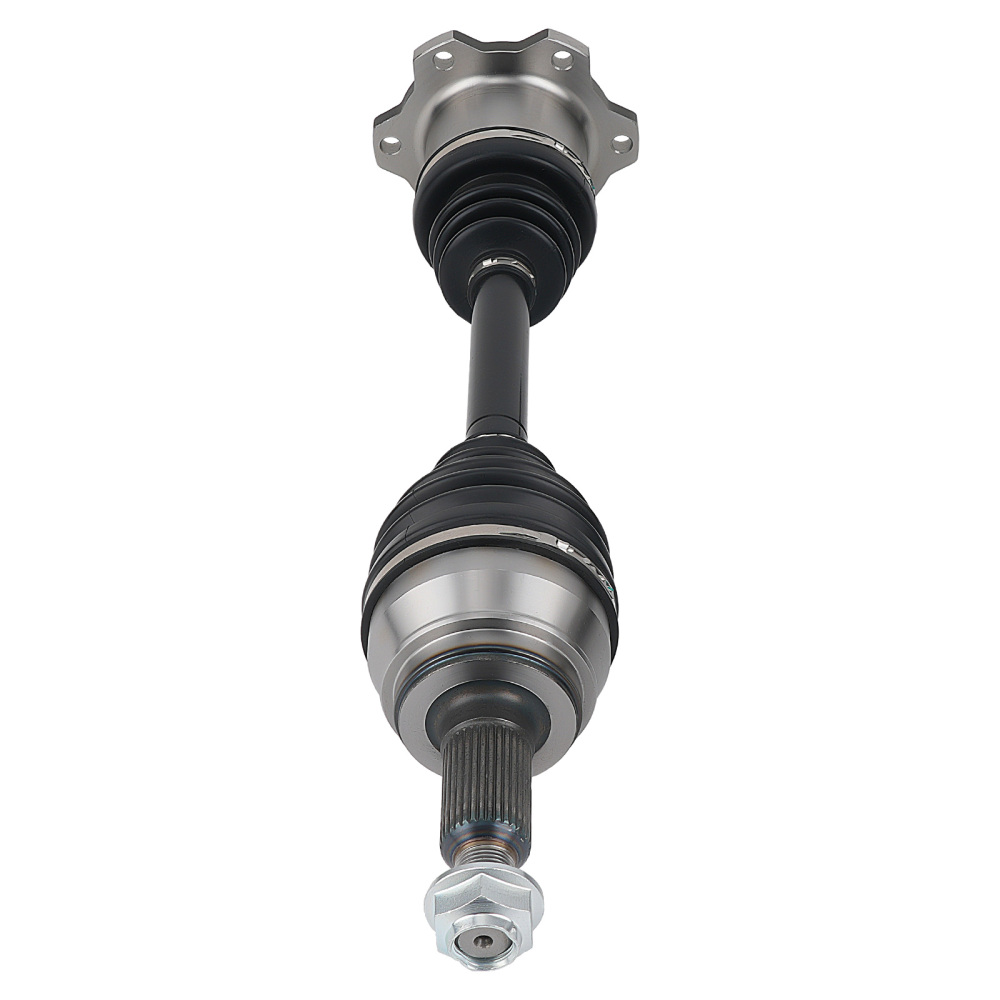

CV Axle:
Surface Finish：Black Coating
Spindle Nut Thread Size：M24 x 2.0
Axle Nut Hex Size：1.42 in / 36 mm
Outboard Splines：33 Teeth
Inner Spline：With 6-Lugs
Output Shaft Connection Style：Spline
Input Shaft Connection Style：Bolt-On
Compressed Length(IN):    22.91 in / 582 ± 3mm

Wheel Hub Bearing Assembly:

Position: Front Left + Right

Material:Bearing steel 55

Lugs: 6 Bolts
Drive Type: 4WD, AWD, RWD
ABS Type: Sensor Wire
Flange Type: 3-Bolt Triangular

Flange Diameter: 7.09 in. / 180 mm

Bolt Circle Diameter: 5.5 in. / 139.7 mm
Flange Shape: Triangle
Flange Offset: 1.97 in. / 50 mm

Flange Bolt Hole Quantity: 3
Wheel Stud Quantity: 6
Bolt Size: M14x1.5
Wheel Pilot Diameter: 3.03"/77.7mm
Bolt Circle Diameter Metric: 139.7

Bolt Thread Pitch: M14*1.5
Brake Pilot Diameter: 3.087
Hub Pilot Diameter: 3.91 in. / 99.3 mm

Package included

       2Pcs CV Axle Assemblies (Front Left+Right)

       2Pcs Wheel Hub and Bearing Assembly(Front Left+Right)

Feature

1.Unparalleled Performance:precision Machining,professional heat-treating,high-performance Neoprene Material can resist to grease and extremes of temperature and superior flexibility minimizing wear and tear.It realizes excellent durability and longevity．

2.Durable structural design：Steel 55 Ball Cage,Constant Velocity,Smooth Transmission.

3.Safe and Pleasing Experience: CV Joint Axle improve stability and comfort for driving.

4.Direct Replacement:Complete set CV alxe assembly easy to install.

5.Superior Package Design：With good cushioning and isolation performance, effectively protect products from damage, environmentally friendly and recyclable.

Note

*Please confirm your vehicle condition and OE number before placing an order!
*Please note that this is an after-sales part, not an original part.
*We suggest that you seek professional installation to avoid unnecessary trouble.
*If you have any questions, please contact us.
