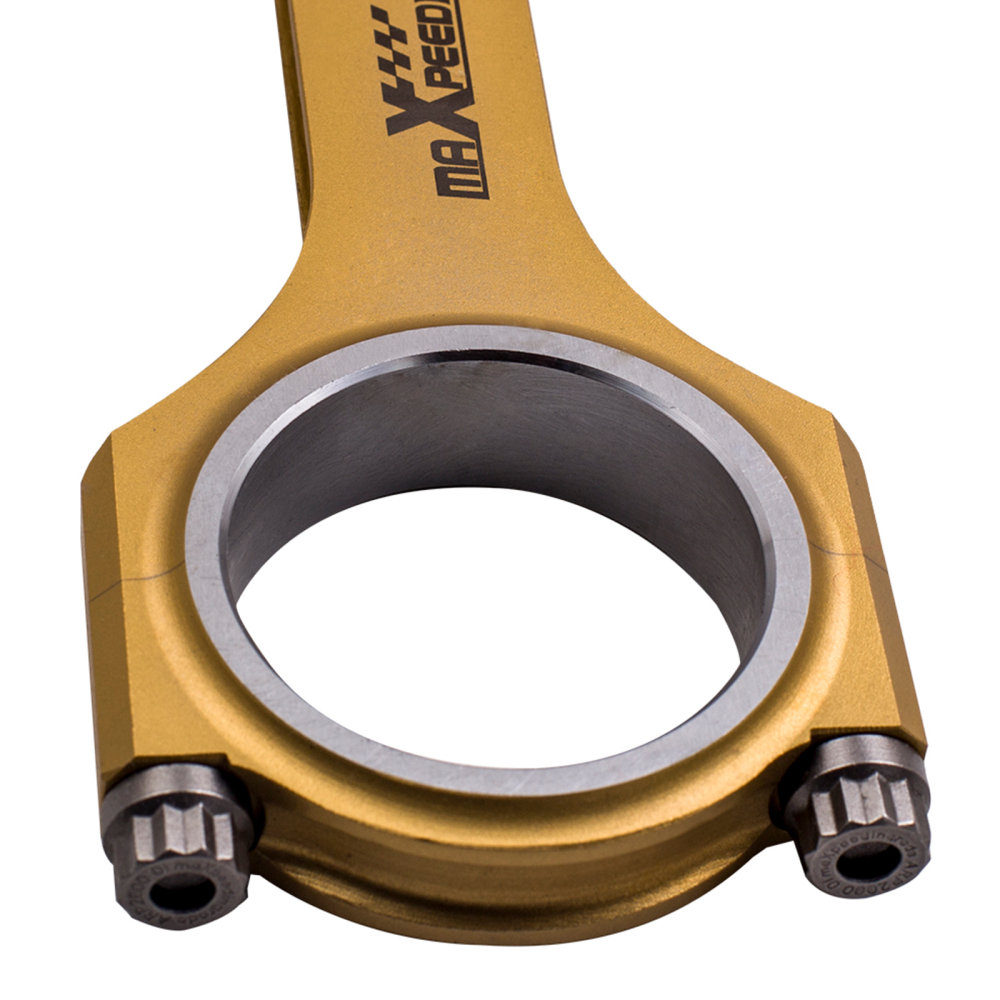

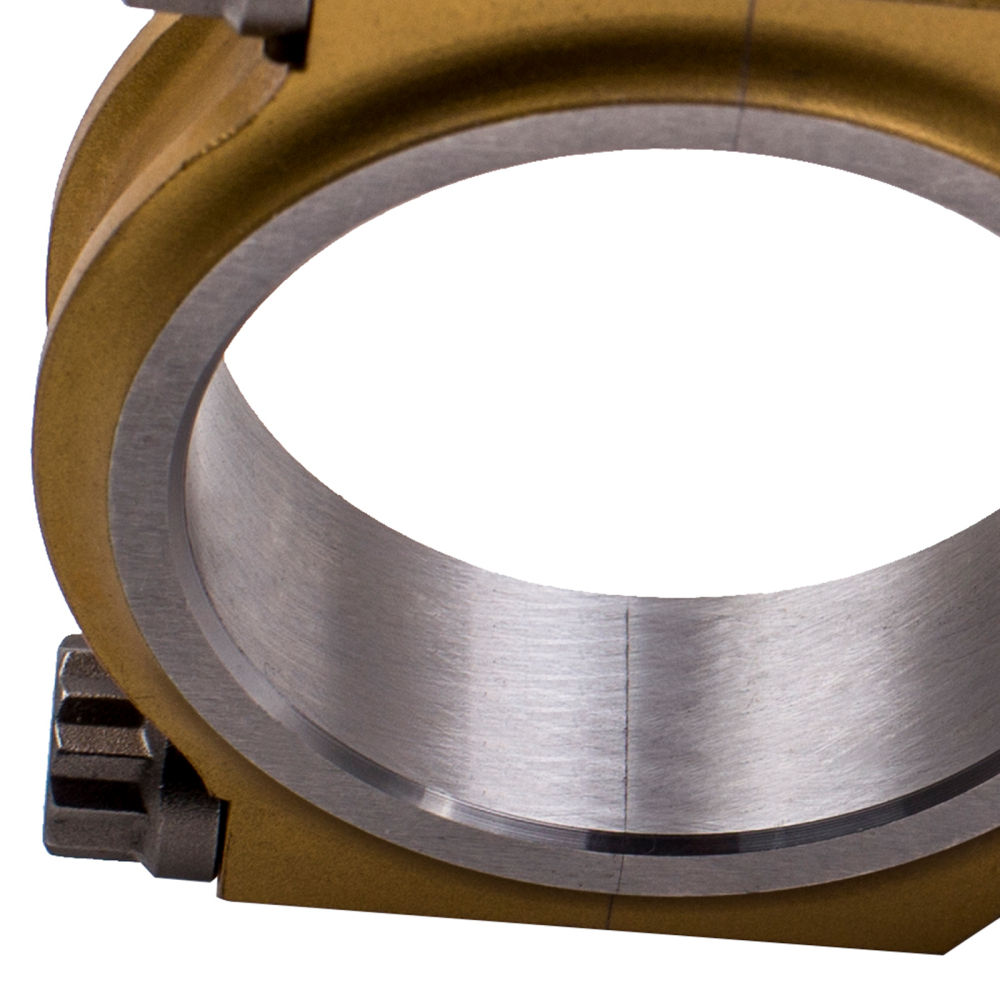

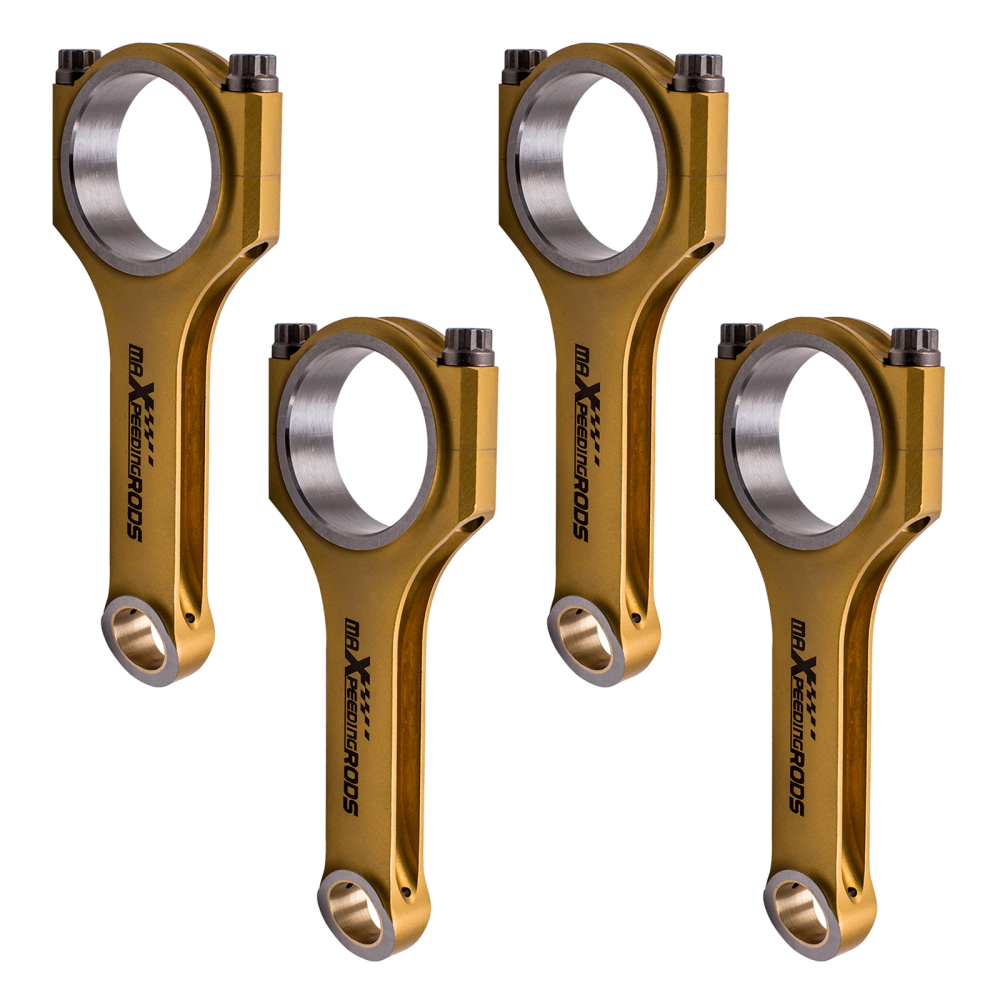

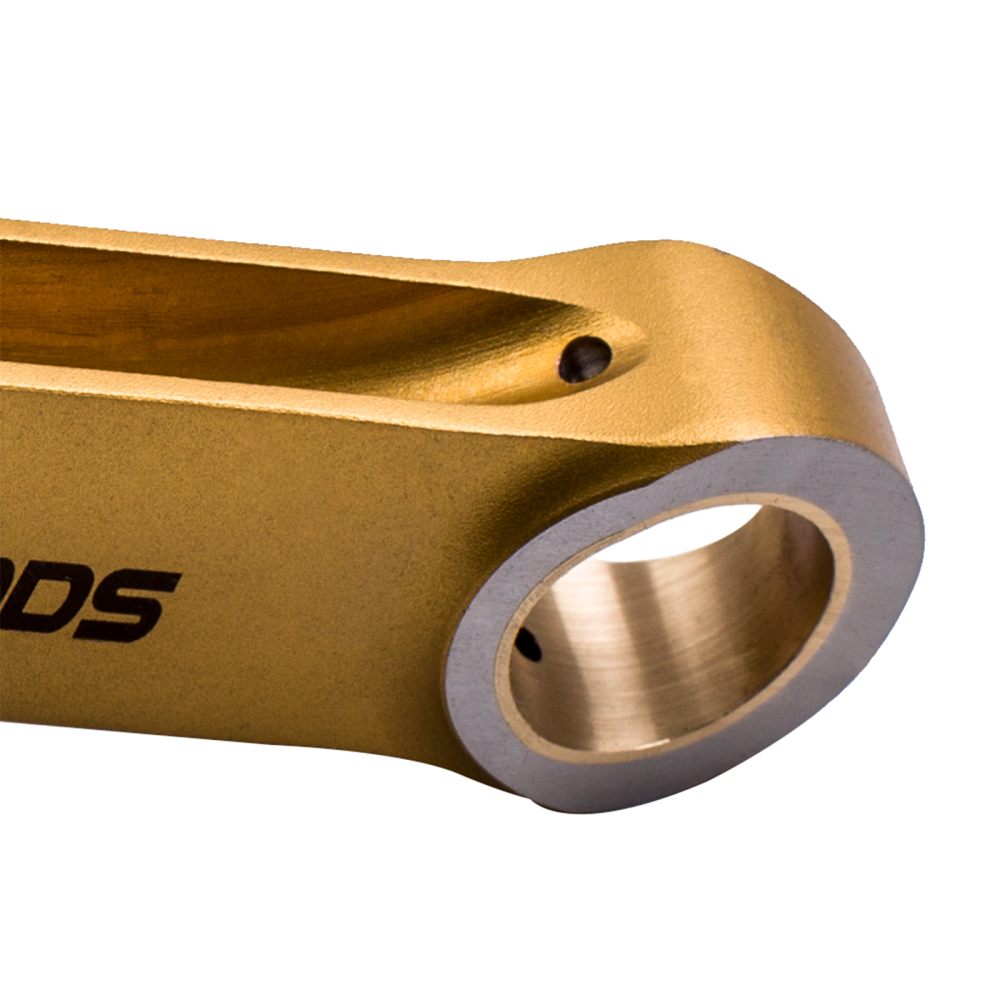

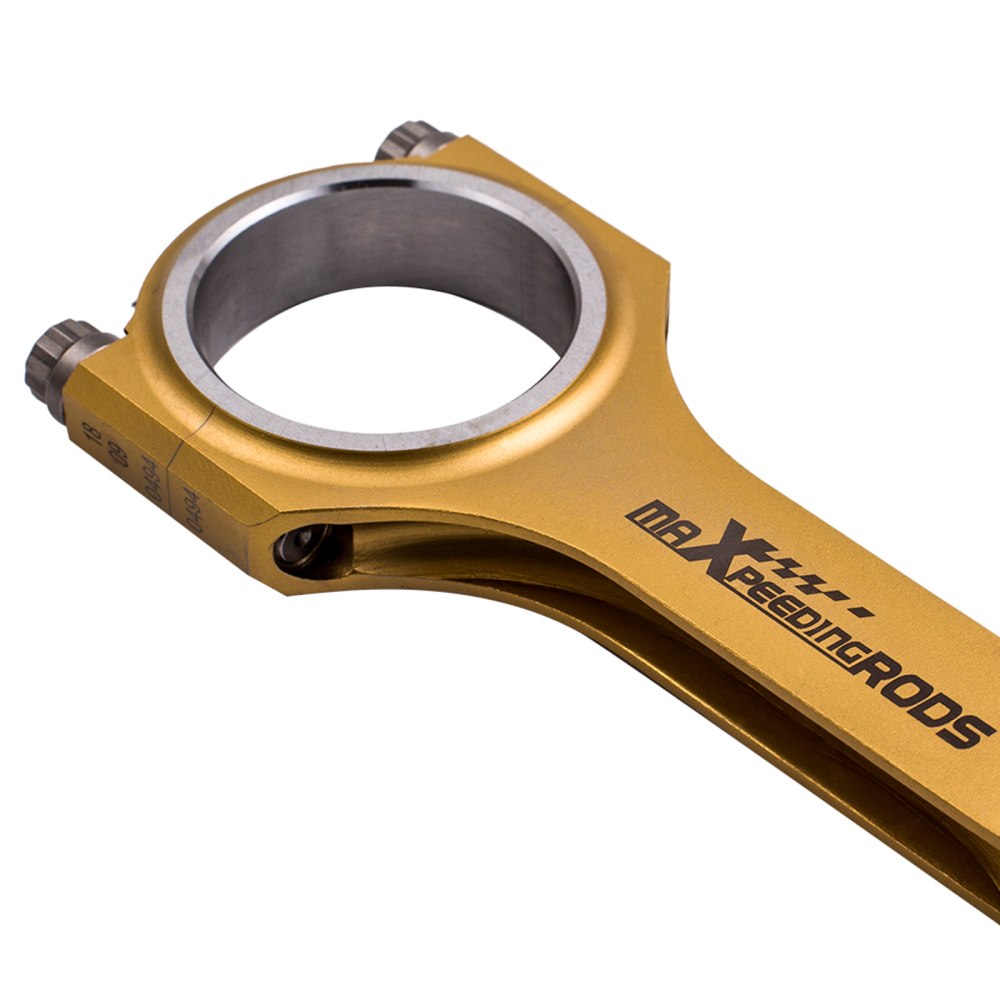

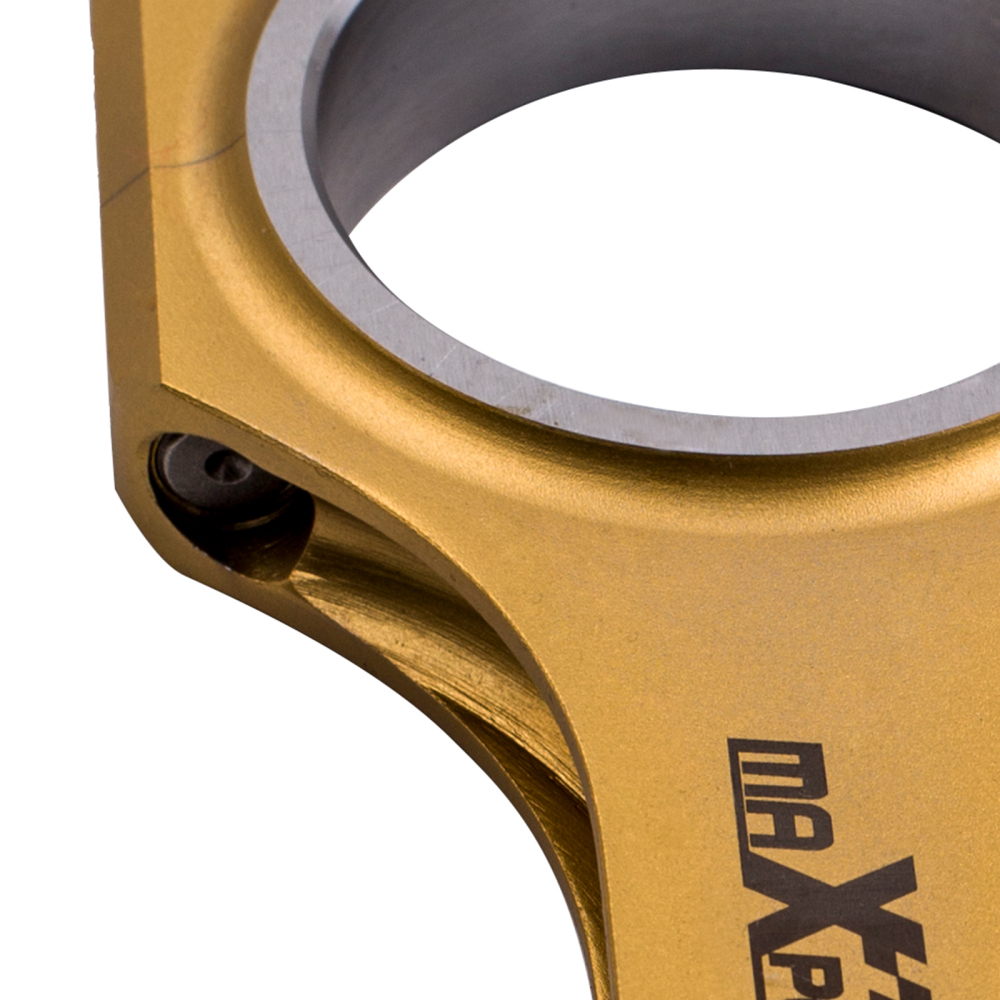

Connecting Rods Conrod compatible for MINI Cooper S EP6CDTS EP6DTS THP175 w/ ARP Bolts

  • * 1.H-Beam con rods compatible for Peugeot 207 RC EP6CDTS 2006–2010, compatible for MINI Cooper S EP6CDTS 2007–2010, compatible for MINI JCW EP6CDTS 2007-2011,Compatible for Peugeot 308 EP6CDTS 2008–present,Compatible for Citroën DS3 Racing - EP6CDTS 2010–present
  • * 2.Advertised Horsepower Rating: 800+HP
  • * 3. Titanizing 4340 EN24 aircraft chrome moly quality steel
  • * 4.Dimensions: Center to center length: 138.5mm;Big end diameter: 48mm;Small end diameter: 20mm;Big end width: 20.8mm;Small end width: 20.8mm
  • * 5.Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
  • * 6.Performance Con Rods
  • * 7.Advertised RPM Rating: 7000-9000 rpm
  • * 8. Fastener Tensile Strength (psi):200,000 - 230,000 psi
  • * 9.Balanced to within +/- 1 gram per end
  • * 10.The big end bores are honed to a +/-.01mm tolerance
  • * 11.Heat-treating & Shot-peened for remained consistent and strong
Stock In Stock
Item Number 3002035076

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CR-PEU-16T-T
CR-PEU-16T-T
1. High Performance Material
1. High Performance Material
Titanizing 4340 EN24 aircraft chrome moly quality steel for racing
2.High Quality Components
2.High Quality Components
With Standard ARP 2000 Bolts (Upgradable ARP L19)
3.Professional H-Beam Design
3.Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight
4.Precision Machining Manufacturing
4.Precision Machining Manufacturing
Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels

Application

Compatible for Peugeot 207 RC / 308
Compatible for MINI Cooper S 1.6T EP6DTS / EP6CDTS
Compatible for BMW N13 / N14 1.6T
Fitment Details:
Engine: For the THP175 (EP6DTS, later EP6CDTS)
2006–2010 compatible for Peugeot 207 RC
2007–2010 compatible for MINI Cooper S
2007-2011 compatible for MINI JCW (154 kW version of engine - only used by compatible for BMW)
2008–on compatible for Peugeot 308
2010–on compatible for Citroën DS3 Racing - EP6CDTS - 202 hp
2012–2015 compatible for BMW 1 Series F20 114i 75 kW version
2011–2015 compatible for BMW 1 Series F20 116i 100 kW version
2012–2015 compatible for BMW 3 Series F30 316i 100 kW version
2011–2015 compatible for BMW 1 Series F20 118i 125 kW version
2012–2015 compatible for BMW 3 Series F30 320i ED 125 kW version
2015-2016 compatible for BMW 1 Series F20 120i 130 kW version

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine 3/8" ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
Warranty:one year warranty for any manufacture defect

Dimensions

Center to center length: 138.5 mm
Big end diameter: 48mm
Small end diameter: 20mm
Big end width: 20.8mm
Small end width: 20.8mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
-Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

*Professional installation is highly recommended (No Instruction Included)
* Tapered Pin End / Also fits OEM pistons
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
