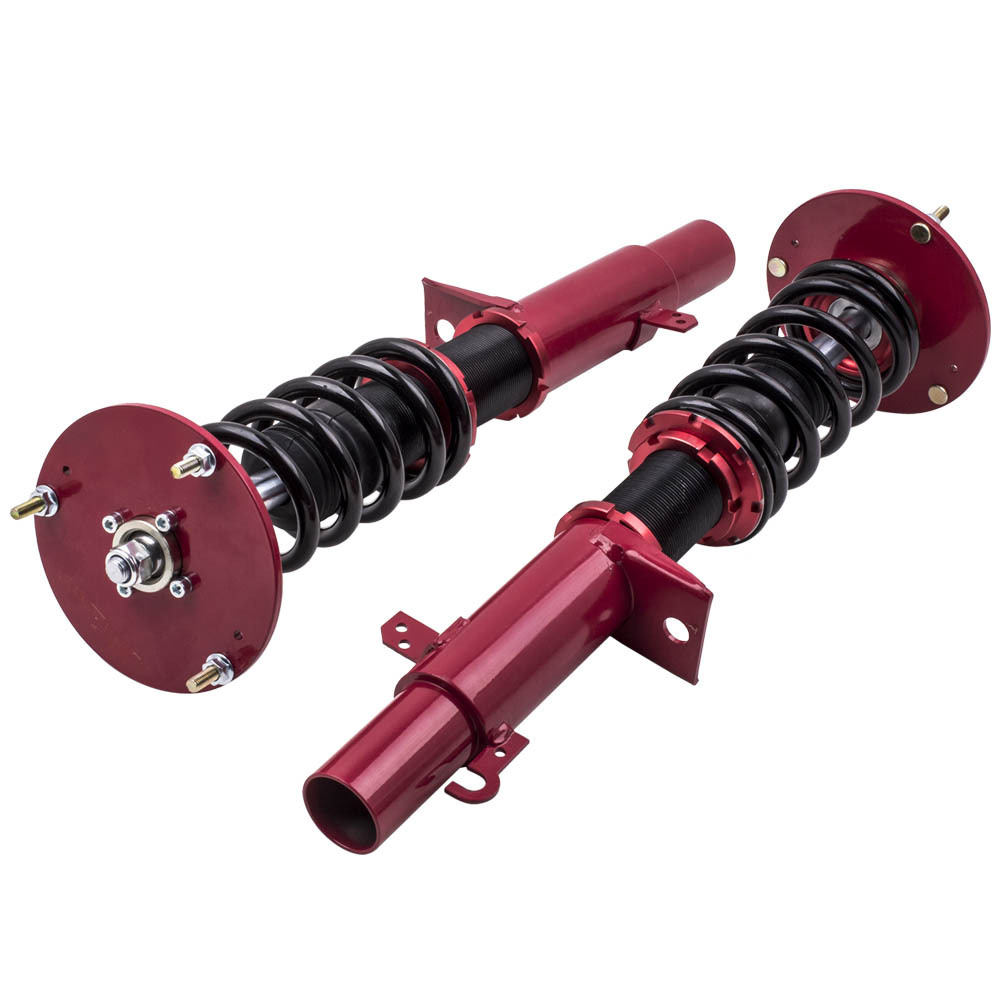

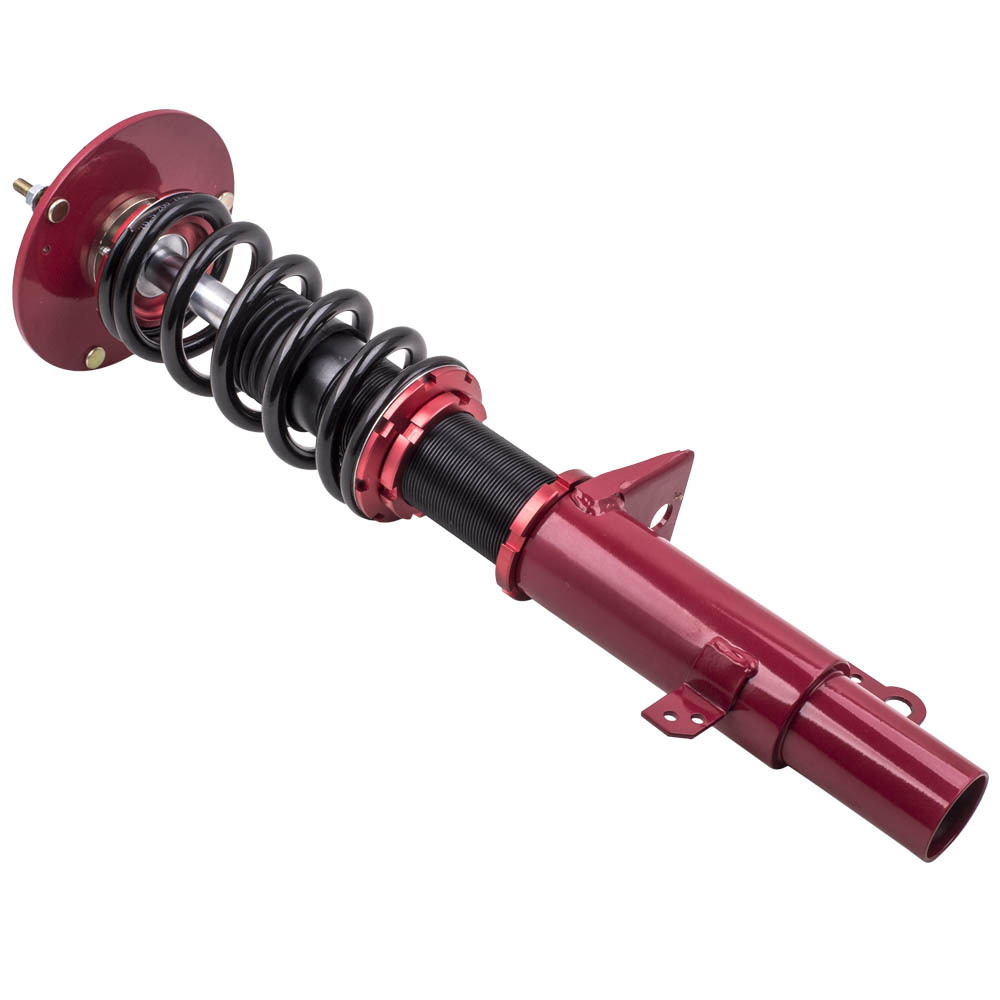

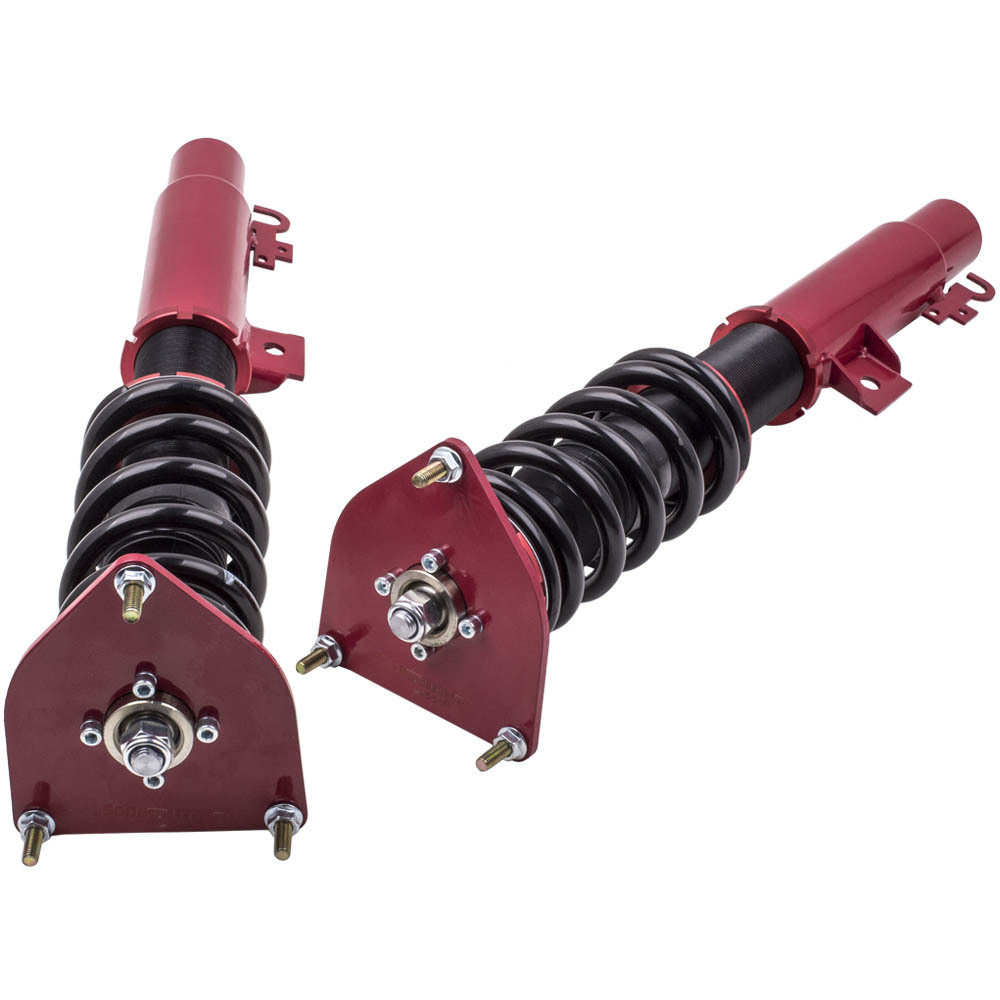

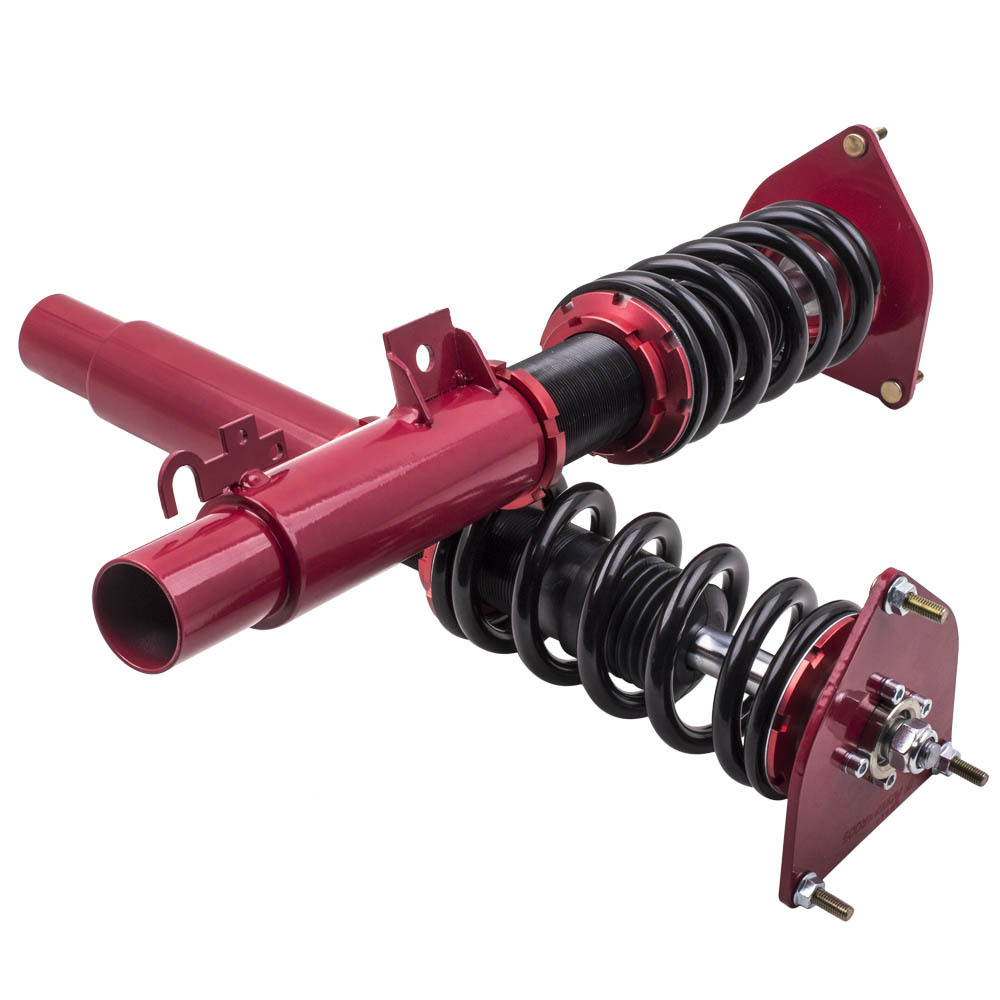

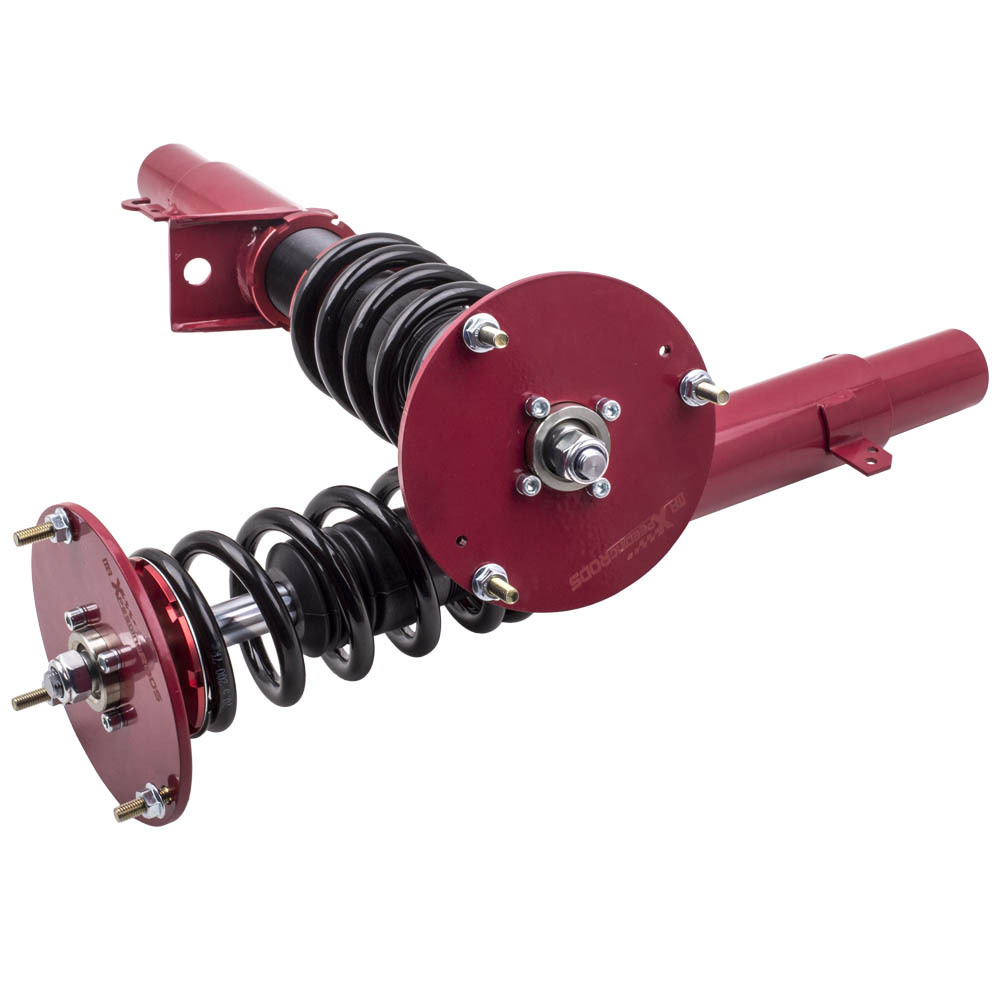

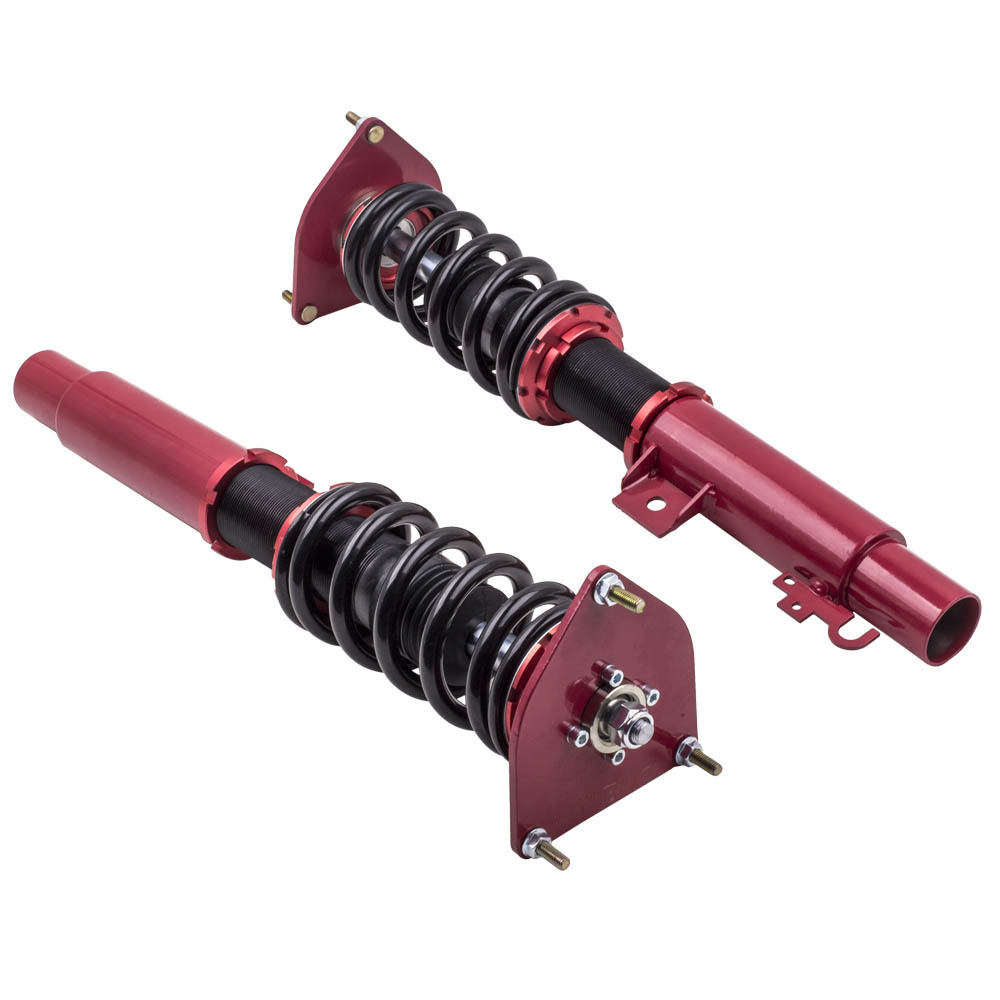

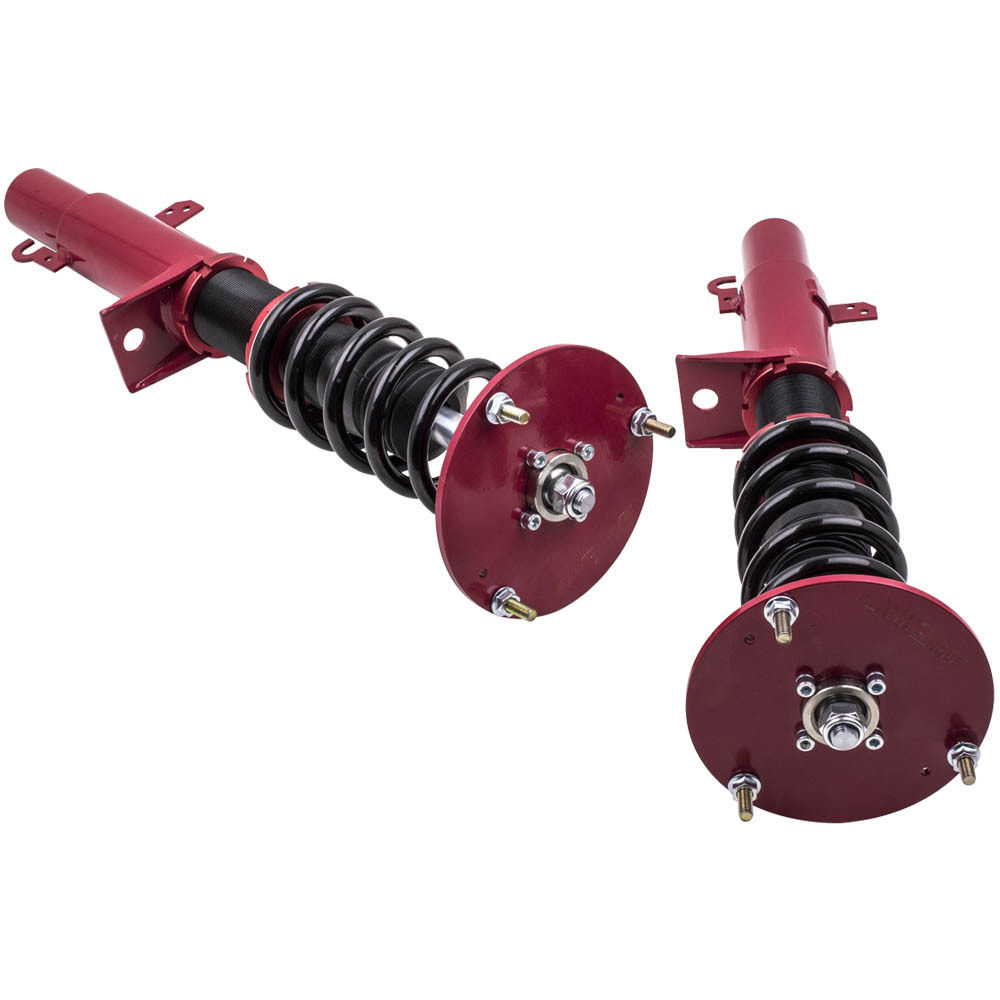

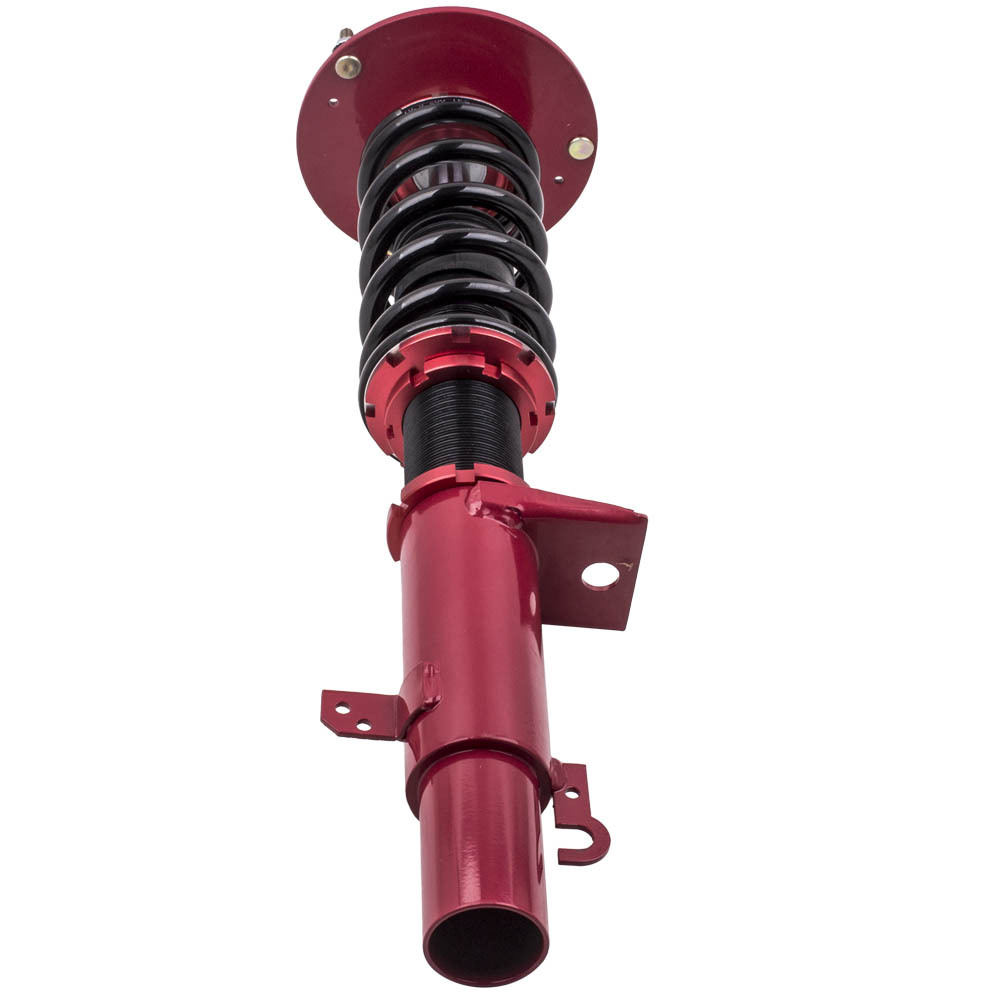

Maxpeedingrods Adjustable Coilovers Suspension Kit compatible for Ford Taurus 1996-2007

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

1996-2007 compatible for Ford Taurus Sedan Only (Not Fit Wagan or SHO)
1996-2005 compatible for Mercury Sable Sedan Only (Not Fit Wagon)
OEM Number:
171616 181616 G56936 SR4011 1336303 ST8527
171615 181615 G56934 G56937 SR4009 SR4010 SR4033
1336302 ST8540

Specification

Front top mount: Pillow ball
Rear top mount: Pillow ball
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Front Spring Rate: 10 kg/mm (560 in/lbs)
Rear Spring Rate: 7 kg/mm (392 in/lbs)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 200 mm
Spring length Rear: 200 mm
Spring Preload advised: 7-10 mm
Damping rod diameter Front: Φ 22 mm
Damping rod diameter Rear: Φ 22 mm
Damping thread Front: M55×2 mm
Damping thread Rear: M55×2 mm
Twin -tube Diameter Front: 55 mm
Twin -tube Diameter Rear: 55 mm
Rod End Thread Front: M14×1.5 mm
Rod End Thread Rear: M14×1.5 mm
Front Collapsed Length: 620 mm / 24.41"
Front Extended Length: 520 mm / 20.47"
Rear Collapsed Length: 620 mm / 24.41"
Rear Extended Length: 540 mm / 21.26"
Color: Red body with black spring

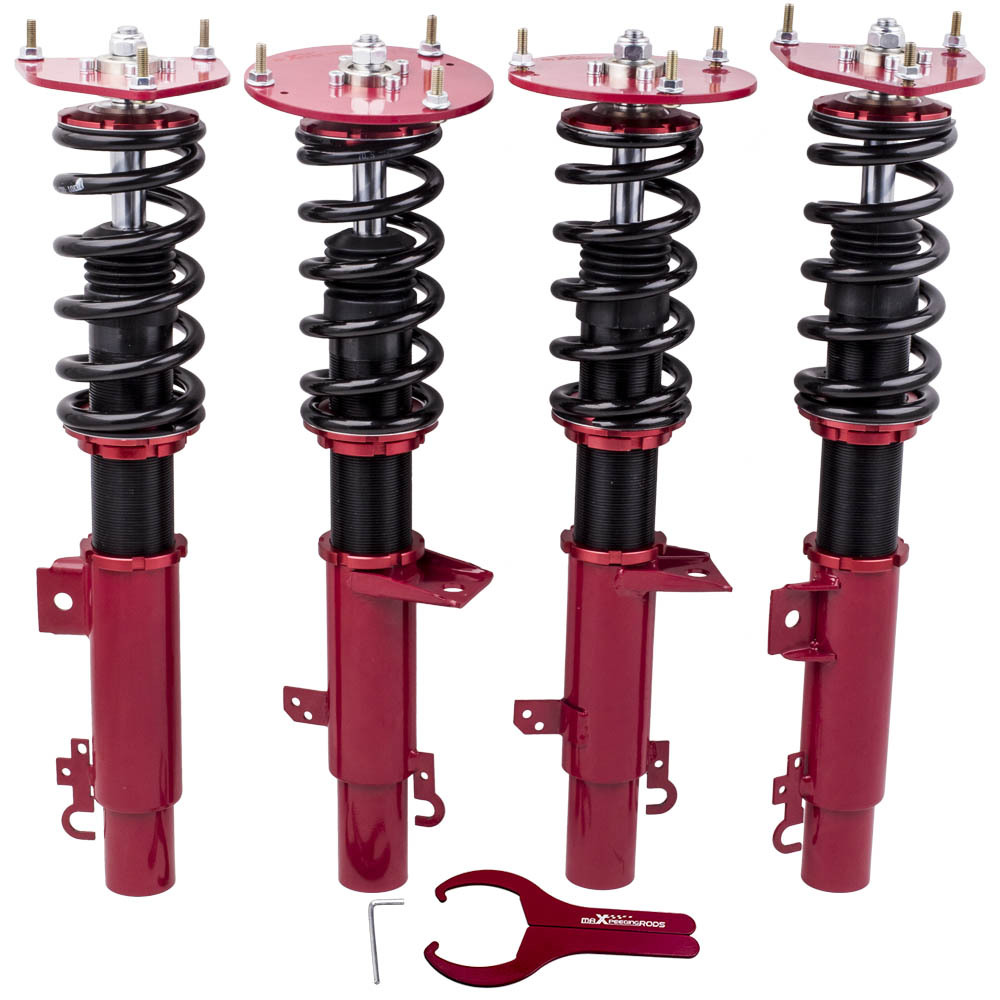

Package included

Package included：
2x front coil-overs
2x rear coil-overs
2x C spanners

Dimension

Package size: 69*50*20 cm
Weight: 31250 g

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

5. Heavy‑duty steel lower mounts designed for secure installation.

6. High tensile spring--- 600,000 times continuously test to assure it's high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. Regular maintenance is recommended for the coil-over. Applying WD-40 or a suitable protective spray every 3–4 months can help keep the components clean and moving smoothly.
