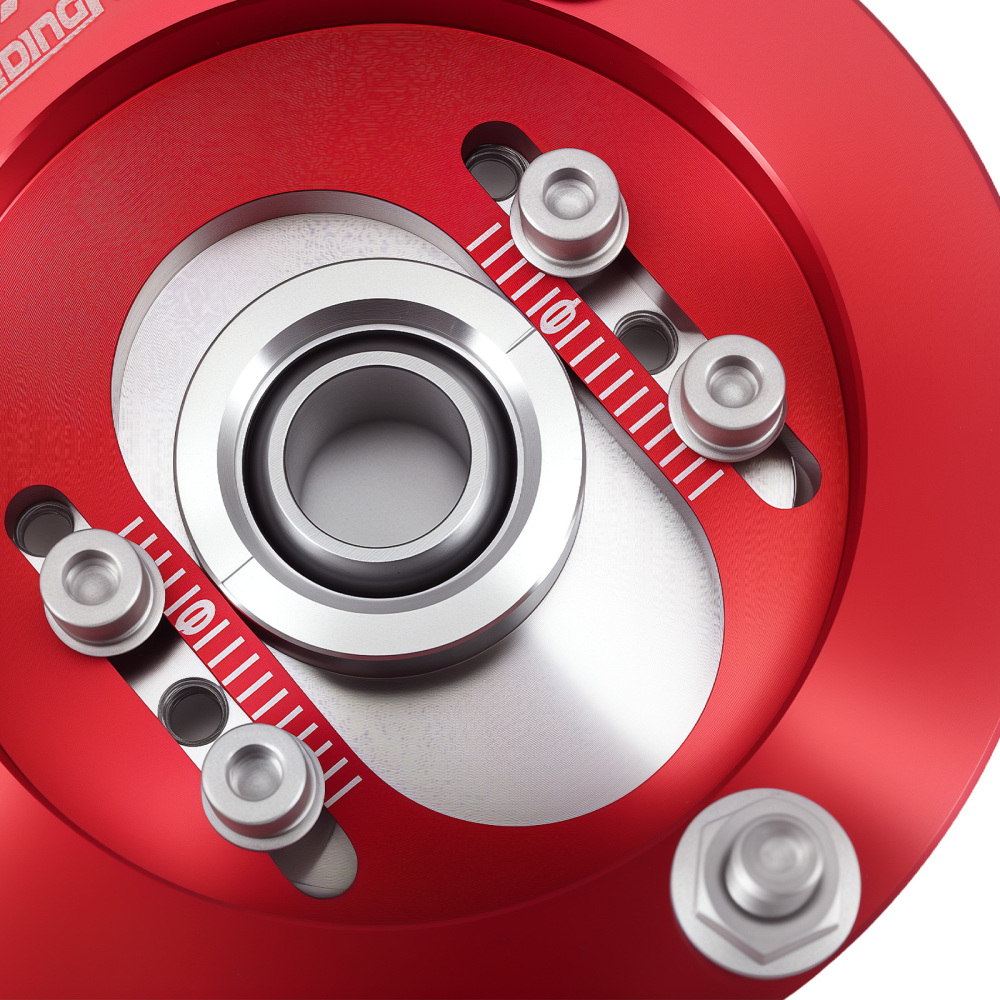

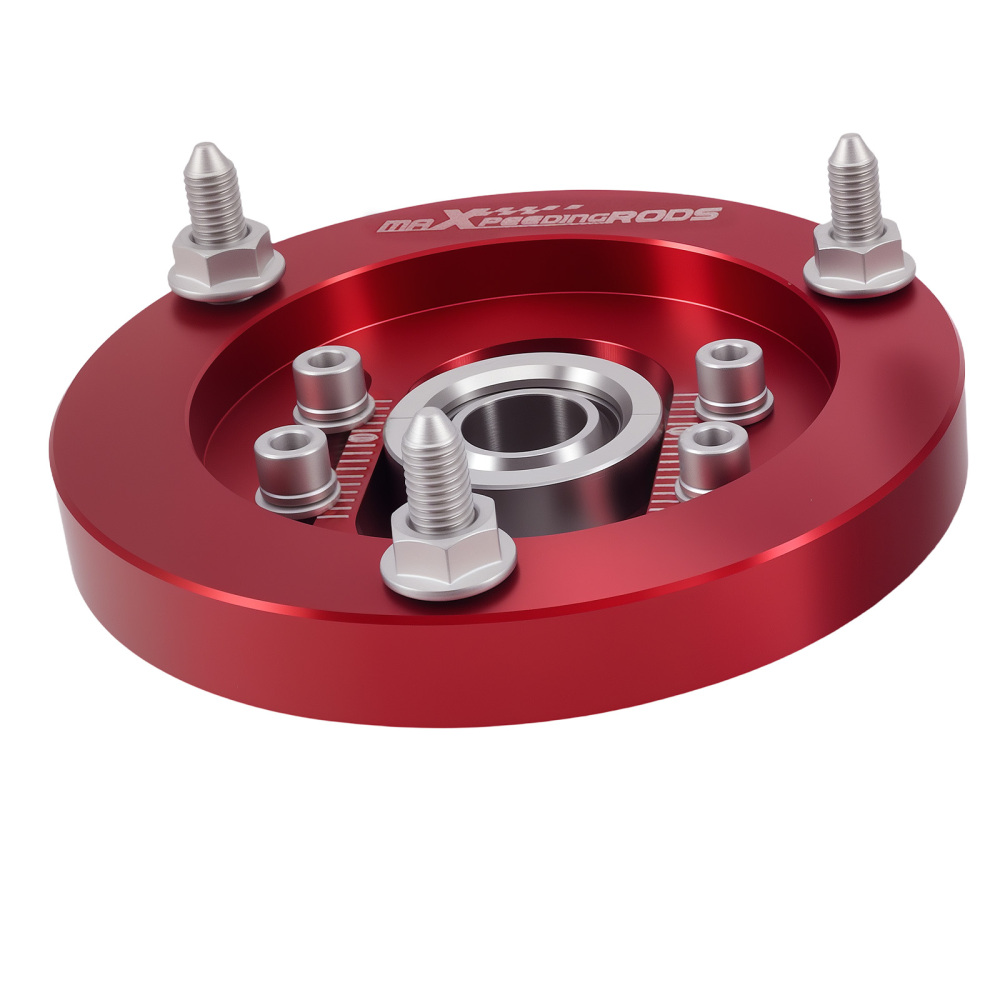

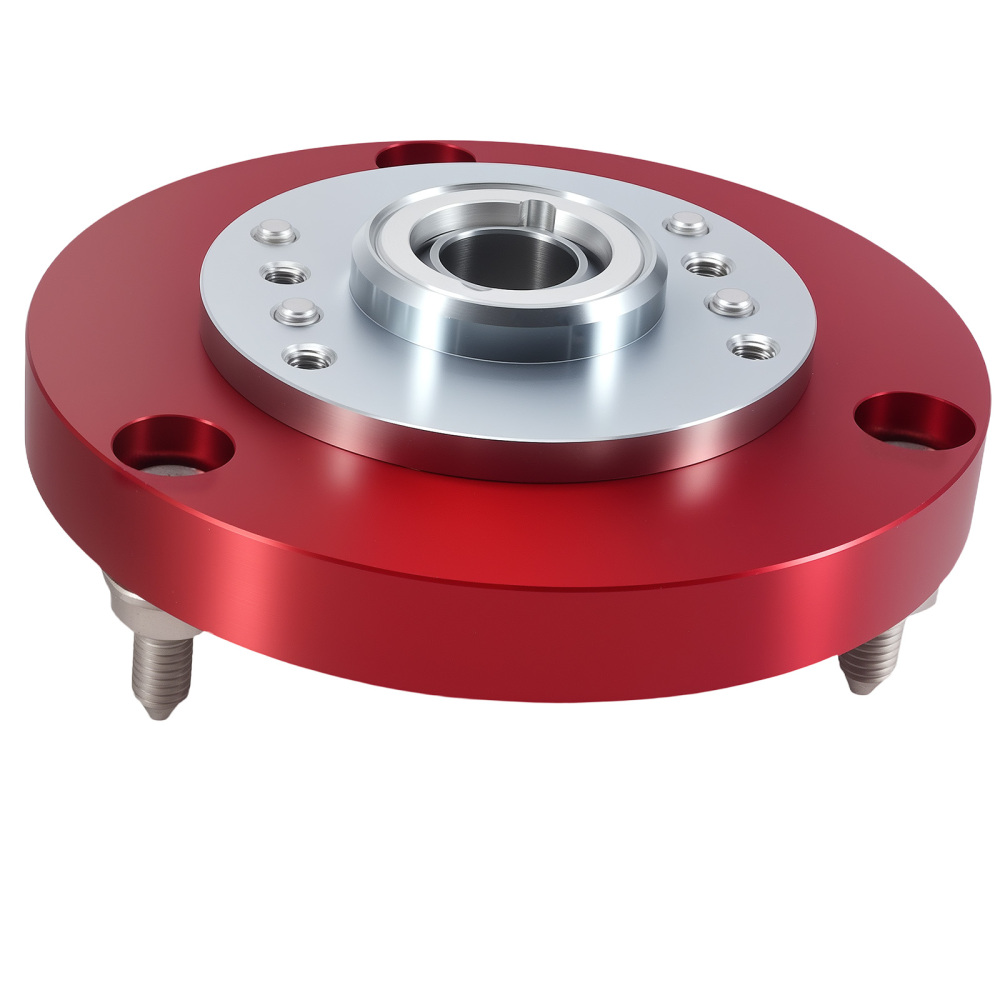

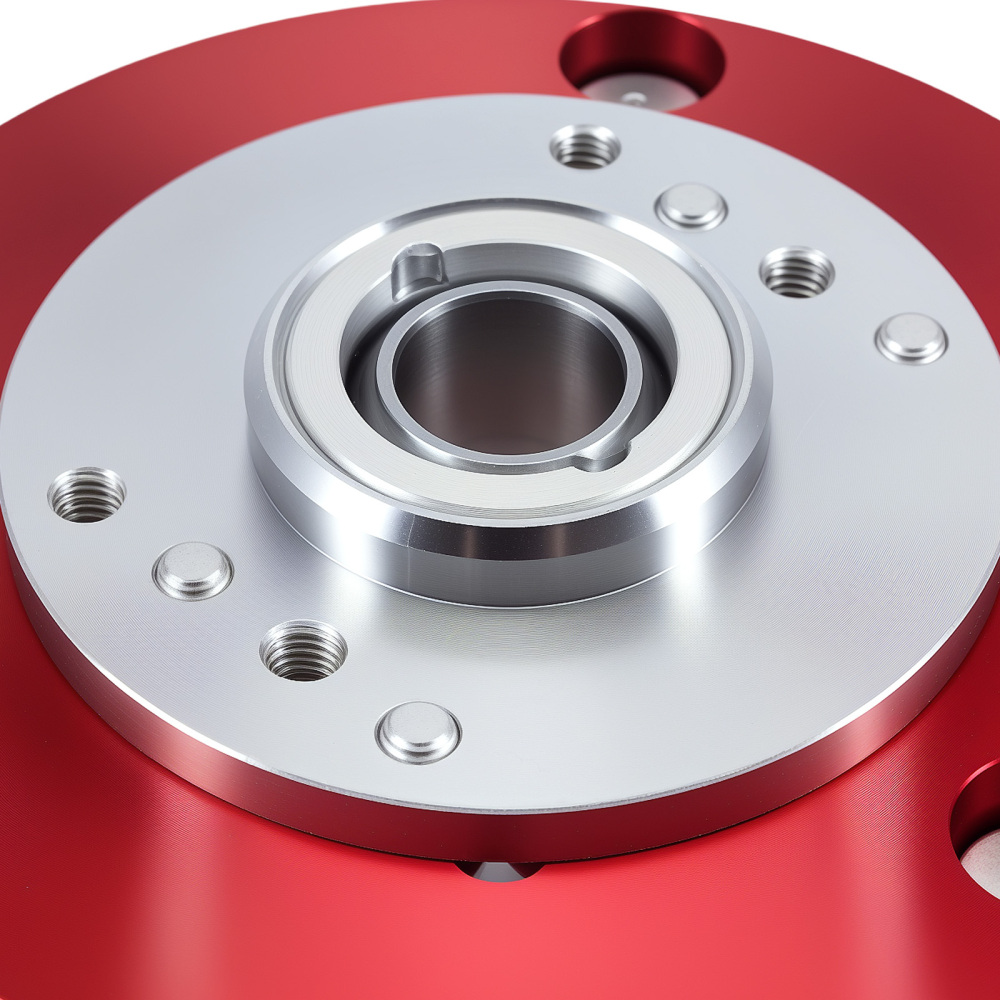

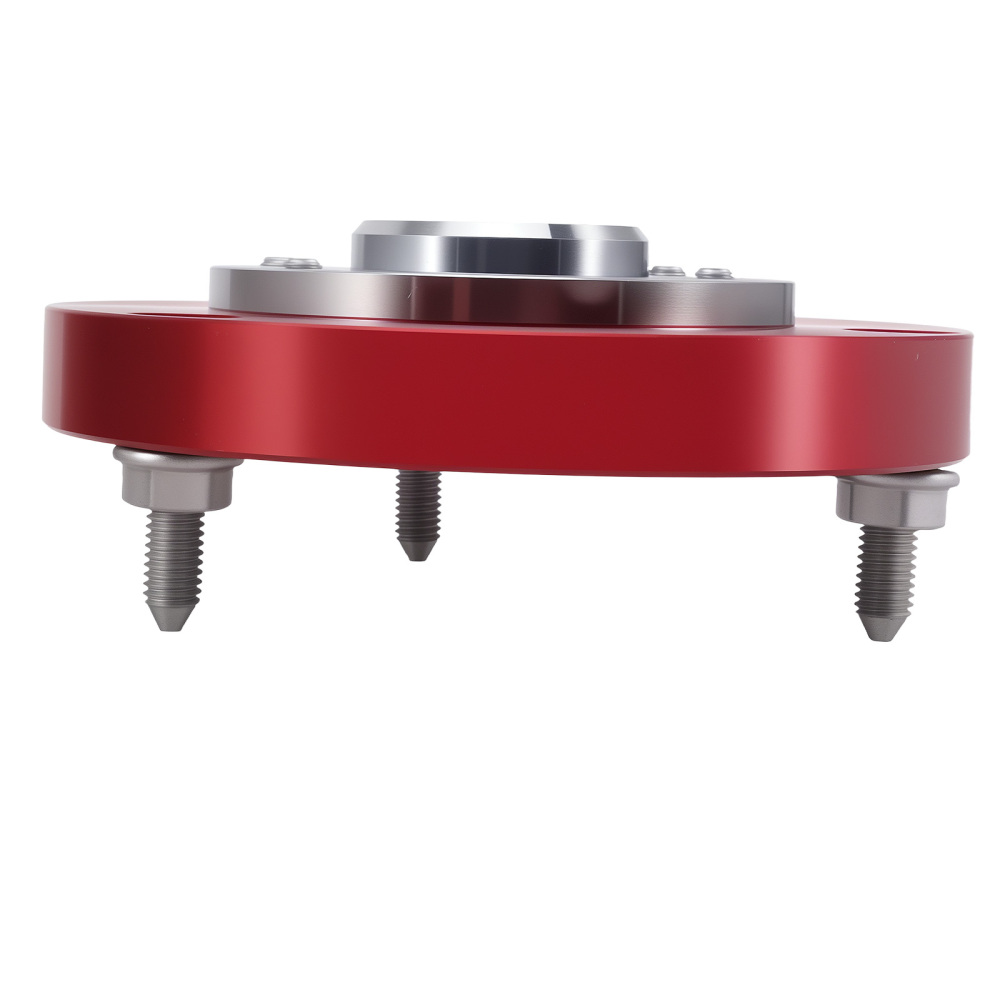

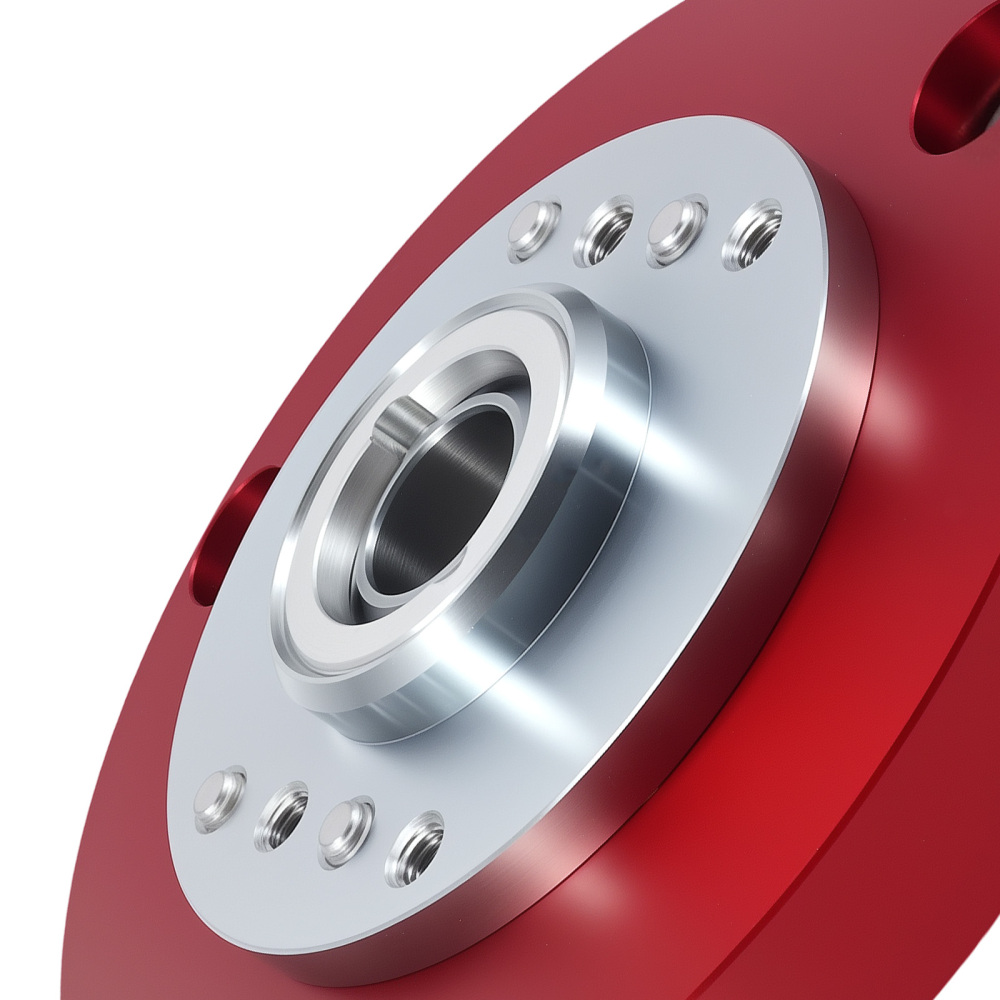

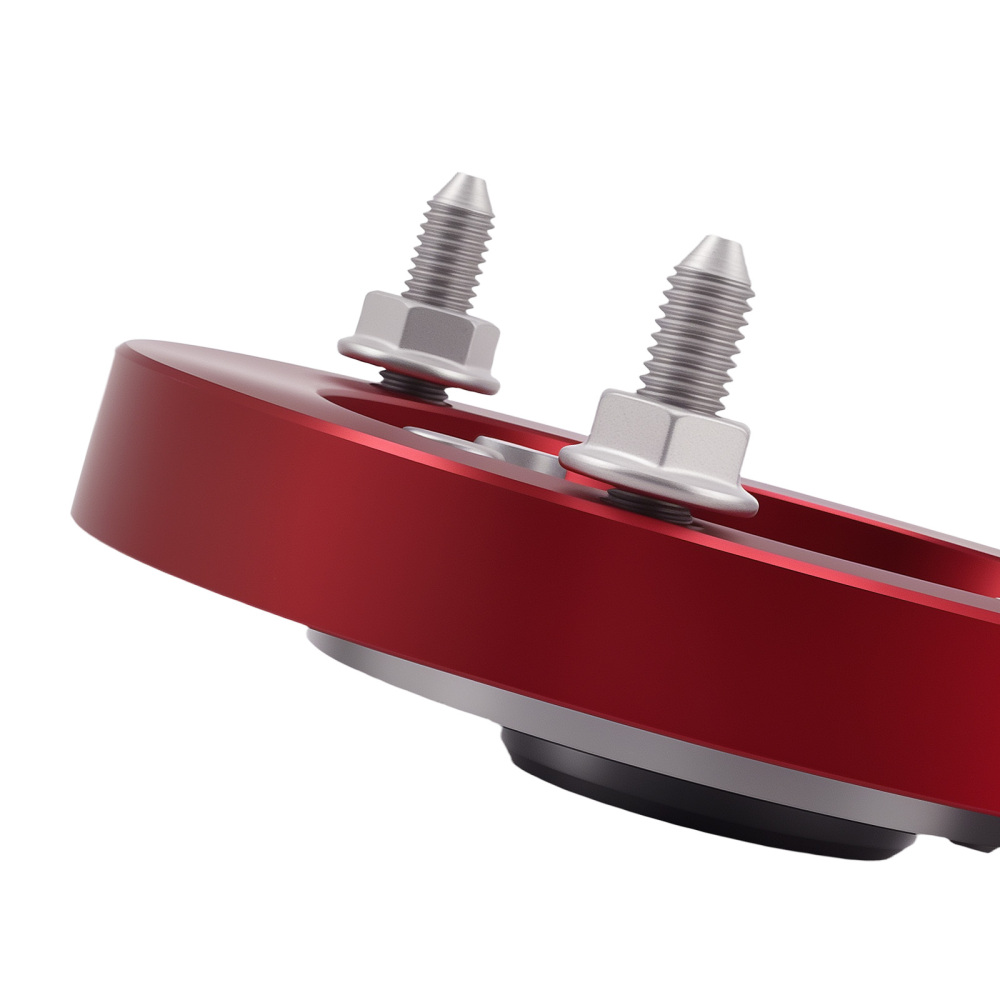

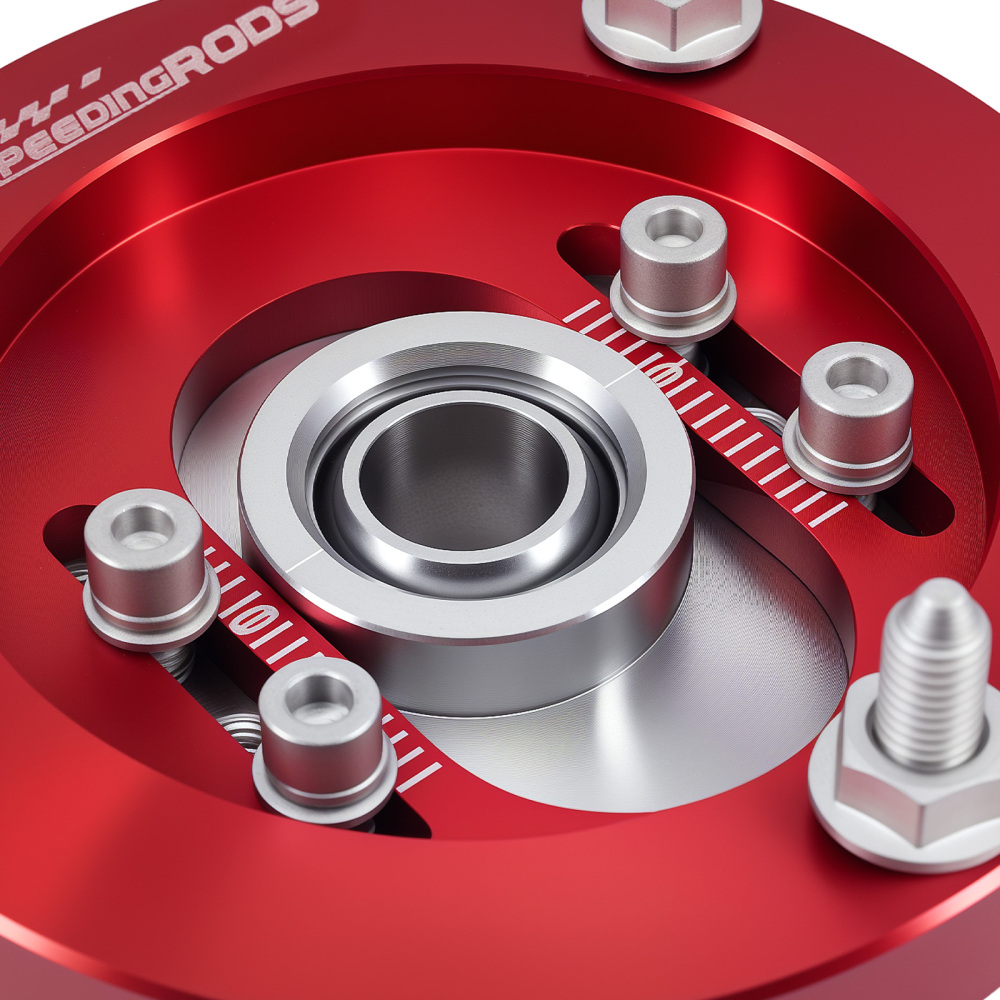

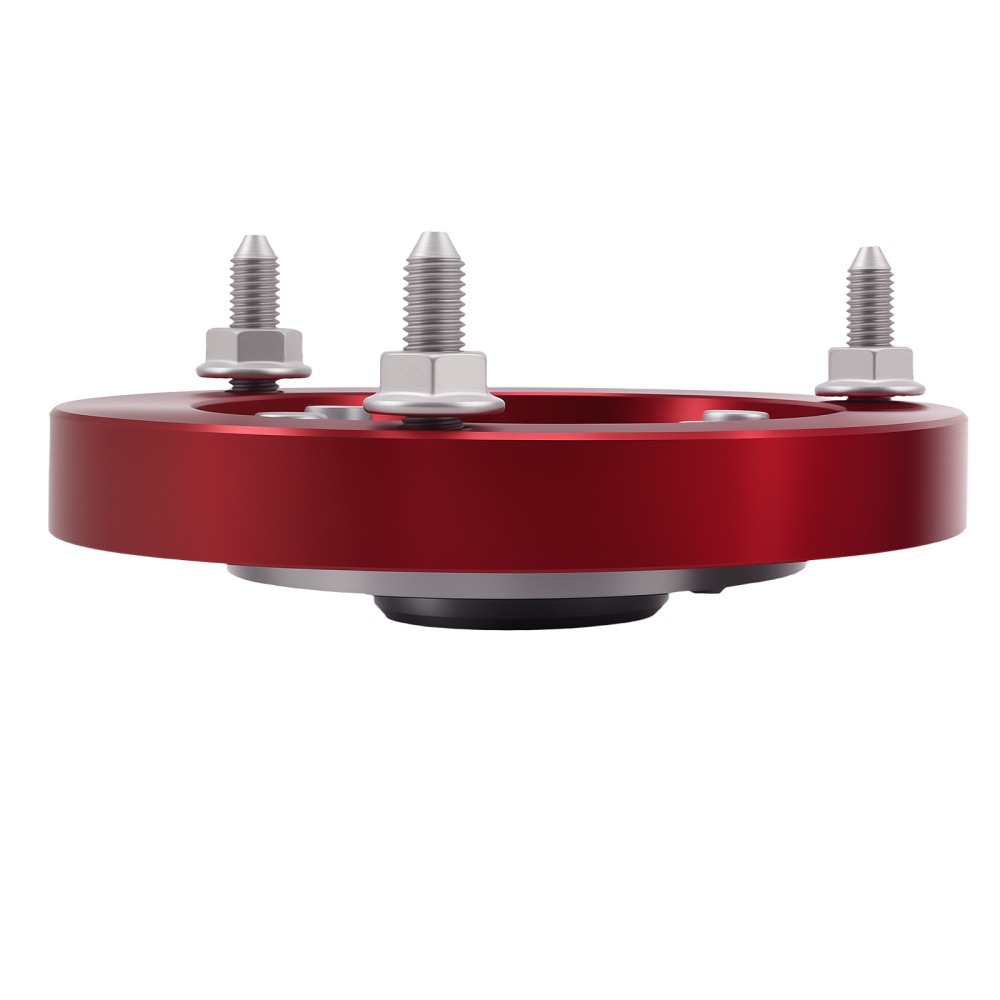

Camber Plates compatible for BMW E46 Pillow Adjustable 318 325i 325is M3 Coilover Kit Great

Application

Compatible for BMW E46 3 Series 1998-2005
compatible for BMW E46 316i, 316i/ti, 318i/Ci, 318i/Ci/ti, 318Ci, 320i, 320i/Ci, 323i/Ci, 325i/xi/Ci/ti (EUR), 328i/Ci, 330i/xi/Ci, M3
Do not compatible for BMW Compact

Specification

Product Type: Front Camber Plate (Coilover Specific)
Material: 6061-T6 Billet Aluminum (CNC Machined)
Finish: Anodized
Top Mount Type: Pillow ball with A & B bushings
Bearing Type: Pillow Ball Bearing (Universal)
Bearing Inner Diameter: 18 mm
Bearing Outer Diameter: 33 mm
Bearing Depth: 20 mm
Dynamic Load Rating (C) ≥ 22 KN
Static Load Rating (C₀) ≥ 56 KN
Bearing Material: Steel
Camber Adjustment: +/- 2.0° to 3° (Depending on chassis)
Mounting Style: Direct Bolt-on
Piston Rod Fit: Compatible with 15mm
Top Nut Thread Pitch: M14×1.5
Torque Spec For Top Nut: 45-55 Nm
Hardware Kit: High-Tensile Grade 10.9 Dacromet Bolts and Nuts Included
Quantity: Sold Pair
Color: Red

Package included

Package included：

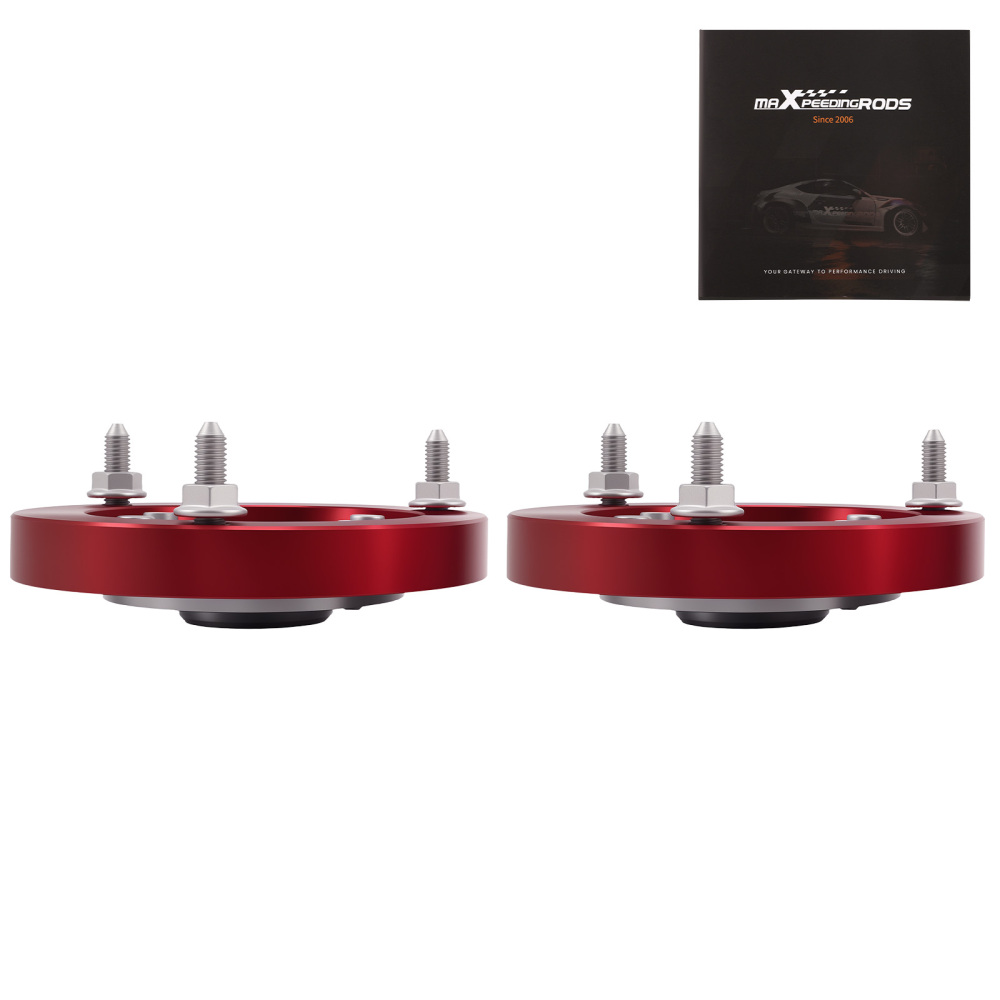

2x Left & Right Camber plates (pre-installed)

Feature

1. Construction: CNC 6061-T6 Aluminum, Anodized finish for corrosion resistance.

2. Bearing: Integrated Heavy-Duty Spherical Bearing. Smooth articulation and zero play.

3. Function: Provides independent camber adjustment to maximize tire contact patch during cornering.

4. Performance: Eliminates rubber deflection; increases steering feedback and structural rigidity.

5. Included: High-grade mounting studs/nuts and dust covers.

6. Installation Note:
(1) Ensure piston rod thread length is sufficient to engage the included top nut after camber plate installation.
(2) Recommended thread engagement: minimum 8 mm beyond the top of the camber plate.
(3)A & B Bushing Installation Method: Bushing A goes upside down on top, Bushing B goes right side up on bottom.
---Bushing A Dimensions
Outer diameter (max): 21mm
Outer diameter (top): 18mm
Inner diameter: 15mm
Total height: 12mm
Step height: 4mm
---Bushing B Dimensions
Outer diameter (max): 21mm
Outer diameter (top): 18mm
Inner diameter: 15mm
Total height: 12mm
Step height: 6mm
(4) Torque spec for top nut: 45-55 Nm (consult coilover manufacturer specifications).

Note

If you're looking for a camber plate, there are a few things to consider.
1. You'll want to make sure that the camber plate is compatible with your vehicle. This can usually be done by checking the manufacturer's website or by consulting with a professional mechanic.
2. You'll want to consider the type of driving that you'll be doing. If you're planning on doing any kind of racing or performance driving, you'll want to choose a camber plate that is designed for that purpose.
3. You'll want to consider your budget. Camber plates can range in price from a few hundred to several thousand dollars, so it's important to choose one that fits your needs and your budget.
Overall, the key to choosing the right camber plate is to do your research and choose a product that is well-suited to your vehicle and your driving needs.
