Adapter Flexplate Kit For LS1/LS2/LS6/5.3/6.0 to TH350/700R4/4L60 Gen III compatible for GM LS

Application

Compatible for GM Gen lll LS1/LS6 engines 1997-2007
For LS2 engines 2005-2009, fit for 5.3/6.0 truck engines L33 L59 LM4 LM7 LQ4 LQ9 LR4
For TH350 3-speed and classic Powerglide 2-speed automatic transmissions
For 200-4R, fit for non-LS 4-speed overdrive transmissions like the 700R4 and 4L60
Not fit for some 1999-2000 LQ4 6.0 LS engines, not fit for 4L80E automatic
Not fit for 8-bolt crankshaft Gen IVLS engines

Part Number

91604000, 57534610, 244-2901, 575-18346, 230-7303, LSOT00142, LSRB200748

Feature
- Made of high quality metal, greater durability and wear resistance.
- Easy to install, Direct replacement.

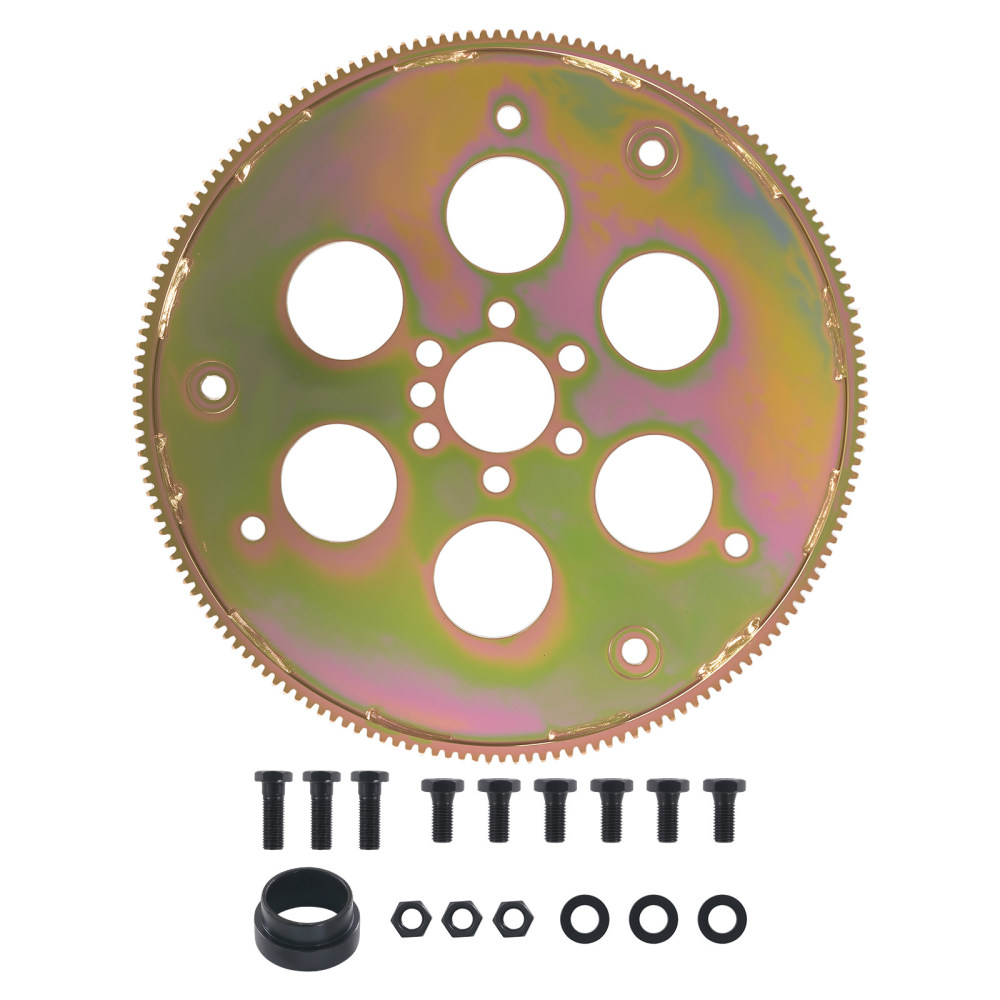

Package Include

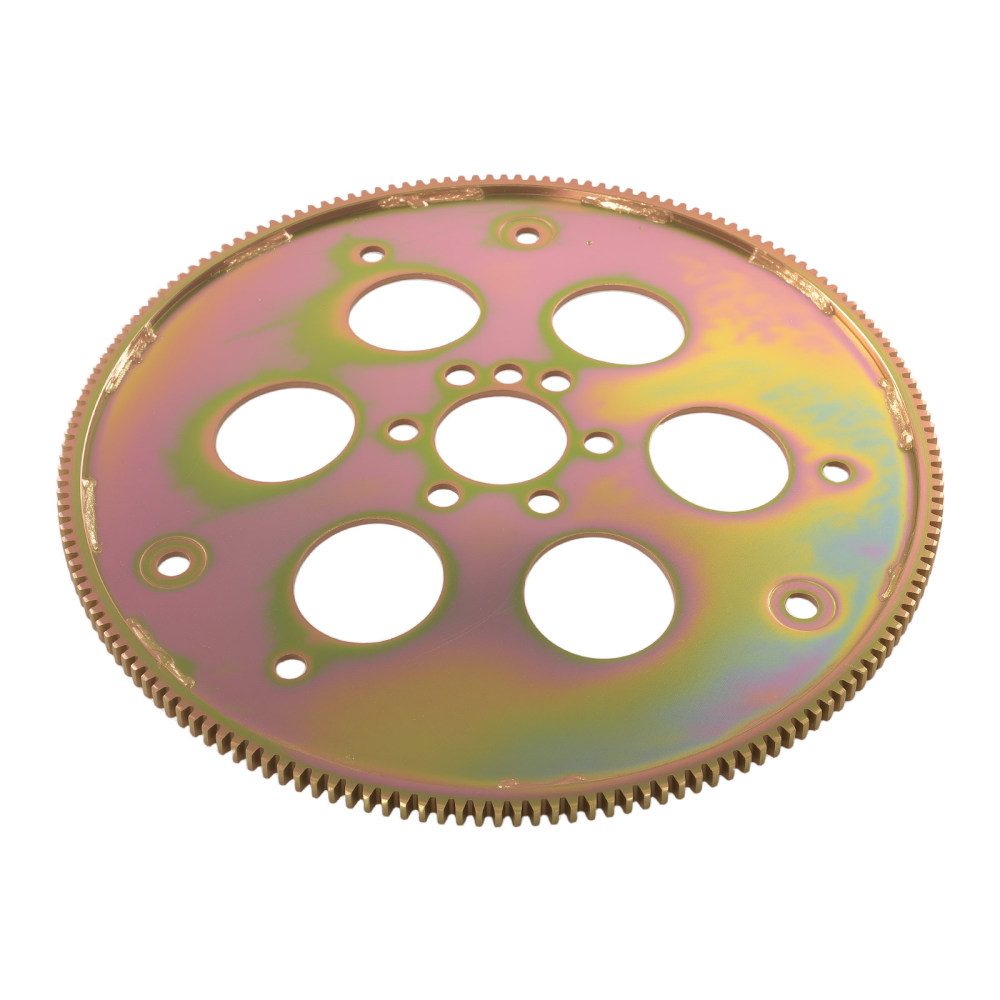

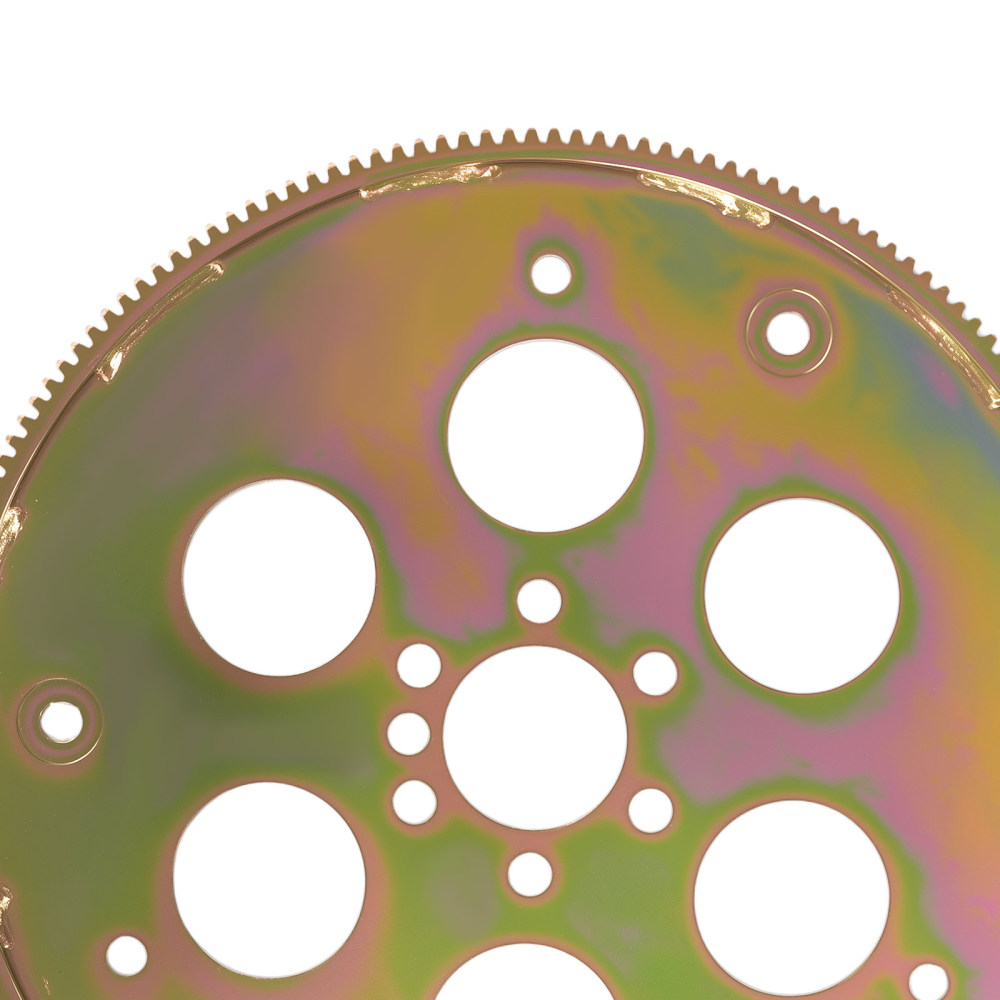

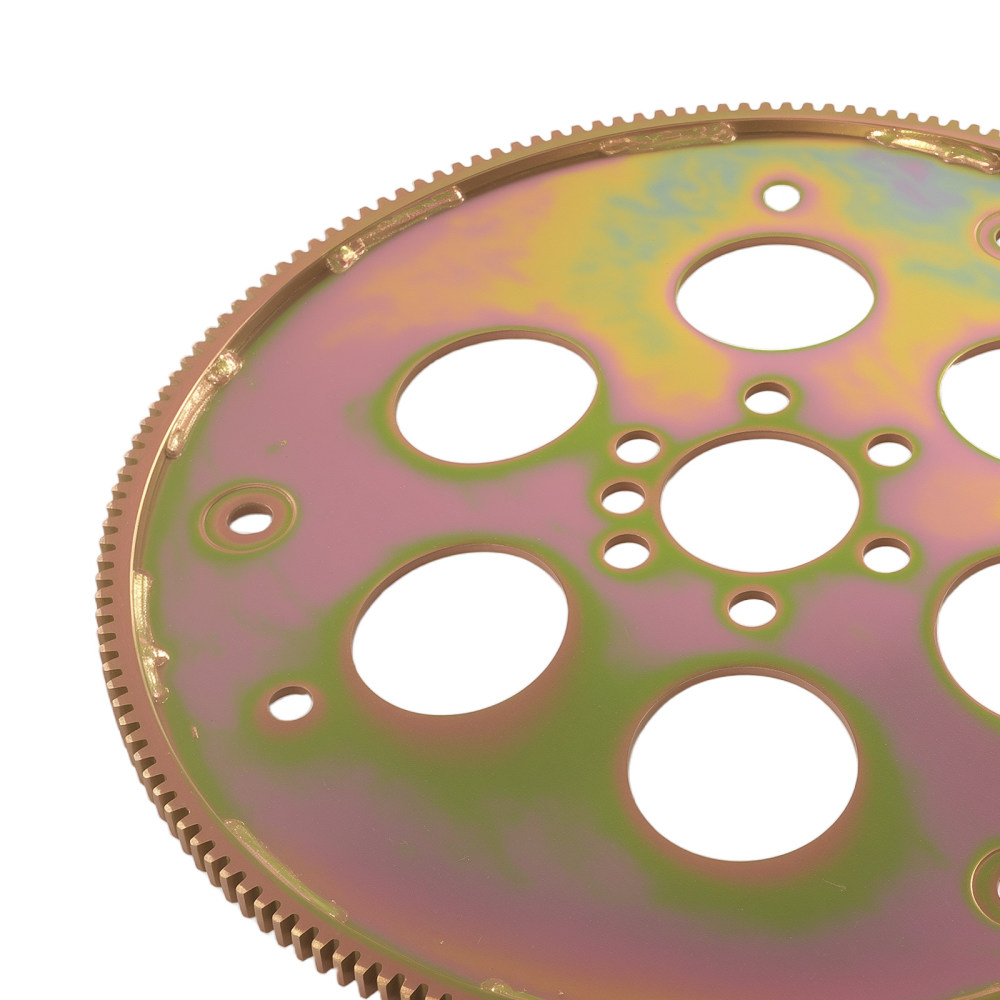

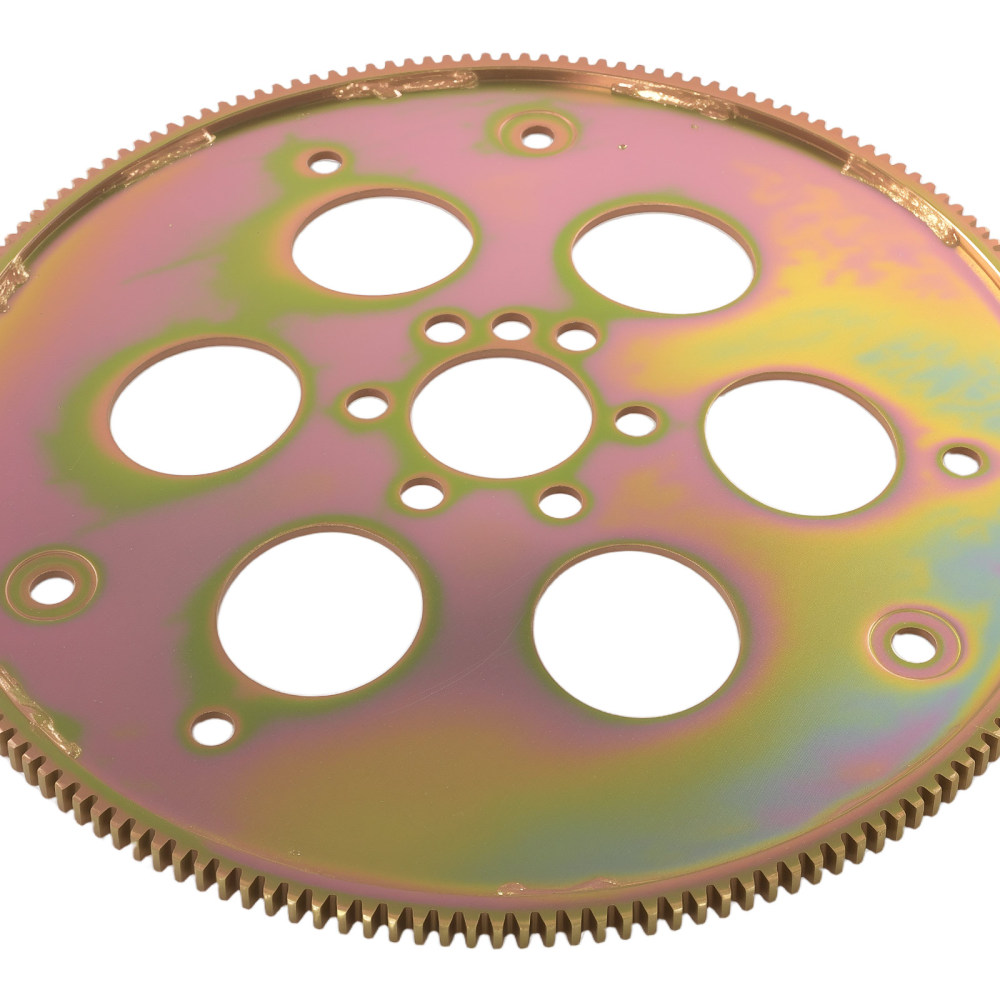

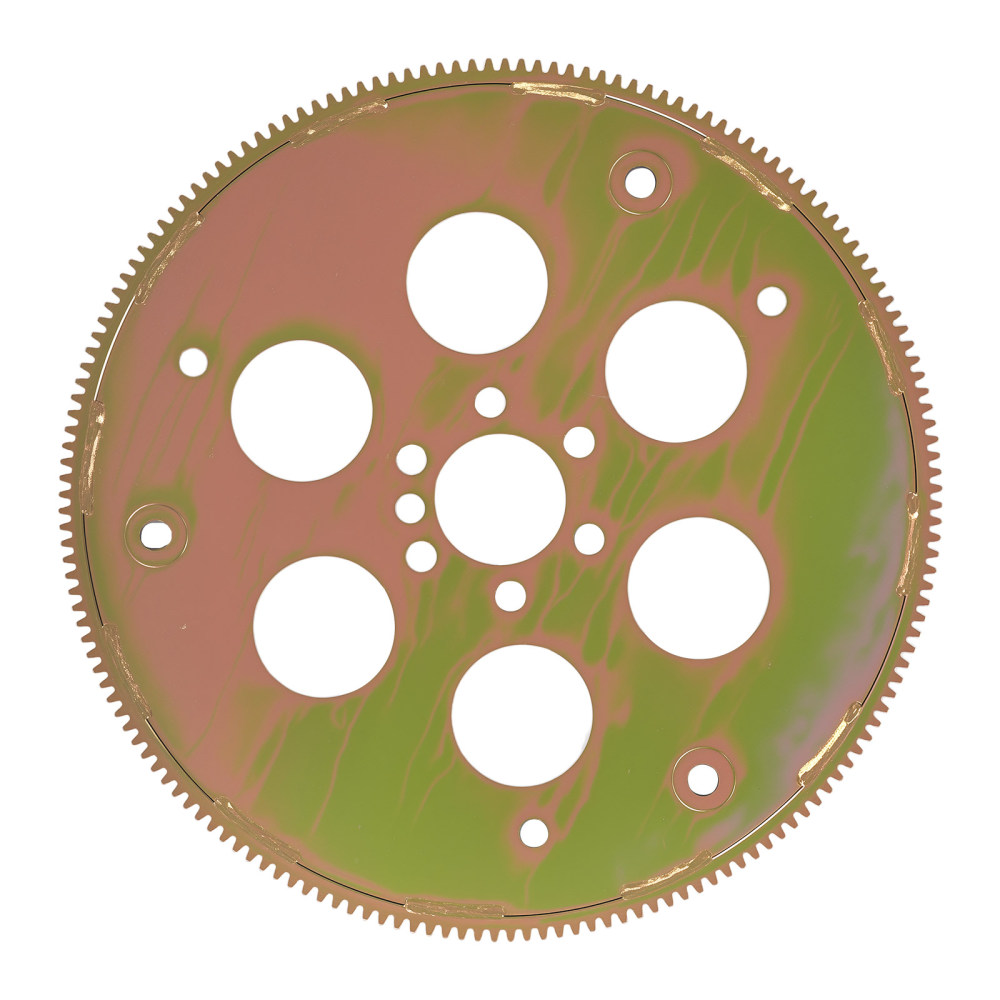

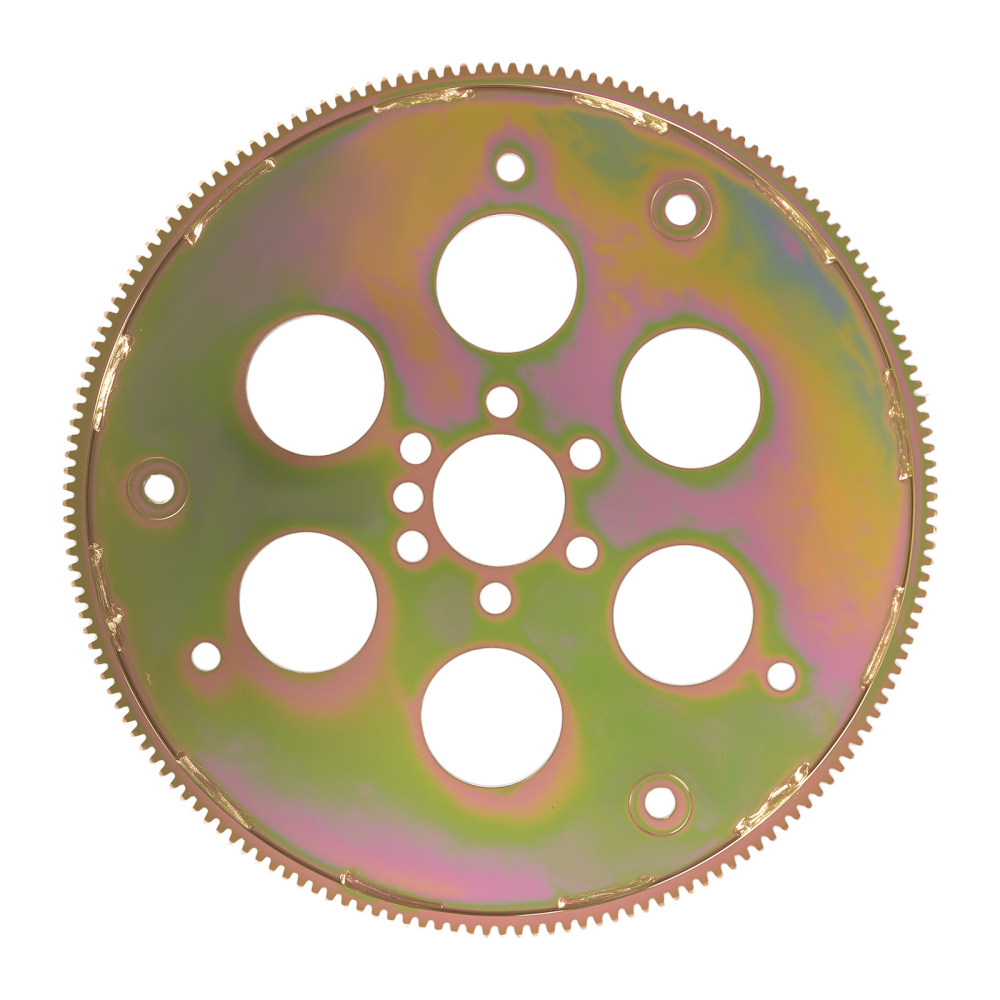

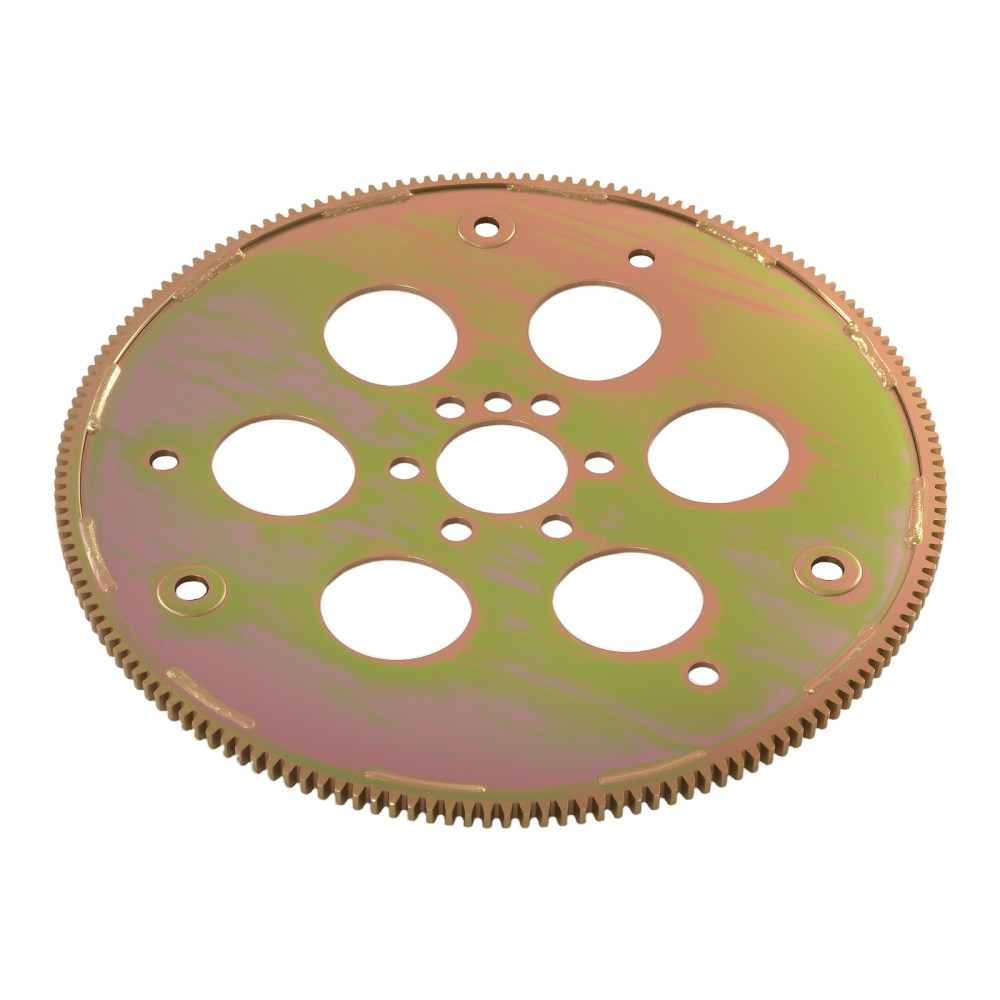

1X Transmission Adapter Flexplate (PN: 575-34610)
Centerplate thickness: 4mm (0.157")

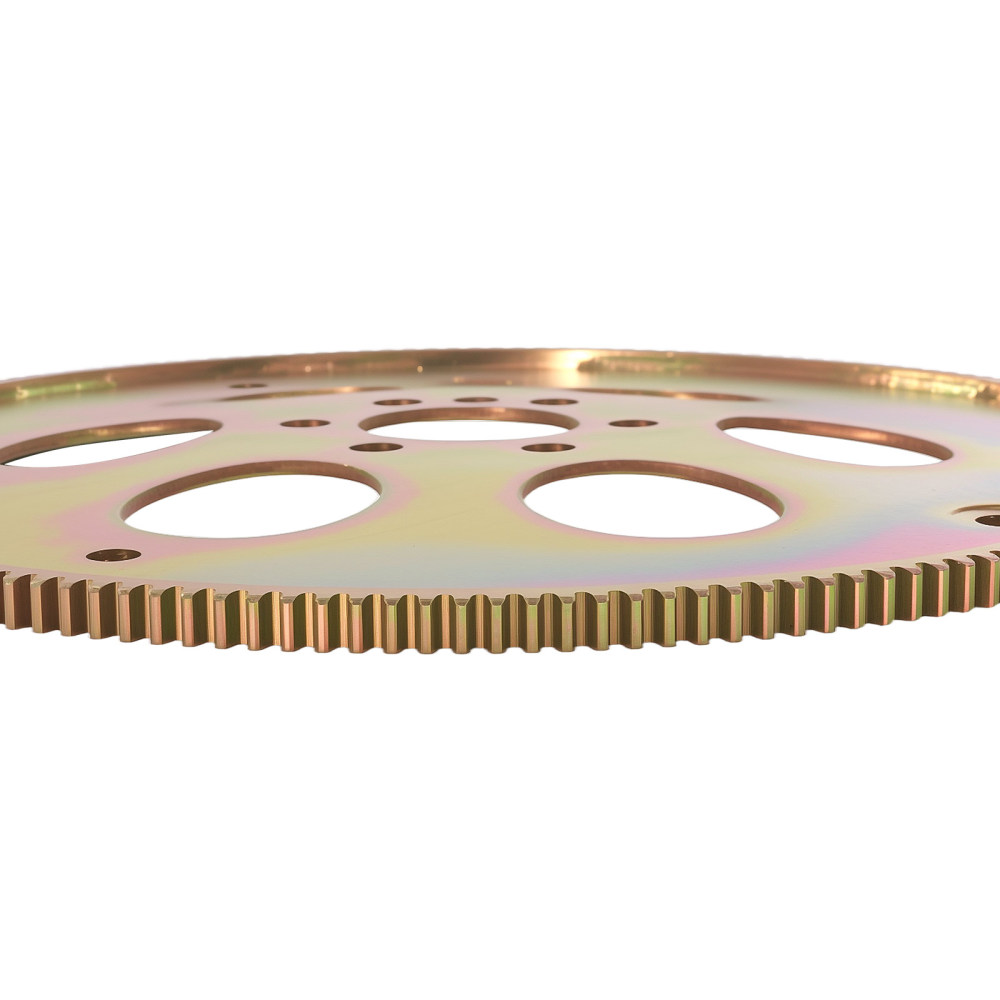

Ring gear: 168-tooth, precision robotic cold-welded

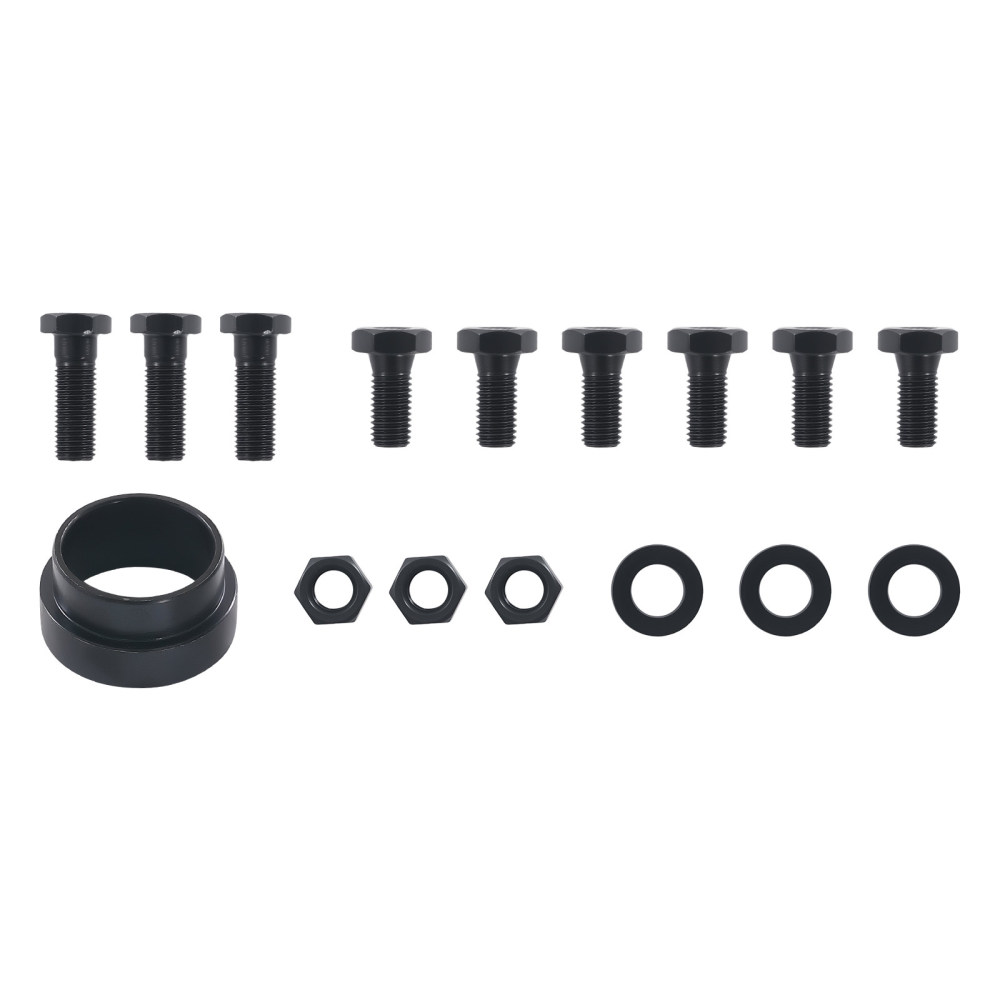

6X LS Flexplate Bolts (PN: 101-2442901)
Design: 12-point flange head
Tensile strength: 200,000 psi
Specification: M11 x 1.5 thread

1X Steel LS Crankshaft Sleeve Adapter (PN: 575-18346)
Overall height: 1.04"
Inside diameter (ID): 1.47"
Minor OD (small end): 1.70"
Major OD (large end): 2.00"

1X Torque Converter Bolt Kit
Thread specification: 7/16"-20 UNF
Shank length (underhead): 1.25"
Drive type: 12-point

Notice

1.To avoid operating errors, we recommend professional installation.
2.May not work with some 1999-2000 LQ4 6.0 LS engines, specifically ones that came with a 4L80E automatic as they require a flat flexplate due to the "tall" crank flange.
