Engine Kit compatible for Toyota Corolla Celica 1.8L DOHC 1ZZFE 1998-2005 13401-22020

Application

Compatible for CHEVROLET PRIZM 1.8L 110CID L4 DOHC, (16 VALVE), ENG CODE "1ZZFE" 1998-2002
compatible for PONTIAC VIBE 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE" 2003-2008
compatible for TOYOTA CELICA GT 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE" 2000-2005
compatible for TOYOTA COROLLA 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE" 1998-2008
compatible for TOYOTA MATRIX XR 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE" 2003-2008
compatible for TOYOTA MR2 SPYDER 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE" 2000-2005

OE/Part number

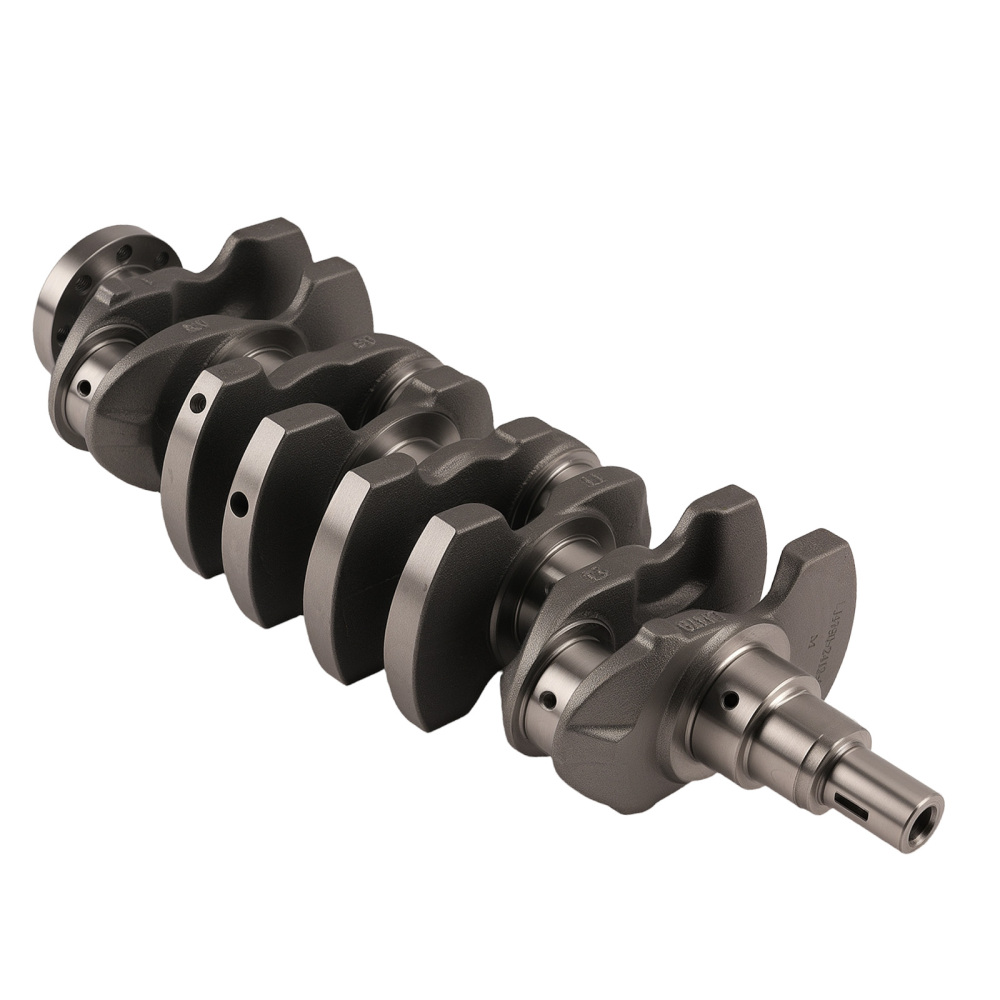

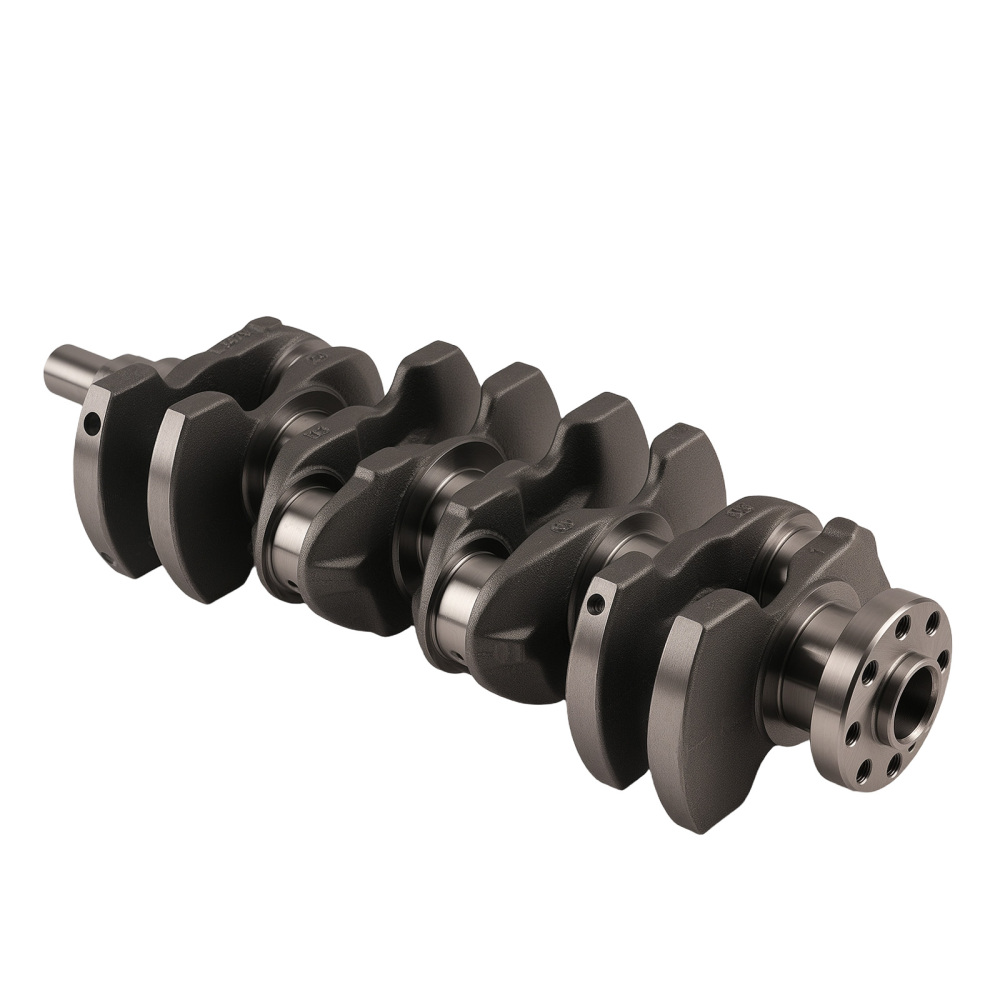

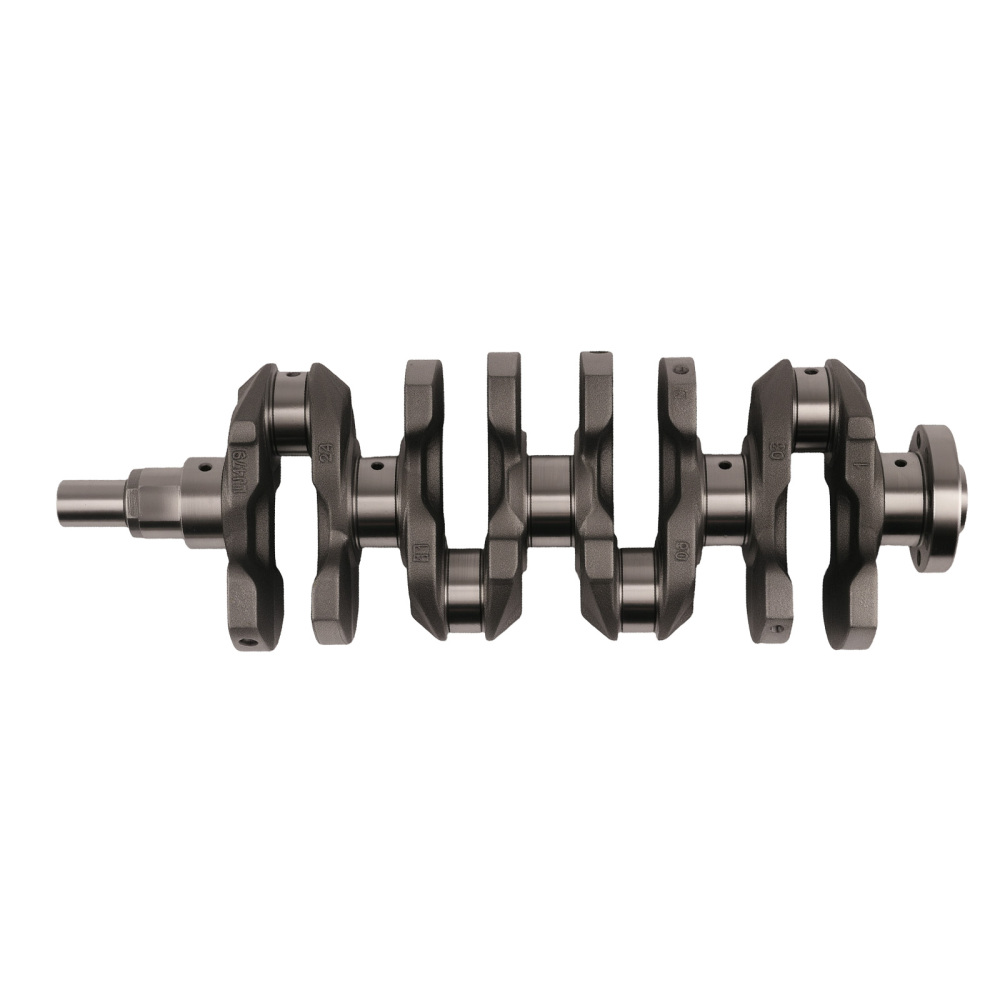

Crankshaft Part Number#:

13401-22020,13401-0D010

1340122020,134010D010

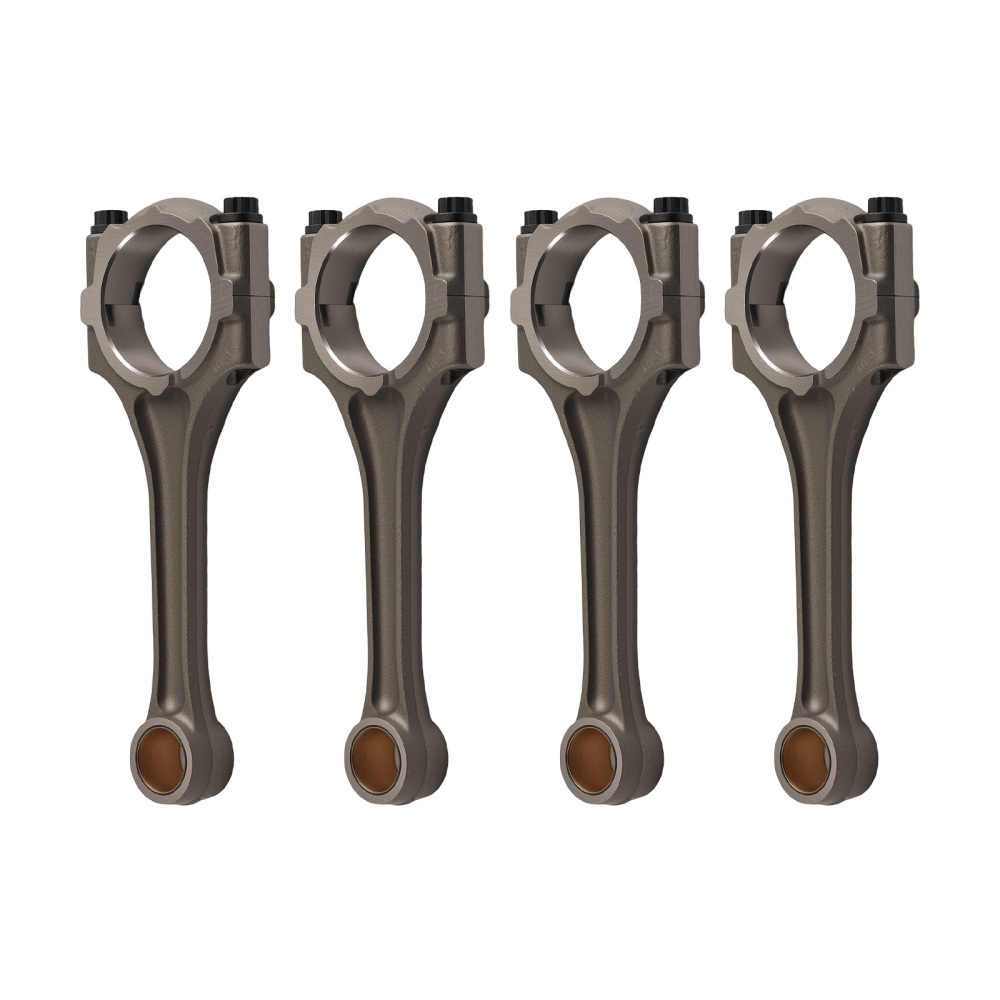

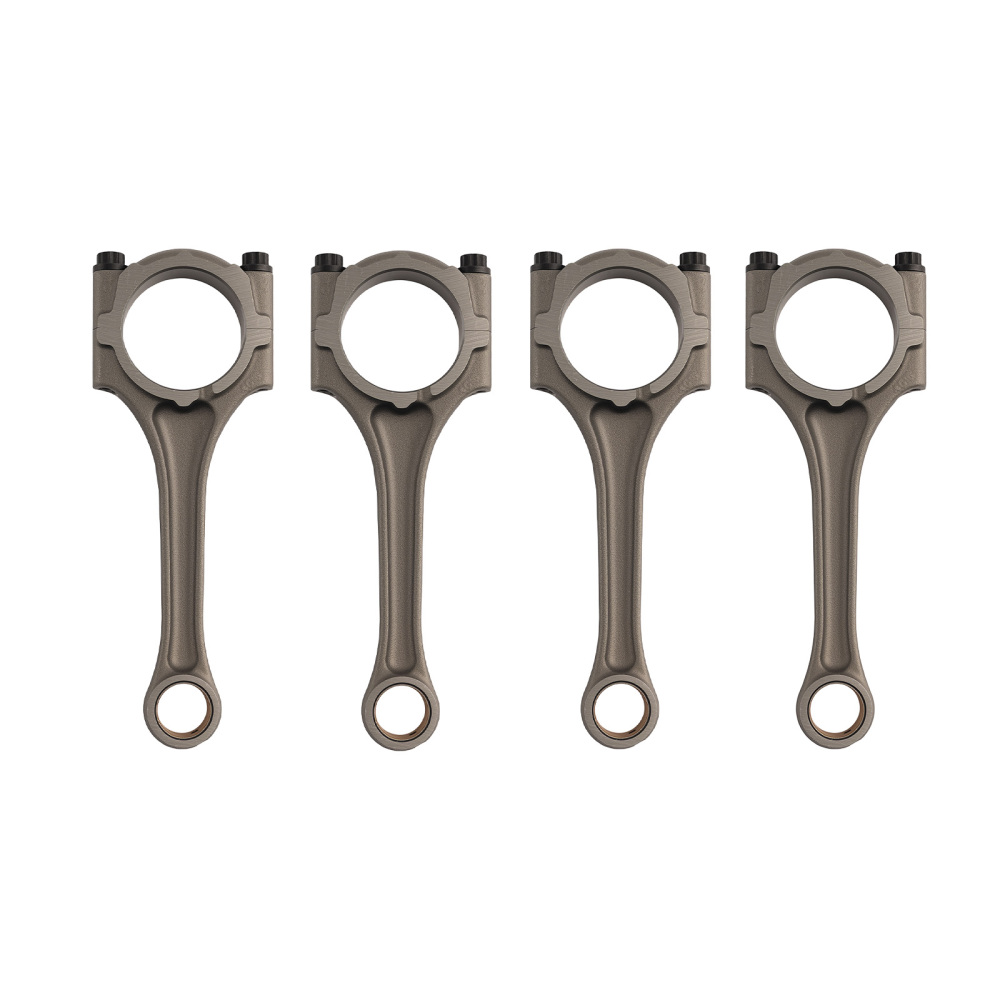

Connecting Rods Number#:

13201-29176, 13201-29038, 13201-29177, 13201-09201, 13201-29176

1320109202, 1320109410, 1320129535,1320129615,1320129625, 1320109250

Gasket Seals Bolts Kit Part Number#:

HS26158PT, HS26158PT-1, HS26158PT-2,

ES71066, CS26158, FS2024, HS2024,HB2024,SL1000
Pistons & Rings Kit Part Number#:

13101-0D040, 13101-22140, 88969051, 88972330, 94859420
Main & Rod Bearings Part Number#:


11071-22010, 11701-0D010, 11701-22011, 13041-22021, 13041-22022, 13041-22023, 13041-22024,

CON: 13041-22020, MAIN: 11701-22010, Thrust Washer:11791-22020

Interchange OE Part Number:

1T1853, 1T9981, 4-4705A, 4B1851, 4B9557, 5M1853, 7354MA,

BB1010, BC1008, BM15-576, BR15-576, BT15-576, CR4263SI,

MB1853, MB5287AM, MB946, MBTO39, RB1851, RB946,

RBTO39, TW185AM, TW946, TWTO39

Intake & Exhaust Valve Part Number#:

13711-0D010, 13715-0D010,13715-22040
Timing Kit Part Number#:

13050-22012, 13506-0D010, 13521-0D010, 13523-0D010, 13540-0D010, 13559-0D010, 13561-22020

Specification

Type: Engine Rebuild Kit
Condition: New
Fitment Type: Direct Replacement

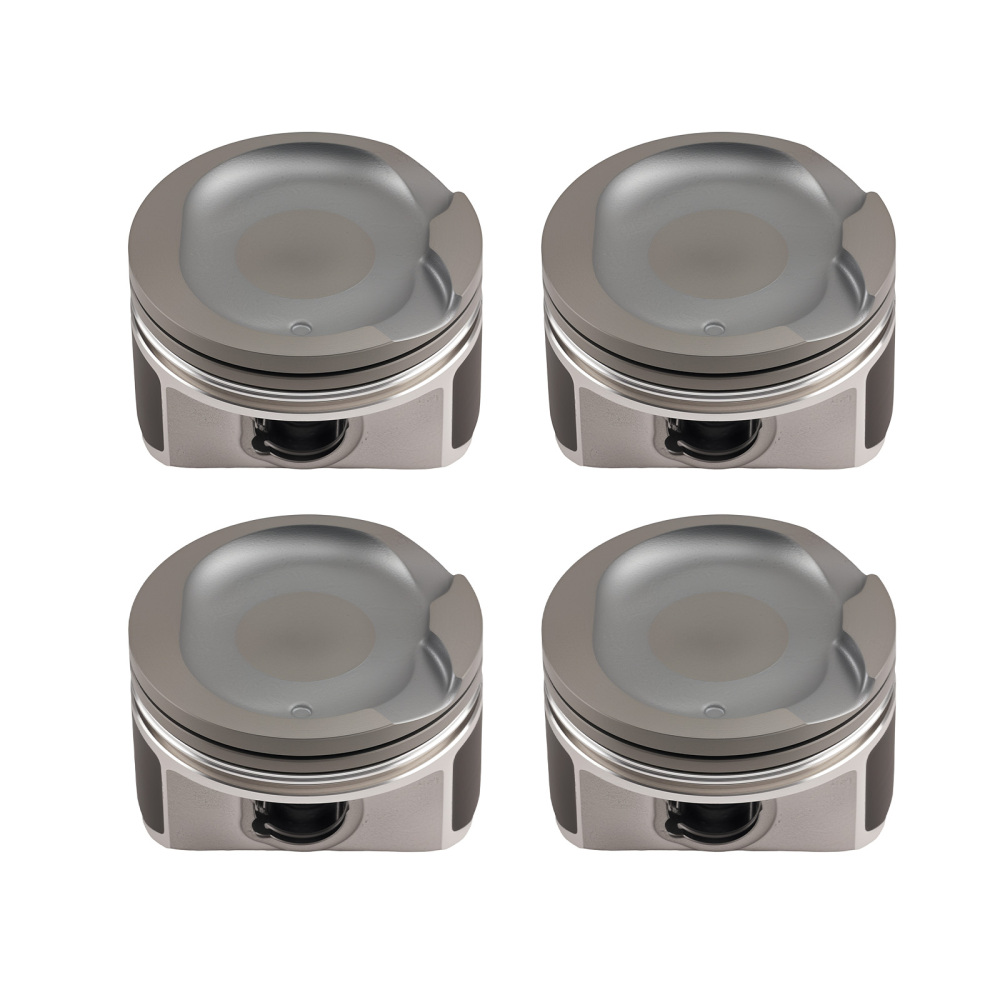

Pistons & Rings Kit Spec:
Standard Bore Diameter: 79.00mm

1st Group: 1.20mm

2nd Group: 1.20mm

Oil Ring: 3.00mm

4 Piston Wrist Pins

8 Cir Clips
Intake & Exhaust Valve Spec:
8 Intake Valves (Head 31.00mm x Stem 5.50mm x Length 88.7.00mm)

8 Exhaust Valves (Head 26.00mm x Stem 5.50mm x Length 88.7.00mm)

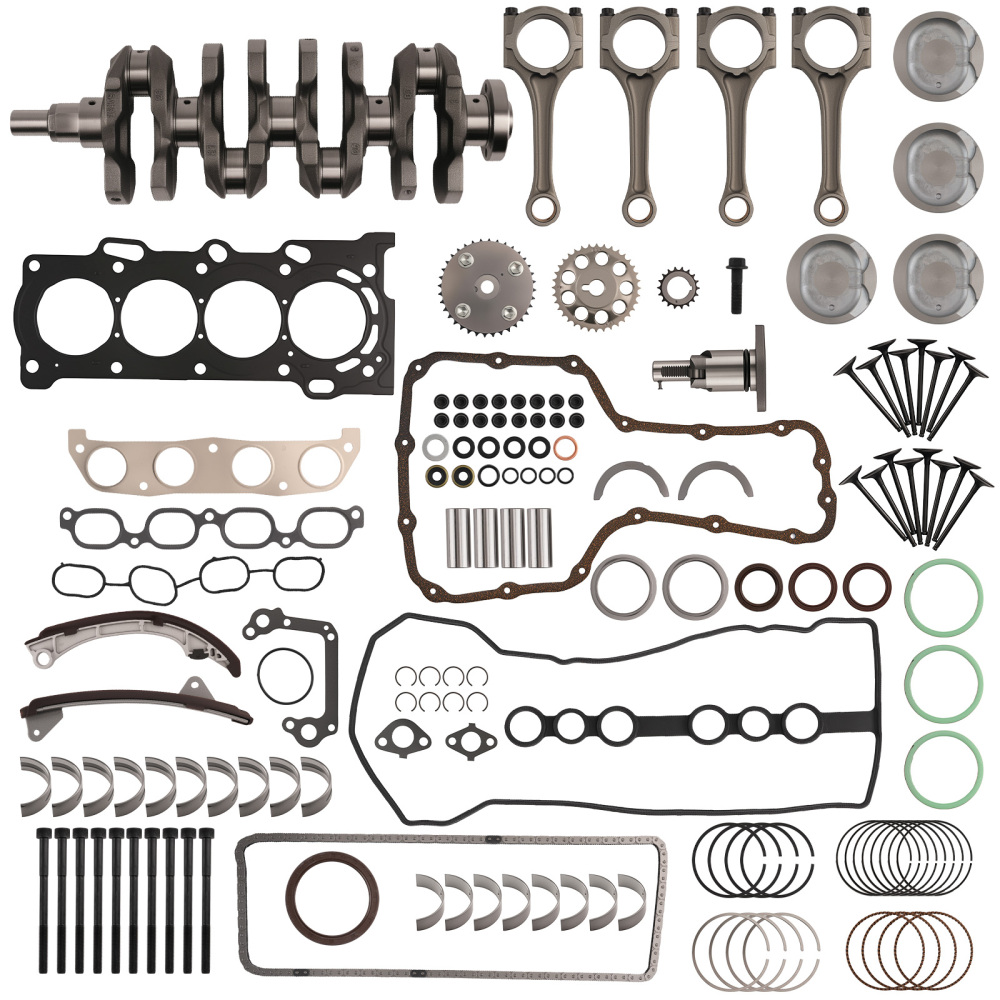

Package included

1pcs x Crankshaft

4pcs x Connecting Rods

1set x Pistons & Rings Kit

1set x Gasket Seals Bolts Kit

1set x Main & Rods Bearings Kit (with Thrust Washers)

1set x Timing Chain Kit (with VVT Sprocket)

1set x Intake & Exhaust Valve Kit

Feature

*Built to strict quality control standards
*High quality Metal and constructed for Anti-rust and Anti-corrosion
*High quality and durable for stable performance and long time use.

Note

*Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
*No Instruction Included, professional installation is highly recommended.
