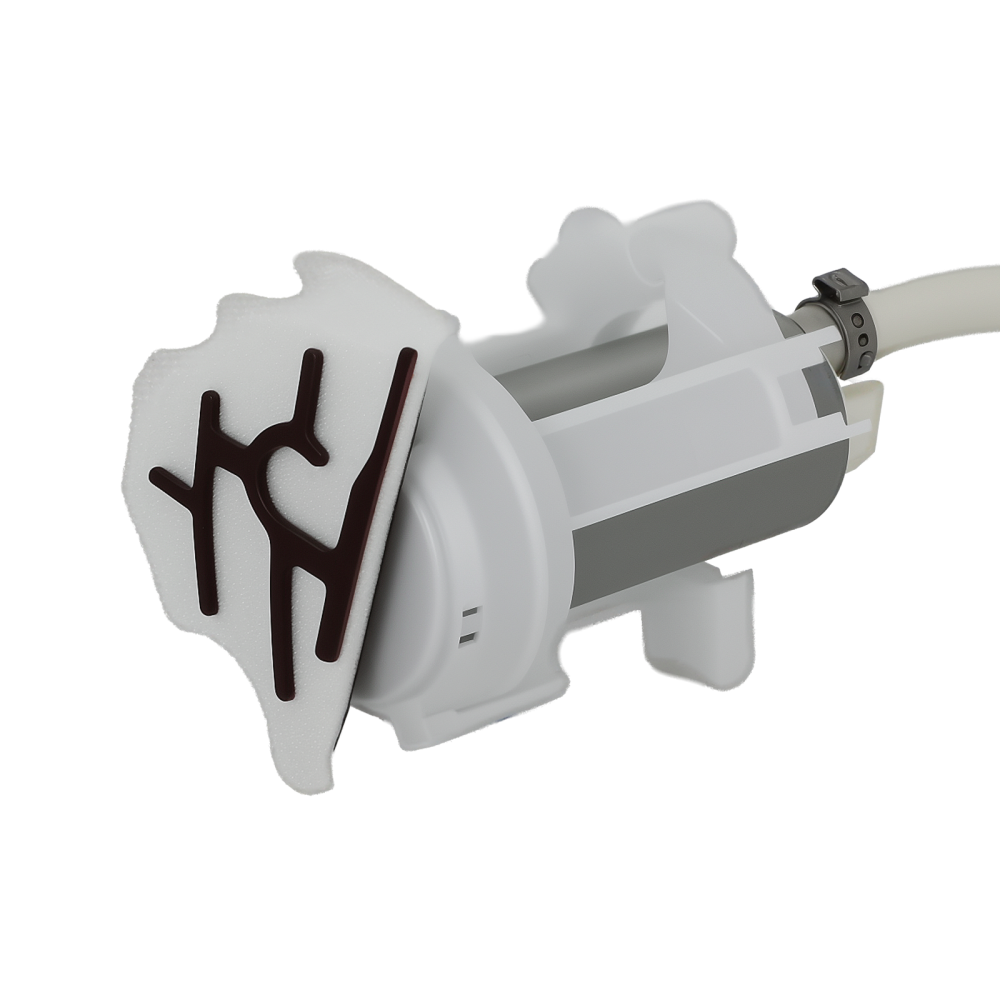

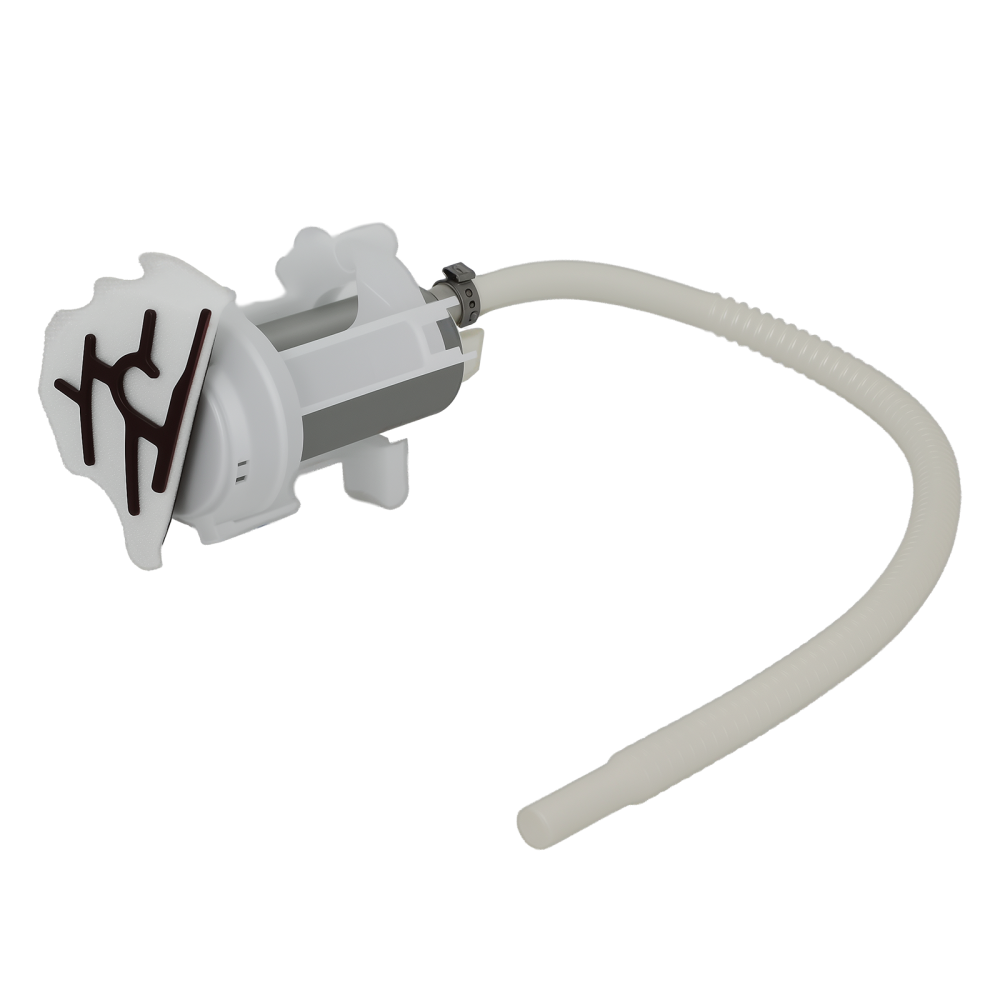

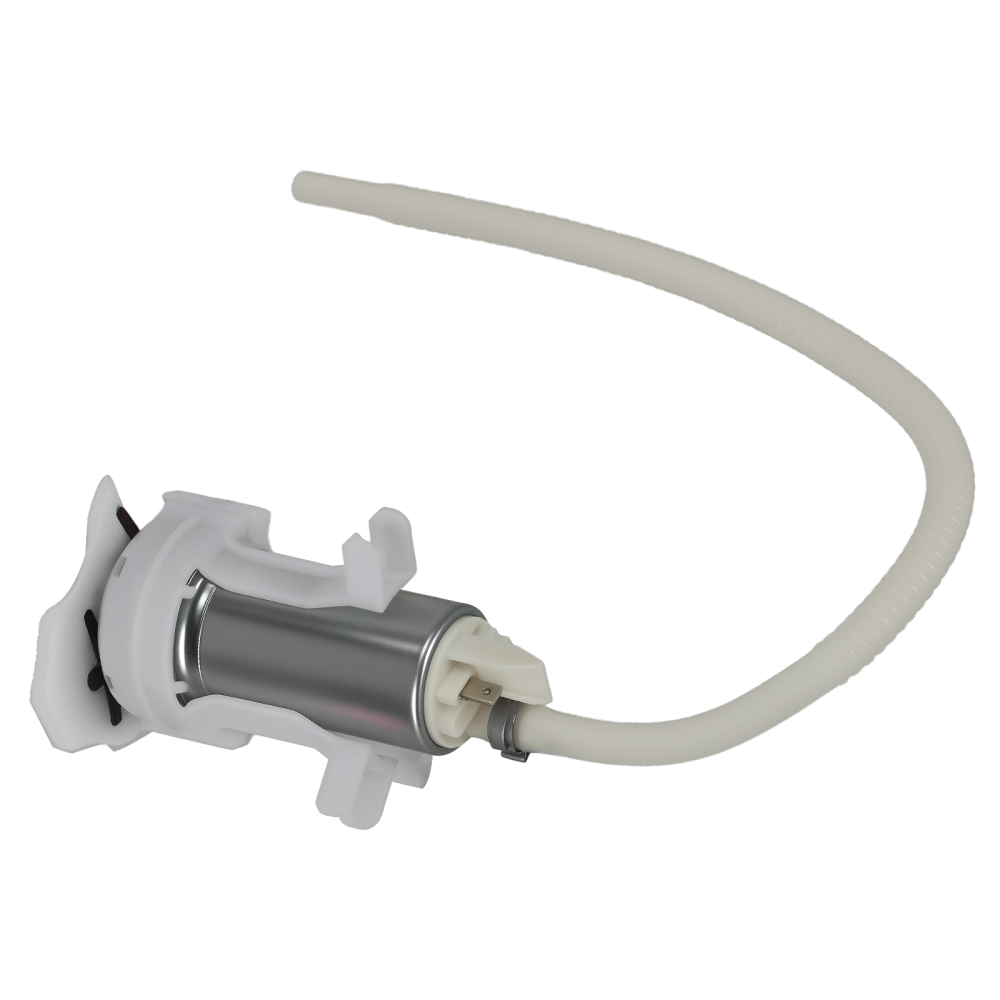

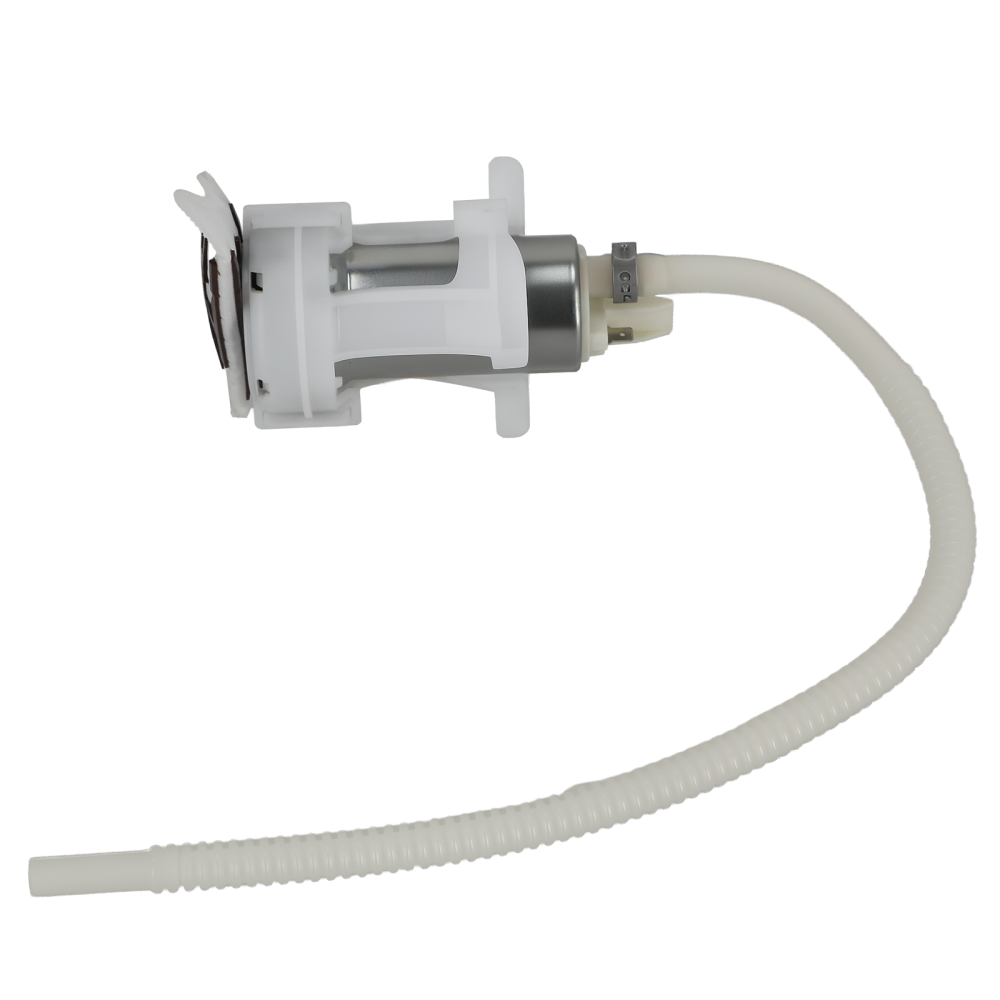

Electric Fuel Pump Module Assembly compatible for BMW 745i 745Li E65 E66 4.4L 2002-05

Application

Compatible for BMW 745i E65 4.4L V8 Petrol 2002-2005
compatible for BMW 745Li E66 4.4L V8 Petrol 2002-2005
compatible for BMW 750i E65 4.8L V8 Petrol 2006-2008
compatible for BMW 750Li E66 4.8L V8 Petrol 2006-2008

OE/Part number

16117194000, 16117271162, 152-1023, E8488, SP1378, P76810, 67899, 2910397

Specification

Condition: New
Type: Fuel Pump
Drive Type: Electric
Fuel Type: Gasoline
Voltage: 12 V
Flow Rate: ≥52.8 GPH
Pressure: 43 PSI
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Internal Or External Strainer: External
Package Quantity: 1
Packaging Type: Box
Fitment: Direct Replacement

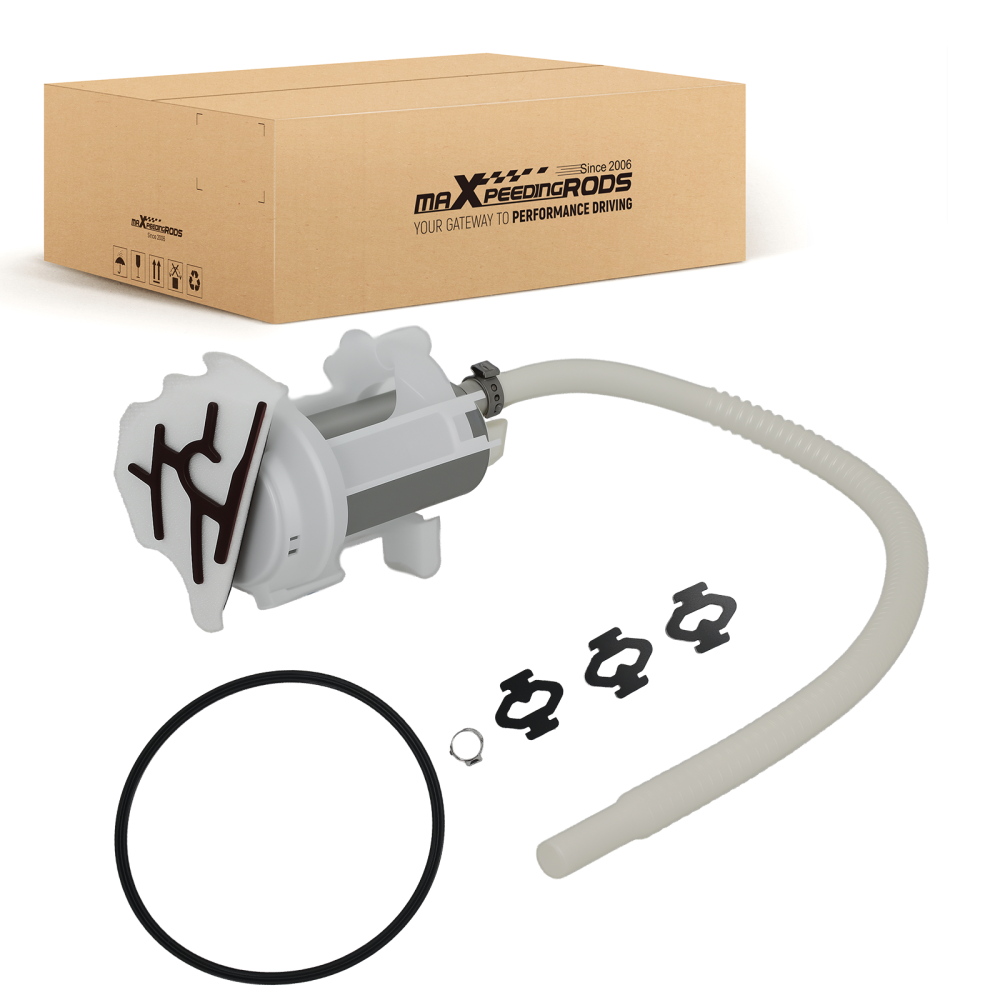

Package included

1* Fuel Pump and Strainer Set
Showing as the picture

Feature

Armature：
1. Commutator adopts imported carbon sheet, high-temperature welding, more dense, less
spark, more wear-resistant, strong oxidation resistance, compatible with a variety of
fuels, work efficiency increased by 10%, life expectancy increased by 50%.
2. Core use cold rolled non-oriented DW470 silicon steel sheet, high permeability, low coercivity, low
hysteresis loss.
3. Insulation paper potect armature under more than 1000V breakdown voltage.
4. Temperature resistance of enameled wire: 220℃.
5. Over-molded armature, low fluid resistance. full-automatic production to ensure consistency.

Pump Housing：
1. The selection of high-quality carbon seamless steel pipe, effectively
Eliminate electromagnetic eddy current, reduce magnetic loss.
2. Bilateral chamfering, one-time full section of the inner hole processing, concenTricity 0.02mm, to ensure that the armature and tile air gap, reduce pump core
Vibration, reduce operating noise, increase product life.
3. Environmental plating, strong corrosion resistance.

Turbine Impeller：
1. Scoop type blade, smooth fluid running track, high oil suction efficiency, low noise,
effective suppression of vibration.
2. Imported double-sided grinder grinding, high-energy wave cleaning, smoother operation.
3. Balance hole design, reduce the friction with the pump body, increase the life of the pump.

Note

Please ensure correct vehicle compatibility before installation
Installation by certified technicians recommended
Avoid improper handling to maintain product integrity
Keep away from extreme temperatures and moisture
Follow all safety guidelines during installation
