Electric Fuel Pump Module Assembly compatible for BMW 130i E81 E87 3.0L 2006-2010

Application

Compatible for BMW 116i E81 I4 1.6L Petrol 2006-2011
compatible for BMW 116i E81 I4 2.0L Petrol 2006-2011
compatible for BMW 118i E81 I4 2.0L Petrol 2006-2011
compatible for BMW 120i E81 I4 2.0L Petrol 2006-2011
compatible for BMW 130i E81 I6 3.0L Petrol 2006-2011
compatible for BMW 120i E82 I4 2.0L Petrol 2006-2013
compatible for BMW 125i E82 I6 3.0L Petrol 2006-2013
compatible for BMW 135i E82 I6 3.0L Petrol 2006-2013
compatible for BMW M E82 I6 3.0L Petrol 2006-2013
compatible for BMW xDrive 20i E84 I4 2.0L Petrol 2009-2015
compatible for BMW sDrive 20i E84 I4 2.0L Petrol 2009-2015
compatible for BMW xDrive 28i E84 I6 3.0L Petrol 2009-2015
compatible for BMW xDrive 25i E84 I6 3.0L Petrol 2009-2015
compatible for BMW 116i E87 I4 1.6L Petrol 2003-2012
compatible for BMW 118i E87 I4 2.0L Petrol 2003-2012
compatible for BMW 120i E87 I4 2.0L Petrol 2003-2012
compatible for BMW 130i E87 I6 3.0L Petrol 2003-2012
compatible for BMW 118i E88 I4 2.0L Petrol 2008-2013
compatible for BMW 120i E88 I4 2.0L Petrol 2008-2013
compatible for BMW 125i E88 I6 3.0L Petrol 2008-2013
compatible for BMW 135i E88 I6 3.0L Petrol 2008-2013
compatible for BMW 316i E90 I4 1.6L Petrol 2004-2011
compatible for BMW 318i E90 I4 2.0L Petrol 2004-2011
compatible for BMW 320i E90 I4 2.0L Petrol 2004-2011
compatible for BMW 325i E90 I6 2.5L Petrol 2004-2011
compatible for BMW 325i E90 I6 3.0L Petrol 2004-2011
compatible for BMW 330i E90 I6 3.0L Petrol 2004-2011
compatible for BMW 335i E90 I6 3.0L Petrol 2004-2011
compatible for BMW 325 xi E90 I6 2.5L Petrol 2004-2011
compatible for BMW 325 xi E90 I6 3.0L Petrol 2004-2011
compatible for BMW 330 xi E90 I6 3.0L Petrol 2004-2011
compatible for BMW 335 xi E90 I6 3.0L Petrol 2004-2011
compatible for BMW 325i xDrive E90 I6 3.0L Petrol 2004-2011
compatible for BMW 330i xDrive E90 I6 3.0L Petrol 2004-2011
compatible for BMW 335i xDrive E90 I6 3.0L Petrol 2004-2011
compatible for BMW 318i E91 I4 2.0L Petrol 2004-2012
compatible for BMW 320i E91 I4 2.0L Petrol 2004-2012
compatible for BMW 323i E91 I6 2.5L Petrol 2004-2012
compatible for BMW 325i E91 I6 2.5L Petrol 2004-2012
compatible for BMW 325i E91 I6 3.0L Petrol 2004-2012
compatible for BMW 330i E91 I6 3.0L Petrol 2004-2012
compatible for BMW 335i E91 I6 3.0L Petrol 2004-2012
compatible for BMW 325 xi E91 I6 2.5L Petrol 2004-2012
compatible for BMW 325 xi E91 I6 3.0L Petrol 2004-2012
compatible for BMW 330 xi E91 I6 3.0L Petrol 2004-2012
compatible for BMW 335 xi E91 I6 3.0L Petrol 2004-2012
compatible for BMW 325i xDrive E91 I6 3.0L Petrol 2004-2012
compatible for BMW 330i xDrive E91 I6 3.0L Petrol 2004-2012
compatible for BMW 335i xDrive E91 I6 3.0L Petrol 2004-2012
compatible for BMW 316i E92 I4 1.6L Petrol 2005-2013
compatible for BMW 318i E92 I4 2.0L Petrol 2005-2013
compatible for BMW 320i E92 I4 2.0L Petrol 2005-2013
compatible for BMW 325i E92 I6 2.5L Petrol 2005-2013
compatible for BMW 325i E92 I6 3.0L Petrol 2005-2013
compatible for BMW 330i E92 I6 3.0L Petrol 2005-2013
compatible for BMW 335i E92 I6 3.0L Petrol 2005-2013
compatible for BMW 325 xi E92 I6 2.5L Petrol 2005-2013
compatible for BMW 325 xi E92 I6 3.0L Petrol 2005-2013
compatible for BMW 330 xi E92 I6 3.0L Petrol 2005-2013
compatible for BMW 335 xi E92 I6 3.0L Petrol 2005-2013
compatible for BMW 325i xDrive E92 I6 3.0L Petrol 2005-2013
compatible for BMW 330i xDrive E92 I6 3.0L Petrol 2005-2013
compatible for BMW 335i xDrive E92 I6 3.0L Petrol 2005-2013
compatible for BMW 318i E93 I4 2.0L Petrol 2006-2013
compatible for BMW 320i E93 I4 2.0L Petrol 2006-2013
compatible for BMW 325i E93 I6 2.5L Petrol 2006-2013
compatible for BMW 325i E93 I6 3.0L Petrol 2006-2013
compatible for BMW 330i E93 I6 3.0L Petrol 2006-2013
compatible for BMW 335i E93 I6 3.0L Petrol 2006-2013

OE/Part number

16147163297,16117197076,7163297,7197076,16 11 7 197 076

Specification

Condition: Brand New
Drive Type: Electrical
Fuel Type: Petrol
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥52.83G/H
Pressure(MPa): 0.3MPa
Weight(kg): 0.55-0.6
Inlet Type: SAE J2044 2009
Inlet Quantity: 1
Outlet Type: SAE J2044 2009
Outlet Quantity: 1
Material: Plastic
Housing Material: POM
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear

Package included

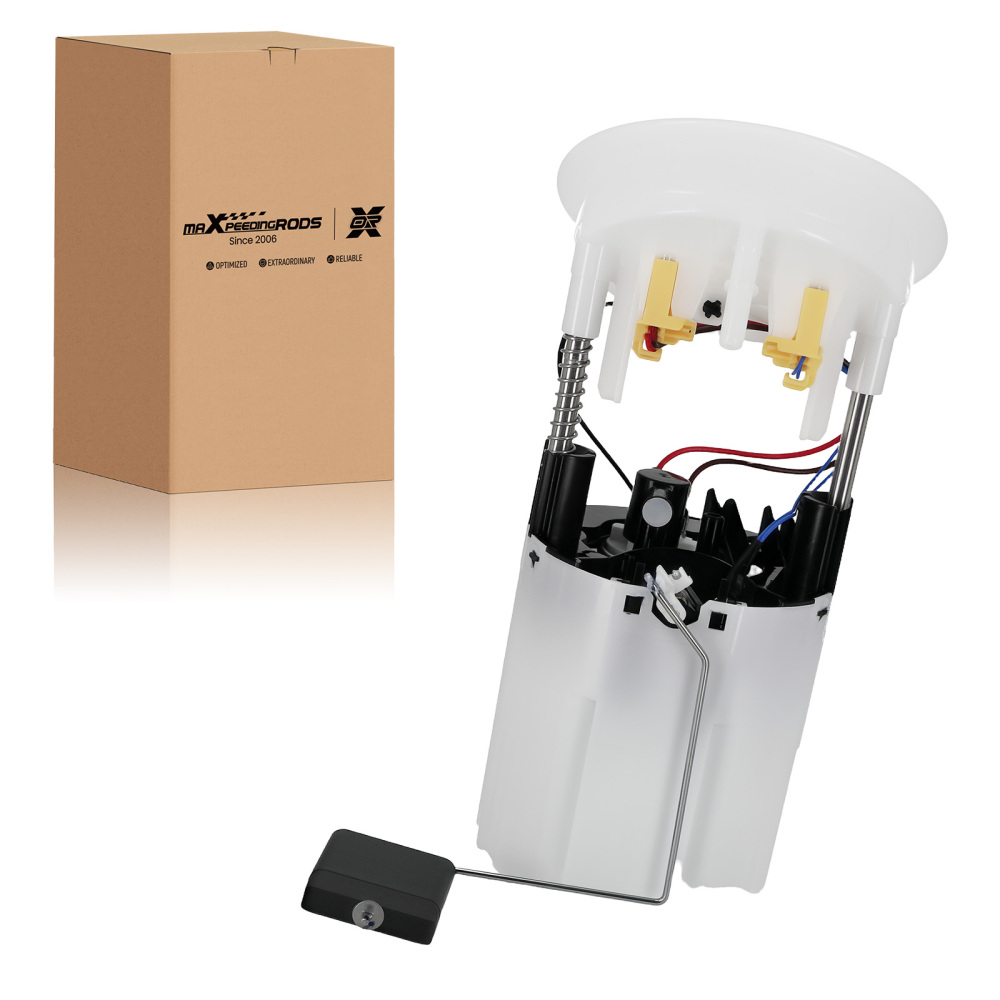

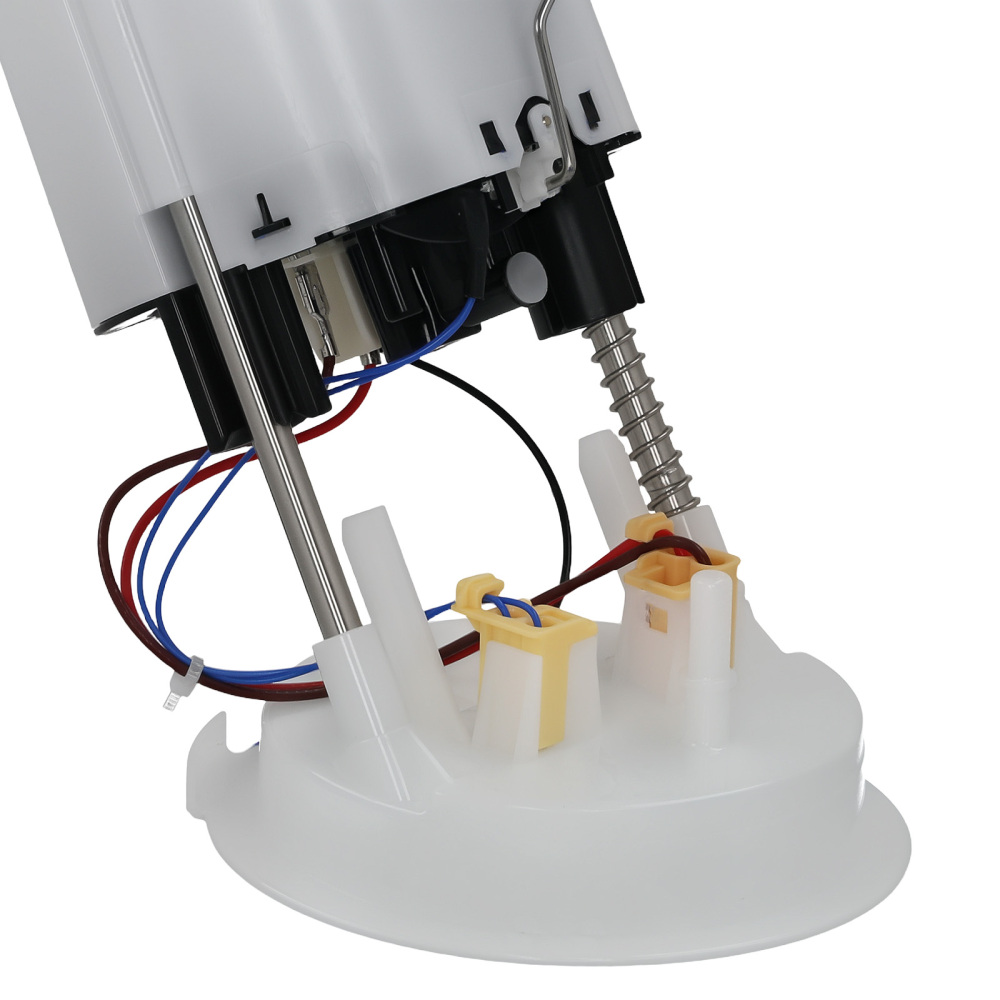

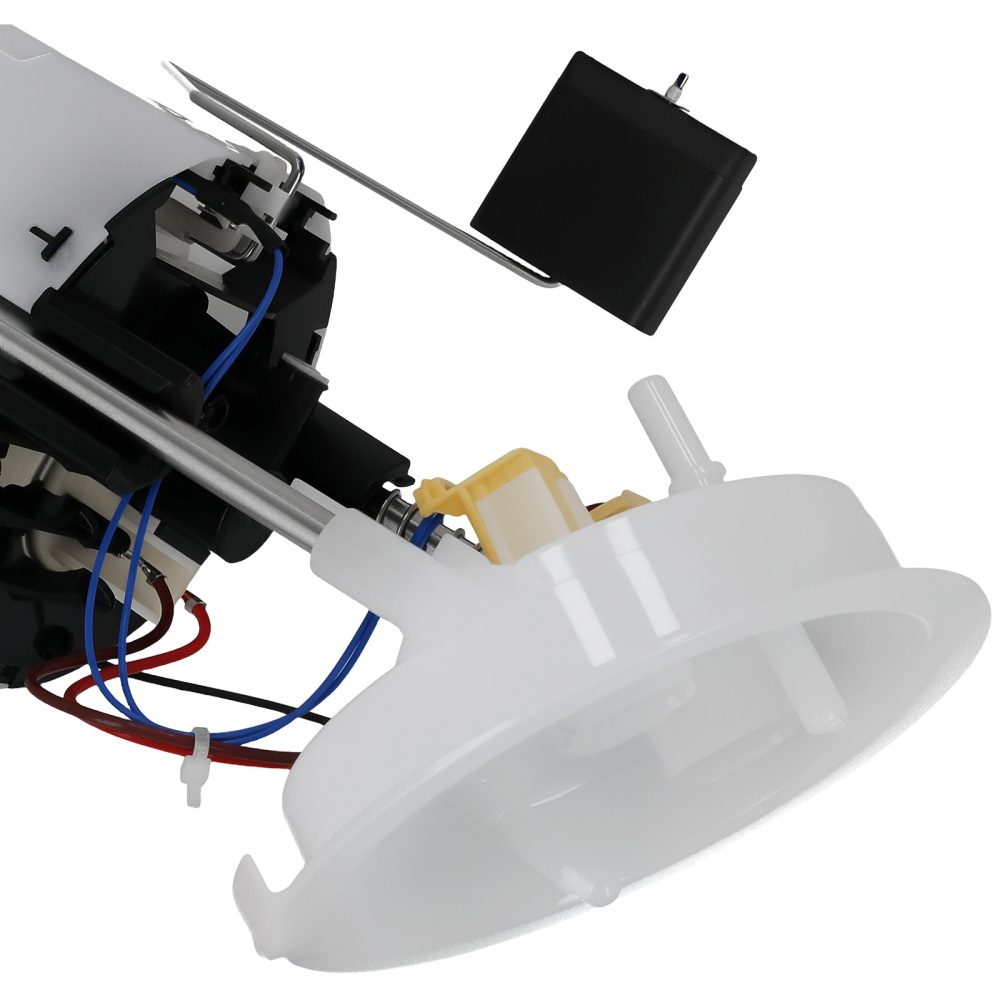

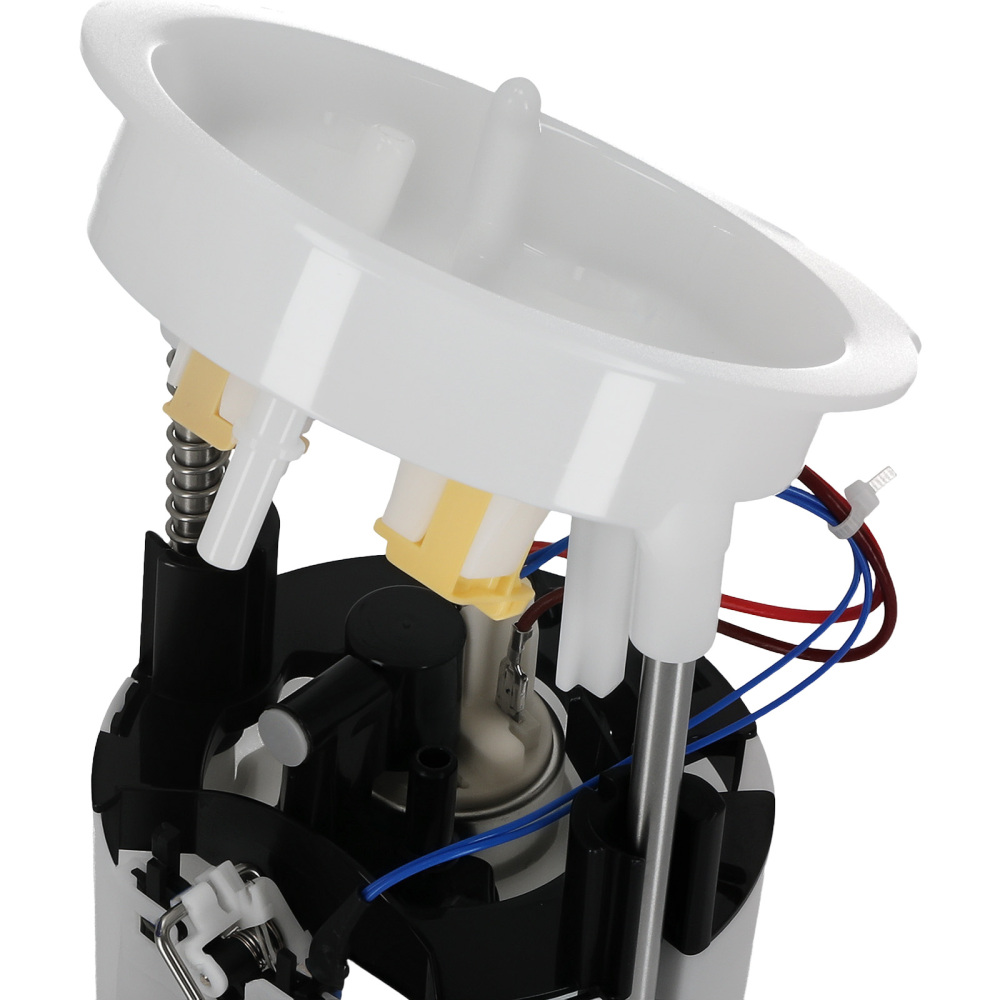

1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

Fuel Pump Assembly Product Characteristics:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Testing:
100% Fuel Level Sensor Testing
100% Fuel Pump Assembly Drop Test
100% Fuel Pump Assembly Noise Test
100% Durability Test of Fuel Ppump Assembly
100% Fuel Pump Assembly Air Tightness Test

Certifications:
CE
IATF16949
IOS14001

Note

Common problems and solutions of fuel pump assembly:
1) Gasoline pump aging: Over time, the internal components of the gasoline pump will gradually wear out, leading to a decrease in pump performance and ultimately resulting in the inability to start.
Solution: Replace the gasoline pump with a new one, ensure to choose a gasoline pump that matches the original vehicle model, and follow the correct installation steps.
2) Circuit malfunction: The operation of the gasoline pump relies on a stable voltage supply. If there are short circuits, open circuits, or poor contacts in the circuit, it may cause the gasoline pump to malfunction.
Solution: Check if the circuit connections are secure and reliable, repair or replace damaged circuit components.
3) Fuel quality issues: Using inferior fuel or fuel containing impurities may cause gasoline pump blockage or increased wear.
Solution: Use high-quality fuel, choose regular gas stations to purchase fuel, and avoid using inferior fuel or fuel containing impurities.
4) Oil level sensor malfunction: The sliding resistor of the oil level sensor is contaminated and corroded, resulting in poor contact between the resistor and the sliding elastic contact.
Solution: Replace the gasoline sensor component.
5) Gas blockage in the gasoline system pipeline: When the fuel tank is running low on fuel or when the temperature is too high in summer, the oil vapor in the pipeline forms a gas blockage. Solution: Wait for the car to cool down for a period of time before restarting, or go to a flat road for a test drive or refueling check.
6) Insufficient pressure: If it is difficult to start the car in the morning or after parking for 1 hour, it may require multiple ignitions to start, which may be due to insufficient pressure in the gasoline pump.
Solution: Check the pressure regulating valve of the gasoline pump. If the pressure is released, the gasoline pump needs to be replaced.
7) Motor malfunction: The most common issue is when the car is parked properly, but it fails to start when driving again. This may be caused by the carbon brush of the gasoline pump motor getting stuck.
Solution: Try tapping and shaking the fuel tank with a wooden stick while starting the car. If successful, it is recommended to check and replace the gasoline pump in a timely manner to avoid breaking down on the road.
