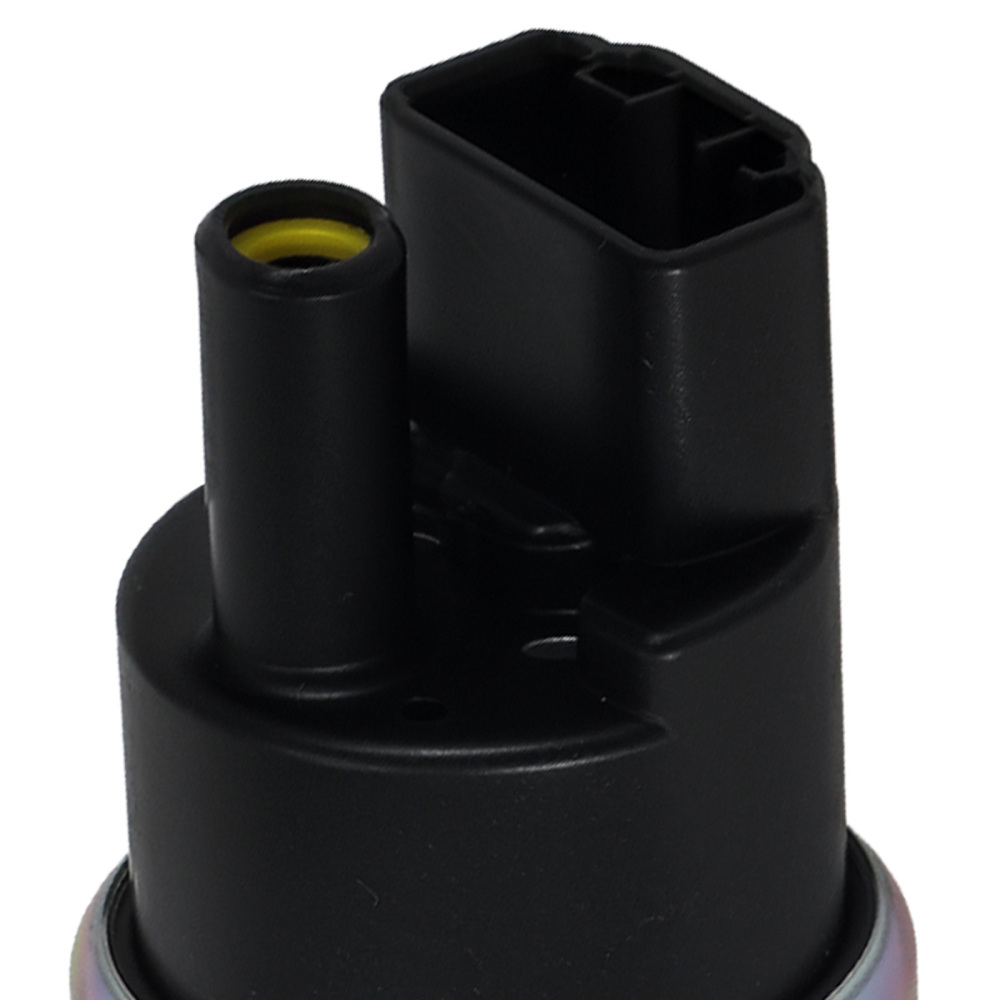

Electric Fuel Pump Kit compatible for Harley-Davidson Softail Heritage Springer 2002 2003

Application

Compatible for Harley-Davidson 15th Anniversary Fat Boy FLSTF-I 05
compatible for Harley-Davidson Fat Boy FLSTF-I 01-07
compatible for Harley-Davidson Heritage Softail FLST I 06
compatible for Harley-Davidson Deluxe FLSTN-I 05-07
compatible for Harley-Davidson Heritage Springer FLSTS-I 02-03
compatible for Harley-Davidson Heritage Classic FLSTC-I 02-07
compatible for Harley-Davidson Softail Night Train FXSTB I 02-07
compatible for Harley-Davidson Softail Springer Classic FLSTSC 07
compatible for Harley-Davidson Softail Springer Classic FLSTSC I 05-07
compatible for Harley-Davidson Softail Springer FXSTS I 02-07
compatible for Harley-Davidson Softail Standard FXST 07
compatible for Harley-Davidson Softail Standard FXST I 02-07

OE/Part number

62897-01B, 6289701B, 7512606A, 7513206, 6134200A, 6289701, 6289701A

Specification

Condition: New
Type: Fuel Pump
Drive Type: Electrical
Fuel Type: Gasoline
Voltage: 12V
Terminal Quantity: 2 Pins
Flow Rate: 35.6 GPH
Pressure: 43.5 PSI
Inlet Type: Direct access
Inlet Quantity: 1
Inlet Diameter：13/32 Inch
Outlet Type: Thread
Outlet Quantity: 1
Outlet Diameter：11/32 Inch
Material: Plastic,stainless steel,rubber,aluminum
Internal Or External Strainer: External

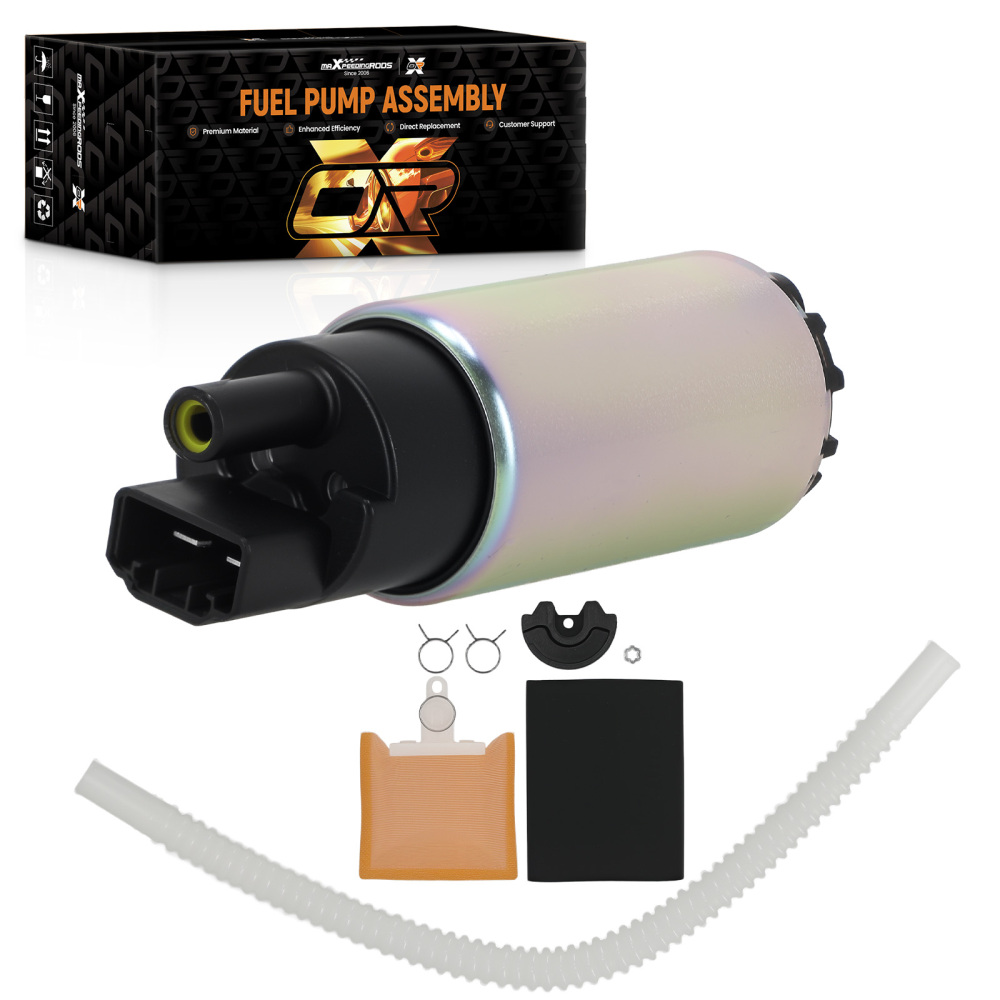

Package included

1X Fuel Pump Kit
as shown in the pictures

Feature

Armature：
1. Commutator adopts imported carbon sheet, high-temperature welding, more dense, less
spark, more wear-resistant, strong oxidation resistance, compatible with a variety of
fuels, work efficiency increased by 10%, life expectancy increased by 50%.
2. Core use cold rolled non-oriented DW470 silicon steel sheet, high permeability, low coercivity, low
hysteresis loss.
3. Insulation paper potect armature under more than 1000V breakdown voltage.
4. Temperature resistance of enameled wire: 220℃.
5. Over-molded armature, low fluid resistance. full-automatic production to ensure consistency.

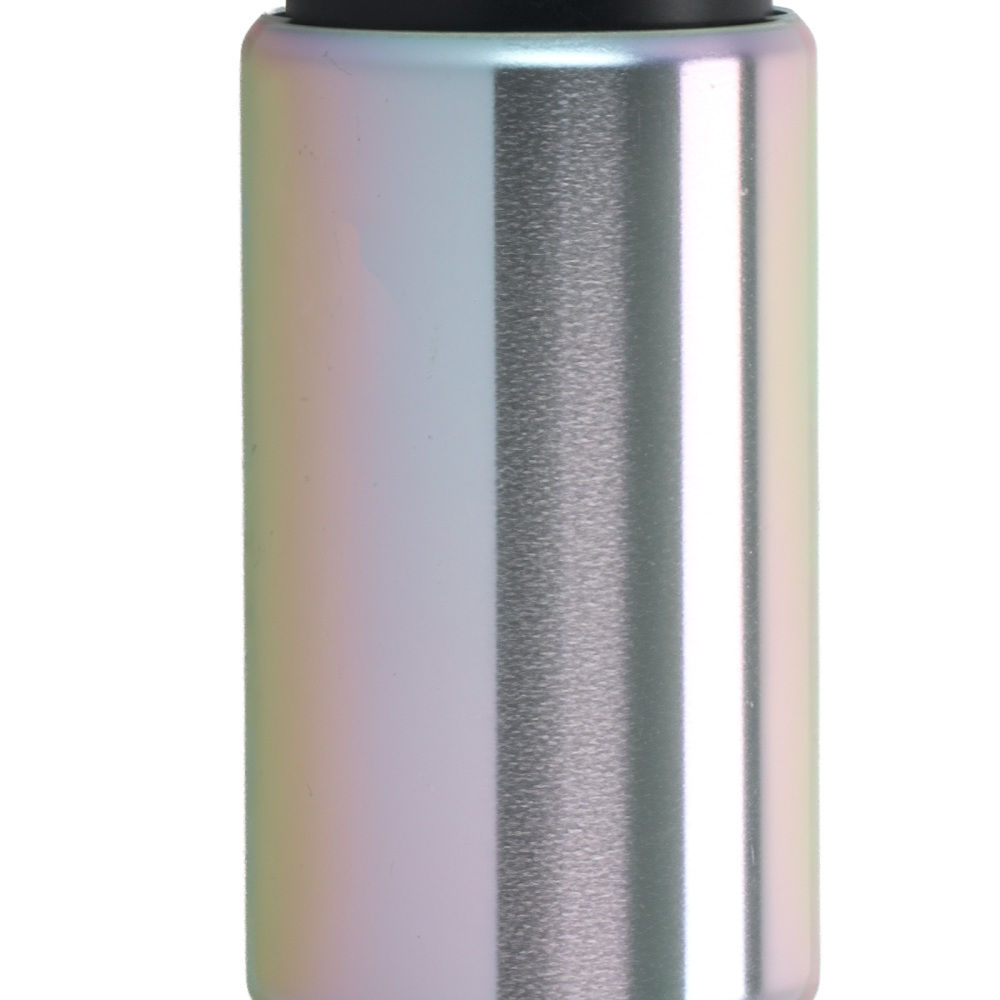

Pump Housing：
1. The selection of high-quality carbon seamless steel pipe, effectively
Eliminate electromagnetic eddy current, reduce magnetic loss.
2. Bilateral chamfering, one-time full section of the inner hole processing, concenTricity 0.02mm, to ensure that the armature and tile air gap, reduce pump core
Vibration, reduce operating noise, increase product life.
3. Environmental plating, strong corrosion resistance.

Turbine Impeller：
1. Scoop type blade, smooth fluid running track, high oil suction efficiency, low noise,
effective suppression of vibration.
2. Imported double-sided grinder grinding, high-energy wave cleaning, smoother operation.
3. Balance hole design, reduce the friction with the pump body, increase the life of the pump.

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
