Electric Fuel Pump compatible for Nissan Cube S SL Wagon 1.8L 2009-2014 GAM1149

Application

Compatible for Nissan Cube l4 1.8L 2009-2014
compatible for Nissan Versa l4 1.6L 2009-2011
compatible for Nissan Versa l4 1.8L 2007-2012

OE/Part number

E8855M,P76612M,FG1149,SP4022M,170401FC0B,170409EG0B,170409EG0C,17040EM30A,17040EM31A,17040ZR70B,150314,1234840,2920658

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥23.78
Pressure(MPa): 0.3
Weight(kg): 1.50
Inlet Type: /
Inlet Quantity: 0
Outlet Type: SAE J2044 2009
Outlet Quantity: 1
Material: Plastic
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : No
Certifications:
CE
IATF16949
IOS14001

Package included

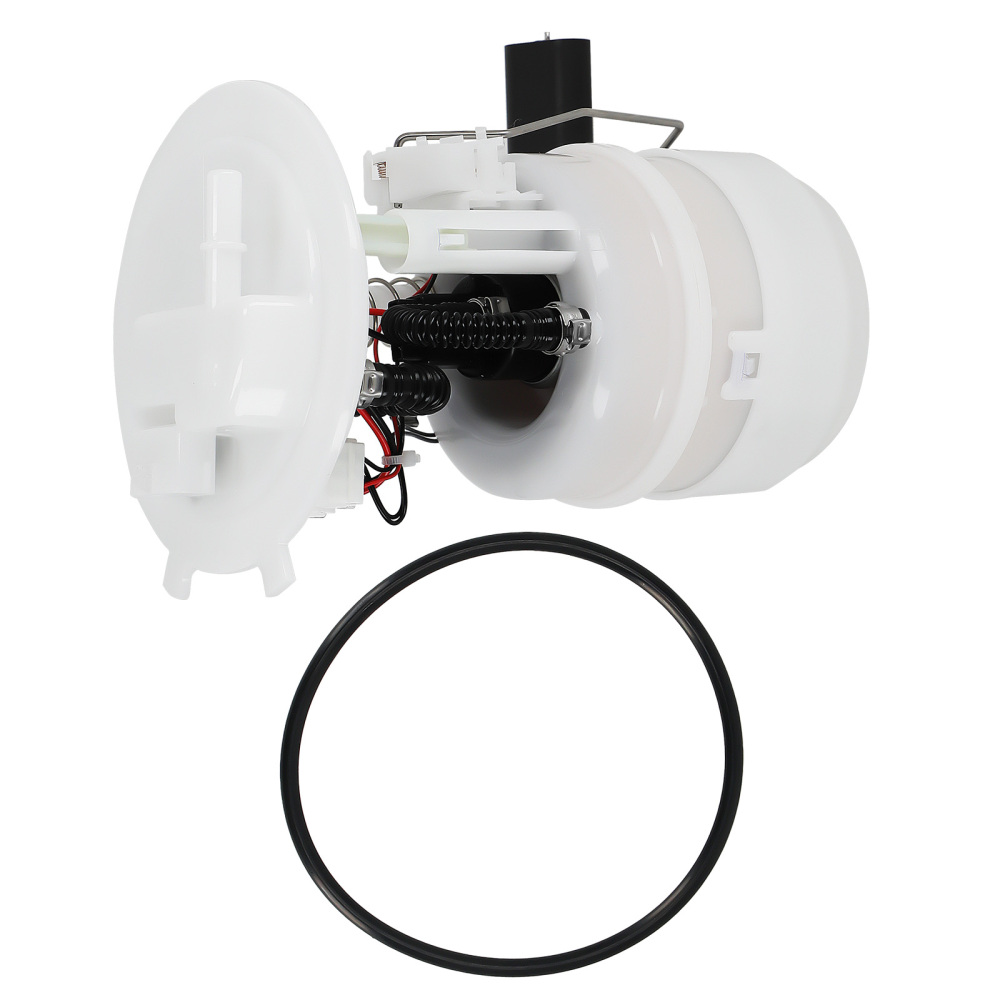

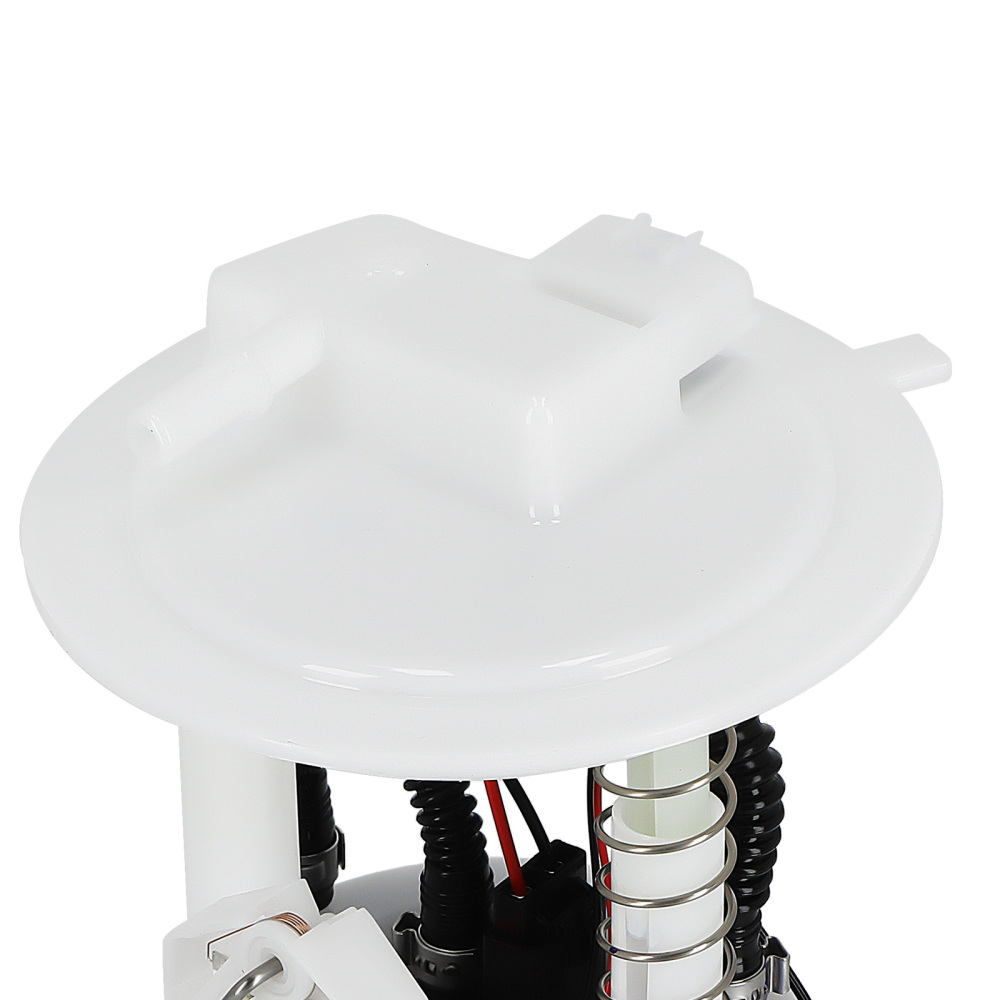

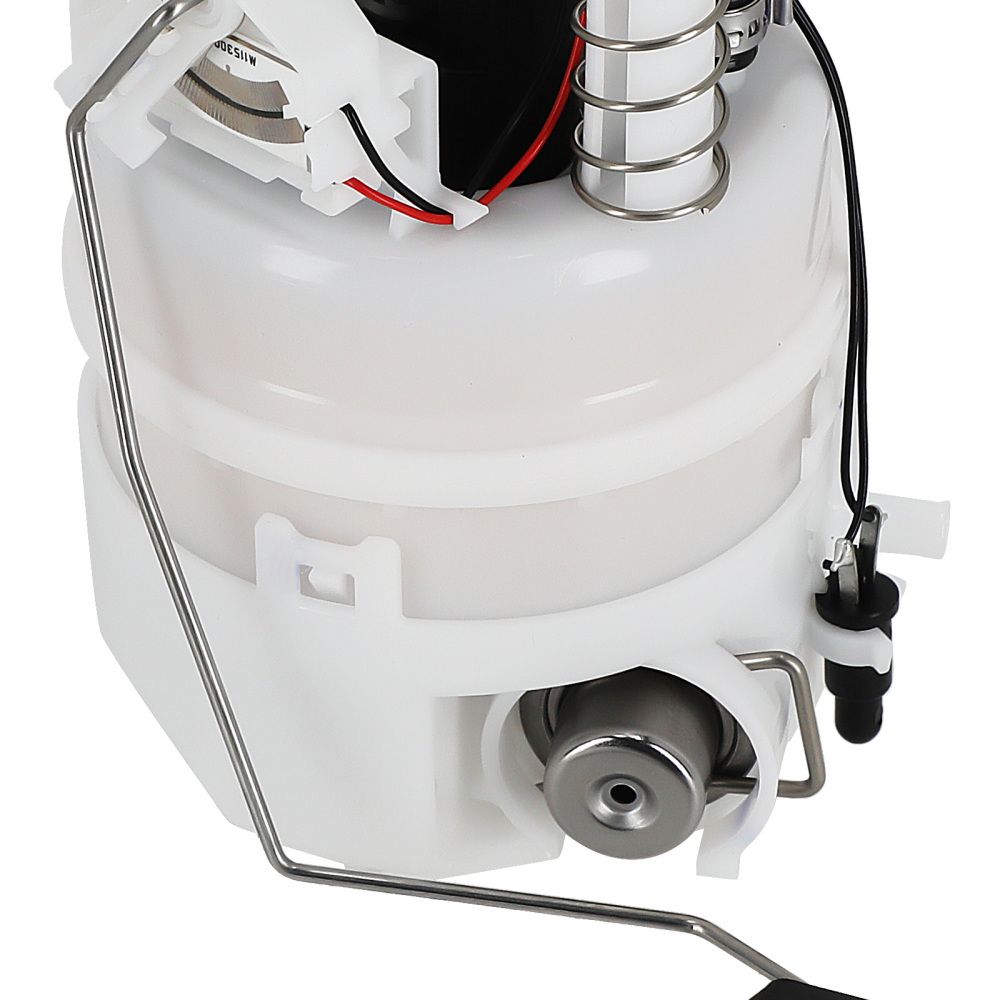

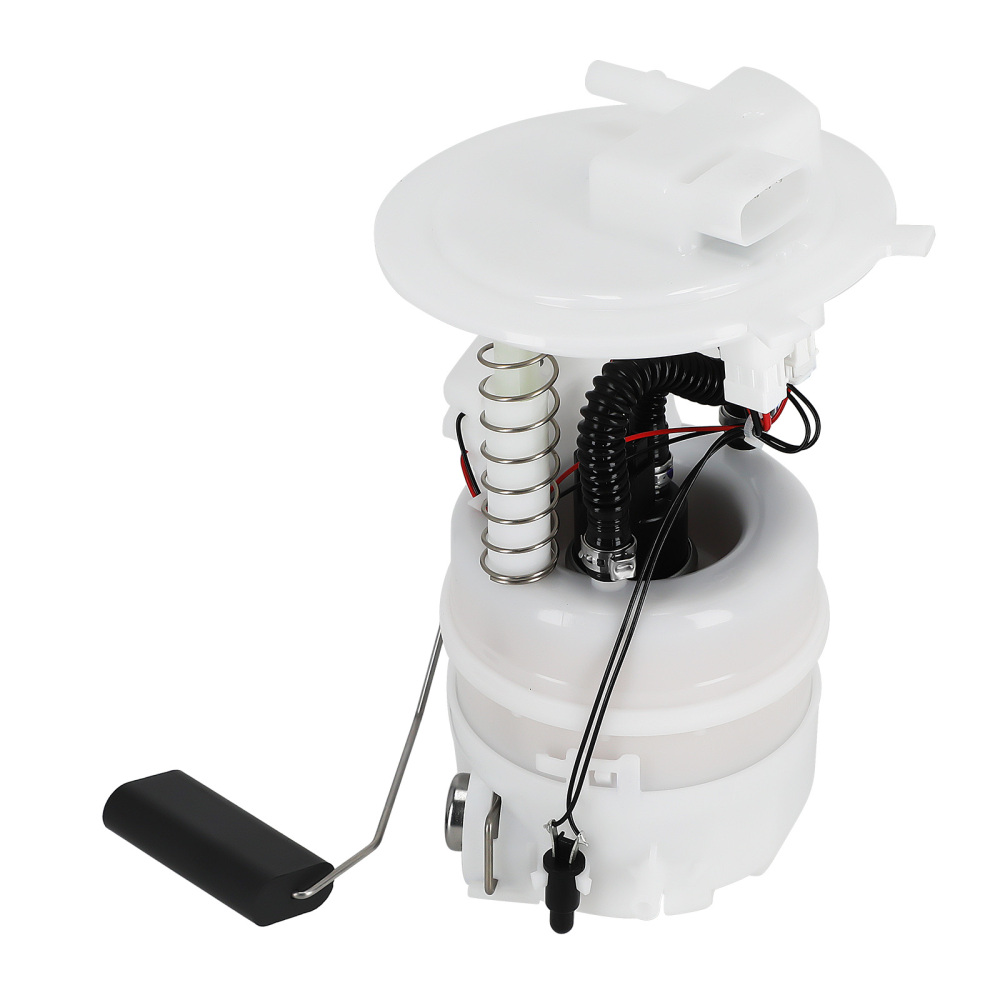

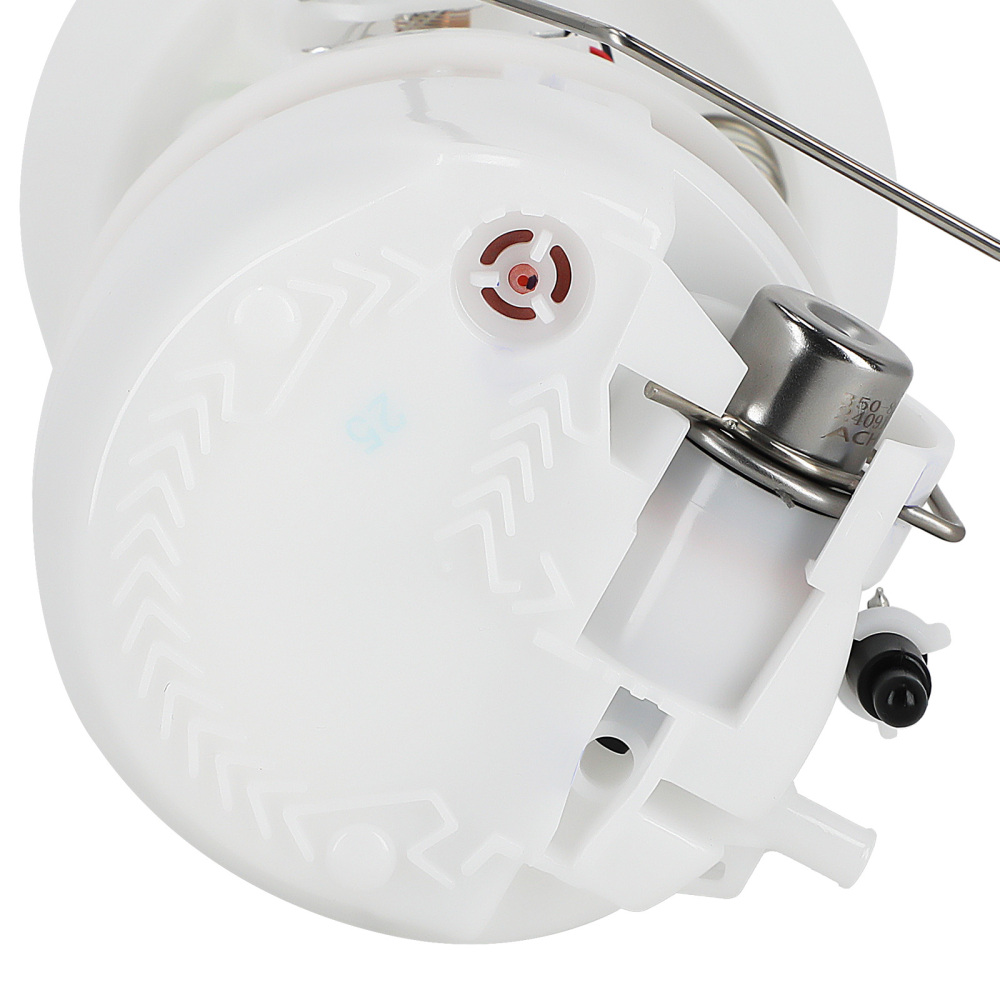

1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)

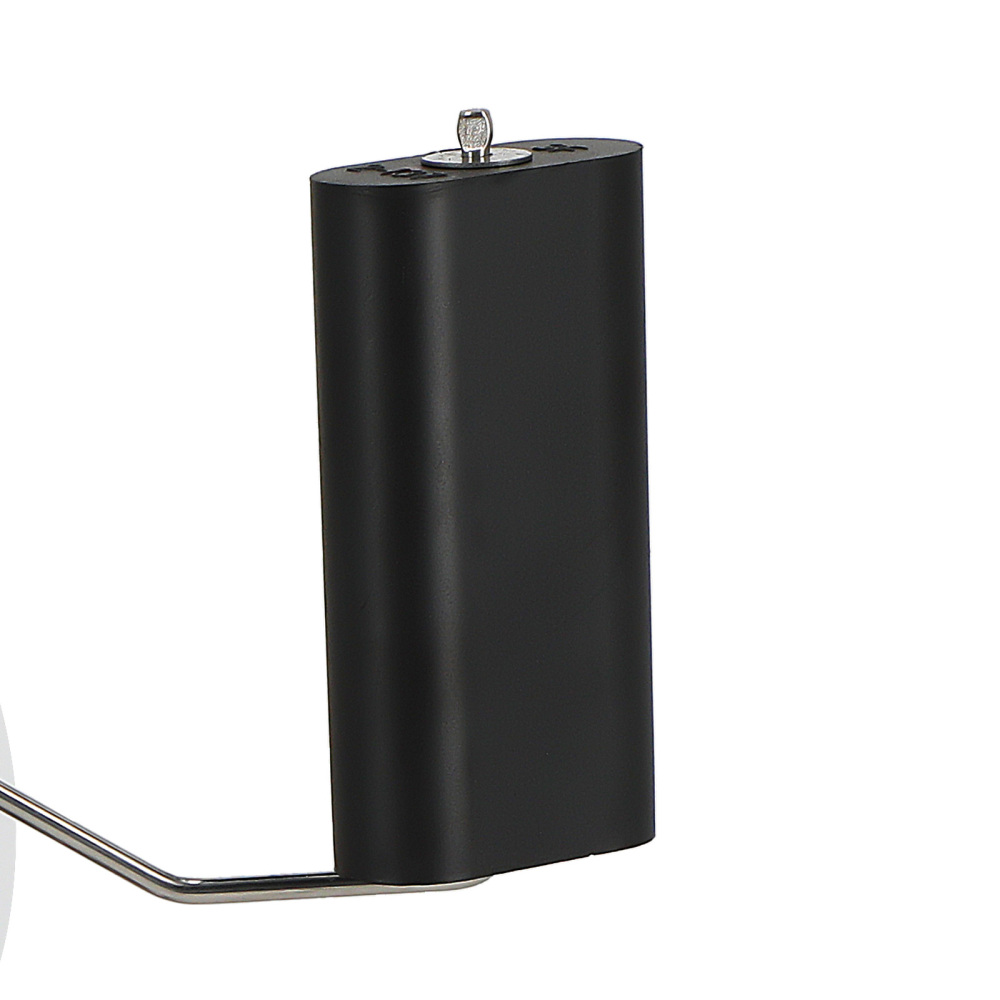

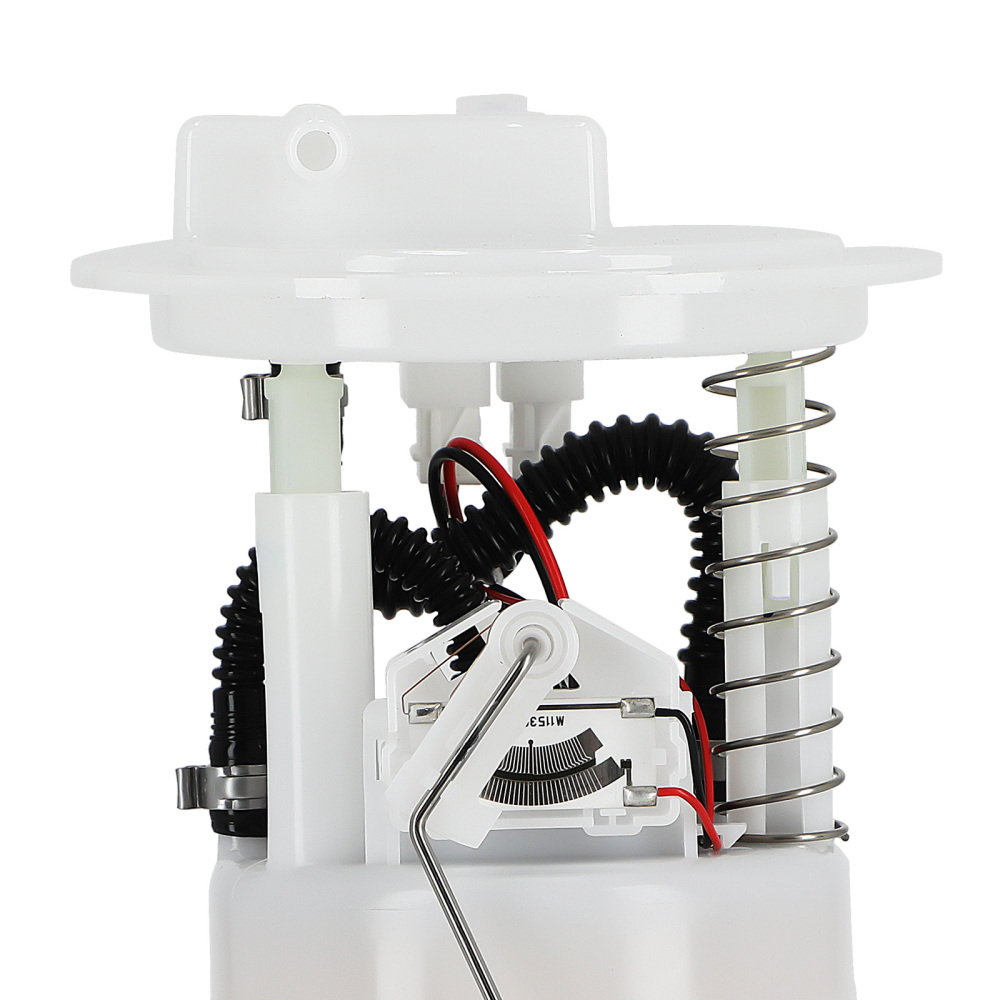

2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
