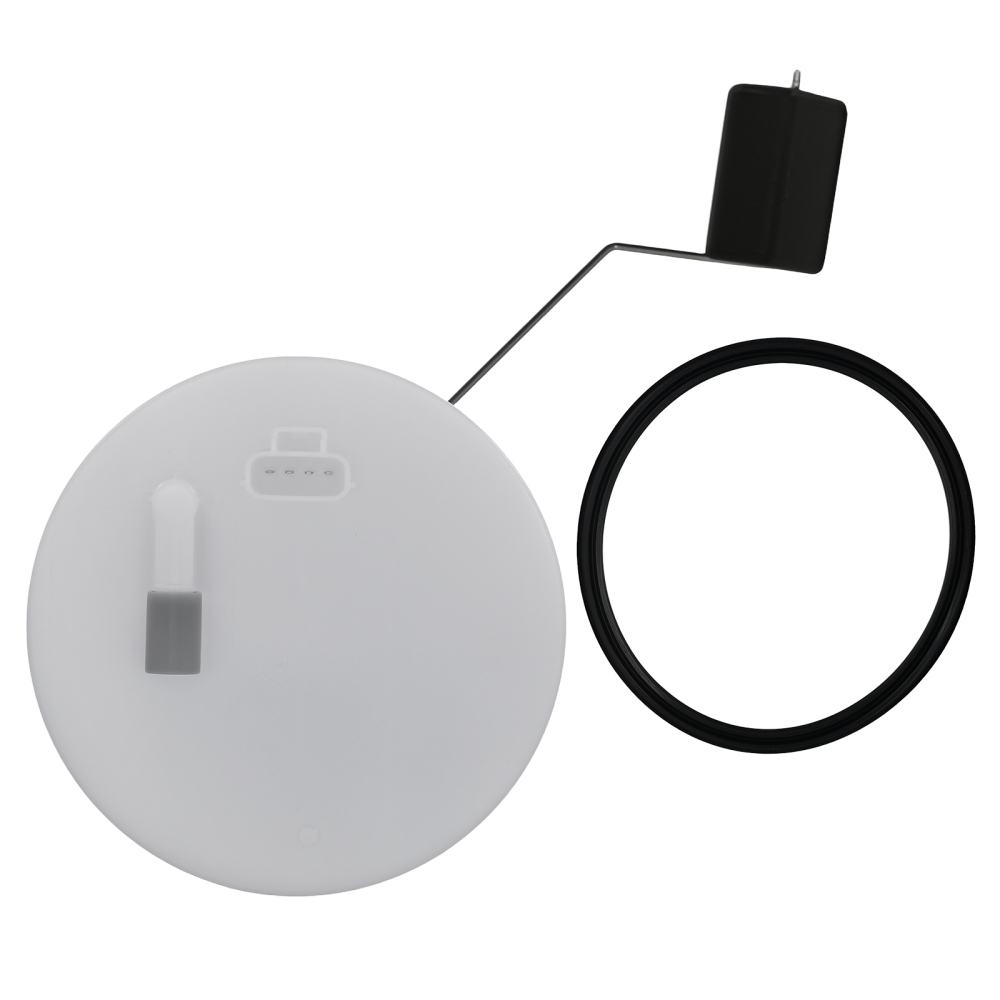

Electric Fuel Pump Assembly compatible for Toyota Yaris 2019-2020 L4 1.5L 23221WB002

Application

Compatible for Scion iA L4 1.5L 2016
compatible for Toyota Yaris L4 1.5L Excluding Core; S Model 2019-2020
compatible for Toyota Yaris iA L4 1.5L 2017-2018

OE/Part number

FG2137,23217WB001,23221WB002,23280WB001,77020WB001,

Specification

Condition: New
Type: Fuel Pump Assembly
Drive Type: Electrical
Fuel Type: Gasoline
Voltage: 12V
Terminal Quantity: 4 Pins
Flow Rate: 30.4 GPH
Pressure: 58 PSI
Inlet Type: Strainer
Outlet Type: Quick Connect
Outlet Quantity: 1
Outlet Diameter：3/8 Inch
Material: Plastic,stainless steel
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Fuel Filter Included: Yes
Internal Or External Strainer: Internal
Placement on Vehicle: Rear (Fuel Tank)

Package included

1X Fuel Pump Module Assembly
Showing as the picture

Feature

1.100% NEW.
Every product has quality inspection before leaving the factory.
2.High Quality
Components and materials ensure a longer service life.
3.Direct Fit
Less expensive, easier to install.

Note

1.Professional installation is highly recommended.
2.Please make sure it will fit your machine before purchasing it.
3.Please check pictures for more details.
