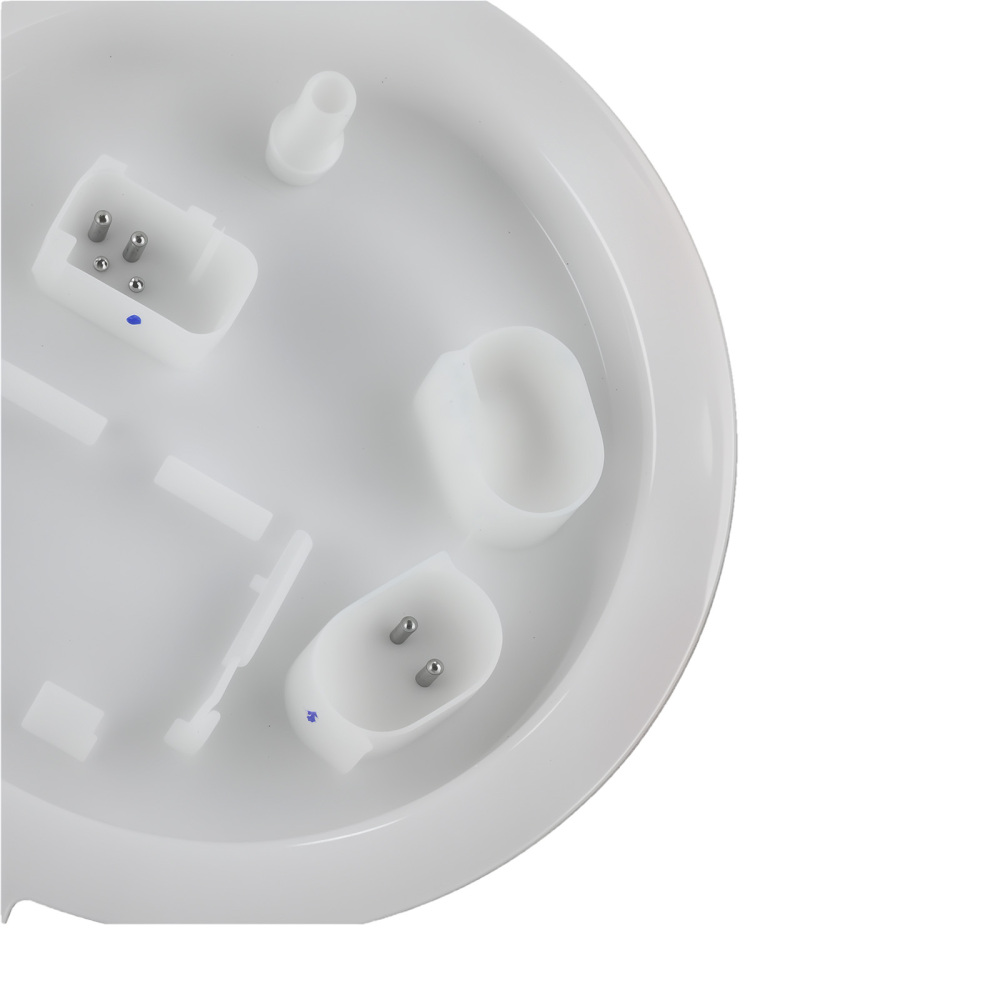

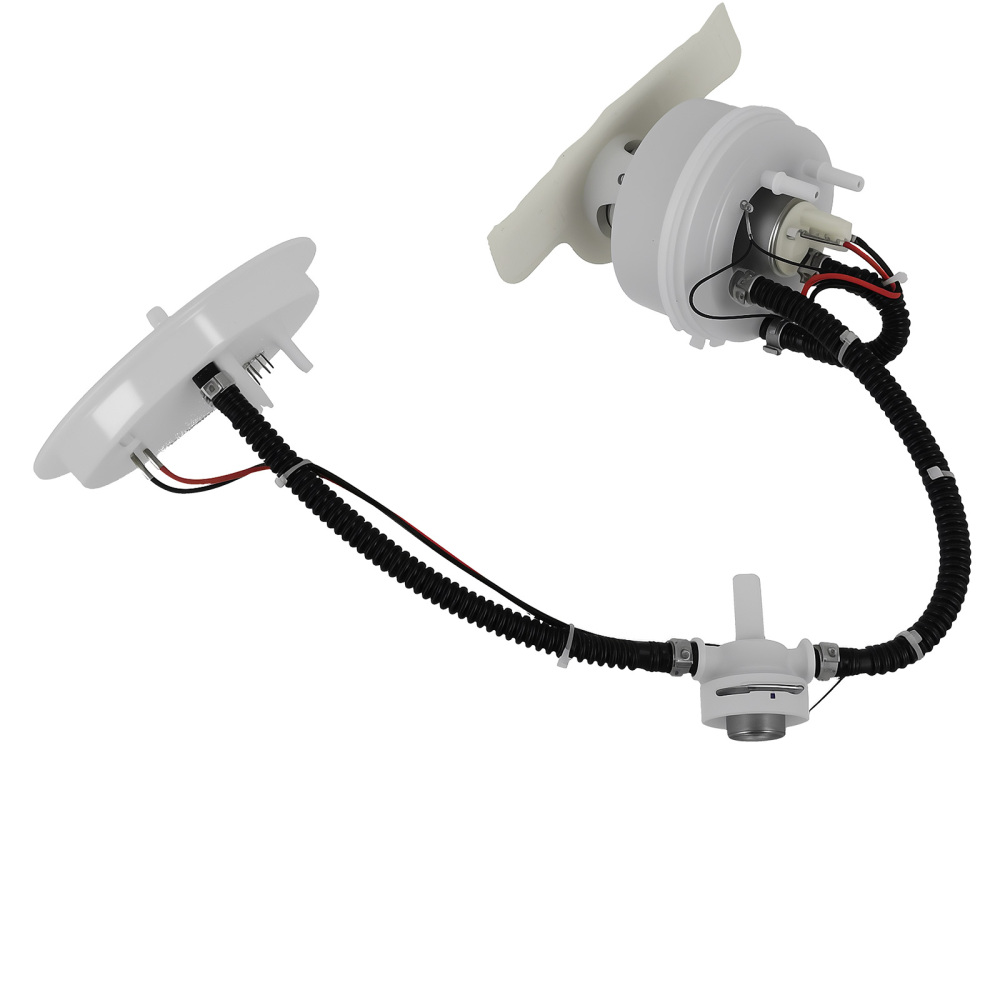

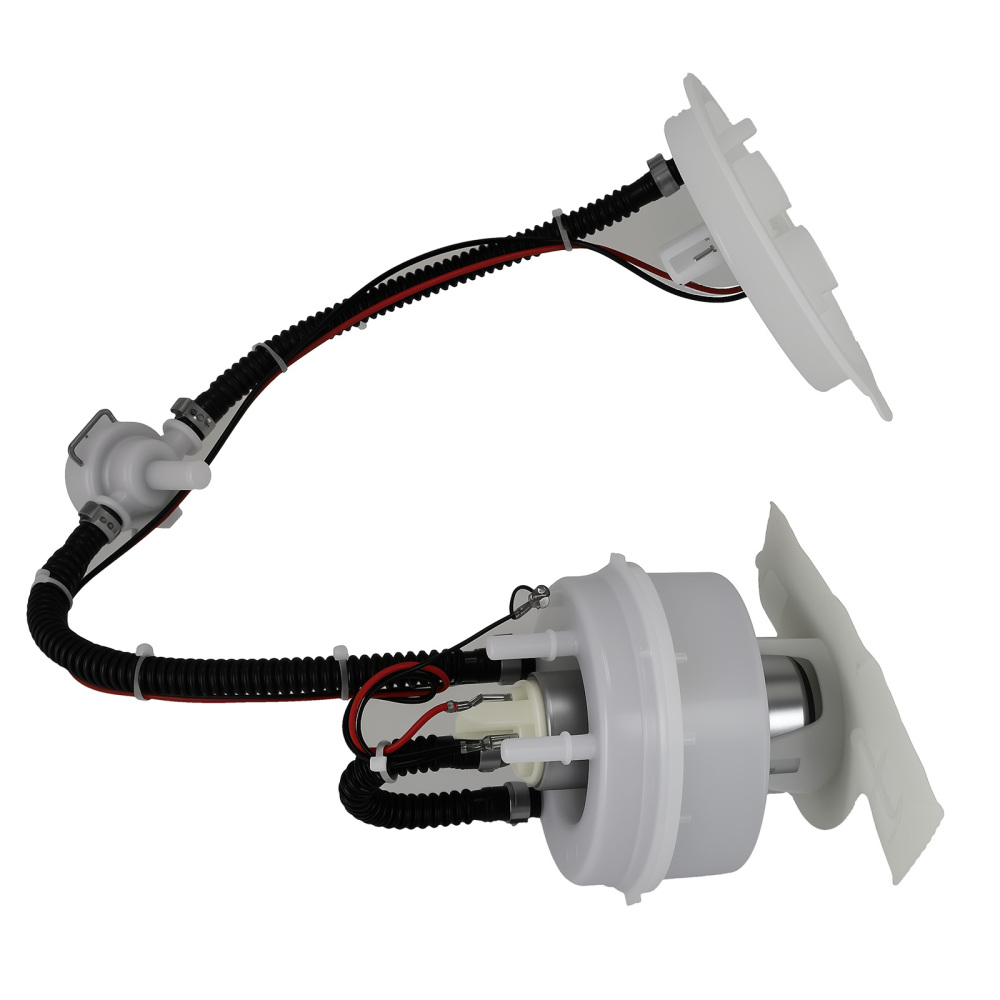

Electric Fuel Pump Assembly compatible for BMW 528i / 528i xDrive F10 2012-2016 16117341301

Application

Compatible for BMW 528i F10 L4 2.0L 2012-2016
compatible for BMW 528i xDrive F10 L4 2.0L 2012-2016
compatible for BMW 535i F10 L6 3.0L 2011-2016
compatible for BMW 535i GT F10 L6 3.0L 2011-2017
compatible for BMW 535i GT xDrive F10 L6 3.0L 2011-2017
compatible for BMW 535i xDrive F10 L6 3.0L 2011-2016
compatible for BMW 640i F12 L6 3.0L 2012-2015
compatible for BMW 640i Gran Coupe F12/G32 L6 3.0L 2013-2019
compatible for BMW 640i xDrive F12/G32 L6 3.0L 2014-2018
compatible for BMW 640i xDrive Gran Coupe F12/G32 L6 3.0L 2014-2019

OE/Part number

FG1550,SP5117M,P77077M,16117341301,CFG1550,A30519,16 11 7 341 301,16, 11, 7, 341, 301,P77077M-4

Specification

Drive Type: Electrical
Fuel Type: Petrol
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥55.4
Pressure(MPa): 0.3
Weight(kg): 1.8-2.3
Inlet Type: Quick Connector
Inlet Quantity: 1
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: Plastic
Housing Material: Plastic
Fuel Sending Unit Included: No
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: No
Float Included: No
Fuel Reservoir Included: No
Fuel Strainer Included: Yes

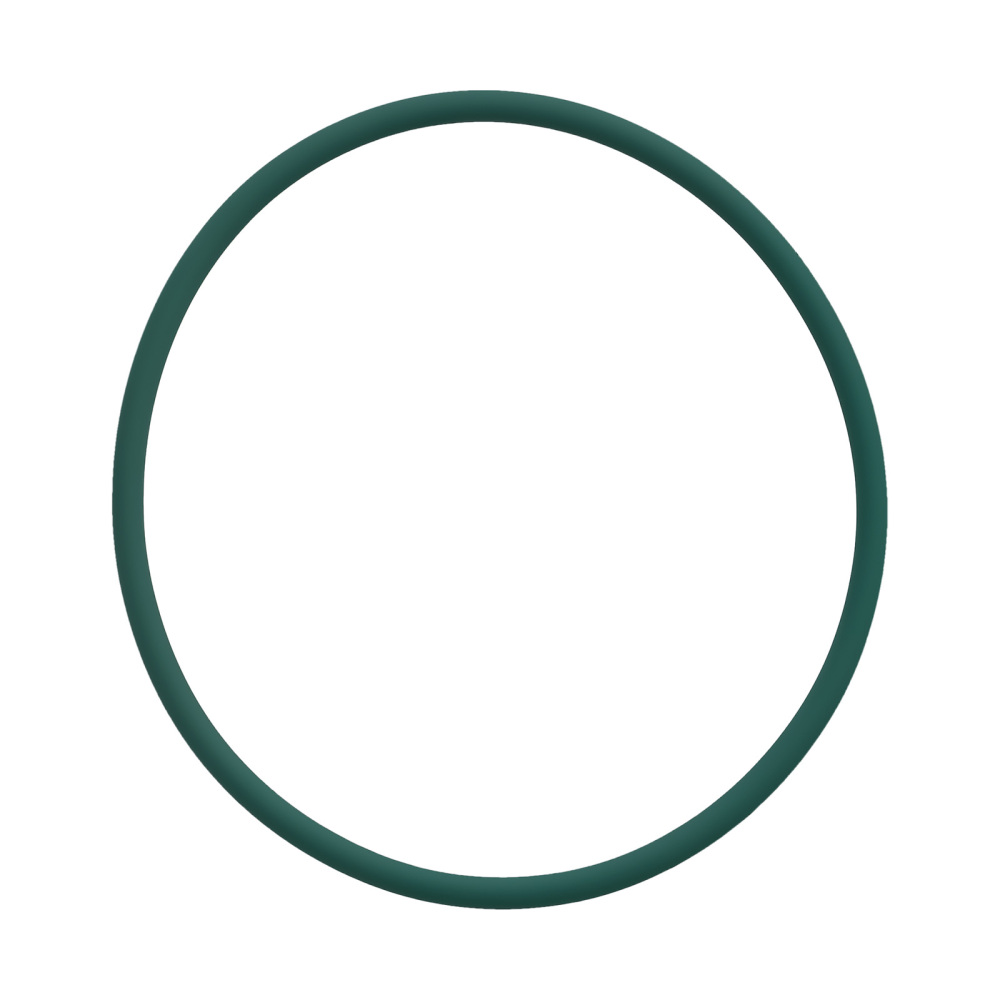

Seal Ring Included : Yes
Placement on Vehicle: Rear

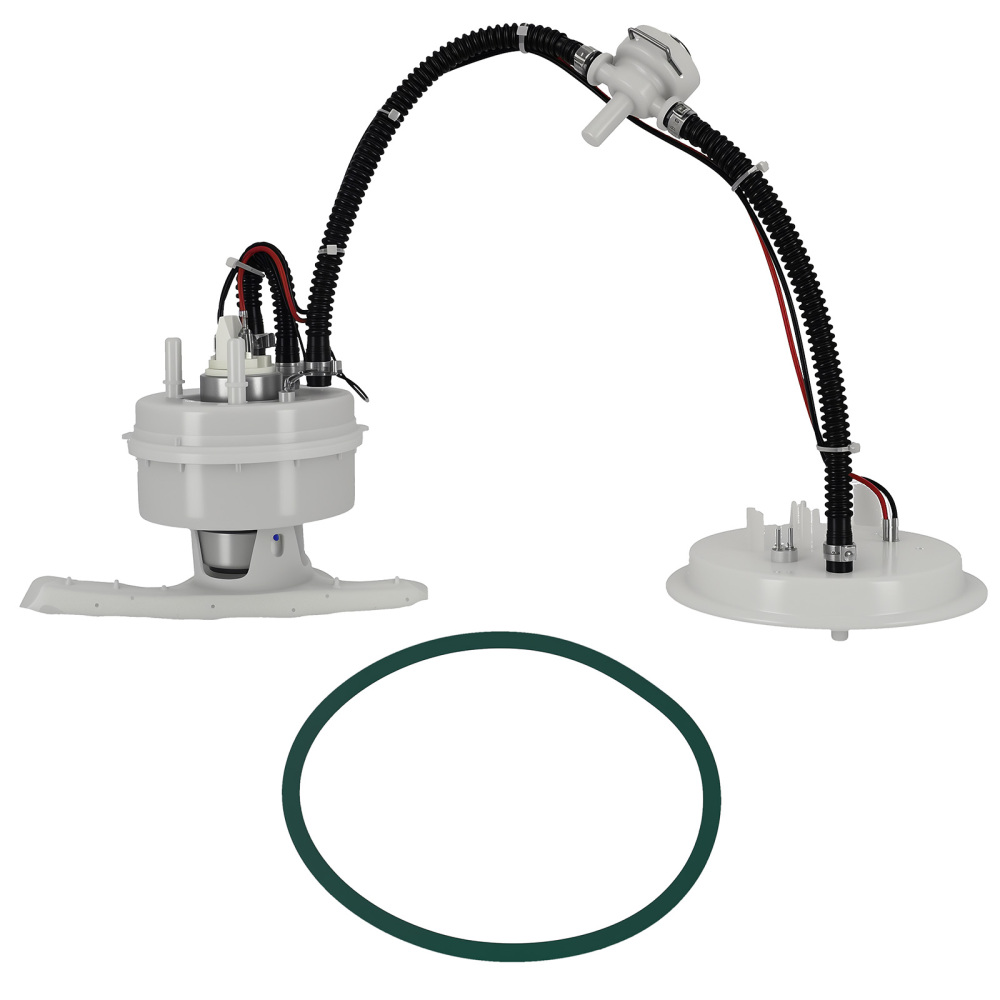

Package included: 1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
