Diesel Fuel Pump Assembly for 2008-2010 compatible for Ford F-250 F-350 Super Duty 6.4L V8

Application

Compatible for Ford F-250 Super Duty V8 6.4L 2008-2010 Diesel In-Line
compatible for Ford F-350 Super Duty V8 6.4L 2008-2010 Diesel In-Line
compatible for Ford F-450 Super Duty V8 6.4L 2008-2010 Diesel In-Line
compatible for Ford F-550 Super Duty V8 6.4L 2008-2010 Diesel In-Line

OE/Part number

8C3Z9G282A,8C3Z-9G282-A,PFB95,FTP6

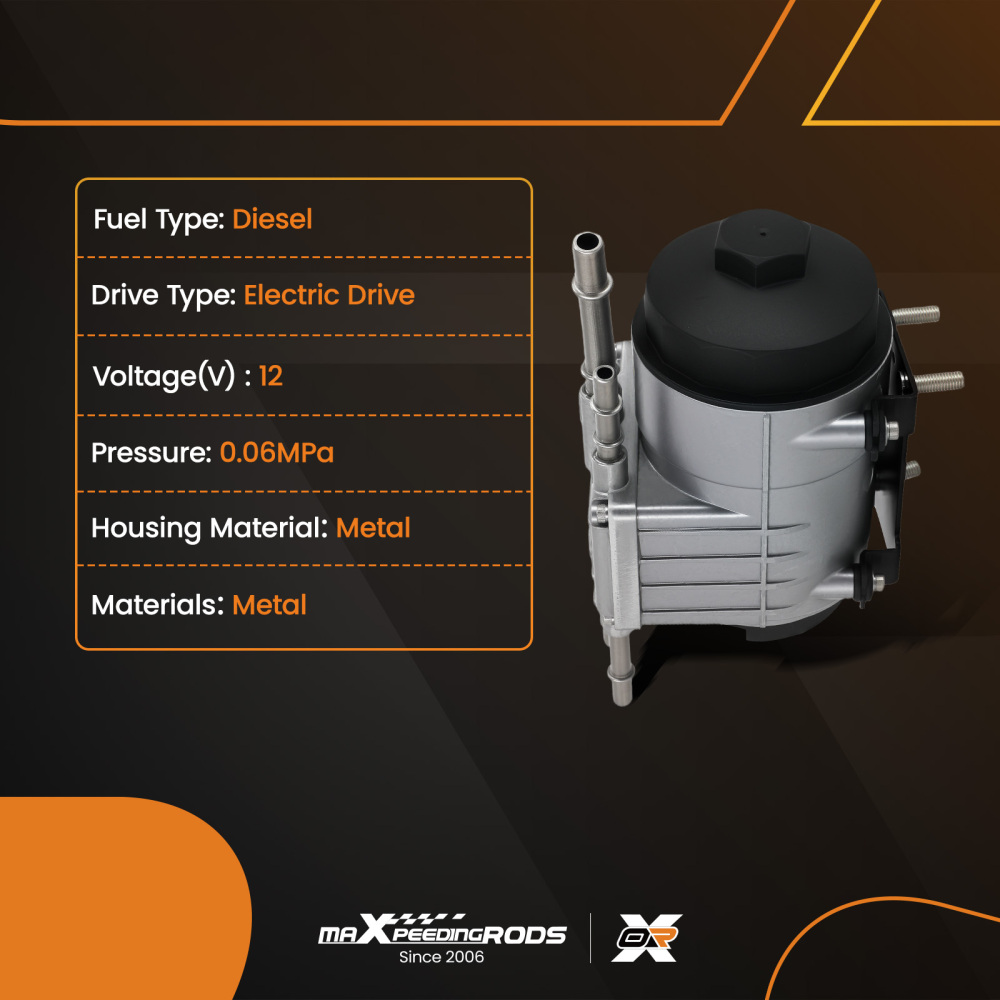

Specification

Condition: New
Type: Fuel Pump
Drive Type: Electrical
Fuel Type: Diesel
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥31.7G/h
Pressure(MPa): 0.06MPa
Weight(kg): 2.5
Inlet Type: quick joint
Inlet Quantity: 1
Inlet Size：φ12.61±0.2
Outlet Type: quick joint
Outlet Quantity: 1
Outlet Size：φ12.61±0.2
Material: Metal
Housing Material: Metal
Fuel Sending Unit Included: Yes
Fuel Filter Included: Yes
Internal Or External Strainer: Internal
Placement on Vehicle: In tank
Packaging Type: Box
Fitment Type: Direct Replacement

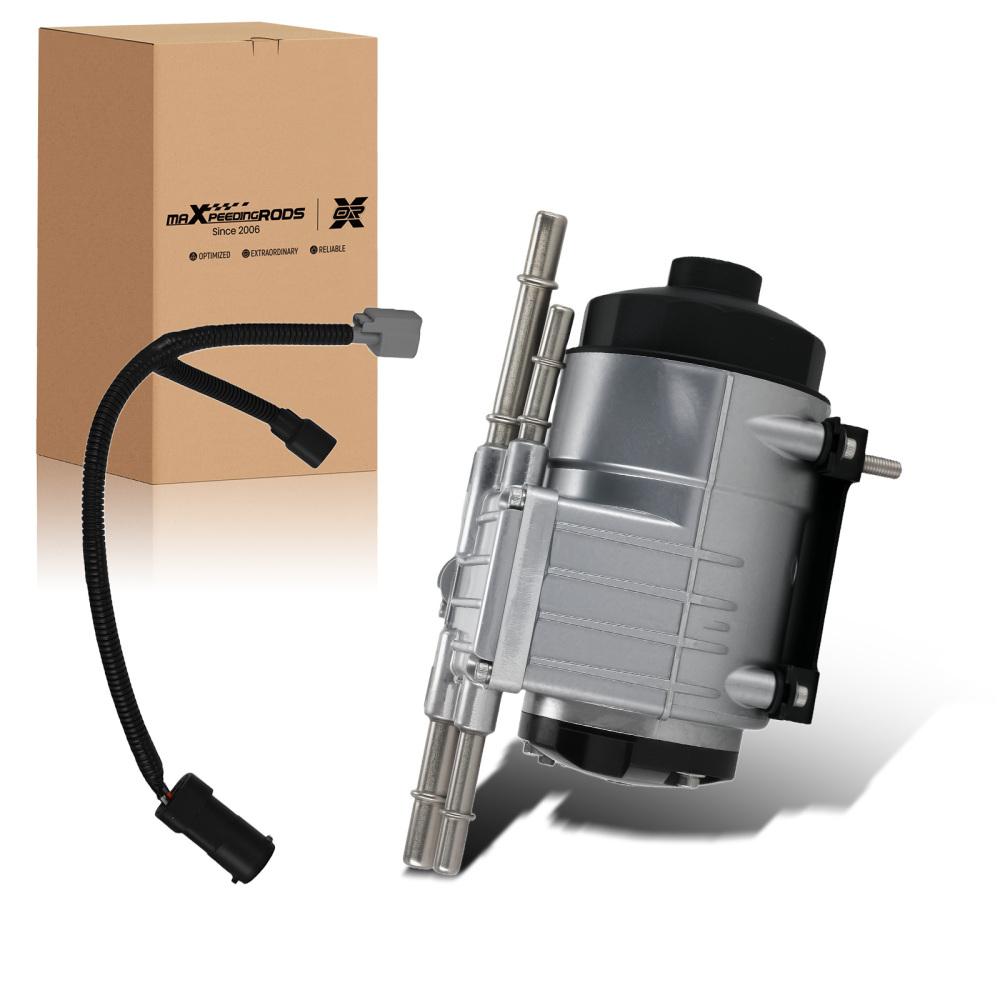

Package included

Fuel Pump And Filter Assembly
(as shown in the pictures)

Feature

Armature：
1. Commutator adopts imported carbon sheet, high-temperature welding, more dense, less
spark, more wear-resistant, strong oxidation resistance, compatible with a variety of
fuels, work efficiency increased by 10%, life expectancy increased by 50%.
2. Core use cold rolled non-oriented DW470 silicon steel sheet, high permeability, low coercivity, low
hysteresis loss.
3. Insulation paper potect armature under more than 1000V breakdown voltage.
4. Temperature resistance of enameled wire: 220℃.
5. Over-molded armature, low fluid resistance. full-automatic production to ensure consistency.

Pump Housing：
1. The selection of high-quality carbon seamless steel pipe, effectively
Eliminate electromagnetic eddy current, reduce magnetic loss.
2. Bilateral chamfering, one-time full section of the inner hole processing, concenTricity 0.02mm, to ensure that the armature and tile air gap, reduce pump core
Vibration, reduce operating noise, increase product life.
3. Environmental plating, strong corrosion resistance.

Turbine Impeller：
1. Scoop type blade, smooth fluid running track, high oil suction efficiency, low noise,
effective suppression of vibration.
2. Imported double-sided grinder grinding, high-energy wave cleaning, smoother operation.
3. Balance hole design, reduce the friction with the pump body, increase the life of the pump.

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
3.Due to the different display and different light, the picture may not reflect the actual color of the item.
