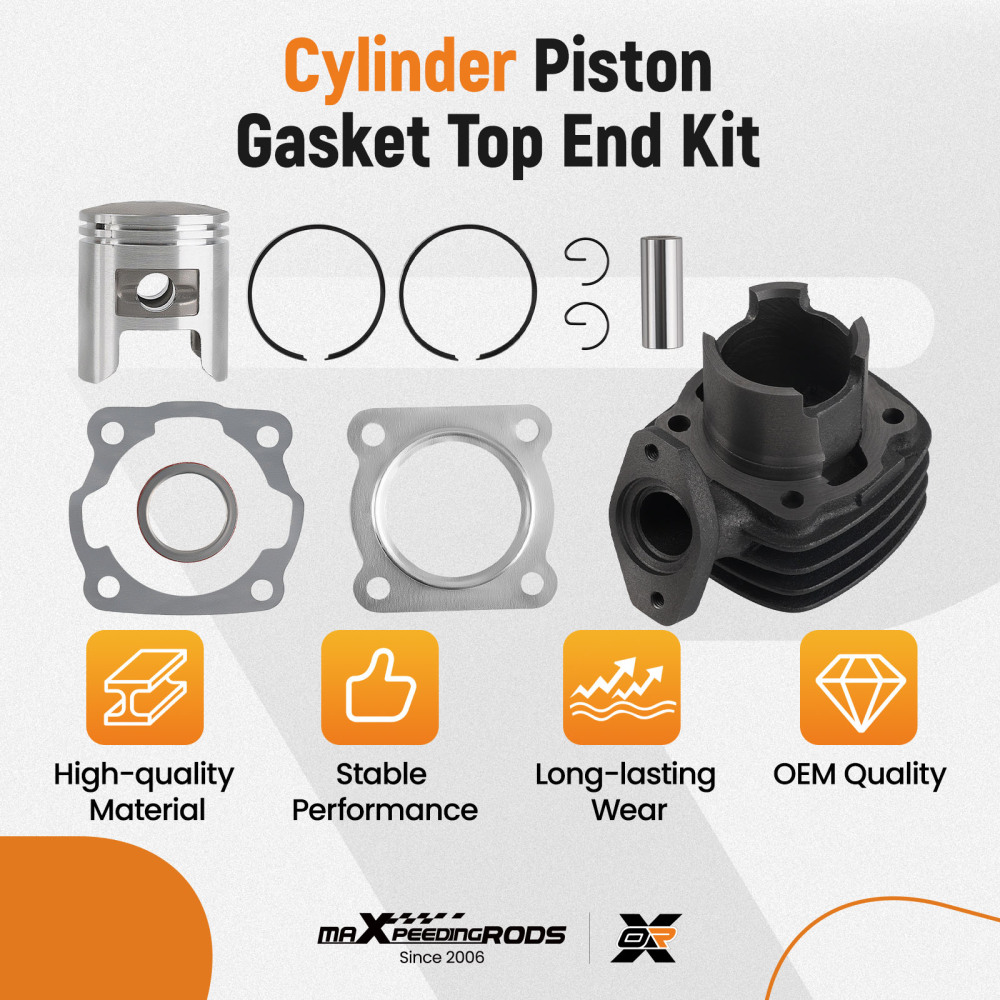

Cylinder Piston Gasket Top End Kit compatible for Honda NQ50 Spree 1984 1985 1986 1987

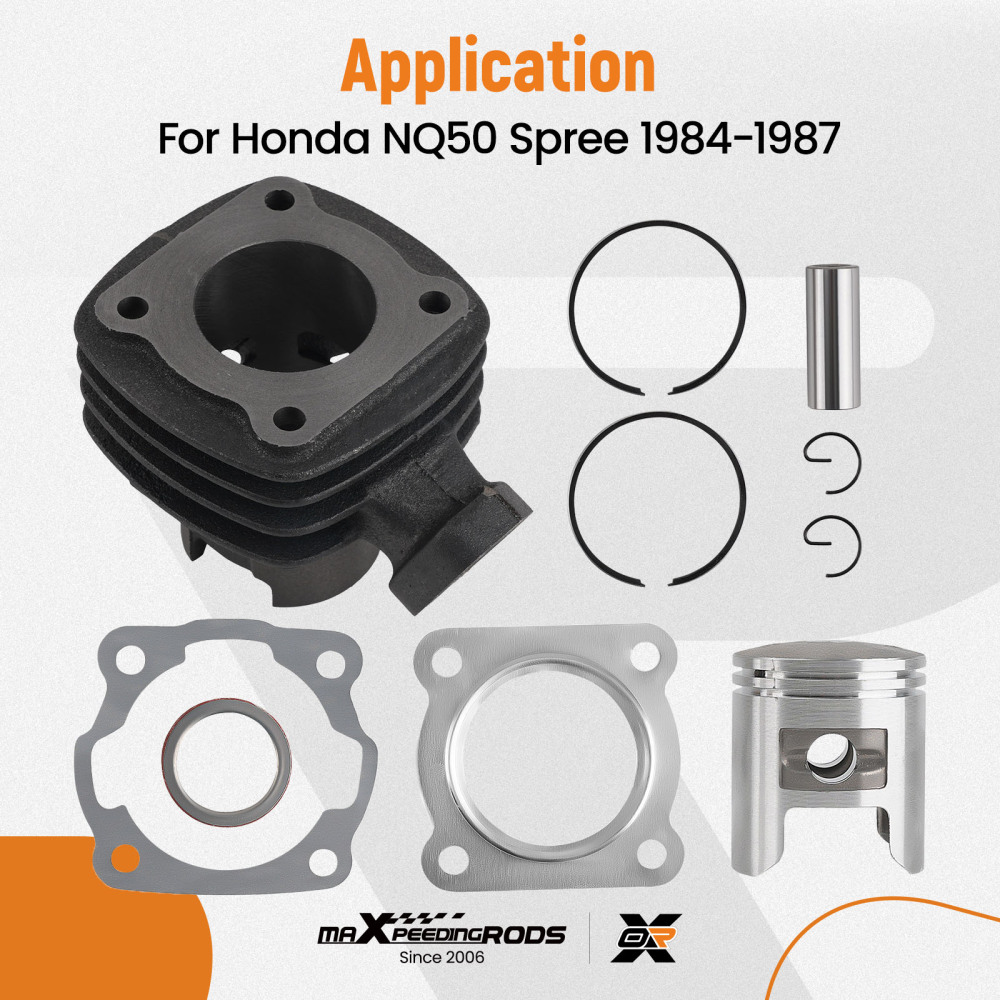

Application

Compatible for Honda NQ50 Spree 1984-1987

OE/Part number

12101-GK8-000, 12251-GN2-000, 12191-GK8-010, 12101GK8000, 12251GN2000, 12191GK8010

Specification

Material: Iron
Type: Cylinder Piston Kit
Cylinder bore: 41mm

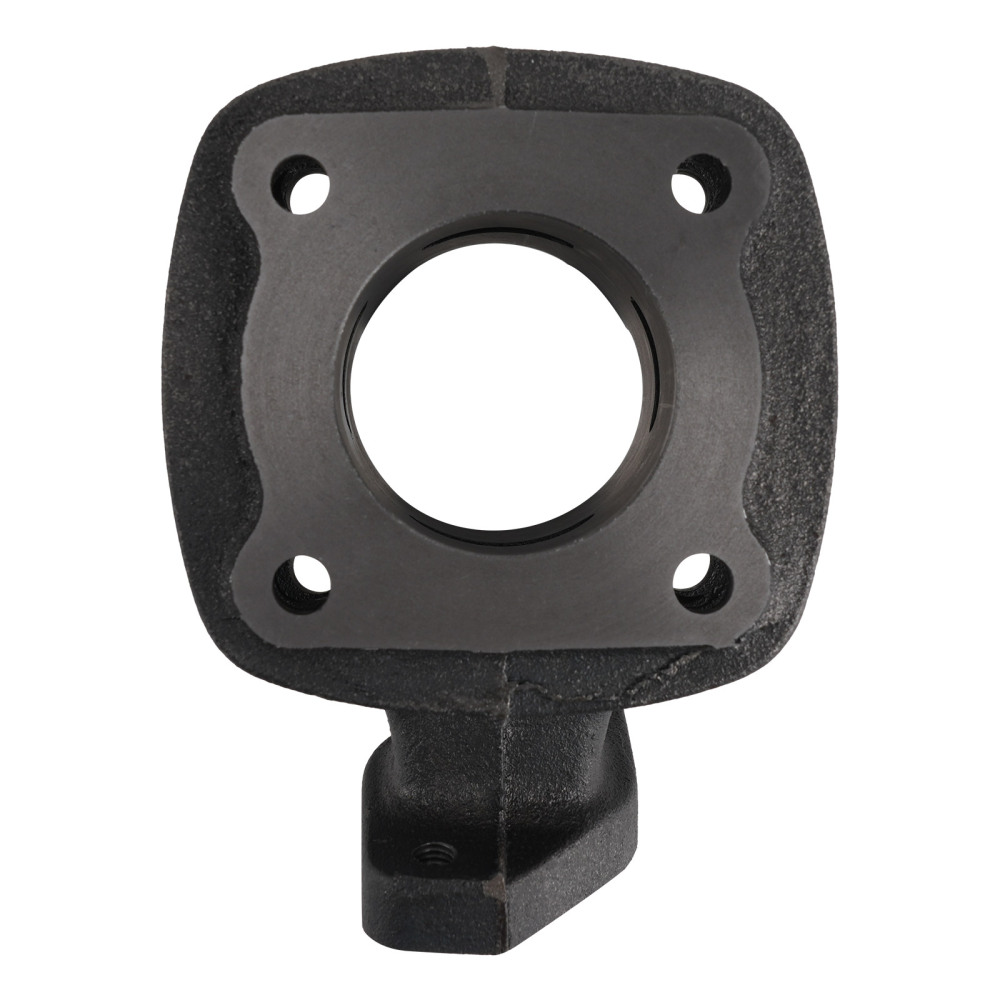

Cilinder bolt hole centres: 48mm. (bolt hole diameter is 7mm)
Piston pin diameter: 10mm.
Exhaust flange bolt centres: 46mm.
Exhaust hole: 30mm
The diameter for the bolt hole to adapt Exhaust: 5mm
Bore extension into crank compatible for case: 37mm.
O/d of bore extension: 51mm
Cylinder bore and stroke 41.00mm x 37.40mm
Cylinder Displacement 49cc / Compression Ratio 7.2:1

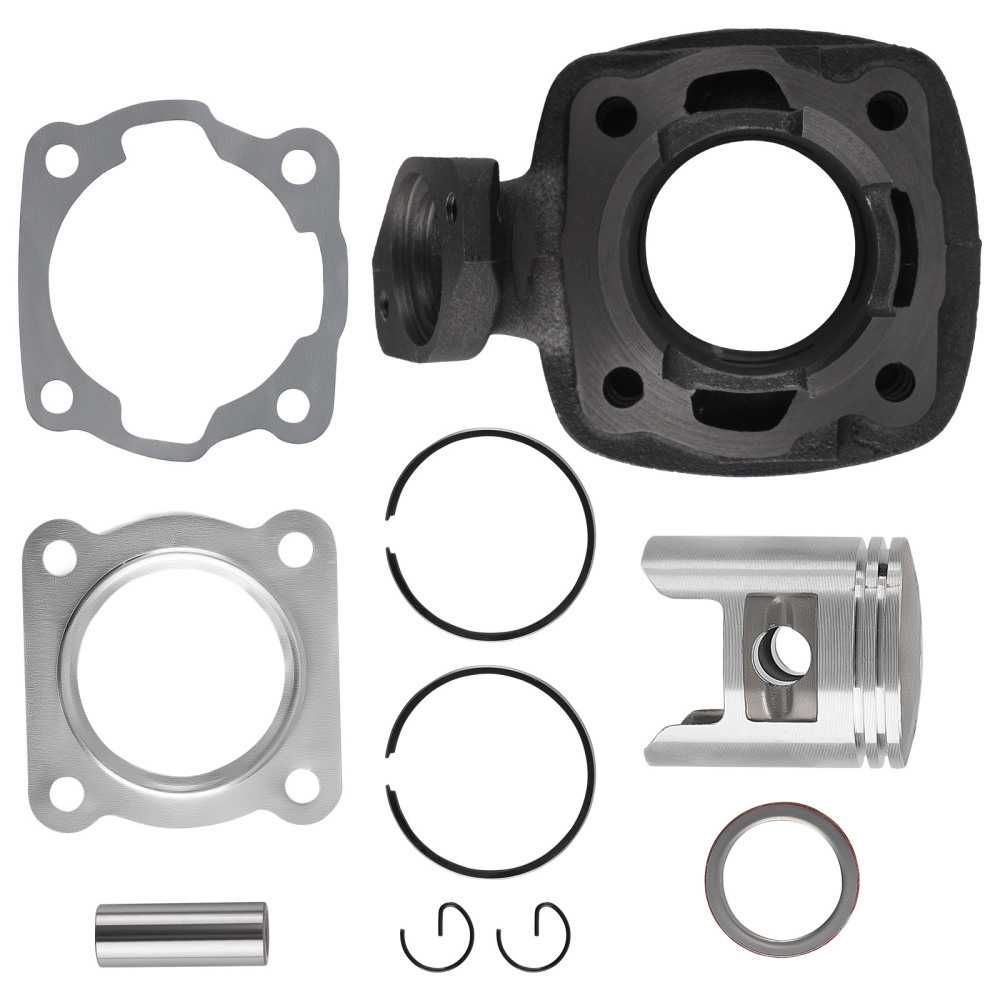

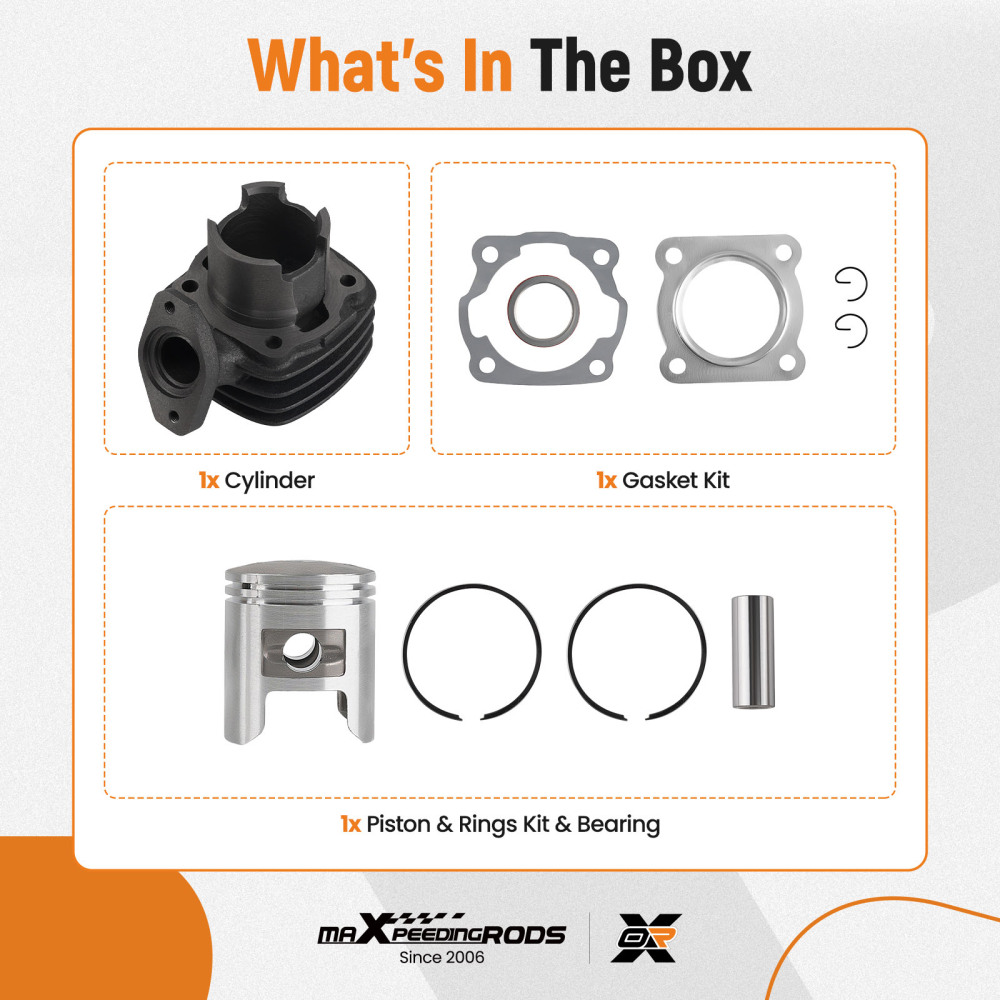

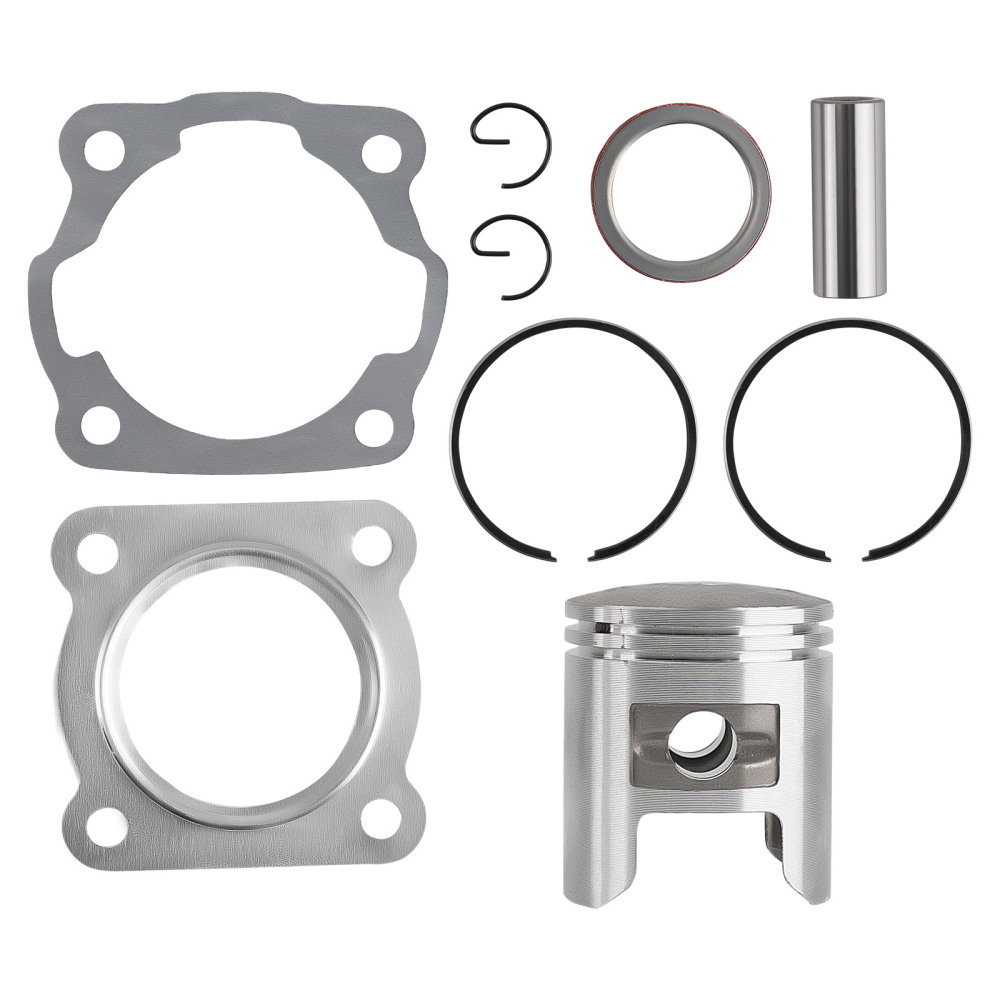

Package included

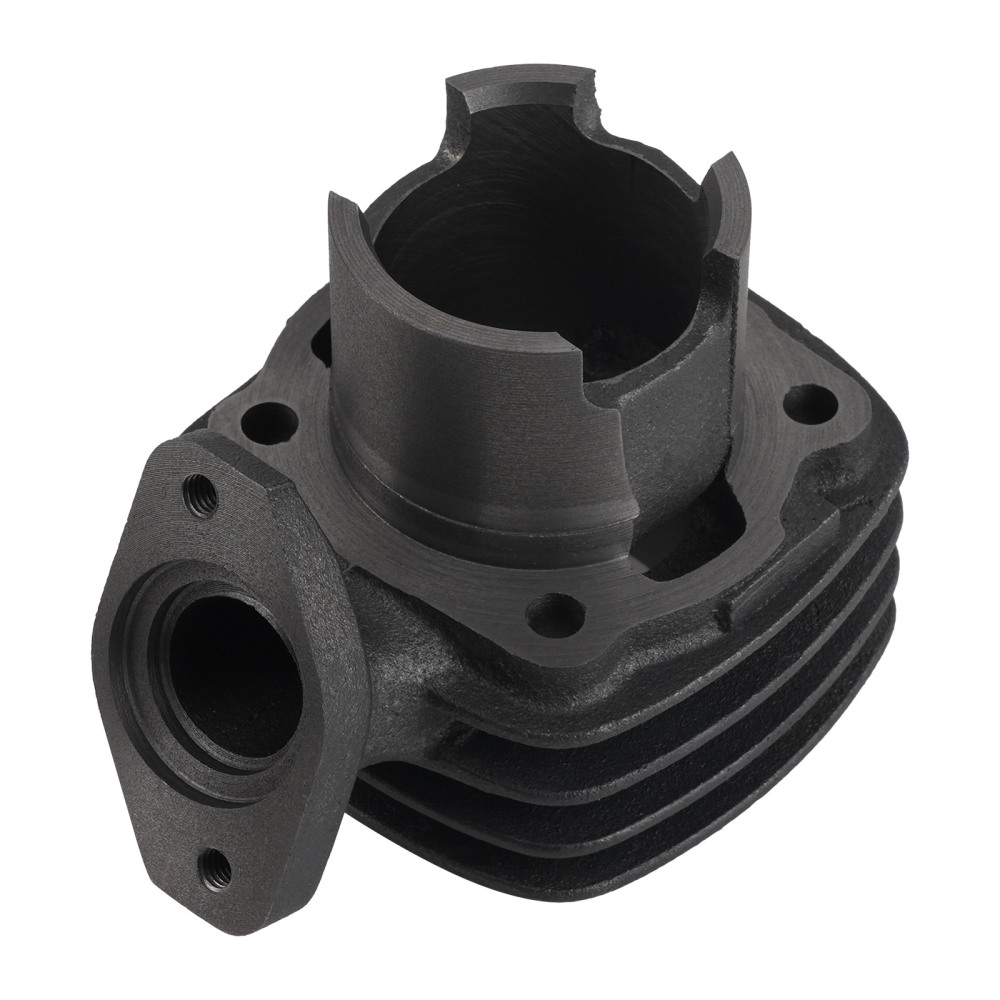

1x Cylinder
1x Gasket Set(2)
1x Piston
1x Pinston Pin
1x Piston Rings Set(5)
2x Cir-Clips

Feature

1.100% NEW.
Every product has quality inspection before leaving the factory.
2.High Quality
Components and materials ensure a longer service life.
3.Direct Fit
Less expensive, easier to install.

Note

1.Professional installation is highly recommended.
2.Please make sure it will fit your machine before purchasing it.

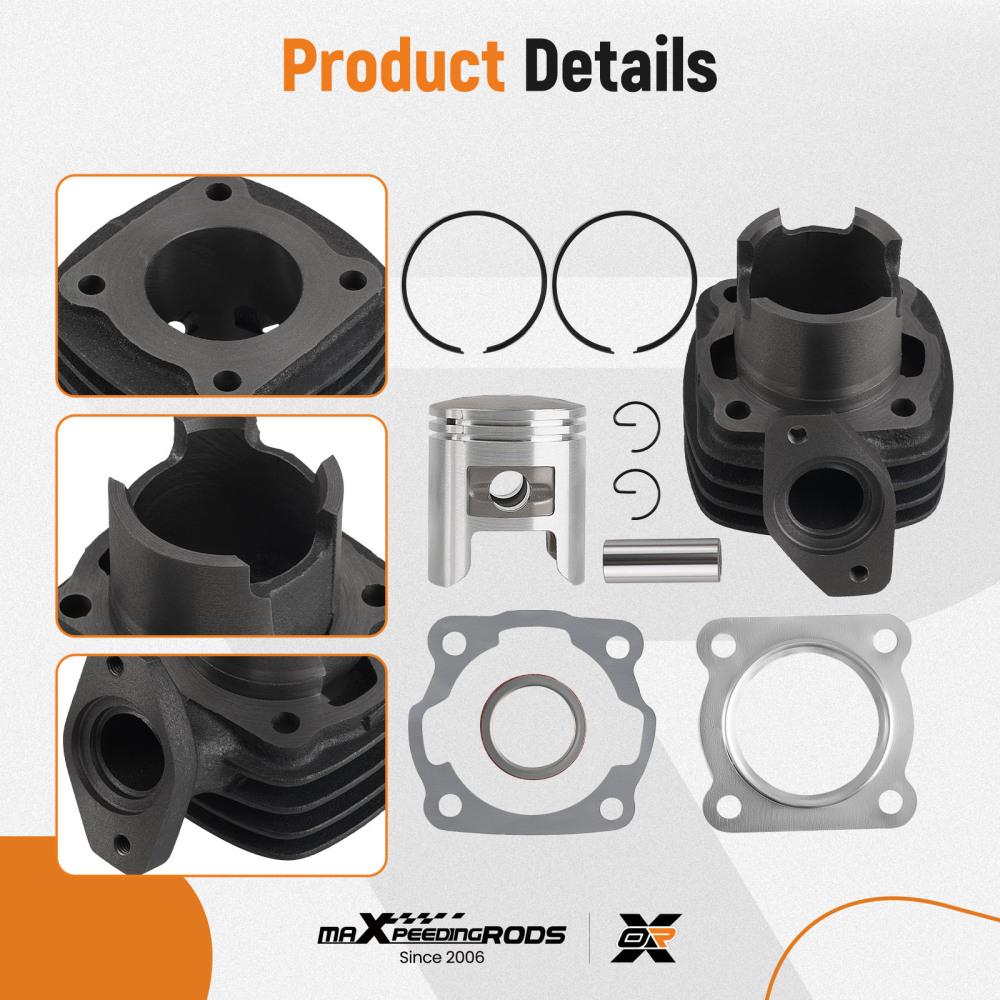

3.Please check pictures for more details.
4.Please allow 1-3mm error due to manual measurement, thanks for understanding.
