CV Axle ShaftWheel Bearing Hub compatible for Ram 1500 Classic 2019 - 2020 515151

Application:

Compatible for Ram 1500 2012-2018
Compatible for Ram 1500 Classic 2019-2020(All Models)

OE/Part number:

515151, 4779829AD, 5154171AA, 68230055AB, 68267298AA, HA590492, HA590515

66-3740, 663740, 66-3740HD, 68028398AA, 68028398AB, 68259567AA, RL028398AA

Hub Specifications:

Type: Wheel Hub & Bearing Assembly
Location: Front Wheel
Placement on Vehicle: Front, Left, Right
Material: GCr15 Steel and 65Mn Steel
Bolt Circle Diameter (IN): 5.500
Bolt Circle Diameter (MM): 139.700
Brake Pilot Diameter (MM): 78.400
Flange Bolt Hole Quantity: 3
Flange Diameter (MM): 183.000
Flange Offset (MM): 46.800
Flange Shape: Triangle
Hub Pilot Diameter (MM): 90.000
Spline Quantity: 33
Wheel Pilot Diameter (MM): 77.700
Wheel Stud Quantity: 5
Bolt Size: M14X1.5
Axle Splines Type: Insert CV Axle Directly
Fitment Type: Direct Replacement
Pre-Greased: Yes
Reference Part Number: 515151
Condition: Brand New

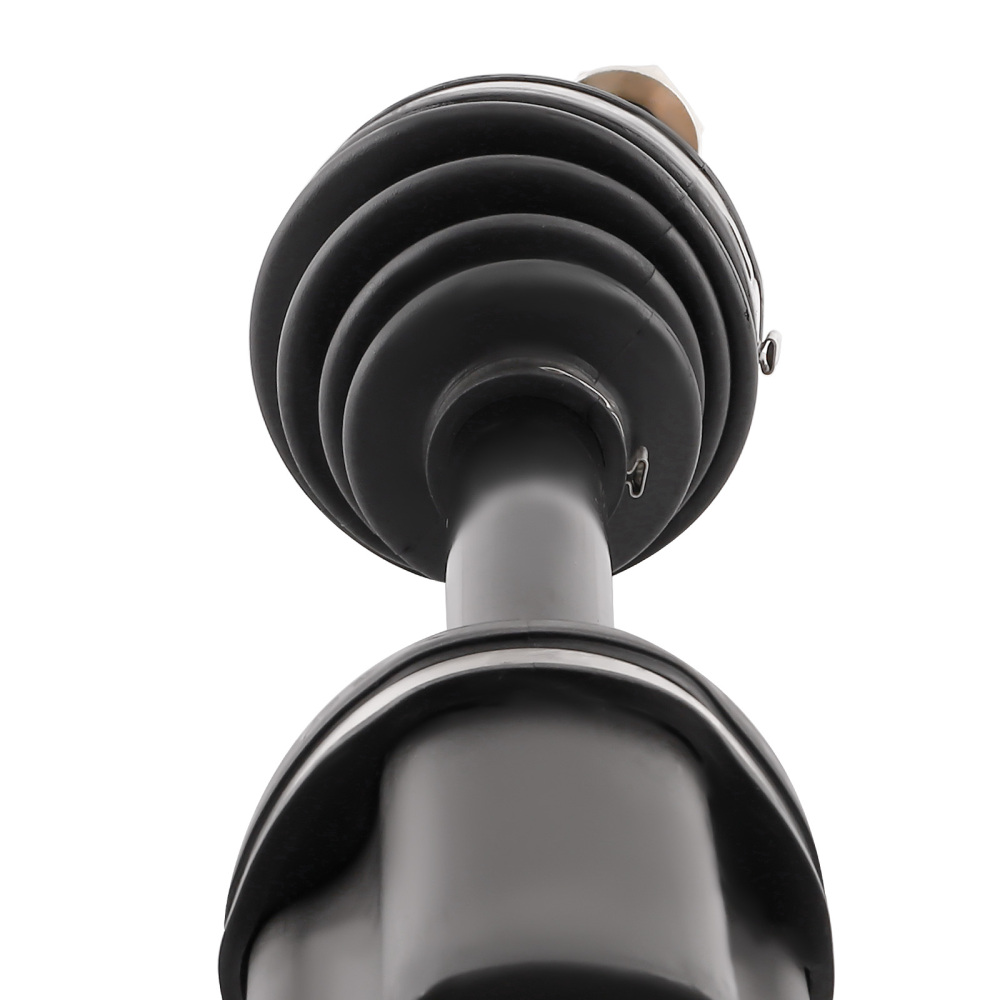

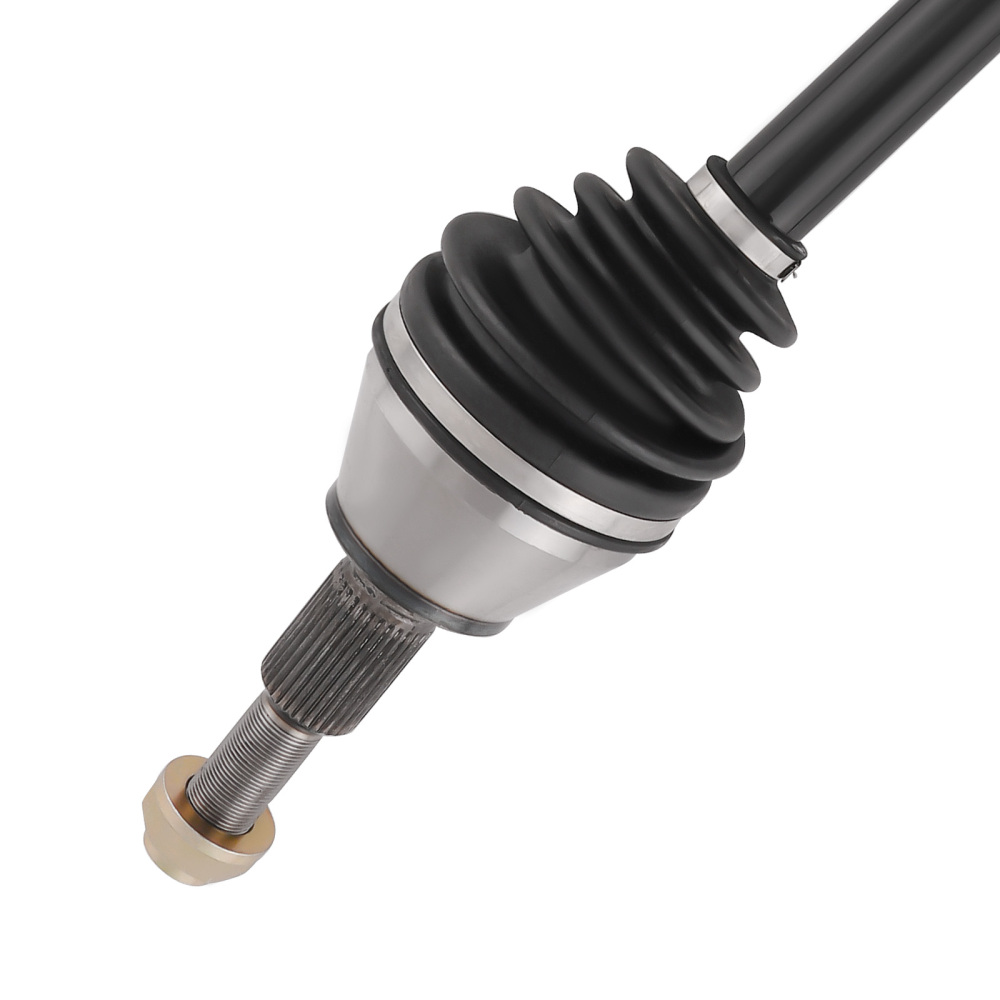

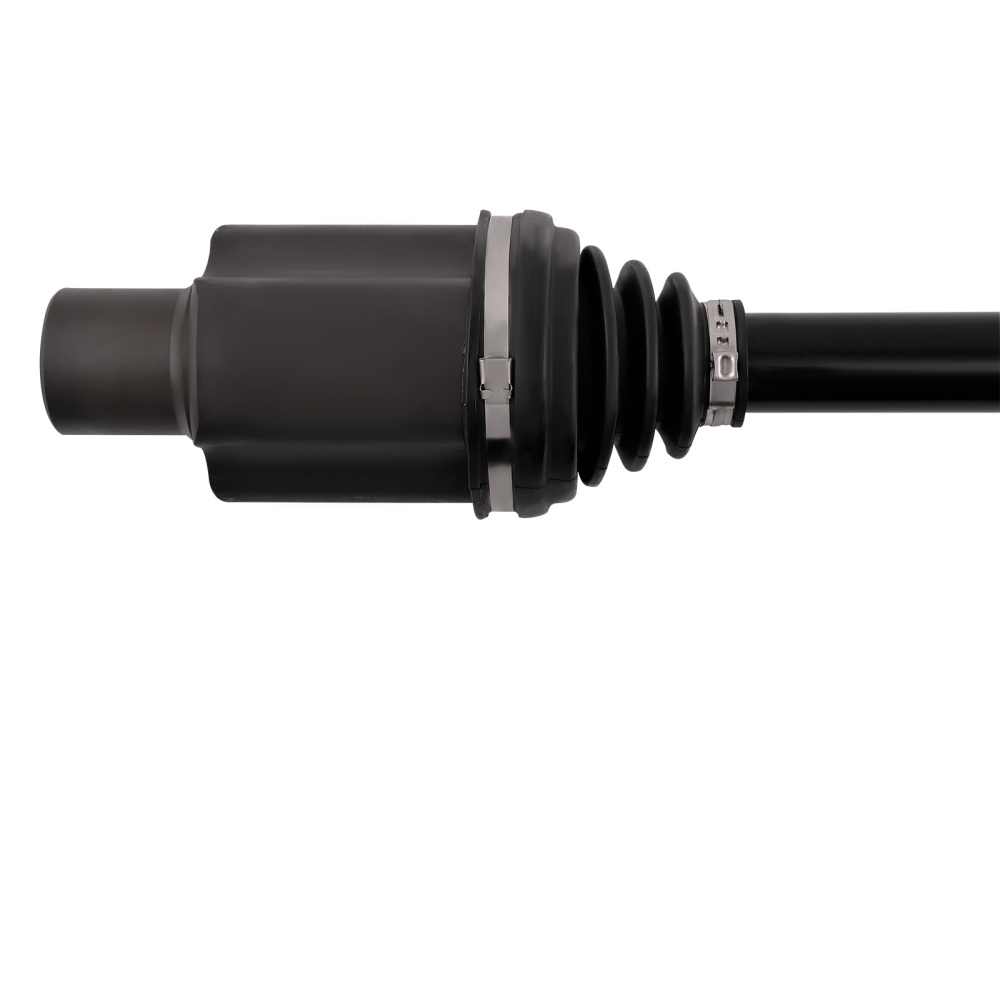

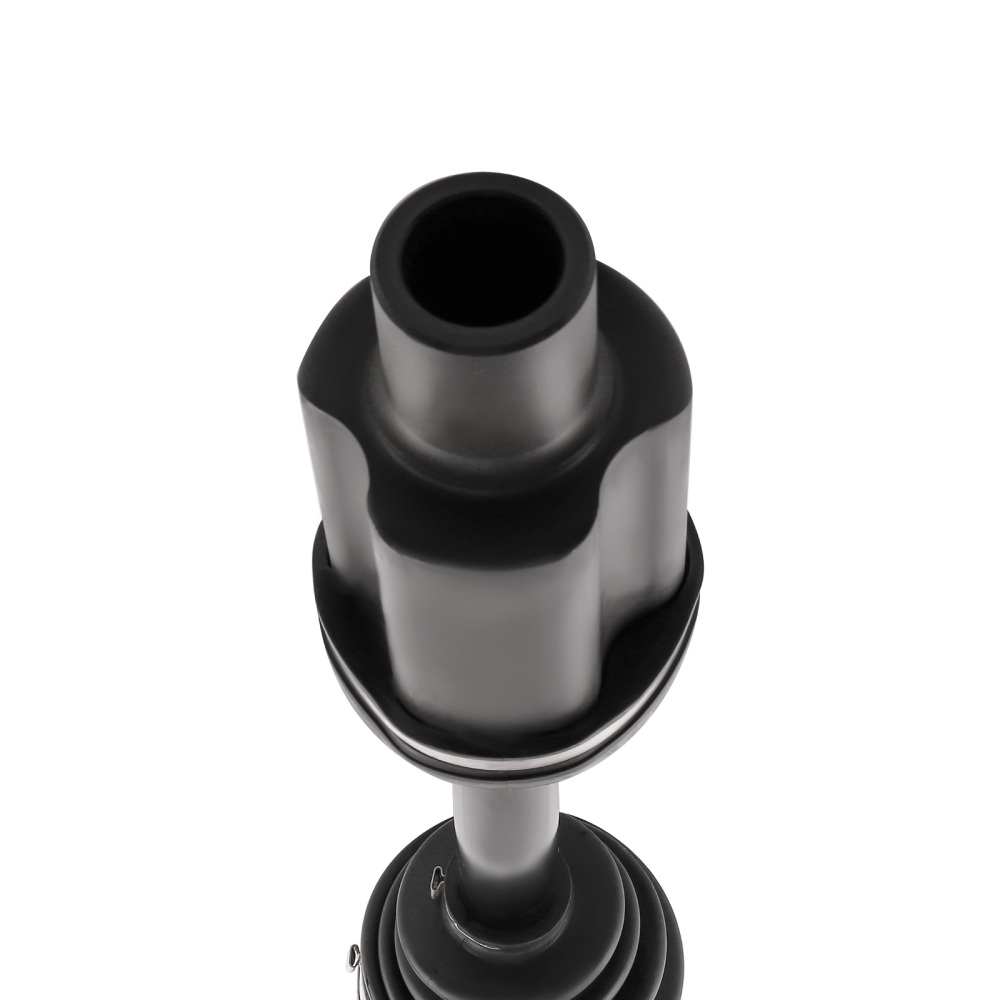

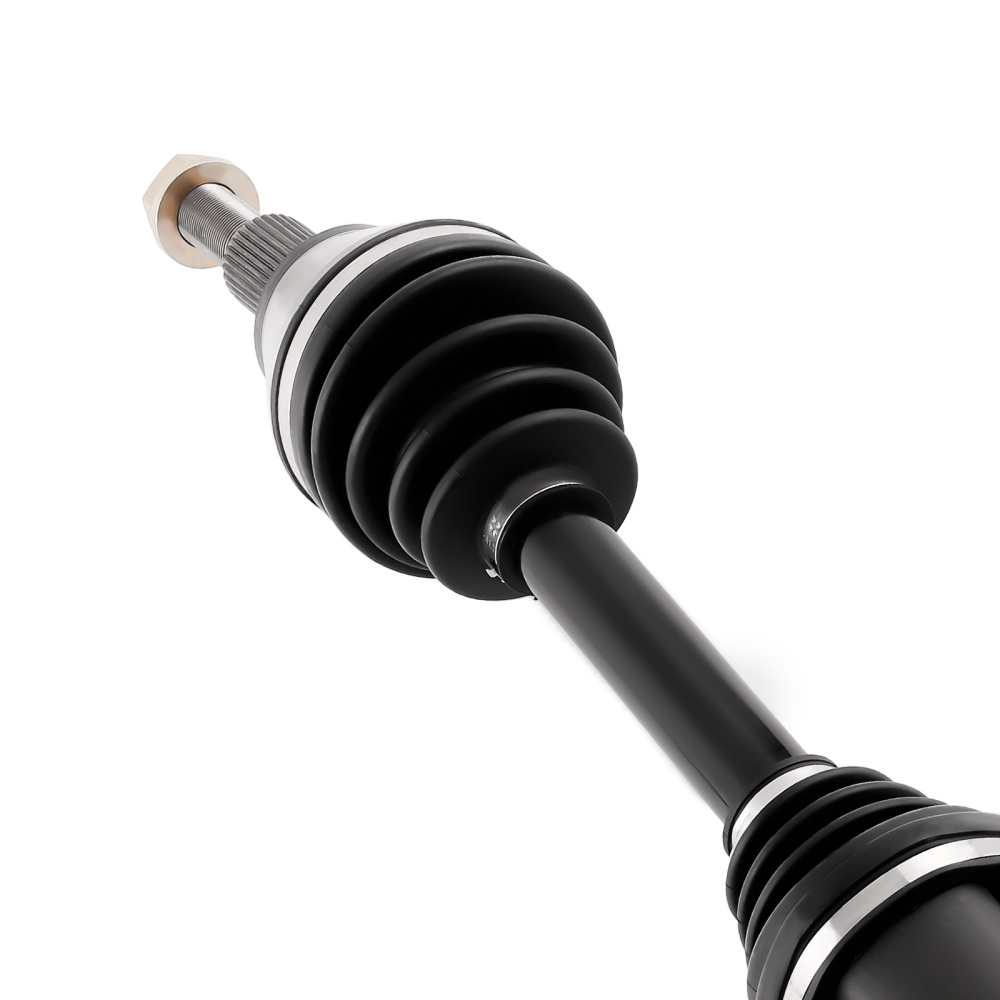

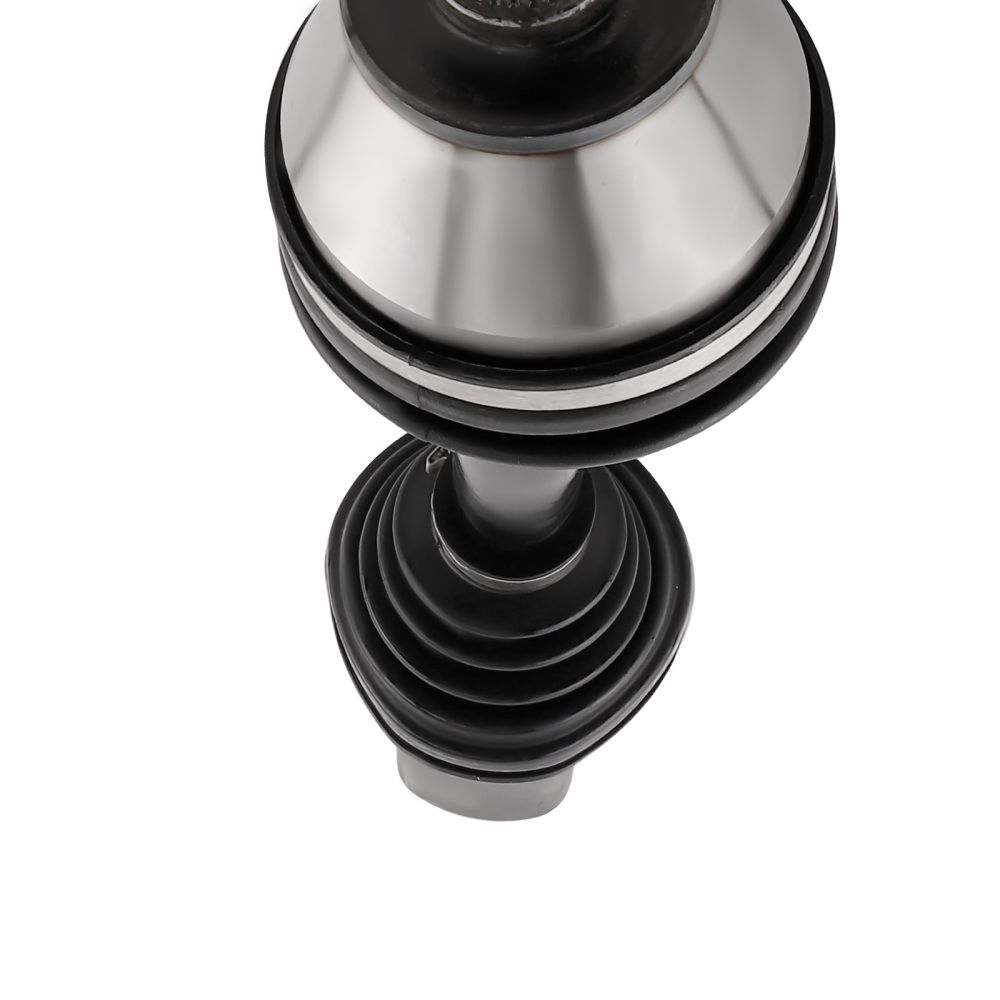

Axle Specifications:

Condition:New
Placement on Vehicle: Front, Left, Right  (4WD: Four Wheel Drive)
Fitment Type: Direct Replacement
Type: CV Axle Shaft
Compressed Length: 24.37''
Input Shaft Spline Count: 29
Output Shaft Spline Count: 33

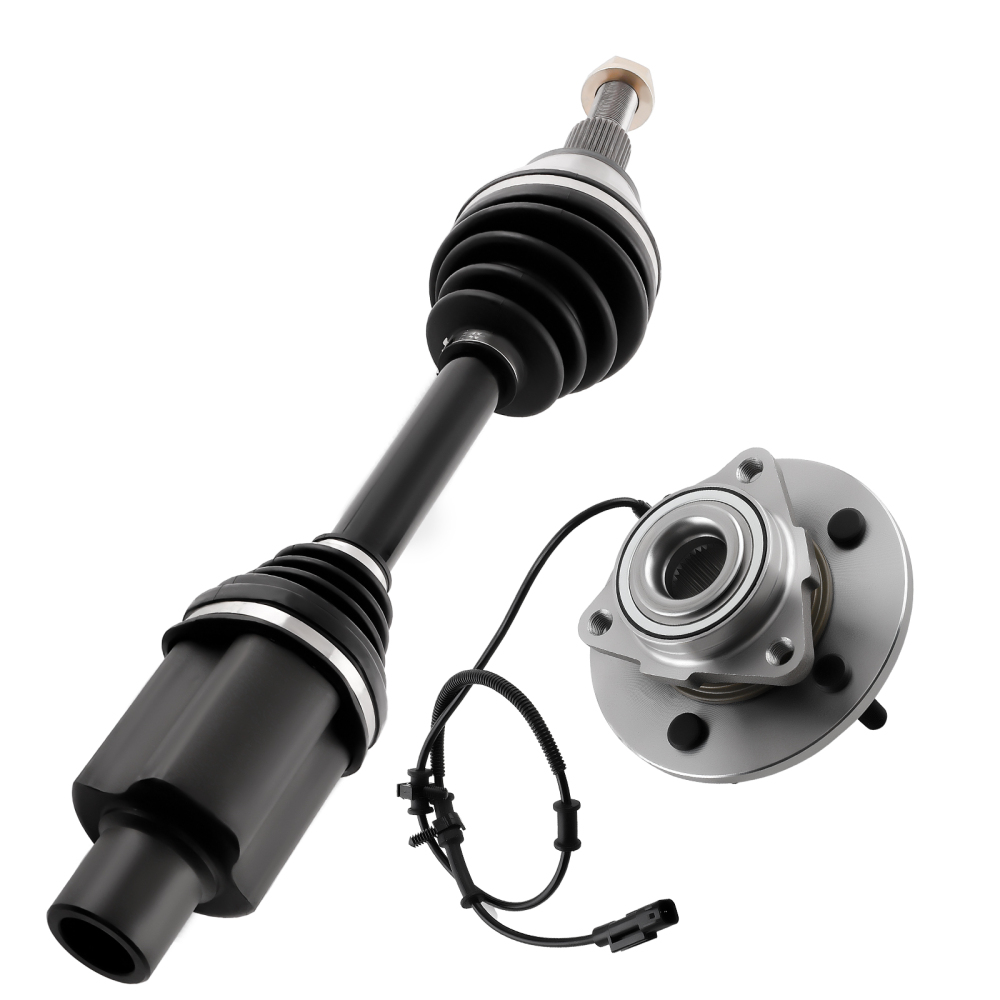

Package included:

1x Wheel Hub Bearing Assembly

1x Front Left / Right CV Axle Shaft Assembly

Note:

  *Professional installation is highly recommended.
  *Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
