Crankshaft Assy compatible for GM Chevrolet GMC GEN IV 5.3L 6.0L 6.2L 58X Tooth 12552216

Application

Compatible for Chevrolet Silverado 1500 5.3L V8 (L59/LM7) 2007-2014
compatible for Chevrolet Suburban 5.3L V8 (LC9) 2007-2014
compatible for Chevrolet Tahoe 5.3L V8 (L59) 2007-2014
compatible for Chevrolet Avalanche 5.3L V8 (LC9) 2007-2013
compatible for Chevrolet Silverado 1500 5.3L V8 (L83/L82) 2014-2018
compatible for Chevrolet Silverado 1500 5.3L V8 (L84) 2019-2023
compatible for Chevrolet Suburban 5.3L V8 (L83) 2015-2020
compatible for Chevrolet Tahoe 5.3L V8 (L83) 2015-2020
compatible for GMC Sierra 1500 5.3L V8 (LMG) 2007-2014
compatible for GMC Yukon/Yukon XL 5.3L V8 (LC9) 2007-2014
compatible for GMC Sierra 1500 5.3L V8 (L83/L8B) 2014-2019
compatible for GMC Sierra 1500 5.3L V8 (L82/L84) 2020-2023
compatible for GMC Yukon/Yukon XL 5.3L V8 (L83) 2015-2020
compatible for Cadillac Escalade 5.3L V8 (LH6) 2007-2014
compatible for Cadillac Escalade 5.3L V8 (L83) 2015-2020

OE/Part number

12552216, 12588613, 12597569, 12685659, 19431873

Specification

Tooth Count: 58X
Condition: 100% Brand New
Fitment Type: Direct Replacement
Engine Compatibility: Compatible for GM 5.3L, 6.0L, 6.2L LS GEN IV
Material: Nickel-Enhanced Alloy Steel
Full length:599.3mm
Main shaft:65mm
Connecting Rod:53.3mm
Stroke:92mm
Surface treatment method: Quenching

Package included

1* Crankshaft

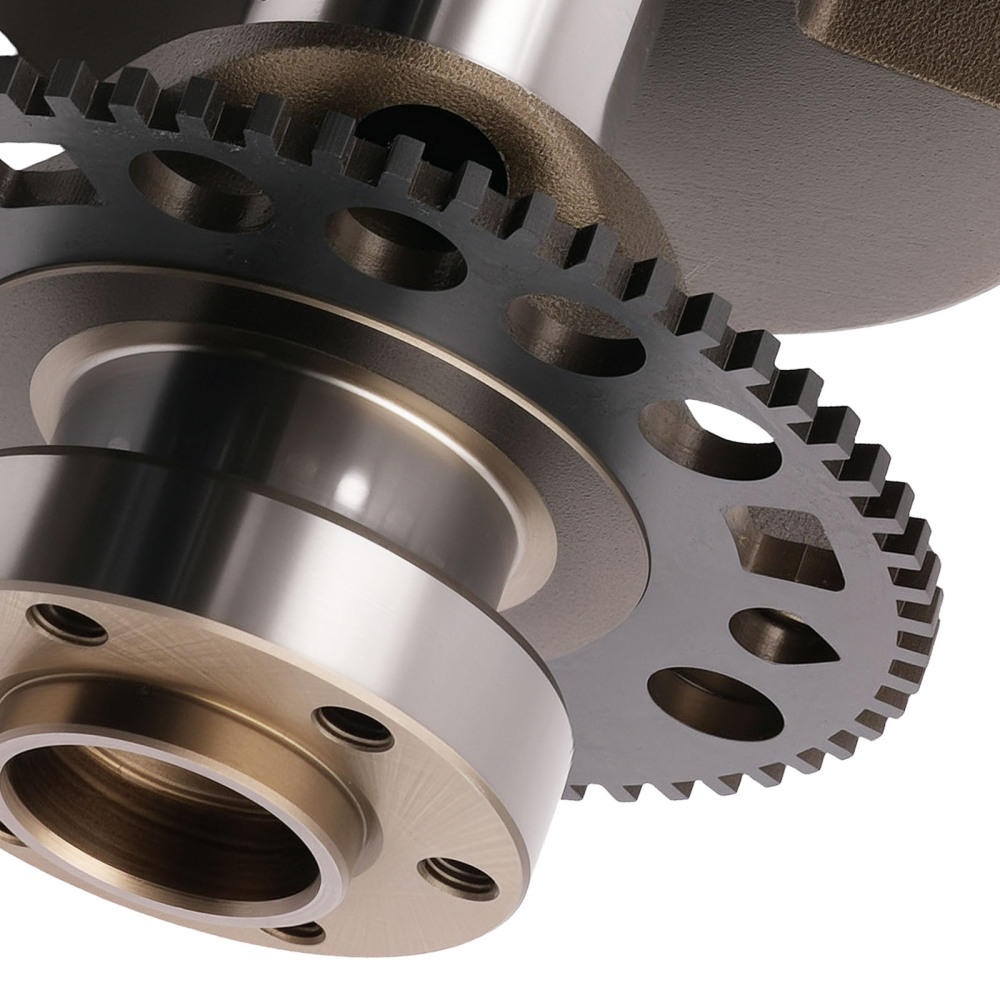

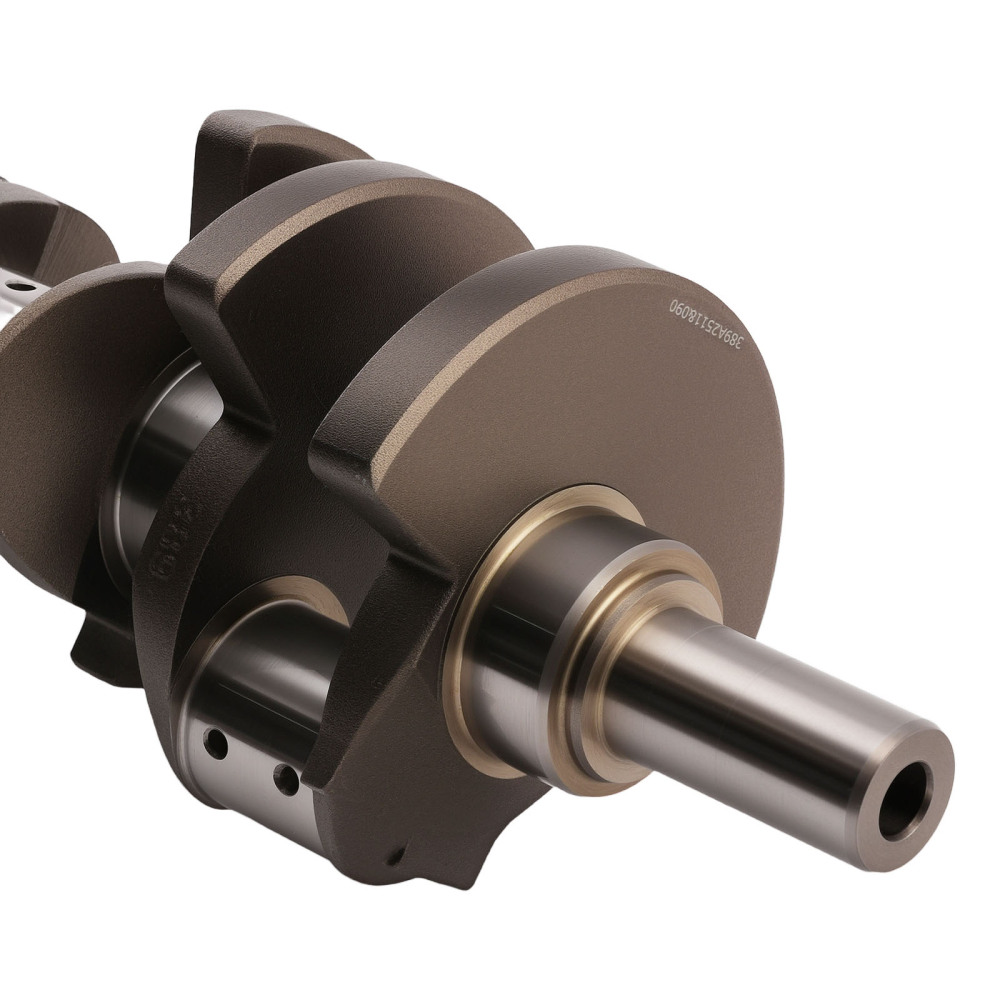

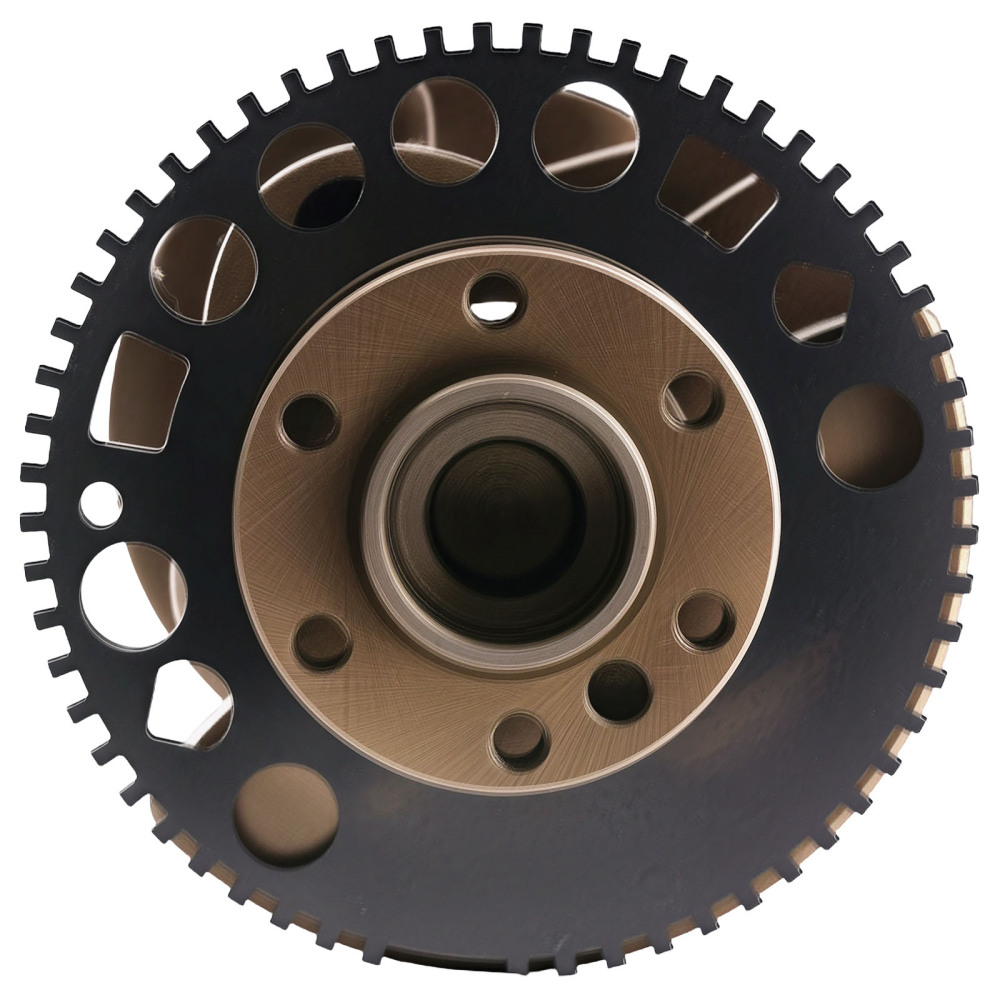

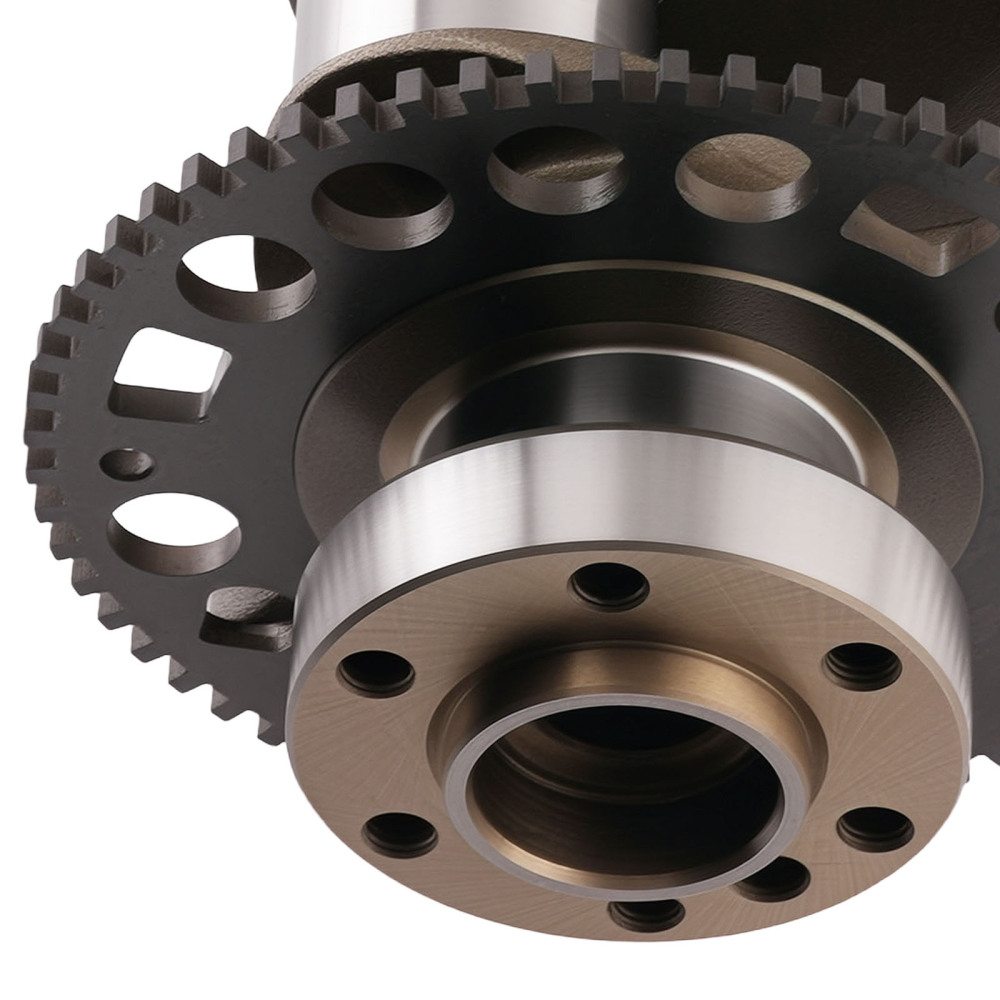

Showing as the picture

Feature

Tensile strength: 950-1050 MPa

Shaft diameter hardness: >50 HRC

Elongation: >6.5

Connector tolerance: 0~0.01 mm

Diameter roughness: 0.2 μm

Dynamic balance: 3-5 g/cm

Hardened layer depth: 0.7 mm

Compression test: 150 kg/mm

Inspection machine: IDEC

Note

Crankshafts are coated with hard oil film for Anti-Rust Coating.
To clean hard oil film from a crankshaft, use strong solvents (like brake cleaner or degreaser) with brushes to scrub surfaces and flush oil passages, then follow up with hot water and detergent for stubborn spots, and always finish by blowing everything dry with clean compressed air to remove all moisture and residue, paying special attention to internal oil galleys by removing plugs if possible.
