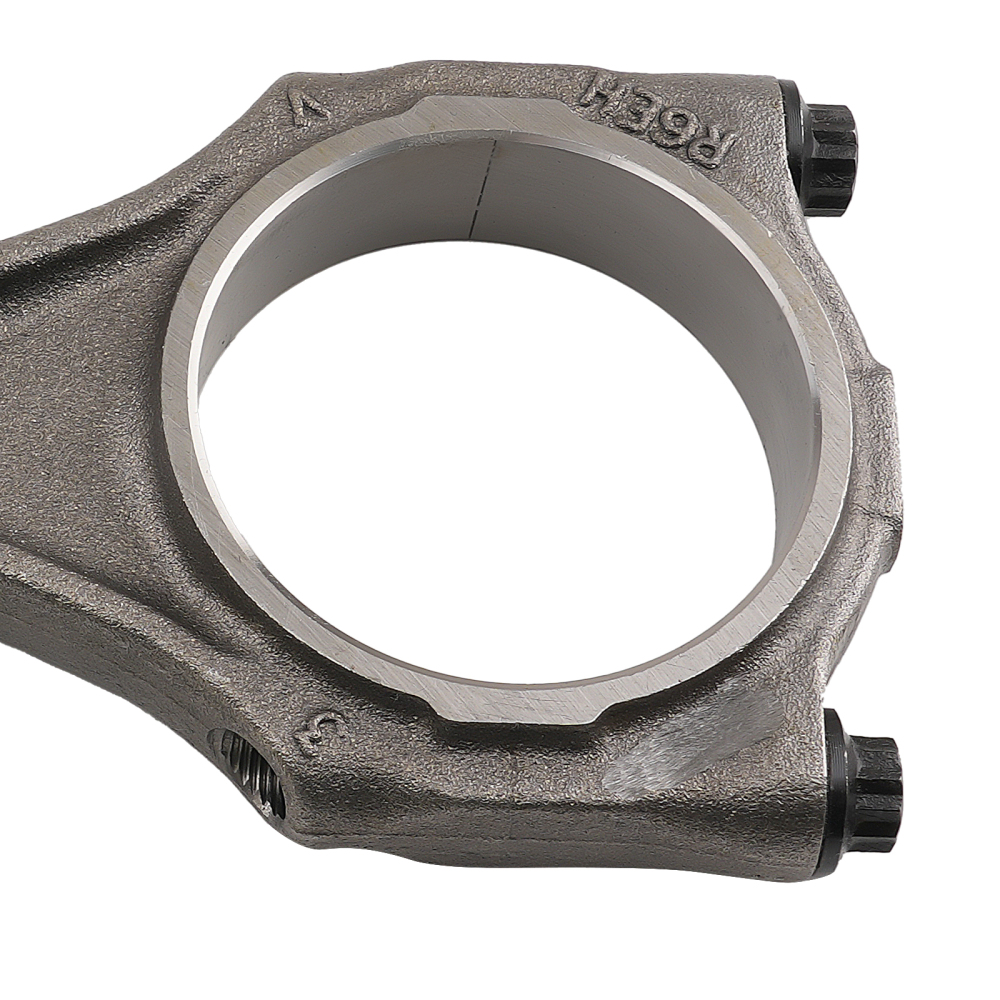

Connecting Rods Kit (6pcs) For 3.0T compatible for Audi VW A4 A5 S4 S5 A6 A7 A8 Q5 Q7 Touareg

Application

Compatible for Volkswagen Touareg 3.0 TSI / 3.0 TSI Hybrid, 213kw (290ps) / 235kw (320ps) 2011-2018
compatible for Volkswagen Touareg 3.0 TSI / 3.0 TSI Hybrid, 245kw (333ps) 2011-2018
compatible for Audi A4 (B8) 3.0 TFSI, 200kw (272ps) 2012-2015
compatible for Audi S4 (B8) 3.0 TFSI, 245kw (333ps) 2010-2015
compatible for Audi A5 3.0 TFSI, 200kw (272ps) 2012-2017
compatible for Audi S5 3.0 TFSI, 245kw (333ps) 2010-2017
compatible for Audi A6 (C6) 3.0 TFSI, 213kw (290ps) / 220kw (299ps) 2009-2011
compatible for Audi A6 (C7) 3.0 TFSI, 220kw (299ps) 2012-2018
compatible for Audi A6 (C7) 3.0 TFSI, 228kw (310ps) / 245kw (333ps) / 250kw (340ps) 2012-2018
compatible for Audi A6 Allroad (C6) 3.0 TFSI, 213kw (290ps) / 220kw (299ps) 2008-2011
compatible for Audi A6 Allroad (C7) 3.0 TFSI, 228kw (310ps) / 245kw (333ps) 2013-2018
compatible for Audi A7 3.0 TFSI, 220kw (299ps) / 228kw (310ps) / 245kw (333ps) / 250kw (340ps) 2011-2018
compatible for Audi A8 3.0 TFSI, 213kw (290ps) / 228kw (310ps) / 245kw (333ps) 2010-2017
compatible for Audi Q5 3.0 TFSI, 200kw (272ps) 2012-2017
compatible for Audi SQ5 3.0 TFSI, 260kw (354ps) 2013-2017
compatible for Audi Q7 3.0 TFSI, 200kw (272ps) / 206kw (280ps) / 245kw (333ps) 2010-2018

OE/Part number

06E 198 401 E, 06E198401E, 06E 198 401 J, 06E198401J, 06E 198 401 D, 06E198401D, 06E 198 401, 06E198401

Specification

Condition: New
Type: Connecting Rod
Quantity: 6
Center to center distance:152.9mm
Inner diameter of the big end:58.8mm
Inner diameter of the small head:22mm

Package included

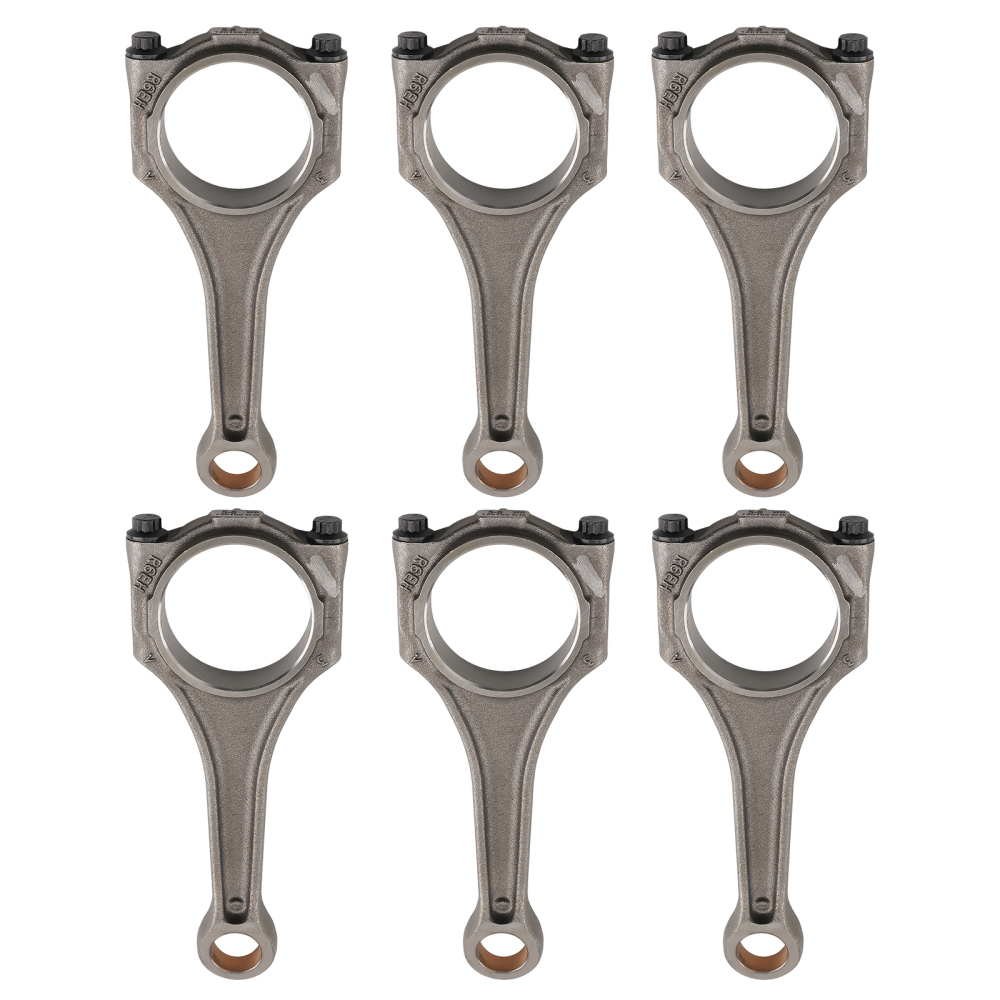

6* Connecting Rod

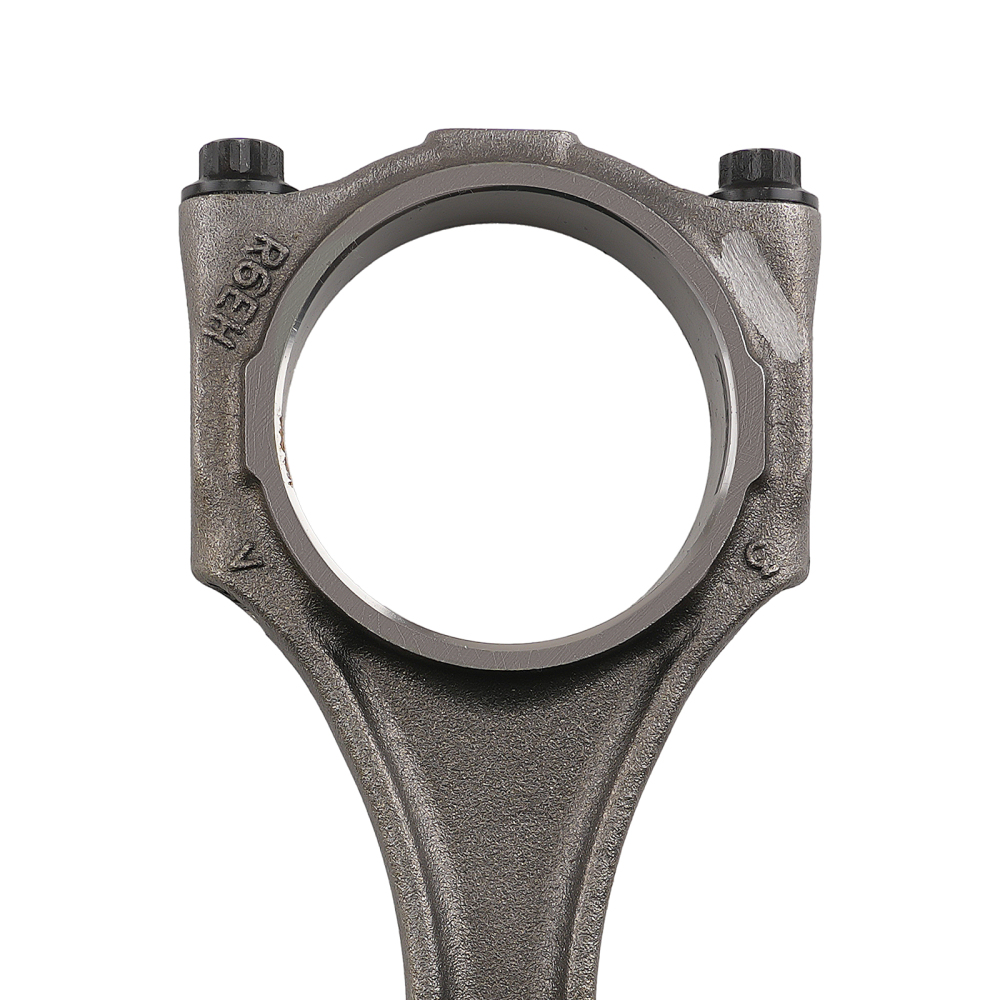

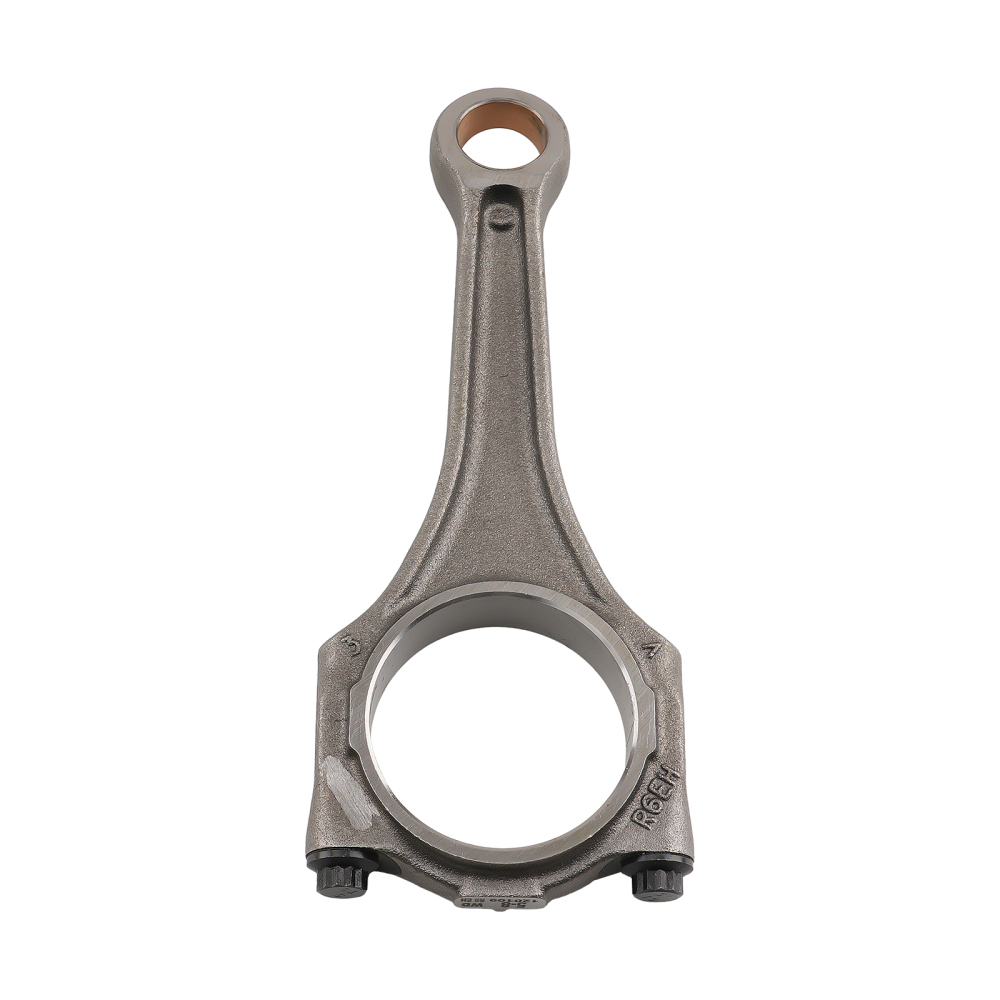

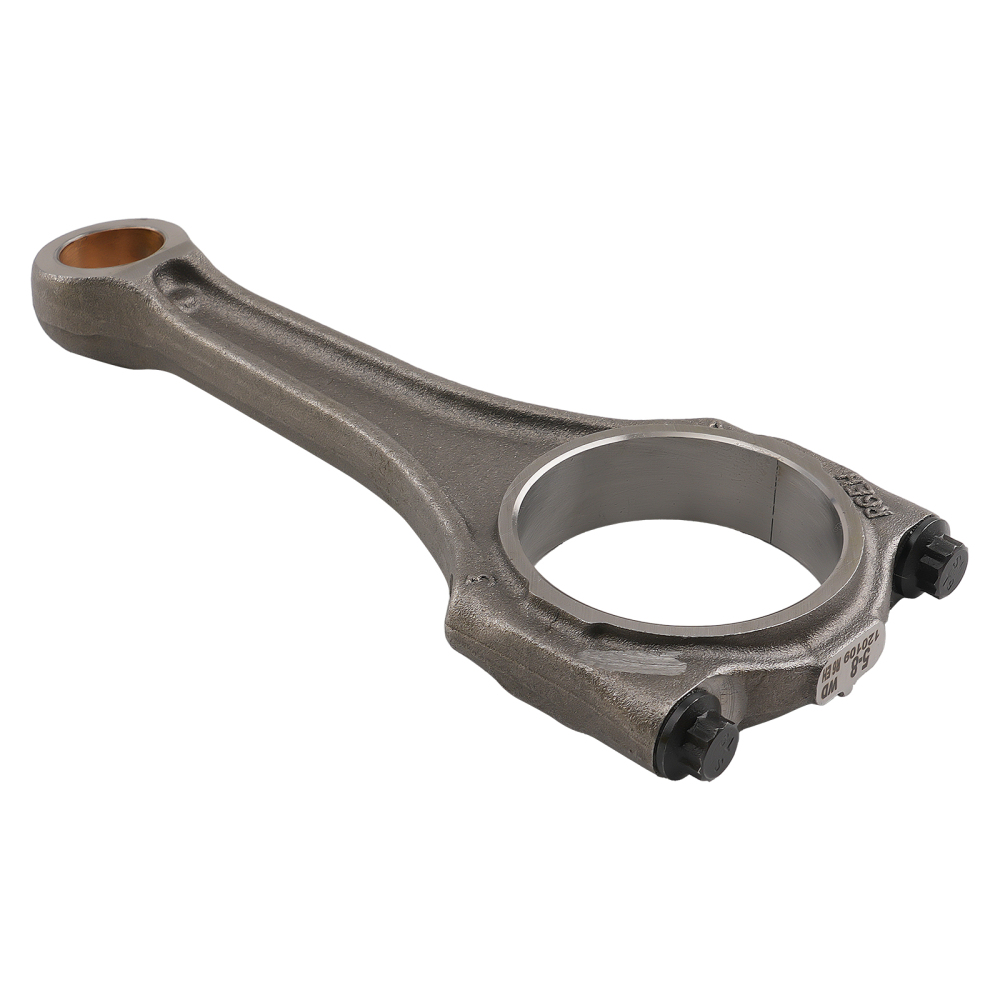

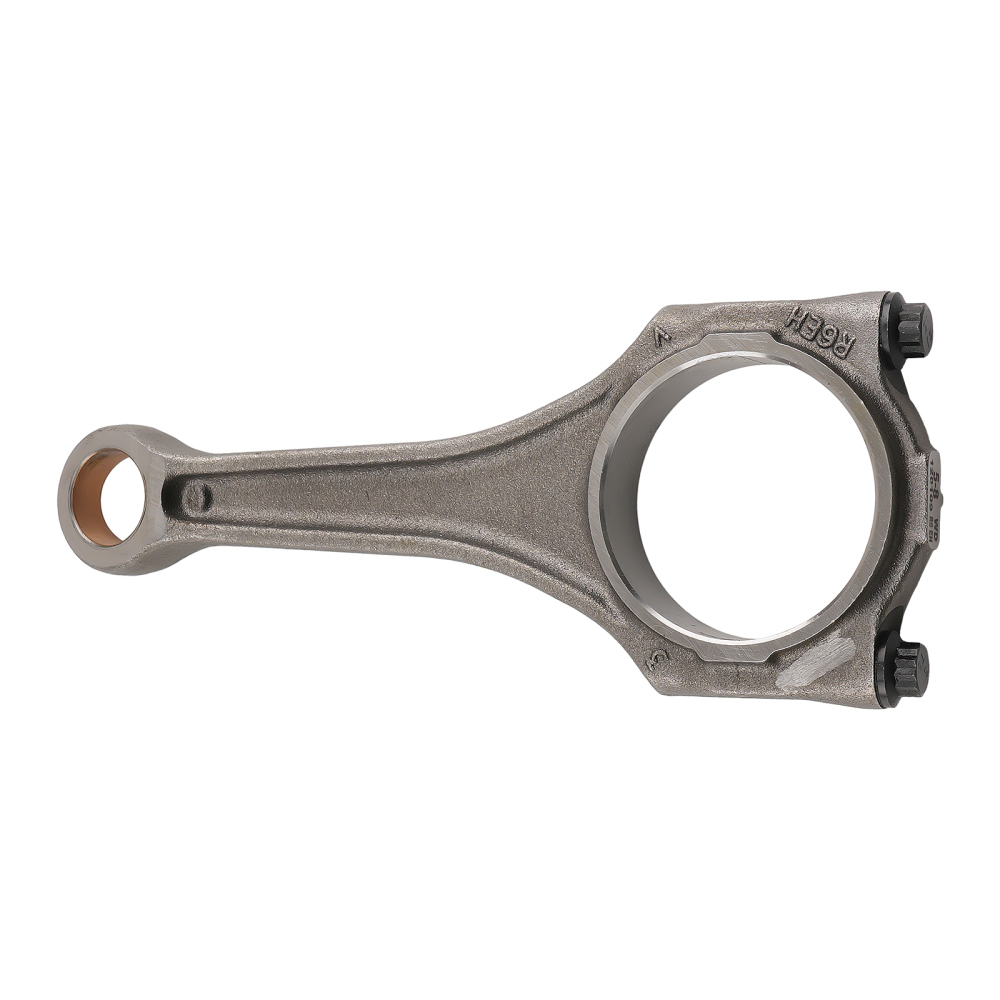

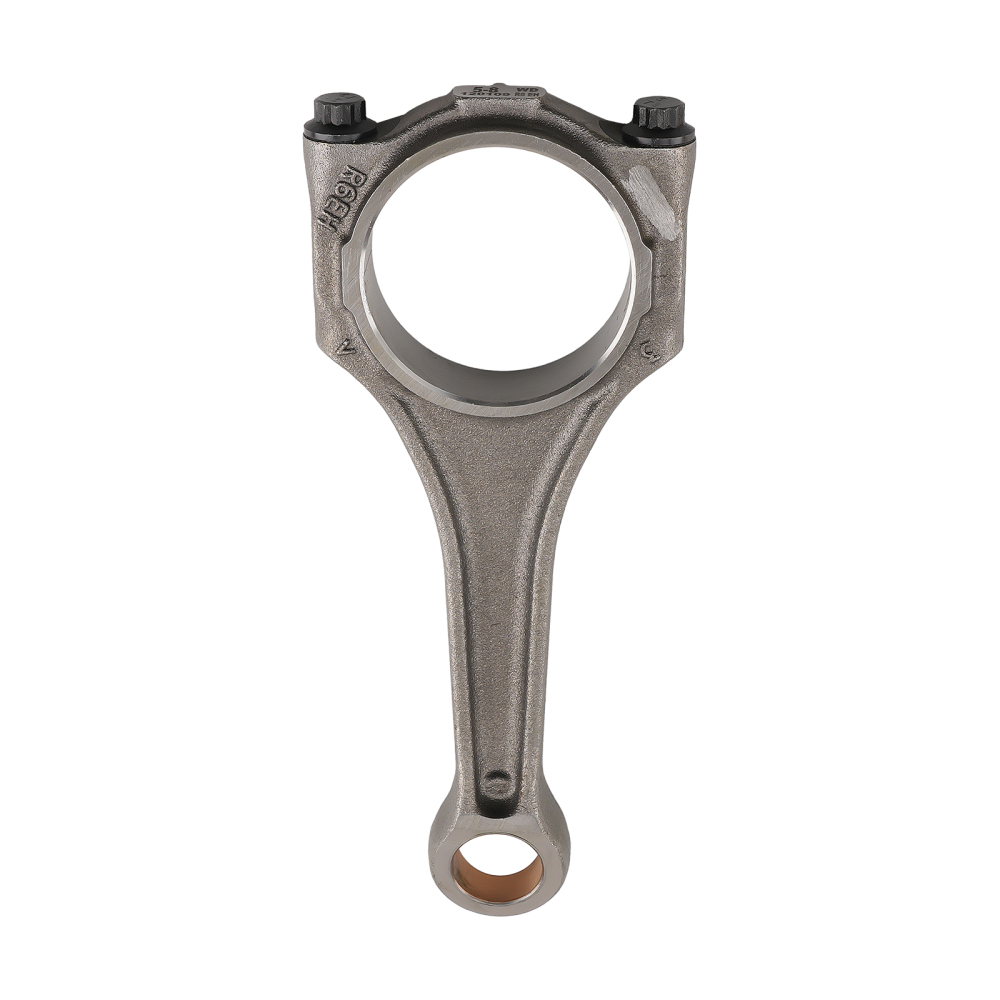

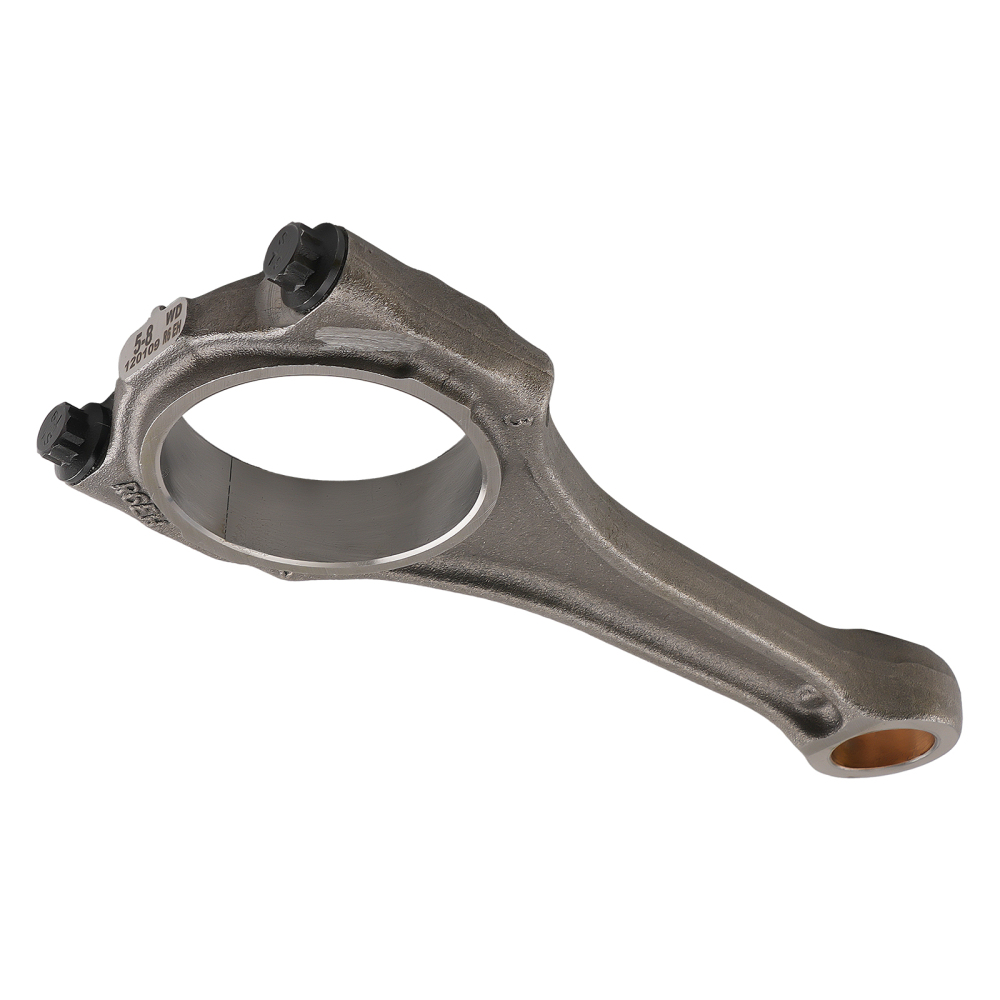

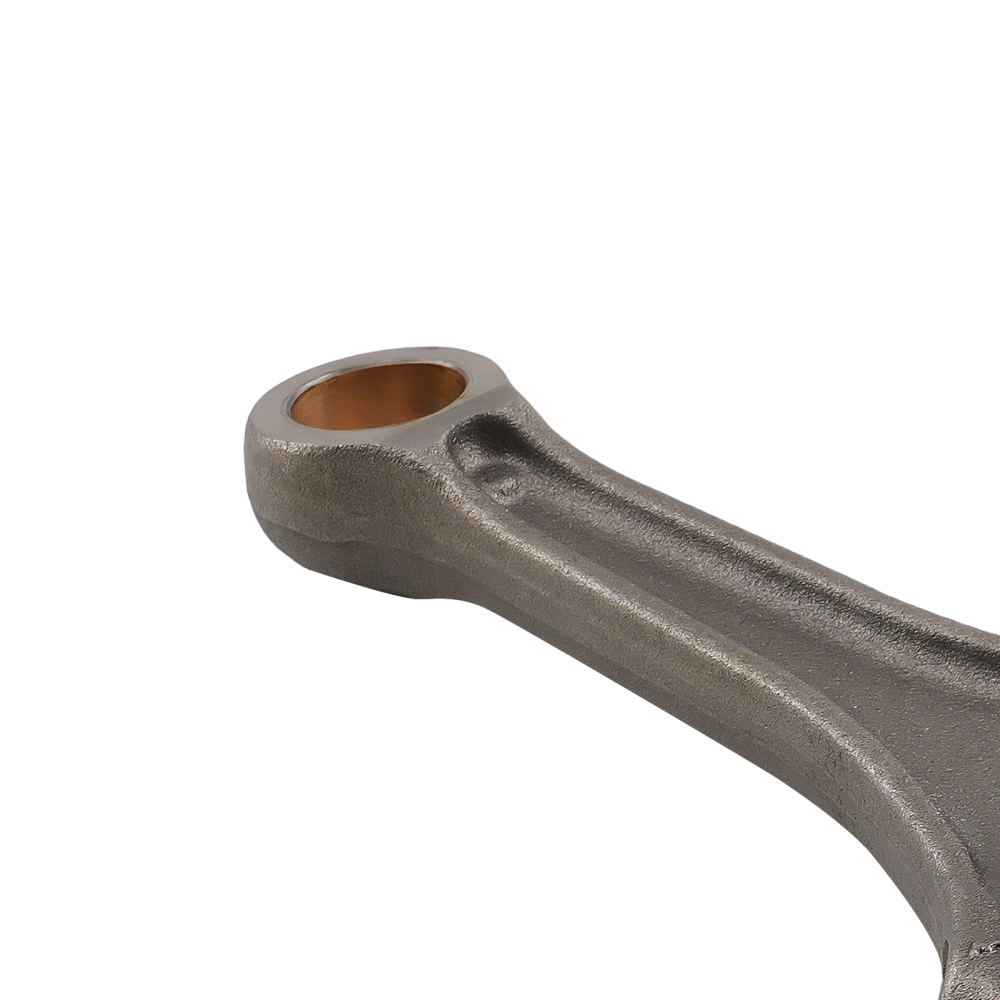

Showing as the picture

Feature

Strength of extension:900MPa~1050MPa
Maximum elongation:10%
Number of fatigue cycles:10⁷
Fatigue limit:343MPa
High-strength material construction
Strict dimensional tolerance control
Precision load distribution

Note

Professional installation is highly recommended.
Please double confim the compatibility as well as the OEM number before purchasing.
