Connecting Rod compatible for Ford 2.3L EcoBoost compatible for Ford Explorer 2.3L compatible for Ford Explorer compatible for Mustang 2.3L Ecoboost compatible for Lincoln MKC 2.3L Turbo

Item Number 3002905537
Stock In Stock

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Introduction

MaXpeedingRods H-beam connecting rods are designed for demanding racing applications to increase horsepower and efficiency. The strength is suitable for high-horsepower applications while keeping the weight light. Professional processing makes it have super high wear resistance and excellent durability.


Application

Compatible for Ford EcoBoost 2.3L  engine;

Compatible for Ford Explorer 2016–2019

Compatible for Ford Focus RS 2016–2018

Compatible for Ford Mustang Ecoboost 2015

Compatible for Lincoln MKC 2015–2019


Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

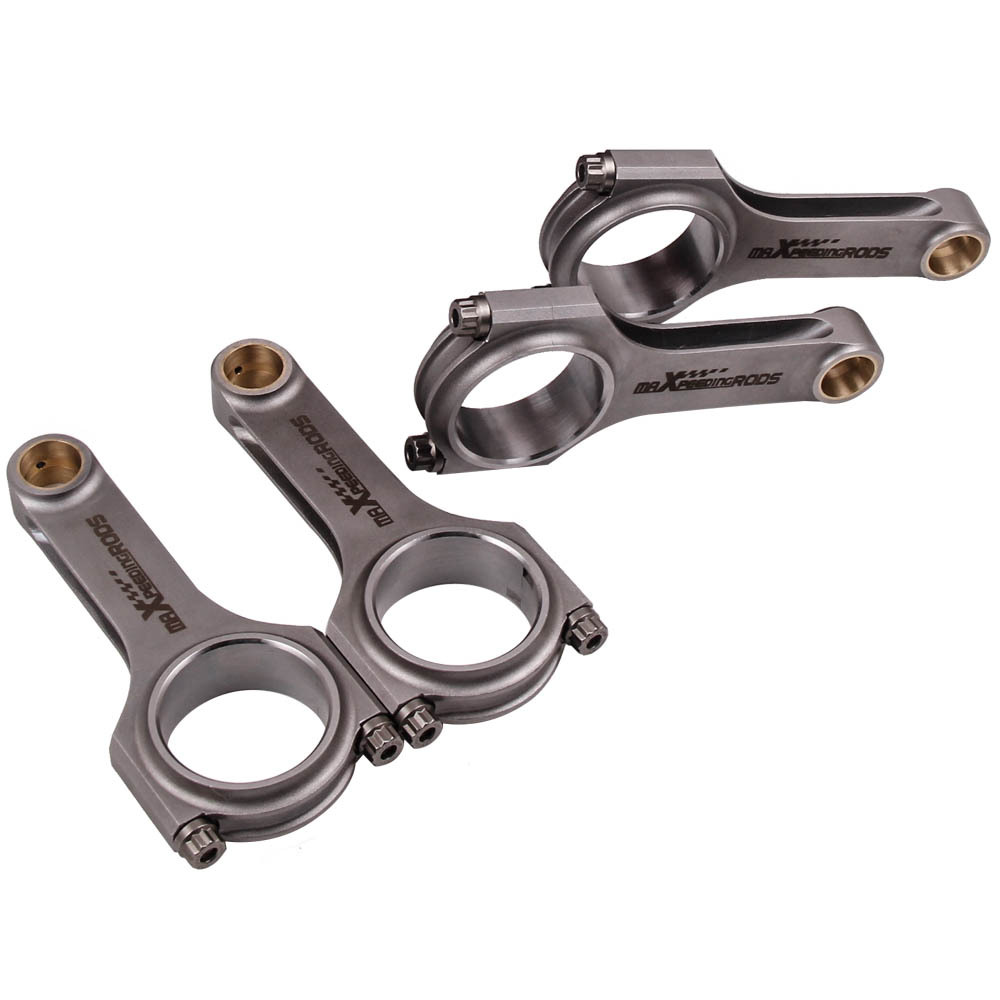

*H-beam Conrods Quantity: 4 Pieces as shown in picture

*Pin Type: Floating Pin Piston,Small end without taper.

*Bolts: Including Genuine ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)

*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

*Advertised Horsepower Rating:200HP/piece

*Top acceleration: 9000rpm

*package size:28CM*21CM*10CM


Dimension

Center to center length: 149.3mm/5.878"

Big end diameter: 55mm/2.165"

Small end diameter: 22.5mm/0.886"

Big end width: 21.82mm/0.859"

Small end width: 21.82mm/0.859"


Feature

1. TüV Certification Con Rods;

2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing;

3. Genuine ARP 2000 bolts, Optional ARP L19 fasteners available as an upgrade;

4. H-Beam design reduces weight without compromising strength;

5. Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove the potential for stress risers;

6.100% CNC machined, Precision rod cap alignment dowels;

7. Bores finished to +/- .01 mm;

8. Balanced to within +/- 1 g per rod;

9. Each rod is magnetic particle tested to ensure free of flaws;

10.100% X-rayed, sonic tested;

11. Custom Service.


Note

*Professional installation is highly recommended ;

*Custom Service: If there are no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.


Warranty: one year warranty for any manufacturing defect
