Complete Timing Belt Kit compatible for Kia Spectra5 2.0L DOHC 2007-2009 24810-23050

Application

Compatible for Hyundai Elantra 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2006-2012
compatible for Hyundai Tucson 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2006-2009
compatible for Hyundai Tiburon 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2007-2008
compatible for Hyundai Spectra 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2006-2009
compatible for Hyundai Spectra5 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2006-2009
compatible for Hyundai Sportage 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2007-2008
compatible for Kia Soul 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2010-2011
compatible for Kia Spectra 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2006-2009
compatible for Kia Spectra5 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2006-2009
compatible for Kia Sportage 2.0L 1975CC l4 GAS DOHC Naturally Aspirated 2007-2008

OE/Part number

24810-23050, 24410-23050, 24312-23202, 25100-23022, TS26284A, WP9137, A026WP, TCKWP284A

Specification

Condition: 100% Brand New
Type: Timing Belt Kit
Product Material: Metal, Plastic
Fitment Type: Direct Replacement
Placement on Vehicle: Front

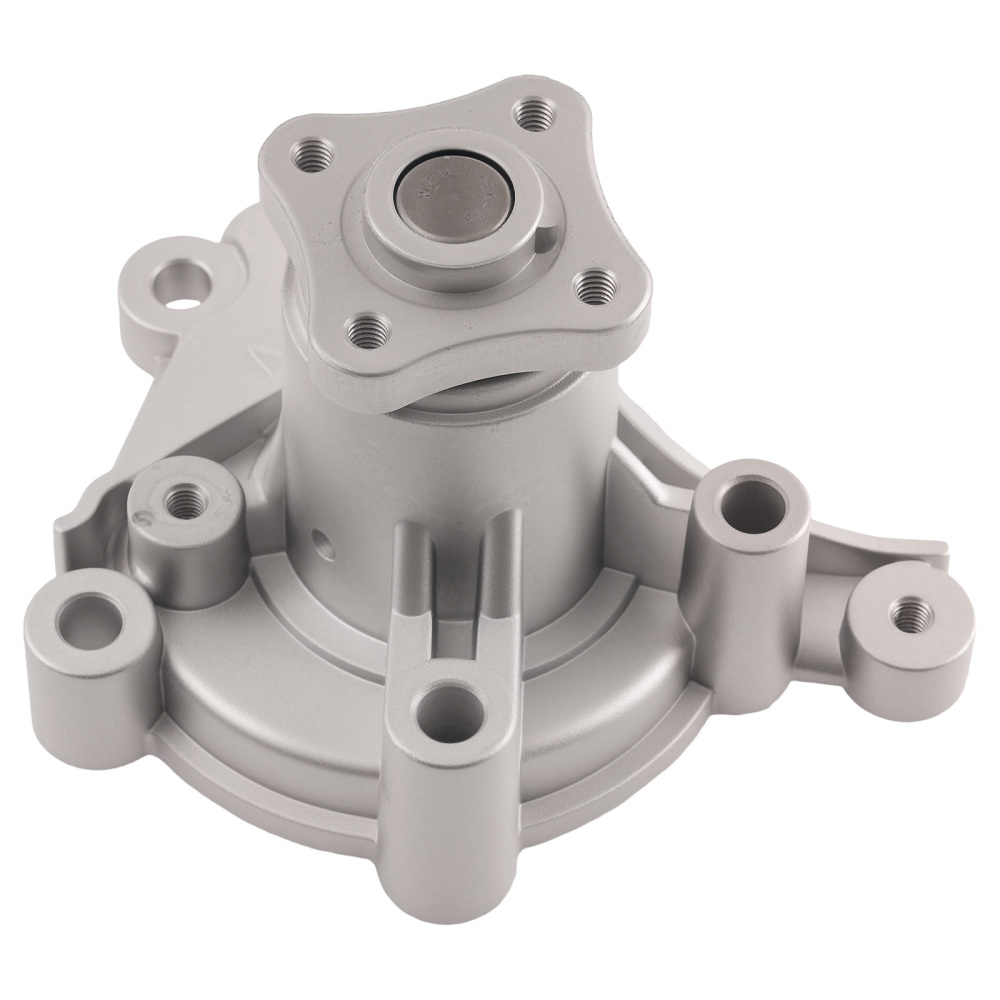

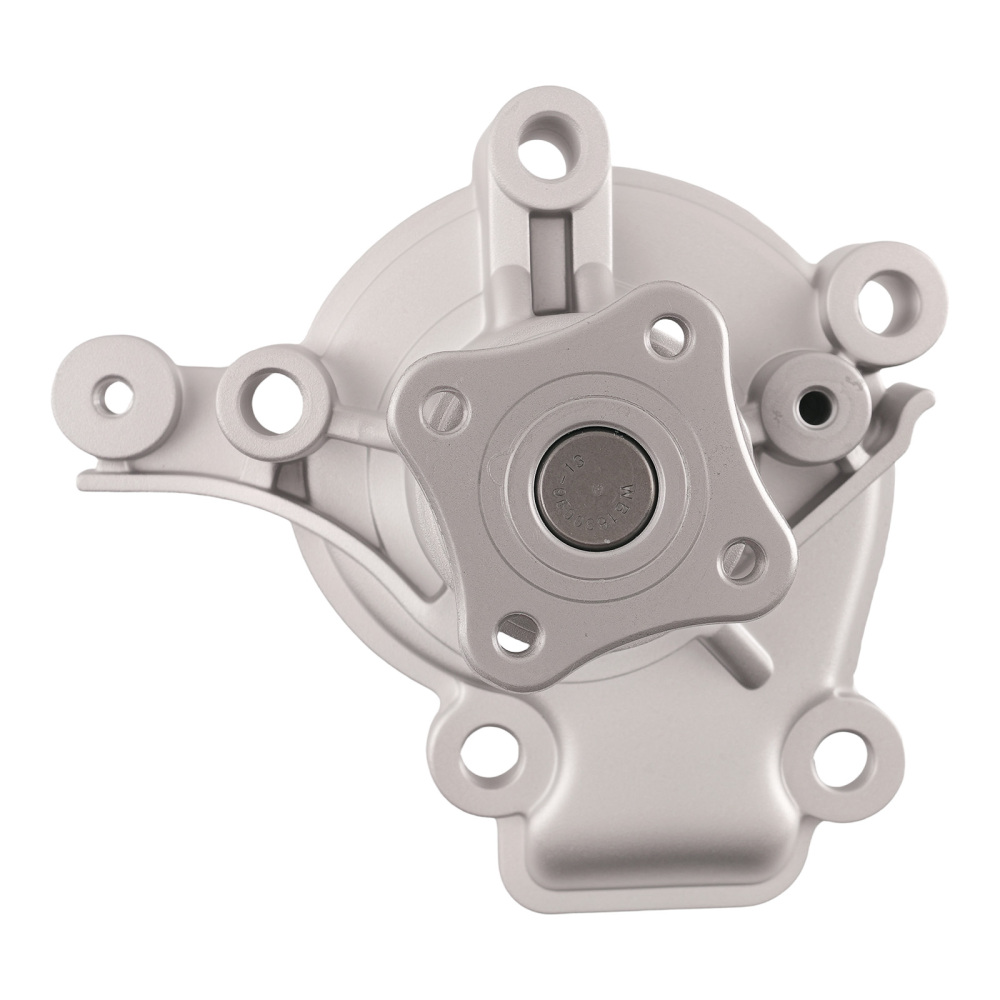

Water Pump
Number of rotor blades: 6
Pump pulley diameter: 56 mm
Impeller diameter: 60.5 mm
Pump pulley diameter: 2.2047 in
Impeller diameter: 2.3819 in
Timing Belt Color: Black Construction: Hi Temp
Effective Length: 42.37 in
Effective Length: 1076 mm
Material: Highly Saturated (Acryl) Nitrile
Number of Teeth: 113
Tooth Pitch: 0.38 in
Tooth Pitch: 9.53 mm Tooth Profile: Round tooth
Top Width: 0.99 in
Top Width: 25 mm Pulley Bolt Hole Quantity: 1
Material: Steel
Mounting Hole Diameter: 0.4 in
Outside Diameter: 2.36 in
Mounting Hole Diameter: 10.1600 mm
Outside Diameter: 59.9440 mm
Pulley Type: Smooth
Width: 1.12 in
Width: 28.4480 mm

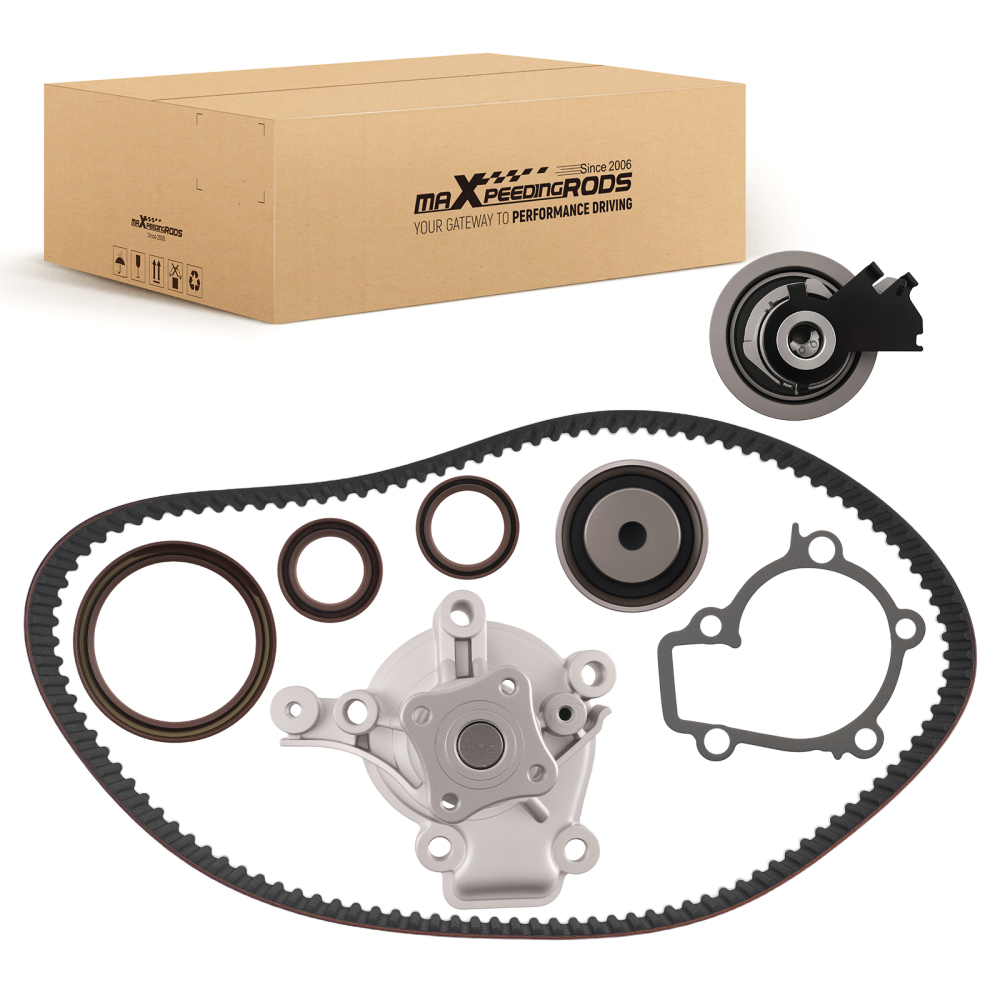

Package included

1* Timing Belt (113 teeth)

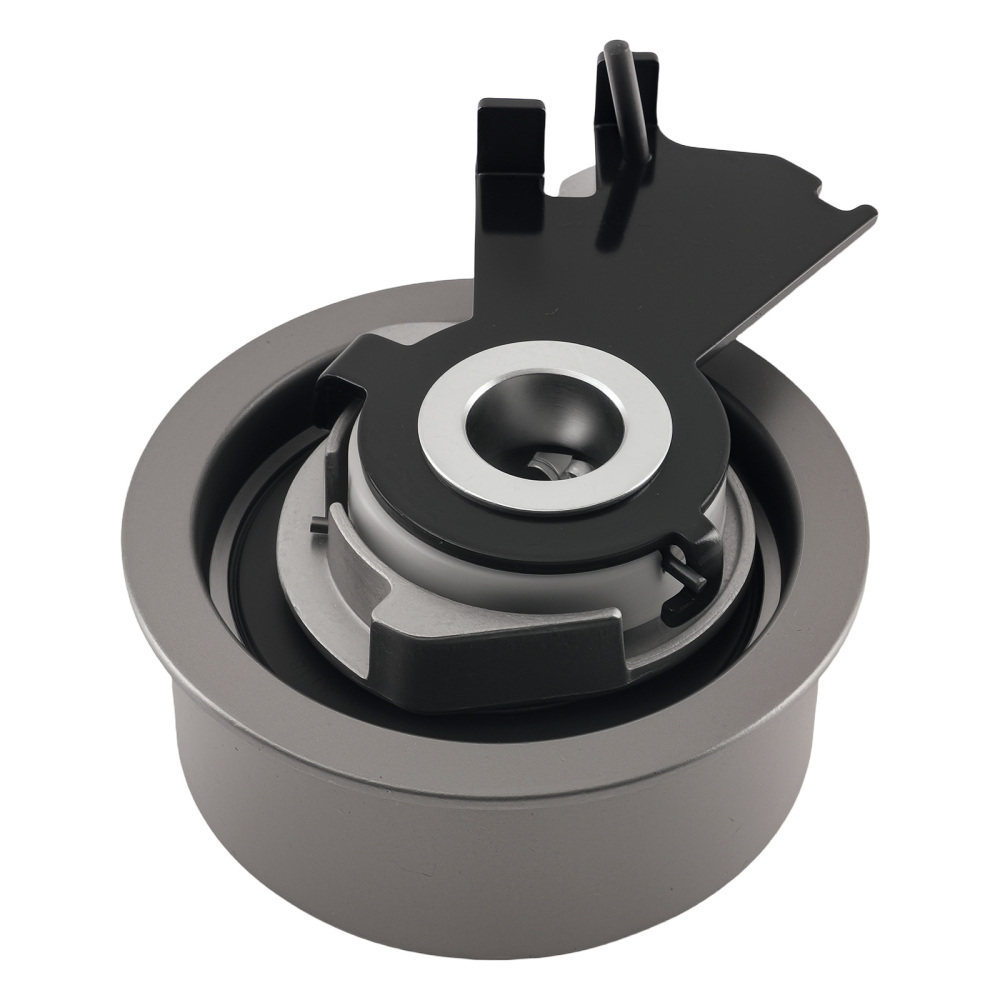

1* Tensioner (mechanical spring style)
1* Idler
1* Camshaft Seal
1* Crankshaft Seal
1* Oil Pump Seal
1* Water Pump w/ Metal Gasket
W/o Product Instruction
Showing as the picture

Feature

1.100% NEW.
Every product has quality inspection before leaving the factory.
2.High Quality
Components and materials ensure a longer service life.
3.Direct Fit
Less expensive, easier to install.

Note

1.Professional Installation Is Highly Recommended.
2.Please make sure it will fit your machine before purchasing it.
3.Please check pictures for more details.
