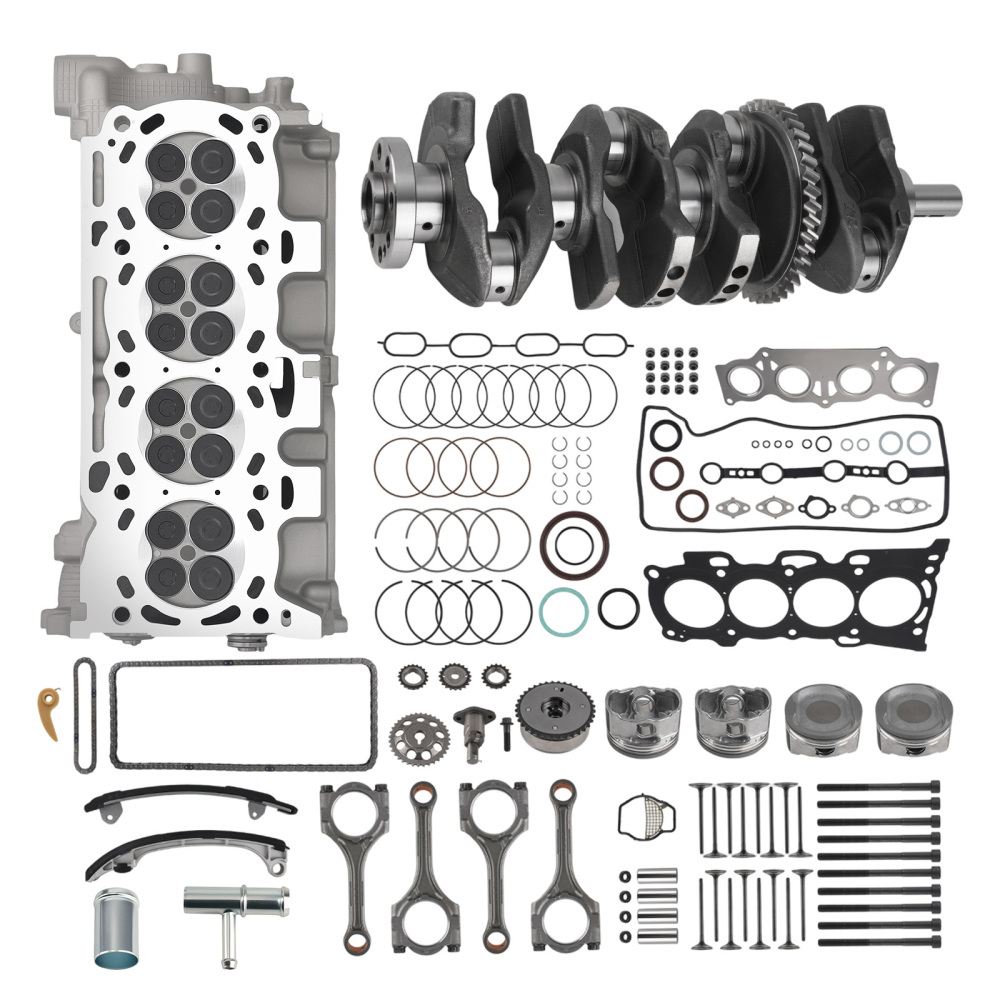

Complete Cylinder Head w/ Crankshaft Overhaul Rebuild Kit compatible for Toyota 2.4L 2AZFE

For Engine Rebuild Overhaul Kit:

Engine: 2AZ-FE 16V DOHC 2.4 LTR VVT-i PETROL.

Compatible for Toyota Highlander 2.4L 2001-2007
Compatible for Toyota Camry 2.4L 2002-2009
Compatible for Toyota RAV4  2.4L 2004-2007
Compatible for Toyota Corolla XRS 2.4L 2009-2010
Compatible for Toyota Matrix S 2.4L 2009-2011
Compatible for Scion tC 2.4L 2005-2010
Compatible for Scion xB 2.4L 2008-2015

OE/Part number:

For Cylinder Head:

1110128010, 1110128011, 111010H010, 1110128012
111010H011, 111010H021, 111010H040, 11101-28010
11101-28011, 11101-0H010, 11101-28012, 11101-0H011
11101-0H021, 11101-0H040, HS26232PT

For Engine Rebuild Overhaul Kit:

Crankshaft Part Number:

13401-28900
13401-28010

New Type Part Number:
13011-0H031,13211-0H041-A0,13211-0H041-B0,13211-0H041-C0,
13251-0H030-B0,13251-0H030-C0,13211-28112-A0

Old Type Part Number: 13210-28030-A0,13210-28031-A0

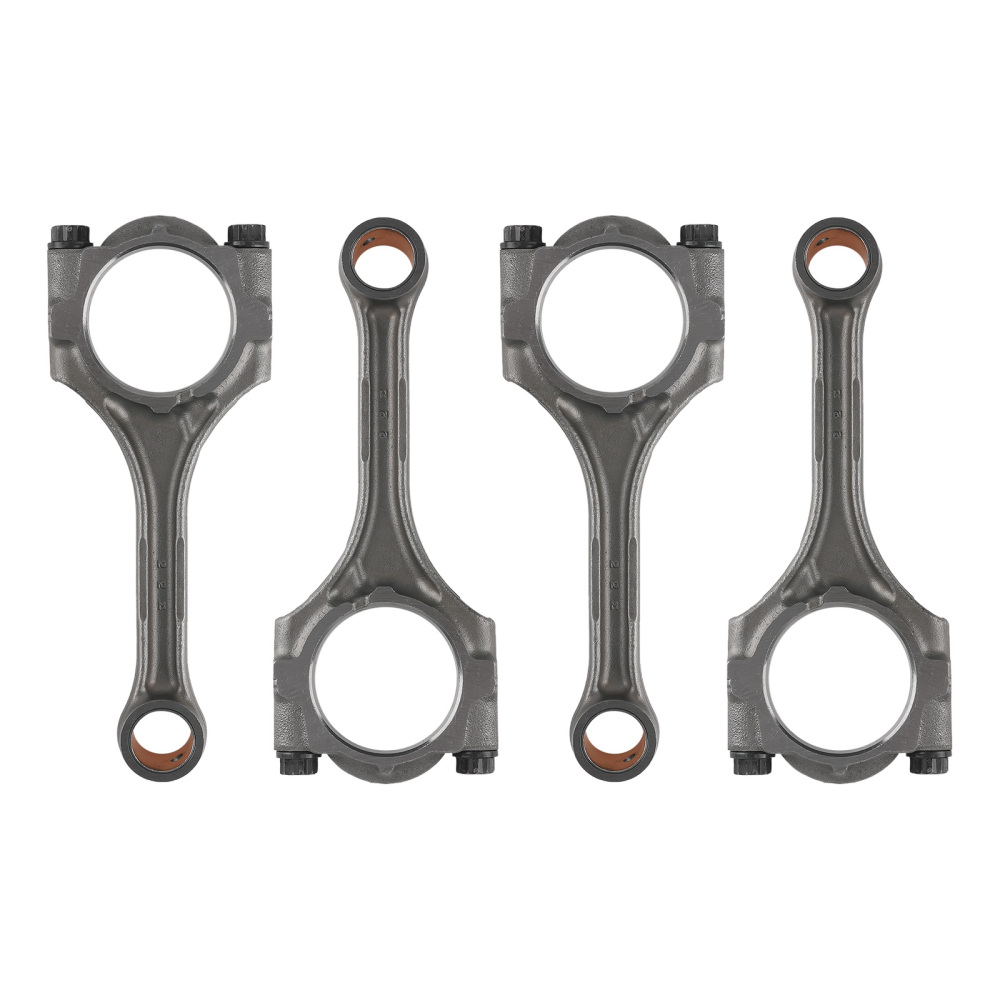

Connecting Rod Part Number:
13201-29685-A0, 13201-29685-B0, 13201-29685-C0
13201-29125-A0, 13201-29125-B0, 13201-29125-C0

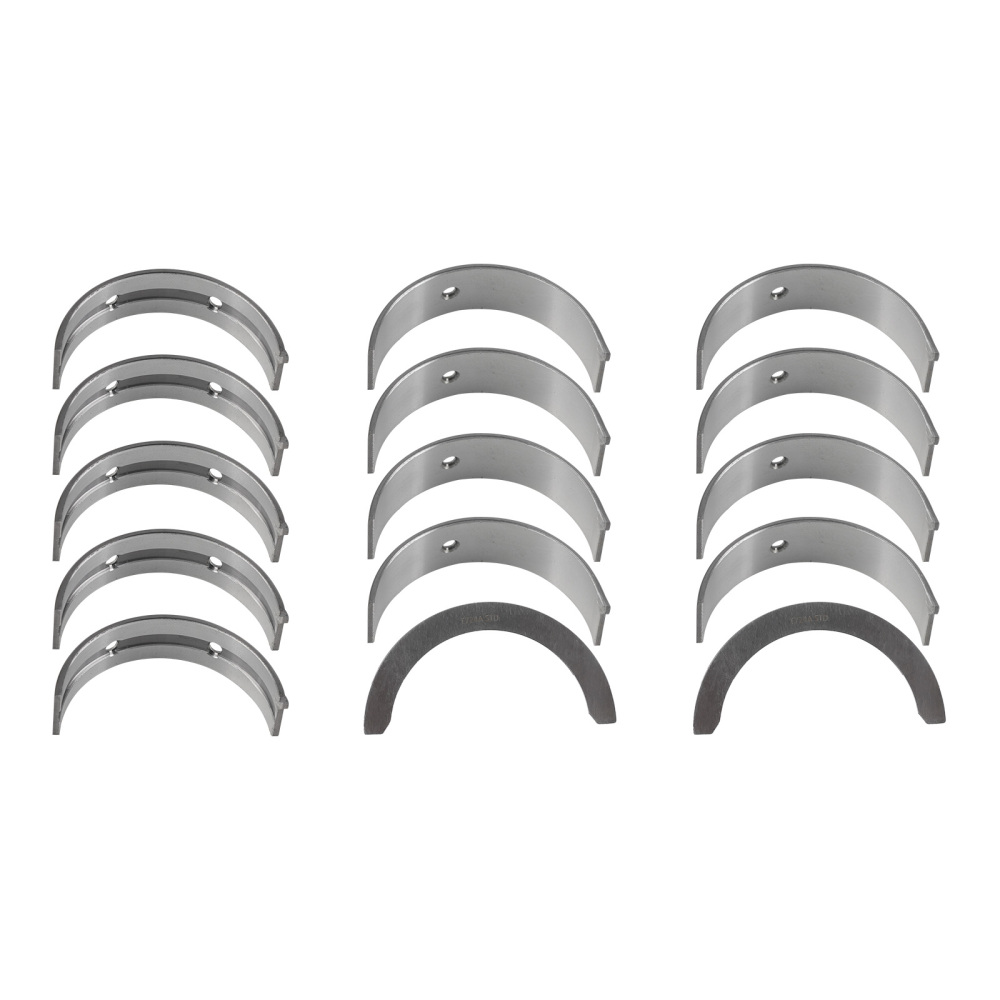

Main & Rod Bearing Set Part Number:

13281-28010, 132810-H010, 132810-H030, 13281-28011
MB5646SI, 5M8412A, MB922, 7431M, BC1002, BM15-104, MBTO44
CR4514SI, 4B8411A, RB922, BB1001, 4-5000A, RBTO44, BR15-104

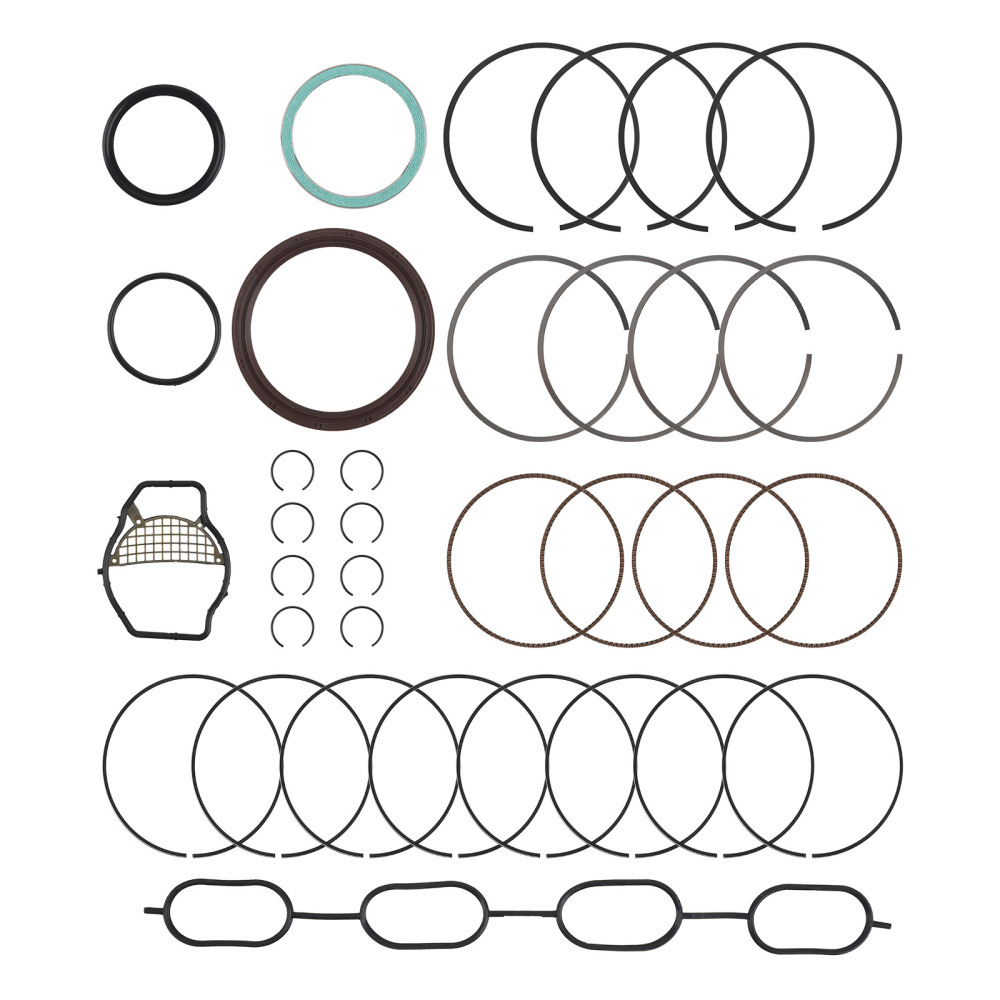

Gasket Seals & Head Bolts Set Part Number:

11115-28010, 11115-28011, 11115-28012, 11115-28013, 11213-0H040
11213-28021, 90080-31072, 90311-38078, 90311-38080, 90311-T0024
17173-0H020, 17173-0H040, HS26232PT, ES71183
90311-38089, 90311-38096, 90311-A0014

Intake & Exhaust Valve Kit Part Number

1371128010,1371528040，13711-0H010,13715-0H030

Timing Chain Kit Part Number:

13523-0D010, 13521-0H010, 13506-0H011, 13540-0H010, 13559-OH010
13050-28021, 13561-0H010, 13507-28010, 13549-28012, 13566-28010

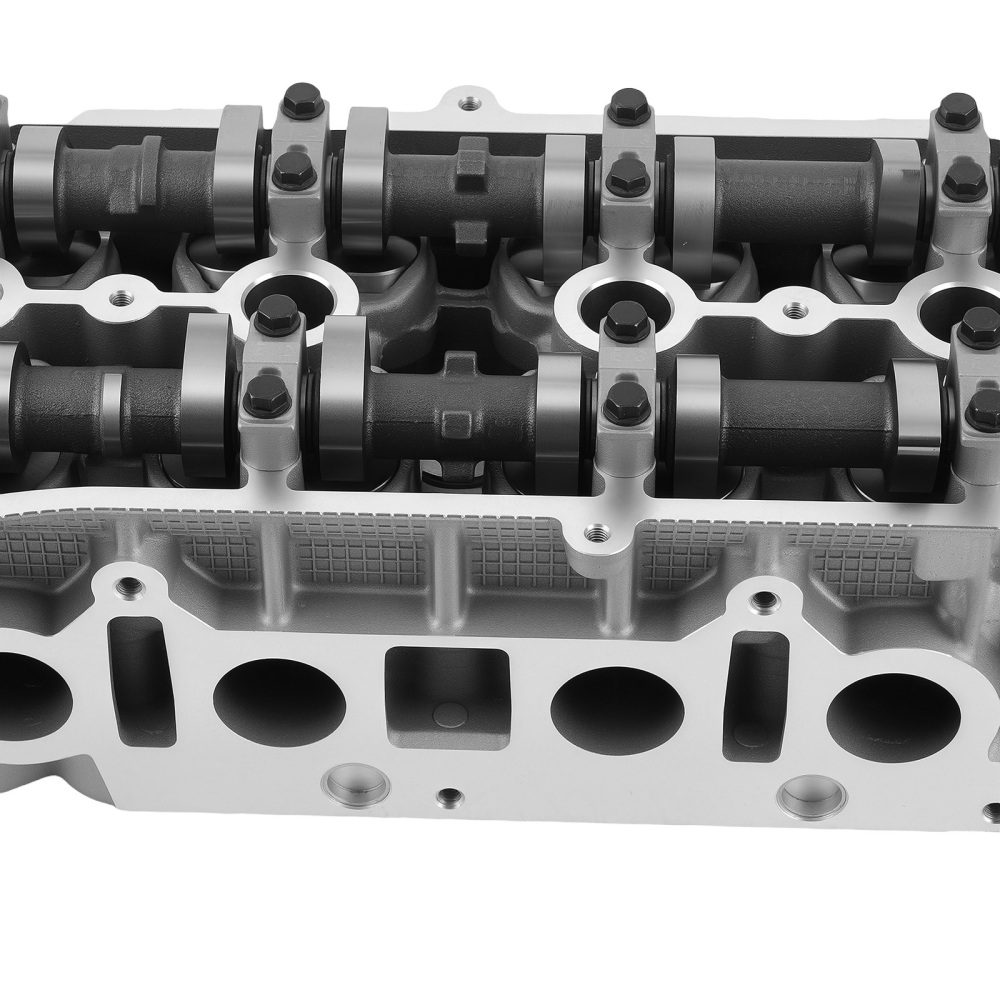

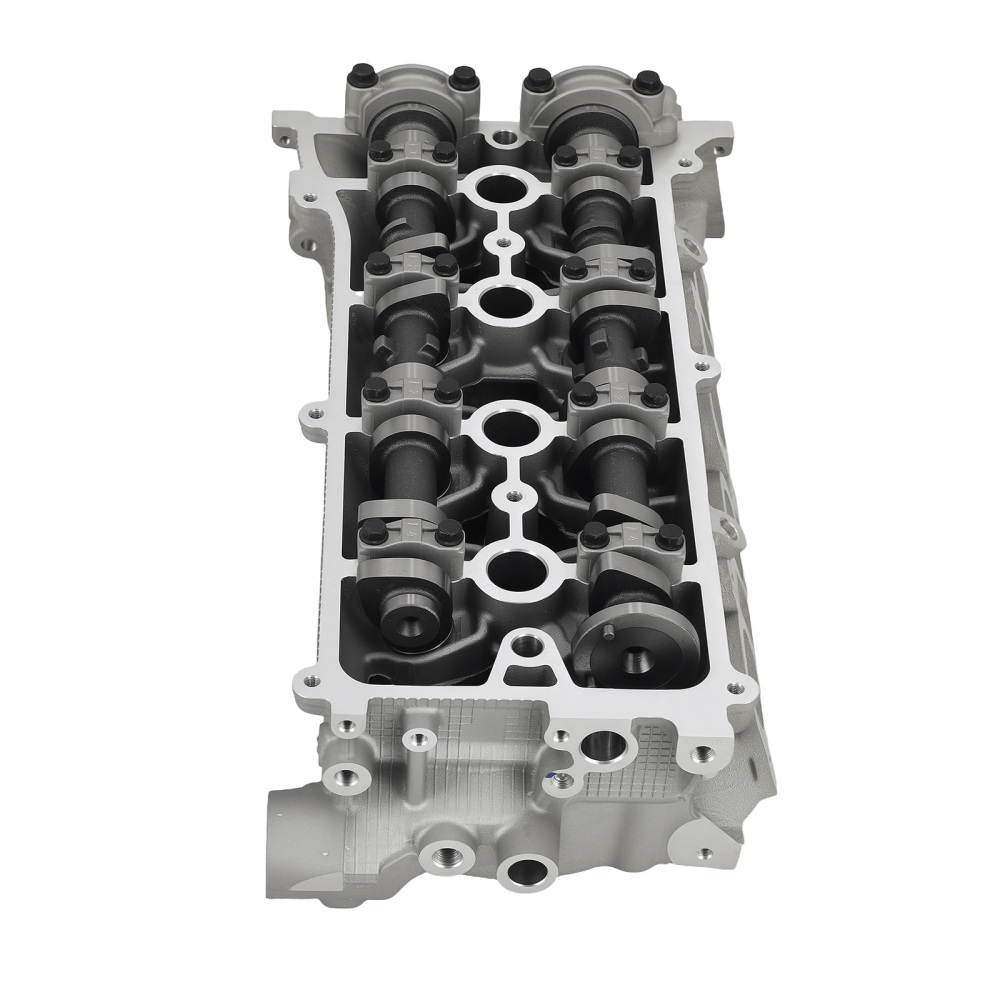

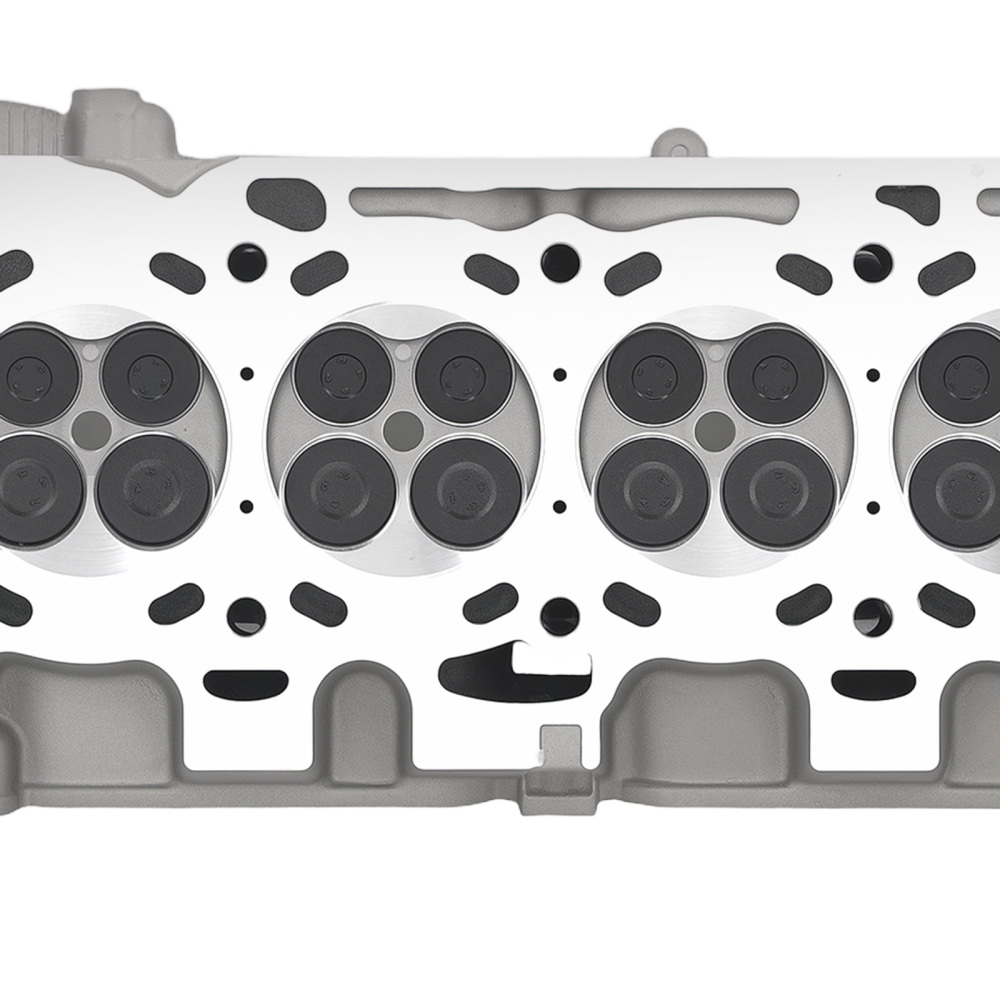

Cylinder Head Specification:

Condition: Brand New
Type: Cylinder Head
Fitment Type: Direct replacement
Material: Aluminium Alloy
Engine Code: 1AZ-FE, 1AZ-FSE, 2AZ-FE, 2AZFE

Engine Rebuild Overhaul Kit Specification:

Condition: New
Material:QT800-3 Steel

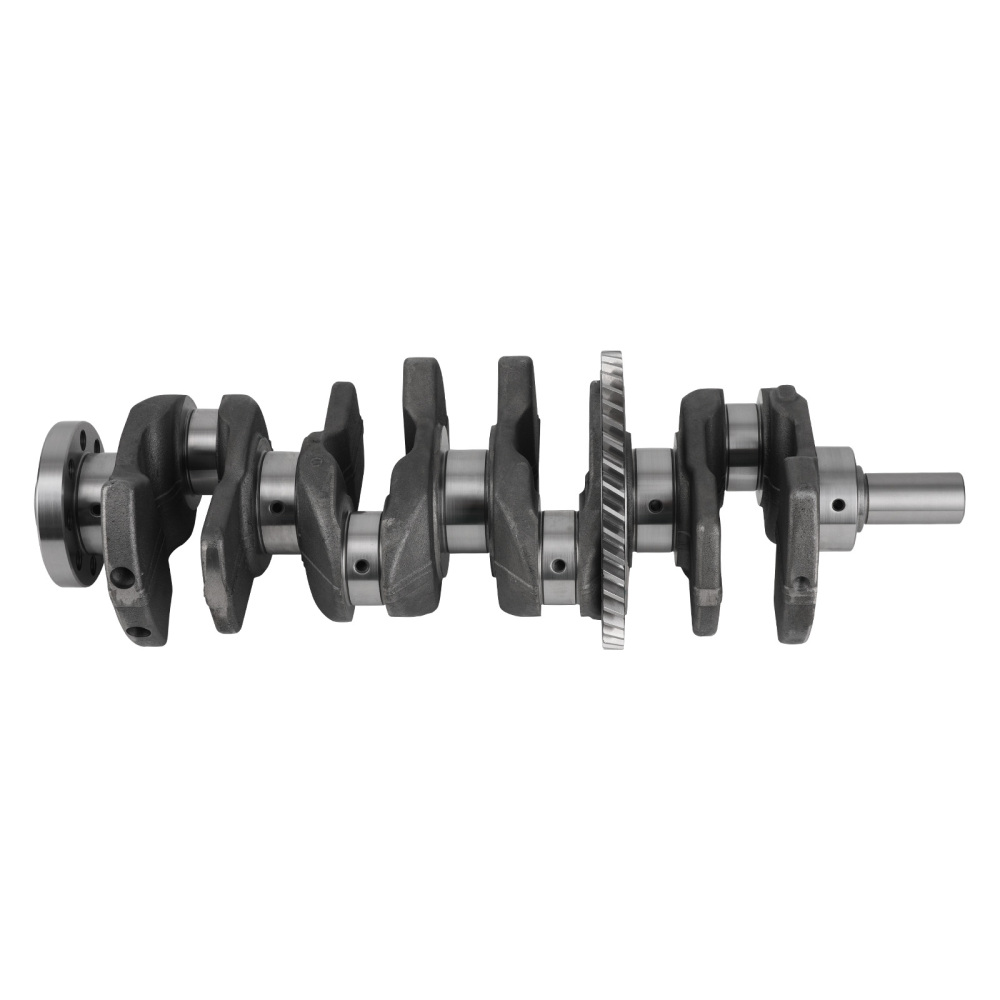

Crankshaft:
Main shaft diameter: 55mm
Connecting rod diameter: 48mm
Eccentricity: 96mm
Total length: 482.8mm

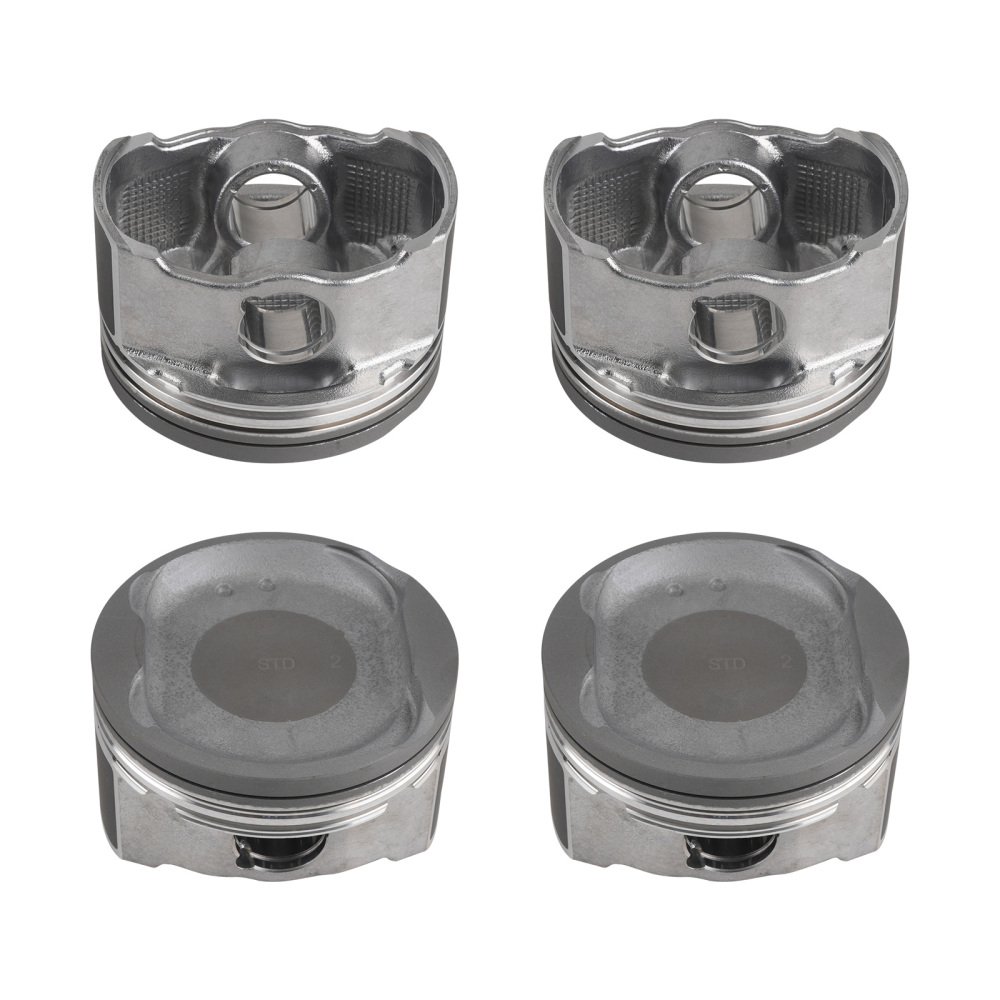

Piston & Piston Rings:
Cylinder Bore: 88.5mm
Piston Compression Height: 35.8 mm
Piston Width: 88.5 mm
Piston Height: 55.7 mm
Piston Pin Diameter: 22 mm
Piston Pin Length: 56 mm
Piston ring size: 88.5*1.0*1.0*2.0mm
Radial wall thickness (a1):2.75+2.75+2.6mm

Package Content:

1x Cylinder Head Assembly
1x Crankshaft
4x Connecting Rods
1x Engine Pistons & Rings Set
1x Main & Rod Bearings Set
1x Intake & Exhaust Valve Kit
1x Timing Chain Kit w/ VVT Gear Set
1x Head Gasket Seals & Head Bolts Set
