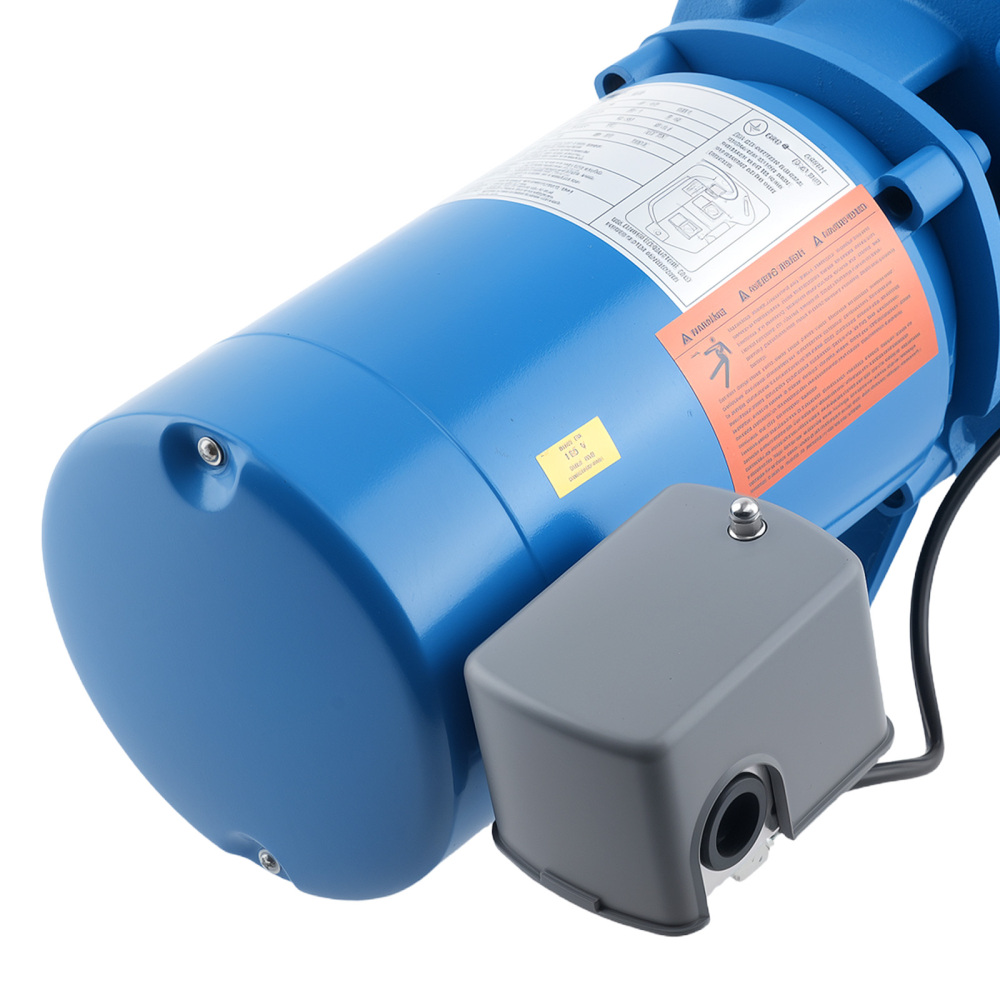

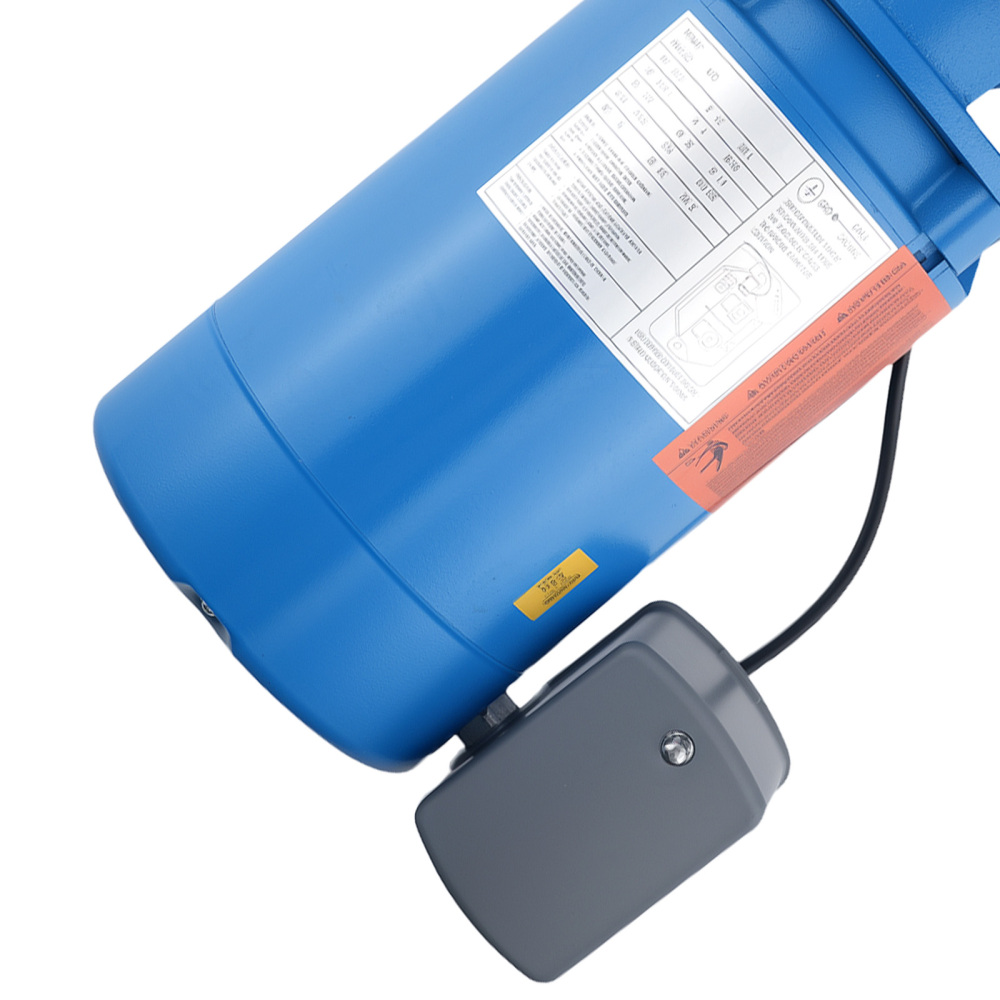

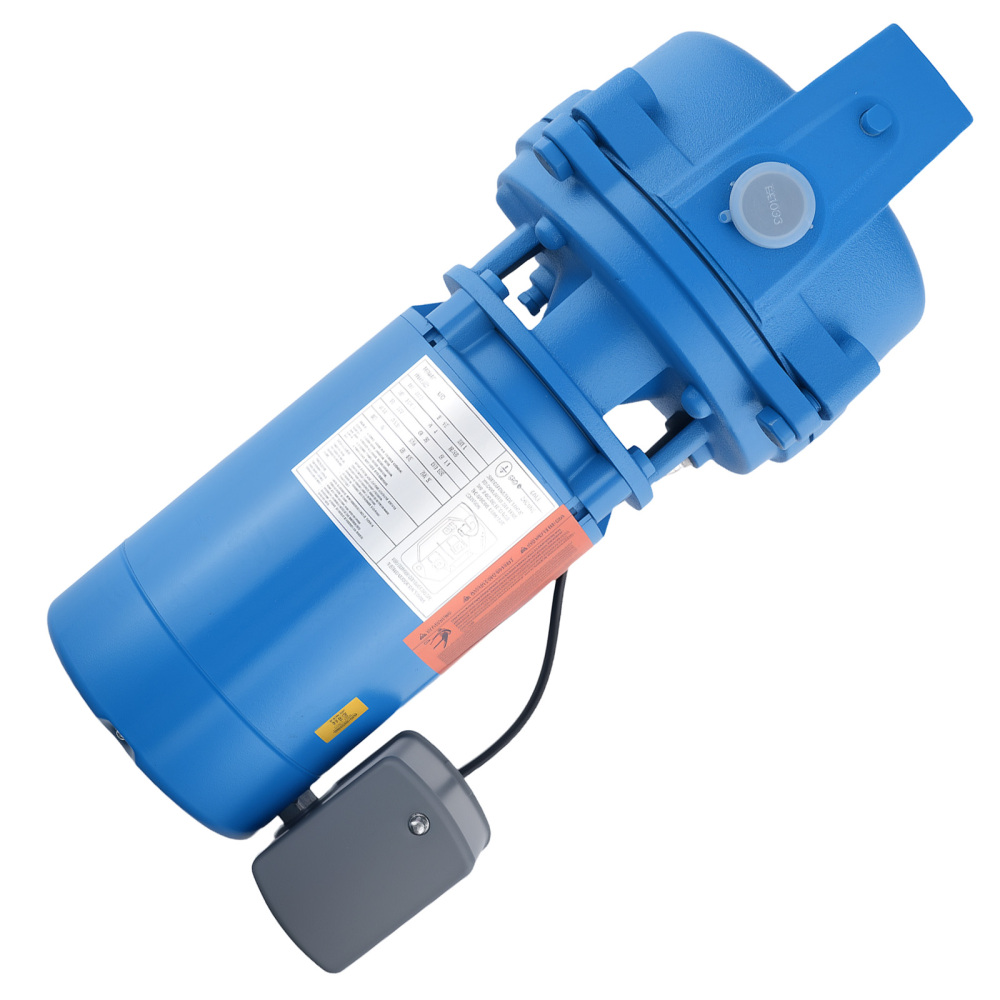

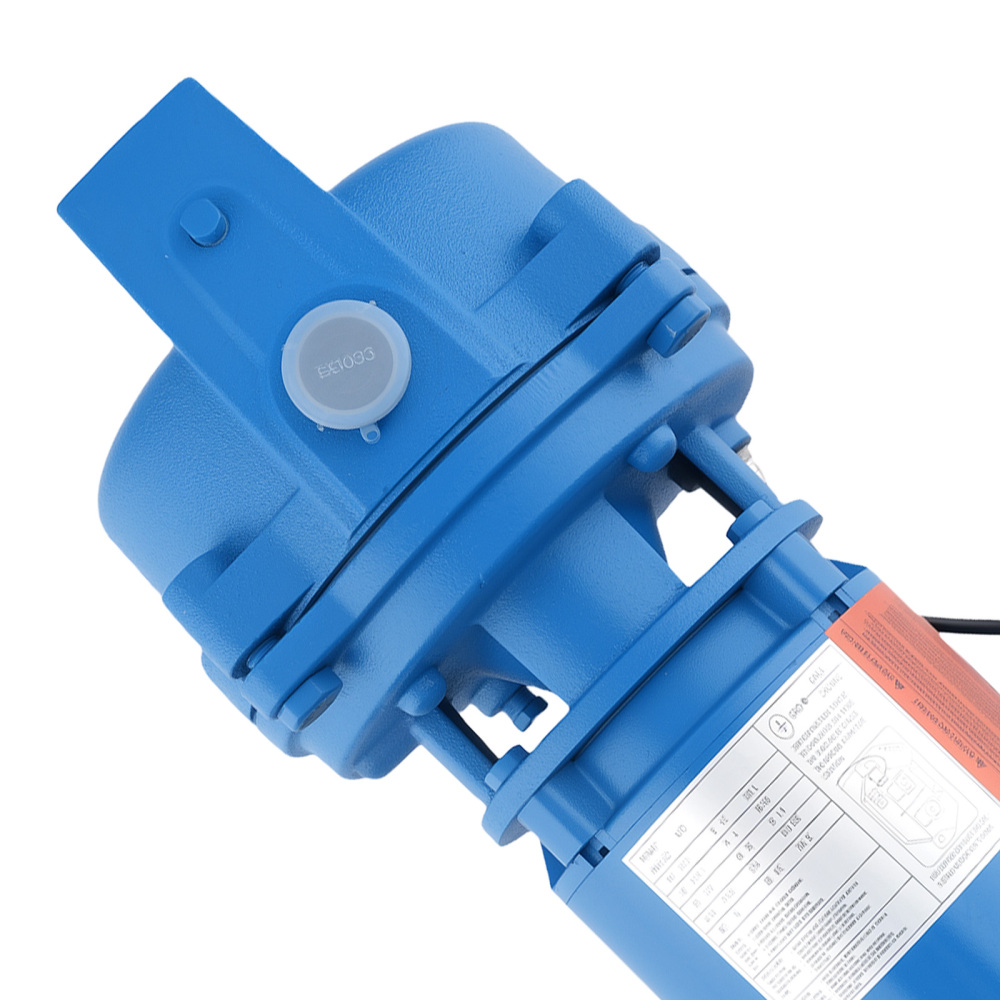

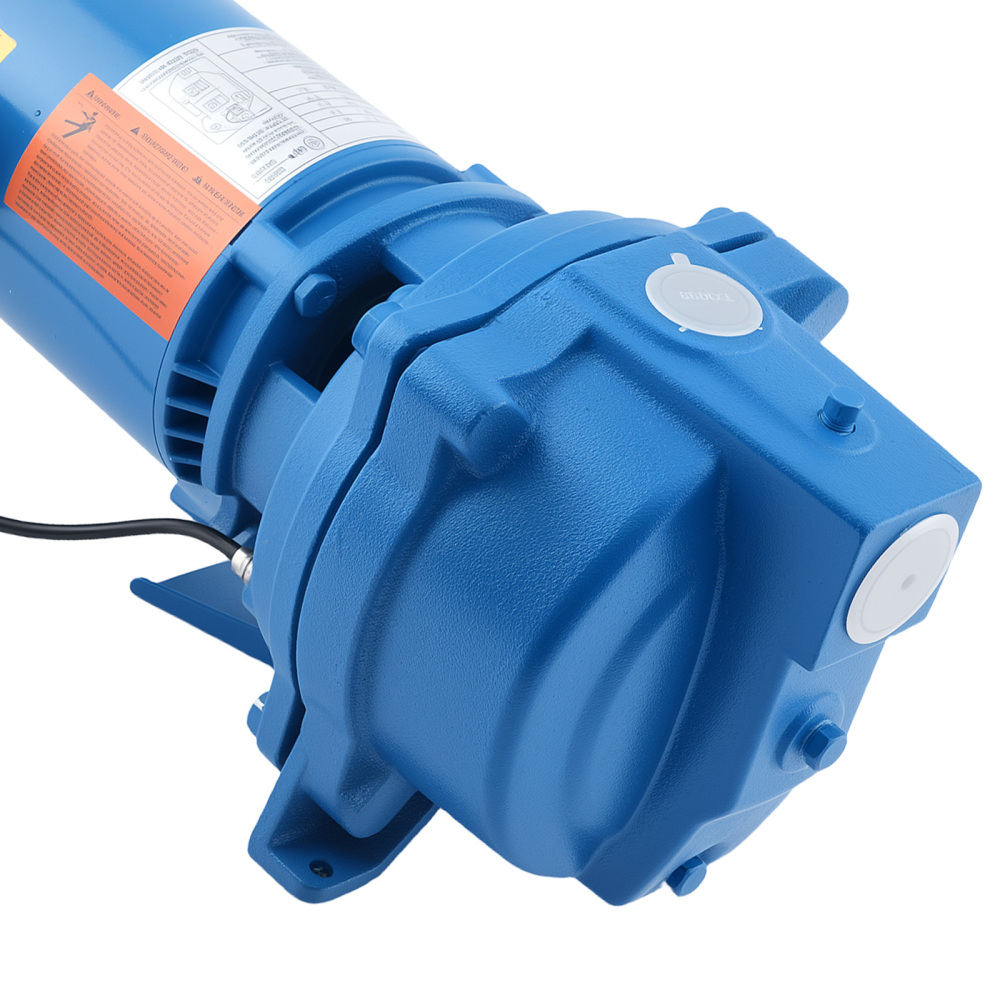

Booster Service Pump for J5S Electric Water Wellnew Shallow Well Jet Pump

Application

Homes
Cottages
Booster service

OE/Part number

J5S

Specification

Application
Well Pump Booster Pump
Custom Bundle
No
Power Source
Electric
Type
Water
MPN
J5S

Package included

RV Leveling Touchpad*1

Feature

Back pull-out design allows disassembly of pump for service without disturbing piping
Two compartment motor for easy access to wiring and replaceable components
Nozzle clean out plug in pump compatible for case
Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning
Protected mechanical seal with a special diaphragm design that retains water in the casing at all times to ensure the mechanical seal can never run dry
Corrosion and abrasion resistat glass filled noryl impeller, F.D.A. compliant
Bolt down diffuser provides positive alignment with impeller
Diffuser also has stainless wear ring for extended performance in abrasive conditions
Powered for continuous operation
After initial priming the pump has the ability to re-prime itself even when air gets into the system. Pumping resumes once the water level rises above the foot valve
Built-in overload with automatic reset
Stainless steel shaft
Clockwise rotation when viewed from motor end
Pressure switch preset (30-50 psi)
