Boat Hydraulic Steering System Kit compatible for Mercury Mariner Yamaha F80 4 Stroke new

Application

Compatible for Yamaha 60-70 2 Stroke 1984-2008
compatible for Yamaha 75C-90 2 Stroke 1998-2008
compatible for Yamaha F40G-F70 4 Stroke 2010-today
compatible for Yamaha F30-F40-F60-F75-F80-F90 EFI 4 Stroke 1999-2007
compatible for Yamaha F80 4 Stroke 2000-today
compatible for Yamaha F40D-F50F-F60C EFI 4 Stroke 2004-today
compatible for Honda BF40-50-60-75-90 4 Stroke 1995-today
compatible for Honda BF90 V-TEC 4 Stroke 2008-today
compatible for Suzuki DF40-50-60-70-80-90 4 Stroke 1998-today
compatible for Tohatsu Nissan 40-50-60-70-90 2 Stroke 2004-today
compatible for Tohatsu Nissan 75-90 2 Stroke 2004-today
compatible for Tohatsu Nissan 40-50TLDI 4 Stroke 2004-today
compatible for Tohatsu Nissan 70-90 TLDI 4 Stroke 2004-today
compatible for Mercury Mariner 50-75-90 2 Stroke 1990-2008
compatible for Mercury Mariner 75-90-115 Optimax 2 Stroke 2004-today
compatible for Mercury Mariner 40-50-60-EFI 4 Stroke 2004-today
compatible for Mercury Mariner 75-80-90 EFI 4 Stroke 2000-today
compatible for Evinrude E40-E50-E55-E60 2 Stroke 2004-today
compatible for Evinrude E75-E90 2 Stroke 2004-today
For Selva 40XS-50 Madeira 2 Stroke 1995-today
For Selva 40XS-50 Bull shark 2 Stroke 1995-today
For Selva 40XS-60 Grey shark 2 Stroke 1995-today
For Selva 40XS-70 Mako shark 2 Stroke 1995-today
For Selva 40XS-60 St.Tropez 2 Stroke 1995-today
For Selva 80 Portofino/Tigershark 2 Stroke 1995-today
For Selva 25 Kingfish 4 Stroke 1995-today
For Selva 40 Aruana 4 Stroke 1995-today
For Selva 40XS-40XSR-50-60 Dorado EFI 4 Stroke 1995-today
For Selva 40XSR EFI Murena 4 Stroke 1995-today
compatible for Johnson BJ60-70 4 Stroke 2001-2007
compatible for Johnson BJ90 4 Stroke 2001-2007
compatible for Johnson J90 V4 2 Stroke 1995-2007

OE/Part number

90HP,24FT

Specification

Type:Hydraulic Outboard Steering Kit
Applicable Engine Horsepower:≤90HP
Maximum Pressure:2.5Mpa/363psi
Tube I.D:Φ1 in/25 mm
Rod ID: Ф0.6 in/14mm
Stroke: 7.9 in/200 mm
Quick-fit Fittings:5/16"
Output Force: 232 KGF
Capacity: 73 CC
Material: Aluminum Alloy +Stainless Steel

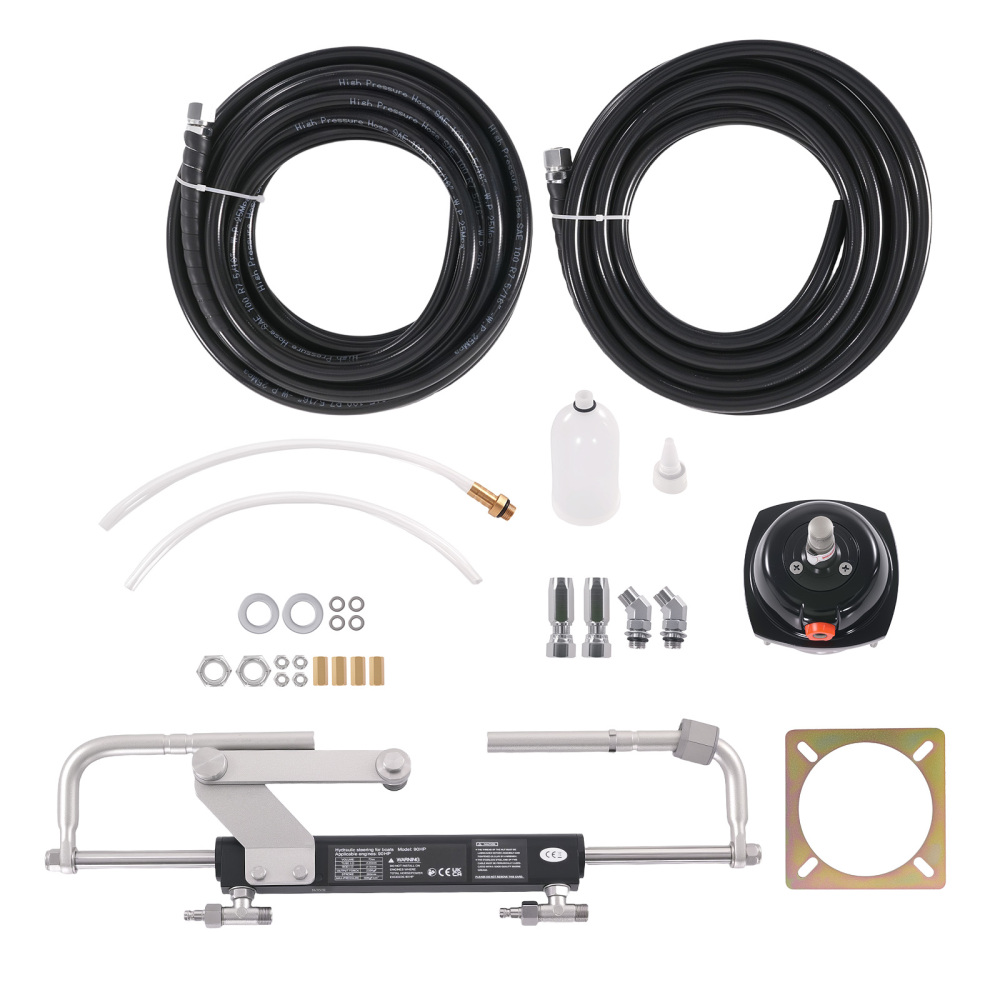

Package included

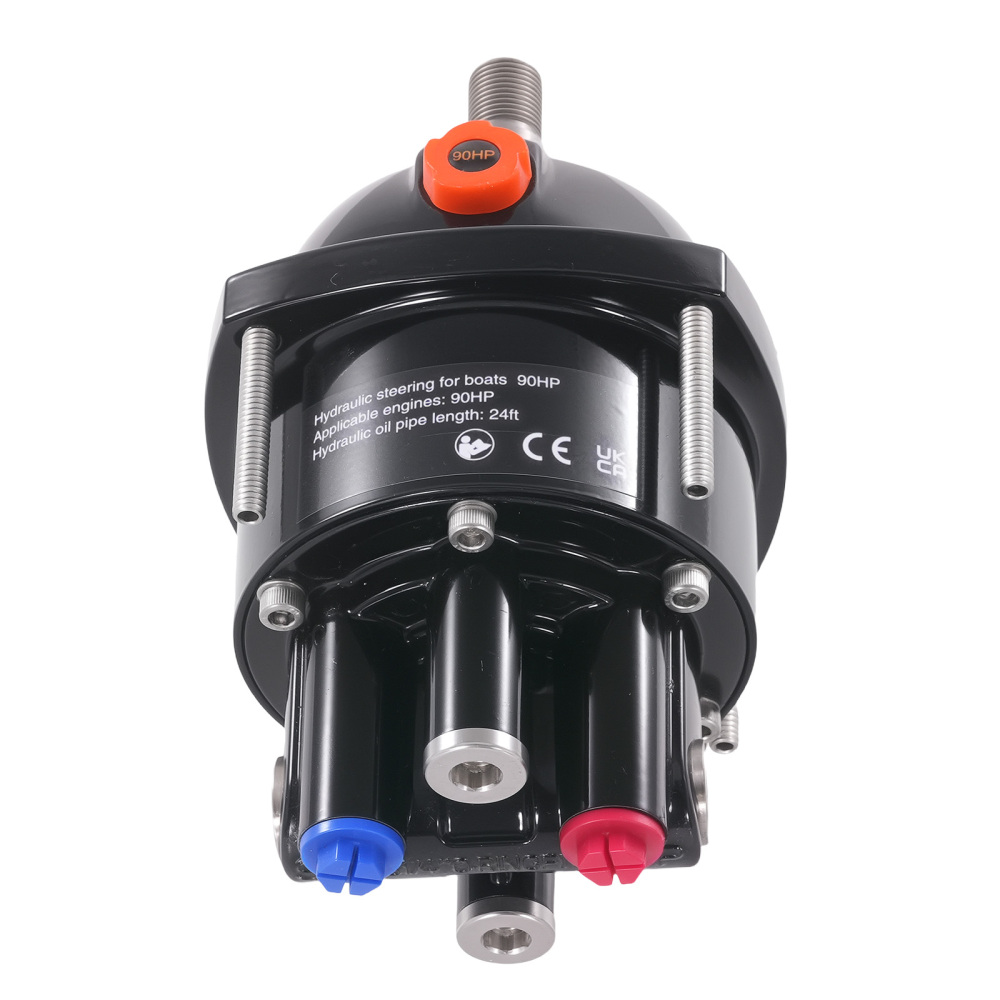

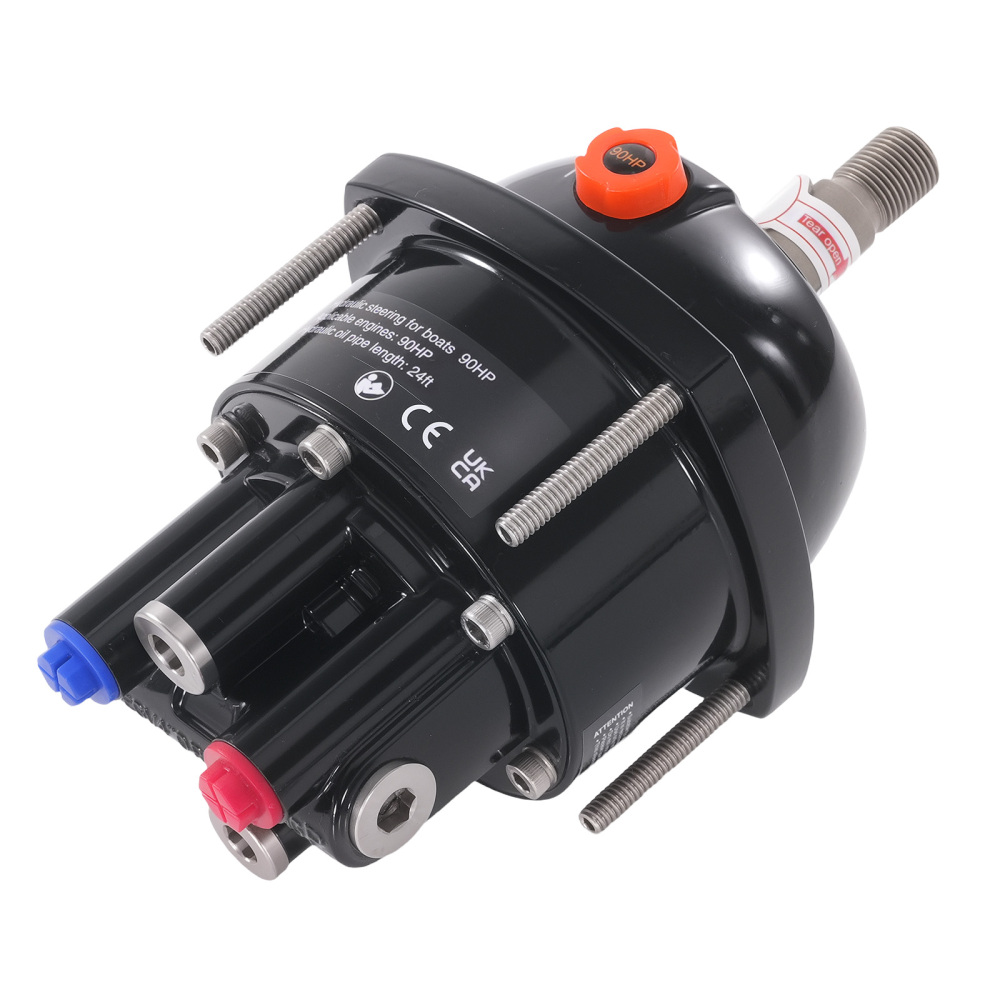

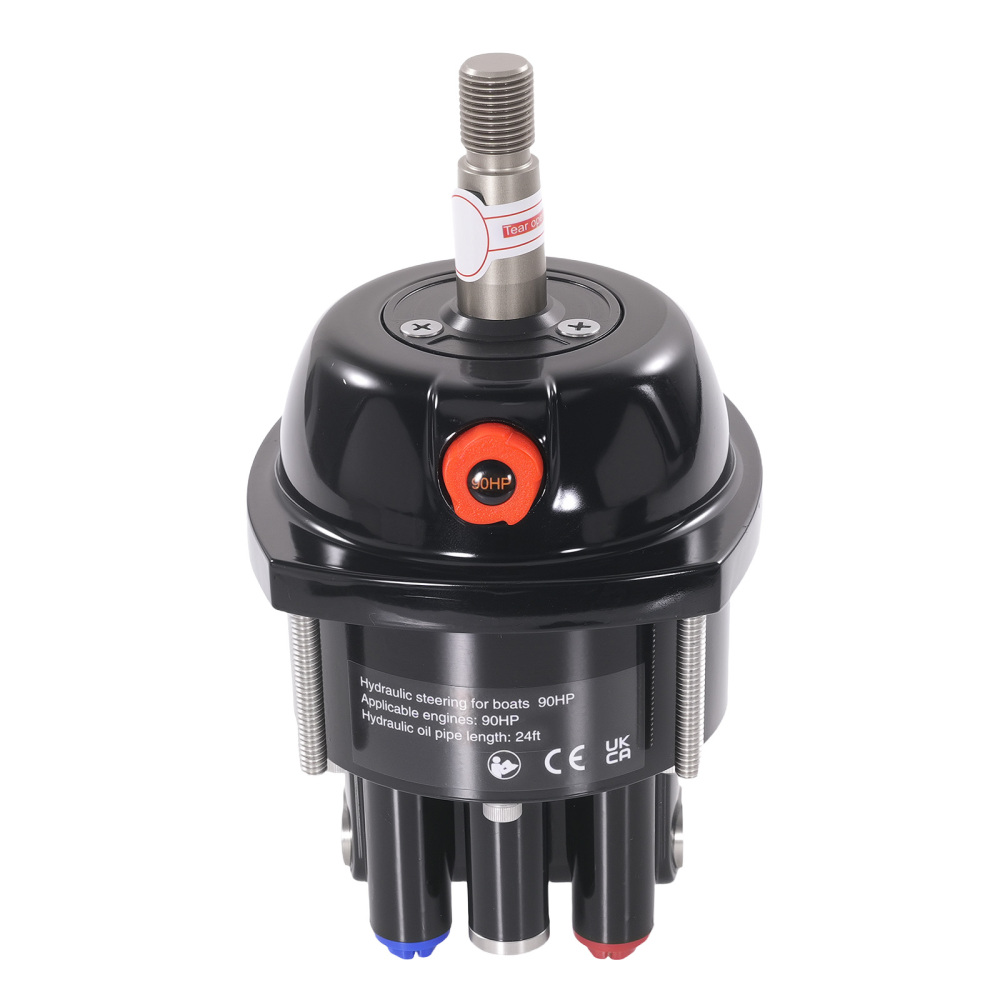

1 x Hydraulic Steering Pump

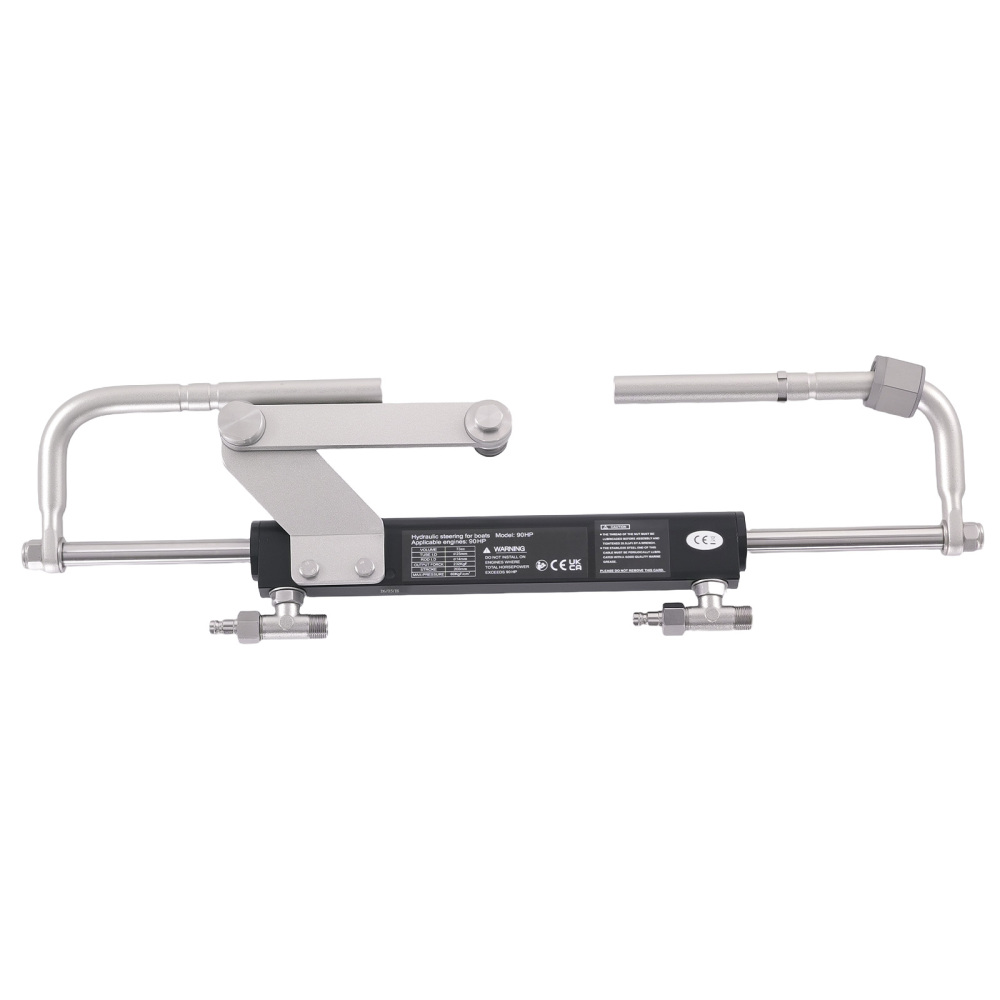

1 x Hydraulic Steering Cylinder
2 x 24 ft hydraulic hoses

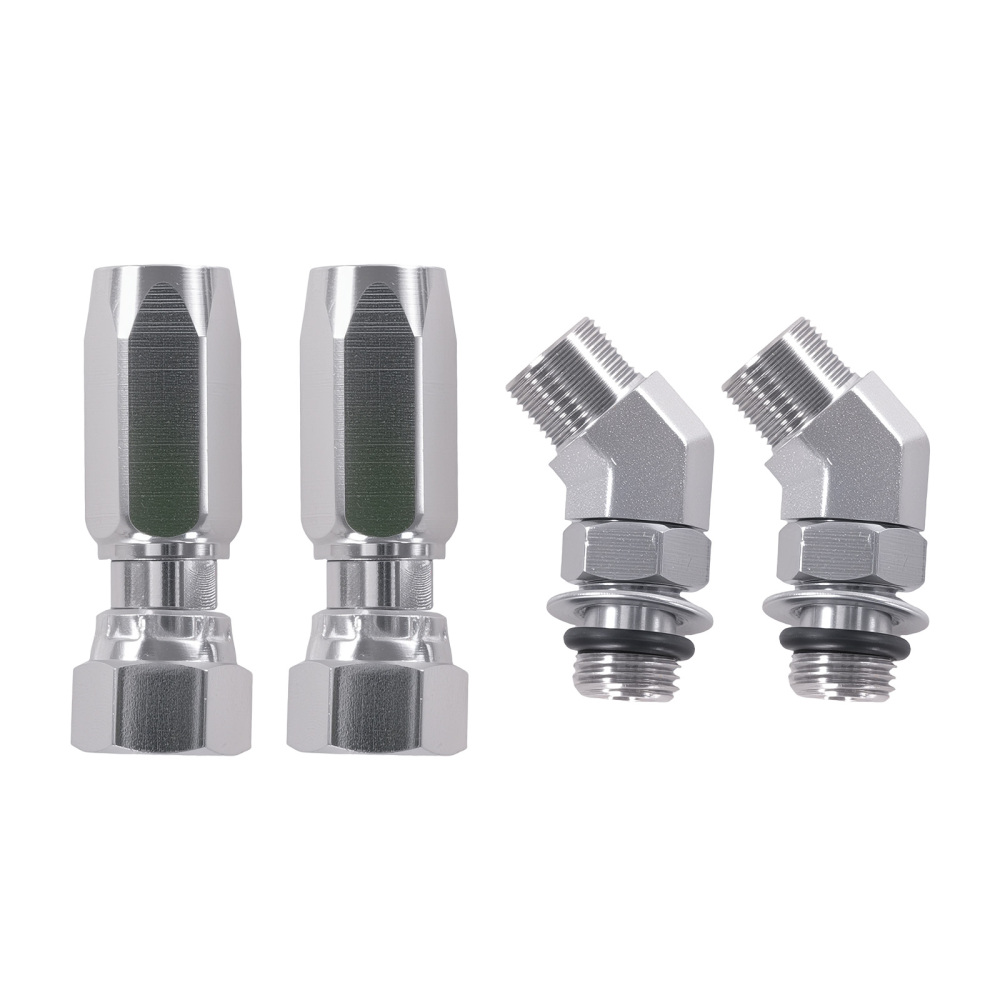

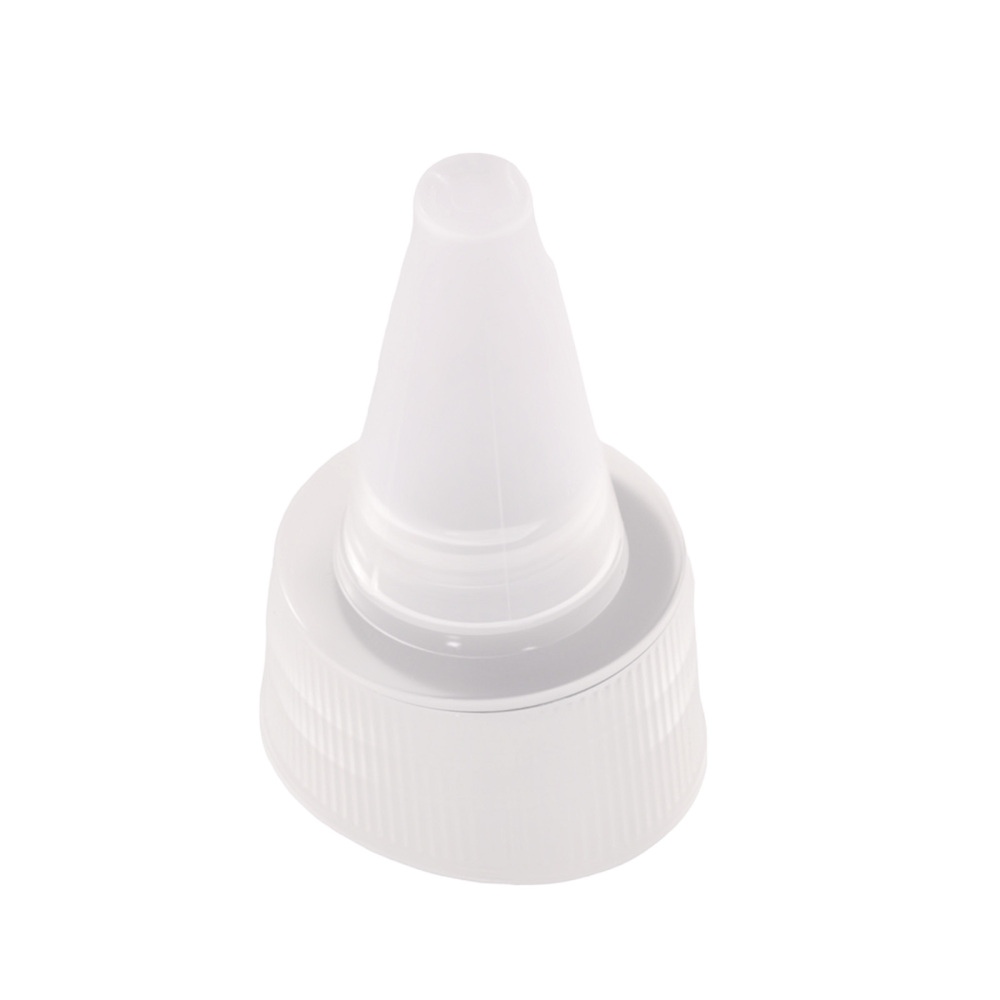

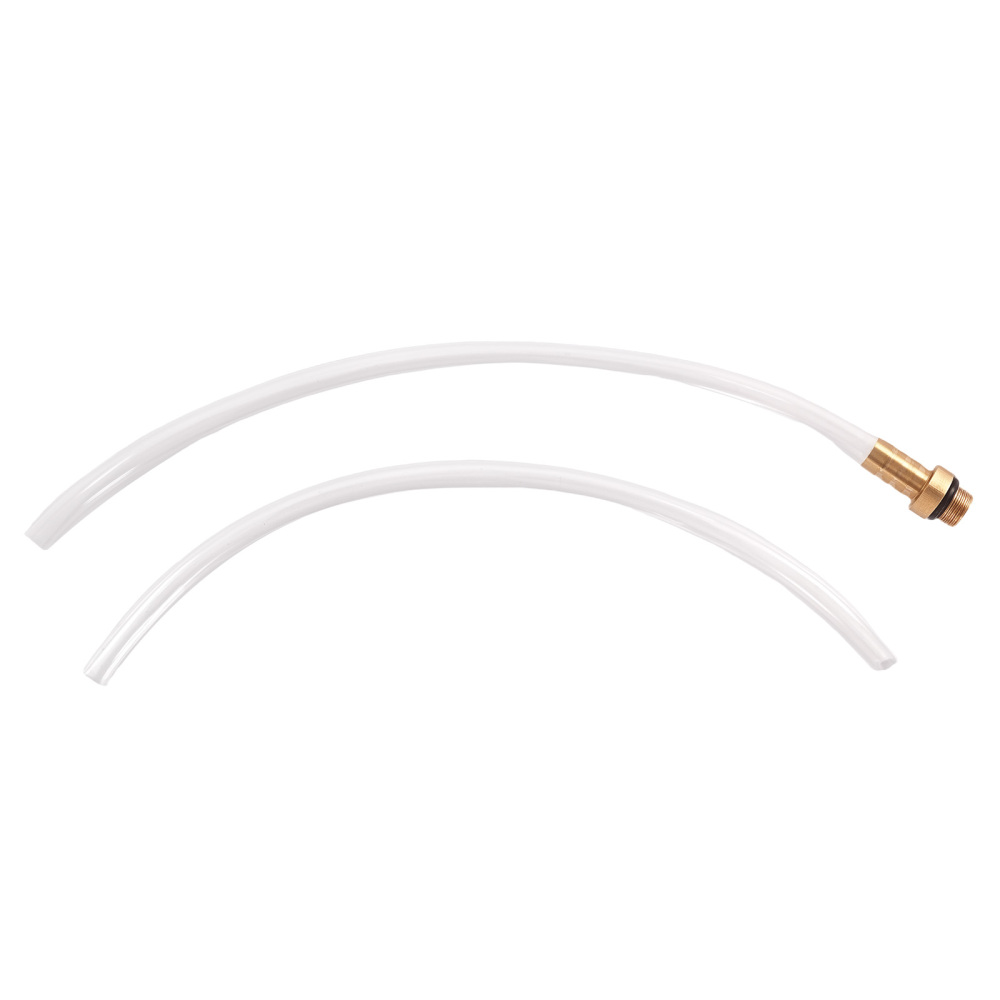

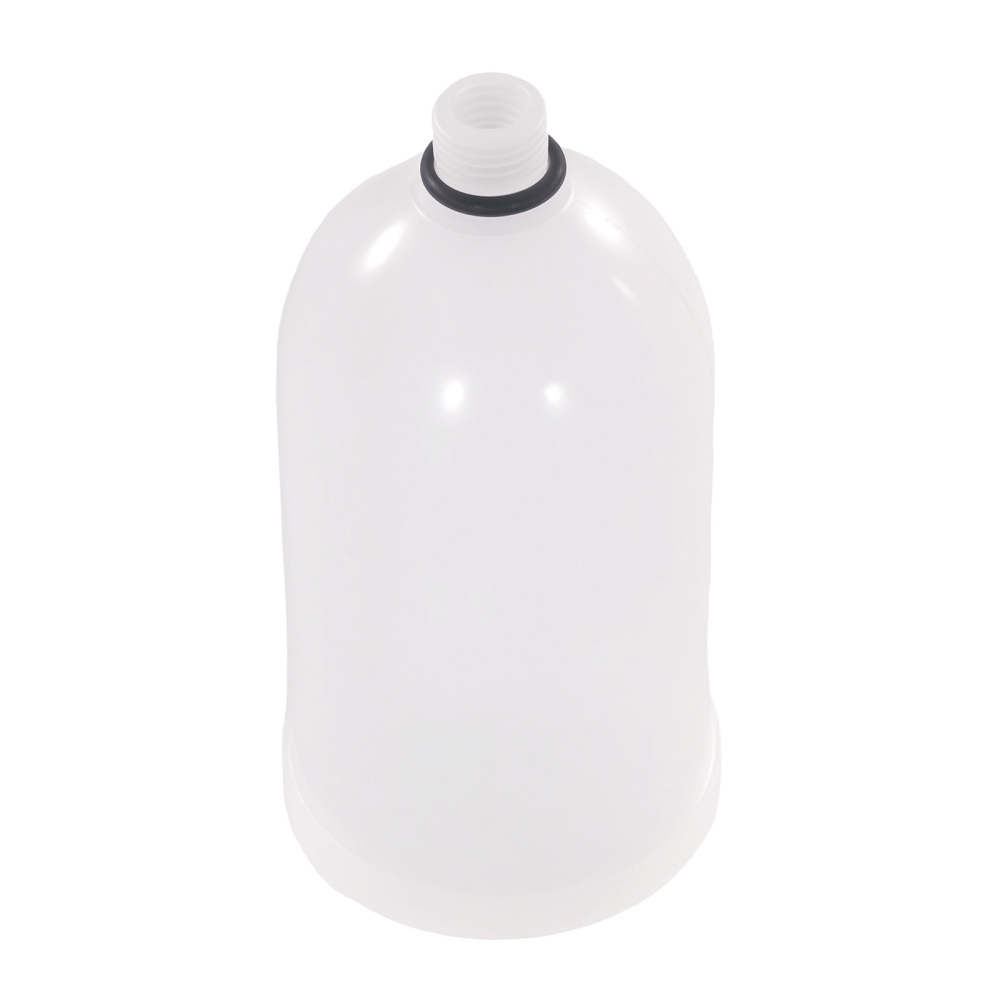

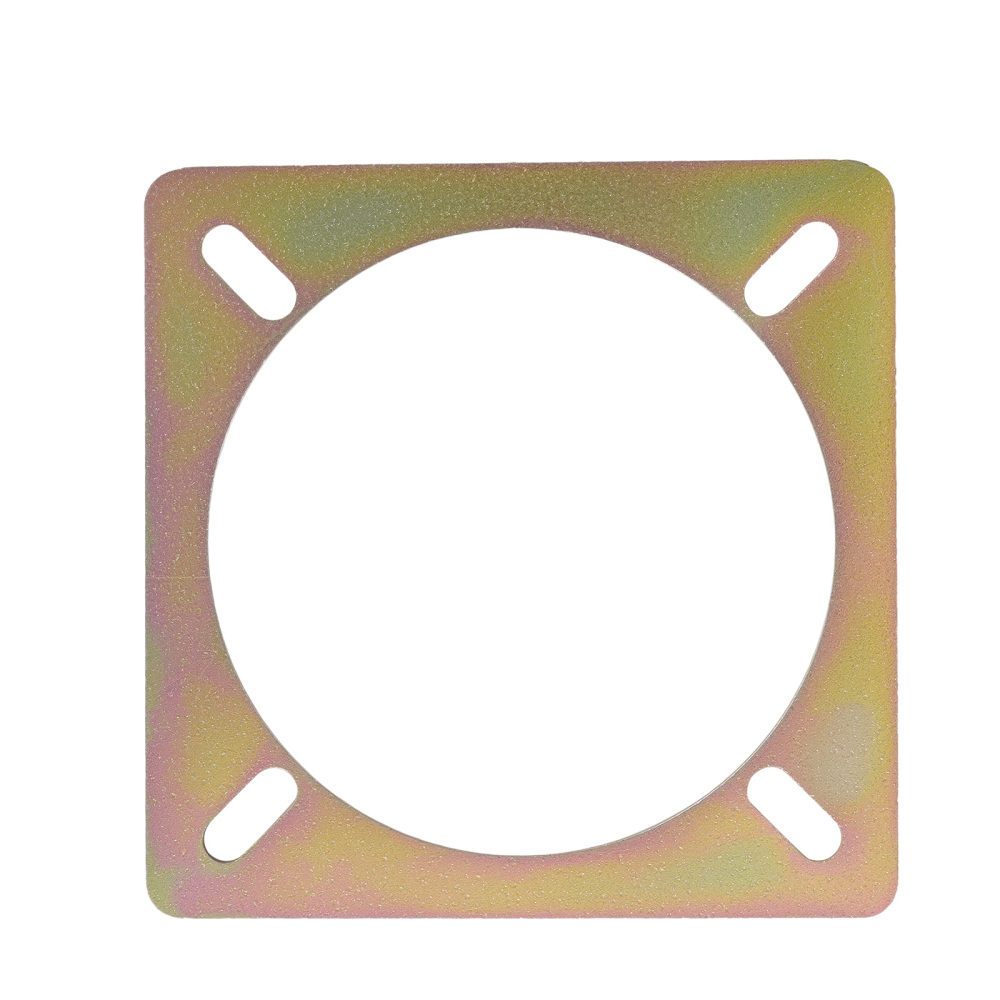

1 x Full set of accessories
(As Pics Shown)

Feature

1.Supports engines up to 90 HP with precise 5-turn lock-to-lock steering control
2.Sturdy aluminum alloy helm pump with stainless steel ORB connectors and replaceable shaft seal
3.Space-saving hydraulic cylinder with enhanced sealing design for marine durability
4.Two 24FT robust, corrosion-resistant hoses rated for 25 MPa working pressure

Note

1.Always bleed air completely from the system before restarting if abnormal reactions occur
2.Confirm compatibility by comparing your outboard model with provided compatibility chart
