Boat Hydraulic Steering System for Outboard Boats flats boats 150HP HC4645H

Application

For single-outboard boats with engines up to 150 HP
For various outboard-powered vessels, including center consoles, offshore fishing boats, bass boats, flats boats, and others.

OE/Part number

HC4645H

Specification

Type:Hydraulic Outboard Steering Kit
Applicable: Up to 150HP
Volume: 117CC
Tube I.D: 32mm
Rod I.D: 16mm
Output Force: 409.7kgf
Strode: 197.3mm
Working pressure: up to 10.3 MPa (1500 psi)
Material: Aluminum Alloy

Package included

1×Outboard Steering Cylinder
1xset of accessories

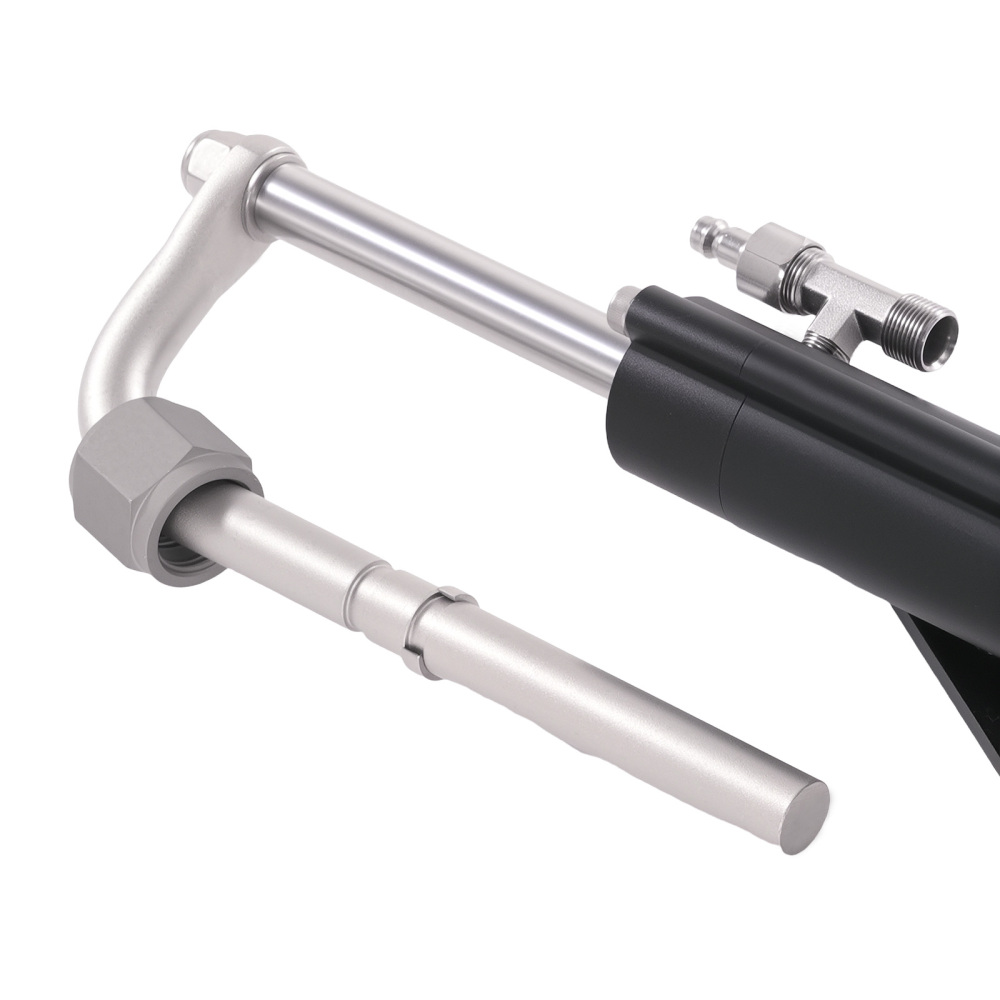

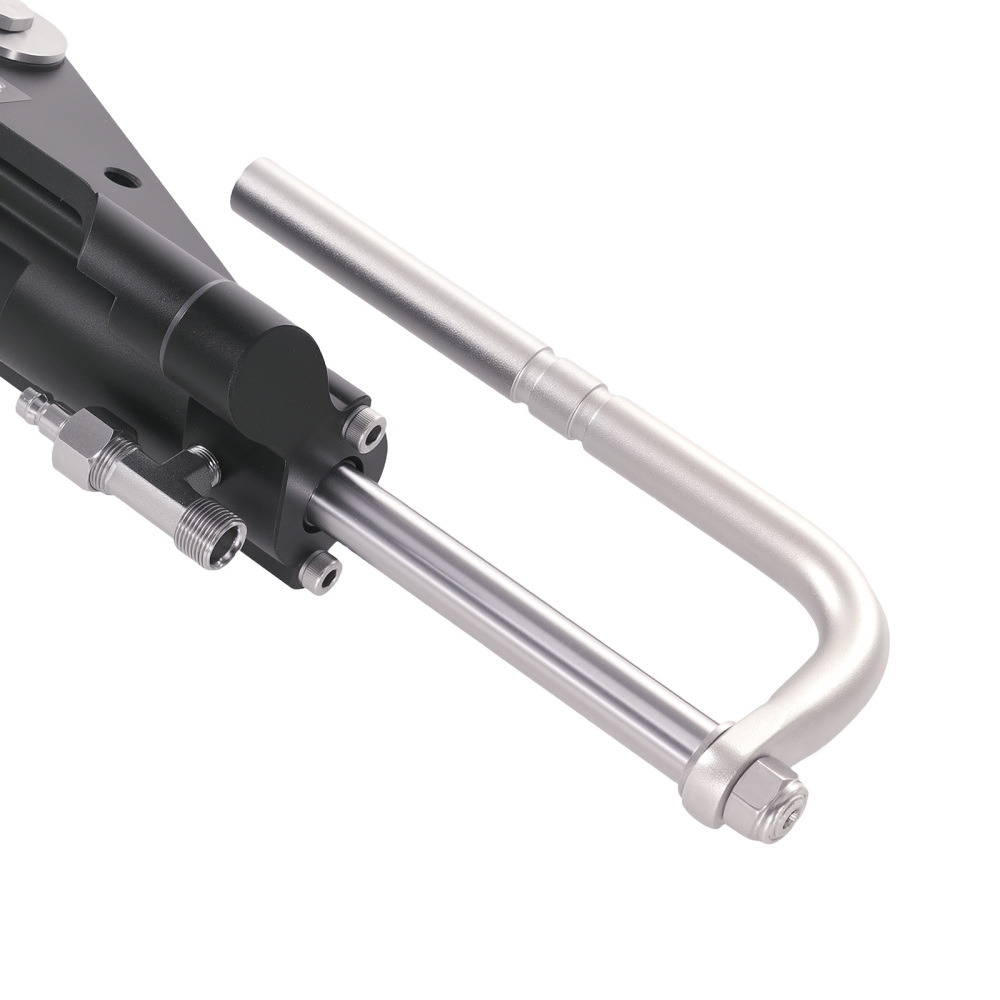

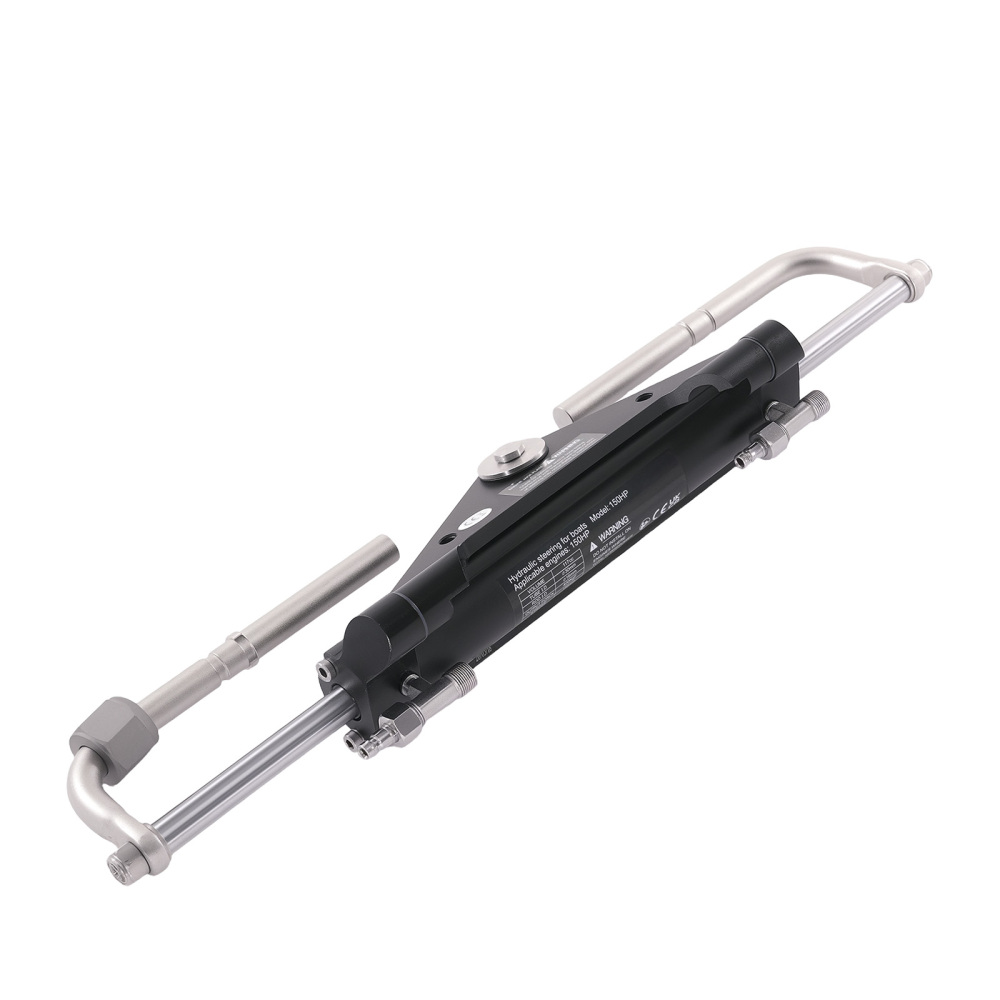

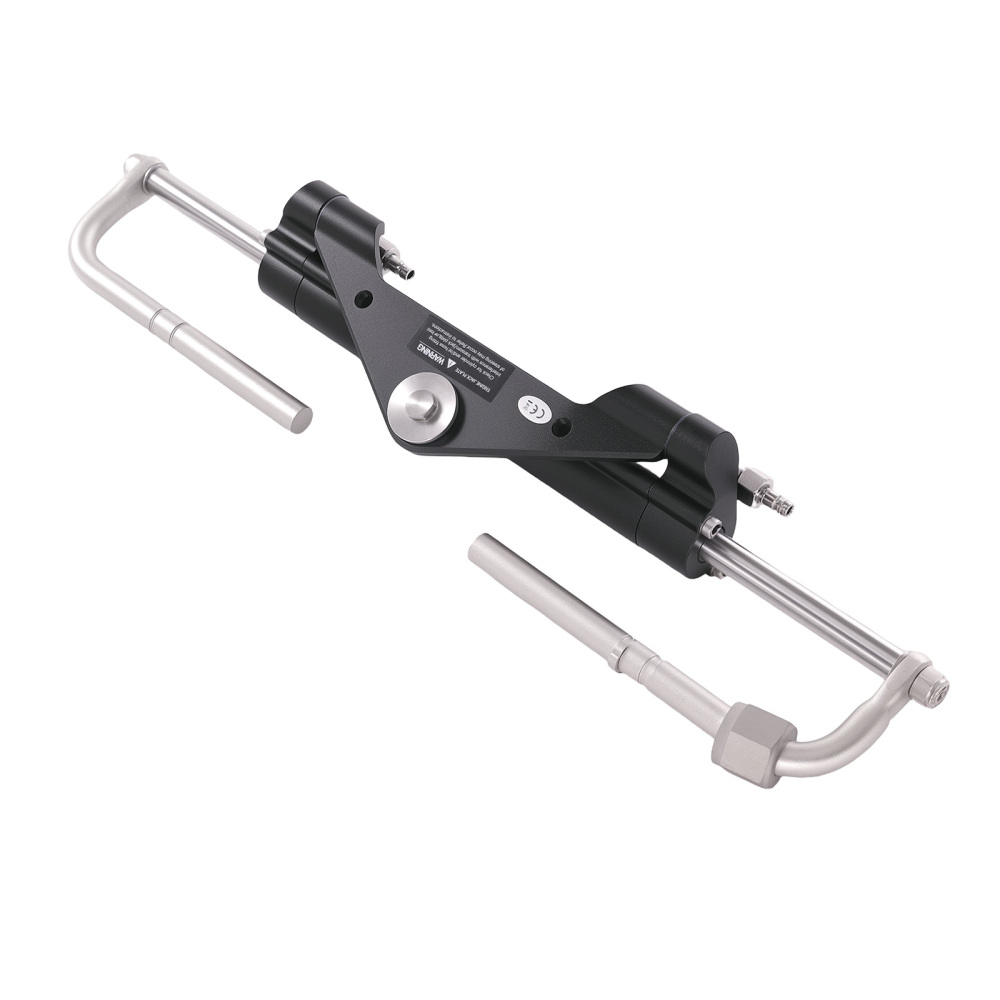

Showing as the picture

Feature

1.High-Performance Capability operating at up to 10.3 MPa (1500 psi)
2.Enhanced Durability Against Crushing Forces with sealing system engineered for repeated compression and marine conditions
3.Integrated dual-direction locking valve preventing rebound torque during twisting/rotation operations

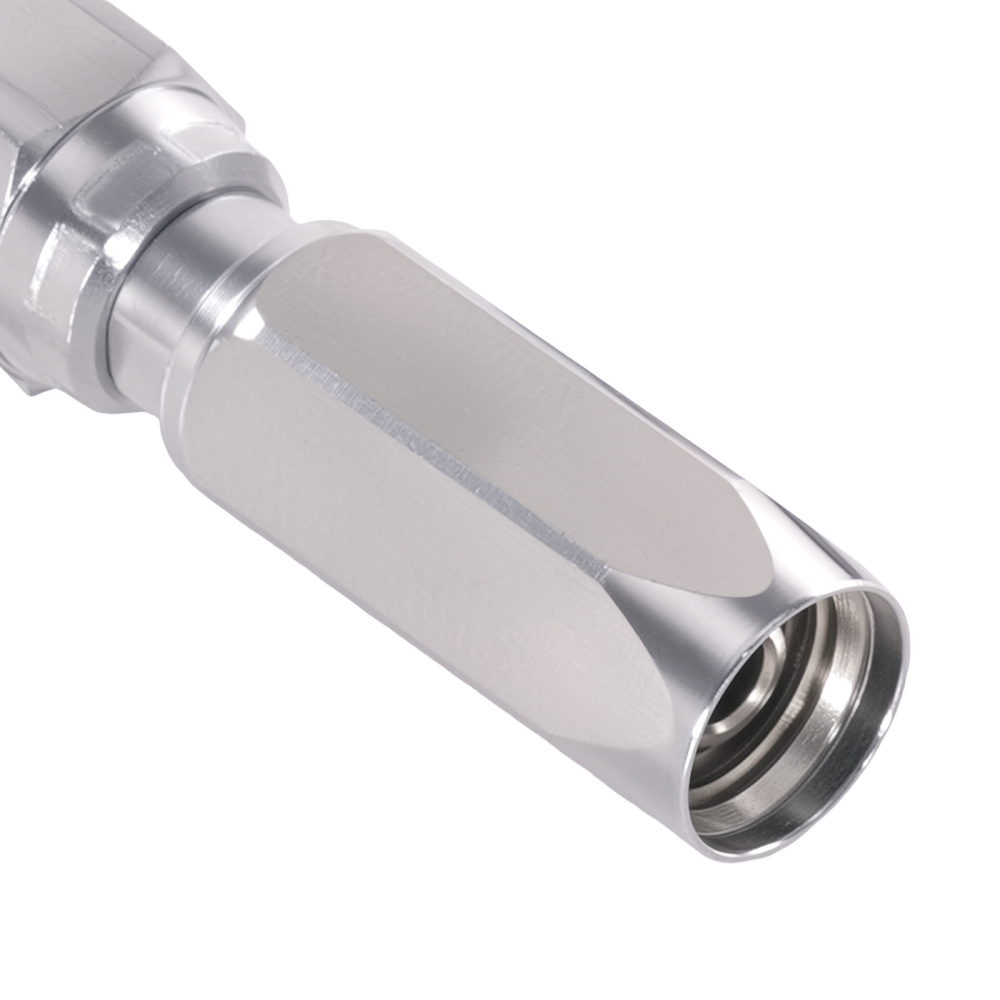

4.Adjustable stainless steel O-ring (ORB) fittings for flexible and convenient hose alignment and installation
5.Durable aluminum alloy housing with specialized surface treatment for enhanced wear and corrosion resistance

Note

1.Must be installed with proper hose routing and secure mounting to prevent leakage or misalignment
2.Not intended for twin-outboard or inboard engine configurations
