Billet T3 V-Band GT3582 GT35 A/R 0.7 A/R 0.63 Turbo Up to 600HP Oil Line Kit

Application：

Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Capable of Boosting Horse Power up to 600HP

*Note:
1. Please confirm that there is enough space in your car to install this turbo before purchasing.
2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

Product Specific：

Turbine Side:
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange:  V-Band
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Wastegate: W/O Wastegate
Oil Feed/Inlet: M10*7/16-24
Oil Drian/Outlet: M14.1 & 2*M8*1.25
Water Inlet/Outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

Turbo Oil Return / Feeding Line Kit:

Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the Turbocharger to the oil pan.
The kit provides a anodized look, and gives a best cooling on your turbo and long lasting life.
Turbo Oil returen /Feeding line kit：
* Stainless Steel Braided
* Includes complete install kit
* It helps circulate oil from the Turbocharger to the oil pan.
* The kit provides a anodized look
* gives a best cooling on your turbo and long lasting life.

* Oil Return Line :  Length: 600mm ||  AN10
* Oil Feed Line :  Length: 1000mm || AN4 (7/16"-20) || 1/8npt

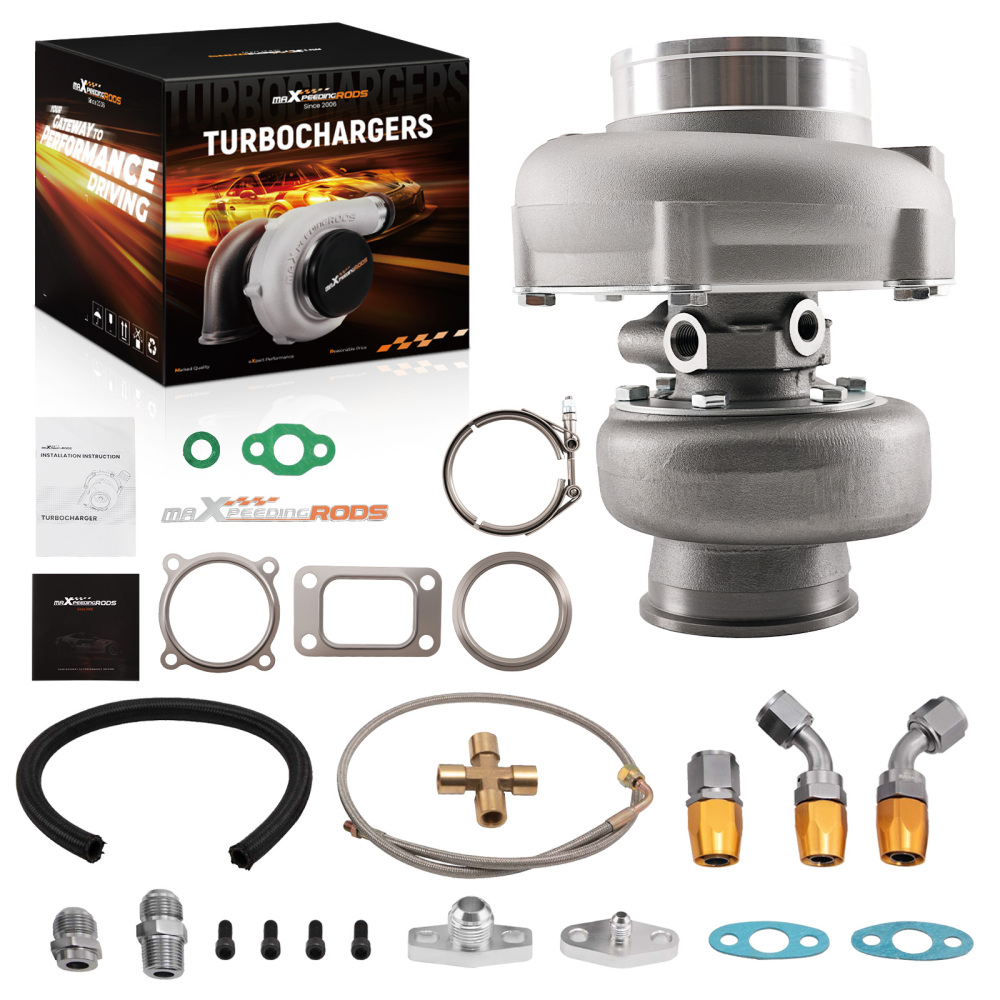

Package Included:

1x Turbocharger
2x Flange gaskets
2x Oil feed/drain gaskets
1x V-Band flange adapter ring & Clamp
1x Oil Line Kit
1x Manual
1x Brochure
1x Sticker

Features:

*Product Material

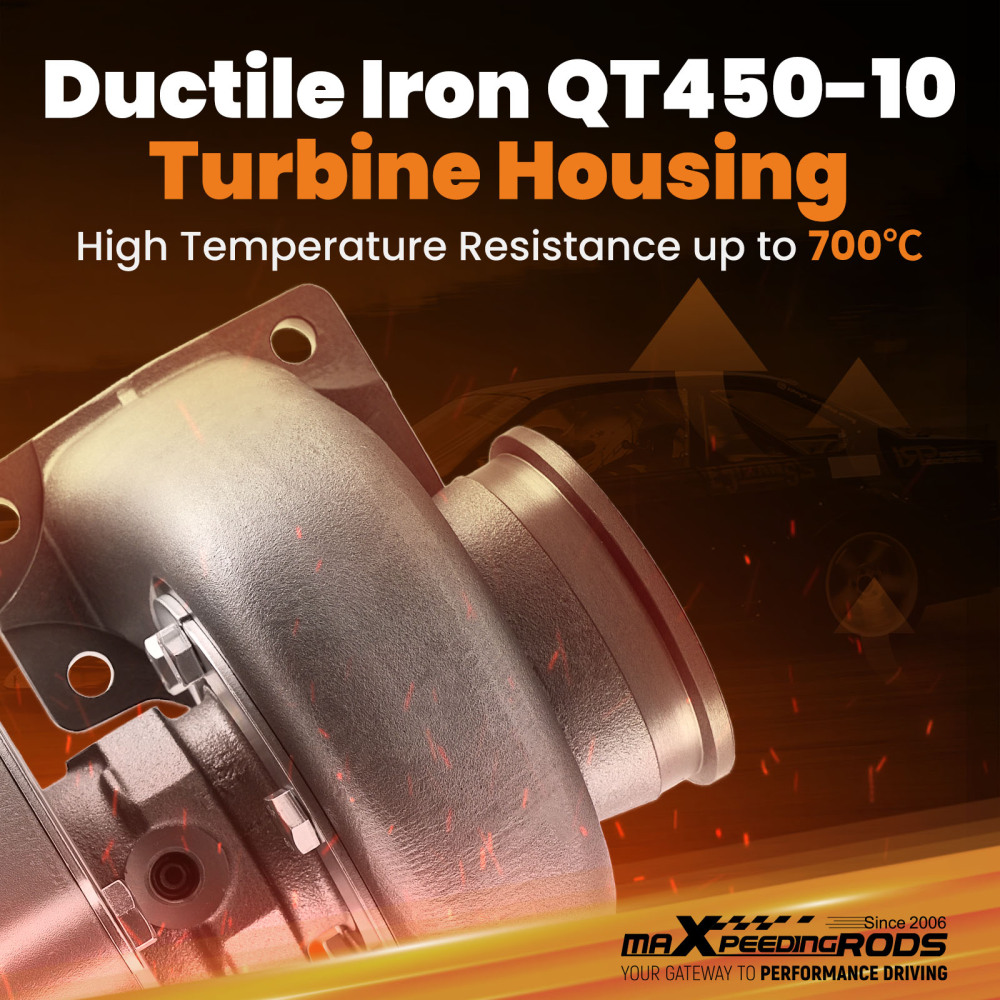

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

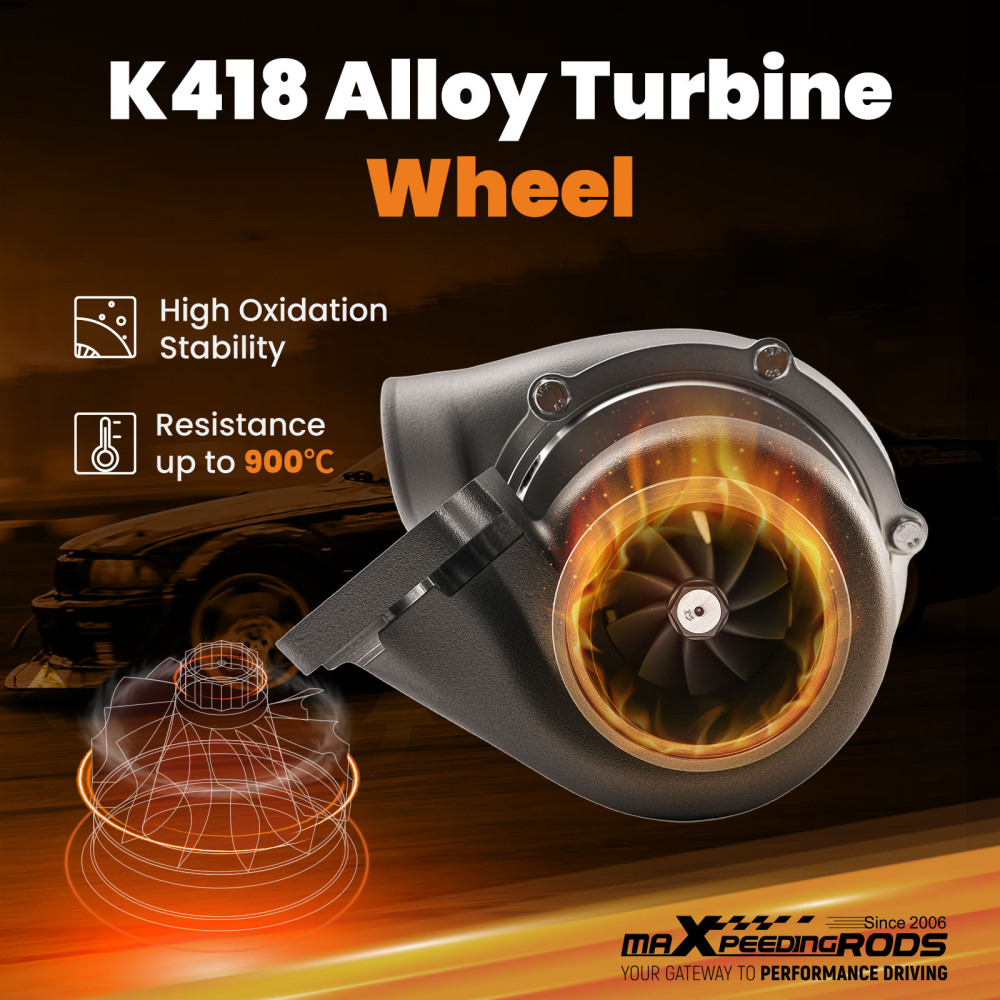

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

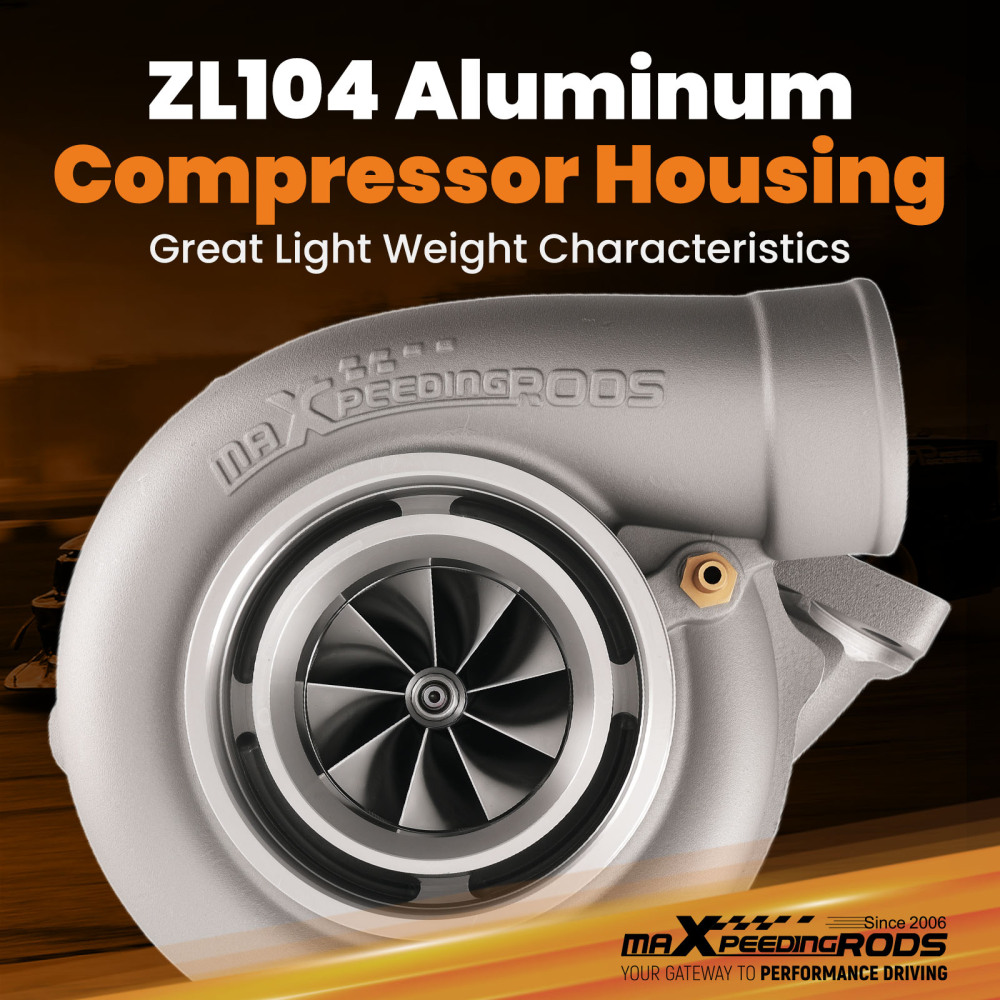

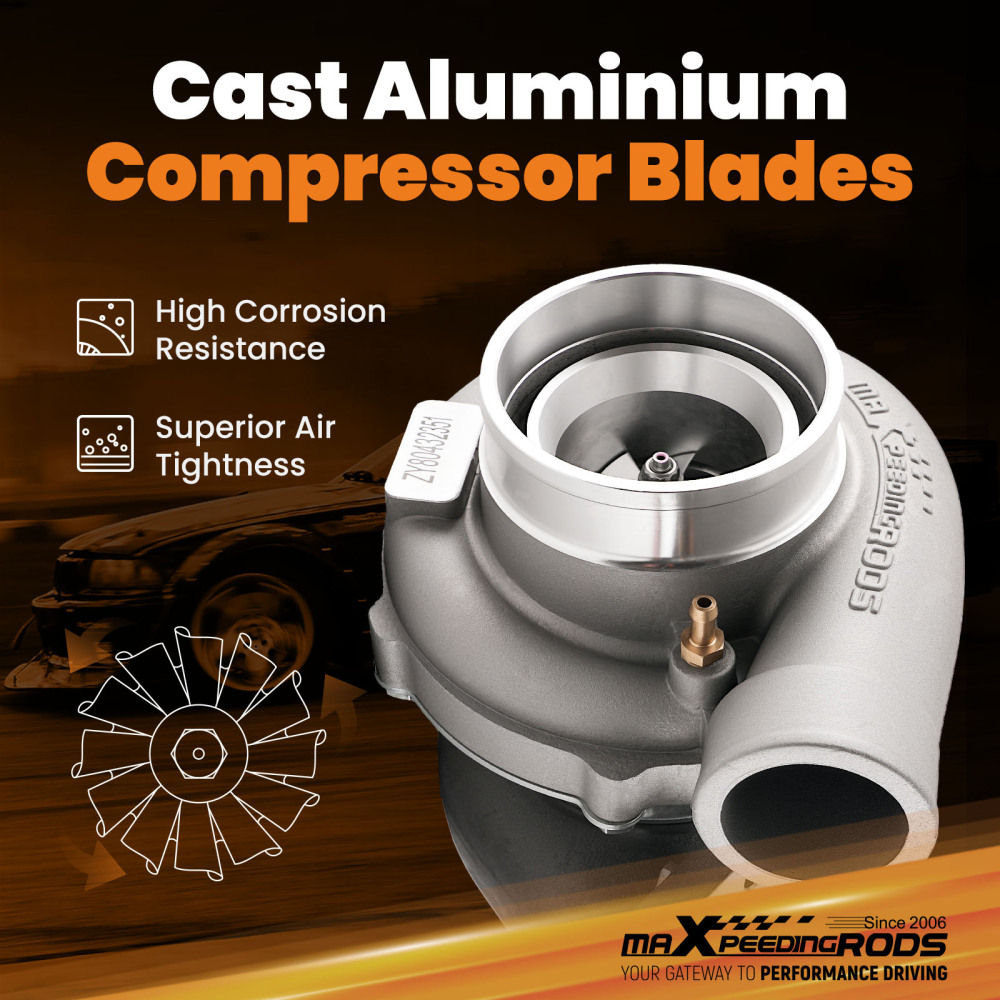

3. Compressor housing: ZL104 aluminum with lightweight
4. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
5. Appearance upgrade
(1) Turbine outlet V-BAND: Easy installation
(2) Anti-surge compressor housing: Increase air intake
(3) New compressor wheel design

Note:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
