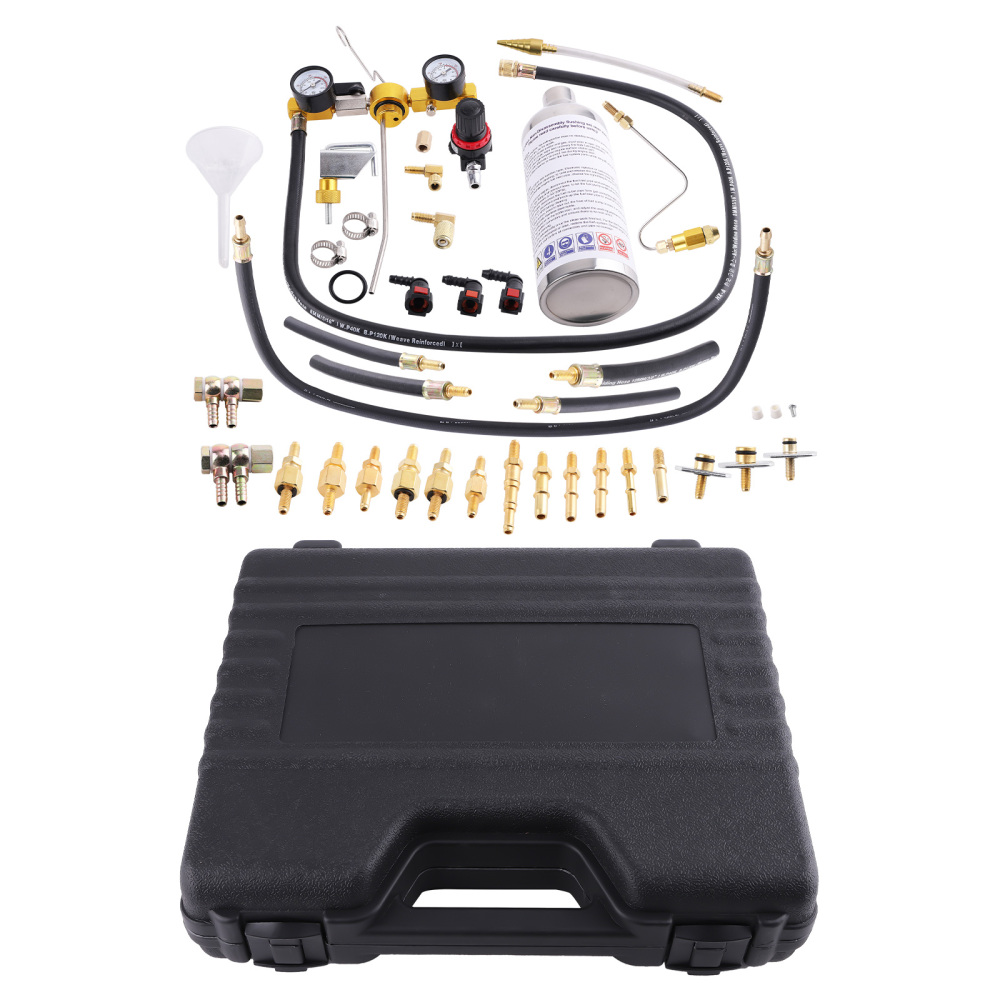

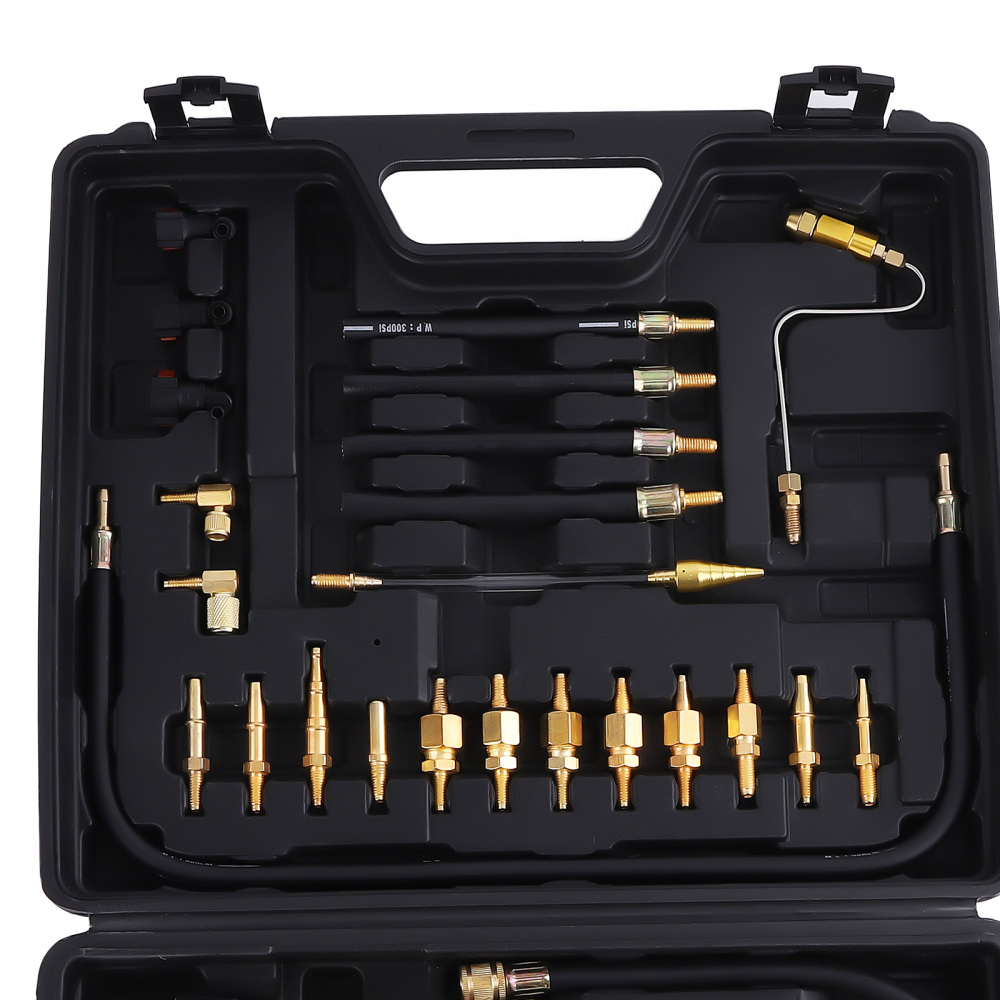

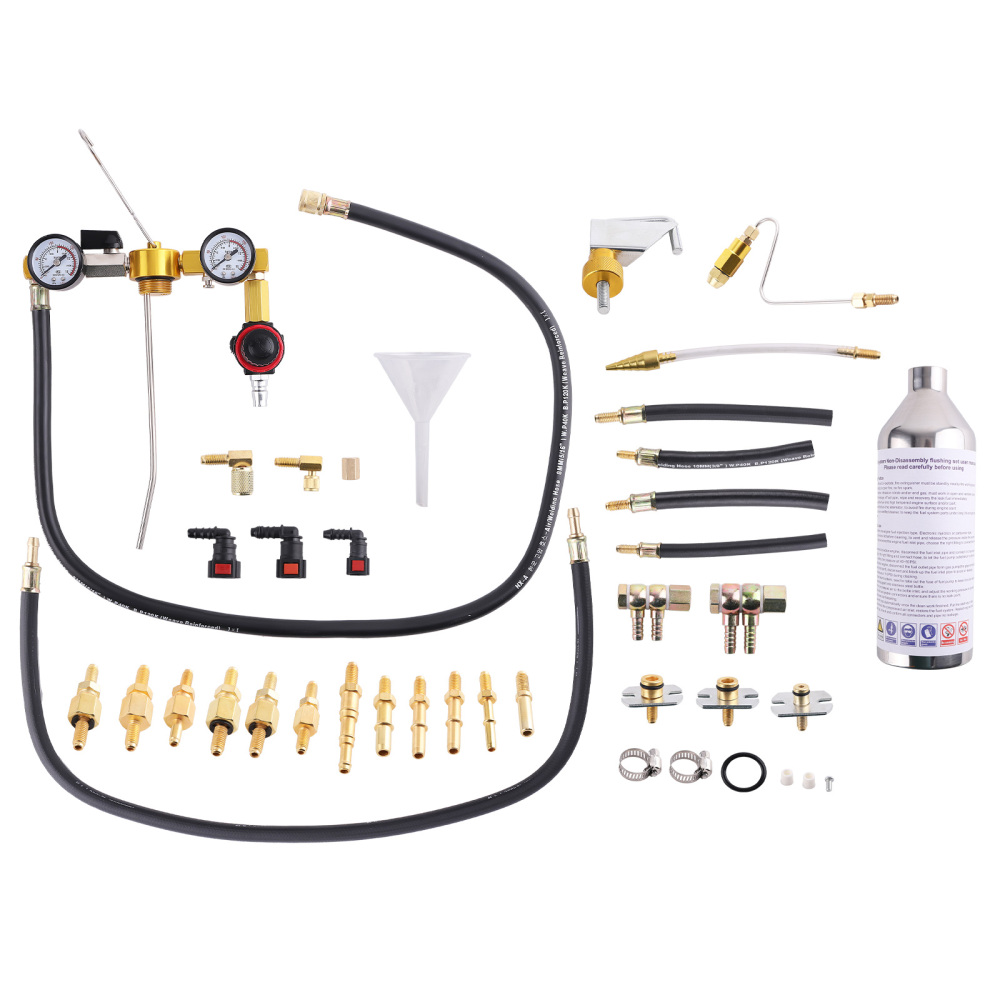

Automotive No-Dismantle Fuel Injector Cleaner Kit Fuel System Cleaning Tool Set

Specification

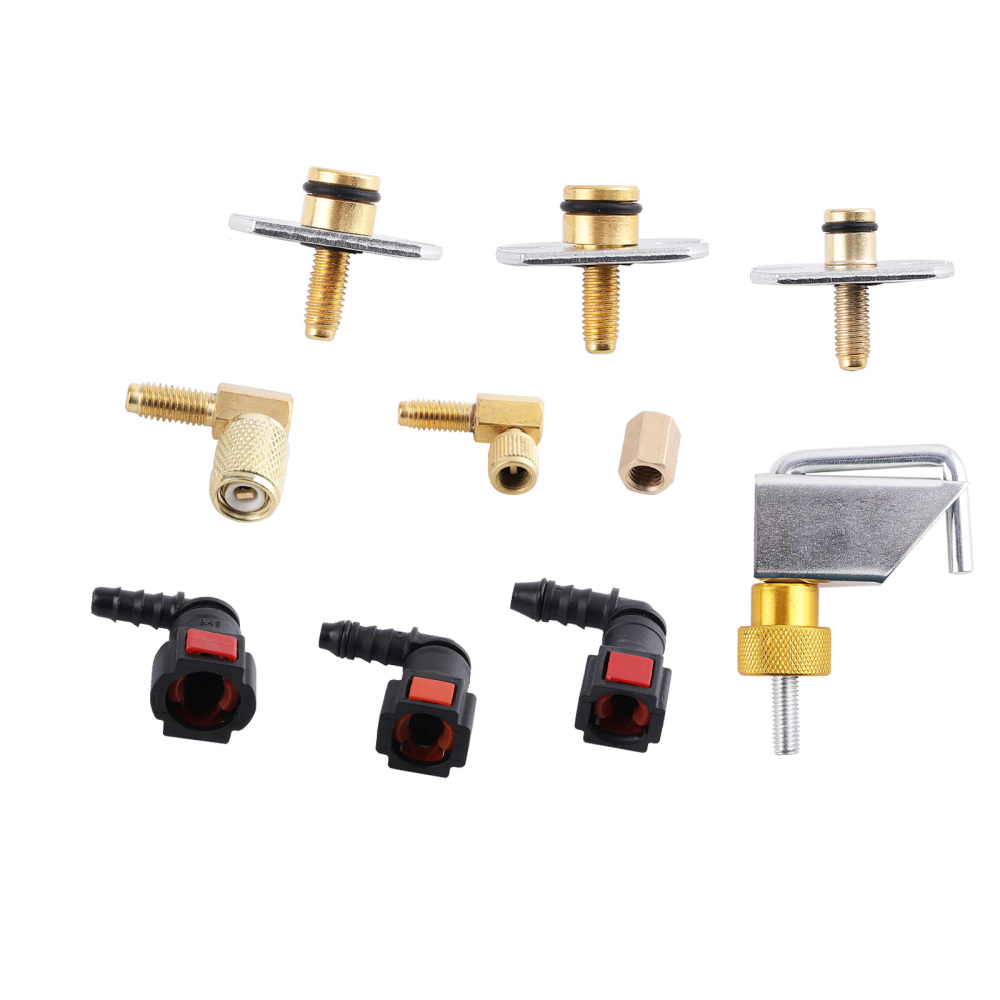

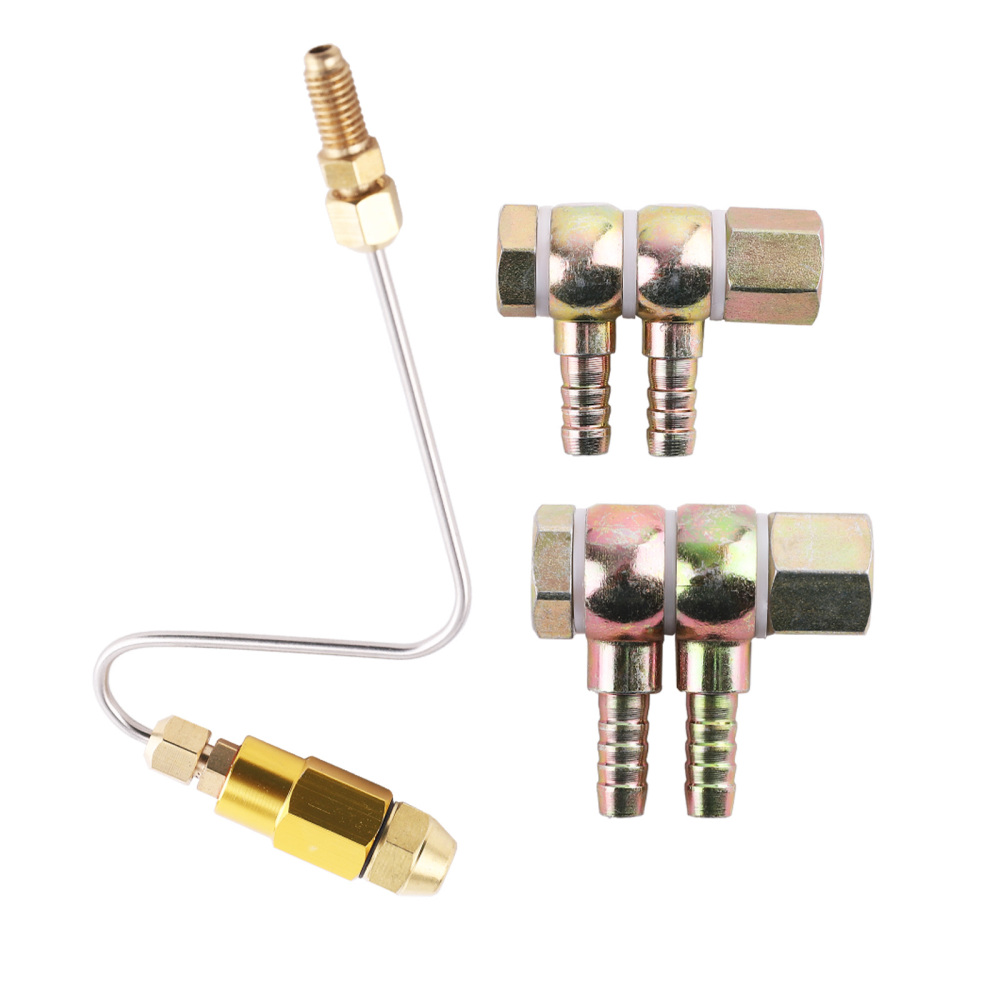

1. Includes many different adapters, covering almost all the EU, Asia, USA cars andlight trucks(petrol 12V).
2. The injector clean kits include many different kinds of adapter, cover almost all the EU,Asia,USA cars and light trucks (petrol). Non-Dismantle injector Throttle and fuel system.

Tank Capacity: 600ml
Pressure: 0-220PSI
Working Temperature: -10℃~+50℃ (14℉~122℉)

Package included

1x Fuel Injector Cleaner
1x Adapter Kits
1x Suitcase.

Feature

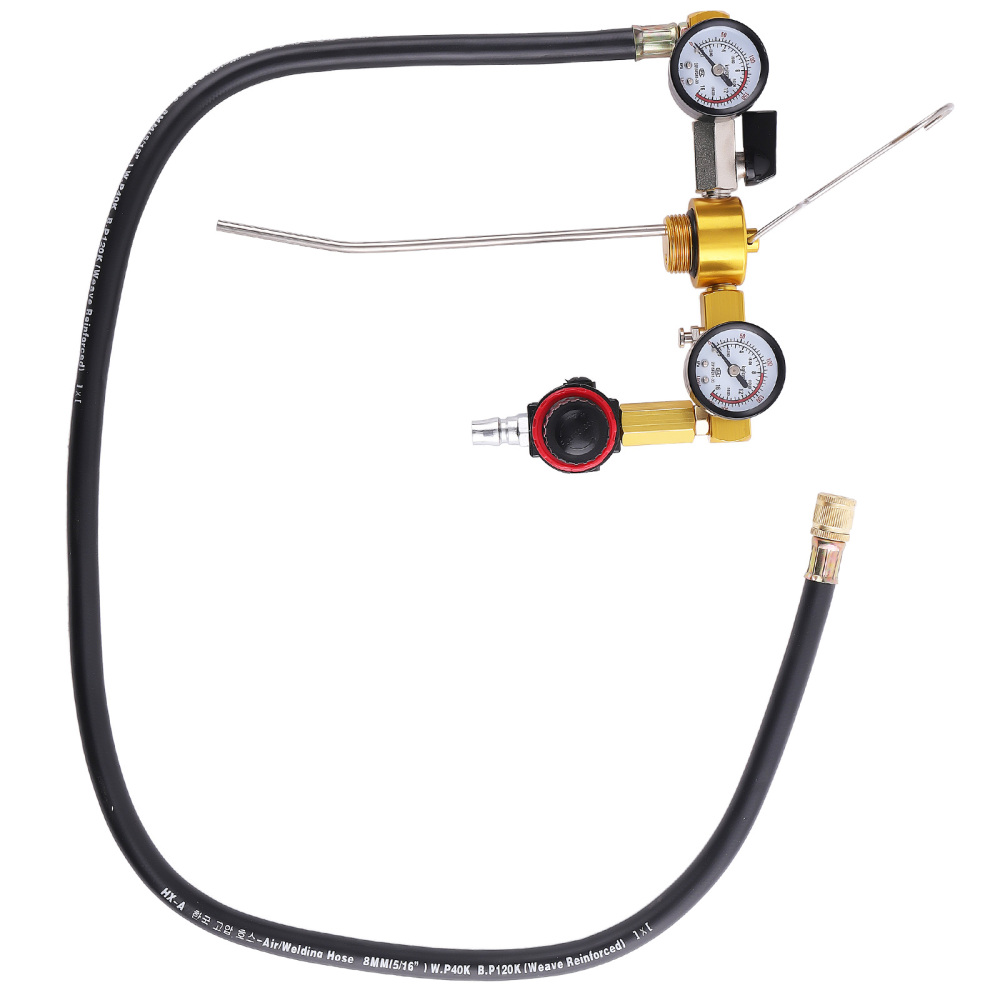

1. Multi-functional valves for fluid adding and gas releasing.Rotate to add fluid, gas releasing speed controlled with different force level.
2. Non-dismantle cleaner has special handling one-way valves to seal up gas and durable pressure regulating valves.
3. Easy to Use：Has anti-corrosion, anti-friction connectors for fast-connection and anti-friction oil tubes for all cleaning fluid
4. Identify the hose： 1. Generally speaking, inlet hose is bigger, return hose is smaller; 2. There is always a filter connected in the inlet hose side, and a buffer in the return side; 3. There is arrow on the hose to show the fuel flow direction.

Operation For EFI Model：
1. Find out the fuel return hose, disconnect and plug with suitable adaptor.
2. Find out the fuel inlet hose, disconnect and connect with the outlet hose of the cleaner with proper adaptor.
3. Connect the outlet and return hose of the fuel tank and open the tank cover; if there is no return hose, please move the fuse of fuel pump so that the pump will not work.

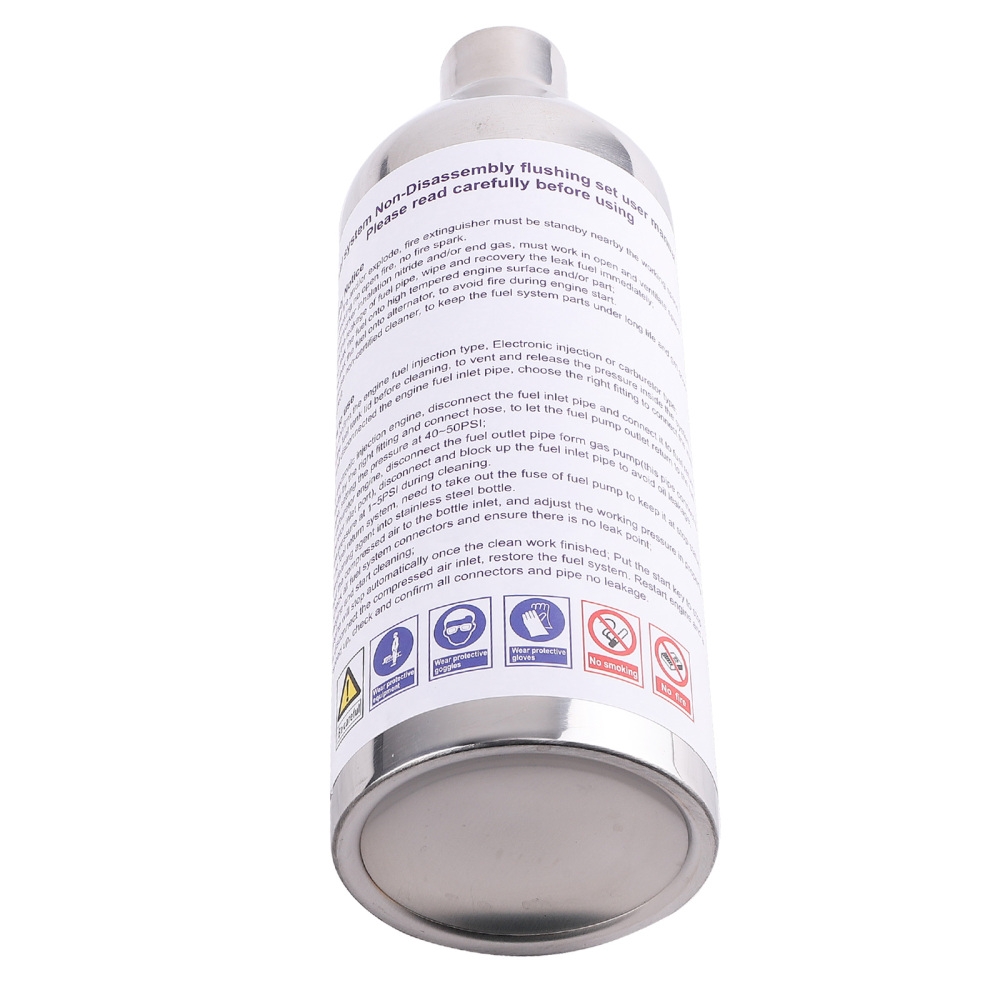

4. Charge the cleaning fluid into cleaner tank.
5. Connect air source power to the air port of the cleaner, adjust its pressure to 40-50PSI.
6. Check all connect points to make sure there is no leakage.
Start engine to clean fuel system.


Operation For Throttle Model：Same connection method with EFI model, except air source pressure should be adjusted to 1-5 PSI.

Note

NOTE:Clean liquid not include,work on gasoline injector only, not for diesel injector.
