6AN -6AN Black Nylon E85 Fuel oil Line 16FT 10 Fittings Hose Kit E85 1000 PSI

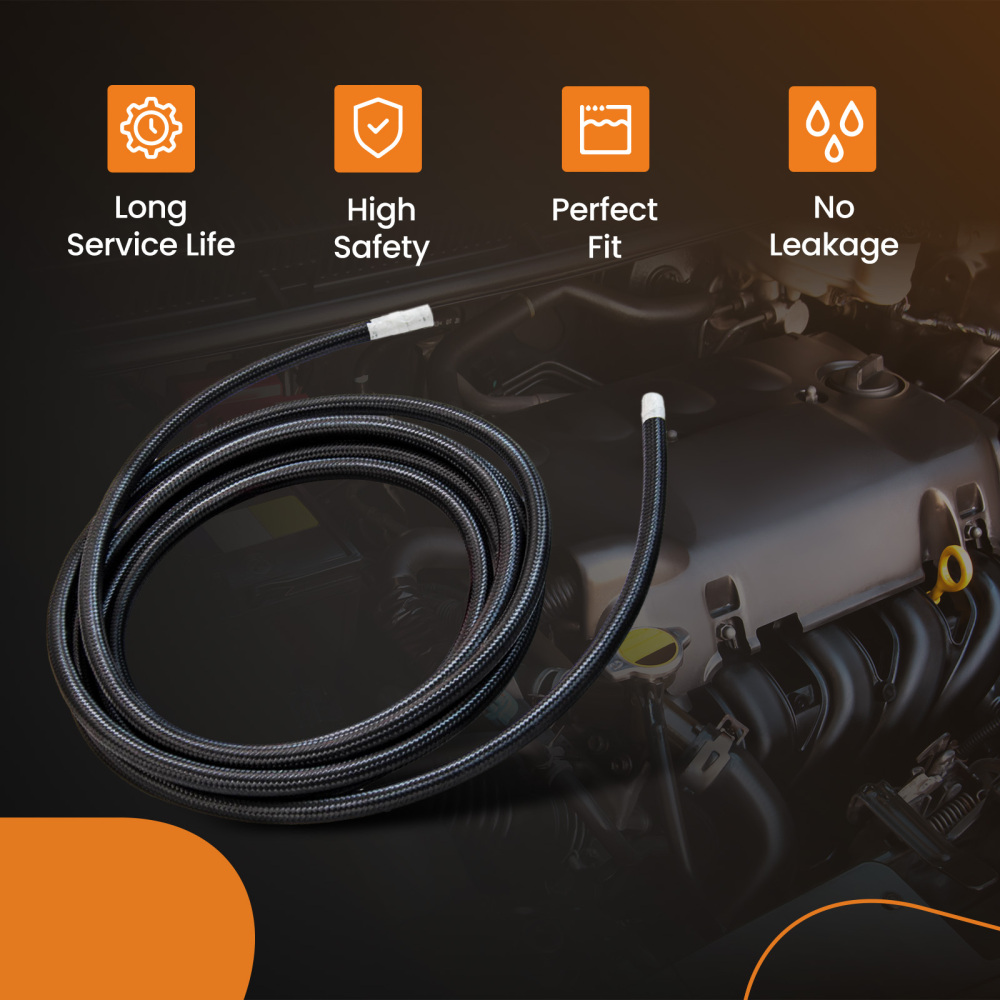

AN6 16FT Stainless Steel Braided Black Fuel Hose

Stainless Steel Braid Hose Features:

*The lining is made of synthetic rubber tubes, which are clean and fast flowing to enhance flexibility, provide a cool racing appearance and provide constant flow during the running of the racing engine. The accessories are made of T6061 aluminum, which is anodized and has high strength and good durability.


*The partially covered stainless steel inner braid is woven into a high-quality synthetic rubber lining. Delikon has obtained a patent for a production technology, which can ensure that the knitting time and the curing of rubber in the construction process are perfect, so as to achieve the required flexibility and mechanical properties between the braids.


*The fully covered high-strength stainless steel outer braid of the hose liner provides the maximum pressure capacity, while maintaining the beauty and flexibility that are essential to the quality of high-performance hose.


*Safety - fuel hose: size (ID): 6AN, length: 16FT, working temperature: - 60 ℃ to+250 ℃, fuel pipeline has good flame resistance and excellent corrosion resistance.


*Universality: fuel line hose is suitable for different brands of different vehicles

Specifications:

• Fitting Material:  Anodize T-6061 Aluminum Alloy,CNC machined items
• Hose Material:  High Quality T7 Aluminum Alloy
• Fitting Size:  AN -6 / JIC 6 - 9/16 x 18 UNF
• Braided Hose I.D. :  = 8.7mm approx - O.D. = 14.22mm approx.
• Working Temperature:    -60℃ to +250℃
• Working Pressure:   1000 PSI
• Burst pressure:   5000 PSI
• Color:   Same As The Picture(Black+Red)

• Outside diameter:0.55" /13.97 mm

• Superseded Part Number:AN6 6AN Oil Line Kit
• Temperature range:-40℃ to +160℃
• Applicable Regions:Universal

• Inner diameter:0.34" / 8.64mm

• Item Length：16 feet 16 FT

• Part Type：Direct Replacement
• Placement on Vehicle：Front, Left, Rear, Right
• Type：oil line fitting

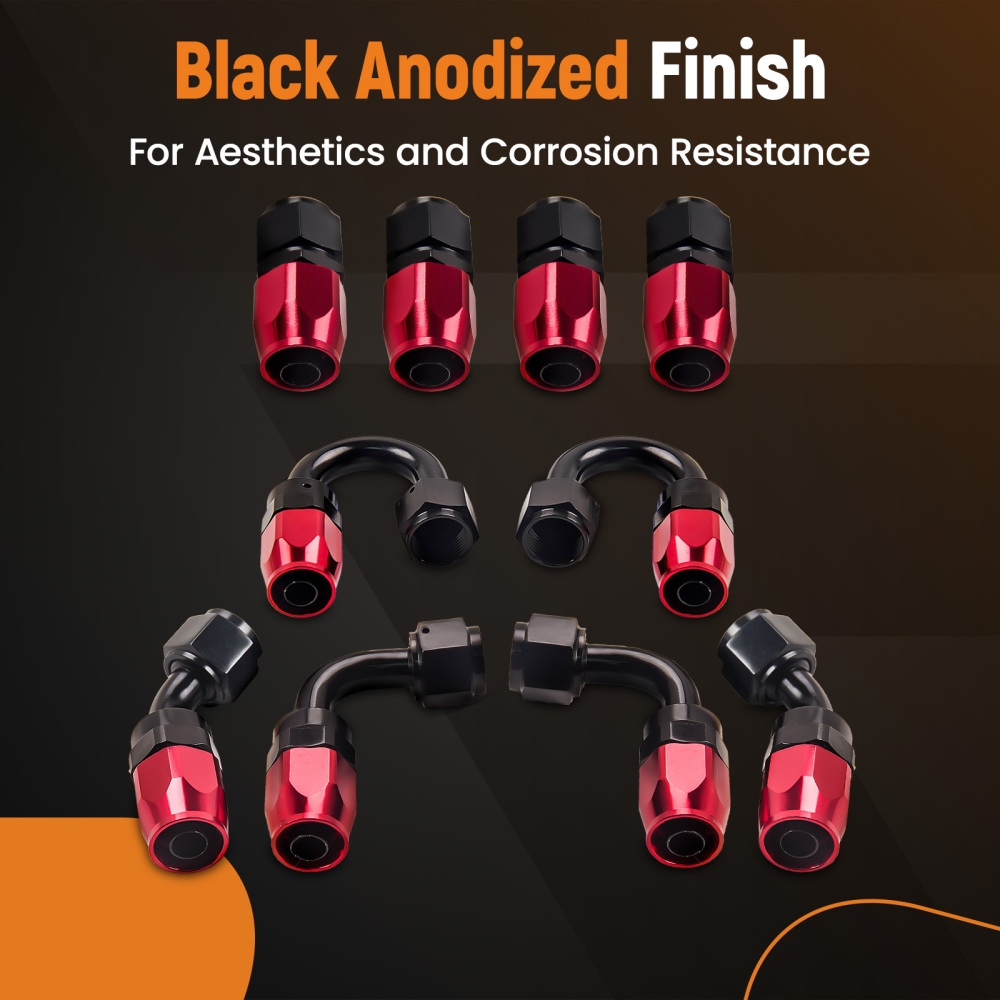

Fitting Features:

• 100% brand new
• Easy assembly
• Anodized finish for strength and durability
• Removable head for both push-on or twist-lock
• Smooth flow design, reusable, lightweight
• Polished and anodized for bright appearance and corrosion protection
• No leakage under high pressure and temperature

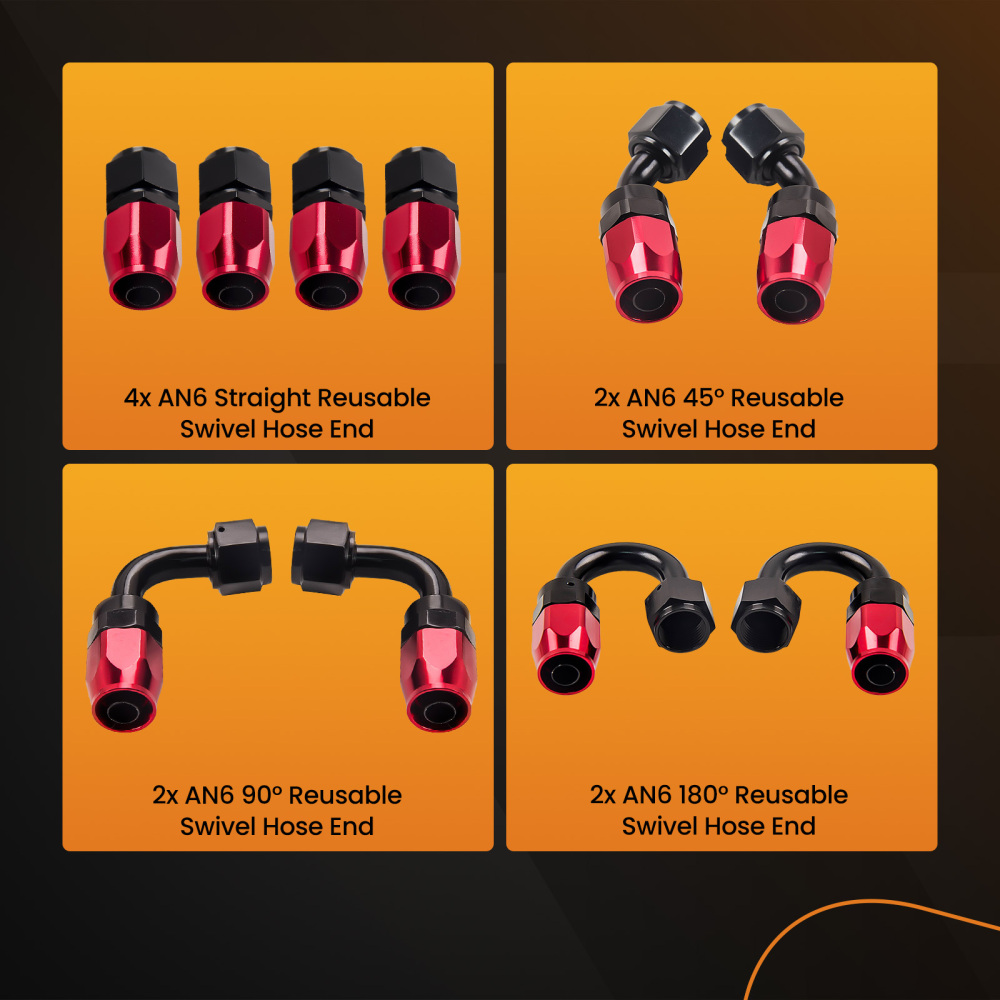

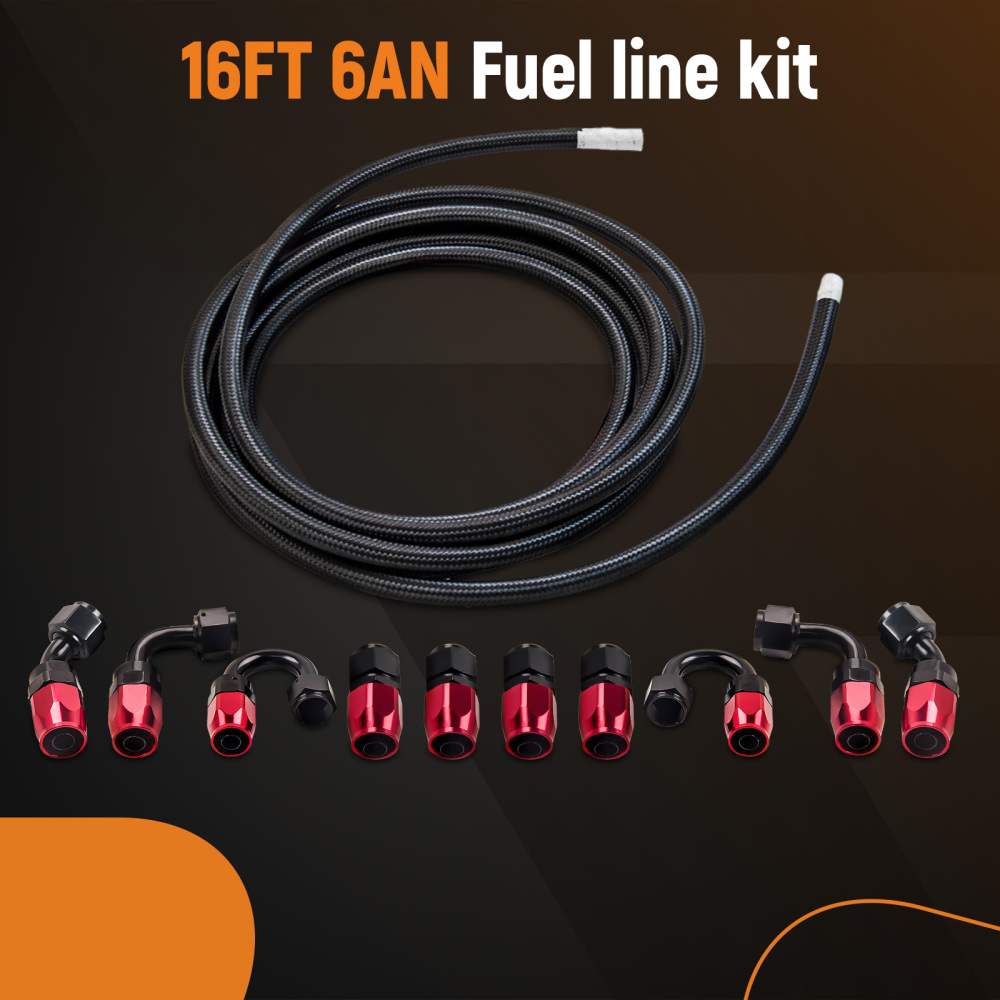

Package includes:
4x  AN-6 Straight Reusable Swivel Hose End
2x  AN-6 45 Degree Reusable Swivel Hose End
2x AN-6 90 Degree Reusable Swivel Hose End
2x  AN-6 180 Degree Reusable Swivel Hose End
1x   AN-6 Stainless Steel Braided Hose X     16Feet/5M

Note:
Professional Installation is Highly Recommended
Installation Instruction is NOT Included
