Lowering Kit with Drop Shocks compatible for Ford F100 F150 2WD 1965-1979 Front Rear

Application

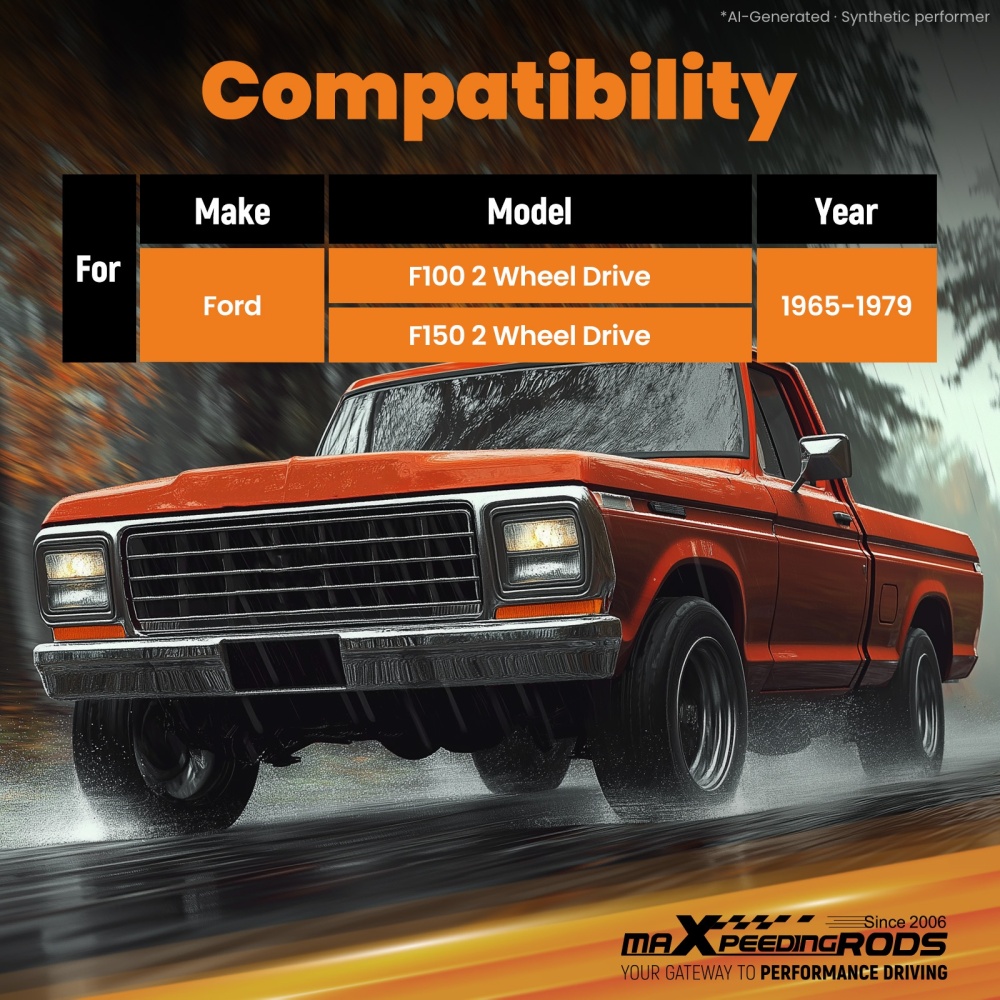

Compatible for Ford F100 F150 2 Wheel Drive 1965-1979

Specification

Product Type: Lowering Shock Kit
Drop Height: Front 3" Rear 6"

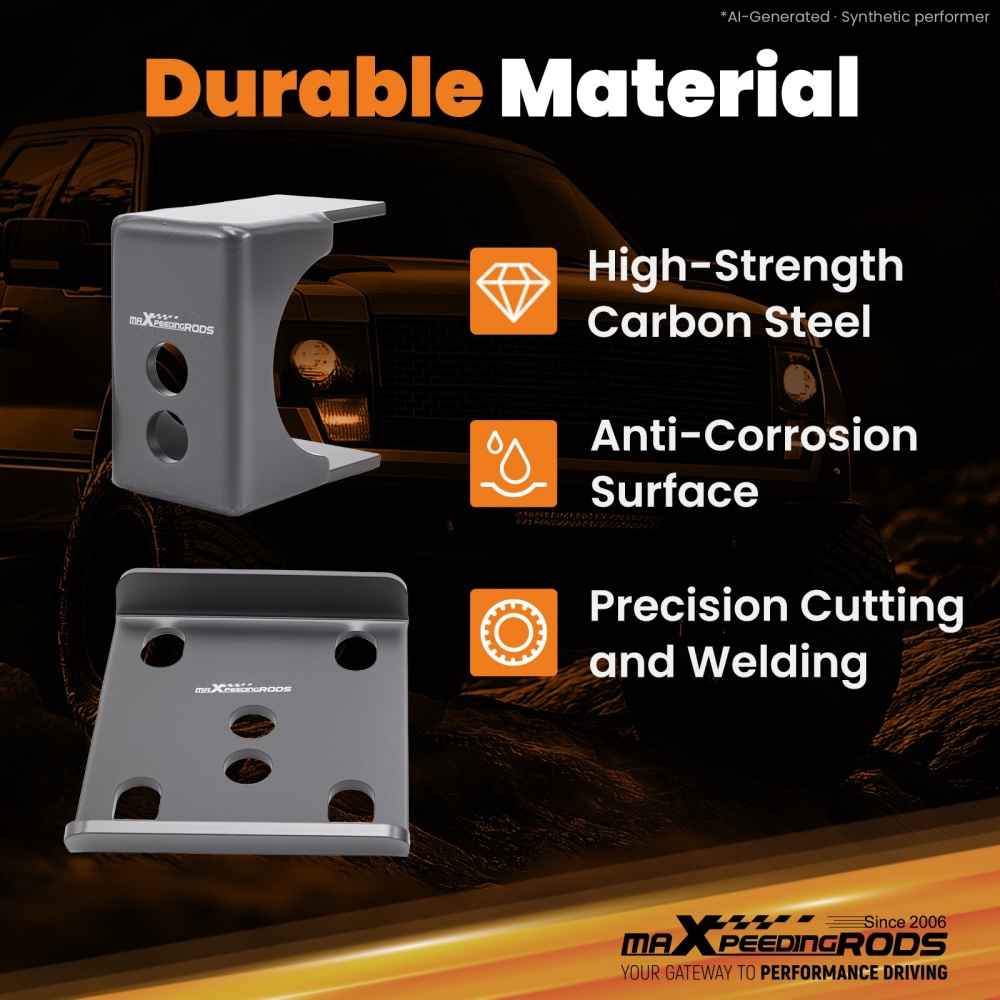

Material: High Tensile Strength Carbon Steel
Finish: Powder Coated
Bushing Material: Rubber
Diameter of piston rod: F&R 12.5mm/0.49"
Piston diameter：F&R 30mm/1.18"
Outer cylinder diameter: F&R 45 mm/1.77"

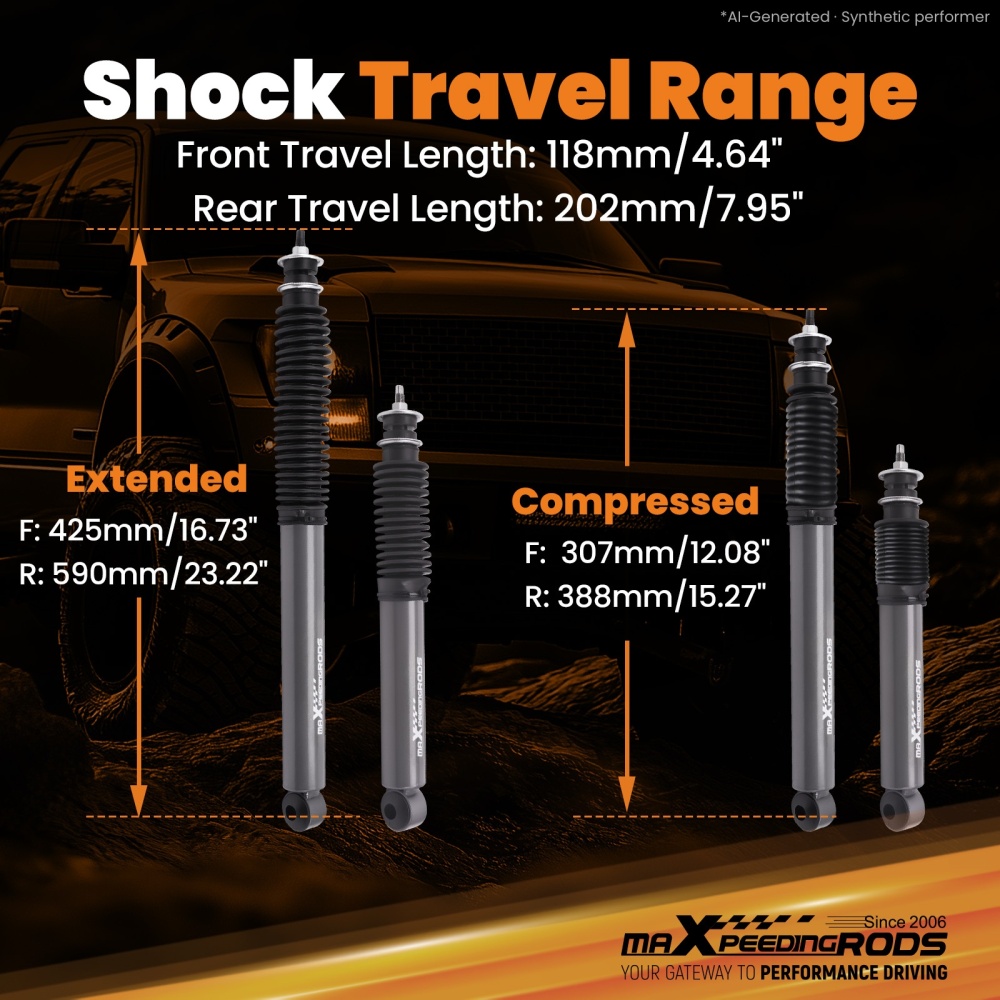

Travel: F 118mm/4.64" R 202mm/7.95"
Extended Length: F 425mm/16.73" R 590mm/23.22"
Collapsed Length: F 307mm/12.08" R 388mm/15.27"
Nitrogen Charged：Yes
Dust Cover Equipped: Yes

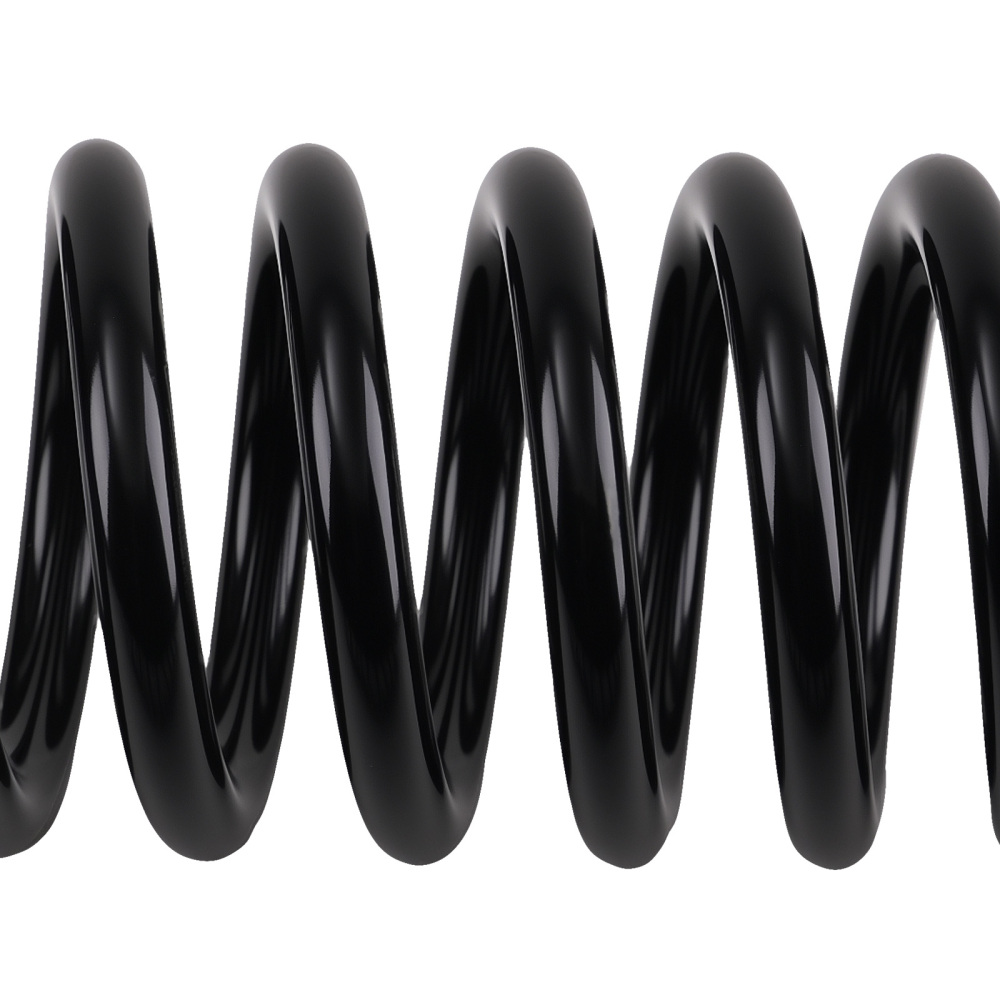

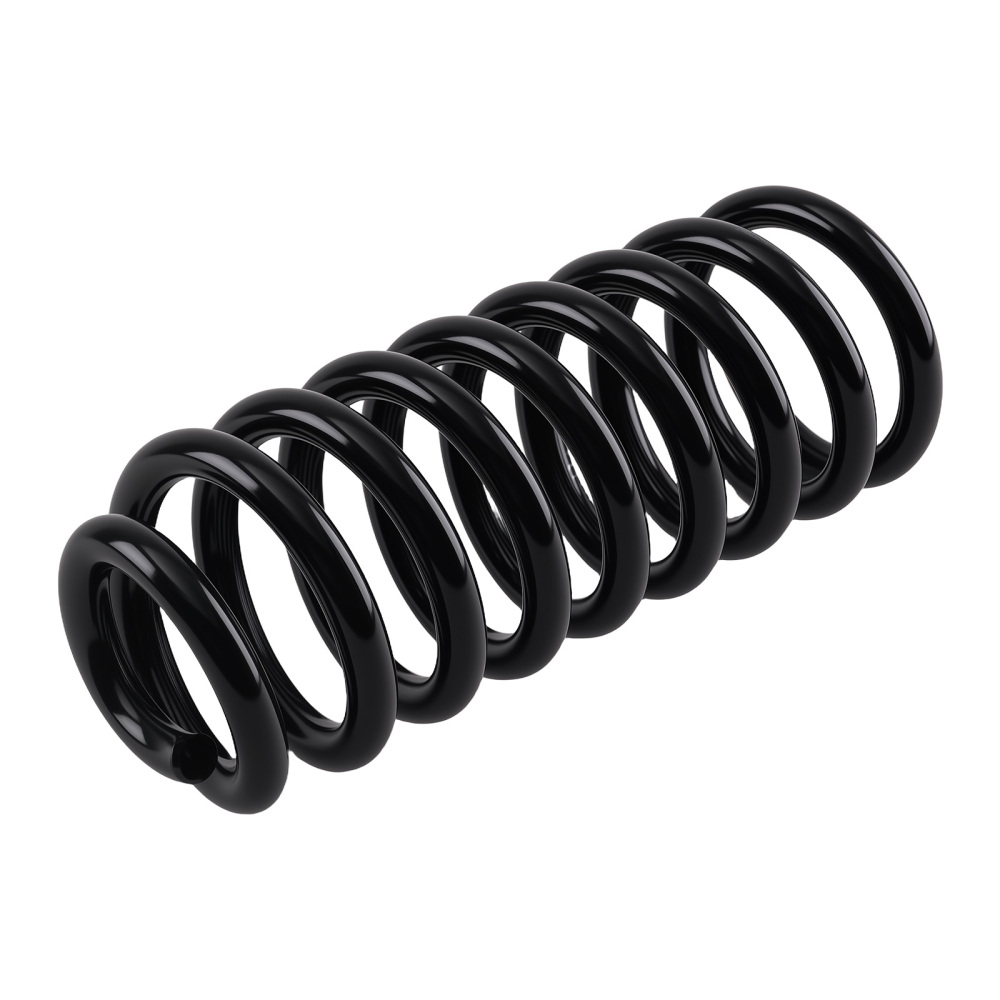

Front Spring Material: 55CrSi Steel

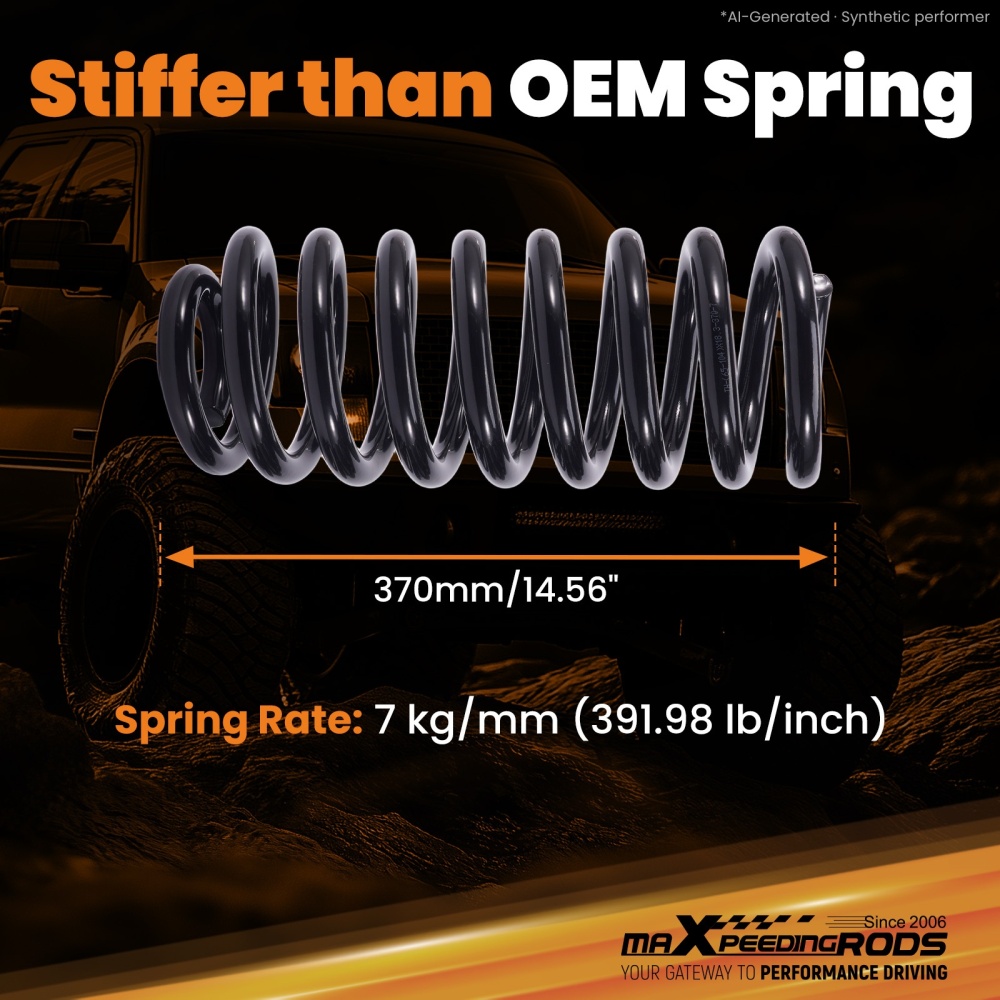

Front Spring Length: 370mm/14.56"
Front Spring Rate: 7kg/mm=391.98lbs/in
Front Spring Tensile Strength：1500-1700MPA

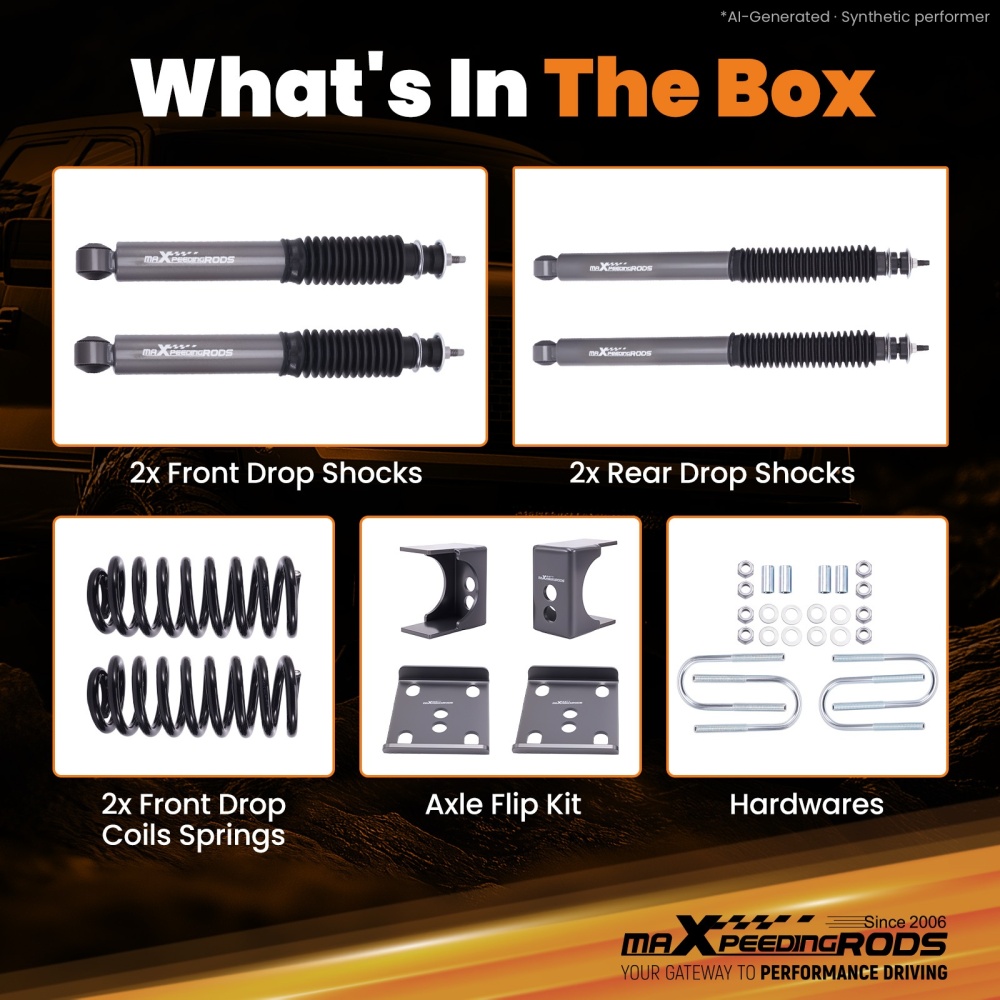

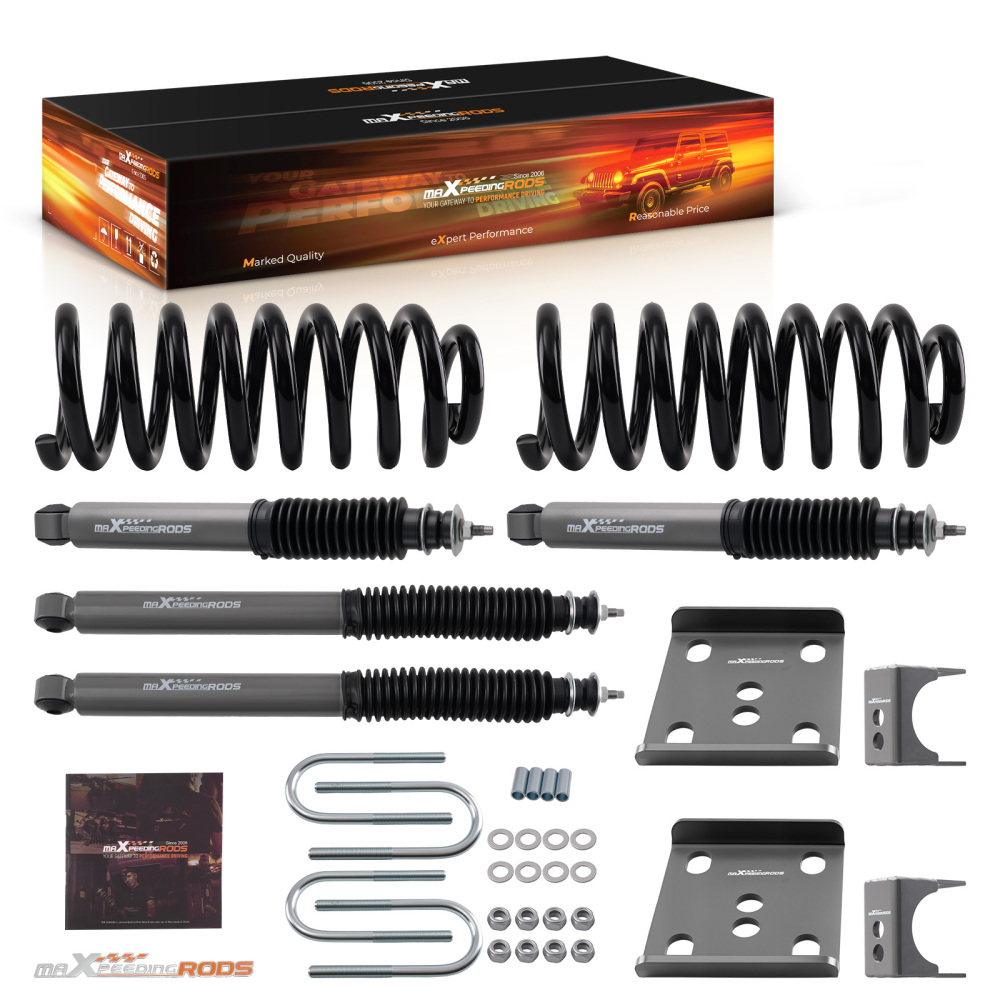

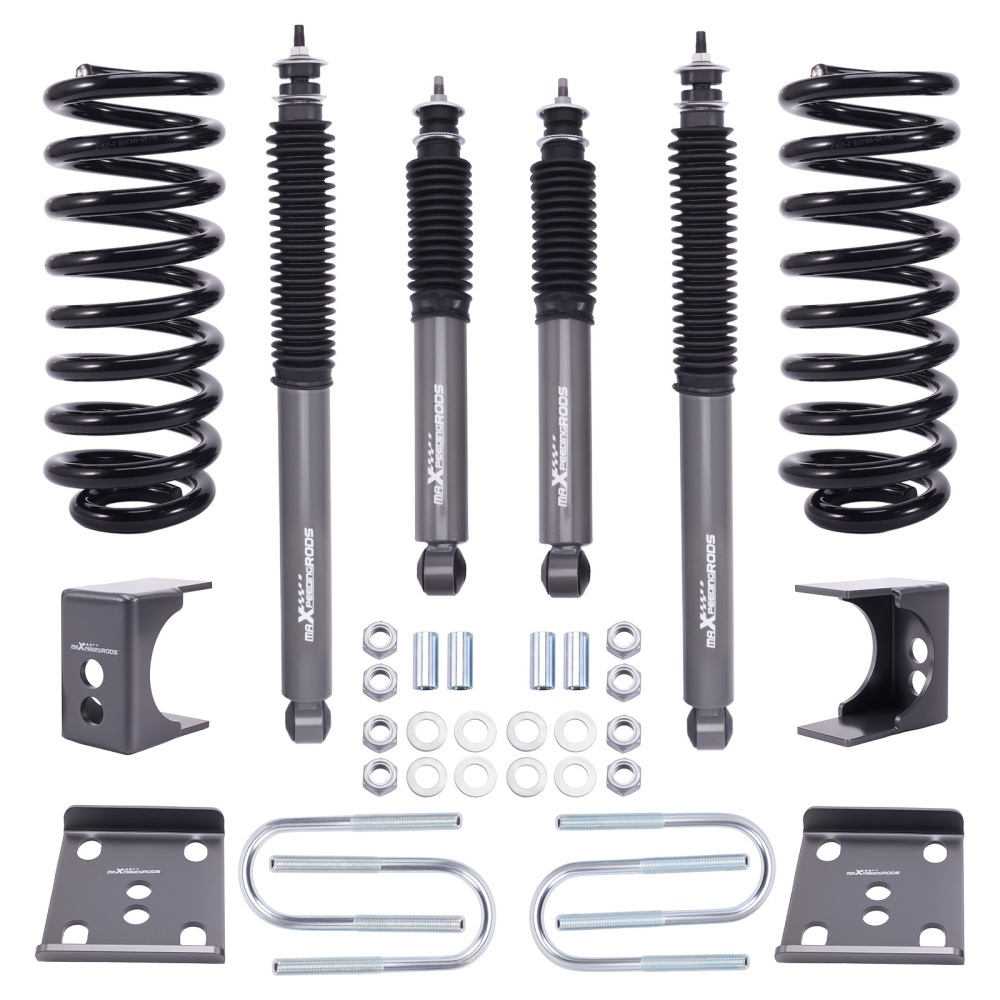

Package included

2x front drop shocks
2x front drop coils
2x rear drop shocks

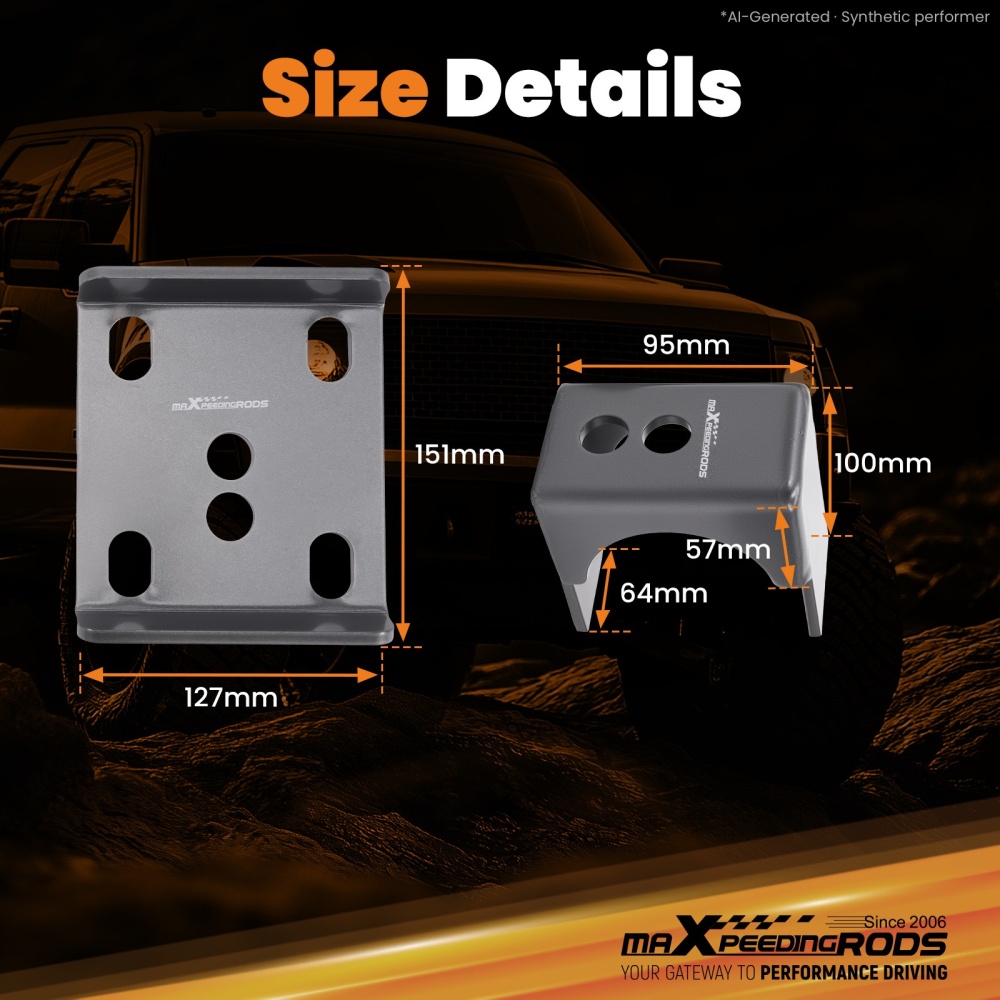

1x rear axle filp kit
necessary hardware

Feature

-Chromium-silicon cold-wound structure with high tensile strength and resilience.
-High tensile spring——600,000 times continuously test to assure its high tensile strength.
-Powder coating for corrosion resistance.
-Lower the center of gravity, reduce cornering roll, and increase vehicle stability.
-Give your vehicle an aggressive standce.

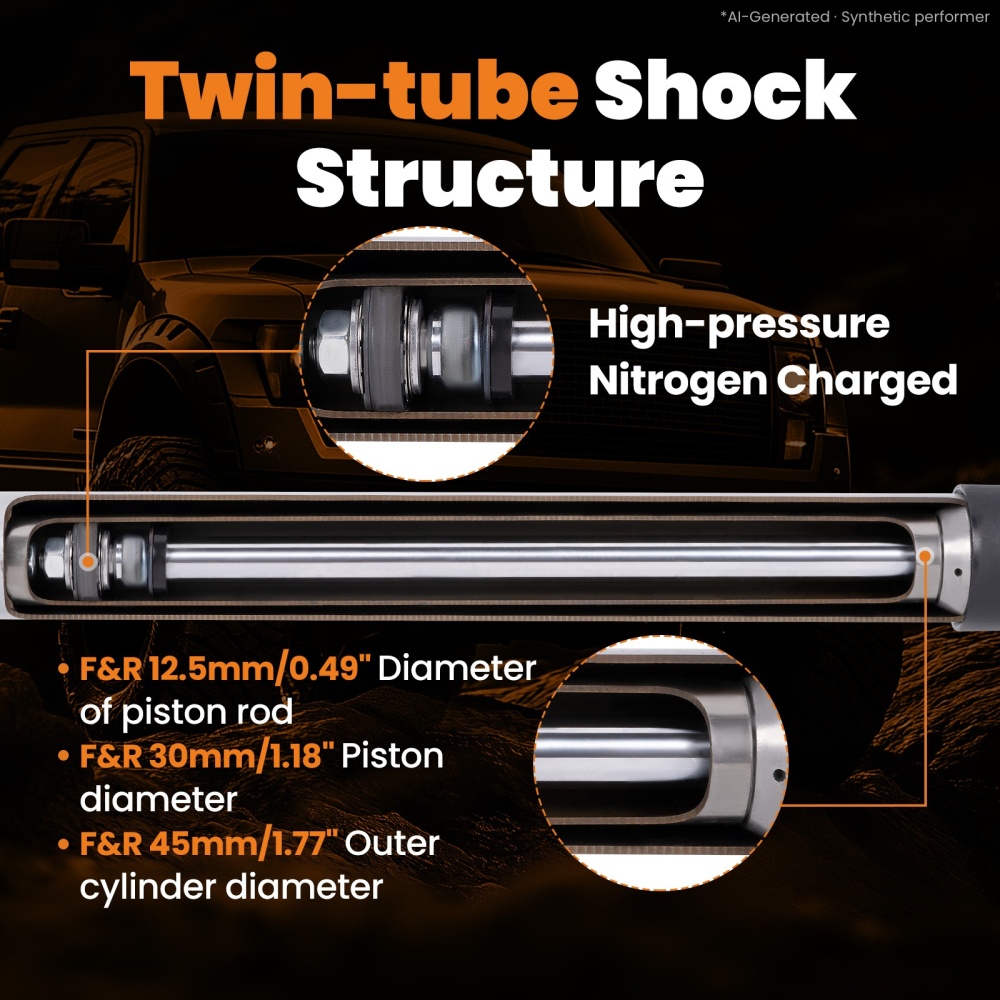

-High-pressure nitrogen charged twin-tube shock absorber with high durability.
-Rubber bushings for better absorption.
-12.5mm Chromed Hardened Piston Rod.
-30mm Diameter Sintered Iron Piston.
-45mm Shock Body help Heat dissipation.

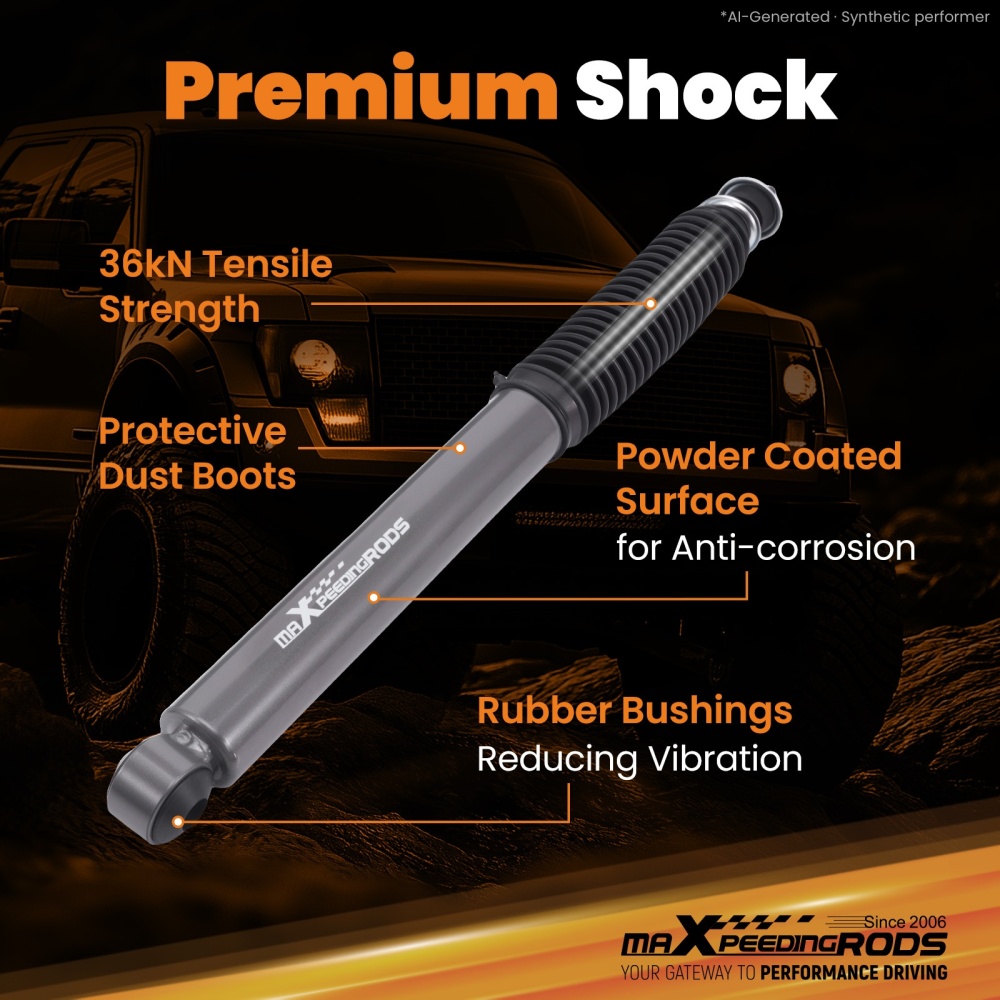

-36KN Tensile Strength.
-Precision Welding.
-Easy bolt-on installation.
-Power Coated Surface：provides superior corrosion resistance.
-High Tensile Strength Carbon Steel for optimal durability and fitment.
-Dust cover included prevent the shaft rod and -Oil seal from damaging.
-Match with other lowering kit.

Note

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
