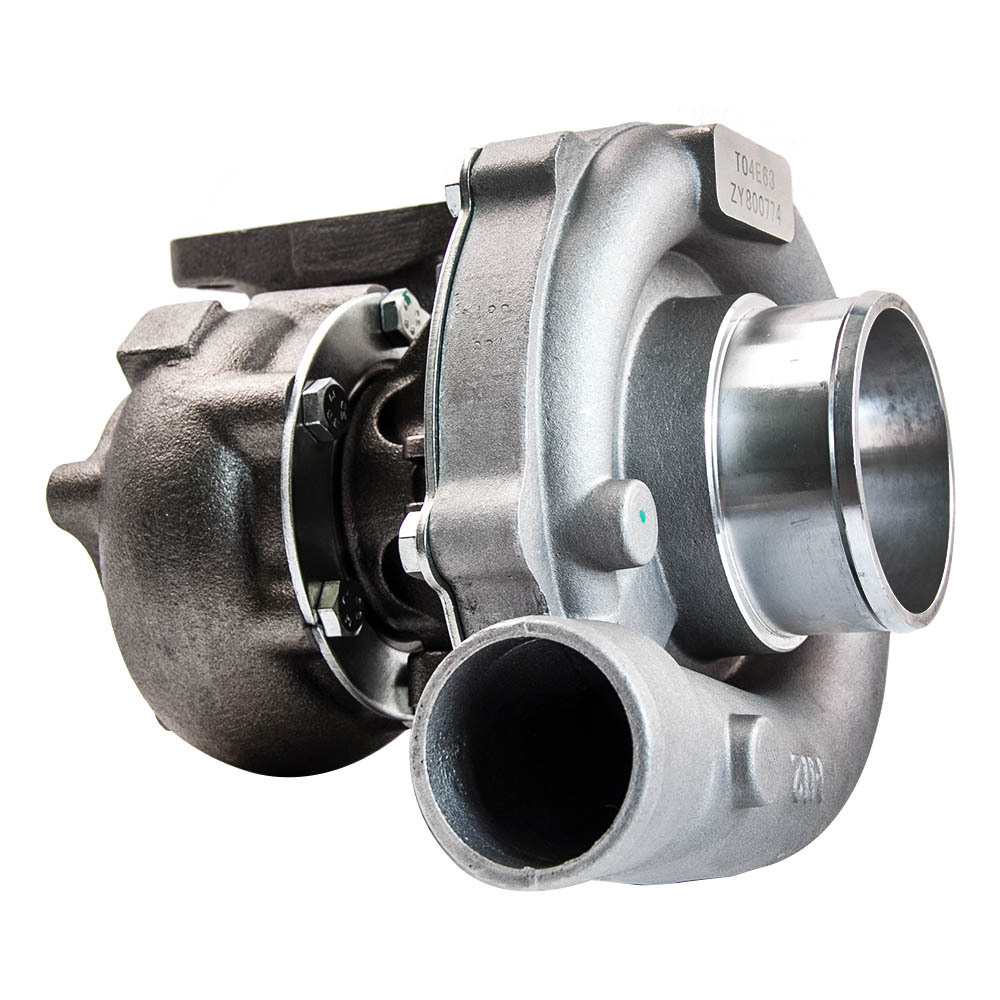

T04E Turbo + Oil Line + Manifold Kit compatible for Nissan Patrol Safari Y60 Y61 TD42 TB42

Item Number 3002105374
Stock In Stock

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Introduction

A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides universal turbochargers to enhance overall engine performance of your beloved car.

Application

for 2.5L and up engines
for 3.2L-5.0L engines, capable to 800HP

Note:Please confirm that your car's displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 400+HP
Maximum 18PSI

Compressor:
Trim: 55
Inducer Diameter: 50.5 mm
Exducer Diameter: 76 mm
A/R: 0.5

Turbine
Trim: 73
Inducer Diameter: 65.5 mm
Exducer Diameter: 55.9 mm
A/R: 0.63

Oil Inlet: M12*1.25

Oil Outlet:2*M8*1.25


Oil Specifications:
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Manifold Specifications:
Material: Cast Iron
Mounted type: Top mounted / High mounted
Turbo Flange: T3
Wastegate size: 38mm. You can plate it off if intending to use internally wastegated turbo (the blank plate is included)

Condition: New
Bearing Type: Floating Bearing
Warranty: one year warranty for any manufacturing defect
Package Includes:
1 x Turbocharger Kit
1 x Braided Turbo Oil Feed Line
1 x Braided Turbo Oil Return Line
1 x Manifold
(You will get exactly as shown in the picture above)

Note

- Please check our store for other auto parts you may be interested in.
- Please check the specifications carefully before bidding. If you are not sure about these information,
please feel free to contact us.
