5KW Self-generating PortableDiesel Air Heater Remote Control For Bus RV

Application

Motorhomes, Campervans, Caravans (also known as travel trailers and camper trailers), Fifth-wheel Trailers, Popup Campers and Truck Campers, Small Truck, Big Truck, Light Truck, Heavy Truck, Pickup, Van,Bus,Car,SUV, Boat, Forklift, Electric Tricycle, Engineering Vehicle, Yacht.

Specifications

Condition: New
Car Air Conditioning Type: Heating
Fuel Type: Diesel Only
Switch Type: Remote Controller, Battery Startup
Power: 5KW
Rated Voltage: 12V
Fuel Consumption(L/H): 0.17-0.48
Working Temperature of the Heater: -40℃~+40℃
Item Size: 41*26.5*28cm
Fuel Tank: 3.7L
Certification: CE

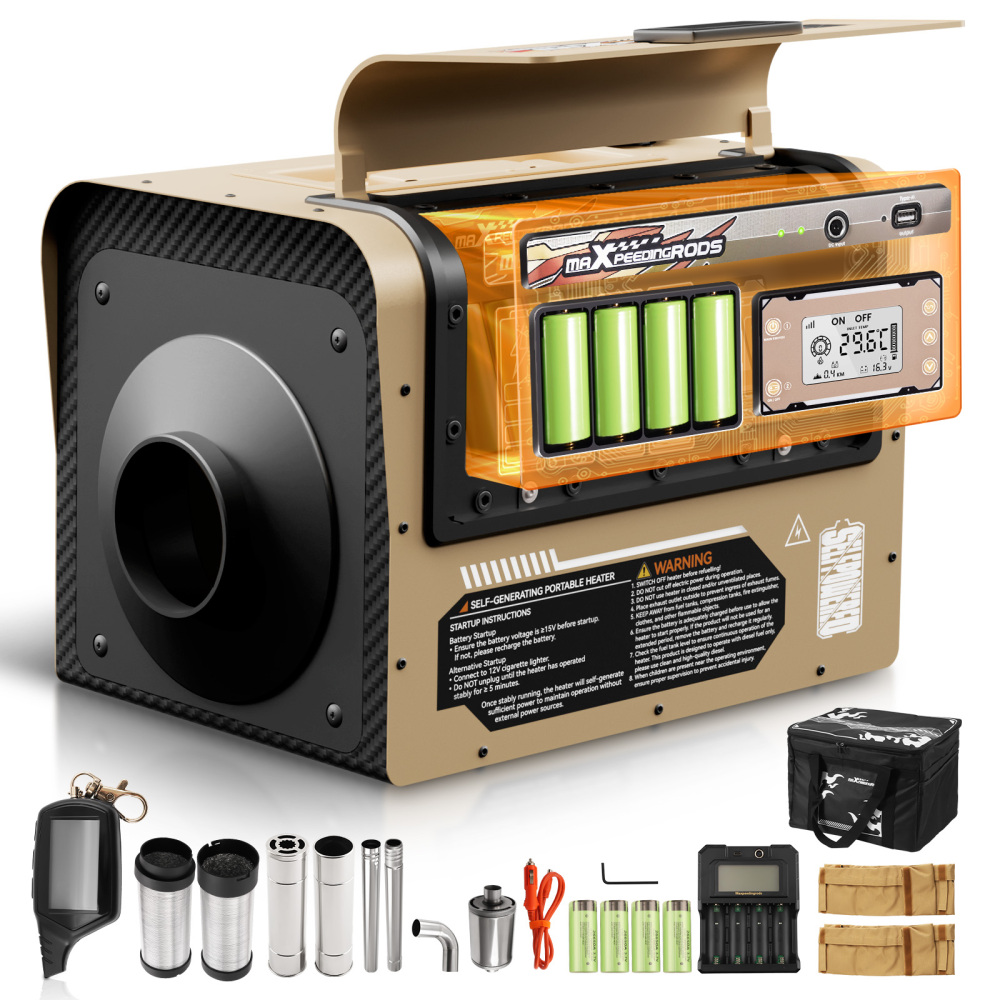

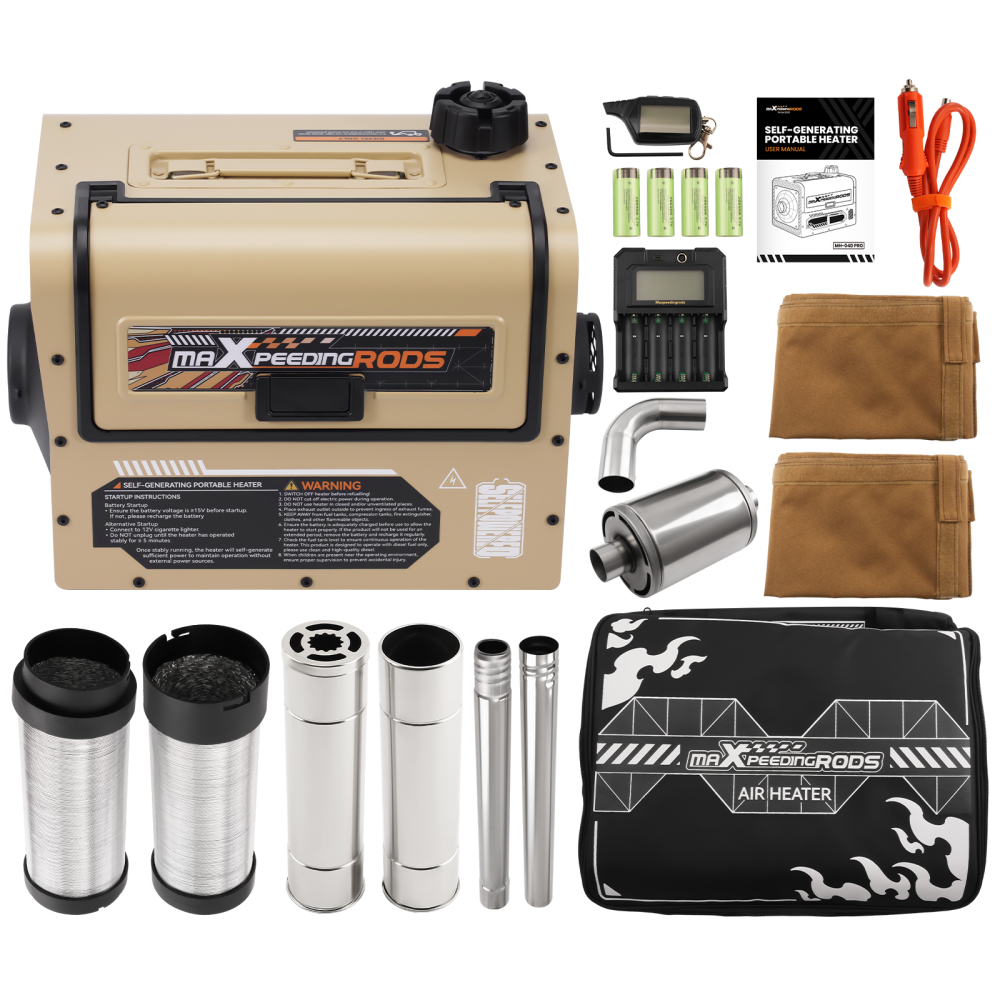

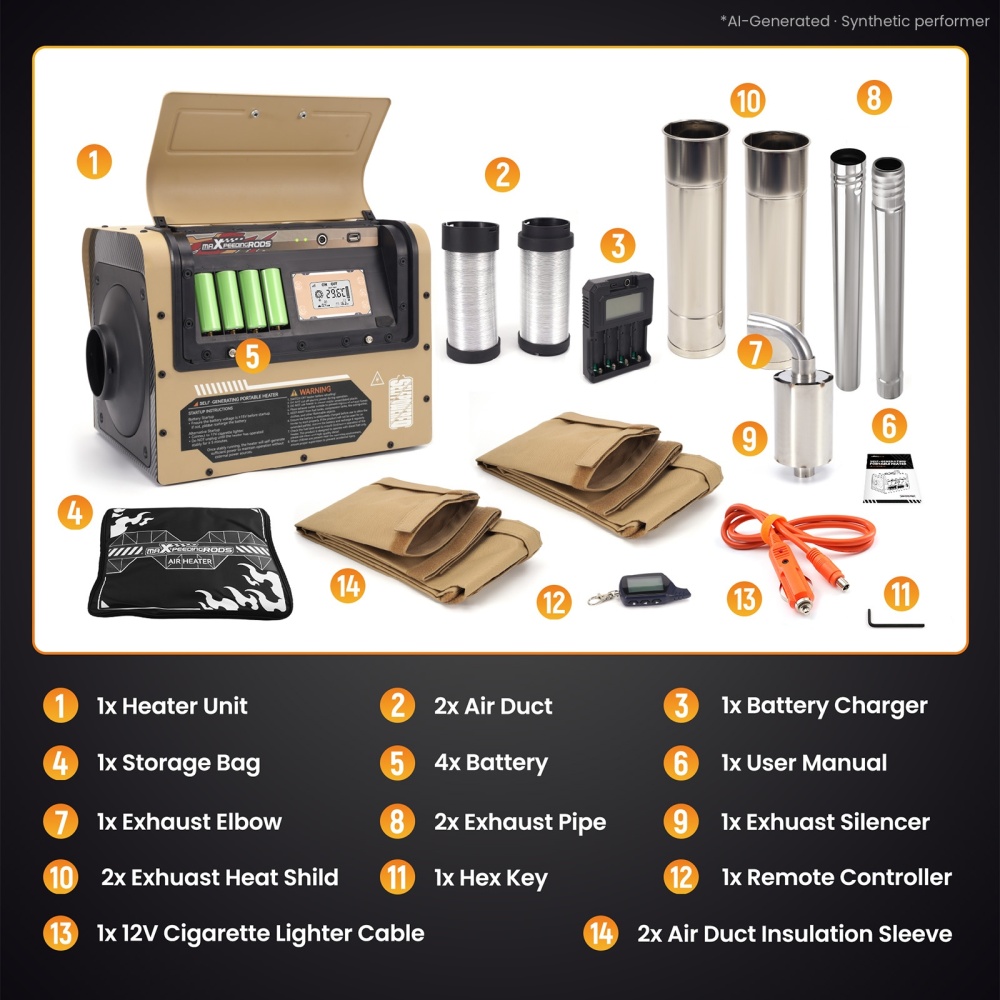

Package Include:

Heater Unit

Exhaust Pipe * 2

Exhaust Silencer

Exhaust Elbow

Exhaust Heat Shield * 2

Air Duct * 2

Air Duct Insulation Sleeve * 2

Battery (26650A Li-ion) * 4

Battery Charger

12V Cigarette Lighter Cable

Remote Controller

Storage Bag

User Manual

Features

[Self-Generated Diesel Heater]

Self-sufficient, Battery Startup is available, Self-sufficient, no other power supply is required to start

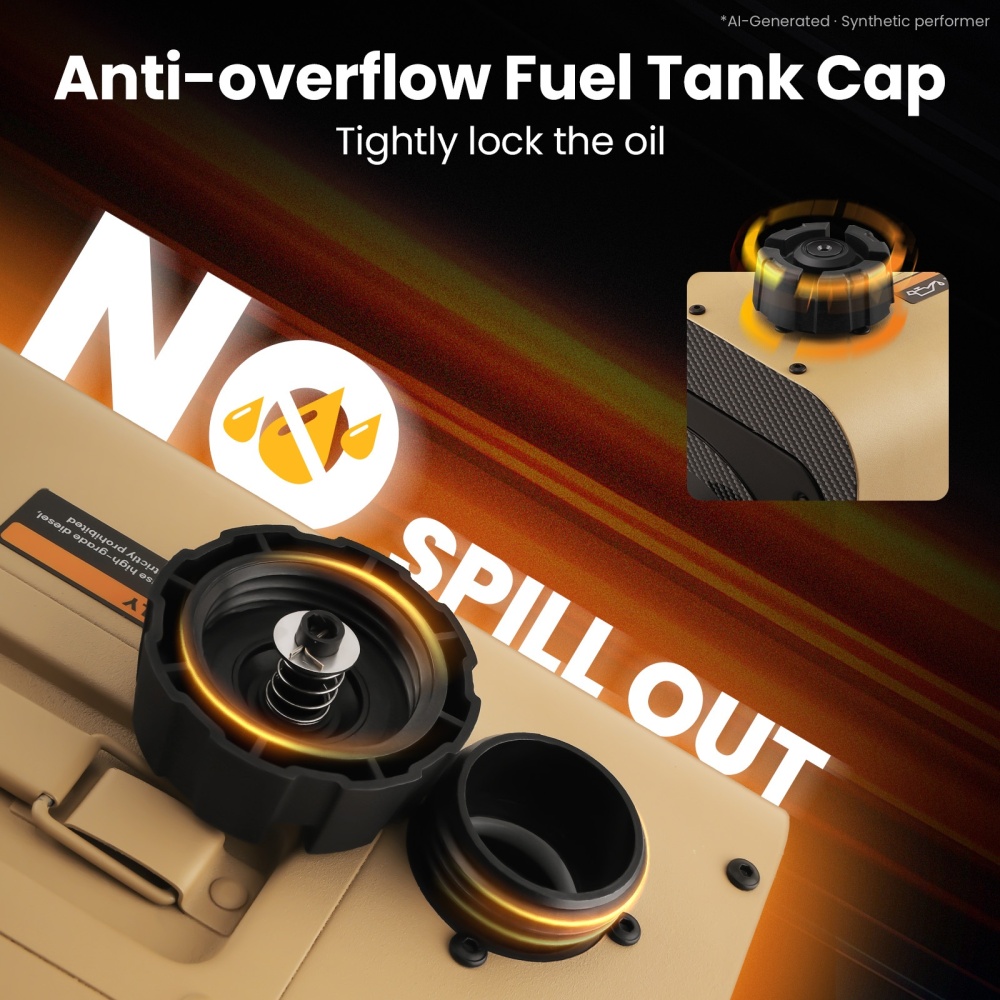

[No Spill Out Worry]

Anti-overflow Fuel Tank CapTightly lock the oil

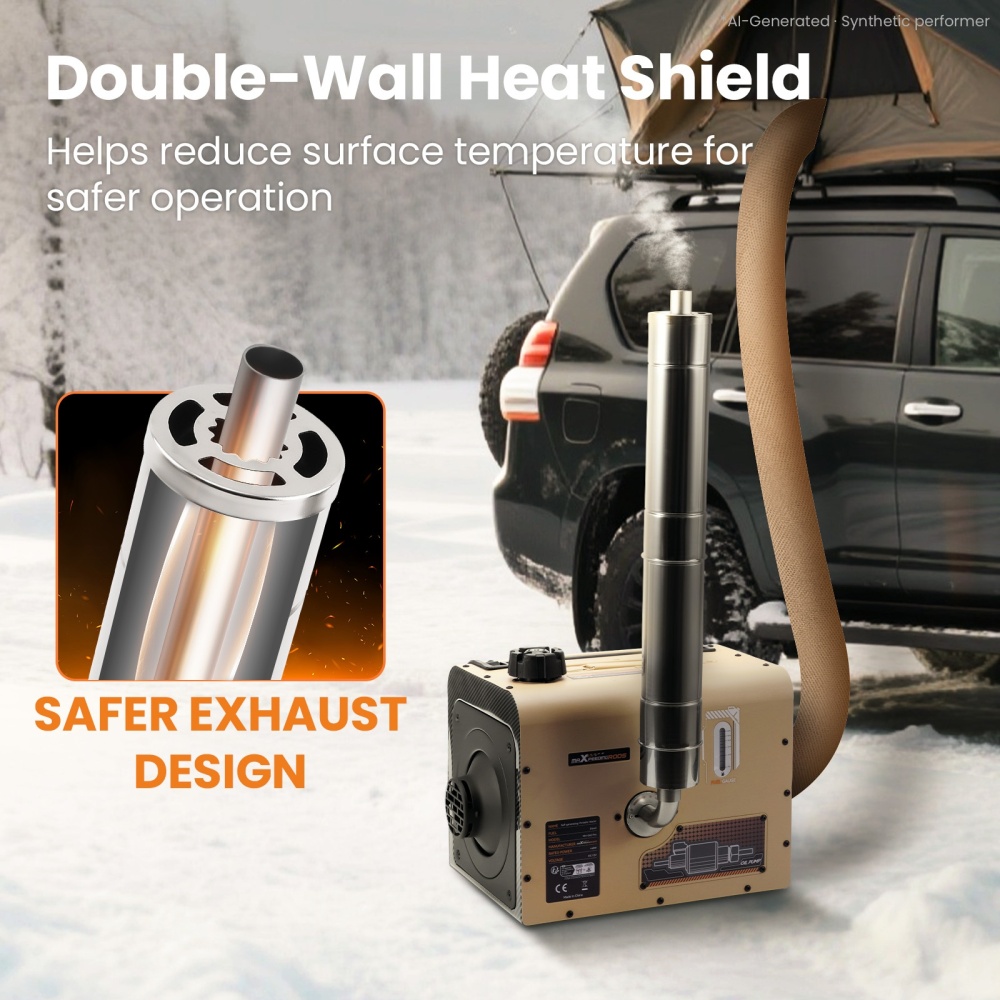

[Improved Security]

no burns With heat shield, safe to use;new Design Reduce exhaust accumulation

[Extended Operating Time ]

0.17L-0.48L/H Low fuel consumption, Running Time up to 8 hours （max. gear)

*The novel design of the fuel tank cover supports external fuel tanks, which can extend the running time as needed

[Emergency Energy]

After stable startup, it can directly provide power for small lights or mobile phones when there is sufficient power.

[Quiet Operation]

Do not disturb your rest, conversation or entertainment during the journey

[Plateau Mode]

Even on 5000m High altitude areas it performs stably and continuously output warmth

STARTUP INSTRUCTIONS

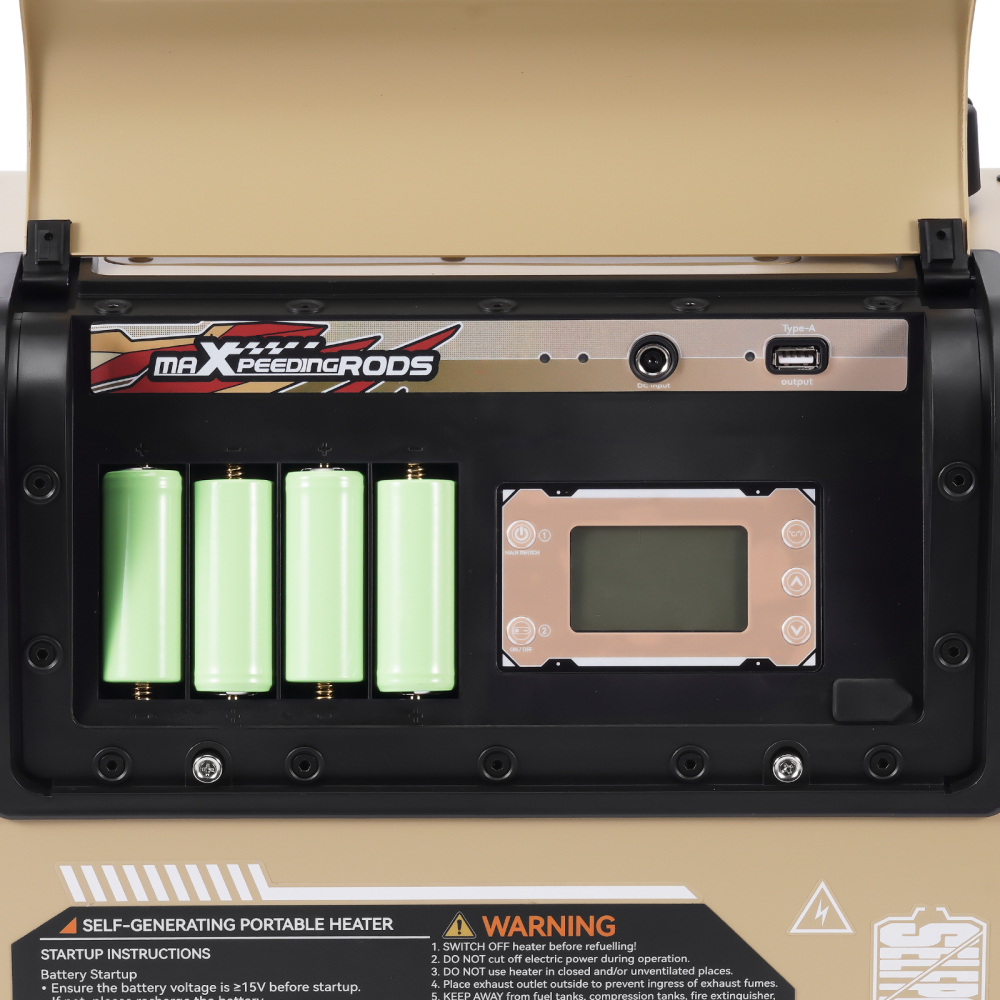

Battery Startup
1. Ensure the battery voltage is  ≥15V before startup (Check battery voltage on the panel by pressing the power button)
2. If not, please recharge battery (Max battery voltage 16.8V)

Alternative Startup
1. Connect to 12V cigarette lighter
2. Do NOT unplug until the heater has stabilized for ≥5 minutes

Once stably running, the heater will self-generate sufficient power to maintain operation without external power sources.

Notice

1. RISK OF FIRE, BURN, EXPLOSION AND POISONING
- TURN OFF the heater before refuelling.
- DO NOT touch the heater while it is in use to avoid scalding.
- DO NOT use the heater in confined or poorly ventilated areas.
- DO NOT blow air directly at people, animals or objects sensitive to temperature.
- Make sure that the air intake and exhaust ports are clear of any obstruction.
- Keep children, inflammables and explosives away.
- Operate the heater only when the installation is completed.
- Route the exhaust outlet to the outdoors to prevent intake of exhaust fumes and carbon monoxide poisoning.
2 .DO NOT disconnect the power during operation.
3. DO NOT use a cigarette lighter to start the heater.
4. Seal any gaps between the mounting plate and the vehicle's body.
5. To avoid accidents, do not leave the heater unattended for at least 10 minutes after the first start up.
6. DANGER：To avoid injury from moving parts, shut off the equipment before removing this cover.
