Front Left & Right CV Axle Shafts compatible for Ford F-150 V6 V8 2011 2012 2013 2014

Function:

CV Axles serve as the final link between the engine and the wheels, transferring power from the vehicle's transmission and differential to the wheels to drive the vehicle forward.And ensure the stability and safety of the car when turning or driving on uneven roads.

Application

Compatible for Ford Expedition All Engine Front Side 4WD(Four Wheel Drive) 2007-2015
Compatible for Ford F-150 All Engine Front Side 4WD(Four Wheel Drive) 2009-2014
Compatible for Ford Lobo All Engine Front Side 4WD(Four Wheel Drive) 2012-2015
Compatible for Ford Lobo All Engine Front Side 4WD; without Hill Descent Control 2009-2011
Compatible for Lincoln Mark LT All Engine Front Side AWD(All-Wheel Drive) 2010-2014
Compatible for Lincoln Navigator All Engine Front Side 4WD(Four Wheel Drive) 2007-2015


Note-1: For Expedition F-150 Lobo Navigator fit 4WD(Four Wheel Drive) only

Note-2: Compatible for Lincoln Mark LT fit AWD(All-Wheel Drive) only

Note-3: Compatible for Ford Lobo 2009-2011 fit without Hill Descent Control

Note-4: Supplied with Standard Neoprene Outboard Boot

OE/Part number

66-2191,7L1Z3B437A,,AL1Z3A427B,662191,60-2191,602191,NCV11158
66-2192,L1Z3B436A,AL1Z3A428B,662192,602192,602192,NCV11159

Specification

Condition: New
Type: CV Axle Assembly
Color: Black
Placement on Vehicle: Front Driver & Passenger Side
Drive Type：4WD/AWD
Axle Nut Thread Size:M10x1.5
ABS Ring Tooth Count：54
Input Shaft Connection Style: Splined
Output Shaft Connection Style: Splined
Input Shaft Spline Count:31
Outboard Splines:45
Compressed Length(in):24.9375(Left); 22(Right)

Package included

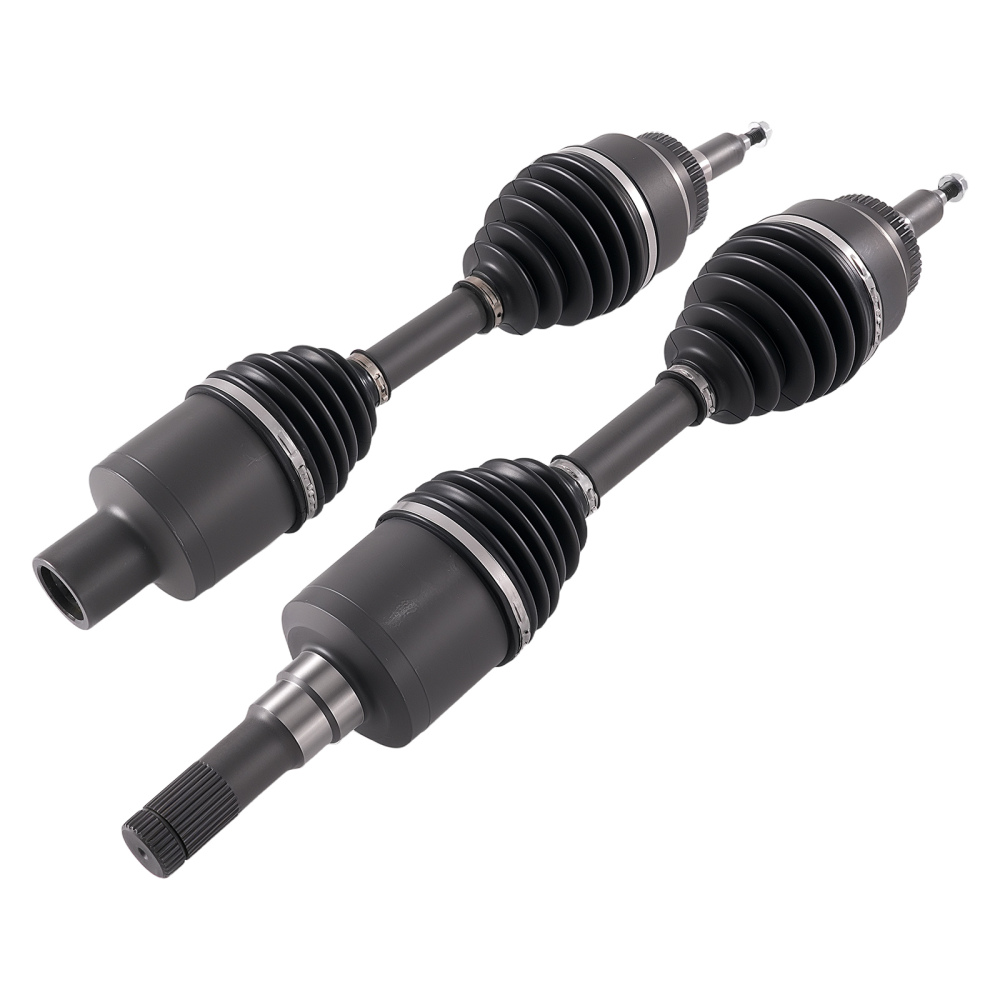

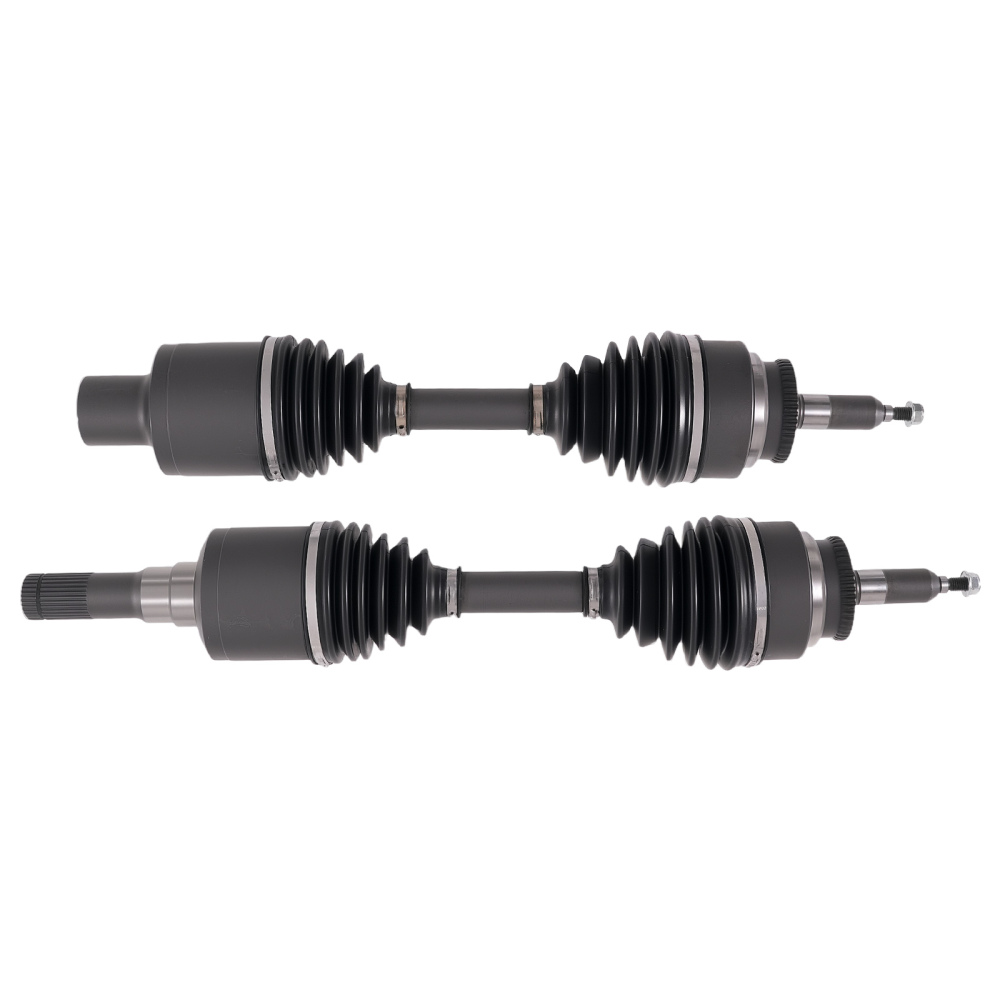

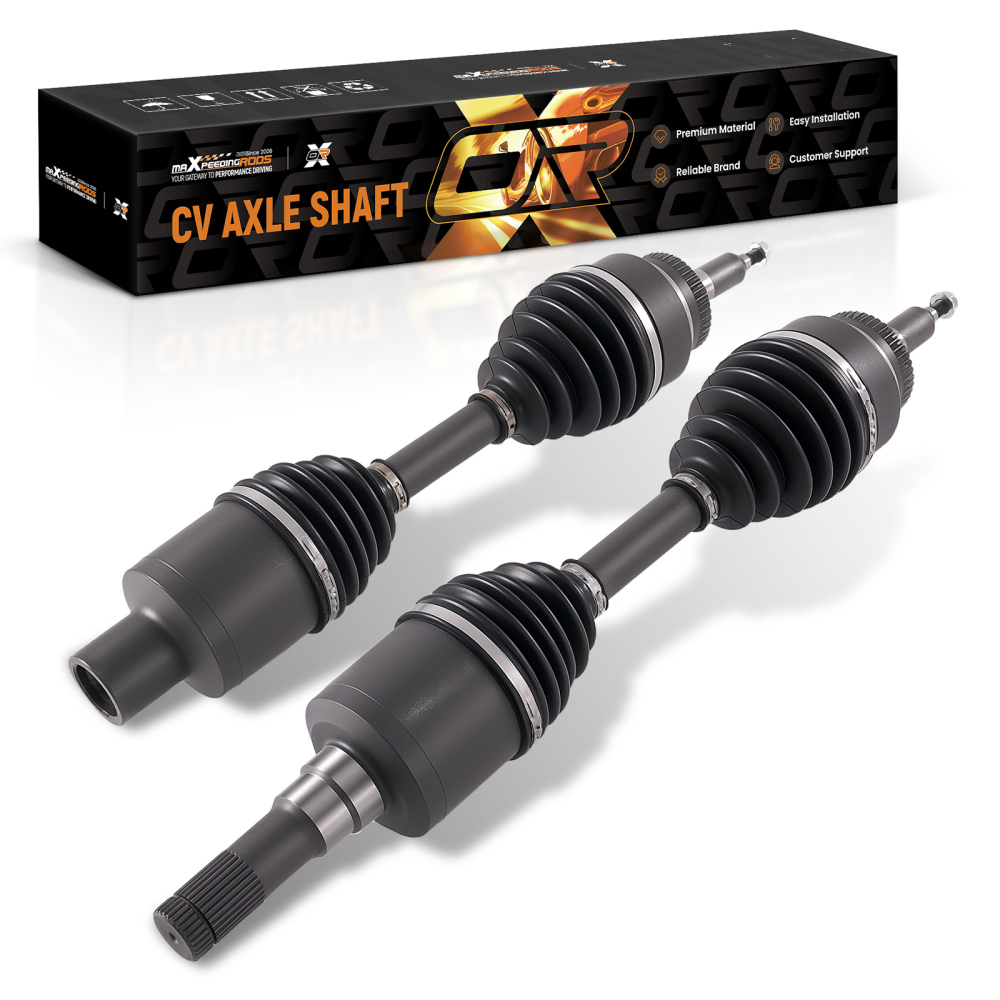

       2Pcs CV Axle Assemblies (Front Left+Right)

Feature

1.Unparalleled Performance:precision Machining,professional heat-treating,high-performance Neoprene Material can resist to grease and extremes of temperature and superior flexibility minimizing wear and tear.It realizes excellent durability and longevity．

2.Durable structural design：Steel 55 Ball Cage,Constant Velocity,Smooth Transmission.

3.Safe and Pleasing Experience: CV Joint Axle improve stability and comfort for driving.

4.Direct Replacement:Complete set CV alxe assembly easy to install.

5.Superior Package Design：With good cushioning and isolation performance, effectively protect products from damage, environmentally friendly and recyclable.

Note

*Please confirm your vehicle condition and OE number before placing an order!
*Please note that this is an aftermarket parst,not OEM products !
*We suggest that you seek professional installation to avoid unnecessary trouble.
