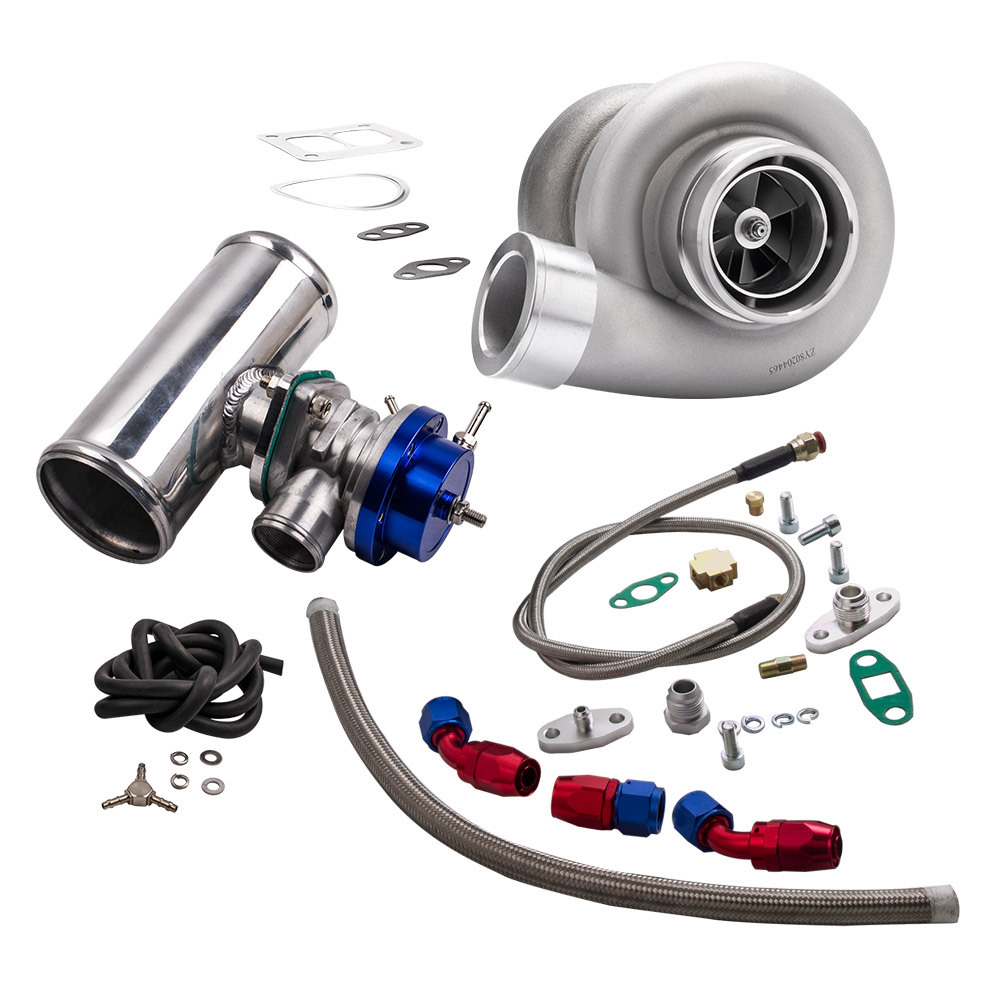

4PCS Universal for GT45 Turbocharger Kit + Oil Feed and Return Line + BOV Adapter

Application

Perfect for all 4.0L-6.0L engine

Specification

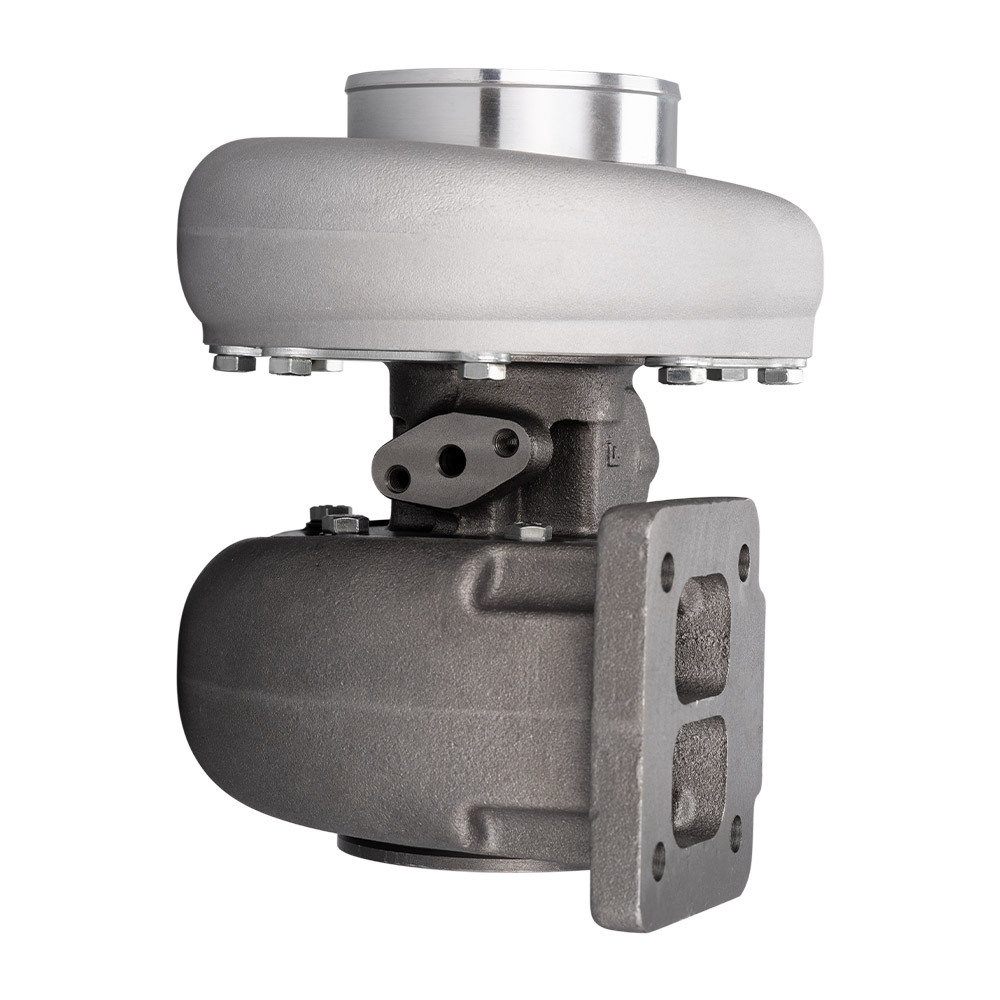

Exhaust (Turbo Manifold) Flange: T4 4 Bolt Flange
Exhaust Outlet (Downpipe) Flange: 3.25 " Inlet Flange 4.25" Clamp V-Band
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 600+ BHP
Turbo Height: 243cm
Turbo Width: 273cm

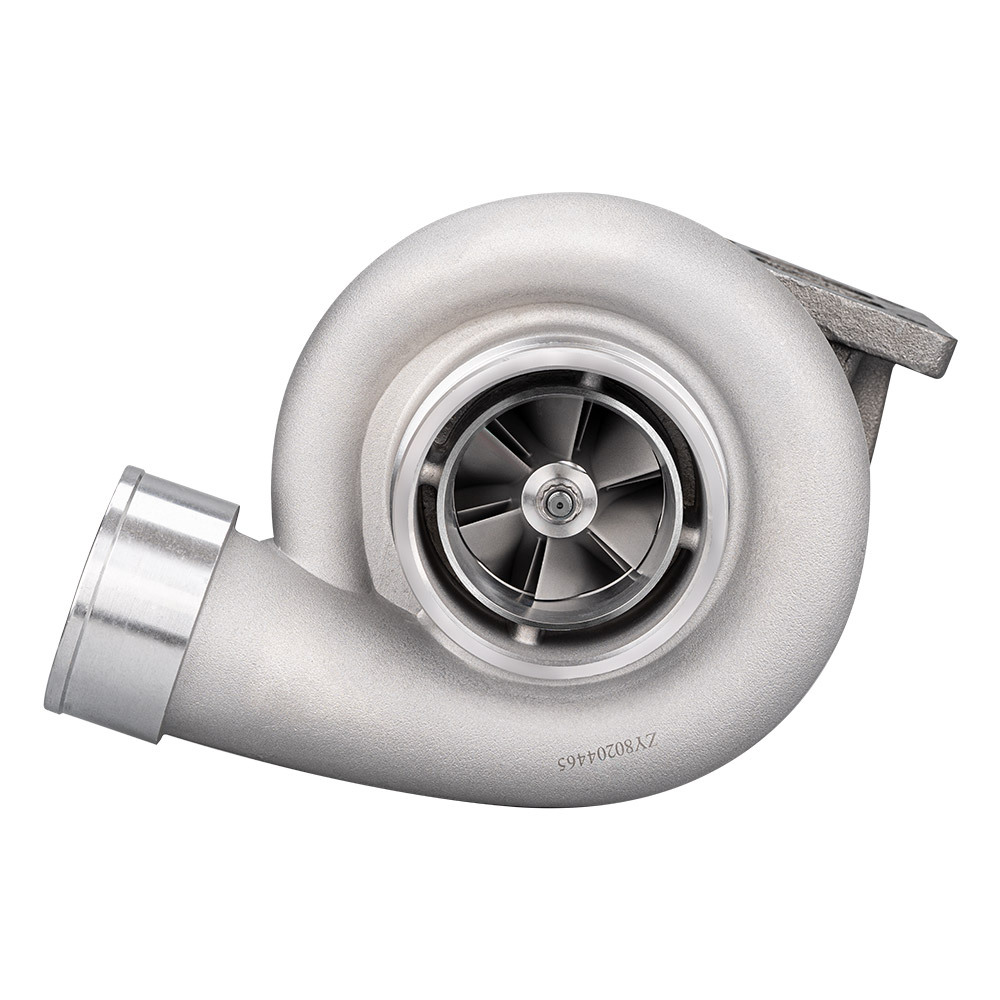

Compressor:
Trim: 50
Inducer Diamter: 69mm
Exducer Diamter: 98 mm
A/R:0.66

Turbine
Trim:78
Inducer Diamter: 88mm
Exducer Diamter: 77.5 mm
A/R:1.05

Oil Inlet: M9 & 2*M8*1.25

Oil Outlet: M19 & 2*M8*1.25

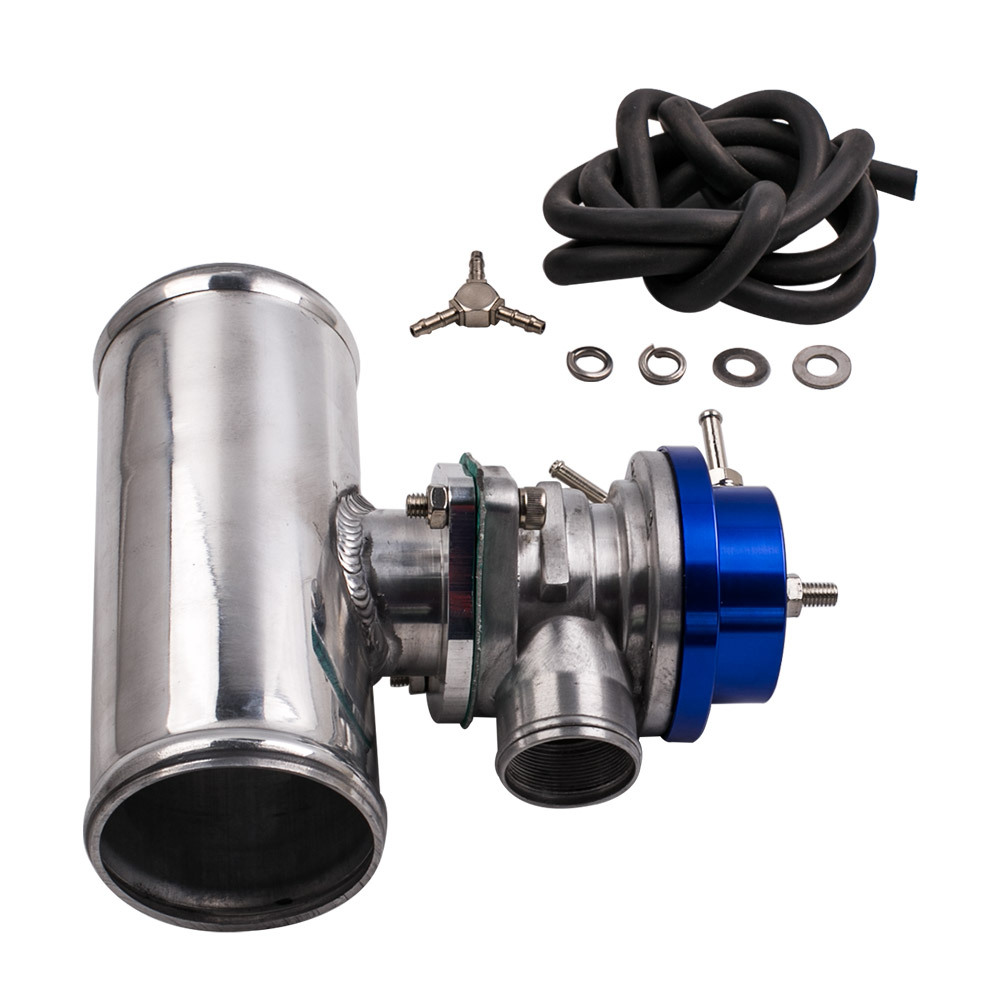

Blow Off Valve:

Billet Aluminum Body
8 Discharge Ports That Draw In Surrounding Air and Release a Unique Discharge Sound
40mm, Hard-Anodized Valve for Increased Airflow
Dual Spring System Promoted Response and Allows for High Boost Pressures
Holds Up to 30 PSI Boost Pressure
Aggressive for JDM Racing Discharge Sound
2 Bolt Mounting Design

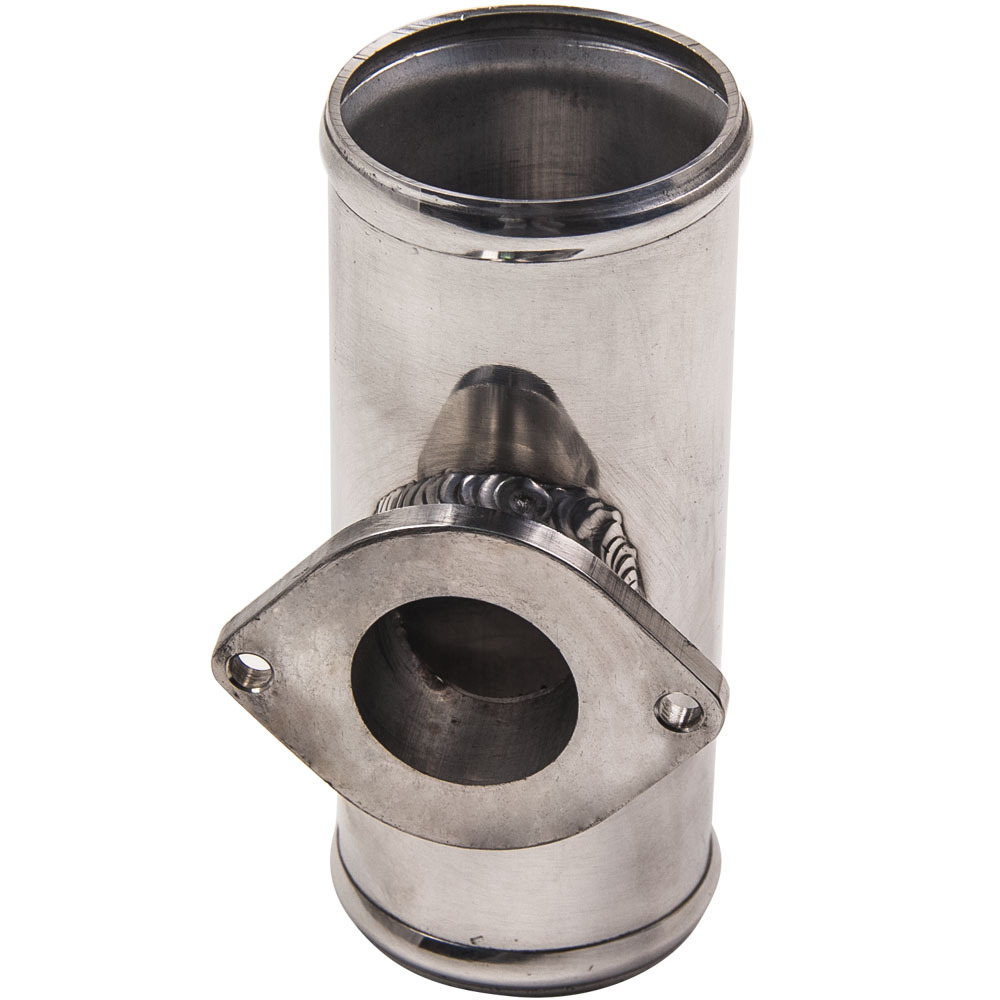

Flange Pipe:

Fits TYPE-S or TYPE-RS Dump Pipe Flange
Construction Prevents Warping Due to High Heat
Made of High Quality T-6061 Aluminum, Lightweight Design
2.50" Pipe Size

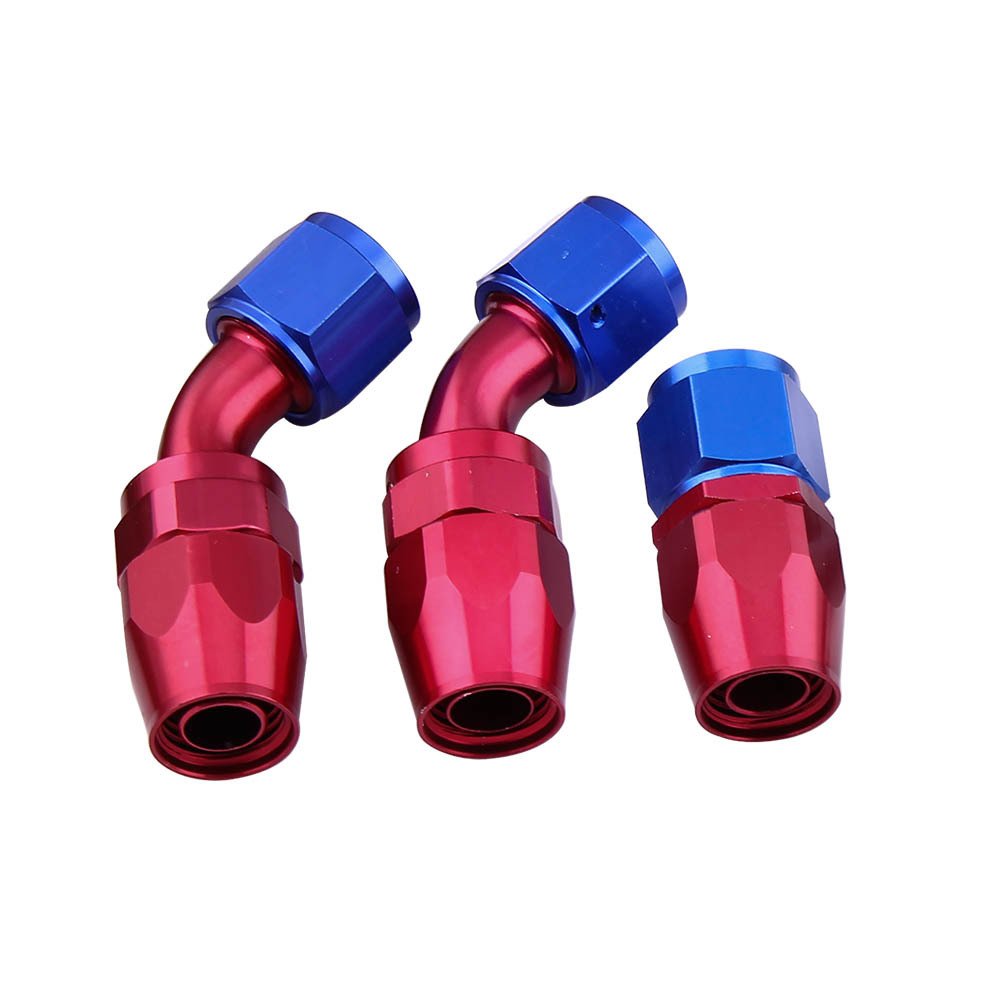

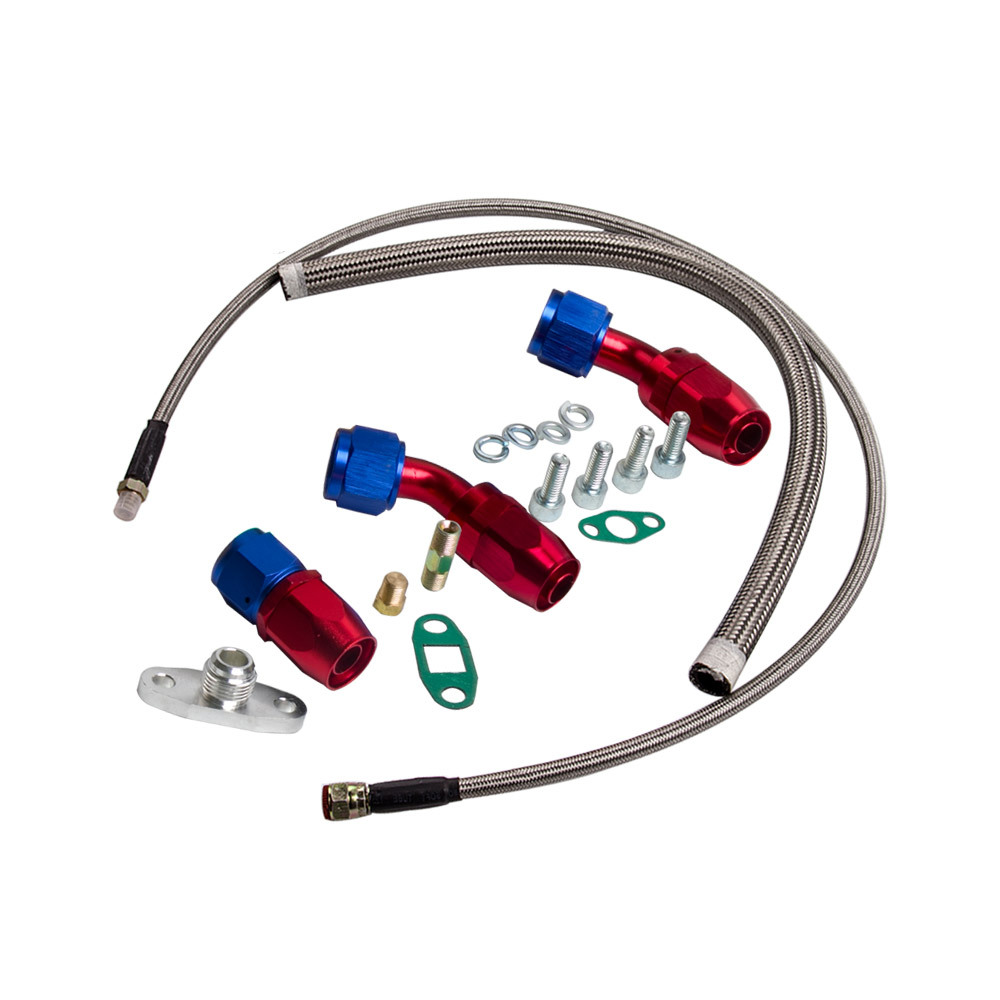

Universal T3/T4 T04E Oil Feed+Return Drain Line:

Oil Return Line: Length: 550mm || Inner Diameter: 21mm
Oil Feed Line: Length: 1000mm || Inner Diameter: 14mm

Quantity:

You will receive as shown in the picture

Notice

- Please double confirm before ordering.

- No instruction included; Professional installation and alignment suggested.

- Please check our store for other auto parts you may be interested in.

- For any needs please contact us.

- Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

- Make sure the oil drain line is lower than the turbo itself.

- Ensure exhaust outlet are well sealed by welding.
