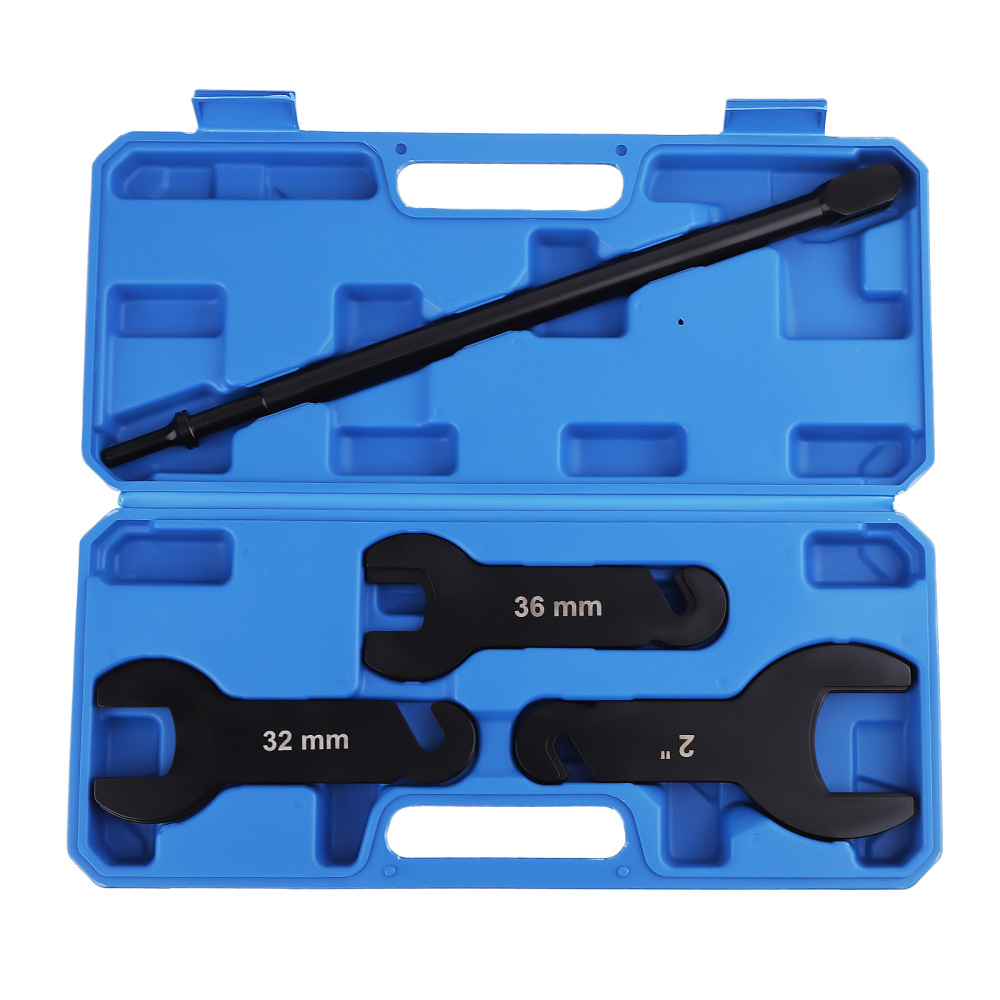

43300 Pneumatic Fan Clutch Wrench Removal Tool Kit compatible for Ford/GM/Chrysler/Jeep

Specification

1. Compatible for Ford, GM, Chrysler & Jeep.
2. for 4.3L, 5.0L, or 5.7L compatible for GM pick up (van, compatible for mini-van, or SUV)
3. 7/8", 32mm, 36mm, 40mm thin and 47mm size to compatible for Ford 6.0L and 6.4L Powerstroke diesel pickup.

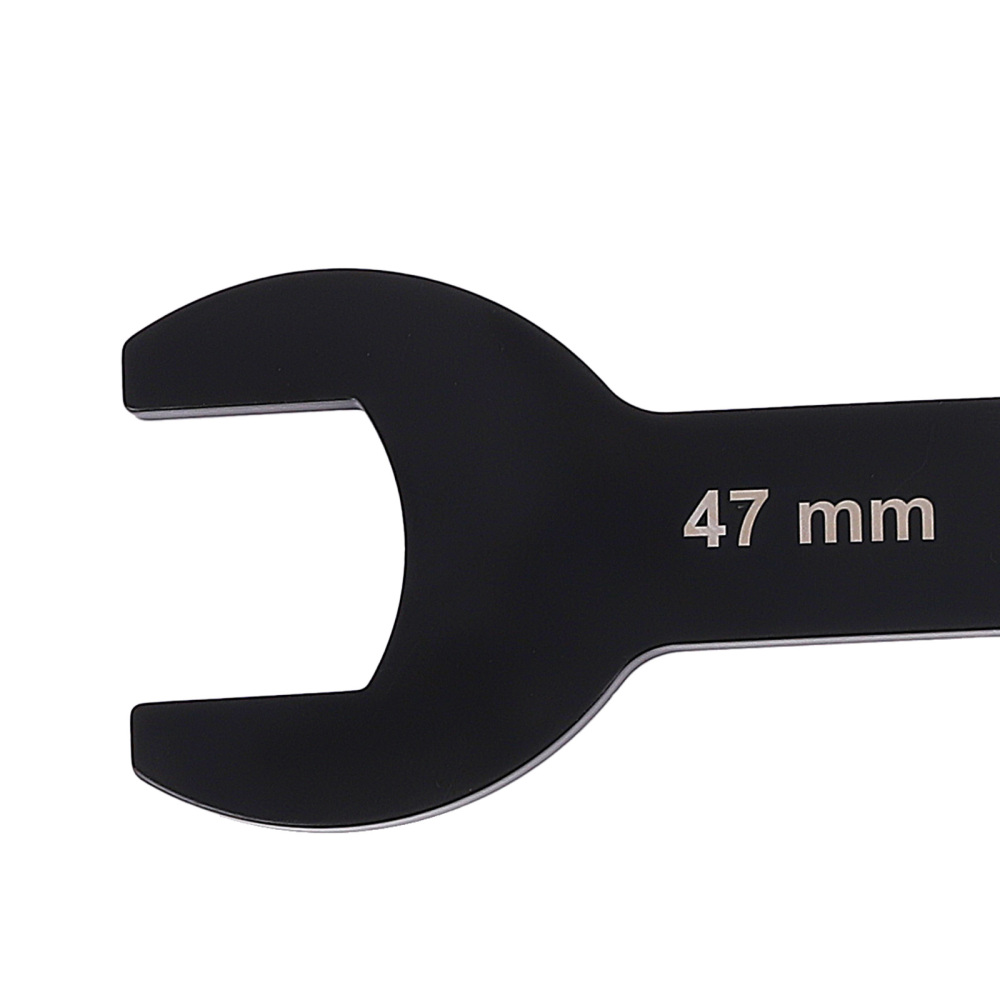

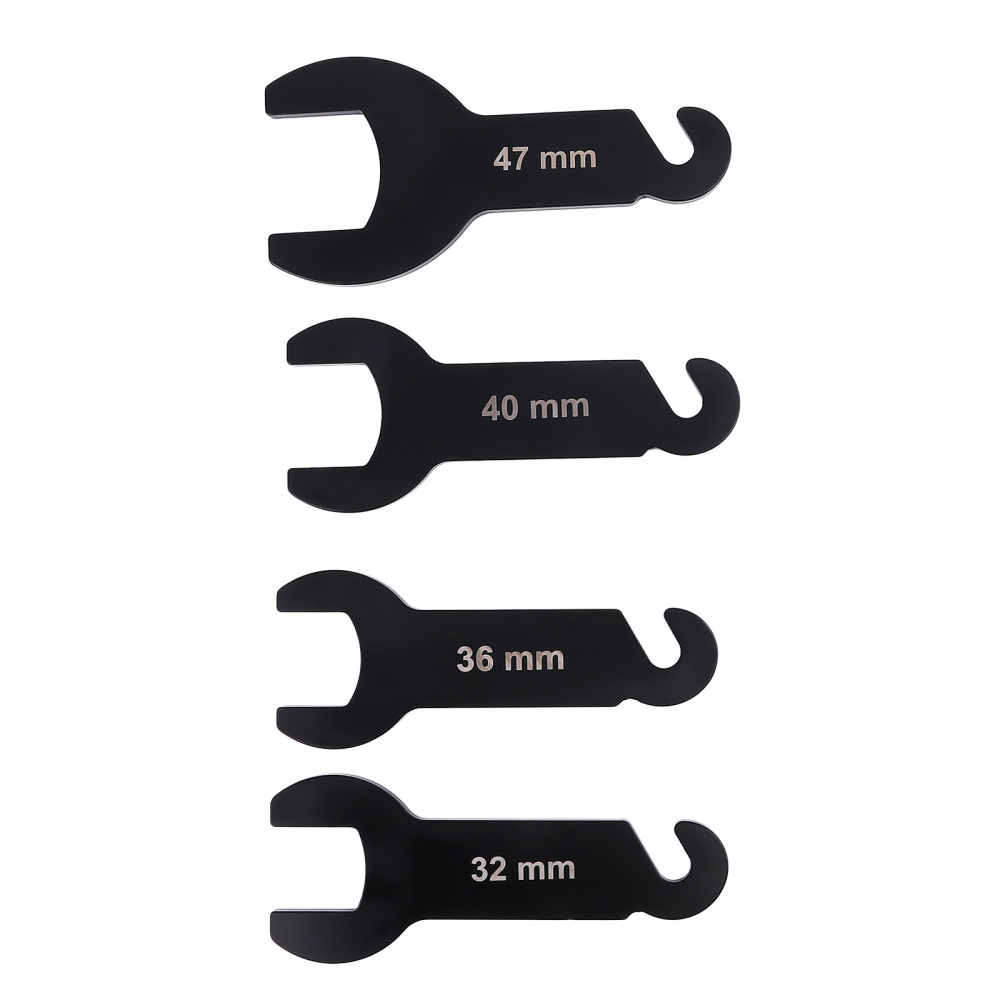

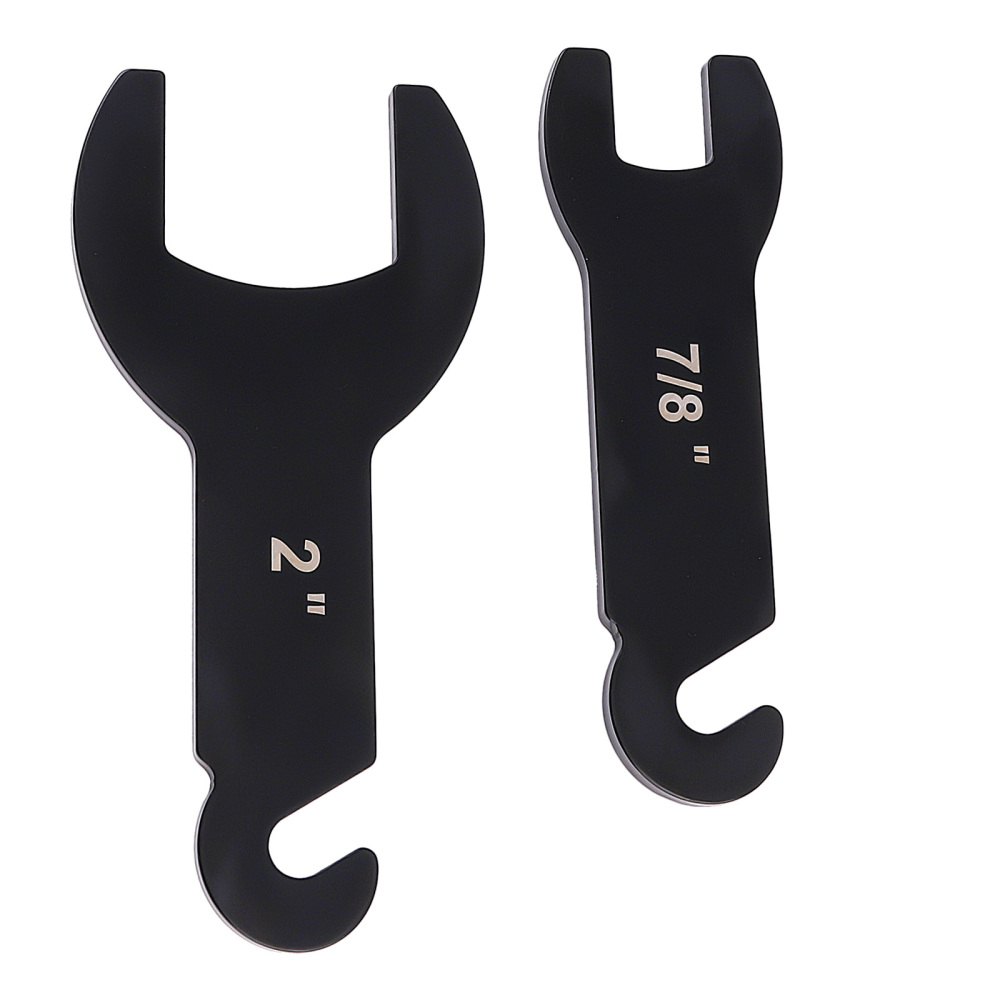

4. SPECIFICATION: Fan Clutch Wrench 7/8", 32 mm, 36 mm, 40 mm, 47 mm, 1-7/8", 2 inch, with a 17.31" Pneumatic Handle.

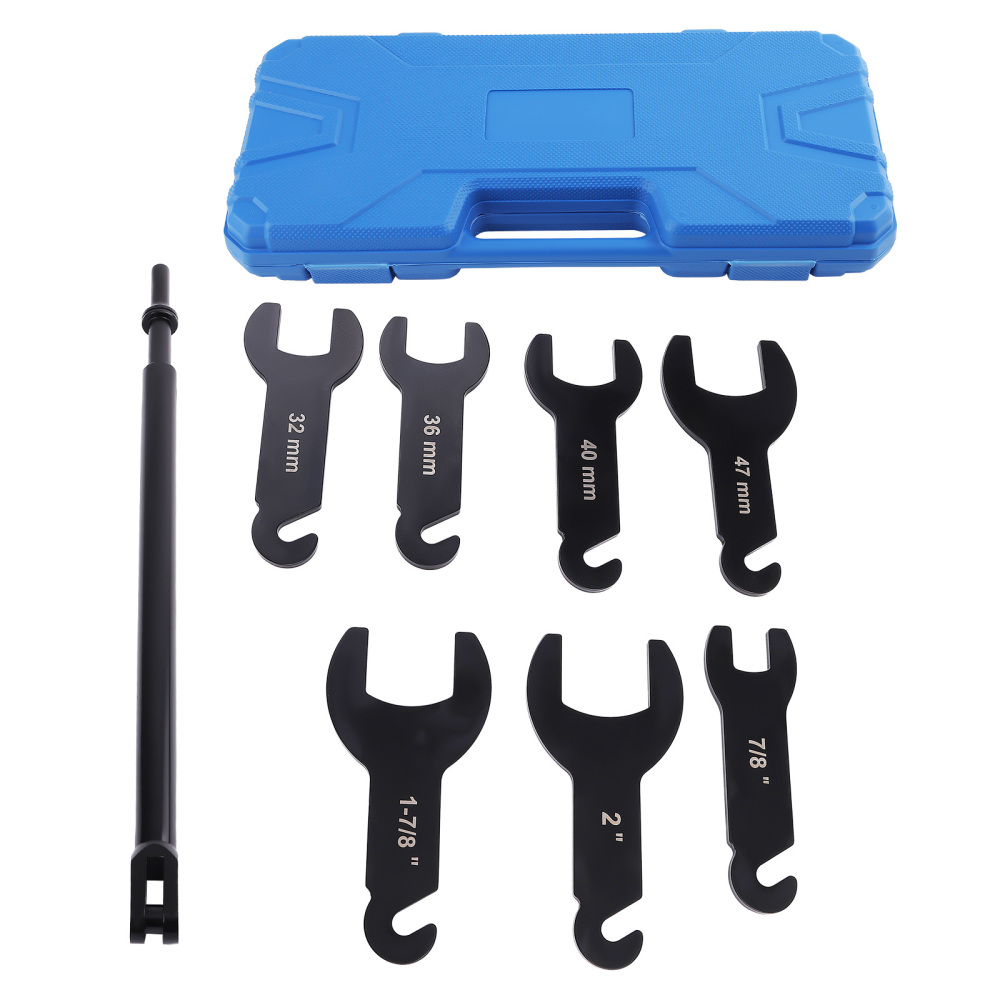

Package included

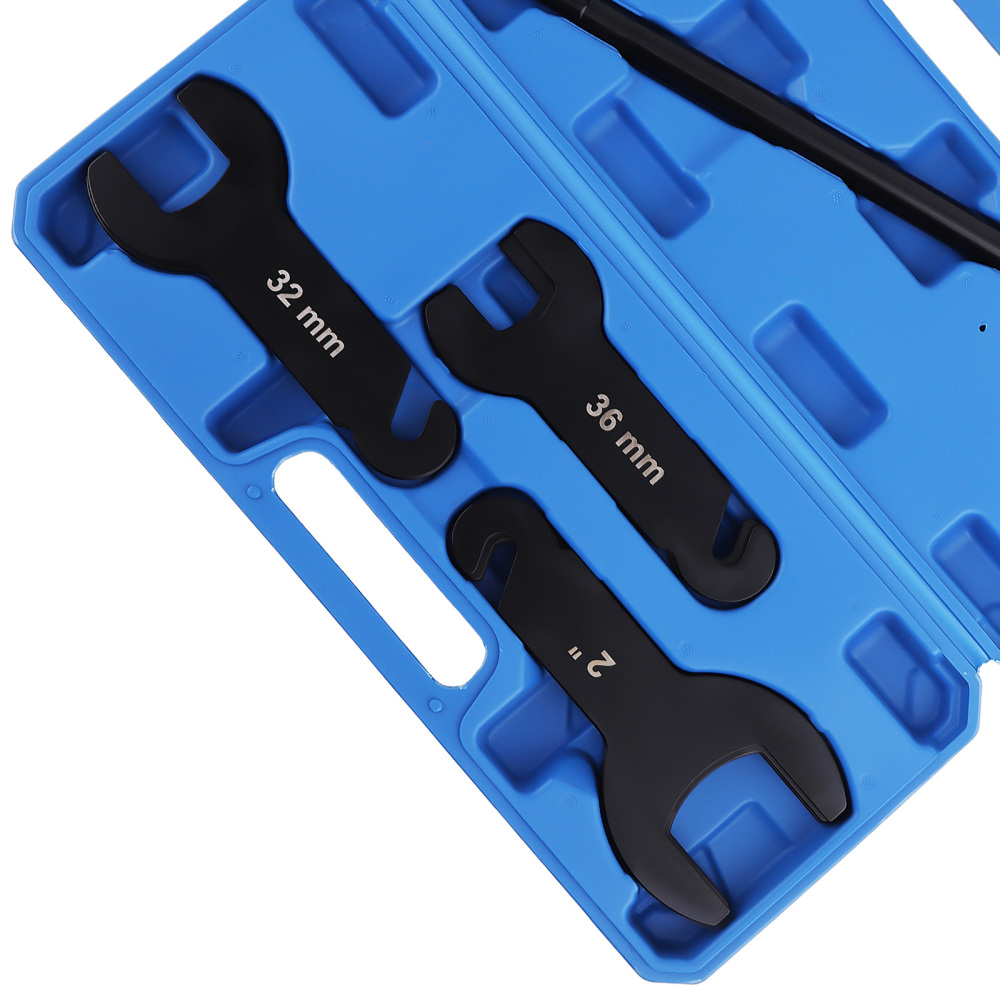

7x Driving Wrenches Tool
1x Handle

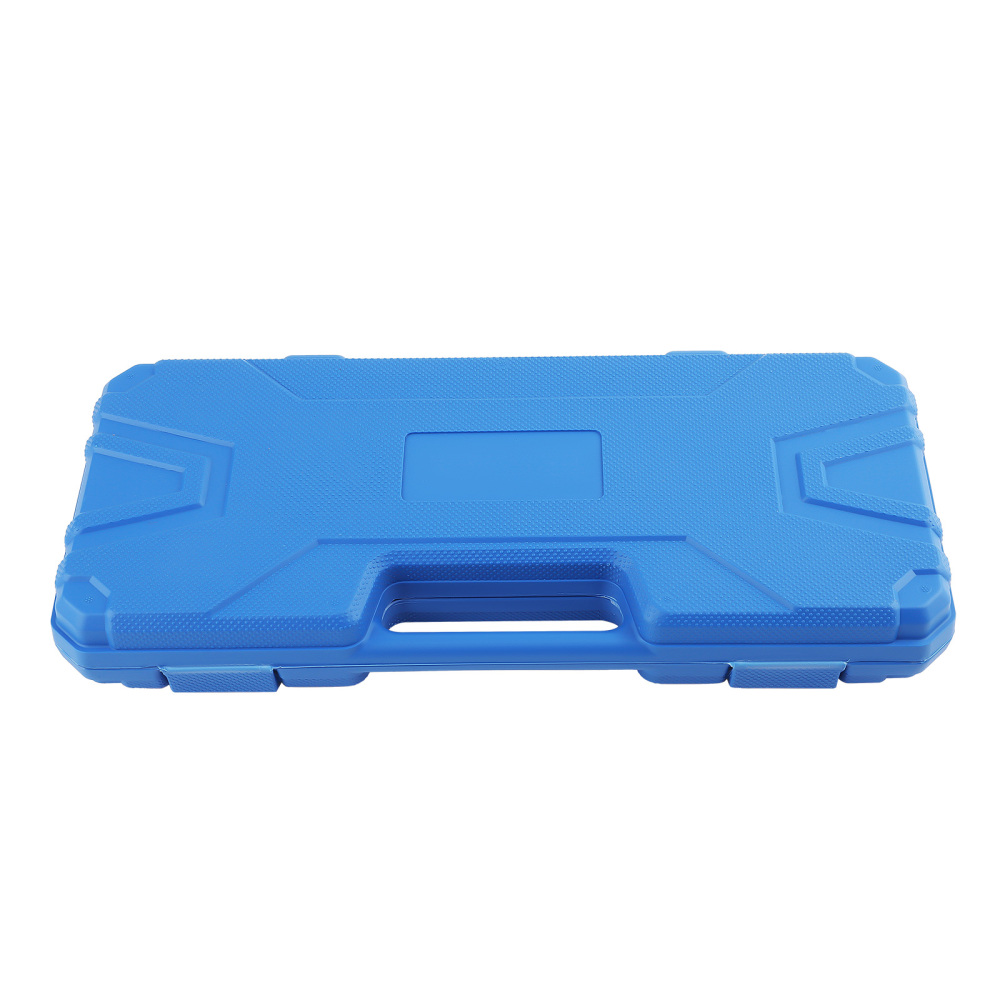

1x Carry compatible for Case

Feature

1. MATERIAL: This fan clutch wrench kit is made of 45# carbon steel, which is sturdy and will not rust.It can be used to fix, install, disassemble, screw and unscrew any accessories or and quickly removes and installs fan clutch.


2. EASY TO USE: Just slip the clutch fan tool into the air hammer select the correct wrench size for the fan nut and a couple of pops of the air hammer and the fan clutch is loose. No need for any other special pinning tools.

Note

1. Please confirm the size you need before buying

2. Steps to use:
1.You should leave the serpentine belt on in order to loosen the fan clutch;
2.Choose the correct size wrench and place it on the fan clutch;
3.Place the straight pneumatic extension on the wrench;
4.Place the 3/8 drive deep socket on the end of the pneumatic extension.The socket is used to protect the end of the pneumatic extension from the hammer blows you'll need to give it to loosen the fan clutch;
(Tip: If you do have an impact air hammer (pneumatic hammer), you can skip step 4, since you can now use the impact air hammer instead of a hammer and 3/8 drive socket.)
5.With your hammer, hit the socket placed over the pneumatic extension end. The idea here is to hammer the fan clutch tool so that it will rotate the fan clutch counter-clockwi.
