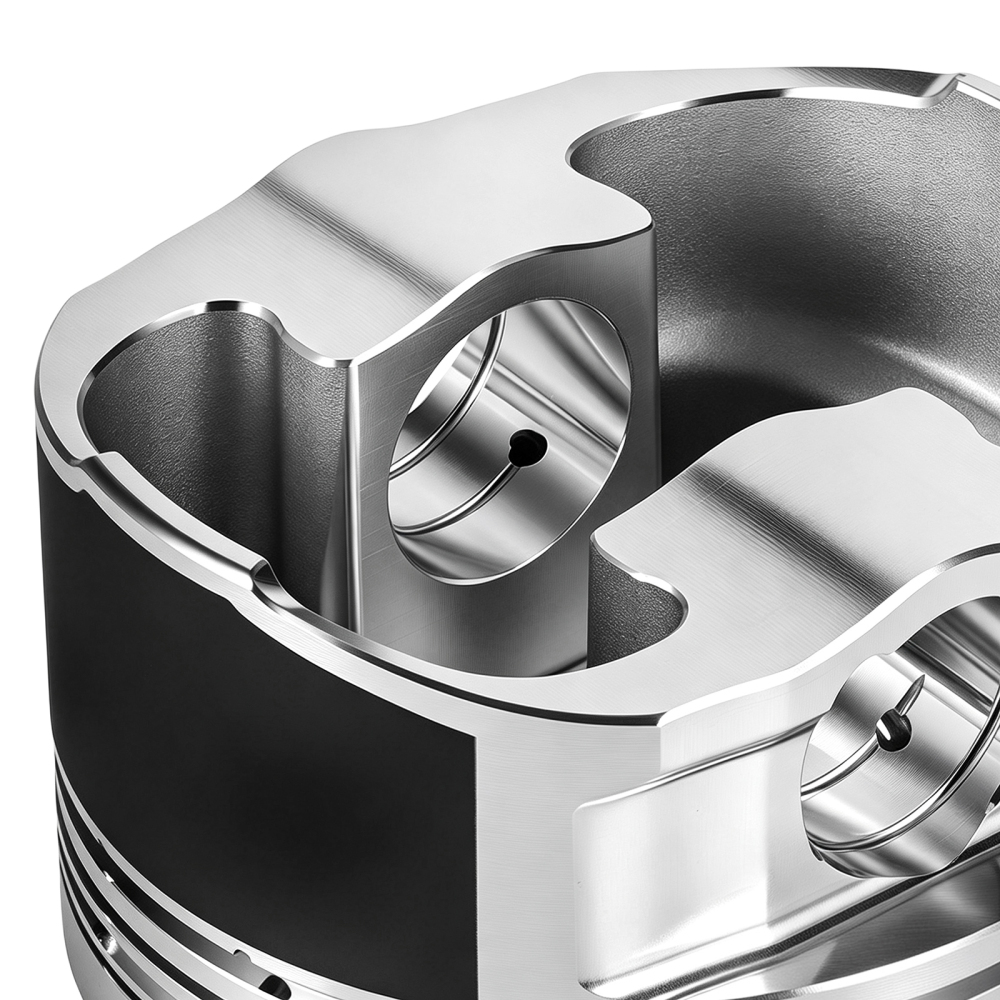

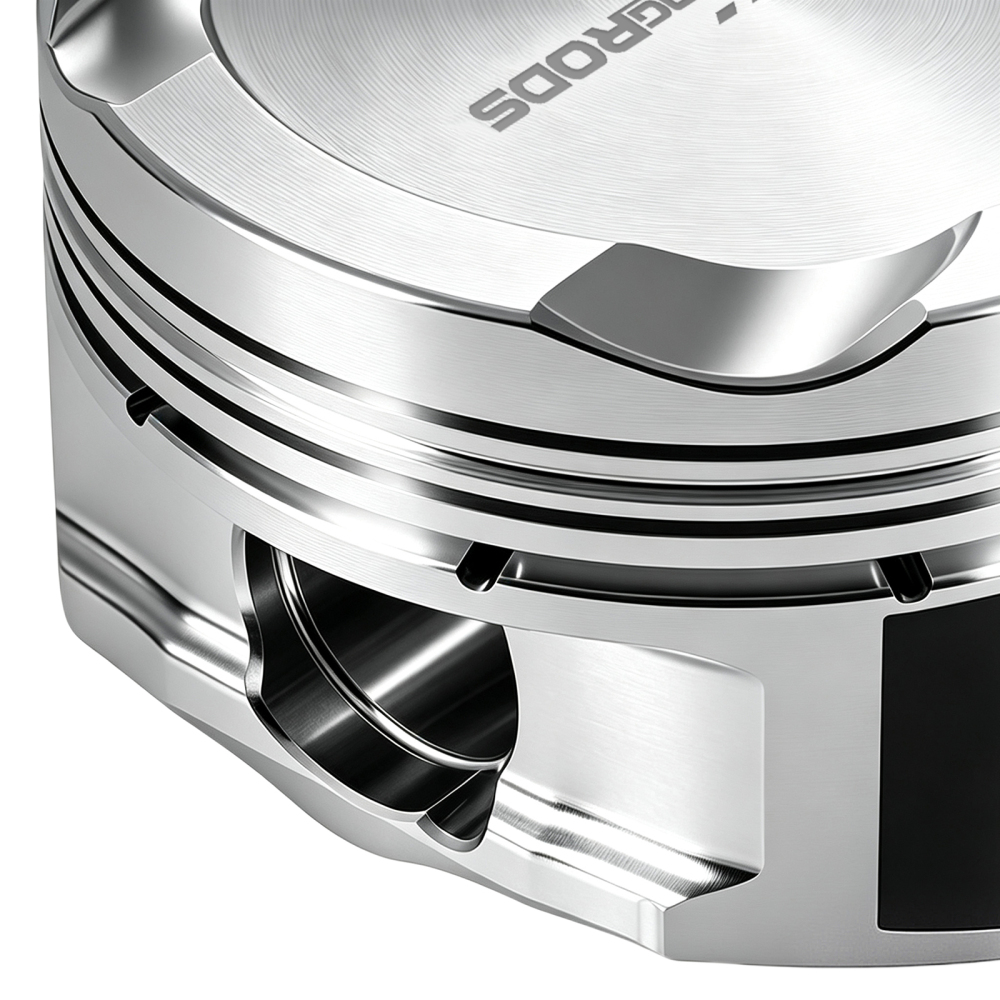

4032 Forged Pistons Compatible for BMW 3 Series G20 F30 X3 G01 X4 G02 2.0T L4 2015-2024

Application

Compatible for BMW 3 Series (G20/F30): From 2015 (F30 LCI),upgraded to B48TU version from 2019 onwards;
Compatible for BMW X1 (F48/G42): From 2017 (F48);
Compatible for BMW X3 (G01), X4 (G02), X5 (G05);
Compatible for BMW 5 Series (G30);
For 7 Series (G11/G12);
Compatible for BMW 2 Series (F44/F45);
For Z4 (G29);
For 1 Series (F40);
Compatible for MINI Cooper S (F56);
Compatible for MINI John Cooper Works (F56);

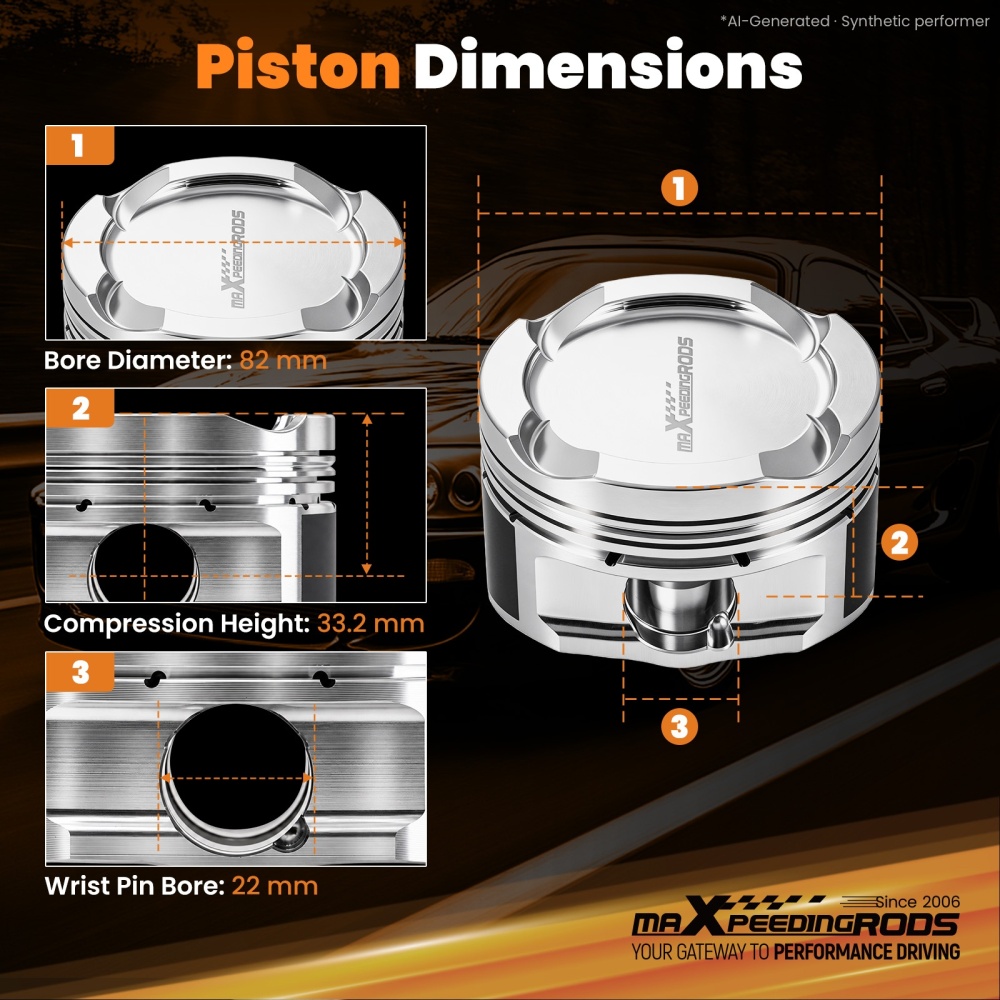

Specification

Bore: 82 mm
Piston pin bore diameter: 22 mm
Piston pin offset: 0.5 mm
Compression height: 33.2 mm
Compression ratio: 10.2:1
Volume: ≈ -12.93 cc

Top ring
Ring height: 1.0
Radial thickness: 3.10
Piston root diameter: 74.8
Second ring
Ring height: 1.2
Radial thickness: 3.55
Piston root diameter: 73.9
Oil ring
Ring height: 2.0
Radial thickness: 2.85
Piston root diameter: 75

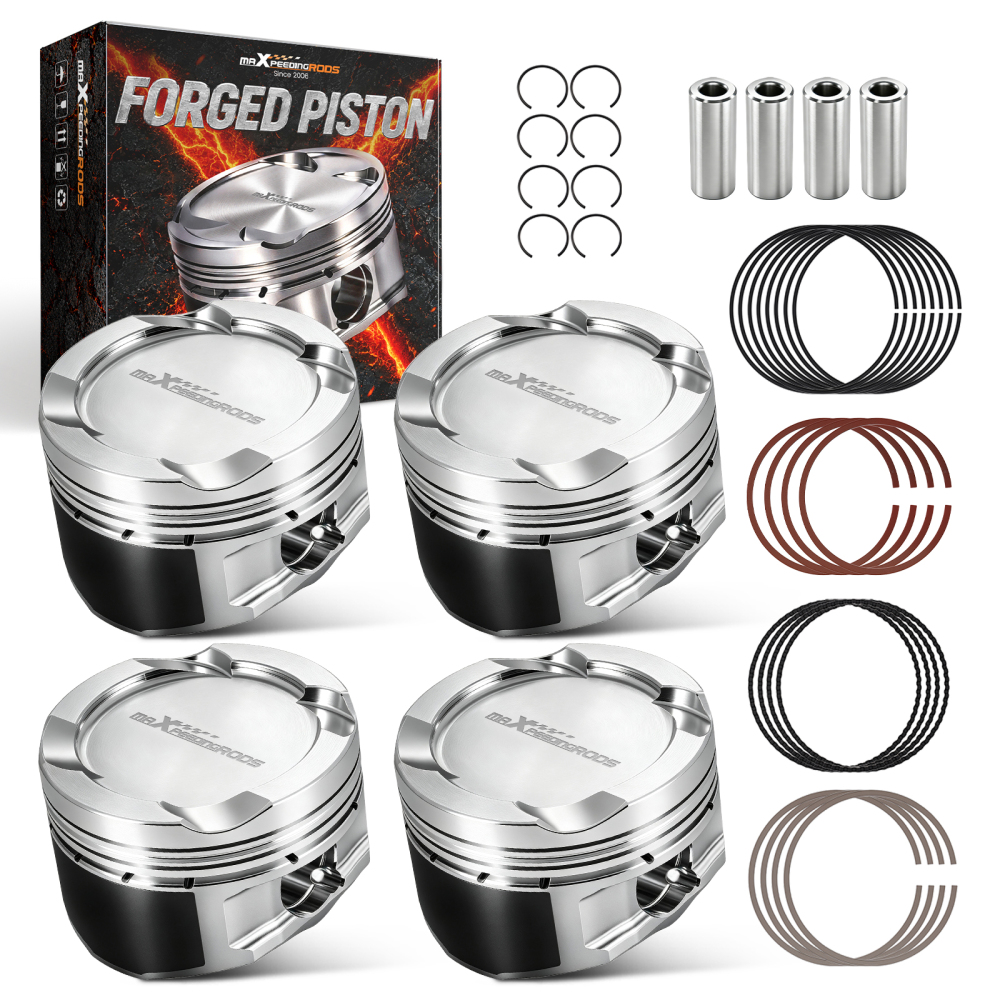

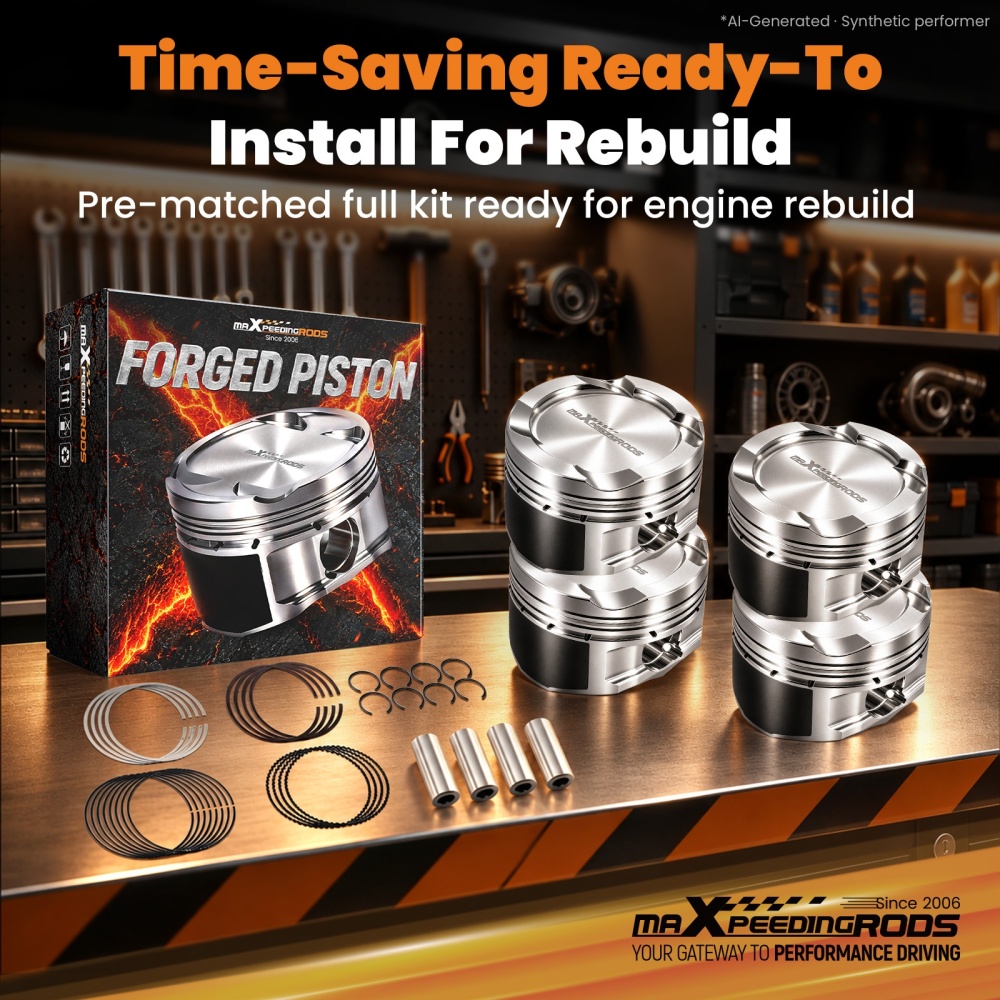

Package included

4x Forged pistons
4x Piston rings
4x Piston pins
4x Circlips

Feature

1. Lightweight Design: Reduces reciprocating inertial forces, improves mechanical efficiency and speed ramp-up and deceleration, enhances throttle response and redline speed, and reduces crankshaft and connecting rod load.

2. 5-Axis CNC Precision Forging: Each piston undergoes 3D stress simulation optimization to eliminate weak points and ensure uniform stress distribution; material thickness is precisely controlled in key areas such as the piston top surface, skirt, and pin holes to achieve "on-demand strength distribution."

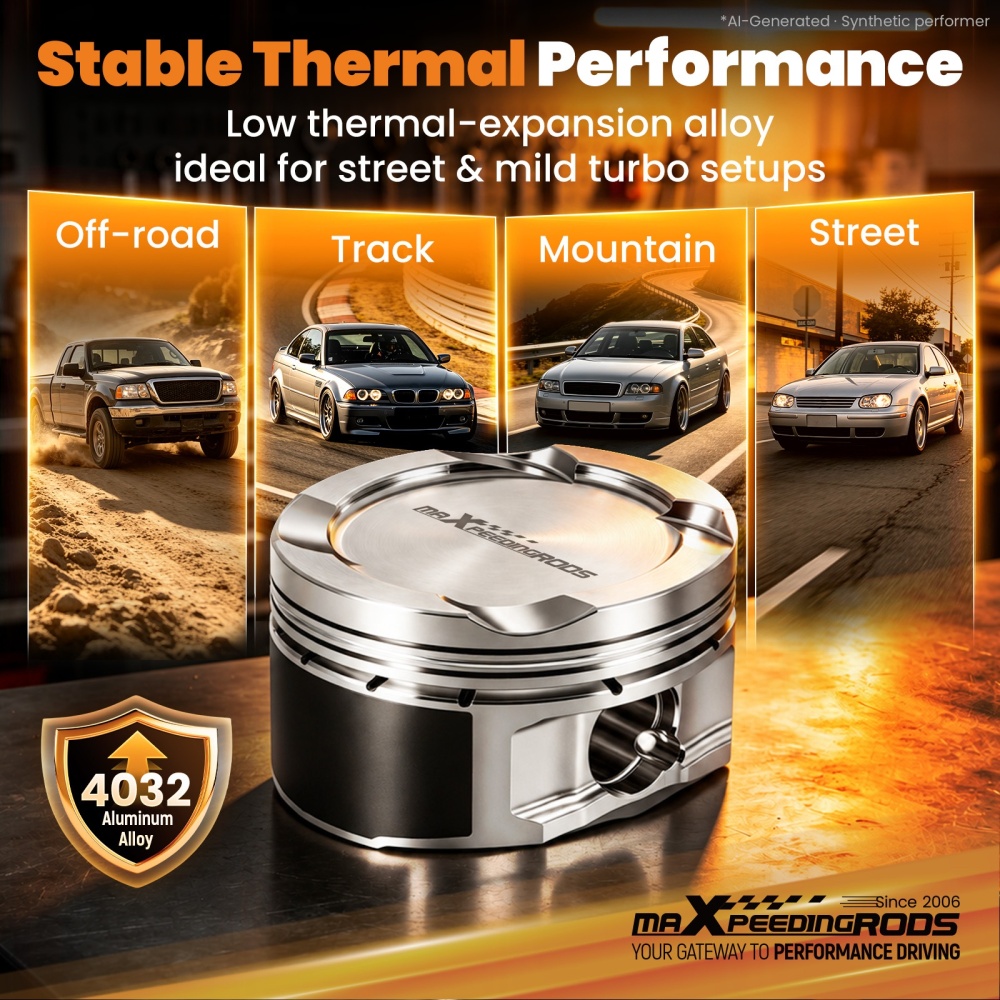

3. 4032 Aluminum Alloy: Low coefficient of thermal expansion, suitable for low-boost, street, and entry-level racing vehicles.

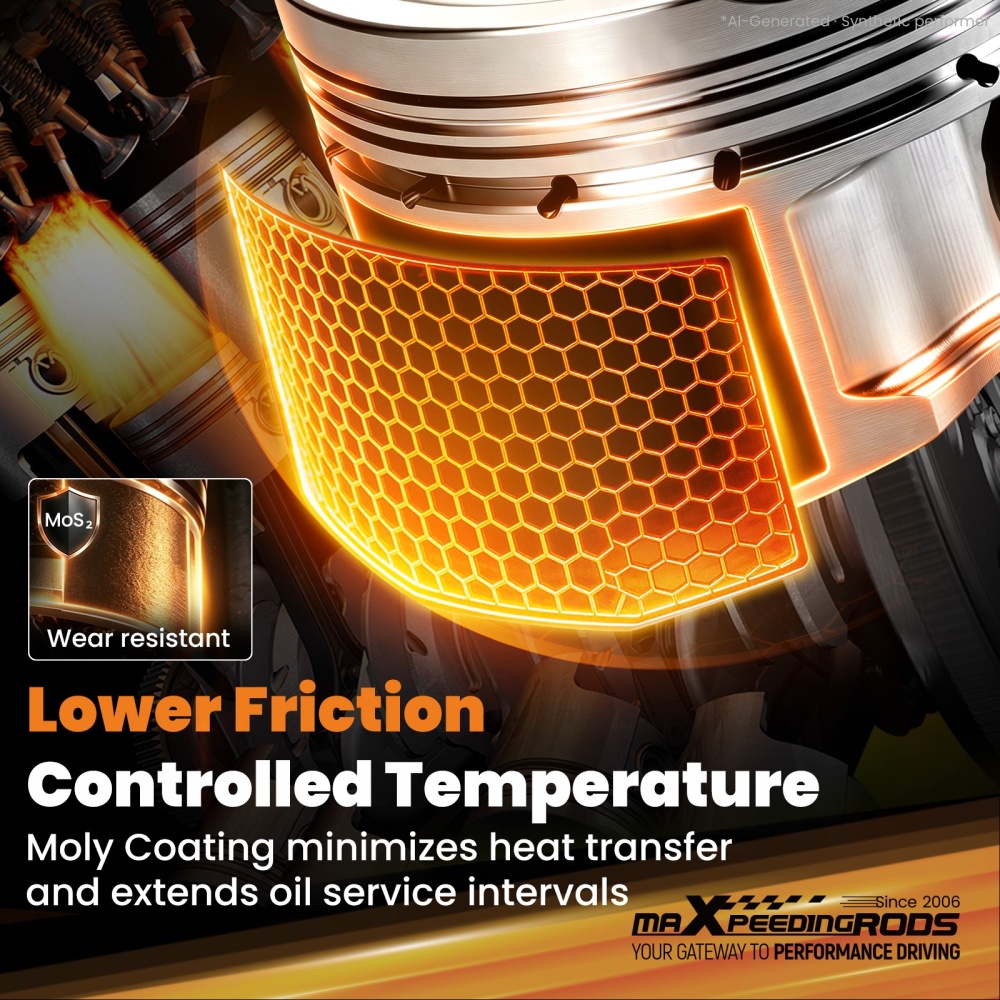

4. Piston Skirt Coating Technology: Anti-wear molybdenum disulfide skirt coating reduces the friction coefficient between the piston and cylinder wall, improves wear resistance, resists corrosion, reduces heat conduction, lowers operating temperature, and thus extends oil life.

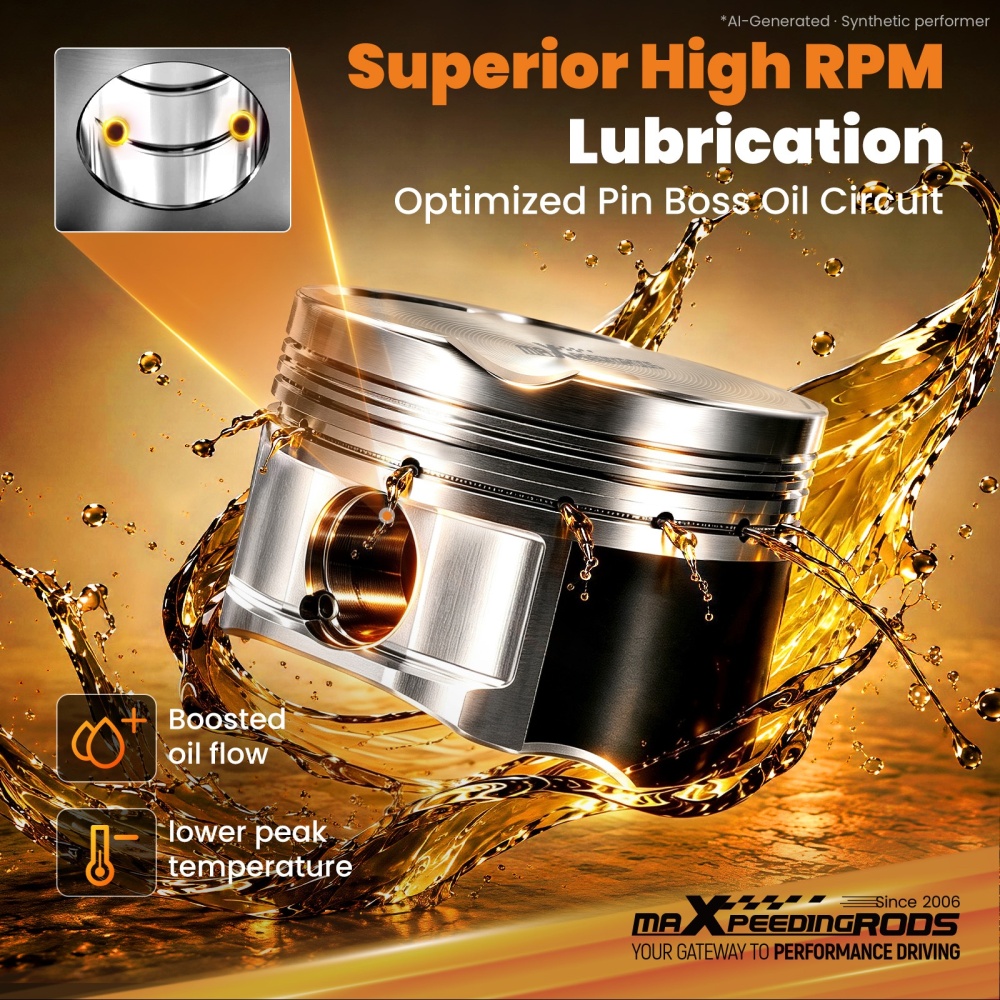

5. Optimize the design of pin hole oil groove and oil hole: improve lubrication effect under high speed and high load, reduce friction and wear, and prevent overheating.

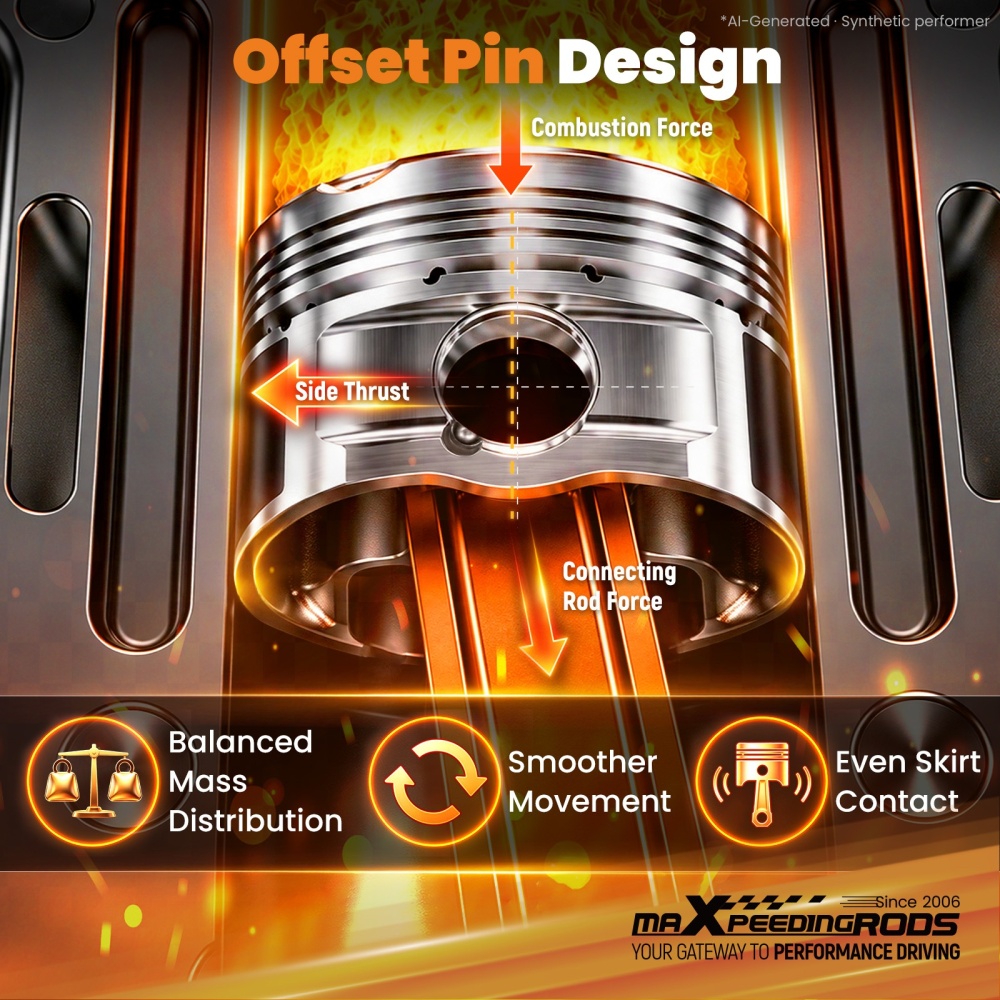

6. Eccentric Design: Reduces lateral forces, suppresses piston knocking noise, improves piston smoothness at top dead center, and reduces the risk of unilateral wear and blow-by.

7. Tolerance Control: Weight is controlled by precisely removing material from non-load-bearing areas, managing batch weight deviations to ensure the balance of the four-cylinder engine. Tolerance range ±0.005-0.01mm, weight tolerance ±1g.

Note

Important Notes
* Verify key specifications: Confirm that the cylinder bore, piston pin bore size, and compression ratio are compatible.
* All modifications are recommended to be performed by a certified technician and must comply with local modification regulations.
