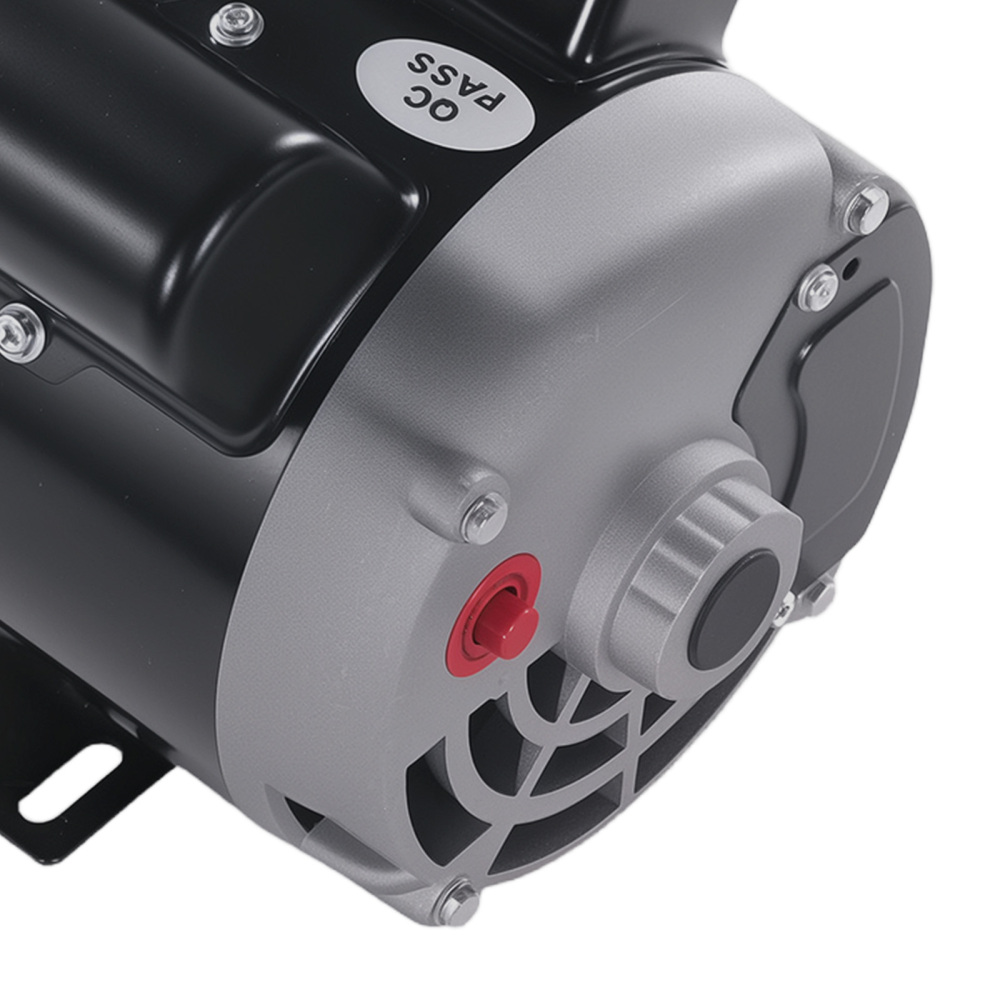

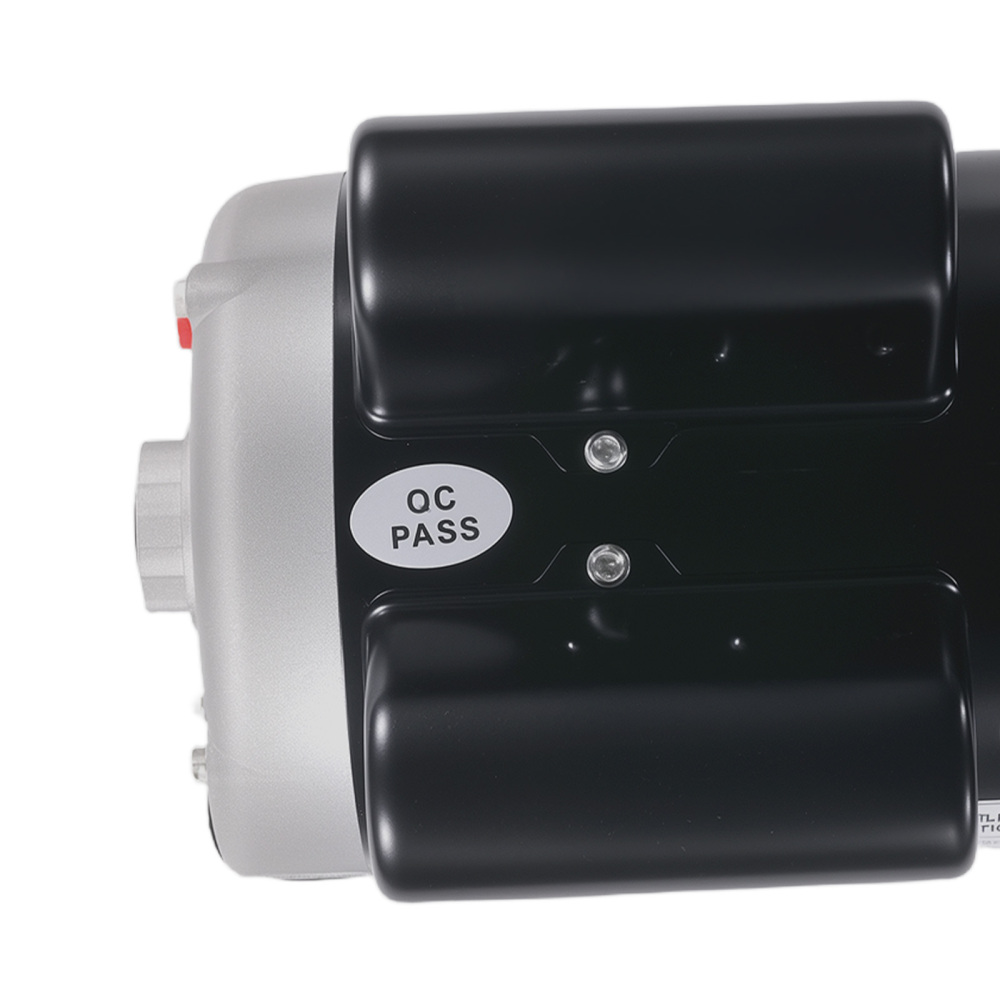

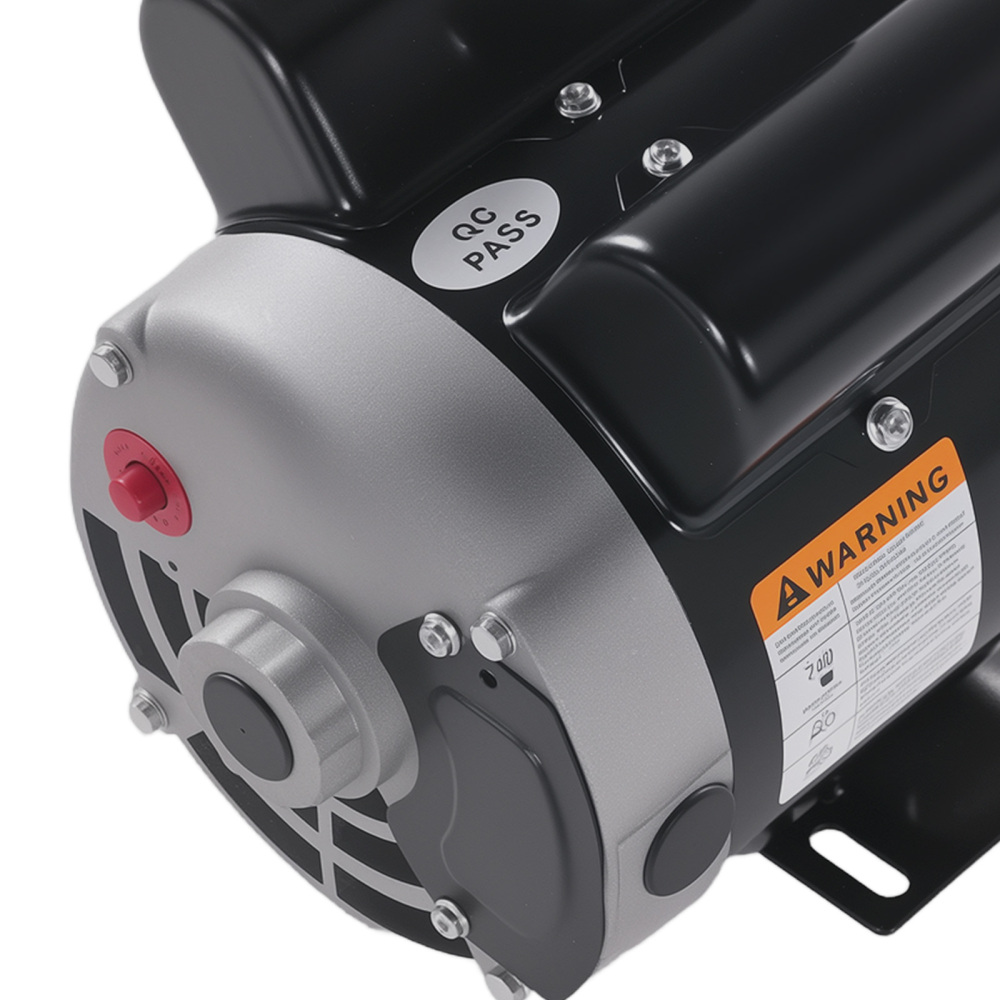

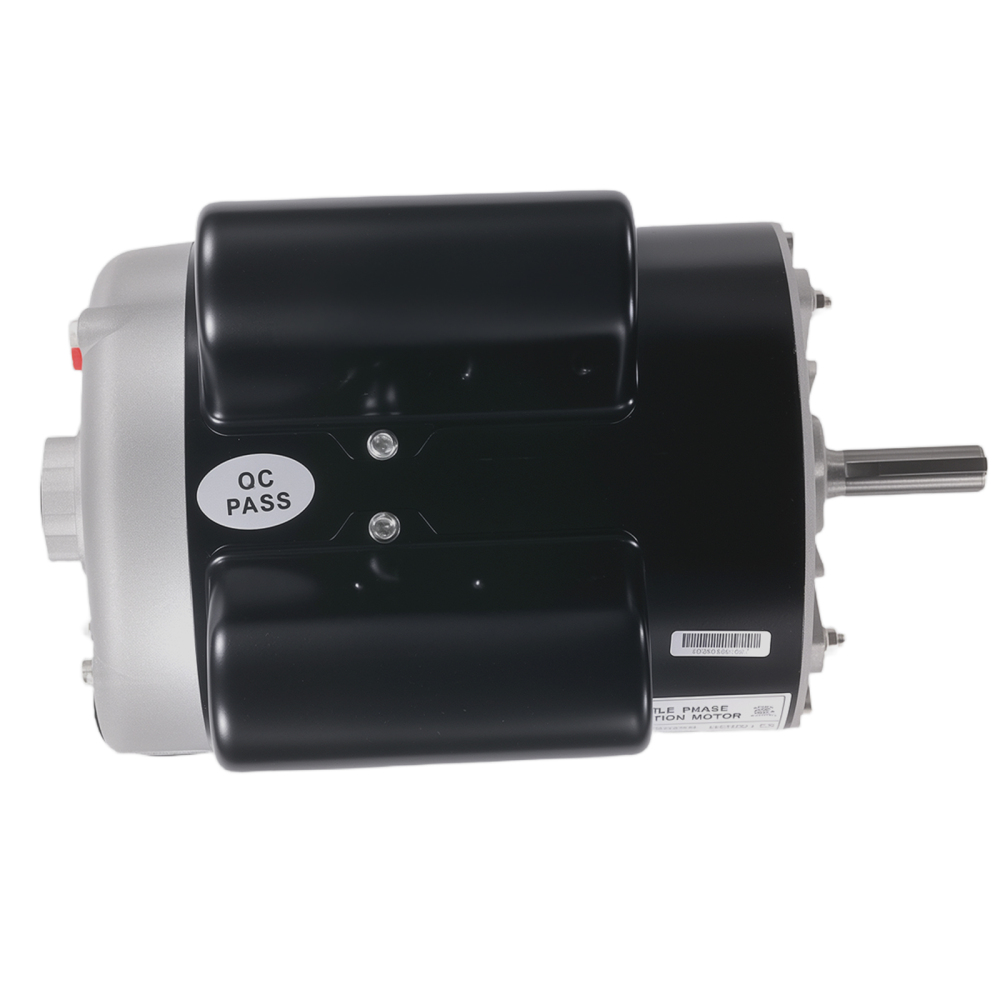

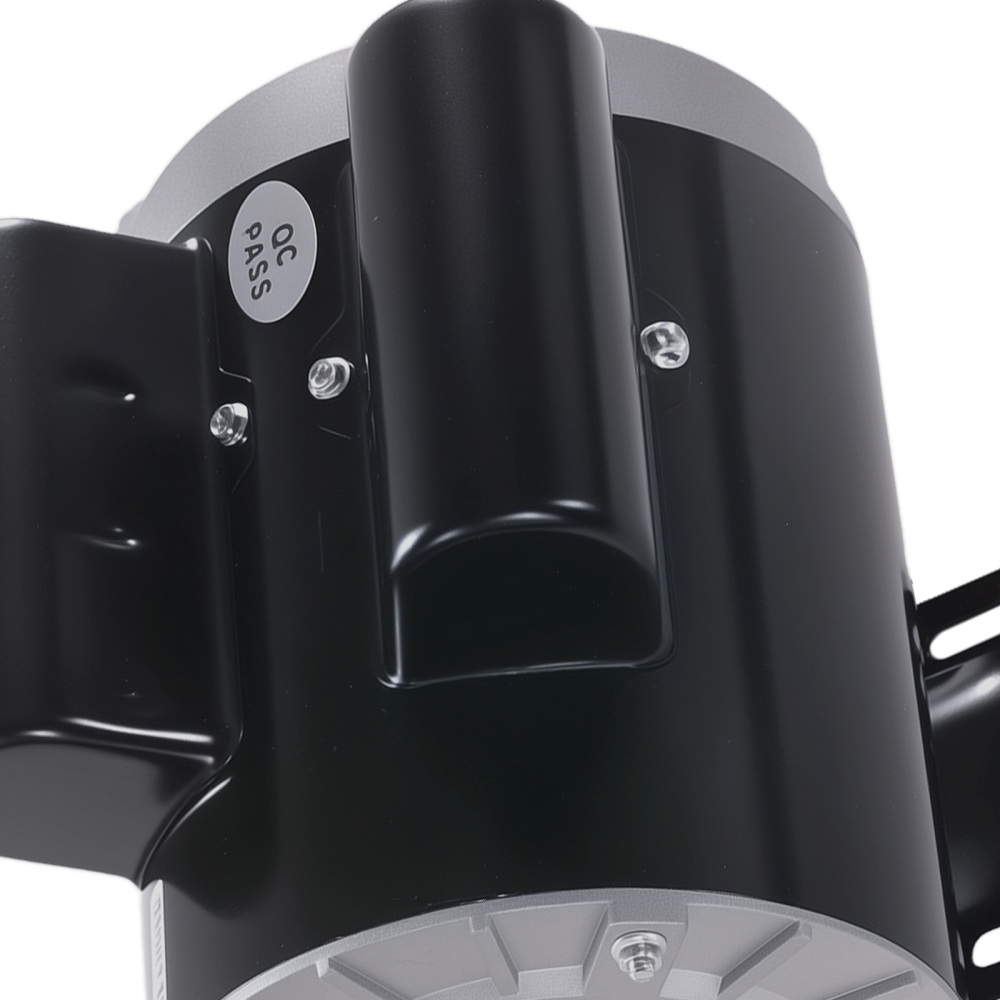

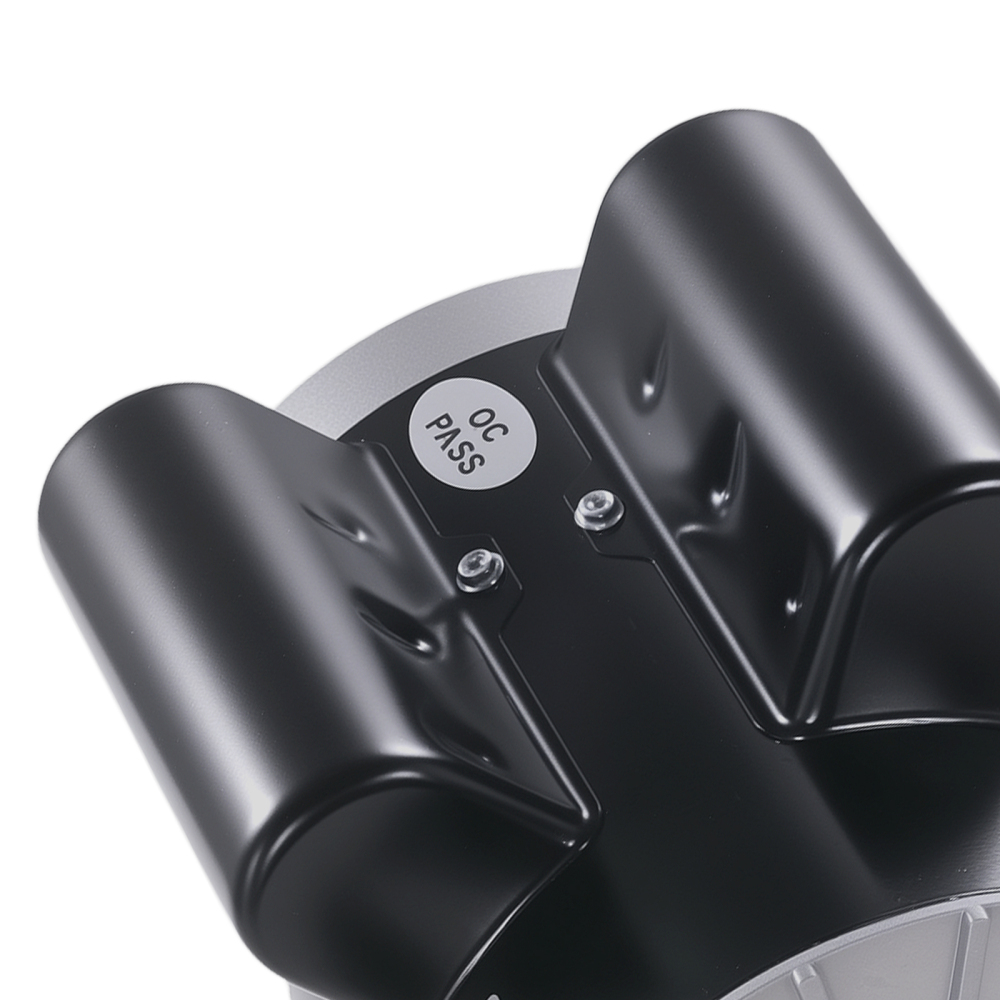

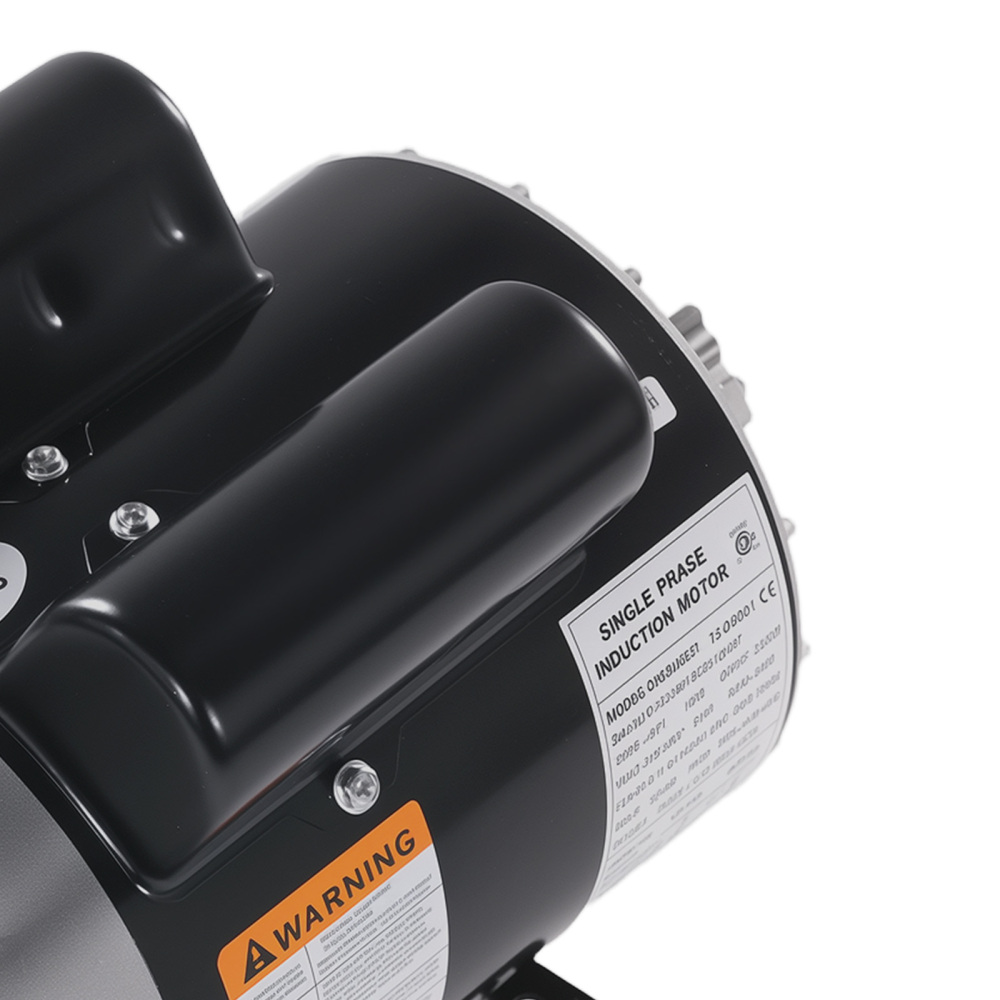

3HP SPL Compressor Duty Electric Motor 115/230V Single Phase 3450 RPM 56

Application

This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications.

Specification

Type: SPL
Input: 2.2 kW
Horsepower: 3 HP SPL
Voltage: 115/230V
Phase: Single Phase, 2 Pole
Amperage: 18/9A
Rated Speed: 3450 RPM
Frequency: 60 Hz
Synchronous Speed: 3600 RPM
Frame: 56 Frame

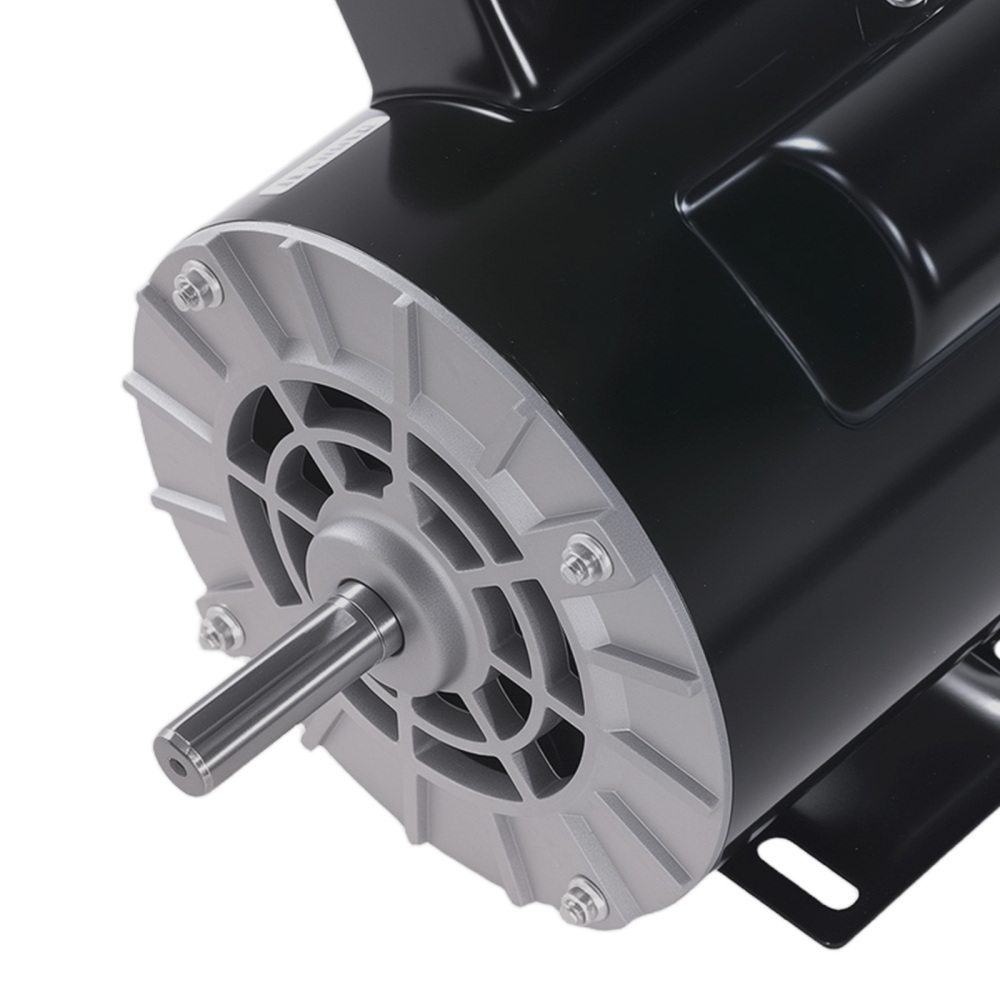

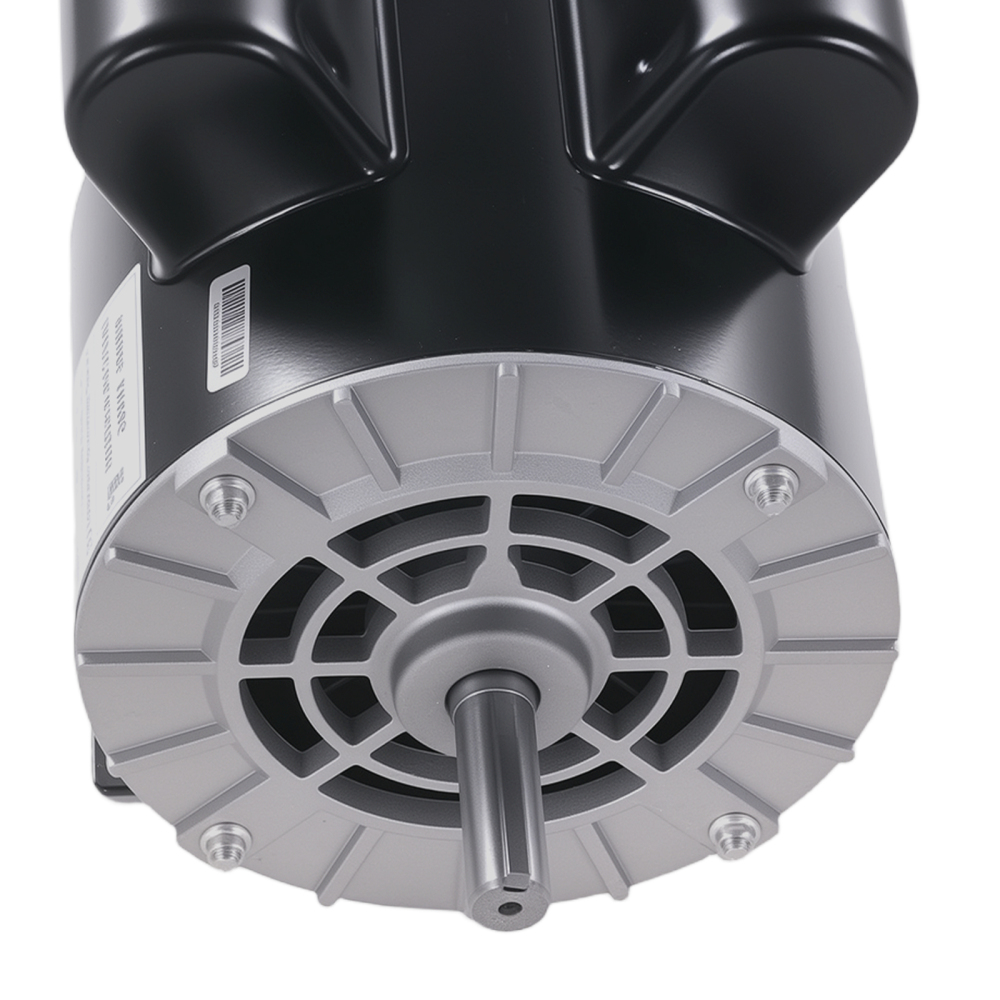

Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
Shaft Length: 1.875 in / 4.8 cm
Rotation: CCW
Service FCompatible for ACtor: 1
Efficiency: 80%
Insulation Class: F
Mounting Type: Base-Mounted
Enclosure Type: ODP (Open Drip-Proof)
IP Rating: IP 23
Current Type: Compatible for AC

Package included

1x Compressor Duty Electric Motor
1x Manual

Note

Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

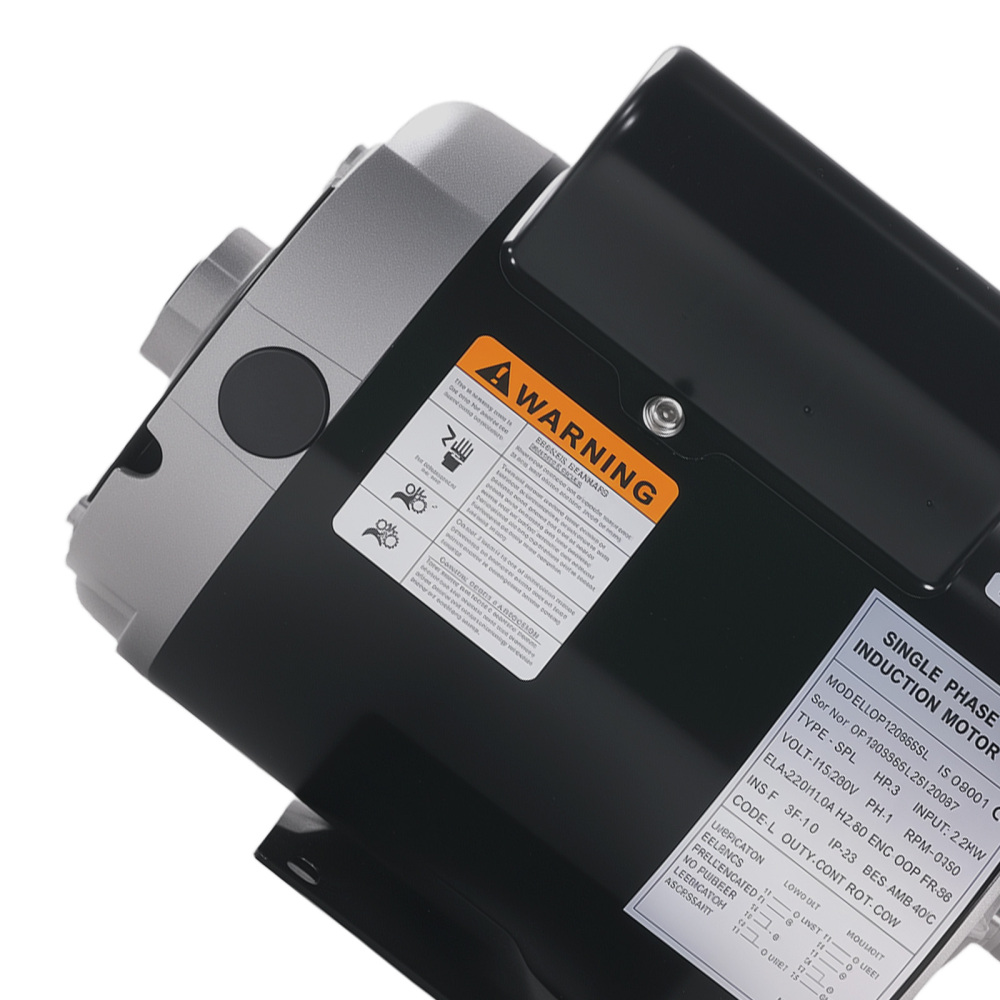

This model of ours is a 3hp SPL and cannot be directly used as a 3-horsepower motor. Please do not purchase the wrong one. Please provide the customer with a photo of the original motor nameplate (note that it is not the nameplate photo of our motor) to prevent the customer from buying the wrong motor.
