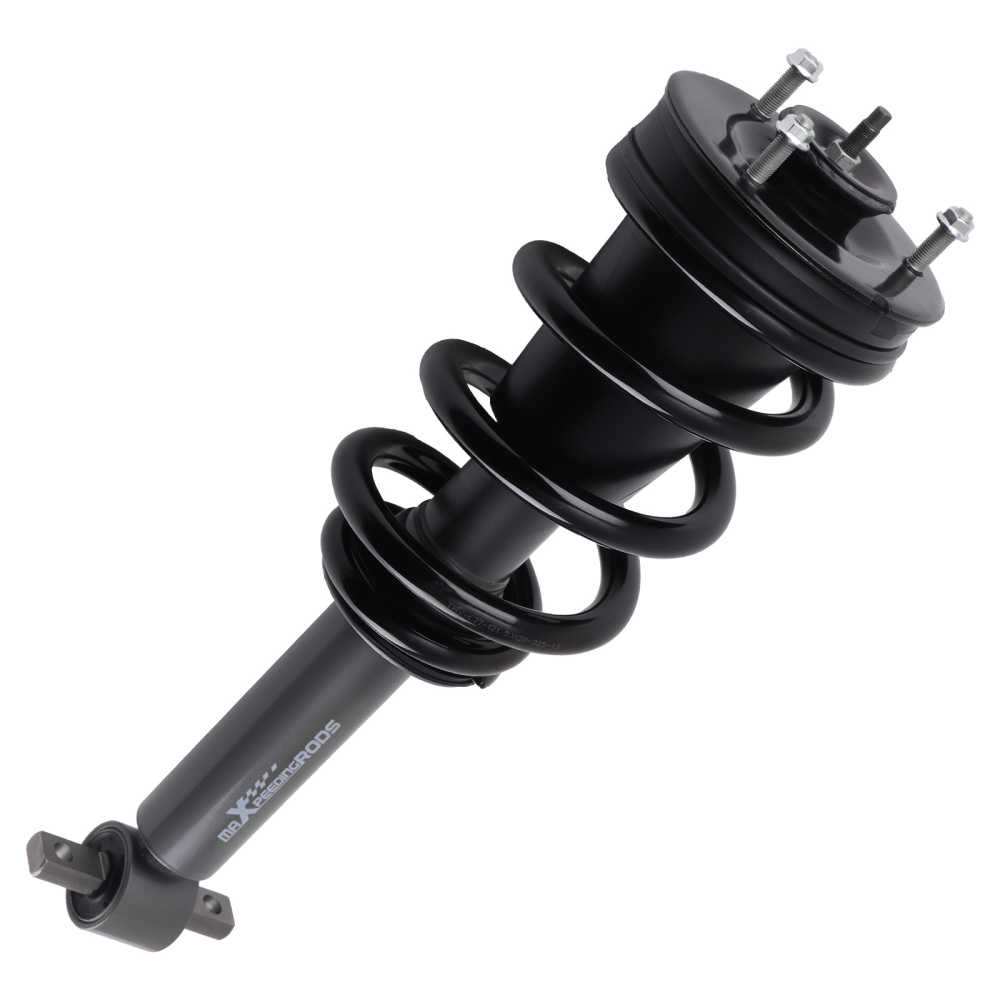

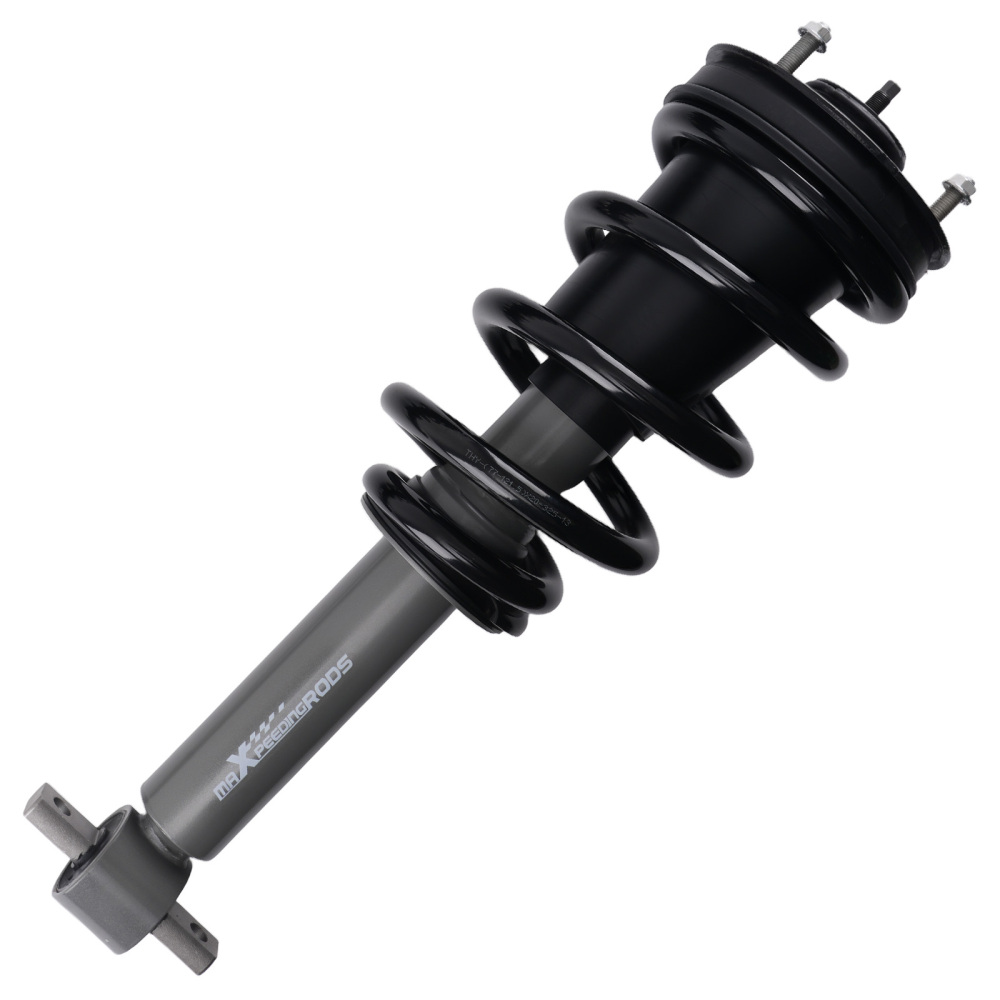

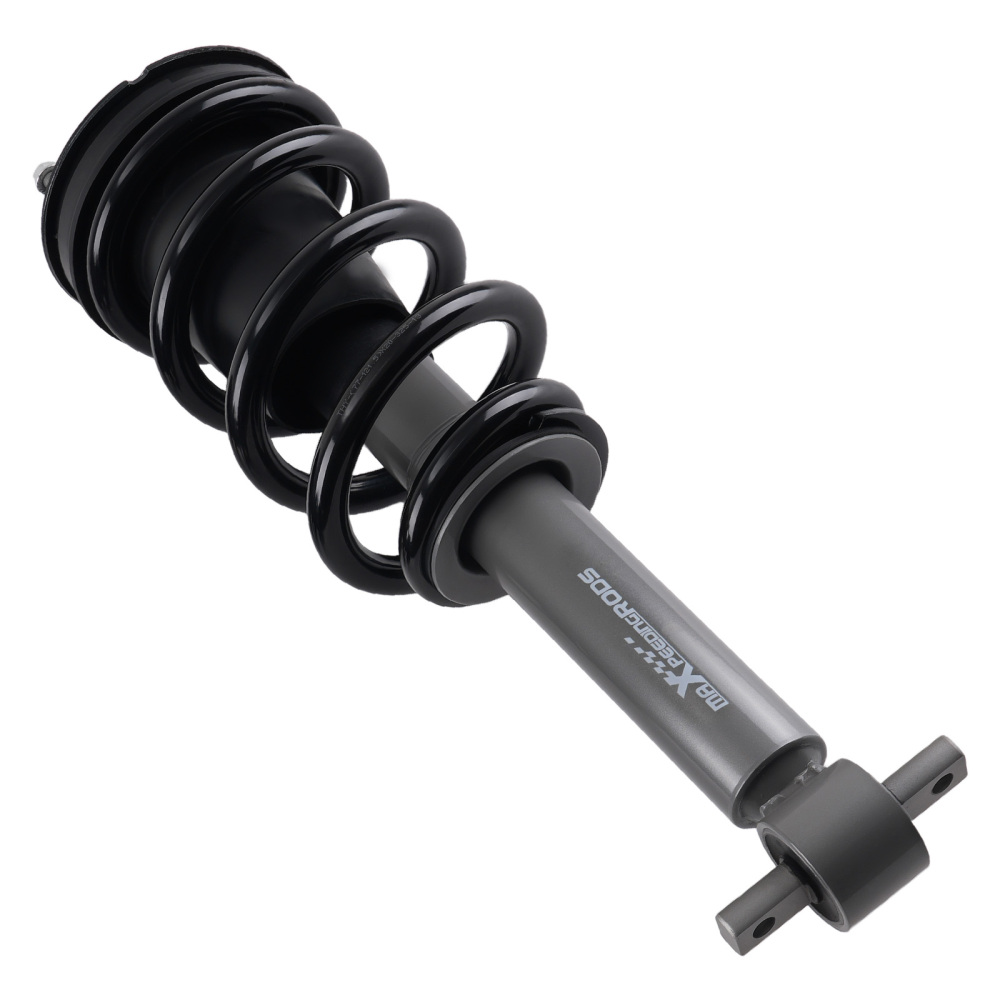

3.5 Front Lift Strut compatible for Chevy Silverado 1500 2014-2018 4WD w/ Spring

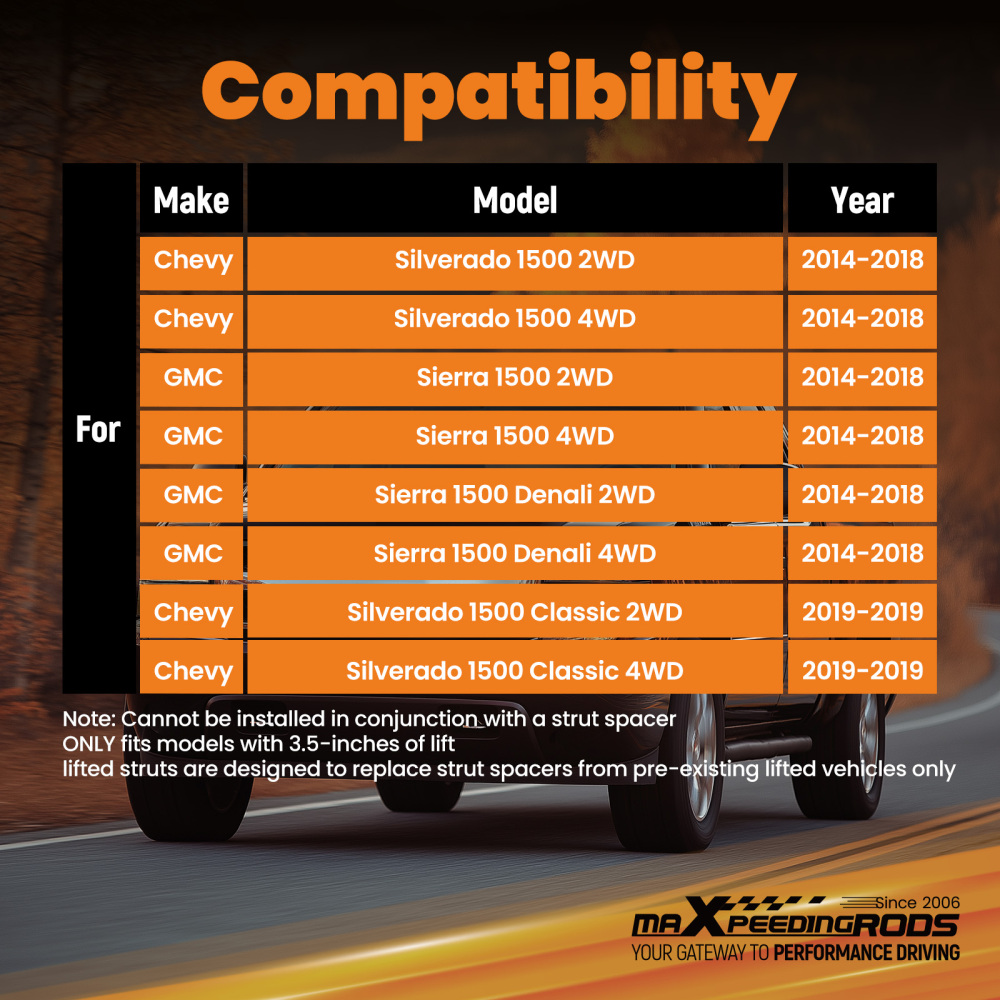

Application

for 2014-2018 2WD compatible for Chevy Silverado 1500
for 2014-2018 4WD compatible for Chevy Silverado 1500
for 2014-2018 2WD compatible for GMC Sierra 1500
for 2014-2018 4WD compatible for GMC Sierra 1500
for 2014-2018 2WD compatible for GMC Sierra 1500 compatible for Denali
for 2014-2018 4WD compatible for GMC Sierra 1500 compatible for Denali
for 2019-2019 2WD compatible for Chevy Silverado 1500 Classic
for 2019-2019 4WD compatible for Chevy Silverado 1500 Classic
NOTE:Cannot be installed in conjunction with a strut spacer
ONLY fits models with 3.5-inches of lift
lifted struts are designed to replace strut spacers from pre-existing lifted vehicles only

Specification

type：lift strut

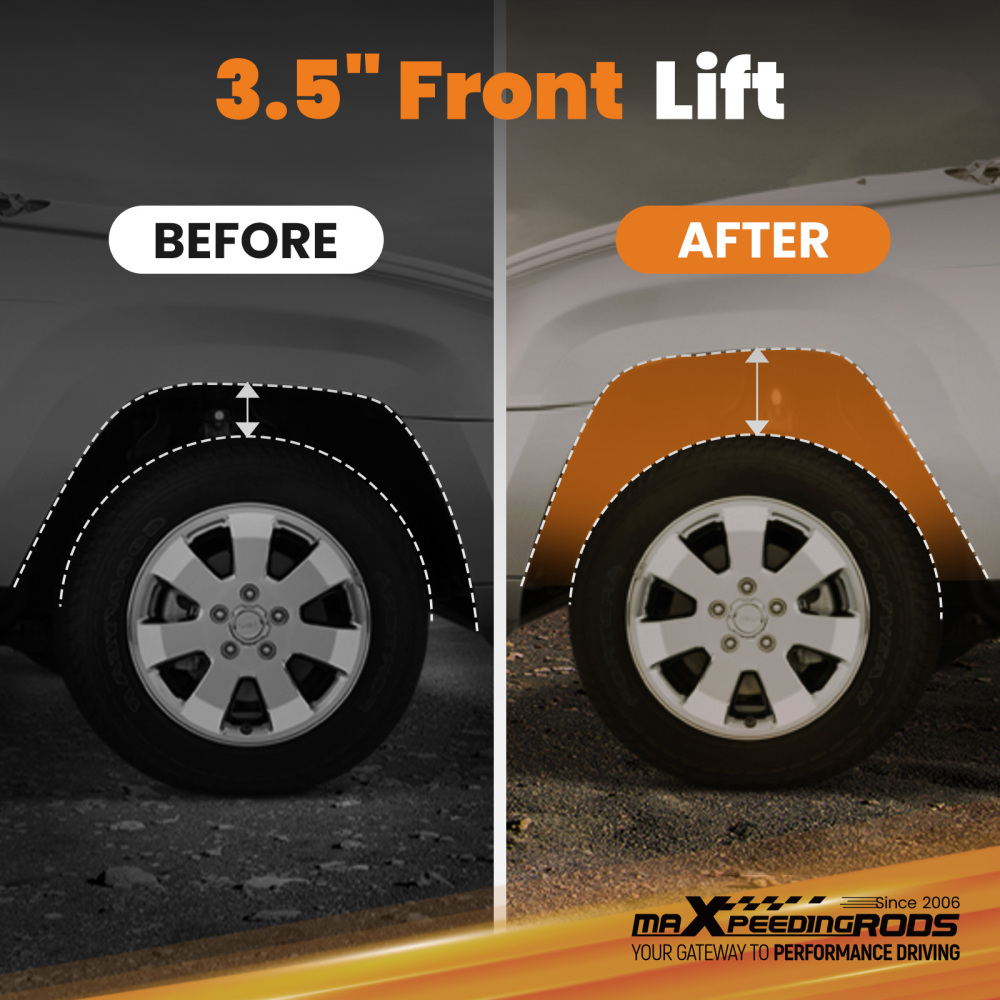

Lift Height: front 3.5"
Material: High Tensile Strength Carbon Steel
Finish: Powder coated
Bushing material: Rubber
Diameter of piston rod: F18mm/0.70"
Piston diameter：F 35mm/1.37"
Outer cylinder diameter: F 54mm/2.12"

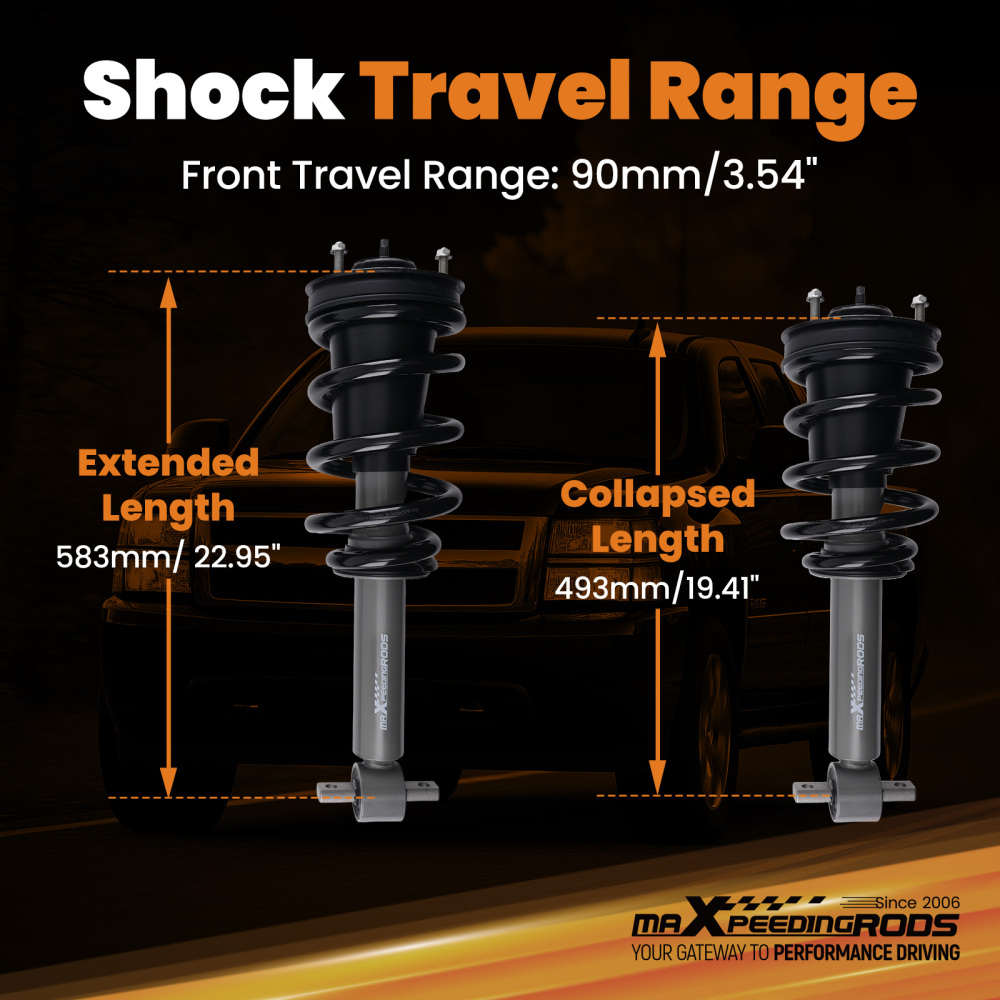

Travel: F: 90mm/3.54"
extended length: F: 583mm/ 22.95"
collapsed length:F: 493mm/ 19.41"
Nitrogen charged：yes
dust cover equipped: yes

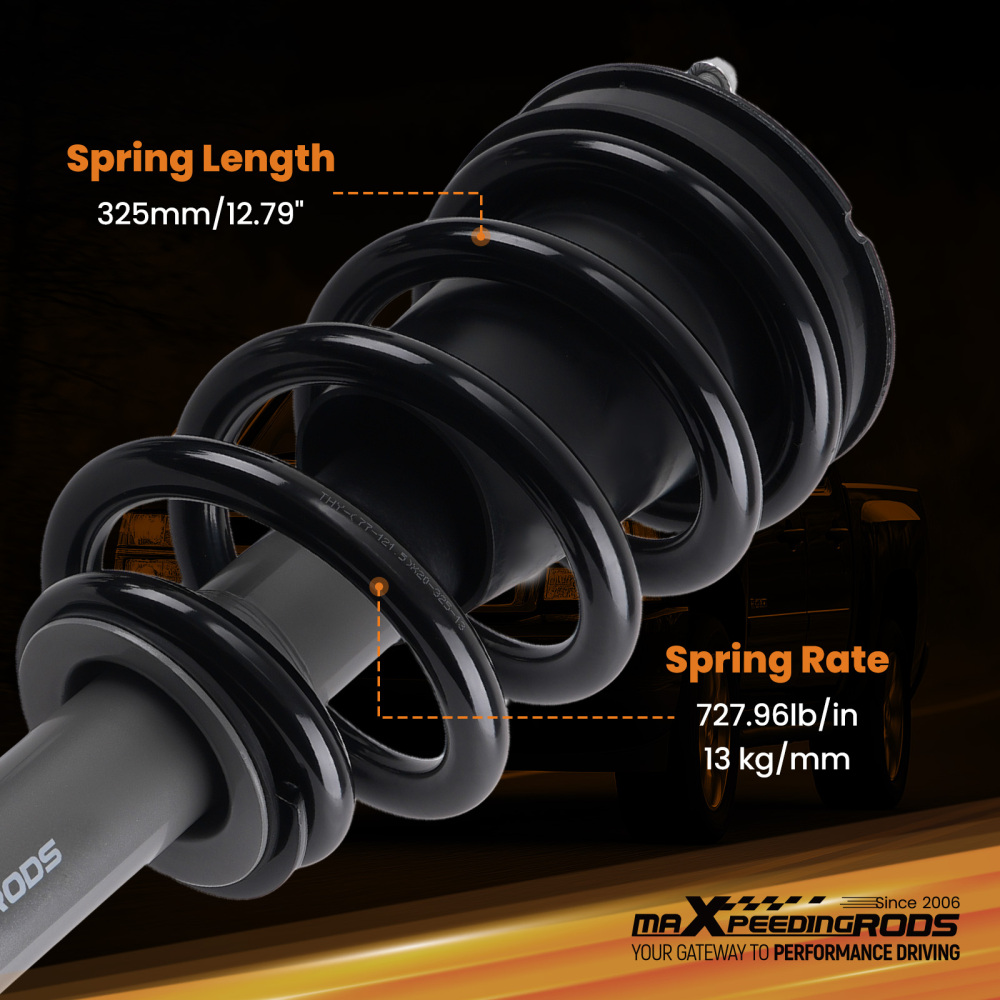

Spring rate：325mm/12.79"
spring rate: 727.96 lb/in = 13 kg/mm
spring material: 55CrSi
Spring Tensile Strength：1500-1700MPA

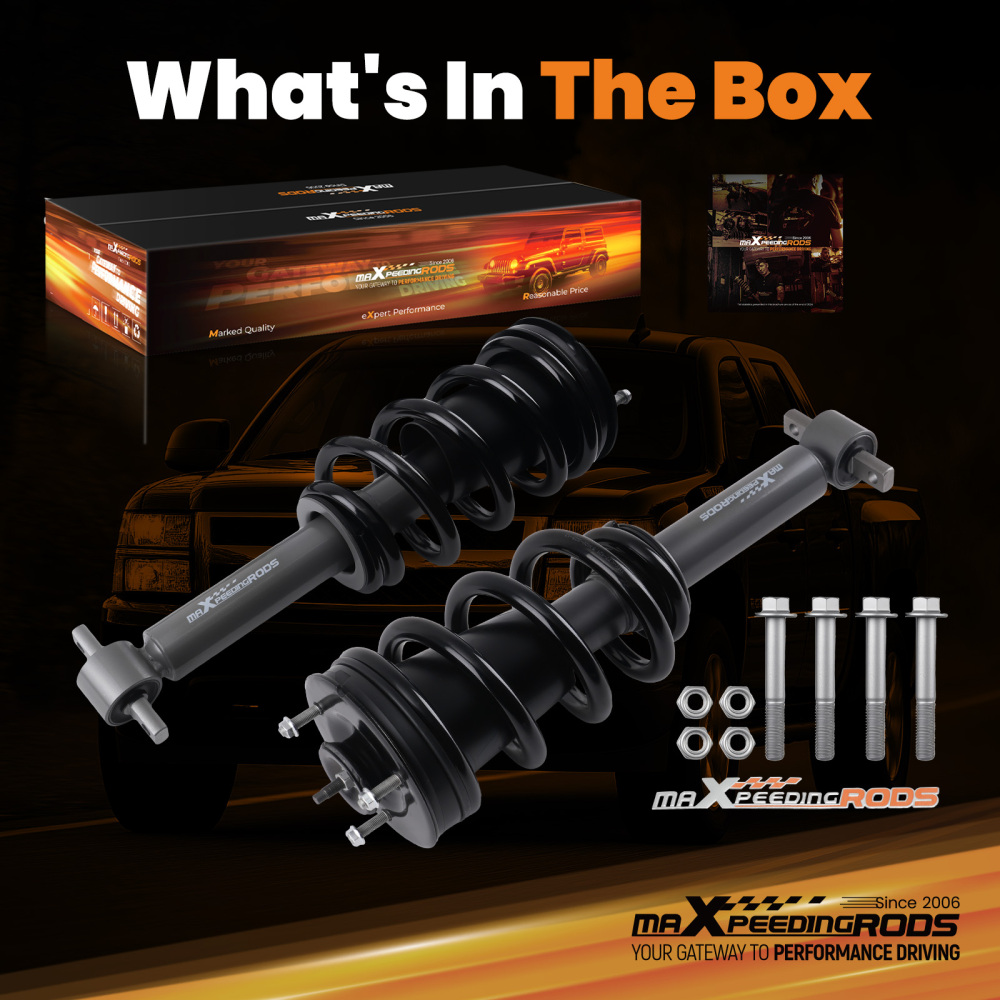

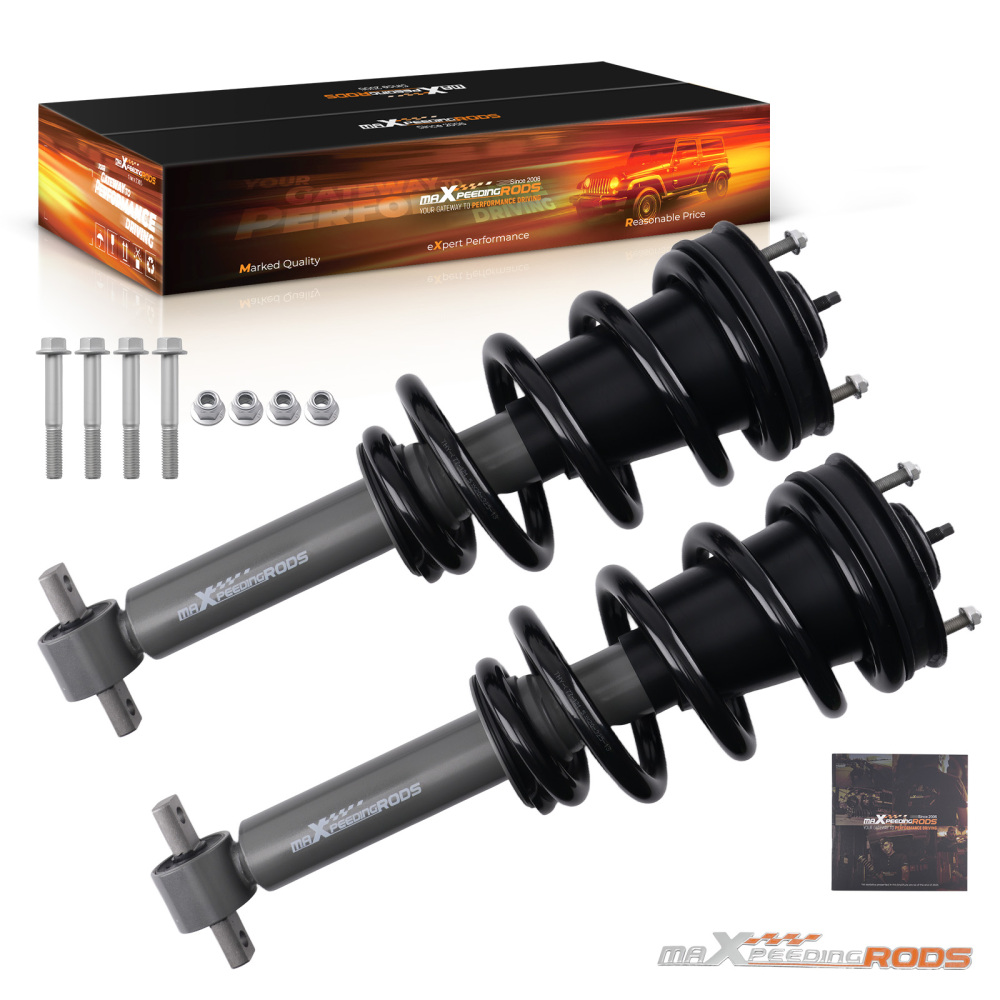

Package included

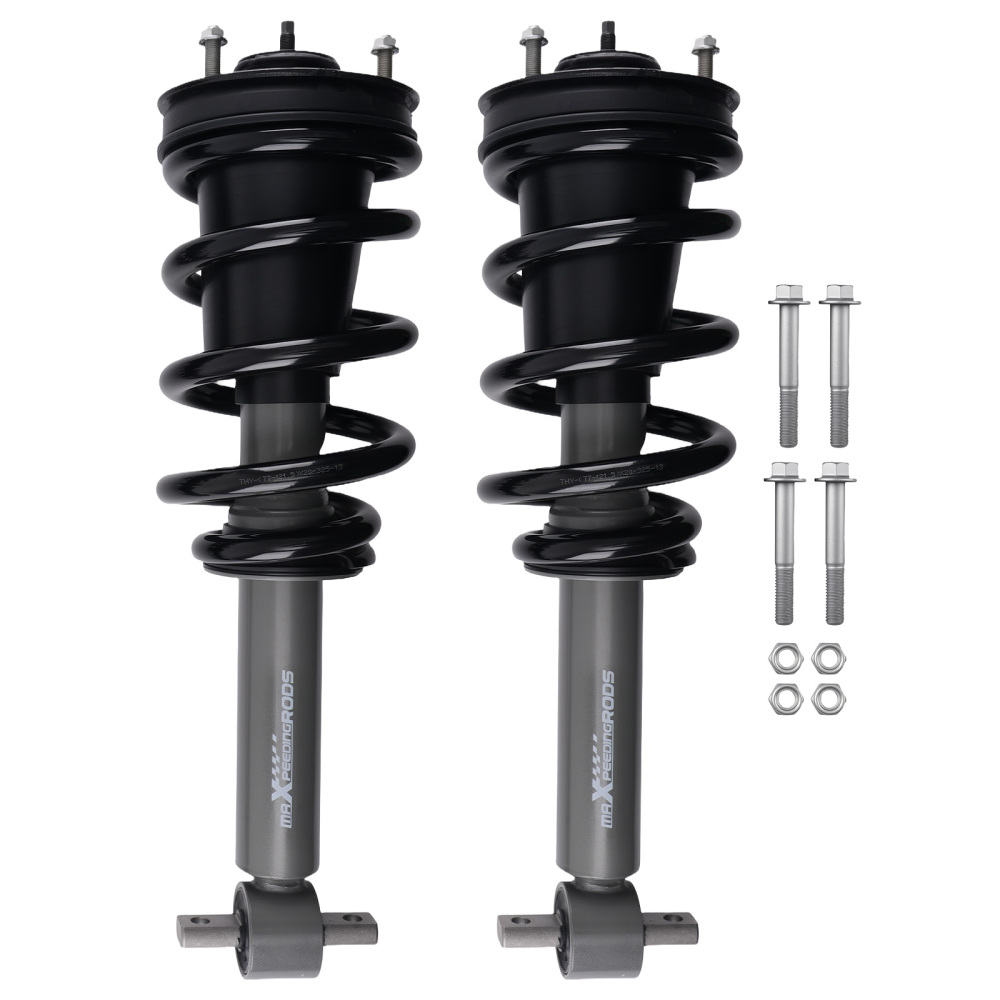

2x front Struts

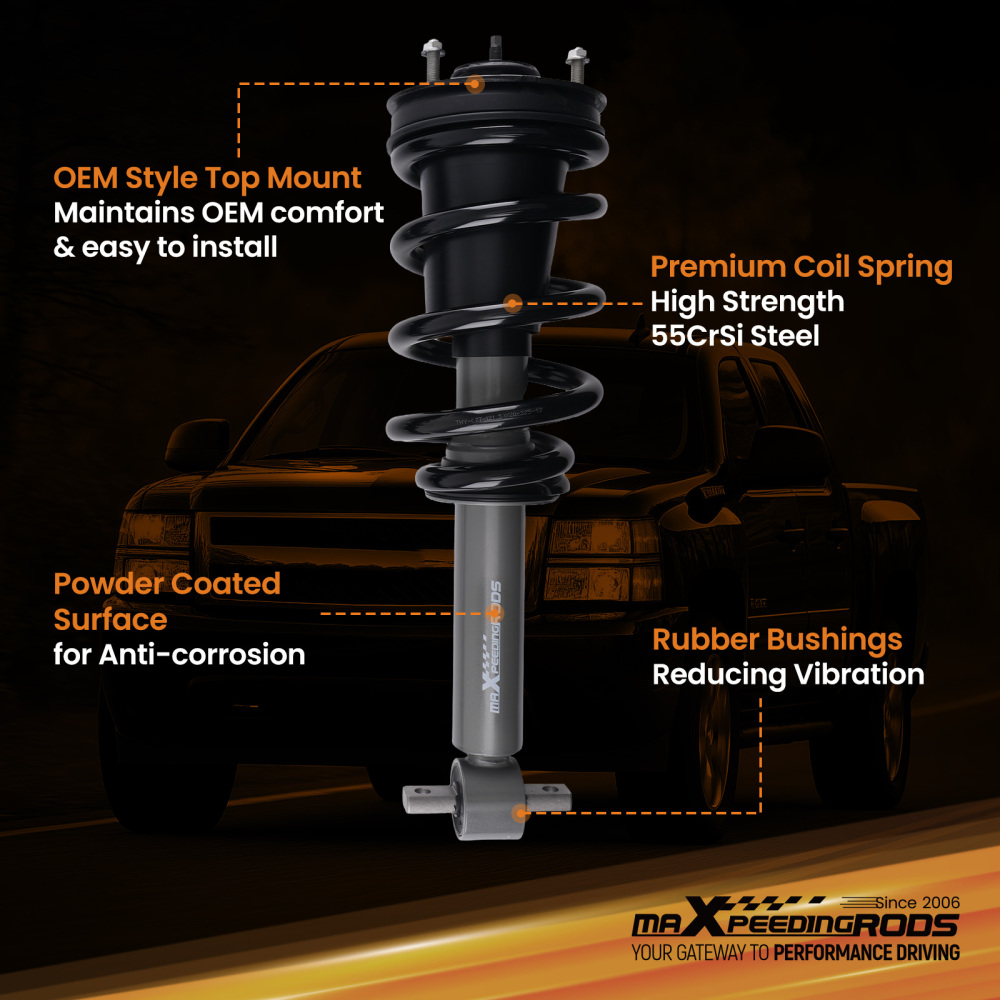

Feature

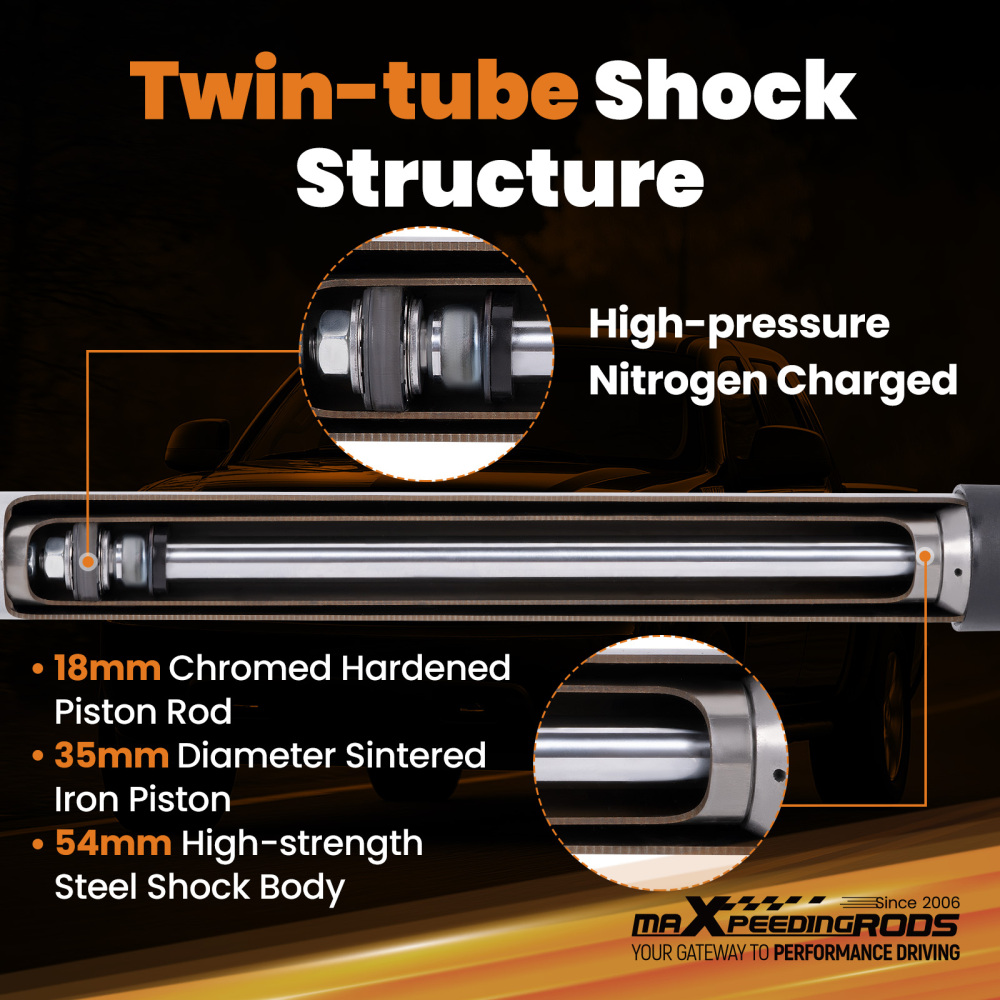

High-pressure nitrogen charged twin-tube shock absorber with high durability.
Rubber bushings for better absorption.
18mm Chromed Hardened Piston Rod.
35mm Diameter Sintered Iron Piston.
54mm body diameter for better heat dissipation
36KN Tensile Strength.
Dust cover included prevent the shaft rod and oil seal from damaging.
Precision Welding.
Improve your off-road ride.
